GSXED18 SUBWOOFER SYSTEM
USER MANUAL 1.0 (preliminary)
2
Important Safety Instructions
1. READ THESE INSTRUCTIONS
All the safety and operating instructions should be read before the product is operated.
2. KEEP THESE INSTRUCTIONS
The safety and operating instructions should be retained for future reference.
3. HEED ALL WARNINGS
All warnings on the product and in the operating instructions should be adhered to.
4. FOLLOW ALL INSTRUCTIONS
All operating and use of instructions should be followed.
5. DO NOT USE THIS APPARATUS NEAR WATER
Do not use the product near water. For example, near a bathtub, washbowl, kitchen sink,
or laundry tub, in a wet basement, or near a swimming pool, and the like.
6. CLEAN ONLY WITH DRY CLOTH
Unplug the unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
7. DO NOT BLOCK ANY VENTILATION OPENINGS
Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure
reliable operation of the limit and to protect it from overheating. These openings must not
be blocked or covered. The openings should never be blocked by placing the product on a
bed, sofa, rug, or similar surface. This product should never be placed near or over a
radiator or heat source. This product should not be placed in a built-in installation such as
a bookcase or rack unless proper ventilation is provided or the manufacture's instructions
have been adhered to.
8. DO NOT INSTALL NEAR ANY HEAT SOURCES
This Product should be situated away from heat sources such as radiators, stoves, or
other products (including amplifiers) that produces heat.
9. DO NOT DEFEAT THE SAFETY PURPOSE OF THE POLARIZED OR GROUNDING-
TYPE PLUG
3
A Polarized plug has two blades with one wider than the other. A grounding-type plug has
two blades and a third grounding prong. The wide blade or the third prongs are provided
for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. PROTECT THE POWER CORD FROM BEING WALKED ON OR PINCHED
PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT
WHERE THEY EXIT FROM THE APPARATUS.
11. ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED BY THE
MANUFACTURER.
12. Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may
fall, causing serious injury to someone, and serious damage to the appliance. A unit and
cart combination should be moved with care. Quick stops, excessive force, and uneven
surfaces may cause the product and cart combination to overturn.
13. UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED
FOR LONG PERIODS OF TIME.
For added protection for this unit during a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet and disconnect the antenna
or cable system. This will prevent damage to the unit due to lightning and power line
surges.
14. REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL. SERVICING IS
REQUIRED WHEN THE APPARATUS HAS BEEN DAMAGED IN ANYWAY, SUCH AS
WHEN THE POWER SUPPLY CORD OR PLUG IS DAMAGED, LIQUID HAS BEEN
SPILLED OR OBJECTS HAVE FALLEN INTO THE APPARATUS, THE APPARATUS
HAS BEEN EXPOSED TO RAIN OR MOISTURE, DOES NOT OPERATE NORMALLY,
OR HAS BEEN FROPPED.
15. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
16. APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO
OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE
APPARATUS.
4
TABLE OF CONTENTS:
Introduction………………………………………………………. Page 5
System Components……………………………………………. Page 6
Plate Amplifier Module Set Up …………………………….. Page 7
Specifications……………………………………………... Page 8
Warranty and Contact Info…………………………………..... Page 9
|
5
Guzauski-Swist Audio Systems
INTRODUCTION
The Guzauski-Swist GSXED18 Subwoofer System consists of the finest state-of- the-art
components currently available. Accurate full bandwidth frequency response and wide
dynamic capability are hallmarks of this system.
Intended to extend the frequency range and power of our current speaker systems GS3a,
GS3b and GS4a. The GSXED18 comes either passive or active.
COMPANY NAME PRONUNCIATION
1) Pronunciation #1: Guzauski = Ga - Zow - Ski 2) Pronunciation #2: Swist = Swiss - Te
6
SYSTEM COMPONENTS
The complete GDSXED18 Subwoofer System Studio Monitor System is comprised of the
components listed and shown below.

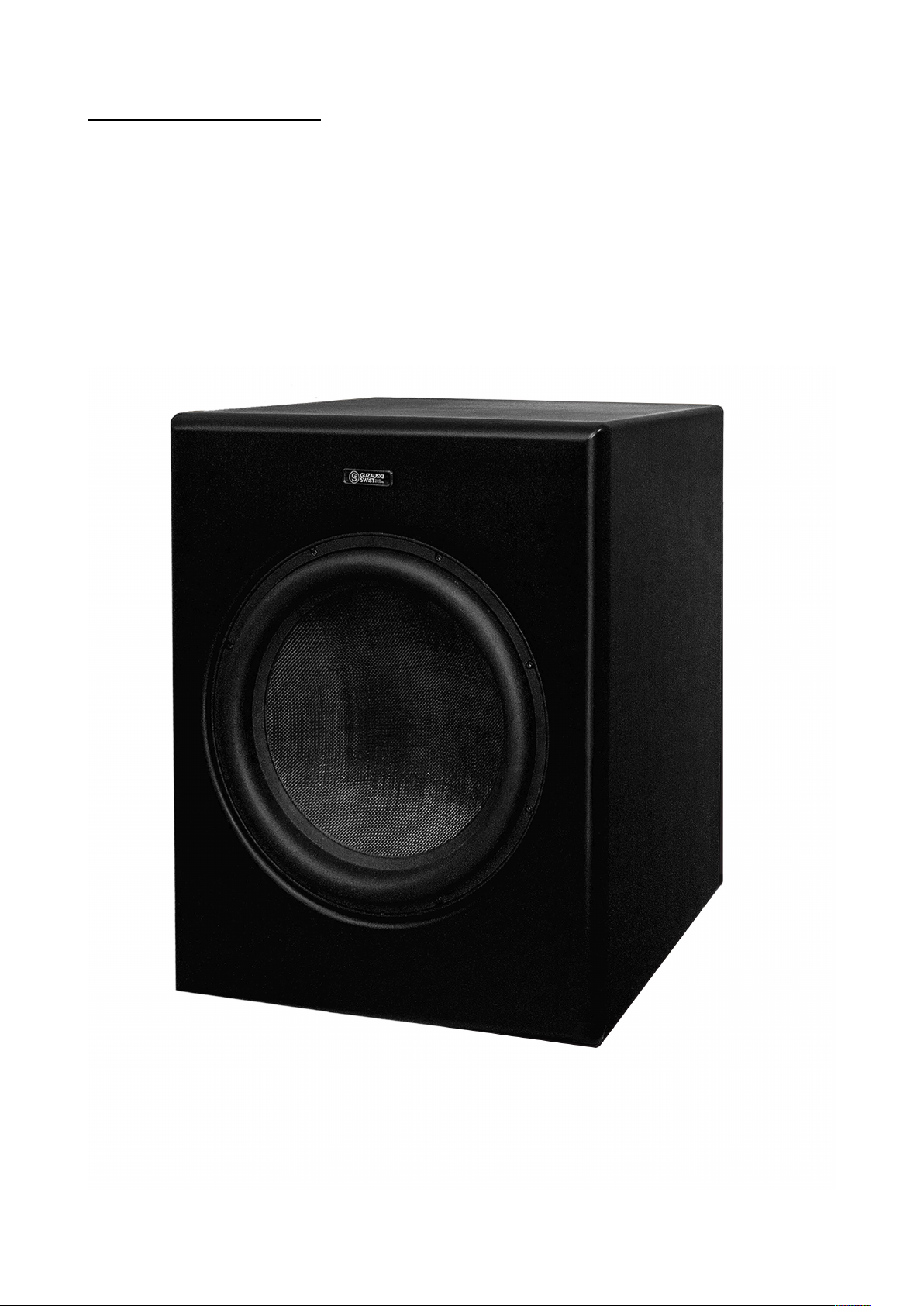

1) Low Frequency Driver Enclosure
2) optional one SpeakerPower Plater Amplifier Module including a DSP Processor Module
7
LOUDSPEAKER SET UP
The GSXED-18 are designed for a so-fit mounted system, but can be used standalone in
open space.
PLATE AMPLIFIER SET UP :
Inputs: 2 x RCA summing, XLR input
Switchable ON-Auto-OFF/12V trigger. Auto on with signal applied
12V trigger turn on. 3.5mm minijack input
Rotary controls:
Gain : Adjust the overall volume to Minus Infinity (mute) to 0dB
LF Adjust : Adjust the high pass frequency to 40 Hz Tone Shelf, +-12 dB, Boost / Cut,
Respectively.
Crossover : Adjust the crossover frequency Butterworth Low-Pass Filter, 60 Hz to 500 Hz.
Delay : Adjust the delay time when subwoofer reacts from 0 ms to 20 ms
Speaker Out :
The speaker out is design to run a second passive cabinet. So if you have the amp
connected to a 8ohm speaker and connect another 8 ohm speaker in a separate cabinet
using the speaker out, the amplifier load will have a 4 ohm load on the output which is post
procecessed. THE L R inputs are kind of weirdly named (not something I did) but
essentially if you plug into both signals L+R you will get the sum of both inputs.
8
SPECIFICATIONS :
Power Output: 1200W/4, 620W/8.
100VAC maximum output voltage,
38A maximum output current
AC Power Input: 100-240VAC 50/60Hz
CAUTION: KEEP AMPLIFIER MODULES TURNED OFF UNTIL ALL CONNECTIONS
ARE SECURED
9
Warranty:
2 years with registration : www.gsstudiomonitors.com
Service and contact info USA
Guzauski-Swist Audio Systems, LLC
PO Box 617
White Plains, NY 10603
USA
Phone : + 1 917 449 2480
Service and contact info EUROPE
MasteringWorks GmbH
Raderbergerstr.175
50968 Köln!
Germany
Phone : + 49 2236 393731
