GVA LIRA User manual

Architectural Spot & Flood Light INSTALLATION GUIDE
GVA Lighting, Inc. 3400 Ridgeway Drive, #14 Missisauga, Ontario L5L 0A2
Tel: + 1 905 569 6044 Email: [email protected] gvalighting.com
IG-LIRA, 2018-08-10 | Page 1 / 8
LIRA™
WARNING CAUTION
Do not attempt to install or use Luminaire until you have read and
understand this guide and safety labels.
Luminaires must be installed by a qualified professional in accordance
with all national and local electrical and construction codes and
regulations.
Ensure that main power supply is OFF before installing or wiring
luminaire(s).
Do not exceed specified voltage and current input.
Do not use luminaires with a damaged lens, body, or cable.
Not heeding cautions may result in a hazardous situation which can
cause equipment and property damage, personal injury, or death.
This product must be installed in accordance with the applicable
installation code by a person familiar with the construction and
operation of the product and the hazards involved.
Do not exceed the specified voltage and current input.
Do not exceed the maximum number of specified fixtures in a light
run. Doing so will result in a current overload.
GVA Luminaires have no serviceable parts. Do not attempt to open
the units.
Do not hot swap! Ensure power supply is off before connecting or
disconnecting fixtures.
Do not stare into beam or view directly with optical instruments.
Unauthorized feild repairs will void warranty.

Architectural Spot & Flood Light INSTALLATION GUIDE
GVA Lighting, Inc. 3400 Ridgeway Drive, #14 Missisauga, Ontario L5L 0A2
Tel: + 1 905 569 6044 Email: [email protected] gvalighting.com
IG-LIRA, 2018-08-10 | Page 2 / 8
Specifications are subject to change without notice. Every effort has been made to ensure that the information provided in this manual is accurate.
GVA Lighting Inc. is not responsible for printing or clerical errors. Refer to www.gvalighting.com for additional information.
LIRA™
1LUMINAIRE
INSTALLATION
1.1 MOUNTING PLATE
WARNING Use mounting hardware suitable for the mounting surface. Use of innappropriate hardware may result in dismounting of
the plate and can result in equipment damage, personal injury, or death.
Using 4 x M4 or No.8 Flathead Screws (not supplied) suitable for the mounting surface, install the mounting plate in desired location. See
"MOUNTING HOLE TEMPLATE" to mark holes prior to installation, if necessary.
MOUNTING HOLE
TEMPLATE
(1:1 SCALE)
NOTE: To ensure document is printed to scale measure
dimensions prior to use of template.
3.2mm
0.12in
Max.
REQUIRED HARDWARE:
M4 OR NO.8
FLATHEAD SCREW
(not supplied)
4X
1.2 MOUNTING
Using the 1 x No.10-32x0.375in Flathead Screw provided, fasten the luminaire
to the mounting plate.
REQUIRED HARDWARE:
NO.10-32X0.375IN
FLATHEAD SCREW
(supplied)
1X
241620
4MM PIN-IN-HEX
SECURITY ALLEN KEY
(supplied)
1.3 ADJUSTMENT
Rotate luminaire to desired horizontal and vertical orientation.Torque the
set screw to 1.5nM to lock the luminaire in place. Bracket is preinstalled on
luminaire. If required, use M4 Allen Key to remove screw. Ensure screws are
torqued once adjustments have been made.
241622
2MM ALLEN KEY
(supplied)
SET SCREW
NOTE: TORQUE
SCREW TO 1.5NM
SET SCREW
NOTE: TORQUE
SCREW TO 1.5NM
BRACKET IS
PREINSTALLED
ON LUMINAIRE.
241620
4MM PIN-IN-HEX
SECURITY ALLEN KEY
(supplied)

Architectural Spot & Flood Light INSTALLATION GUIDE
GVA Lighting, Inc. 3400 Ridgeway Drive, #14 Missisauga, Ontario L5L 0A2
Tel: + 1 905 569 6044 Email: [email protected] gvalighting.com
IG-LIRA, 2018-08-10 | Page 3 / 8
Specifications are subject to change without notice. Every effort has been made to ensure that the information provided in this manual is accurate.
GVA Lighting Inc. is not responsible for printing or clerical errors. Refer to www.gvalighting.com for additional information.
LIRA™
2CONNECTION
DIAGRAMS

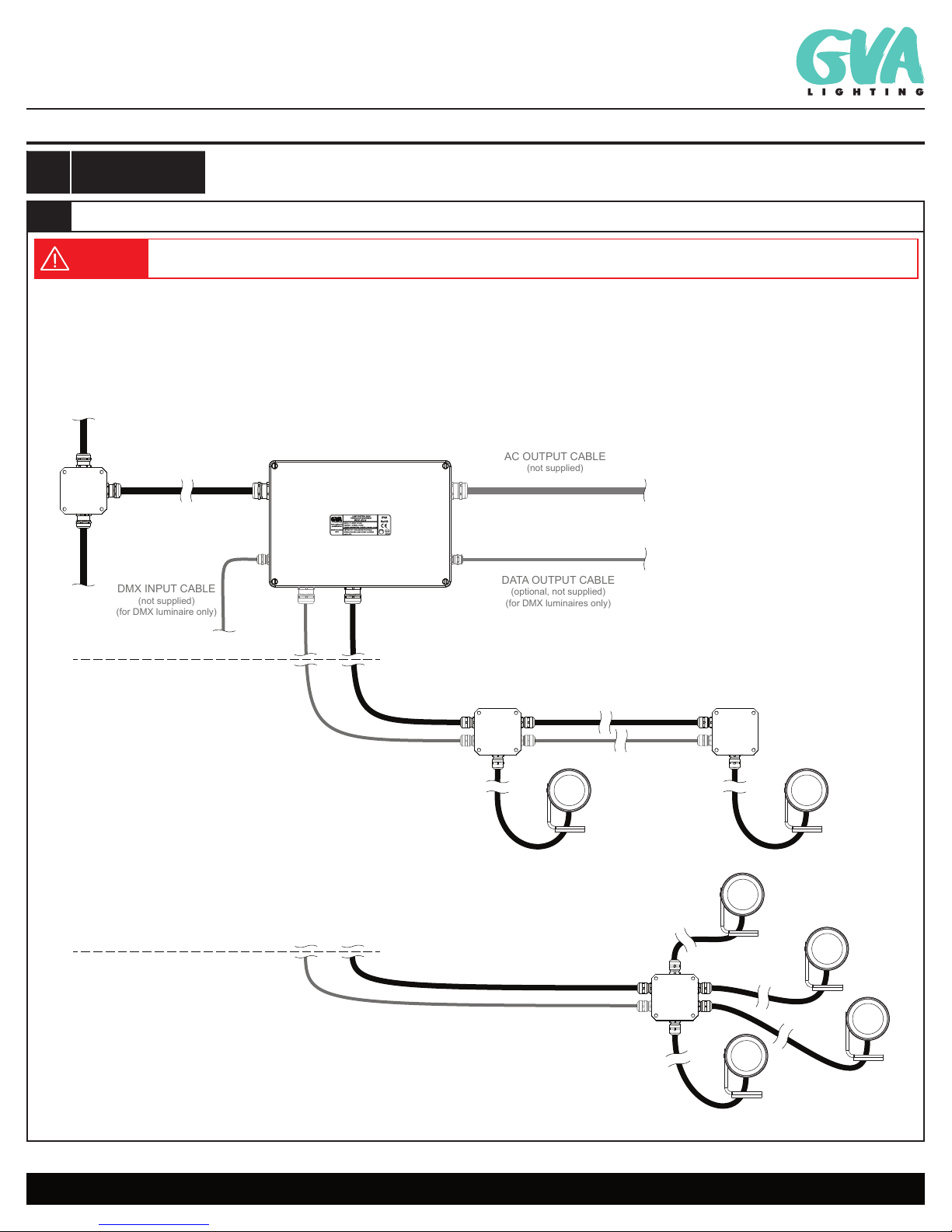

2.1 TYPICAL SYSTEM DIAGRAM
WARNING Ensure power supply is turned OFF before making any connections. Connecting the luminaire while the power is turned
ON may result in equipment damage.
Make connections to junction boxes (not supplied) and to the luminaires.
NOTE: LIRA luminaire 12 or 24VDC power conductors should be connected in parallel. DMX Common to be also connected in parallel.
NOTE: DMX I/O must be connected in series.
NOTE: Total load shall not exceed power rating of PDB-ELV/PS-ELV and should be under 100W to remain Class 2.
NOTE: Follow labels & markings on terminal blocks & cables for correct polarity.
NOTE: Luminaire configuration and length of leader cables and jumper cables directly affects the maximum number of luminaires allowed in a single run.
JUNCTION BOX
(supplied by others)
LIRA LUMINAIRE(S)
DMX INPUT CABLE
(not supplied)
(for DMX luminaire only)
DATA OUTPUT CABLE
(optional, not supplied)
(for DMX luminaires only)
AC OUTPUT CABLE
(not supplied)
7C POWER & DMX CABLE
(or 2C and 5C, not supplied)
OR 2C POWER CABLE
(not supplied)
7C POWER & DMX CABLE
(or 2C and 5C, not supplied)
OR 2C POWER CABLE
(not supplied)
7C POWER & DMX CABLE
(or 2C and 5C, not supplied)
OR 2C POWER CABLE
(not supplied)
DAISY CHAIN SYSTEM
LEADER
CABLE
FIRST
JUNCTION BOX
(supplied by others)
LAST
JUNCTION BOX
(not supplied)
LEADER
CABLE
LEADER
CABLE
LIRA LUMINAIRE
LIRA LUMINAIRE
JUNCTION BOX
(not supplied)
AC INPUT
LINE
VOLTAGE PDB-ELV or PS-ELV
RADIAL SYSTEM

Architectural Spot & Flood Light INSTALLATION GUIDE
GVA Lighting, Inc. 3400 Ridgeway Drive, #14 Missisauga, Ontario L5L 0A2
Tel: + 1 905 569 6044 Email: [email protected] gvalighting.com
IG-LIRA, 2018-08-10 | Page 4 / 8
Specifications are subject to change without notice. Every effort has been made to ensure that the information provided in this manual is accurate.
GVA Lighting Inc. is not responsible for printing or clerical errors. Refer to www.gvalighting.com for additional information.
LIRA™
2.2 PDB-ELV & PS-ELV WIRING DIAGRAMS
WARNING Ensure that line power is disconnected before making connections to PDB/PS-ELV.
2.2.A PDB-ELV Wiring Diagram
NOTE: Terminate return DMX output (+) and (-) with 120 OHM resistor.
AC OUTPUT
120~277VAC
(optional)
AC INPUT
120~277VAC
DMX INPUT
DMX OUTPUT
(optional)
VDC & DMX OUTPUT
(to DMX luminaires
or junction box)
VDC OUTPUT
TERMINAL
DMX I/O
TERMINAL
POWER
SUPPLY
THIS WAY UP
WHEN MOUNTING ON
VERTICAL SURFACES
OPTION A
(if connecting
multiple PDBs)
OPTION B
(if connecting only one PDB
or last in line of PDBs)
120 OHM
RESISTOR
DMX
OUTPUT
(from DMX
luminaires or
junction box)
DMX
OUTPUT
(from DMX
luminaires or
junction box)
DMX
OUTPUT
(to next PDB;
becomes
DMX input)
2.2.B PS-ELV Wiring Diagram
AC OUTPUT
120~277VAC
(optional)
AC INPUT
120~277VAC
VDC OUTPUT
(to non-dimming or constant current
luminaires or junction box)
VDC OUTPUT
TERMINAL
POWER
SUPPLY
THIS WAY UP
WHEN MOUNTING ON
VERTICAL SURFACES

Architectural Spot & Flood Light INSTALLATION GUIDE
GVA Lighting, Inc. 3400 Ridgeway Drive, #14 Missisauga, Ontario L5L 0A2
Tel: + 1 905 569 6044 Email: [email protected] gvalighting.com
IG-LIRA, 2018-08-10 | Page 5 / 8
Specifications are subject to change without notice. Every effort has been made to ensure that the information provided in this manual is accurate.
GVA Lighting Inc. is not responsible for printing or clerical errors. Refer to www.gvalighting.com for additional information.
LIRA™
2.3 JUNCTION BOX DIAGRAM: DMX
WARNING Ensure power supply is turned OFF before making any connections. Connecting the luminaire while the power is turned
ON may result in equipment damage.
Make connections to junction boxes and luminaires.
Connect Class 2, 12~24VDC output to power conductors of ELV LIRA luminaire : red(+), black(-). Connect DMX I/O to DMX conductors of
luminaire.
NOTE: LIRA DMX Luminaires require 12VDC or 24VDC Class 2 or limited to 25A Power Supply with Class 2 outputs. If PSU is other than
Class 2, provisions must be made to create Class 2 outputs.
2.3.A Junction Box Wiring Diagram:
DMX Daisy Chain
FROM
PDB-ELV
TO LUMINAIRE TO LUMINAIRE
FROM
PDB-ELV
TO NEXT
LUMINAIRE OR
JUNCTION BOX
TO NEXT
LUMINAIRE OR
JUNCTION BOX
FIRST
JUNCTION BOX
(supplied by others)
LAST
JUNCTION BOX
(supplied by others)
2.3.B Junction Box Wiring Diagram:
DMX Radial
FROM
PDB-ELV
FROM
PDB-ELV
TO
LUMINAIRE
TO
LUMINAIRE
TO LUMINAIRE
TO LUMINAIRE
2.3.C Luminaire Connections - DMX
INPUT/OUTPUT
RED = +12 or 24VDC
BLACK = -12 or 24VDC
ORANGE = DMX (-) INPUT
ORANGE/WHITE = DMX (+) INPUT
BLUE = DMX (-) OUTPUT
BLUE/WHITE = DMX (+) OUTPUT
BROWN/WHITE = DMX COMMON

Architectural Spot & Flood Light INSTALLATION GUIDE
GVA Lighting, Inc. 3400 Ridgeway Drive, #14 Missisauga, Ontario L5L 0A2
Tel: + 1 905 569 6044 Email: [email protected] gvalighting.com
IG-LIRA, 2018-08-10 | Page 6 / 8
Specifications are subject to change without notice. Every effort has been made to ensure that the information provided in this manual is accurate.
GVA Lighting Inc. is not responsible for printing or clerical errors. Refer to www.gvalighting.com for additional information.
LIRA™
2.4 JUNCTION BOX DIAGRAM: NON-DIMMING
WARNING Ensure power supply is turned OFF before making any connections. Connecting the luminaire while the power is turned
ON may result in equipment damage.
Make connections to junction boxes and luminaires.
Connect Class 2, 12~24VDC output to power conductors of ELV LIRA luminaire : red(+), black(-).
NOTE: LIRA Non-Dimming Luminaires require 12VDC or 24VDC Class 2 or limited to 25A Power Supply with Class 2 outputs. If PSU is other
than Class 2, provisions must be made to create Class 2 outputs.
2.4.A Junction Box Wiring Diagram:
Non-Dimming Daisy Chain
FROM
PS-ELV
TO LUMINAIRE TO LUMINAIRE
FIRST
JUNCTION BOX
(supplied by others)
LAST
JUNCTION BOX
(supplied by others)
TO NEXT
LUMINAIRE OR
JUNCTION BOX
2.4.B Junction Box Wiring Diagram:
Non-Dimming Radial
FROM
PS-ELV
TO
LUMINAIRE
TO
LUMINAIRE
TO LUMINAIRE
TO LUMINAIRE
2.4.C Luminaire Connections - Non-Dimming
INPUT/OUTPUT
RED = +12 or 24VDC
BLACK = -12 or 24VDC

Architectural Spot & Flood Light INSTALLATION GUIDE
GVA Lighting, Inc. 3400 Ridgeway Drive, #14 Missisauga, Ontario L5L 0A2
Tel: + 1 905 569 6044 Email: [email protected] gvalighting.com
IG-LIRA, 2018-08-10 | Page 7 / 8
Specifications are subject to change without notice. Every effort has been made to ensure that the information provided in this manual is accurate.
GVA Lighting Inc. is not responsible for printing or clerical errors. Refer to www.gvalighting.com for additional information.
LIRA™
2.5 JUNCTION BOX DIAGRAM: CONSTANT CURRENT
WARNING Ensure power supply is turned OFF before making any connections. Connecting the luminaire while the power is turned
ON may result in equipment damage.
Make connections to junction boxes and luminaires.
Connect Class 2, 12V Constant Current output to power conductors of ELV LIRA luminaire : red(+), black(-).
NOTE: LIRA Constant Current Luminaires require at lease 12V constant current Class 2 or limited to 25A Power Supply with Class 2 outputs. If
PSU is other than Class 2, provisions must be made to create Class 2 outputs.
2.5.A Junction Box Wiring Diagram:
Constant Current Daisy Chain
FROM
PS-ELV
TO LUMINAIRE TO LUMINAIRE
FIRST
JUNCTION BOX
(supplied by others)
LAST
JUNCTION BOX
(supplied by others)
TO NEXT
LUMINAIRE OR
JUNCTION BOX
2.5.B Junction Box Wiring Diagram:
Constant Current Radial
FROM
PDB-ELV
TO
LUMINAIRE
TO
LUMINAIRE
TO LUMINAIRE
TO LUMINAIRE
2.5.C Luminaire Connections - Constant Current
INPUT/OUTPUT
RED = +12V CONSTANT CURRENT
BLACK = -12V CONSTANT CURRENT

Architectural Spot & Flood Light INSTALLATION GUIDE
GVA Lighting, Inc. 3400 Ridgeway Drive, #14 Missisauga, Ontario L5L 0A2
Tel: + 1 905 569 6044 Email: [email protected] gvalighting.com
IG-LIRA, 2018-08-10 | Page 8 / 8
Specifications are subject to change without notice. Every effort has been made to ensure that the information provided in this manual is accurate.
GVA Lighting Inc. is not responsible for printing or clerical errors. Refer to www.gvalighting.com for additional information.
LIRA™
