White Light Salt Panel
Installation and Operation Manual
Spectrum 620-W
& 626-W

2
Spectrum 620-W & 626-W
ContentsContents
Installation ConsiderationsInstallation Considerations-------------------------------------------------
Installation- OverivewInstallation- Overivew -------------------------------------------------------
Installation- Himalayan Salt Panel (WIFI (Phase 1))Installation- Himalayan Salt Panel (WIFI (Phase 1))-----------------
Installation- Himalayan Salt Panel (Remote (Phase 1))Installation- Himalayan Salt Panel (Remote (Phase 1))-------------
Installation- Himalayan Salt Panel (Dimming (Phase 1))Installation- Himalayan Salt Panel (Dimming (Phase 1))-----------
Installation- Himalayan Salt Panel (Phase 2)Installation- Himalayan Salt Panel (Phase 2)--------------------------
Installation- Himalayan Salt Panel (WIFI (Phase 3))Installation- Himalayan Salt Panel (WIFI (Phase 3))-----------------
Operation - WIFIOperation - WIFI----------------------------------------------------------------
Installation- Himalayan Salt Panel (Remote (Phase 1))Installation- Himalayan Salt Panel (Remote (Phase 1))-------------
Operation - RemoteOperation - Remote------------------------------------------------------------
Operation - DimmingOperation - Dimming----------------------------------------------------------
SpecificationsSpecifications-------------------------------------------------------------------
Replacement PartsReplacement Parts------------------------------------------------------------
NotesNotes------------------------------------------------------------------------------
33
44
66
77
88
1010
1212
1313
1414
1515
1616
1717
1717
1818

3
by
Carefully review all
installation options and instructions
before proceeding.
For safety purposes, use
safety goggles at all times.
If there is any risk of
uninsulated electrical connections in
your wall / ceiling area, use insulating
gloves.
Prior to installation,
consider the placement carefully,
taking into account the location of
electrical, plumbing, and other fixture.
The Spectrum 620-W and
626-W require a minimum of 4” at both
ends to insert or remove center salt
block for mounting or removing panel.
Power Supplies and
Receivers should be installed outside
of the bathing environment. Do not
install in Sauna Environment.
It is recommended that
all electrical equipment be tested prior
to installation.
Each Salt Panel Assembly
may weigh up to 55 lbs and require
additional framework or support. 3/4”
Plywood is recommended to help
support the weight of the fixture(s).
! IMPORTANT
! IMPORTANT
! IMPORTANT
! IMPORTANT
! IMPORTANT
Installation ConsiderationsInstallation Considerations
Please read this manual in its entirely prior to installationPlease read this manual in its entirely prior to installation

4
Spectrum 620-W & 626-W
InstallationInstallation -- OverviewOverview
Package Includes
Item Quantity Description
A 1 Himalayan Salt Panel
Assembly (Salt Pre-Installed)
B 4 Himalayan Salt Blocks
C 4 Mounting Screws (10x2-1/2)
D 4 Trim Boards (not shown)
Item Quantity Description
A 1 Himalayan Salt Panel
Assembly (Salt Pre-Installed)
B 4 Himalayan Salt Blocks
C 4 Mounting Screws (10x2-1/2)
D 4 Trim Boards (not shown)
Spectrum 621 Spectrum 627
Himalayan Salt
Panel Assembly
Additional 3/4”
Plywood Framework
Note: It is recommended that all electrical equipment be tested prior to installation.
Note: Illustration below showcases Spectrum 620-W Humalayan Salt Panel Assembly
which measures 48x12. Spectrum 626-W operates similarly, but measures 16x16. Surface
mount shown.
Himalayan Salt
Blocks (Pre-Installed)
Electrical Box
(by others)
Sauna Environment
Himalayan
Salt Blocks
Mounting Screws
(10x2-1/2)
A
B
C

5
by
Package Includes
(See Applicable Control)
Item Quantity Description
E 1 Light Extension Cable
F 1 WIFI Receiver
G 1 Power Supply
Item Quantity Description
E 1 Light Extension Cable
F 1 RF Receiver
G 1 Power Supply
H 1 Remote Control (White)
Item Quantity Description
E 1 Light Extension Cable
F 1 Dimmer
G 1 DMX Enclosure
Spectrum 624 - WIFI / Alexa
Spectrum 630 - Remote
Spectrum 632 - Dimmer
Note: Control is required to operate this system. Depending on
Grounded 120VAC,
20 Amp Circuit
Grounded 120VAC,
20 Amp Circuit
Grounded 120VAC,
20 Amp Circuit
Dry, Accessible
Location
Dry, Accessible
Location
Dry, Accessible
Location
Remote Control
(White)
DMX Enclosure
Light Extension Cable
RF Receiver
Power Supply
Power Supply
WIFI Receiver
H
G
E
F
G
G
F
LED Controller
V1
Light Extension
Cable
Light Extension
Cable
Dimmer
E
E
F
Electrical Box
(by others)
Electrical Box
(by others)
Electrical Box
(by others)

6
Spectrum 620-W & 626-W
Installation - Himalayan Salt Panel (WIFI (Phase 1))Installation - Himalayan Salt Panel (WIFI (Phase 1))
1. Determine the desired locations
for the following: Power Supply
(G), WIFI Receiver (F), and Salt
Panel Assembly (A). Note: WIFI
Receiver (F) and Power Supply
(G) must be in an accessible,
dry location. Provided cord
lengths are 50’ maximum. Note:
Himalayan Salt Panel Assembly
(A) can be recessed or surface
mounted.
2. Install electrical boxes for the
following: WIFI Receiver (F),
Power Supply (G), and Salt
Panel Assembly (A).
3. Run a 120VAC externally
switched GFCI outlet to power
electrical box supplying power
to Power Supply (G).
4. Mount WIFI Bracket to wall and
place WIFI Receiver (F) into
Bracket.
5. Route Light Extension Cable (E)
from WIFI Receiver (F) to Salt
Panel Assembly (A).
6. Connect the following to the
WIFI Receiver (F): Main power
cable from Power Supply (G)
and Light Extension Cable (E).
Note: Do not turn power on
to WIFI Control yet, this will
be done later. See page 12 for
more details.

7
by
Installation - Himalayan Salt Panel (Remote (Phase 1))Installation - Himalayan Salt Panel (Remote (Phase 1))
1. Determine the desired locations
for the following: Power Supply
(G), RF Receiver (F), and Salt
Panel Assembly (A). Note: RF
Receiver (F) and Power Supply
(G) must be in an accessible,
dry location. Provided cord
lengths are 50’ maximum. Note:
Himalayan Salt Panel Assembly
(A) can be recessed or surface
mounted.
2. Install electrical boxes for the
following: RF Receiver (F),
Power Supply (G), and Salt
Panel Assembly (A).
3. Run a 120VAC externally
switched GFCI outlet to power
electrical box supplying power
to Power Supply (G).
4. Route Light Extension Cable
(E) from RF Receiver (F) to Salt
Panel Assembly (A).
5. Connect the following to RF
Receiver (F): Main power cable
from Power Supply (G) and
Light Extension Cable (E).

8
Spectrum 620-W & 626-W
Installation - Himalayan Salt Panel (Dimming (Phase 1))Installation - Himalayan Salt Panel (Dimming (Phase 1))
1. Determine the desired
locations for the following:
DMX Enclosure (G) and Salt
Panel Assembly (A). Note:
DMX Enclosure (G) must be
in an accessible, dry location.
Provided cord lengths are 50’
maximum. Note: Himalayan
Salt Panel Assembly (A) can be
recessed or surface mounted.
2. Install electrical boxes for the
following: DMX Enclosure (G)
(power), DMX Enclosure (G) (to
salt) and Salt Panel Assembly
(A).
3. Run a 120VAC externally
switched GFCI outlet to power
electrical box supplying power
to DMX Enclosure (G). This
power source will be controlled
by the Dimmer (F).
4. Route Light Extension Cable (E)
from DMX Enclosure (G) to Salt
Panel Assembly (A).
5. Connect the DMX Enclosure (G)
to Light Extension Cable (E).

9
by
Page left intentionally blankPage left intentionally blank

10
Spectrum 620-W & 626-W
Installation - Himalayan Salt Panel (Phase 2)Installation - Himalayan Salt Panel (Phase 2)
1. From determined Salt Panel
Assembly (A) location, mark a
level line for height of Salt Panel
Assembly (A). (Helpful Tip: Use
a piece of 2x4, level and secure
to wall at determined height
temporarily to be used as a
ledger to support Salt Panel
Assembly (A))
2. The Salt Panel Assembly (A)
fixture may weigh up to 55
lbs. and require additional
framework or support. ¾”
Plywood is recommended to
help support the weight of the
fixture(s). See diagram on page
4.
3. Mount Salt Panel Assembly
(A) onto wall securing with
provided Mounting Screws (C)
into pre-drilled mounting holes.
4. After mounting Salt Panel
Assembly (A) slide in 4 Salt
Blocks (B) over Mounting Screw
(C) locations.
5. Connect Light Extension Cable
(E) to Salt Panel Assembly (A)
lead to complete assembly.
6. Repeat this process for each
additional Himalayan Salt Panel
Assembly, if any. A maximum
of 5 panel (each 48” x 12”)
or 10 panel (each 16” x 16”)
assemblies can be powered by a
single control.
7. Each Salt Panel Assembly (A)
has 2 connection points. Male
and female. Connect male from
one panel to female of another
for each additional panel.
8. Trim Boards (D) have been
supplied for either recessed or
surface installations.

11
by
Page left intentionally blankPage left intentionally blank

12
Spectrum 620-W & 626-W
Installation - Himalayan Salt Panel (WIFI (Phase 3))Installation - Himalayan Salt Panel (WIFI (Phase 3))
1. In the IOS / Android app store
download the Smart Life Smart
Living app.
2. Once installed, you can either
create an account or tap “Try
Now” to continue without
creating an account. Note:
You will need to sign up for an
account to be able to use smart
home features such as Google
or Alexa.
3. Power on WIFI Receiver (F),
light should begin to flash on
and off rapidly.
4. In the app, select the Blue +
symbol in the upper right corner
to pair control.
5. Select the “Add Manually” tab at
the top, then select “Lighting”
tab.
6. Under lighting select “Light
Source (Wi-Fi)”. When
prompted, enter the WIFI
network that you will be using
to connect to.
7. Ensure light is flashing rapidly.
If not, follow on-screen steps
to reset control. Confirm light
is blinking ten press “Next”.
Pairing process will not begin.
Note: If pairing is unsuccessful
the control may not be
picking up the WIFI signal. Try
repositioning the control.
8. Once pairing is successful, you
are all set to program your light.

13
by
Operation - WIFIOperation - WIFI
Power Button
Power Button:Power Button: Turn on / turn off the
Salt Panel Assembly lights.

14
Spectrum 620-W & 626-W
Installation - Himalayan Salt Panel (Remote (Phase 3))Installation - Himalayan Salt Panel (Remote (Phase 3))
1. Remote should already come
paired with receiver. Follow
steps below to repair existing
remote or new remote.
2. Pairing option 1 - on receiver
press the match key then
immediately pretty the On / Off
button on the remote.
Pairing option 2 - turn power
off then on to receiver then
immediately press the On / Off
button on the remote. Light
should blink 3 times indiciating
successful pairing.

15
by

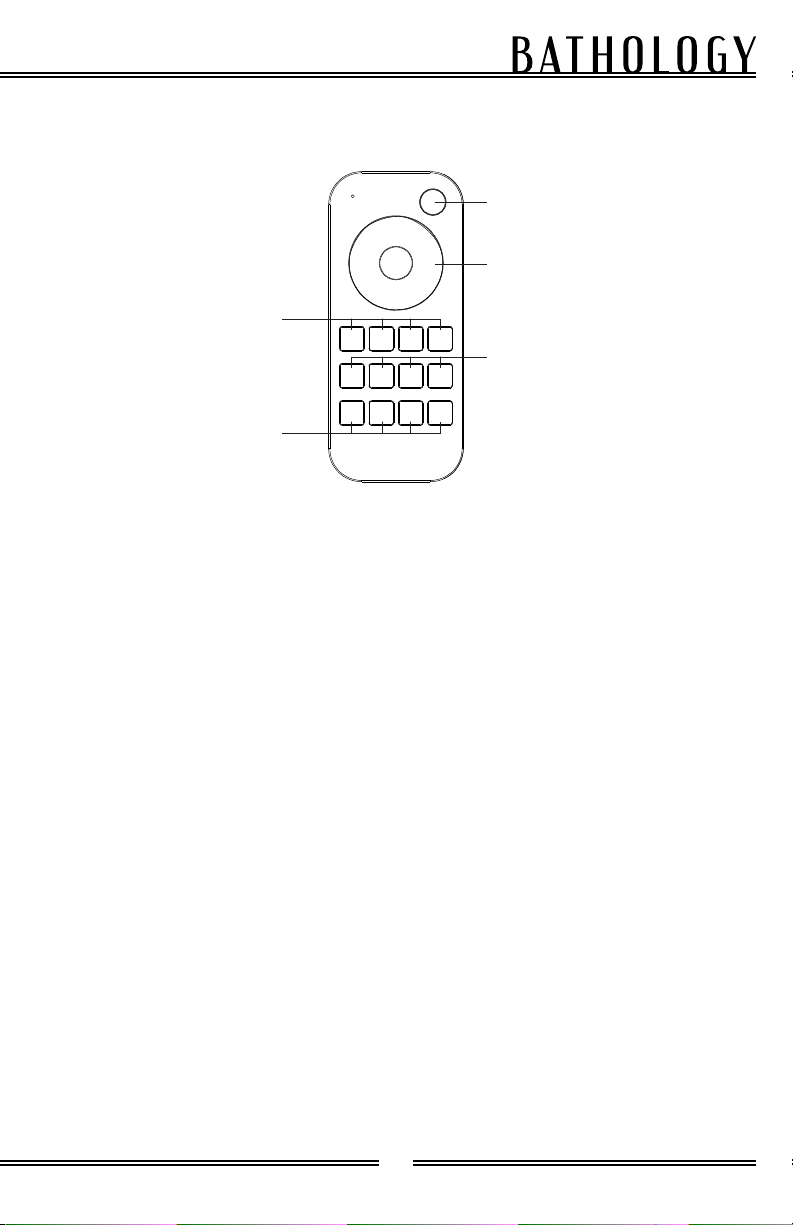

Operation - RemoteOperation - Remote
Power Button:Power Button: Turn on / turn off the
Salt Panel Assembly lights. Restores
most recent settings.
Brightness Wheel:Brightness Wheel: Press to change
brightness.
Adjust Dim:Adjust Dim: Press for 10 levels
decreased brightness. Hold for 1-6
seconds for continuous 256 levels of
adjustment.
Adjust Bright:Adjust Bright: Press for 10 levels
increased brightness. Hold for 1-6
seconds for continuous 256 levels of
adjustment.
Night Brightness:Night Brightness: Press to set 10%
brightness.
Timed Power:Timed Power: Press to turn off lights
after 30 seconds. Hold for 2 seconds
to turn off lights after 60 seconds.
25% Brightness:25% Brightness: Press to set 25%
brightness.
50% Brightness:50% Brightness: Press to set 50%
brightness.
75% Brightness:75% Brightness: Press to set 75%
brightness.
100% Brightness:100% Brightness: Press to set 100%
brightness.
Scene Recall 1 - 4:Scene Recall 1 - 4: Press to recall scene
1, 2, 3, or 4 respectively. Hold for 2
seconds to save current brightness into
respective scene (ex: S1 saves to S1).
The LED indicator displays green to
confirm save.
Power Button
Brightness Wheel
25, 50, 75, 100%
Brightness
Adjust Dim
Adjust Bright
Night Brightness
Timed Power
Scene Recall 1-4

16
Spectrum 620-W & 626-W
Operation - DimmingOperation - Dimming
Brightness Slider:Brightness Slider: Adjust Brightness
Slider to adjust brightness. Higher is
brighter, lower is dimmer.
Power Button:Power Button: Turn on / turn off the
Salt Panel Assembly lights.
Brightness Slider
Power Button

17
by
Replacement PartsReplacement Parts
Contact your Bathology
representative for Spectrum
620-W / 626-W White Light Salt
Panel replacement parts.
800-957-2862
www.Bathology.com
Salt BlockSalt Block
Composition:Composition: Himalayan Salt
Dimensions:Dimensions: 3-7/8” x 7-7/8”
Himalayan Salt PanelHimalayan Salt Panel
Dimensions (620-W):Dimensions (620-W): 11-5/8”H x
47-1/4”W x 2-5/8”D
Dimensions (626-W):Dimensions (626-W): 15-1/2”H x
15-3/4”W x 2-5/8”D
Composition:Composition: Maple Plywood,
Aluminum
Mounting ScrewsMounting Screws
Size:Size: #10 x 2-1/2”
LED LightLED Light
Operating Voltage:Operating Voltage: 24VDC
Power Consumption:Power Consumption: 26 Watts per
Channel
Lumens:Lumens: 2,745 per Panel
Specifications - Salt PanelSpecifications - Salt Panel
AssemblyAssembly
Specifications - WIFISpecifications - WIFI
ControlControl
WIFI ReceiverWIFI Receiver
Operating Voltage:Operating Voltage: 24VDC
Power Consumption:Power Consumption: 144 Watts
Amperage:Amperage: 1 Channel, 3 Amps
Dimensions:Dimensions: 2.29”H x 1.21”W x
.34”D
Power SupplyPower Supply
Operating Voltage:Operating Voltage: 120VAC
Output Voltage:Output Voltage: 24VDC
Power Composition:Power Composition: 120W
Nominal Amperage:Nominal Amperage: 5A / 120V
Dimensions:Dimensions: 2.6” x 6.5” x 1.3”
Connector:Connector: 24VDC, 50’

18
Spectrum 620-W & 626-W
Specifications - RemoteSpecifications - Remote
ControlControl
Specifications - DimmingSpecifications - Dimming
ControlControl
Power SupplyPower Supply
Operating Voltage:Operating Voltage: 120VAC
Output Voltage:Output Voltage: 24VDC
Power Composition:Power Composition: 120W
Nominal Amperage:Nominal Amperage: 5A / 120V
Dimensions:Dimensions: 2.6” x 6.5” x 1.3”
Connector:Connector: 24VDC, 50’
RF ReceiverRF Receiver
Input Voltage:Input Voltage: 5-36VDC
Input Current:Input Current: 8.5A
Output Voltage:Output Voltage: 5-36VDC
Output Current:Output Current: 1CH,8A
Output Power:Output Power:
40W/96W/192W/288W
(5V/12V/24V/36V)
Output Type:Output Type: Constant Voltage
RemoteRemote
Output Signal:Output Signal: RF (2.4 GHz)
Working Voltage:Working Voltage: 3VDC (AAA x2)
Remote Distance:Remote Distance: 30m (Barrier-free
space)
Power SupplyPower Supply
Operating Voltage:Operating Voltage: 120VAC
Output Voltage:Output Voltage: 22VDC-54VDC
Power Composition:Power Composition: 25 Watts
Nominal Amperage:Nominal Amperage: .29 Amps
Dimensions:Dimensions: 4.13”L x 2.48”W x
1.18”H
DimmerDimmer
Type:Type: Single-Pole or 3-Way Switch,
Slide
Load Type:Load Type: Electronic 0-10VDC
Load Rating:Load Rating: 1200VA
Operating Voltage:Operating Voltage: 120VAC
Frequency:Frequency: 60Hz
Indicator:Indicator: LED
Dimensions:Dimensions: 3.1” x 2.3” x 4.7”

19
by
NotesNotes

Spectrum 620-W / 626-W
900-0149-0920
Rev-00
12/31/20
A division of Bathing Brands,Inc.
www.Bathology.com 800-957-2862
rediscover bathing
