GVA HIGHLIGHTER DL User manual

INSTALLATION GUIDE - HIGHLIGHTER®DL
MODULAR ARCHITECTURAL DELINEATION LED LIGHTING SYSTEM

INSTALLATION GUIDE - HIGHLIGHTER®DL
MODULAR ARCHITECTURAL DELINEATION LED LIGHTING SYSTEM
GVA Lighting, Inc. 2771 Bristol Circle, Oakville, Ontario L6H 6X5
Tel: + 1 905 569 6044 Email: [email protected]
IG-HIGHLIGHTER-DL, 290211, 2021-04-05 | Page 2 / 14
gvalighting.com
WARNING
Do not attempt to install or use Luminaire until you read and understand this guide and safety
labels.
Luminaires must be installed by a qualified professional in accordance with all national and
local electrical and construction codes and regulations.
Ensure that main power supply is OFF before installing or wiring luminaire(s).
Do not exceed specified voltage and current input.
Do not use luminaires with a damaged lens, body, or cable.
Not heeding cautions may result in a hazardous situation which can cause equipment and
property damage, personal injury, or death.
CAUTION
Do not exceed the specified voltage and current input.
Do not exceed the maximum number of specified fixtures in a light run. Doing so will result in a
current overload.
GVA Luminaires have no serviceable parts. Do not attempt to open the units.
Do not hot swap! Ensure power supply is off before connecting or disconnecting fixtures.
Do not stare into beam or view directly with optical instruments.
Do not splice GVA Lighting provided leader cables and/or jumper cables.
Unauthorized feild repairs will void warranty.
TABLE OF CONTENTS
A. - Warnings and Cautions
1. - System Diagrams
1.1. - INFINITY® Technology Typical System Diagram
1.2. - ELV/ELV48 Typical System Diagram
2. - Mechanical
2.1. - Required Hardware and Hole Pattern
2.2. - Mounting Profile
2.3. - First Luminaire & Leader Cable
2.4. - HIGLIGHTER®Module Connection
2.5. - Next / Last Luminaire & Connector Cap
2.6. - System Check
2.7. - Module Removal
2.8. - Round and Flat Diffusers
2.9. - NICHE Cover Lens

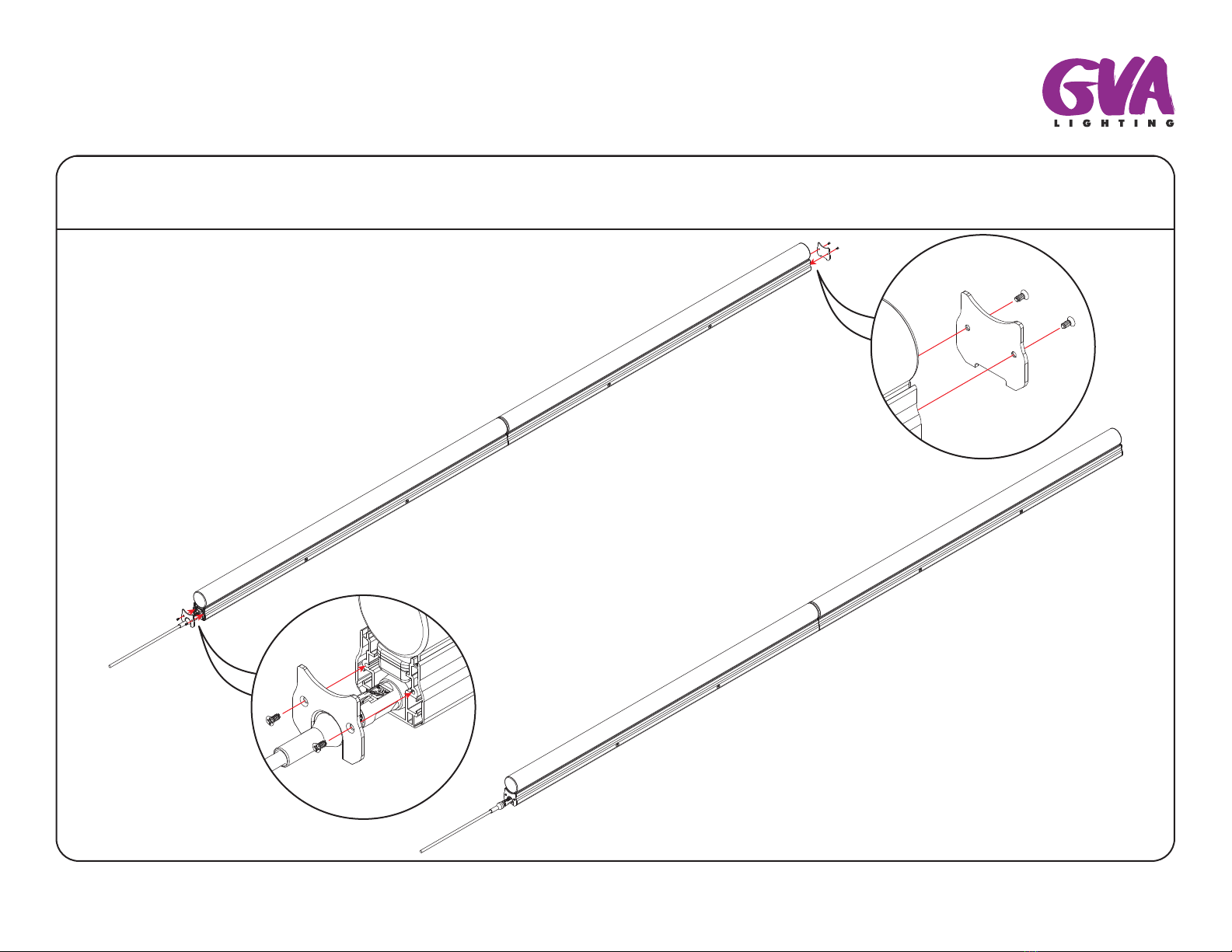

2.10. - Endcaps - Standard - Optional
2.11. - Endcaps - NICHE - Optional
Page 2
Page 3
Page 3
Page 4
Page 5
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 10
Page 11
Page 12
Page 13
Page 14

INSTALLATION GUIDE - HIGHLIGHTER®DL
MODULAR ARCHITECTURAL DELINEATION LED LIGHTING SYSTEM
GVA Lighting, Inc. 2771 Bristol Circle, Oakville, Ontario L6H 6X5
Tel: + 1 905 569 6044 Email: [email protected]
IG-HIGHLIGHTER-DL, 290211, 2021-04-05 | Page 3 / 14
gvalighting.com

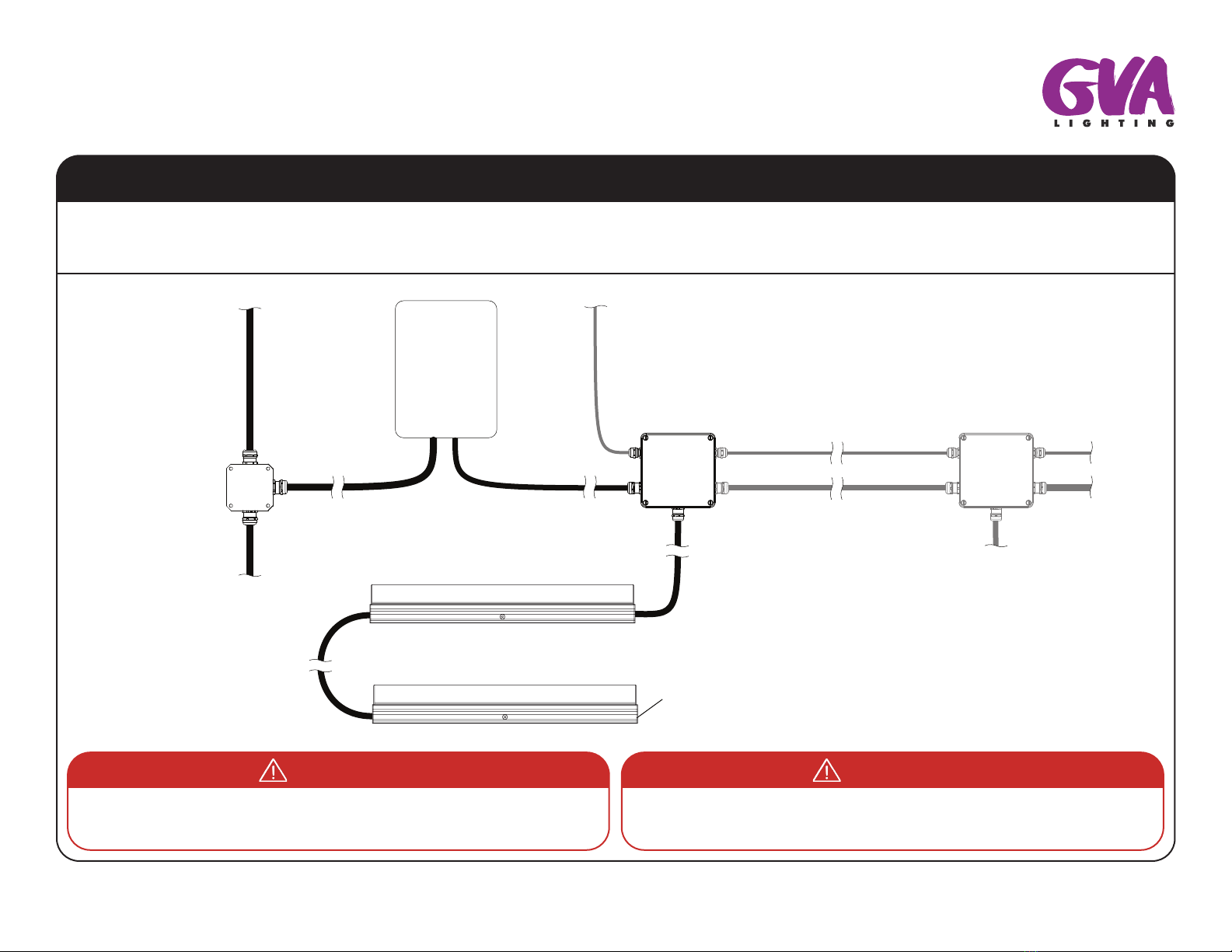

1. - SYSTEM DIAGRAMS
1.1. - INFINITY®TECHNOLOGY TYPICAL SYSTEM DIAGRAM
(If installing ELV System skip to Section 1.2. - ELV / ELV48 Typical System Diagram)
HIGLIGHTER®INF
LUMINAIRES
JUMPER
CABLE INF
15 m (50 ft) MAX
CONNECTOR CAP
(must be used at the
end of each run)
LEADER CABLE ELV
380VDC / 380VDC & DATA)
OUTPUT TO LUMINAIRES
15 m (50 ft) MAX
TO FIRST FIXTURE
LEADER CABLE INF
380VDC & DATA OUTPUT
15m/50ft MAX
TO FIRST FIXTURE
DATA INPUT CABLE
(optional, supplied by others)
PDC-INF
/ JUNCTION BOX
PDC-INF
/ JUNCTION BOX
DATA OUTPUT CABLE
(optional, supplied by others)
380VDC OUTPUT CABLE
(optional, supplied by others)
380VDC
OUTPUT
PS-INF
JUNCTION BOX
(supplied by others)
LINE
VOLTAGE
WARNING
Electric shock hazard. The DC conductors of this system are ungrounded and may be energized. Ensure
380VDC power supply is turned OFF before making any connections. Connecting luminaires while the
power is turned ON may result in equipment damage, personal injuries, or death.
WARNING
Highlighter®luminaires require 200-400VDC at 8.2A maximum. Power should only be supplied by GVA
Lighting, Inc. INFINITYTM Power-Data equipment (ordered seperately). Line Control Data are input to the
power-data equipment.

INSTALLATION GUIDE - HIGHLIGHTER®DL
MODULAR ARCHITECTURAL DELINEATION LED LIGHTING SYSTEM
GVA Lighting, Inc. 2771 Bristol Circle, Oakville, Ontario L6H 6X5
Tel: + 1 905 569 6044 Email: [email protected]
IG-HIGHLIGHTER-DL, 290211, 2021-04-05 | Page 4 / 14
gvalighting.com
1.2. - ELV / ELV48 TYPICAL SYSTEM DIAGRAM
(If installing INFINITY® Technology System go back to Section 1.1. - INFINITY® Technology Typical System Diagram)
DATA OUTPUT CABLE¹
(optional, supplied by others)
AC OUTPUT CABLE
(optional, supplied by others)
DATA INPUT CABLE
(optional, supplied by others)
JUNCTION BOX
(supplied by others)
AC INPUT
LINE
VOLTAGE
LEADER CABLE ELV
48VDC / 48VDC & DATA
OUTPUT TO LUMINAIRES
15 m (50 ft) MAX
TO FIRST FIXTURE
HIGLIGHTER®ELV / ELV48
LUMINAIRES
PS-ELV / PDB-ELV
JUMPER
CABLE ELV
15 m (50 ft) MAX
CONNECTOR CAP
(must be used at the
end of each run)
WARNING
Ensure power supply is turned OFF before making any connection. Connecting the luminaire
while the power is turned ON may result in equipment damage.
WARNING
Do not splice GVA Lighting provided leader cables and/or jumper cables

INSTALLATION GUIDE - HIGHLIGHTER®DL
MODULAR ARCHITECTURAL DELINEATION LED LIGHTING SYSTEM
GVA Lighting, Inc. 2771 Bristol Circle, Oakville, Ontario L6H 6X5
Tel: + 1 905 569 6044 Email: [email protected]
IG-HIGHLIGHTER-DL, 290211, 2021-04-05 | Page 5 / 14
gvalighting.com
2. - MECHANICAL
2.1. - REQUIRED HARDWARE FOR MOUNTING PROFILE
300 mm
1 ft
74 mm
2.9 in
150 mm
5.9 in
600 mm
2 ft
900 mm
3 ft
1200 mm
4 ft
1500 mm
5 ft
1800 mm
6 ft
2100 mm
7 ft
2400 mm
8 ft
x2
x2
x2
x2
x3
x3
x3
x4
74 mm
2.9 in
450 mm
17.7 in
74 mm
2.9 in
750 mm
29.5 in
74 mm
2.9 in
1050 mm
41.3 in
74 mm
2.9 in
600 mm
23.6 in 750 mm 29.5 in
74 mm
2.9 in
750 mm
29.5 in 900 mm 35.4 in
74 mm
2.9 in
900 mm
35.4 in 1050 mm 41.3 in
74 mm
2.9 in
750 mm
29.5 in 750 mm 29.5 in 750 mm 29.5 in
REQUIRED
HARDWARE
M6 or No.10 FASTENER
(supplied by others)
5 mm
0.2 in
MAX.
WARNING
Use mounting hardware suitable for the mounting surface. Use of innappropriate hardware may result
in dismounting of the mounting profile and can result in equipment damage, injuries, and death.

INSTALLATION GUIDE - HIGHLIGHTER®DL
MODULAR ARCHITECTURAL DELINEATION LED LIGHTING SYSTEM
GVA Lighting, Inc. 2771 Bristol Circle, Oakville, Ontario L6H 6X5
Tel: + 1 905 569 6044 Email: [email protected]
IG-HIGHLIGHTER-DL, 290211, 2021-04-05 | Page 6 / 14
gvalighting.com
2.2. - MOUNTING PROFILE
2 mm
0.08 in
CRITICAL DIM.
(to accomodate
expansion & contraction)
HIGHLIGHTER®DL
NICHE
HIGHLIGHTER®DL
STANDARD PROFILE
>43 mm
(>1.7 in)

INSTALLATION GUIDE - HIGHLIGHTER®DL
MODULAR ARCHITECTURAL DELINEATION LED LIGHTING SYSTEM
GVA Lighting, Inc. 2771 Bristol Circle, Oakville, Ontario L6H 6X5
Tel: + 1 905 569 6044 Email: [email protected]
IG-HIGHLIGHTER-DL, 290211, 2021-04-05 | Page 7 / 14
gvalighting.com
2.3. - FIRST LUMINAIRE & LEADER CABLE
LEADER
CABLE
FIRST
LUMINAIRE
NEXT AND/OR LAST
LUMINAIRE
CLIP
NOTCH
CAUTION
Failure to install the fixture correctly can result in its dismounting which can lead to equipment
and property damage, personal injury or death.
WARNING
Ensure power supply is turned OFF before making any connection. Connecting the luminaire while the
power is turned ON may result in equipment damage.

INSTALLATION GUIDE - HIGHLIGHTER®DL
MODULAR ARCHITECTURAL DELINEATION LED LIGHTING SYSTEM
GVA Lighting, Inc. 2771 Bristol Circle, Oakville, Ontario L6H 6X5
Tel: + 1 905 569 6044 Email: [email protected]
IG-HIGHLIGHTER-DL, 290211, 2021-04-05 | Page 8 / 14
gvalighting.com

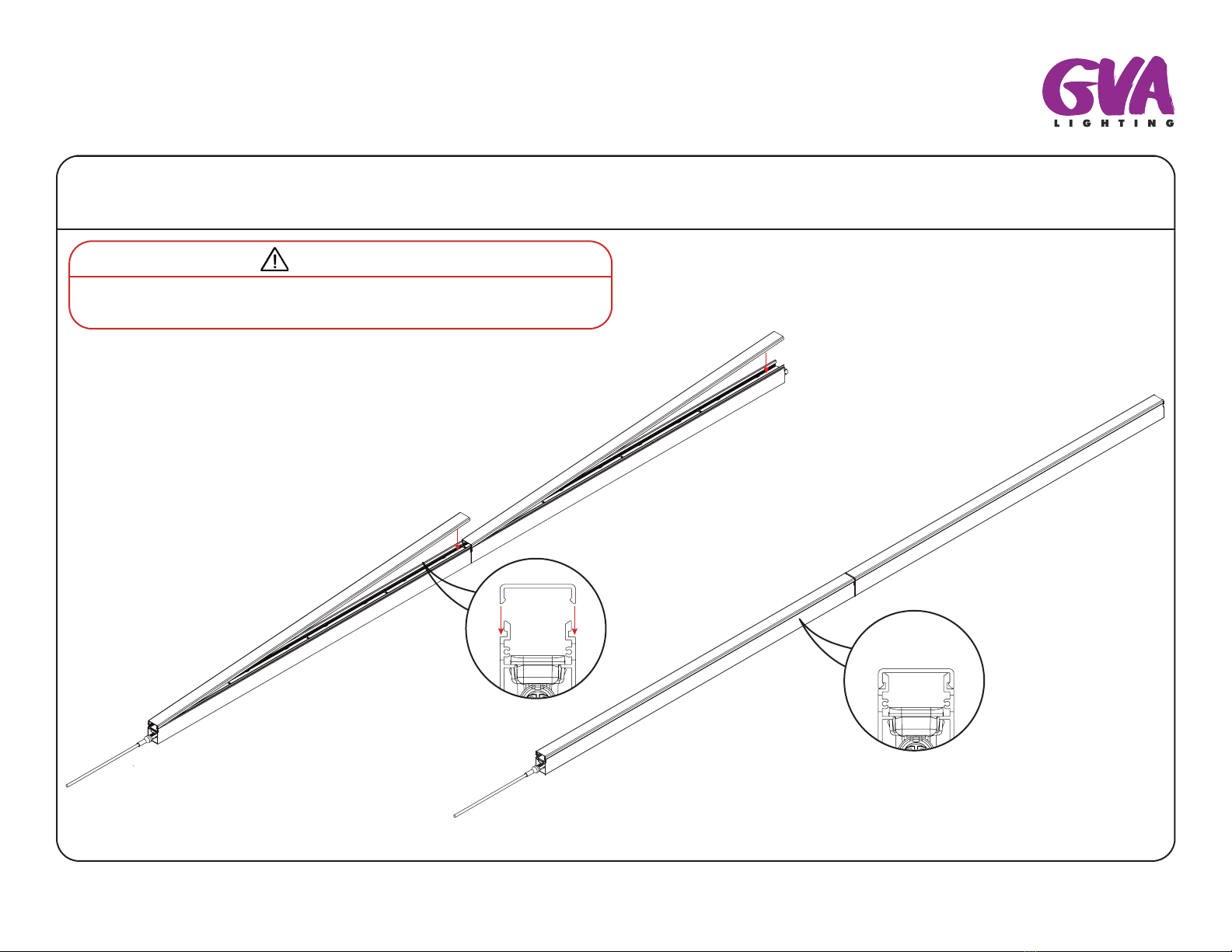

2.4. - HIGLIGHTER® MODULE CONNECTION
DO NOT SPAN
MODULE BETWEEN
MOUNTING PROFILES
FIRST
LUMINAIRE
NEXT AND/OR LAST
LUMINAIRE
OUTPUT
CONNECTOR
INPUT
CONNECTOR

INSTALLATION GUIDE - HIGHLIGHTER®DL
MODULAR ARCHITECTURAL DELINEATION LED LIGHTING SYSTEM
GVA Lighting, Inc. 2771 Bristol Circle, Oakville, Ontario L6H 6X5
Tel: + 1 905 569 6044 Email: [email protected]
IG-HIGHLIGHTER-DL, 290211, 2021-04-05 | Page 9 / 14
gvalighting.com
2.5. - NEXT / LAST LUMINAIRE & CONNECTOR CAP
CONNECTOR
CAP
CAUTION
Connectors need to be firmly engaged for the snap to work properly. Failure to connect lumi-
naires correctly may result in fixture malfunction or damage.

INSTALLATION GUIDE - HIGHLIGHTER®DL
MODULAR ARCHITECTURAL DELINEATION LED LIGHTING SYSTEM
GVA Lighting, Inc. 2771 Bristol Circle, Oakville, Ontario L6H 6X5
Tel: + 1 905 569 6044 Email: [email protected]
IG-HIGHLIGHTER-DL, 290211, 2021-04-05 | Page 10 / 14
gvalighting.com
2.6. - SYSTEM CHECK
Refer to PDB-ELV / PS-ELV or PS-INF Installation Guide for wiring diagram & detailed system setup. After making connections turn system and luminaires on
to ensure correct luminaire / leader cable / jumper cable installation.

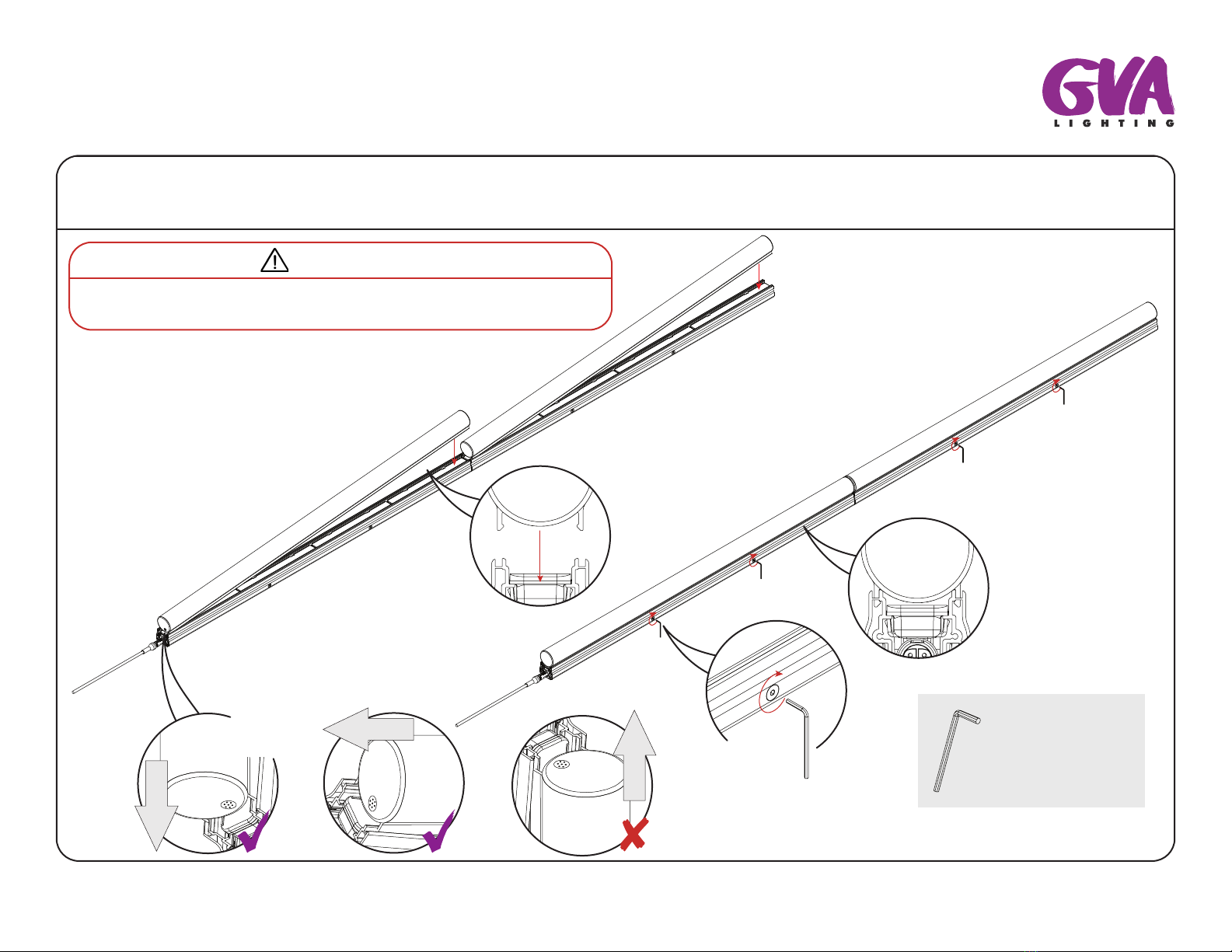

2.7. - MODULE REMOVAL
Only remove modules when necessary for replacement and / or installation error correction
REQUIRED
TOOLS
Flathead Screwdriver
(supplied by others)
CAUTION
Do not pry with excessive force. If tabs are broken, the module will no longer be able to be
re-installed in the profile.
