PRECILUM INGROUND 15 User manual
INGROUND 15
INGROUND 24
WHITE
ON/OFF or DALI
INSTRUCTIONS MANUAL
Round Square
TA LE OF CONTENTS
WWW.PRECILUM.COMINGROUND 15 WHITE + INGROUND 24 WHITE
INSTRUCTIONS MANUAL v1.1
1
1. INTRODUCTION
2. SAFETY AND OPERATION
3. INSTALLATION
4. CONNECTION DIAGRAMS
5. CARE AND MAINTENANCE
6. TECHNICAL SPECIFICATION
7. WARRANTY STATEMENT
2
4
5
13
15
16
17
FOR YOUR OWN SAFETY PLEASE READ THIS INSTRUCTION
MANUAL CAREFULLY BEFORE BEGINNING SETUP AND
INSTALLATION.
LED
Electrostatic Sensitive Device
(EDS)
1. INTRODUCTION
2
The PRECILUM Inground range brings the INGROUND to the outdoor
world of exterior lighting With IP67 rating and drive over capability
these Inground fixtures are capable of meeting most exterior
applications
The refined thermal management system incorporates a sleek and
robust heat-sink directly into the fixture to ensure maximum heat
transfer and long life-time
1.1 About the product
WWW.PRECILUM.COMINGROUND 15 WHITE + INGROUND 24 WHITE
INSTRUCTIONS MANUAL v1.1
2. SAFETY AND OPERATION
4
●Consider the respective national norms during the installation!
●Install this luminaire with properly prepared drainage under this
fixture,see installation page
●Drainage assure that fixture will not be sink in water IP67 !!! (its not
IP68)
●Do not install the fixture near the naked flames
●Do not install the fixture in dirty or dusty location
●Do not looking directly into the LED light beam at close range
●Turn off the power prior to light fixture installation!
●The light fixture may be installed only by a qualified person!
●The light fixture must be wired according to respective electrical
standards
●The manufacturer shall not be liable for any modifications of the
product of incorrect installation of the product
●Never install the luminaire on rain, fog or high humidity
CAUTION - DANGEROUS VOLTAGE CONSTITUTING A RIS OF
ELECTRIC SHOC IS PRESENT WITHIN THIS UNIT!
CAUTION - THE POWER SUPPLY MUST BE UNPLUG FROM THE
MAINS POWER BEFORE CONNECTING ANY CABLES TO AVOID
DAMAGING THE PRODUCT!
CAUTION – FOR YOUR OWN SAFETY AVOID LOO ING DIRECTLY
INTO THE LED LIGHT SOURCE!
ANY PERSONS WHO INSTALLING THIS PRODUCT MUST BE
QUALIFIED FOR THE HANDLING OF ELECTRICAL
EQUIPMENT AND INSTALLATION MUST BE PERFORMED WITH
LOCAL STANDARTS AND REGULATIONS!
WWW.PRECILUM.COMINGROUND 15 WHITE + INGROUND 24 WHITE
INSTRUCTIONS MANUAL v1.1
3.1.1 Fixation of plastic sleeve
3. INSTALLATION
5
3.1 Hardware installation
●Prepare always 20-30 cm of drainage gravel and check that it works:
fill the tube of water and check that it completely disappear within
30 min If it doesn’t work study a further drainage system
●Aluminum sleeve must be installed on drainage layers, surrounding
concrete layers and leveled with external finish
CONCRETE WIRING
EXTERNAL FINISH
PLASTIC
SLEEVE
DRAINAGE
IP BOX
MIN 200
WWW.PRECILUM.COMINGROUND 15 WHITE + INGROUND 24 WHITE
INSTRUCTIONS MANUAL v1.1
3. INSTALLATION
6

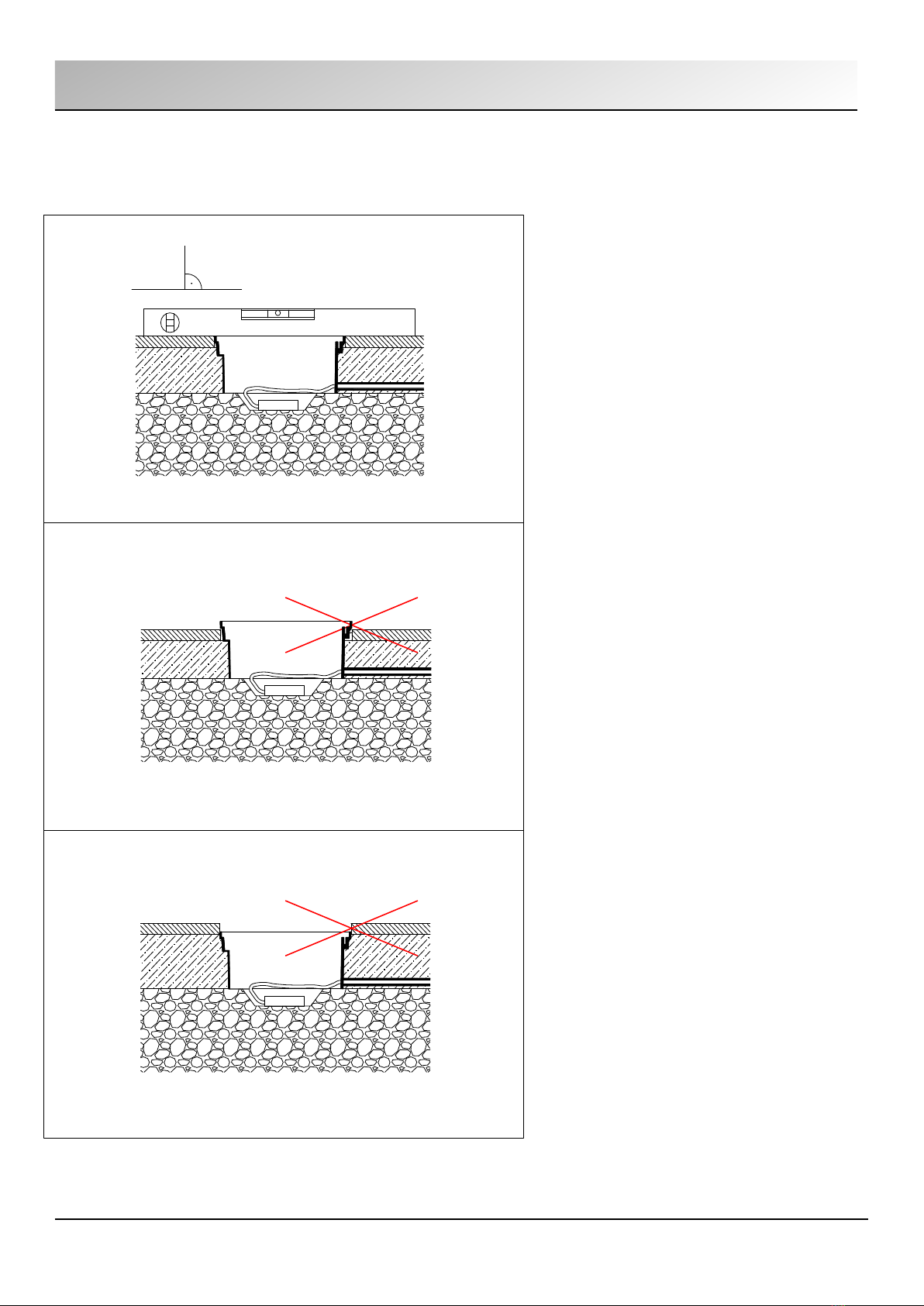

●Install the plastic sleeve
into the floor according
to Fig 1
●The edges of the plastic
sleeve must be flush
with the surrounding
floor
Fig 1
Fig 2
Fig 3
Fig 1
●Edges of the plastic
sleeve must not be
installed above the
surrounding floor
Fig 2
●Edges of the plastic
sleeve must not be
installed under the
surrounding floor
Fig 3
OK90°
NOT
ALLOWED
WWW.PRECILUM.COMINGROUND 15 WHITE + INGROUND 24 WHITE
INSTRUCTIONS MANUAL v1.1
NOT
ALLOWED
3.1.2 Fixation of fixture
3. INSTALLATION
7
Fig 4
Fig 5
Fig 6
●Remove the screws that
secure the stainless
steel face ring
Fig 4
●Remove the stainless
steel face ring
●Do not remove tempered
glass!!!
Fig 5
●Connect the cable
coming out of the
luminaire with the supply
cable in the IP juction
box (more about IP
connection in 3 3 IP BOX
connection)
●Put the luminaire into the
plastic sleeve
Fig 6
Unscrew
WWW.PRECILUM.COMINGROUND 15 WHITE + INGROUND 24 WHITE
INSTRUCTIONS MANUAL v1.1
3. INSTALLATION
8
Fig 7
Fig 8
Fig 9
●Fasten the luminaire to
the plastic sleeve with
the enclosed screws
Fig 7
●Put on the stainless steel
front ring which you
removed in step 5 (Fig 5)
Fig 8
●Put on and tighten the
screws which you
removed in step 4 (Fig 4)
●Check if the screws are
tight properly!
Fig 9
Tighten the screws
Tighten the screws
WWW.PRECILUM.COMINGROUND 15 WHITE + INGROUND 24 WHITE
INSTRUCTIONS MANUAL v1.1
Use a SCAME IP box or similar (not included)
Must be made a waterproof connection of at least IP68 We strongly
recommend to use special two components silicone GEL for sealing
junction boxes containing electrical connections If the IP rating of the
connection is not observed, the complaint will not be accepted!
For example:
https://www etelec com/prodotto/mpgel/
Video tutorial:
https://wwwyoutube com/watch?v=tj6ksKdzuE0
PRECILUM requirement:
3. INSTALLATION
12
3.3 IP OX connection
WWW.PRECILUM.COMINGROUND 15 WHITE + INGROUND 24 WHITE
INSTRUCTIONS MANUAL v1.1
Clean the front transparent cover at least every 6 months Use a moist,
lint-free cloth Never use alcohol or solvents
A scheduled maintenance programme must be carried out on the
installation and the fittings regardless of their IP rating or application –
these must include the following operations:
●Clean the fittings from dirt that may be deposited on the protection
grills and in the heads of the screws by following the installation
instructions attached to each fi tting
● Check that the screws are not loose on the various components of
the luminaire (glass frame, cable entry , … )
● Check each cable gland, and cable for damage and that the cable
gland has not come loose
● For each Isolation Class 1 fitting check that the earth cable has not
come loose The clip must not show signs of oxidation,damage or
become loose
● For class 2 fittings check any eventual plastic / isolating covering in
order to verify any damage
●Check that all the seals are in good condition and that they are not
dry, damaged or split
●Check the glass or plastic screen for damage and replace if required
●Check for water inside the luminaire’s housing and its recessing box
The internal components such as the ballasts, transformers, washers
and screws must not show clear signs of oxidation or rust
Clear traces of rust and oxidation will indicate the presence of water
inside the luminaire
In case of damage the components must be replaced by original
components and spare parts before using the fi tting
We also recommend to check the fitting each time the lamp is replaced
or at least once a year or within the prescribed maintenance schedule
period depending on the type of installation
5. CARE AND MAINTENANCE
15
PRECILUM™ PRODUCTS ARE OF SUPERIOR DESIGN AND
QUALITY AND SHOULD BE TREATED WITH CARE. THE
RECOMMENDATIONS BELOW WILL HELP FULFILL GAIN GOOD
USE AND LONGEVITY FROM THE PRODUCTS.
WWW.PRECILUM.COMINGROUND 15 WHITE + INGROUND 24 WHITE
INSTRUCTIONS MANUAL v1.1
6. TECHNICAL SPECIFICATION
16
Mounting:
Optical system:
LED device:
LED colour:
Lumen output:
Input voltage:
Driver type:
Max power conpusion:
Service lifetime:
Operation ambient temp:
Materials:
Dimensions:
Enviroment:
Weight:
Accesories:
Ground recessed
Spot, Narrow, Medium, Wide, Flood, Oval, Assym
High power OSRAM LEDs
3000K, 4000K, 5700K and other accor req
See datasheet
230V 50Hz AC or 48V DC
Electronic control gear TRIDONIC or OSRAM
INGROUND 15 WHITE
15W (current 350mA) / 23W (current 500mA)
INGROUND 24 WHITE
24W (current 350mA) / 36W (current 500mA)
70 000 hrs /L70 @25°C
-20°C/+40°C
Housing: die cast aluminium
Cover: clear hardened glass+ stain steel face ring
See dimensional drawing
IP67
INGROUND 15 WHITE: 2,8 kg
INGROUND 24 WHITE: 4,9 kg
See website
WWW.PRECILUM.COMINGROUND 15 WHITE + INGROUND 24 WHITE
INSTRUCTIONS MANUAL v1.1
