GVM GVM-YR200D User manual

GVM-YR200D

DAFTAR ISI
Product introduction Page 1-------------------------------------------
Disclaimers Page 2--------------------------------------------------------
Precautions Page 2-------------------------------------------------------
Product details Page 3--------------------------------------------------
Product structure analysis Page 4------------------------------------
Installation method Page 5~7-----------------------------------------
Description of product control keys Page 8-----------------------
Function introduction and instruction for use ----------------------
-------------------------------------------------------------------- Page 9~11
APP control and APP on-line control Page 12---------------------
Use and preservation Page 13-----------------------------------------
Simple faults and troubleshooting Page 14------------------------
Packing list Page 15-------------------------------------------------------

1
Welcome to "GVM-YR200D". This product is specially designed for senior
photography enthusiasts. The product is suitable for live / outdoor / studio
photography, and also for YouTube video shooting. The main features of
the product are:
PENGENALAN PRODUK
①
③
Step-less adjustable dual color temperature feature, color range 3200K ~
5600k, Using LED bulbs, which is helpful to restore and enrich the color of
objects and provide you with natural and vivid shooting effect.
With an LCD screen and stable system, which can support 180 ° rotation
and effectively control the light Line. You can customize the control of fill
light, so that you can easily shoot the desired results.
We firmly believe that the correct use of this product will definitely help your
shooting work. Before using the product, we strongly recommend that you
carefully read the following user guide.
②APP intelligent control system, which can be controlled by your smart mobile
devices.

2
1.
CATATAN PENTING
①Please use the matching power adapter or lithium battery with the same
specification to power the product. Do not use power adapter with
different output voltage parameters.
The product is not waterproof, please use it in rainproof environment.
②
The product is not anti-corrosion, therefore do not let the product touch
any corrosive liquid.
③
When using the product, make sure the product is put firmly and prevent
from falling and damage.
④
If the product will not be used for a long time, please switch off the power
to reduce energy loss.
⑤
CATATAN
Before using this product, please read the instructions carefully and make sure
use the product correctly. If you don’t obey the instructions and warnings, you
maybe cause harm to yourself and the people around, or even damage the
product and other things around.
2. Once you use this product, you are deemed to have read the disclaimer and warning
carefully, understand and acknowledge all the terms and contents of this statement,
and promise to take full responsibility for the use of this product and possible
consequences.

3
SPESIFIKASI PRODUK
Brand : GVM
Product Name : Photography lights
Product Type : Photography Fill Light
Product model : GVM-YR200D
Product material : Plastic
Lamp beads quantity : 624
Color rendering index : ≥97
Color temperature : 3200K~5600K
Brightness : 4500lux/0.5m, 1500lux/1m
Light adjustment method : Step-less adjustment
Light angle of lamp bead : 120°
Features / Features : APP, Joint control,
High color rendering index light beads
Power : 50W
Voltage : DC 15V
Power supply mode : DC input & Battery
Power supply : DC15V/4A
Battery Capacity : lithium battery*2 (Need to buy)
Product Weight : 1.45KG
Product Size ( mm ) : D300*53
Cooling : Natural heat dissipation
Commodity origin : China. Huizhou

4
Cooling hole
Color temperature
adjusting knob
Mode control
button
Adapter
interface
Battery tank
Brightness control
Integrated
control channel
Select button
LCD display screen
Angle fixing knob
Lamp rack interface
Power switch
Lamp holder
fixing knob
BAGIAN PRODUK

5

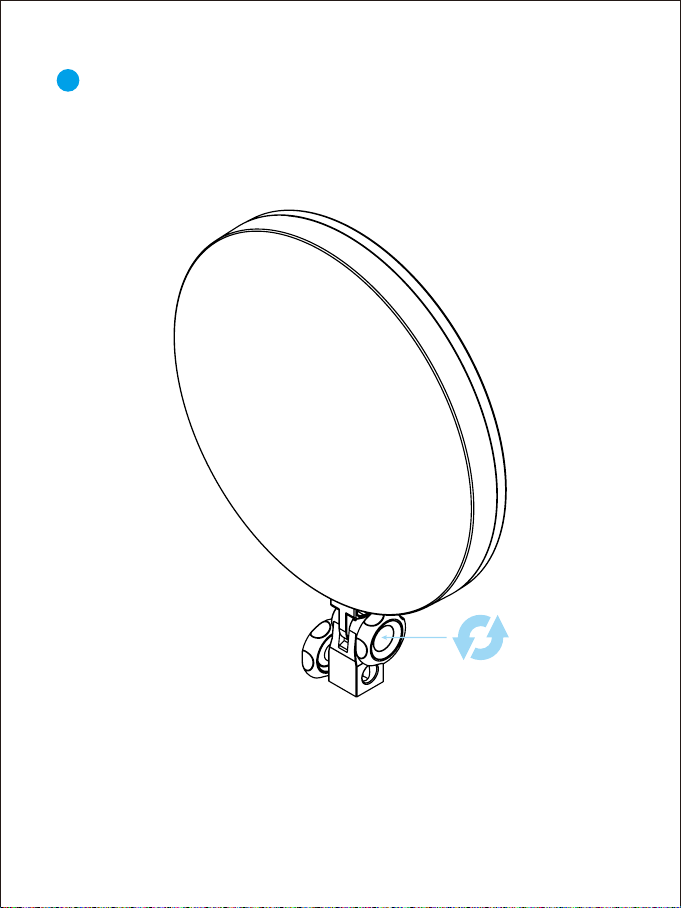

1The lamp can be installed and fixed on the bracket by rotating the knob
clockwise, and unloaded by rotating in the counterclockwise direction.
CARA PEMASANGAN

6
2Loosen the knob on the left of the bracket, adjust the angle you
need, and then tighten the adjustment knob on the left of the
bracket.

7

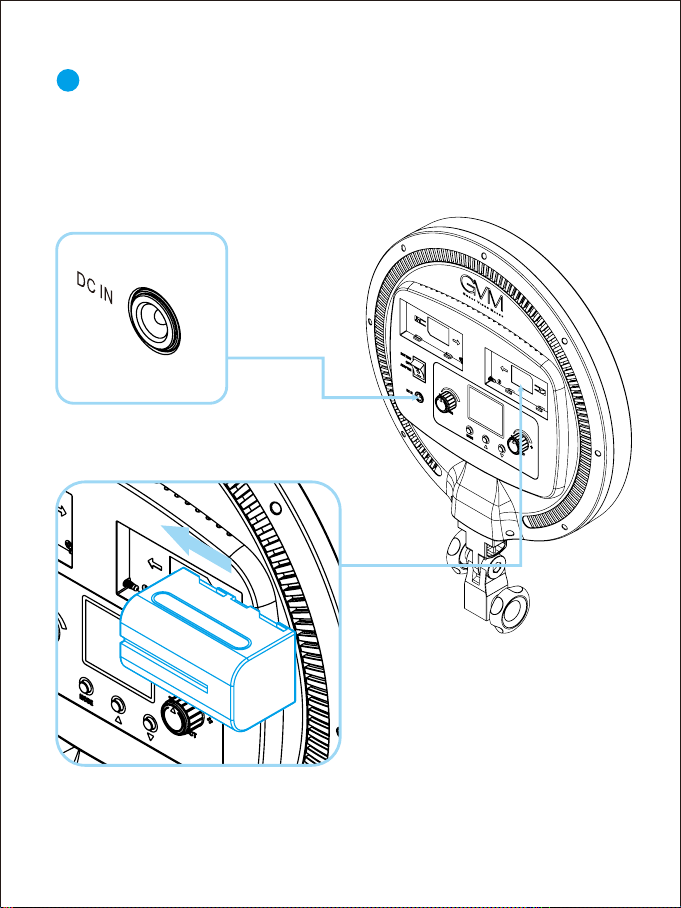

3There are two power supply modes to choose.
① connect the power cord and adapter for power supply.
②purchase two other suitable lithium batteries and use them for power
supply. ( both battery cells must be plugged in to power )
Adapter interface
（battery lead）
Battery installation slot

DC IN
BATTERY
OFF
ADAPTER
BRG
MODE
CCT
8
CH:
Rotate
Slave
Master
APP
K
CCT :
1
2
3
56
7
4
1
2
3
5
6
4
7
Power input interface
Power switch
Mode control button: Change mode control
Change channel button: When is in master/slave mode, press this button
to select the channel.
Color temperature adjustment button: adjust the color temperature
LCD screen: The screen display the current brightness, control mode,
light mode, light parameters, scene number, channel numerical, and
battery power of the light.
Brightness adjustment button: Adjust the brightness
CARA PENGGUNAAN TOMBOL
PADA PRODUK

9
The screen display the current brightness, control mode, light mode, light
parameters, scene number, channel numerical, and battery power of the light.
① LCD screen：
Press the mode button to change the control mode, such as:
Rotate, slave, master, APP
② Mode types and functions：
CH:
Rotate
Slave
Master
APP
K
CCT :
Battery power
Brightness
Channel
numerical
Control mode
Color temperature
parameters
(Only display the current
control mode)
CARA PENGGUNAAN MENU
Rotate mode: Adjust the parameters of the light through the controller
behind the light.
Slave mode: The channel can only be adjusted through the ▲ and ▼
buttons of the controller behind the light. When the channels of the slave
and the master are the same, they can be synchronously controlled by
the master.
Rotate mode:
Slave mode:

10
③ Adjust brightness (BRG):range 0%~100%
④ Adjust color temperature (CCT): range 3200K~5600K
In Master mode / Rotate mode, short press the composite knob to switch
the light mode to CCT, and then turn the composite knob button to adjust
the color temperature.
In APP mode, connect to APP and adjust color temperature through APP.
In Master mode / Rotate mode, turn the brightness adjustment knob to
adjust the brightness.
In APP mode, connect to APP and adjust brightness through APP.
⑤ Adjust CH: range 0~11
In Master mode/Slave mode, tap the plus/minus key to set the channel value.
In APP mode, connect to APP and set the channel value through APP.
Master mode: adjust the light and channel of the light through the controller
behind the light, and the slaves of the same channel will also be adjusted
synchronously.
APP mode: adjust the light parameters through APP.APP mode:
Short press the compound knob to switch the light mode, which are: CCT,
HUE, SAT; Long press the compound knob for 3 seconds to enter/exit the
scene mode.
Master mode:
CCT: adjustable color temperature, range 3200K~5600K
HUE: Adjustable light color, range 0°~360°
SAT: adjustable light color saturation, range 0%~100%
SC: The product can simulate 8 kinds of scene lights: ①Lightning, ②Police
car, ③Candlelight, ④TV, ⑤Bad light bulb, ⑥Party, ⑦Disco, ⑧Paparazzi.
CCT:
HUE:
SAT:
SC:

11
⑦ On-line control (Joint control between lamps and lanterns):
⑥ APP control:
Switch the photography light to the APP mode, connect the Bluetooth of the
camera light through the mobile phone, and then use the APP to control the
brightness, color temperature, channel, and on/off of the camera light. If
there is a slave, you can also go through the APP Perform online control.
Prepare two or more photography lights, set one to Master mode, and the
others to Slave mode, and set the channel (CH) of the master and slave.
When the master and slave channels are the same, the slave of the same
channel can be synchronously controlled through the controller behind
the master.
Prepare two or more photography lights, set one to APP mode, and
connect the mobile phone APP to set the channel; set the rest to Slave
mode, and set the same channel. When the APP mode machine connected
with the mobile phone APP and the slave machine channel are the same,
at this time, the connected APP mode machine can be controlled through
the mobile phone APP, and the slave machine of the same channel as the
APP mode machine can be synchronously controlled.

12
Scan the QR code on the back of the manual to download the APP
PENGGUNAAN APLIKASI
If there is a slave, the APP will synchronously control the slave of the same
channel as the connected APP mode machine.
Turn on the video light and set the mode to APP mode. Open the “GVM_LED”
application software on the phone ( The phone needs to turn on bluetooth and
GPS), then enter the bluetooth's search interface →Find the bluetooth
named “BT_LED” and connect →Wait for connection →After connect
success, it will automatically enter the app's control interface. At this time, the
video light have been connected and you can controll the APP.
You can save 6 custom light effects in “My Scenes”. After setting the light
effect parameters →click the “ ” icon in the right corner →pop up the
“Save Current Scenes” →click “OK”. This light effect can be found in “My
Scenes” at this time.
Color temperature control interface Save light effect interface

13
PERAWATAN
Do not put the product in a highly humid, strong electromagnetic field,
direct sunlight, high-temperature environment. If not use the product for a
long time, disconnect the power and take out the battery.
Clean：Before clean, disconnect the power plug. And use wet cloth rather than any
detergent or soluble liquid, avoiding damaging the surface layer.
Repairing：If there is fault or performance degradation, do not unpack the shell by
yourself, avoiding damage the machine and lose the right of maintenance. When there
is a fault, do not hesitate to contact us, and we will do our best to deal with the problem.
Accessories：Please use the accessories provided by manufacturer and approved
ones, in order to maximize the performance.
Guarantee：Do does not modify the product, or you will lose the right of maintenance.
Clean：
Repairing：
Accessories：
Guarantee：
Power：Make sure the power is in the demanded range, not too high or too low. Correctly
load the battery, in order not the damage to machine.
Power：

14
TROUBLESHOOTING
Phenomenon
①
②
Check if the mode were set as
slave mode, lightness and color
temperature of the products
cannot be controlled in slave
mode.
Make sure the adapter is well
contacted with the power plug.
Charge the battery before using
it.
Pressthe“MODE”button for once,
switch the mode from slave mode
to master mode.
Check the product Troubleshooting
The switch
indicator
does not light up
The brightness/
color temperature
knob is out of
control
Check the matching power
adapter indicator light up
or not.
When using lithium battery,
make sure there's no "low
power" protection.
APP can't
connect / can't
control
Check if the product is “OFF”
because of the APP of the
mobile phone.
Press the “ON/OFF” button once
again.
The product is in
the "ON" state,
the display and
lights are not on
Check whether the device is
in APP mode and whether
"BT_LED" is displayed on the
APP
Normal steps:
①Switch to APP mode after
booting;
②Turn on bluetooth and GPS on
the phone
③Open the APP, search and
connect to Bluetooth BT_LED

15
ISI DALAM PAKET
Photography lights 1
Power Cord 1
Adapter 1
1
N a m e Q u a n t i t y N o t e s
User Manual

FacebookGVM Official
website
Download APP
Web: www.gvmled.com
B&H Email: [email protected]
GVM Email: [email protected]
Amazon Email: [email protected]
Warehouse Add: 4301 N Delaware ave, unit D. PHILADELPHIA, PA19137, USA
