GW Instek ASR-2000 Series Owner's manual

Programmable AC/DC Power Source
ASR-2000 Series
PROGRAMMING MANUAL
ISO-9001 CERTIFIED MANUFACTURER

This manual contains proprietary information, which is protected by
copyright. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Good Will company.
The information in this manual was correct at the time of printing.
However, Good Will continues to improve products and reserves the
rights to change specification, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.

Table of Contents
3
Table of Contents
SAFETY INSTRUCTIONS .................................................. 4
GETTING STARTED.......................................................... 8
ASR-2000 Series Overview ..................... 9
Appearance .......................................... 12
REMOTE CONTROL ....................................................... 20
Interface Configuration ........................ 21
Command Syntax ................................. 41
Command List ..................................... 45
Error List ........................................... 111
APPENDIX ....................................................................120
Factory Default Settings ..................... 120
INDEX ..........................................................................125

ASR-2000 Programming Manual
4
SAFETY INSTRUCTIONS
This chapter contains important safety
instructions that you must follow during
operation and storage. Read the following before
any operation to ensure your safety and to keep
the instrument in the best possible condition.
Safety Symbols
These safety symbols may appear in this manual or on the
instrument.
WARNING
Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that
could result in damage to the ASR-2000 or to other
properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal

SAFETY INSTRUCTIONS
5
Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.
Safety Guidelines
General
Guideline
CAUTION
Do not place any heavy object on the ASR-2000.
Avoid severe impact or rough handling that
leads to damaging the ASR-2000.
Do not discharge static electricity to the ASR-
2000.
Use only mating connectors, not bare wires, for
the terminals.
Do not block the cooling fan opening.
Do not disassemble the ASR-2000 unless you are
qualified.
(Measurement categories) EN 61010-1:2010 specifies the
measurement categories and their requirements as follows. The
ASR-2000 doesn’t fall under category II, III or IV.
Measurement category IV is for measurement performed at the
source of low-voltage installation.
Measurement category III is for measurement performed in the
building installation.
Measurement category II is for measurement performed on the
circuits directly connected to the low voltage installation.
0 is for measurements performed on circuits not directly
connected to Mains.
Power Supply
WARNING
AC Input voltage range:
100 ~ 240 Vac
Frequency: 47 ~ 63 Hz
To avoid electrical shock connect the protective
grounding conductor of the AC power cord to
an earth ground.

ASR-2000 Programming Manual
6
Cleaning the ASR-
2000
Disconnect the power cord before cleaning.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid.
Do not use chemicals containing harsh material
such as benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Relative Humidity: 20%~ 80%, no condensation
Altitude: < 2000m
Temperature: 0°C to 40°C
(Pollution Degree) EN 61010-1:2010 specifies the pollution degrees
and their requirements as follows. The ASR-2000 falls under degree
2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of dielectric
strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused
by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment
is normally protected against exposure to direct sunlight,
precipitation, and full wind pressure, but neither temperature
nor humidity is controlled.
Storage
environment
Location: Indoor
Temperature: -10°C to 60°C
Relative Humidity: ≤90%, no condensation
Disposal
Do not dispose this instrument as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased. Please make sure
discarded electrical waste is properly recycled to
reduce environmental impact.

SAFETY INSTRUCTIONS
7
Power cord for the United Kingdom
When using the instrument in the United Kingdom, make sure the
power cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the
following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with
the coloured marking identified in your plug/appliance, proceed
as follows:
The wire which is coloured Green & Yellow must be connected to
the Earth terminal marked with either the letter E, the earth symbol
or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the
terminal marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment
or contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, a cable
of 0.75mm2should be protected by a 3A or 5A fuse. Larger
conductors would normally require 13A types, depending on the
connection method used.
Any exposed wiring from a cable, plug or connection that is
engaged in a live socket is extremely hazardous. If a cable or plug is
deemed hazardous, turn off the mains power and remove the cable,
any fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above
standard.

ASR-2000 Programming Manual
8
GETTING STARTED
This chapter describes the ASR-2000 power
supply in a nutshell, including its main features
and front / rear panel introduction.
ASR-2000
ASR-2000R
ASR-2000 Series Overview ............................................... 9
Series lineup...........................................................................................9
Main Features ........................................................................................ 9
Accessories .............................................................................................10
Appearance ..................................................................... 12
Front Panel .............................................................................................12
Rear Panel............................................................................................... 17

GETTING STARTED
9
ASR-2000 Series Overview
Series lineup
The ASR-2000 series consists of 4 models, the ASR-2050, ASR-2100,
ASR-2050R and ASR-2100R, differing only in capacity and front
panel output. Note that throughout the programming manual, the
term “ASR-2000” refers to any of the models, unless stated otherwise.
Model Name
Power Rating
Max. Output Current
Max. Output Voltage
ASR-2050
500 VA
5 / 2.5 A
350 Vrms / 500 Vdc
ASR-2100
1000 VA
10 / 5 A
350 Vrms / 500 Vdc
ASR-2050R
500 VA
5 / 2.5 A
350 Vrms / 500 Vdc
ASR-2100R
1000 VA
10 / 5 A
350 Vrms / 500 Vdc
Main Features
Performance
Maximum AC output voltage is 350 Vrms
Maximum DC output voltage is 500 Vdc
Maximum output frequency is 999.9 Hz in AC
mode
Supported AC+DC waveform application
DC full capacity output ability
Output voltage total harmonic distortion is less
than 0.5% at all frequency
Crest factor reached 4 times high

ASR-2000 Programming Manual
10
Features
Include sine, square, triangle, arbitrary and DC
output waveforms
Variable voltage, frequency and current limiter
Harmonic voltage and current analysis ability
Excellent and feature-rich measurement
capacity
Sequence and simulate function
External input amplification
AC line synchronized output
Preset memory function
USB memory support
Remote sense
OCP, OPP and OTP protection function
Interface
Built-in LAN, USB host and USB device
interface
External control I/O
External signal input
Factory option RS232 and GPIB interface
Accessories
Before using the ASR-2000 power source unit, check the package
contents to make sure all the standard accessories are included.
Standard
Accessories
Part number
Description
CD ROM
User manual, programming
manual
82GW1SAFE0M*1
Safety guide
Region dependent
Power cord
63SC-XF101601 x 1
Mains terminal cover set
63SC-XF101701 x 1
Remote sensing cover set

GETTING STARTED
11
GTL-123
Test leads: 1x red, 1x black
GTL-246
USB CABLE (USB 2.0 Type
A- Type B Cable, Approx.
1.2M)
Factory
Installed
Options
Part number
Description
Optional 1
RS232 + GPIB interface
Optional
Accessories
Part number
Description
GET-003
Universal extended terminal
box
(ASR-2000R only)
GET-004
EURO extended terminal box
(ASR-2000R only)
GRA-439-E
Rack mount adapter (EIA)
GRA-439-J
Rack mount adapter (JIS)
GTL-232
RS232C cable, approx. 2M
GTL-258
An approximately 2M in
length GPIB Cable including
25 pins Micro-D connector
ASR-001
Air inlet filter
Download
Name
Description
gw_asr.inf
USB driver

ASR-2000 Programming Manual
12

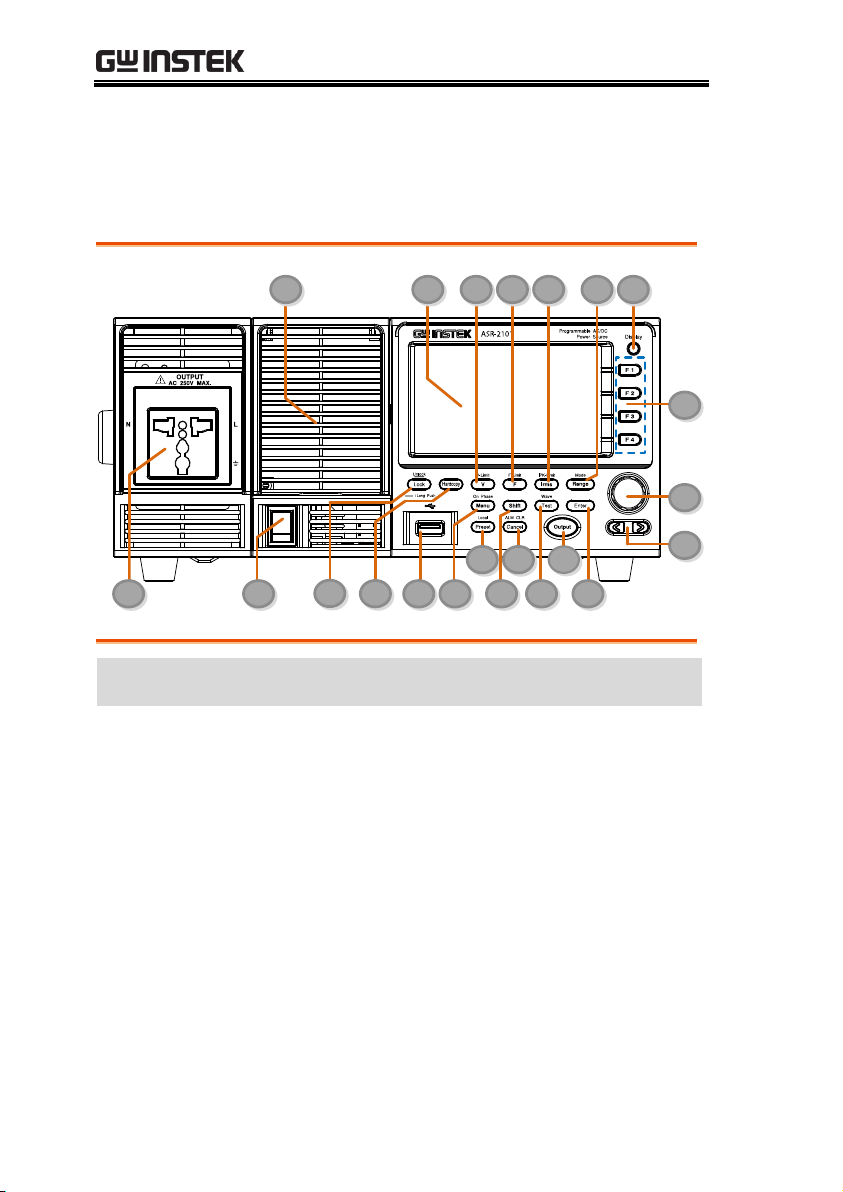

Appearance
Front Panel
M 1 62 B
F G
C
H
D E
J
I
5
4A97 8K 3
L

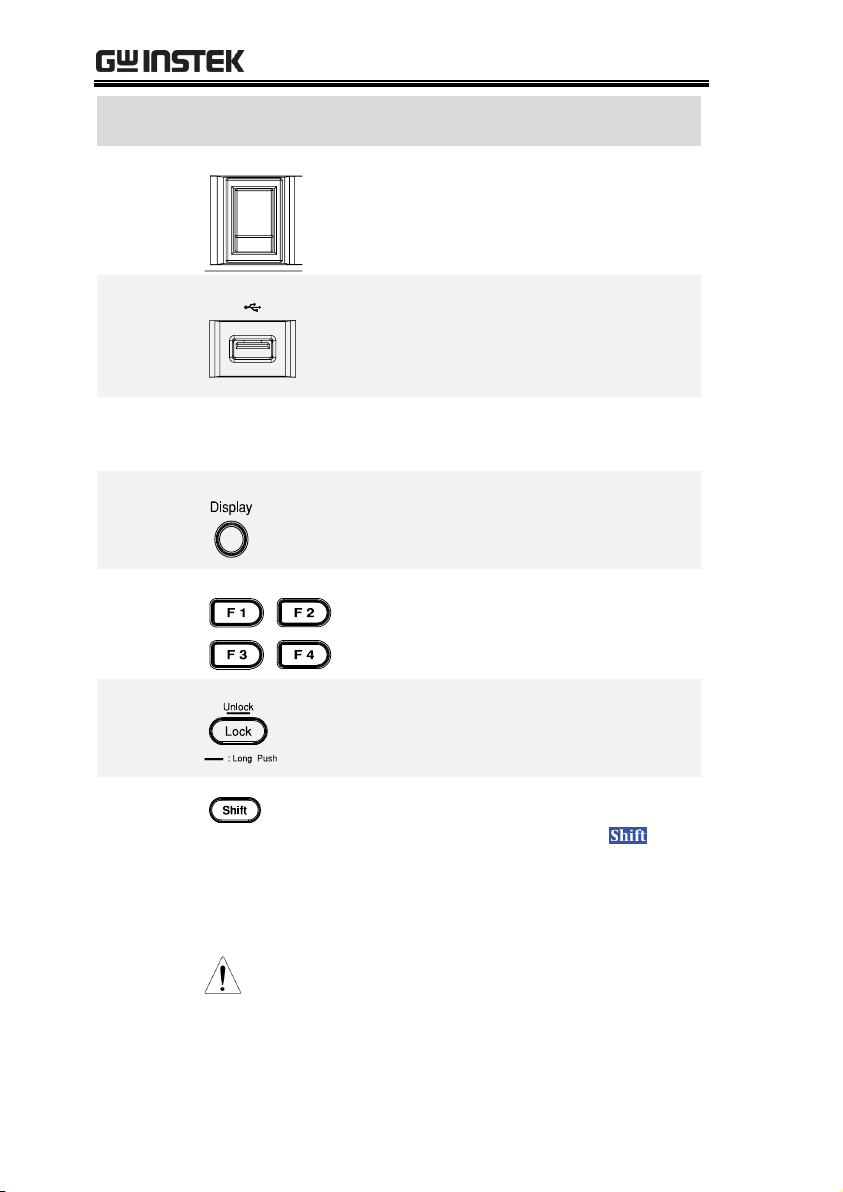

Item Index
Description
1
Power switch button
2
USB interface connector (A Type)
3
LCD screen
4
Display mode select key
5
Function keys (blue zone)
6
Lock/Unlock button
7
V/V-Limit button
8
F/F-Limit button
9
Irms/IPK-Limit button
A
Range key/Output mode key

GETTING STARTED
13
B
Menu key/On phase key
C
Shift key
D
Test key/Output waveform key
E
Enter key
F
Preset key/Local mode key
G
Cancel key/ALM CLR key
H
Output key
I
Scroll wheel
J
Arrow keys
K
Air inlet
L
Hardcopy key
M
Output socket (ASR-2100/2050 only)

ASR-2000 Programming Manual
14
Item
Description
Power
Switch
Turn on the mains power
USB A Port
The USB port is used for data transfers
and upgrading software. Also, it is
available for screenshot hardcopy in
association with the Hardcopy key.
LCD Screen
Displays the setting and measured values
or menu system
Display
Mode
Select Key
Selects between standard, simple and
harmonic analysis mode
Function
Keys
Assigned to the functions displayed on
the right side of the screen
Lock/Unlock
Key
Used to lock or unlock the front panel
keys except output key. Simply press to
lock, whilst long press to unlock.
Shift Key
Turns on the shift state, which enables
shortcut operations with an icon
indicated on the top status bar. The shift
state, which allows continuous shortcut
operations, is kept until another press on
shift key again.
Note
When performing shortcut operations,
press shift key followed by another
shortcut function key. Do not press both
shift key and shortcut function key
simultaneously.

GETTING STARTED
15
V
Used for setting the output voltage
V-Limit
+
Used for setting the output voltage limit
value
F
Used for setting the output frequency
(DC mode N/A)
F-Limit
+
Used for setting the output frequency
limit value (DC mode N/A)
Irms
Used for setting the maximum output
current
IPK-Limit
+
Used to set the peak output current limit
value
Range Key
Switches between the 100V, 200V and
AUTO ranges
Output
Mode
+
Selects between the AC+DC-INT, AC-INT,
DC-INT, AC+DC-EXT, AC-EXT, AC+DC-
ADD, AC-ADD, AC+DC-Sync and AC-Sync
modes
Menu Key
Enters the Main menu or goes back to
one of the display modes.
On Phase
+
Sets the on phase for the output voltage
Test Key
Puts the instrument into the Sequence
and Simulation control mode.
Output
Waveform
+
Selects between the Sine, Square,
Triangle and ARB 1~16 waveforms
(not available for DC-INT, AC+DC-EXT
and AC-EXT)

ASR-2000 Programming Manual
16
Enter Key
Confirms selections and settings
Preset Key
Puts the instrument into Preset mode
Local Mode
+
Switches operation back to local mode
from remote mode
Cancel Key
Used to cancel function setting menus or
dialogs.
ALM CLR
+
Clears alarms
Hardcopy
Key
Used to take a screenshot by simply one
press on the key. Make sure an USB flash
disk in well inserted before the action.
Output Key
Turns the output on or off.
Scroll
Wheel
Used to navigate menu items or for
increment/decrement values one step at
a time.
Arrow Keys
The arrow keys are used to select the digit
power of a value that is being edited
Air Inlet
Air inlet for cooling the inside of the ASR-
2000 series
Output
Socket
Output voltage socket, which has 2
versions in accordance with different
regions: Universal and European types, in
front panel. (only available for ASR-
2100/2050)

GETTING STARTED
17
Rear Panel
3
47
8
9
5
2 1
6
Item Index
Description
1
Line input
2
Output terminal
3
Remote sensing input terminal
4
Exhaust fan
5
External I/O connector
6
External signal input/
External synchronized signal input
7
USB interface connector (B Type)
8
Ethernet (LAN) connector
9
Optional 1 interfaces (RS232C & GPIB connectors)

ASR-2000 Programming Manual
18
Item
Description

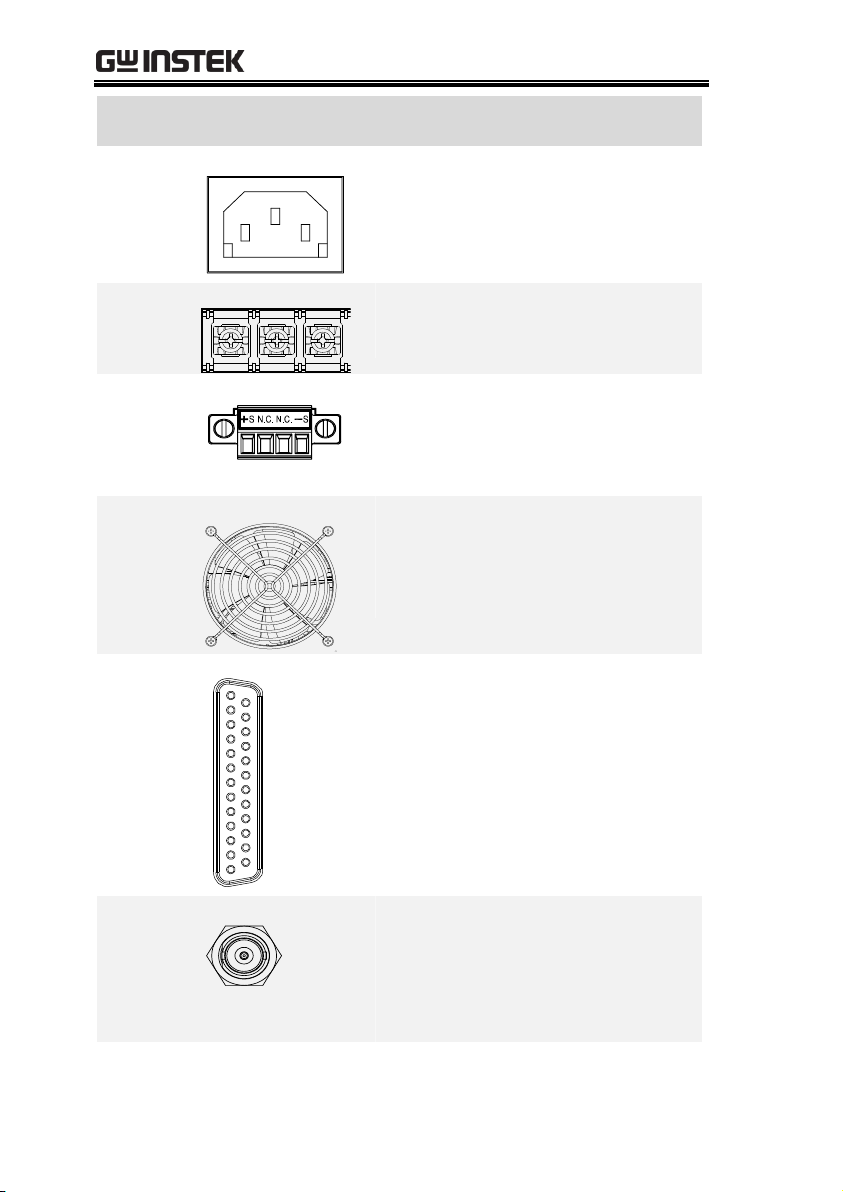

Line Input
AC inlet
Output
Terminal
Output voltage terminal (M3 screw
type, 10 ~ 18 AWG)
Remote
Sensing
Input
Terminal
Compensation of load wire voltage
drop. Only +S and –S are available for
compensation. N.C. terminals are
N/A. Refer to User Manual for details.
Exhaust
Fan
The exhaust fan is used to expel the
heat from the unit. Please ensure
there is at least 20 cm distance
between any object and the fan.
External
Control I/O
Connector
Used to control ASR-2000 externally by
using the logic signal and monitor
Sequence function status
External
Signal
Input
Connector
Synchronizing the output frequency
with this external input signal for
SYNC or outputting the amplified
external signal with this external input
signal for EXT and ADD.

GETTING STARTED
19

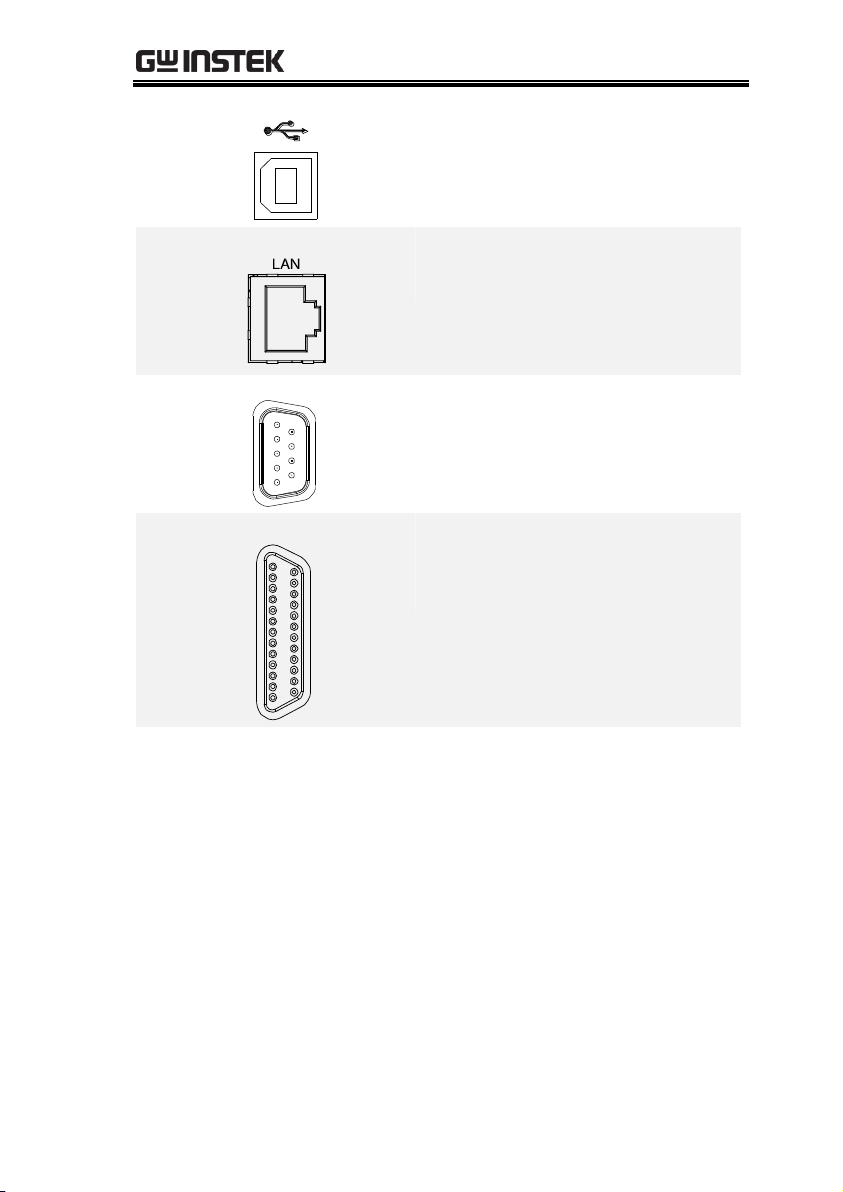

USB
USB port for controlling the ASR-2000
remotely
Ethernet
Port
The Ethernet port is used for remote
control
RS232C
Connector
The optional RS232C connector for
controlling the ASR-2000 remotely
(Factory Installed Optional 1)
GPIB
Connector
The optional GPIB connector for
controlling the ASR-2000 remotely
(Factory Installed Optional 1)

ASR-2000 Programming Manual
20
REMOTE CONTROL
This chapter describes basic configuration of
IEEE488.2 based remote control.
Interface Configuration.................................................... 21
Configure Ethernet Connection .......................................................... 21
USB Remote Interface ...........................................................................22
USB Remote Control Function Check ................................................24
RS-232 Remote Interface (Optional 1) ................................................ 25
RS232 Remote Control Function Check .............................................27
Using Realterm to Establish a Remote Connection .......................... 28
GPIB Remote Interface (Optional 1) ...................................................31
GPIB Function Check............................................................................ 32
Web Server Remote Control Function Check....................................35
Socket Server Function Check ............................................................. 36
Command Syntax ............................................................. 41
Command List ................................................................. 45
