GYMERA SMART GYM User manual

I
SMART GYM
MA001
Version V1.0.0
2023.03.16
Manufacturer: Shenzhen Gymera Technology Co., LTD
Address: 13th Floor, Xingfucheng Commercial Building, Heping East Rd, Longhua
District, Shenzhen, China
Thank you for choosing our products. Please read this manual carefully before use.
:
Please read this manual carefully before using the product and keep it properly.The product,
accessories, user interface and other illustrations in the manual are schematic diagrams for
reference only.Due to the update and upgrade of the product, the actual product and the
diagram may be slightly different, please refer to the actual product.

Shenzhen Gymera Technology Co., Ltd. / E-mail: [e-mail] / Website : www.gymeratech.com
1
Safety Statement
● Gymera fitness equipment utilizes specific technology, and its features and
information are intended for reference purposes only. They should not replace
professional medical and fitness guidance. Prior to following any fitness plan or
advice from this product, consult a qualified physician or fitness trainer.
● The Gymera system does not guarantee that a user's health or physical condition
is appropriate for specific exercises or fitness programs. Engaging in the fitness
programs and suggestions provided by this product may involve risks. Users
must assess and accept these risks independently and exercise caution and
attentiveness during workouts to prevent injuries or harm.
● The fitness data and outcomes supplied by Gymera serve as a reference for
users and are not absolutely accurate. Due to individual differences in physical
condition, exercise levels, dietary habits, and other factors, the data and training
results from Gymera will vary. Users should evaluate the suitability of fitness
plans and recommendations on their own, making adjustments based on their
physical conditions and sensations.
● Gymera equipment is not meant to replace medical or fitness advice from a
physician, fitness trainer, or other professionals. If users experience physical
discomfort or health issues, they should promptly consult a qualified doctor or
fitness trainer and follow their recommendations.
● As it is not feasible to outline all potential risks in this manual, Gymera assumes
no responsibility for injuries, production loss, or indirect damage resulting from
incomplete information. Users should assess risks while using the product.

Shenzhen Gymera Technology Co., Ltd. / E-mail: [e-mail] / Website : www.gymeratech.com
2
● This warranty excludes faults caused by improper use or failure to adhere to
Gymera's instructions.
Software Statement
● The purchaser and/or end user is granted a non-exclusive right to use the
software, which is the intellectual property of Shenzhen Gymera Technology Co.,
Ltd., and is exclusively intended for use with this product.
● The buyer and/or end user may only create copies of the software for personal
backup purposes.
● Shenzhen Gymera Technology Co., Ltd. retains all intellectual property rights to
the software, as stated above.
● Shenzhen Gymera Technology Co., Ltd. is not required to provide the software's
source code, as stated above.
● Shenzhen Gymera Technology Co., Ltd. is responsible for providing customers
with remote software upgrades or authorizing an agent of Shenzhen Gymera
Technology Co., Ltd. to supply remote software upgrade services, as stated
above.
● The owner is responsible for regularly backing up all hardware and software
components.

Shenzhen Gymera Technology Co., Ltd. / E-mail: [e-mail] / Website : www.gymeratech.com
3
Intellectual Property Statement
● The copyright for this manual and any accompanying information is held by
Shenzhen Gymera Technology Co., Ltd. The information provided in this manual
is intended solely for installation, training, and service purposes.
● Without written consent from Shenzhen Gymera Technology Co., Ltd., it is strictly
prohibited to reuse, redesign, distribute, or otherwise process any portion of this
information, whether in electronic or written form.
● Modifications to the product, particularly the device, are not allowed without
explicit written permission from Shenzhen Gymera Technology Co., Ltd.
● Copyright © and Trademark ® or Trademark ™ symbols must not be removed.
Third-party trademarks and other intellectual property materials belong to their
respective owners.

Shenzhen Gymera Technology Co., Ltd. / E-mail: [e-mail] / Website : www.gymeratech.com
4
1. Safety Instructions

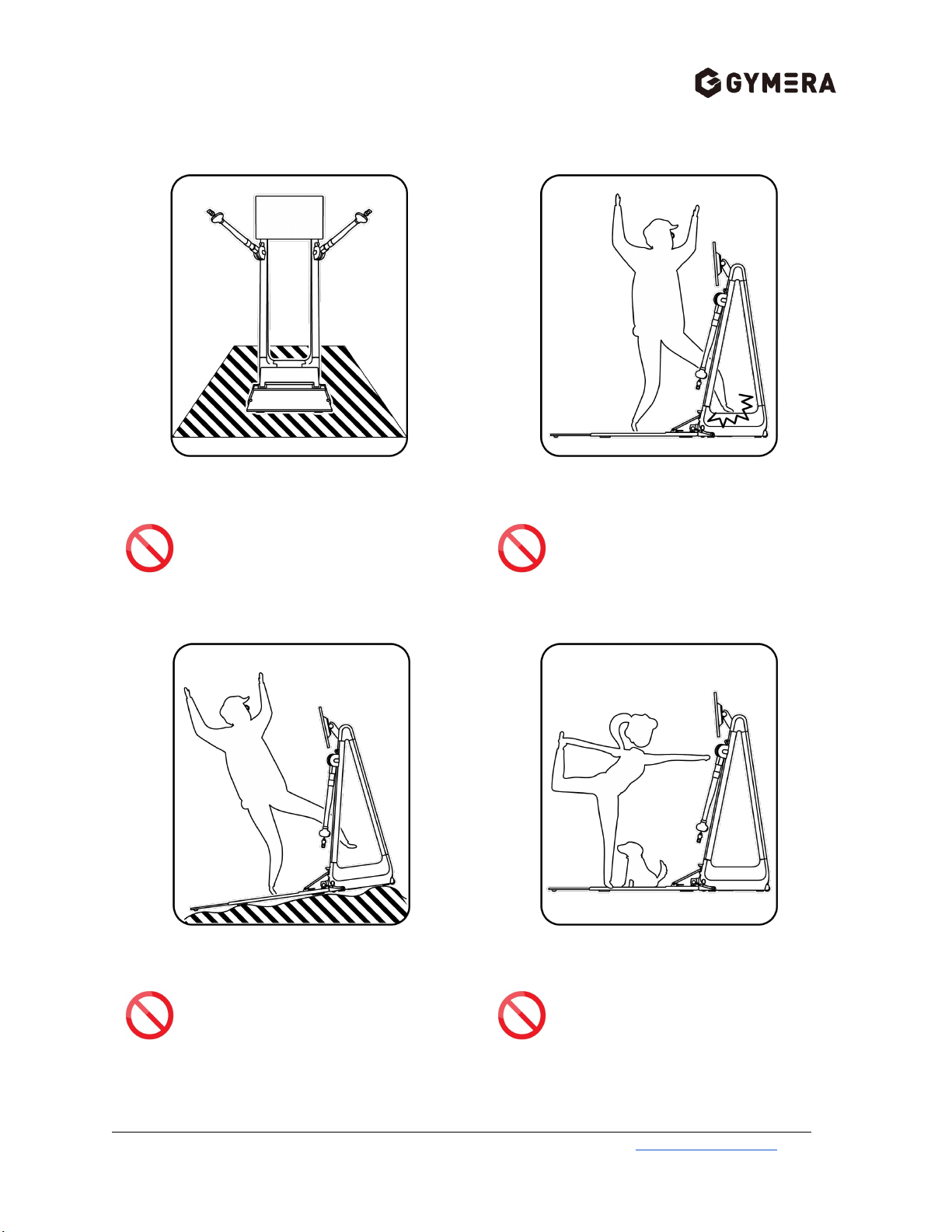

For safety, ensure a clear
space with a diameter of 3-4
meters surrounding the
machine during training
sessions.
Please do not step on the base
of the machine.
To avoid instability, do not
place the machine
on uneven ground.
Pets are strictly prohibited from
being in the vicinity of the
machine.

Shenzhen Gymera Technology Co., Ltd. / E-mail: [e-mail] / Website : www.gymeratech.com
5
To prevent injury or damage, do
not hang from the armbar.
The pneumatic components
should not be subjected to severe
blows under any circumstances.

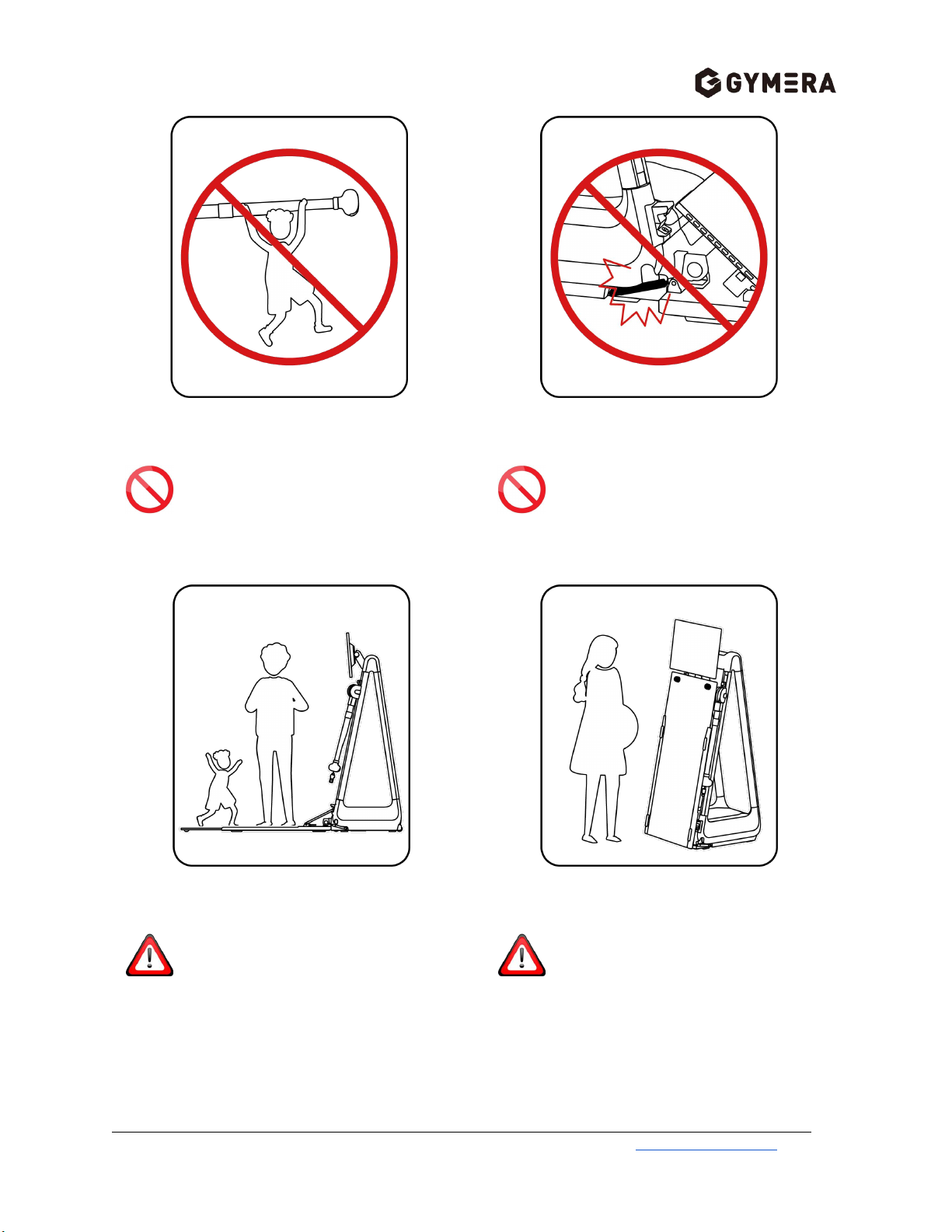

Children must be accompanied by
an adult. Do not leave children
alone with the machine.
When using the fitness machine,
there is a risk of falling, especially
for elderly individuals, children,
and pregnant women. Please
exercise caution if you fall under
any of these categories.

Shenzhen Gymera Technology Co., Ltd. / E-mail: [e-mail] / Website : www.gymeratech.com
6

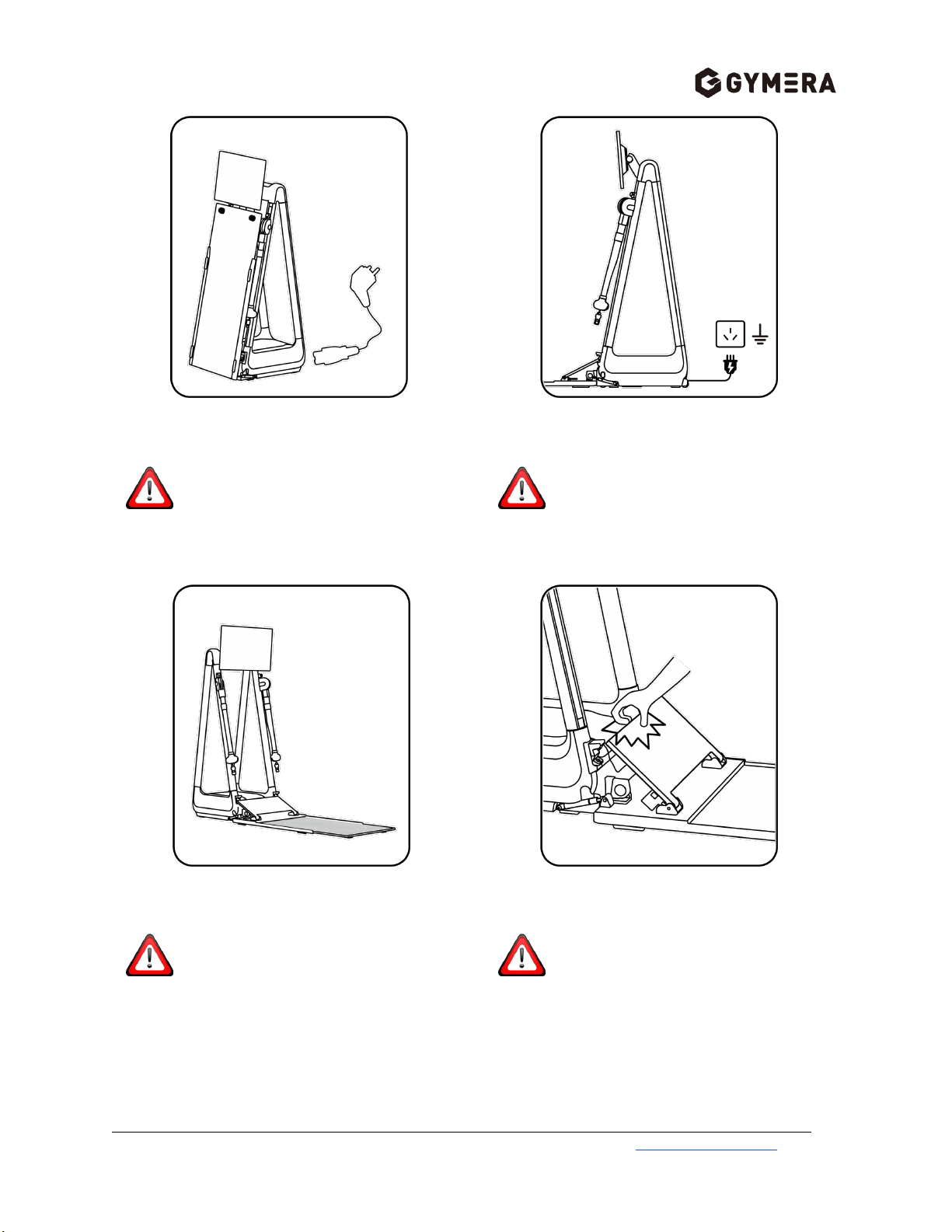

The machine must be unplugged
when not in use.
The machine must be plugged
into a grounded outlet to prevent
the risk of electric shock.
Please use non-slip mats when
training.
During the installation
of the fixing pedal, take care not
to pinch your hands.

Shenzhen Gymera Technology Co., Ltd. / E-mail: [e-mail] / Website : www.gymeratech.com
7
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
RF Exposure Information
For Smart Handles and Bluetooth Controller:
The device has been evaluated to meet general RF exposure requirement. The
device can be used in portable exposure condition without restriction.
For Smart Gym:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator and your body.

Shenzhen Gymera Technology Co., Ltd. / E-mail: [e-mail] / Website : www.gymeratech.com
8
RF Exposure Information
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.

Shenzhen Gymera Technology Co., Ltd. / E-mail: [e-mail] / Website : www.gymeratech.com
9
2. Introduction
Smart Gym (front)

Shenzhen Gymera Technology Co., Ltd. / E-mail: [e-mail] / Website : www.gymeratech.com
10
Smart Gym (back)

Shenzhen Gymera Technology Co., Ltd. / E-mail: [e-mail] / Website : www.gymeratech.com
11
3.Shipping list

Shenzhen Gymera Technology Co., Ltd. / E-mail: [e-mail] / Website : www.gymeratech.com
12
4. Installation and Storage
4.1 MA001 Installation
1. Open the packing case as shown.
2. Take out the parts in the order
shown in the figure; Move the main
body out and put it on the flat ground
(3-4 people are recommended to
operate).
3. After loosening knurled screw
clockwise, install the touch screen on
the main body and tighten it, and then
uncover the power cord cover.
4. After connecting the cable to the
main body, cover the cord cover.

Shenzhen Gymera Technology Co., Ltd. / E-mail: [e-mail] / Website : www.gymeratech.com
13
5. After unpacking the fitness pedal,
align the pedal with the main body.
6. Tighten both sides manually with
knurled screw clockwise and then
tighten with the open end wrench.
7. Turn the fitness pedal up.
8. Cut the cable ties of the hydraulic
rods on both sides.

Shenzhen Gymera Technology Co., Ltd. / E-mail: [e-mail] / Website : www.gymeratech.com
14
9. After the hydraulic rods is aligned,
insert the quick release pin on both
sides, then the pedal installation is
complete.

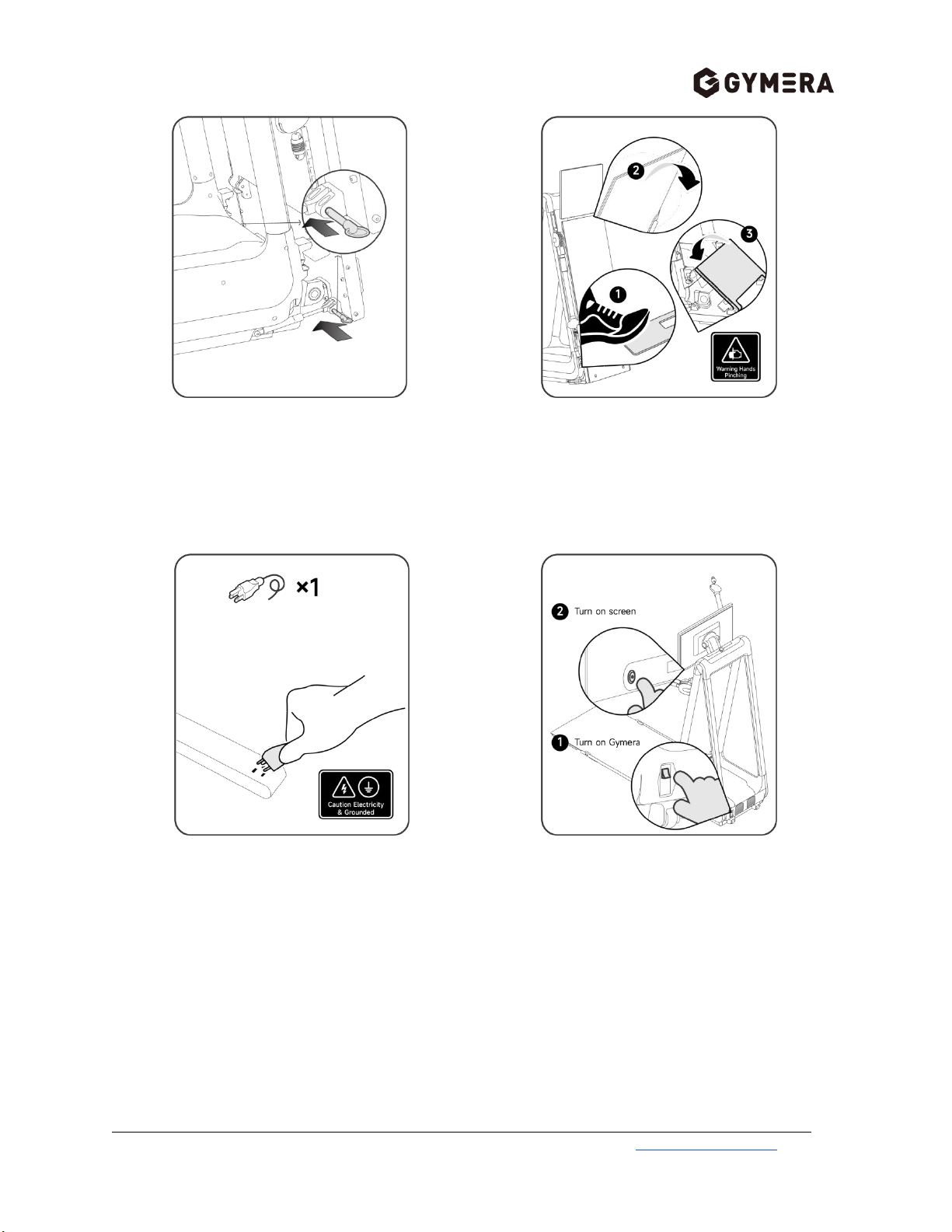

10. Gently step on the locking plate,
hold the fitness pedal and expand it.
Connect the fixing pedal to the main
body.
11. Connect the power cord, and
ensure that the socket is grounded.
12. Power on the main body, and
power on the monitor.

Shenzhen Gymera Technology Co., Ltd. / E-mail: [e-mail] / Website : www.gymeratech.com
15
13. The touch screen can be rotated
clockwise 180°, counter-clockwise to
return to position.
14. Placement suggestions.

Shenzhen Gymera Technology Co., Ltd. / E-mail: [e-mail] / Website : www.gymeratech.com
16
4.2 Use of accessories

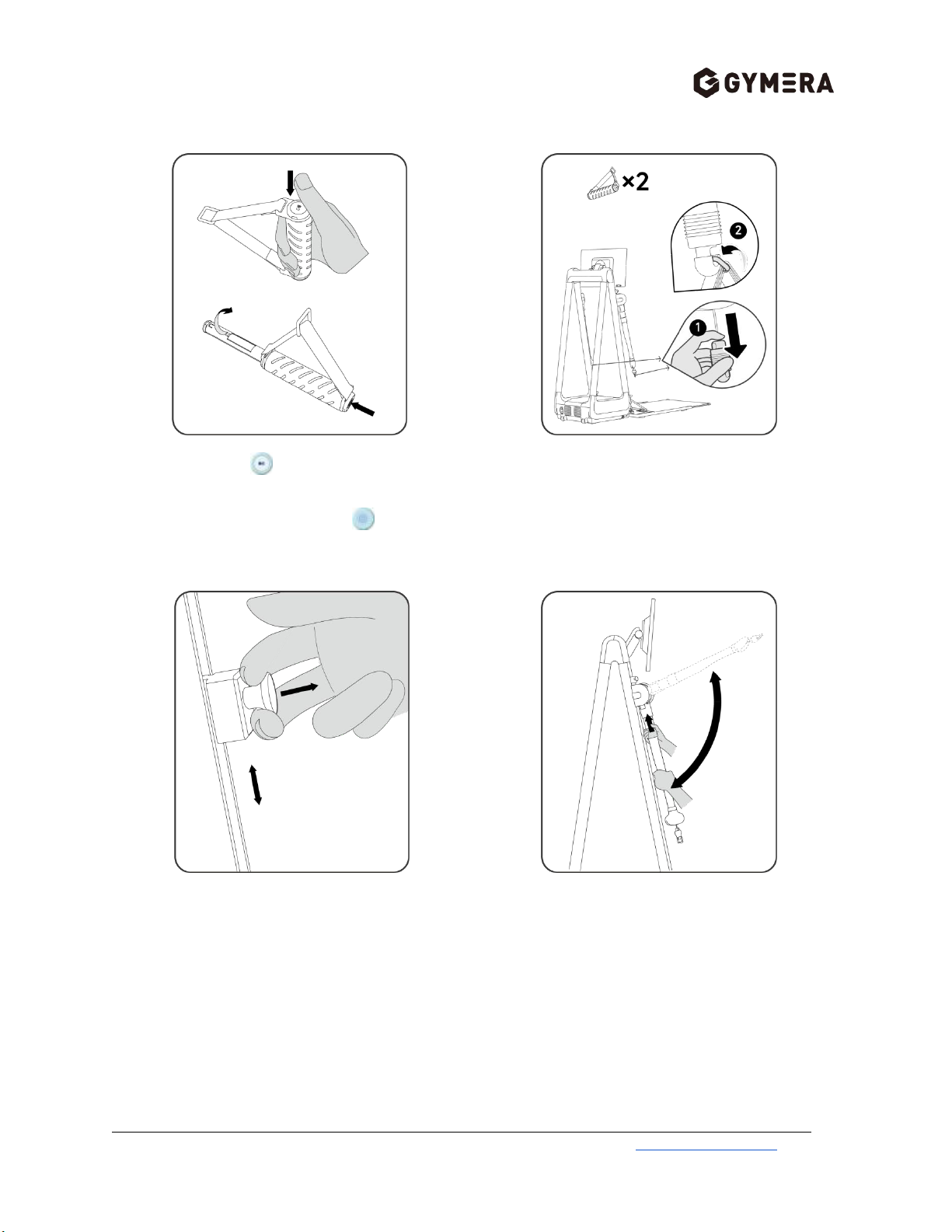

1. Press the key on the smart
handles to start and stop training, and
press the forward button to replace
the battery.
2. As shown in the figure, hold the
clasp and gently press down to
assemble the accessories.
3. After holding the armbar, the other
hand gently pulls the armbar slide lock
to adjust the height.
4. Hold the armbar swing lock to slide
up, then hold the armbar with the other
hand, adjusting the armbar to the
desired angle.

Shenzhen Gymera Technology Co., Ltd. / E-mail: [e-mail] / Website : www.gymeratech.com
17
5. Install the corner protector of the
fitness pedal.
6. Install the Bluetooth controller on
the barbell.

Shenzhen Gymera Technology Co., Ltd. / E-mail: [e-mail] / Website : www.gymeratech.com
18
4.3 Storage
Before moving the machine, make sure to turn off the power and unplug the power cord.
Fold the fitness pedal, insert the T-handle wrench and rotate it clockwise for a maximum
of 4 turns. After the front wheels are completely down, unplug the T-handle wrench and
push the machine to the required position. After moving, make sure that the hydraulic
jack is fully back (there is no resistance when turning the T-handle wrench
counterclockwise) before unfolding the fitness pedal.

Shenzhen Gymera Technology Co., Ltd. / E-mail: [e-mail] / Website : www.gymeratech.com
19
5. Precautions
(1) Keep MA001 away from wet areas such as bathrooms, kitchens, basements, and
swimming pools to prevent electrical hazards.
(2) Install MA001 on a flat surface to avoid the risk of injury or damage if it falls.
(3) Store and use MA001 in a cool, dry, well-ventilated area, away from sources of
radiation and heat.
(4) Do not cover or obstruct the heat vents on the rear of MA001, and avoid placing
MA001 on surfaces such as beds, sofas, blankets, or similar objects.
(5) The power voltage range for device operation is labeled on the rear of MA001.
(6) If you are unsure about the input voltage, contact the local dealer or power company
for assistance.
(7) If MA001 is not going to be used for an long period, disconnect the power supply to
avoid electrical shock and damage from abnormal power supply voltage during
thunderstorms.
(8) Avoid overloading the socket to prevent the risk of fire or electrical shock.
(9) Do not insert other objects into MA001, as this may cause a short circuit or electrical
shock.
(10) Do not attempt to disassemble or repair MA001 by yourself.
(11) In case of issues with MA001, contact our after-sales service team directly.
