Connect Mesh 4-Channel Interface
Version 2.0
732.28.424
HDE 26.07.21
2/12
en
1. Change history
Version Date Changes
1.0 06/2020 Initial Documentation
2.0 05/2021 Added New functions
732.28.424
HDE 26.07.21
3/12
en
Table of content
1. Change history _________________________________________________________________________________________________________2
2. Connect Mesh 4-Channel Interface ______________________________________________________________________________________4
2.1. General Information: ____________________________________________________________________________________________________4
2.2. Setup_________________________________________________________________________________________________________________4
2.3. Switching a group ______________________________________________________________________________________________________4
2.4. Dimming ______________________________________________________________________________________________________________4
2.5. Update Mode __________________________________________________________________________________________________________ 5
2.6. Reset_________________________________________________________________________________________________________________5
2.7. Status LED ____________________________________________________________________________________________________________5
3. Standalone Mode_______________________________________________________________________________________________________ 6
3.1. Standalone Mode with 4-Channel Interface as Provisioner ____________________________________________________________________6
3.1.1. 4-Channel Interface Standalone Mode with Monochrome Lights _____________________________________________________________6
3.1.2. 4-Channel Interface Standalone Mode with Multi-White Lights _______________________________________________________________7
3.1.3. 4-Channel Interface Standalone Mode with RGB Lights ____________________________________________________________________8
3.2 Standalone Mode with Remote Control as Provisioner ________________________________________________________________________9
3.2.1. Remote Control Standalone Mode functions 4-Channel Interface ____________________________________________________________9
4. Connect Mesh 4-Channel Interface Installation Guidelines _____________________________________________________________10
4.1. General Information: ___________________________________________________________________________________________________10
4.2. Step-by-Step Procedure: _______________________________________________________________________________________________10
5. List of Compatible Switches____________________________________________________________________________________________12
732.28.424
HDE 26.07.21
4/12
en
2. Connect Mesh 4-Channel Interface
2.1. General Information:
The Connect Mesh 4-Channel Interface is an installation device which can be used to integrate existing wall
switches from other manufacturers that are already on site into your Bluetooth® Mesh Network.
[Image 1]
Connect Mesh 4-Channel Interface
Hardware Version 1 (Without Reset Button)
[Image 2]
Connect Mesh 4-Channel Interface
Hardware Version 2 (With Reset button)
With Bluetooth® Mesh, several Bluetooth® devices are combined to a meshed network. This means that each
device (node) in the network is connected to one or more devices and can communicate. Devices that belong to
a network work even if they are not in direct range of one another. It just has to be ensured that a member of the
network is within range to forward the data packages.
2.2. Setup
To use the Connect Mesh 4-Channel Interface, please insert a battery into the Battery Compartment. The device will
is ready. Afterwards, it can be provisioned as described within the Connect Mesh App. After its initial provisioning,
the device will go to sleep 5 seconds after the last button interaction and wakes up by the next interaction.
2.3. Switching a group
The Connect Mesh 4-Channel Interface can be provisioned in the Connect Mesh App. After provisioning, you can
App Operational Manual.
2.4. Dimming
To change the brightness, press the button which is connected to the group and hold it. The brightness of your lights
will increase until you release the press or the maximum brightness is reached. Repeat the long press will reduce the
brightness of the connected group.
Red wire - Live Wire (L)
Brown wire -Switch S4
Green wire - Switch S1
Blue wire - Switch S2
Yellow wire - Switch S3
Red wire - Live Wire (L)
Brown wire -Switch S4
Green wire - Switch S1
Blue wire - Switch S2
Yellow wire Switch S3
Reset Button
Status LED
732.28.424
HDE 26.07.21
5/12
en
2.5. Update Mode
Häfele Connect Mesh App).
Option 1: Update via App
If the Mesh device is provisioned the update can be done by:
1.
"Update Device icon".
2.
1. Insert the battery to start the device and the LED will start blinking.
2. Remove the battery and insert it again.
Repeat this 4 times of consistent intervals of 2 seconds each .
3.
the Häfele Connect Mesh App.
4. Press "Menu" icon, click on "Settings" and click on "Extended Settings" and then click on "Search device in
Option 3: Manual Update via Reset Button (Version 2 only)
1. Press and hold the Reset Button on the Mesh device and at the same time, connect the Mesh Device into
Power supply. This will bring the Mesh device in OTA- Update mode.
2. Press "Menu" icon, click on "Settings" and click on " Extended Settings" and then click on "Search device
in Update Modus".
3. .
2.6. Reset
Option 1: Reset via App
If the Mesh device is provisioned and the reset can be done by:
1. Click on Mesh device and click on edit icon and scroll down to the bottom of the page.
2.
3. Click on this icon and select "Reset" option to reset the mesh device.
1. Remove the battery and insert it again, while continuously pressing a button.
Repeat this 8 times at consistent intervals of 2 seconds.
2. The Mesh device will be reset and ready for Provisioning again.
Option 3: Manual Reset by Reset Button (Version 2 only)
1. Press the Reset button for at least 8 seconds and release it.
2. The Mesh device will be reset and ready for Provisioning again in the Häfele Connect Mesh App.
2.7. Status LED
Status LED Behaviour Meaning
The Connect Mesh 4-Channel Interface is either in normal operation mode or its
once. In case this does not happen, the battery is empty.
Blinking The Connect Mesh 4-Channel Interface is in provisioning mode and is ready to be
added to an existing Connect Mesh network.
The Connect Mesh 4-Channel Interface is in OTA update mode and is ready to be
updated. It will remain in OTA update mode for 60 seconds or until the power is
uninterrupted.
Double Blinking
(Attention Modus)
The Mesh App doesn't let the Battery-driven Mesh devices to activate the
energy-saving mode (Sleep-mode) and it helps to transmit the data
732.28.424
HDE 26.07.21
6/12
en
3. Standalone Mode
3.1. Standalone Mode with 4-Channel Interface as Provisioner
you can provision mesh boxes with monochrome, multi-white lights or RGB lights.
Attention: Only one wall switch can be used to control the network. In case more 4-channel interfaces are required,
please use the Remote Control Standalone Mode or use the Connect Mesh App.
3.1.1. 4-Channel Interface Standalone Mode with Monochrome Lights
(otherwise please update) and needs to be reset (status led blinks).
1. Start the search for mesh boxes by pressing the two upper buttons for 4 seconds. The led will start
blinking (slowly).
2.
3. To stop searching for other mesh boxes, press any button of the switch. To start searching again, continue
with step 1.
The buttons of the switch will control the mesh box in the following way:
•
•
•
•
Group 3
• ON/OFF: Single Click
• Dim Up/Down: Longpress
[Image 3]
Group 1
• ON/OFF: Single Click
• Dim Up/Down: Longpress
Group 2
• ON/OFF: Single Click
• Dim Up/Down: Longpress
Group ALL
• ON/OFF: Single Click
• Dim Up/Down: Longpress
Constant Power
Group 3Group 1
Group 2
Group 3Group 1
Group 2
732.28.424
HDE 26.07.21
7/12
en
3.1.2. 4-Channel Interface Standalone Mode with Multi-White Lights
and needs to be reset (status led blinks).
1. Start the search for mesh boxes by pressing the upper left and lower left buttons for 4 seconds. The led
will start blinking (slowly).
2.
3. To stop searching for new mesh boxes, press any button of the switch. To start searching again, continue
with step 1.
The buttons of the switch will control the mesh box in the following way:
•
• Second button: MW Light connected to port 3 and 4
• Third button: MW Light connected to port 5 and 6
•
Controls are:
•
• Long press: Dim up/down
• Tap and long press: Temperature up/down
Group 3
• ON/OFF: Single Click
• Dim Up/Down: Longpress
• Temp Up/Down: Double Click
[Image 4]
Group 1
• ON/OFF: Single Click
• Dim Up/Down: Longpress
• Temp Up/Down: Double Click
Group 2
• ON/OFF: Single Click
• Dim Up/Down: Longpress
• Temp Up/Down: Double Click
Group ALL
• ON/OFF: Single Click
• Dim Up/Down: Longpress
• Temp Up/Down: Double Click
Constant Power
MW
Group 3
MW
Group 2
MW
Group 1
732.28.424
HDE 26.07.21
8/12
en
3.1.3. 4-Channel Interface Standalone Mode with RGB Lights
needs to be reset (status led blinks).
1. Start the search for mesh boxes by pressing the upper left and lower right buttons for 4 seconds. The led
will start blinking slowly.
2.
3. To stop searching for other mesh boxes, press any button of the switch. To start searching again, continue
with step 1.
The buttons of the switch will control the mesh box in the following way:
•
• Control RGB Light 2, connected to port 4, 5 and 6: Controlled by second and fourth button
Upper button:
•
• Long press: Dim up/down
• Tap and long press: Saturation up/down
Lower button:
• Long press: Change Color
Group 1 (RGB)
• Col Up/Down: Longpress
[image 5]
Group 1 (RGB)
• ON/OFF: Single Click
• Dim Up/Down: Longpress
• Sat Up/Down: Double Click
Group 2 (RGB)
• ON/OFF: Single Click
• Dim Up/Down: Longpress
• Sat Up/Down: Double Click
Group 2 (RGB)
• Col Up/Down: Longpress
Constant Power
RGB Group 2RGB Group 1
*double tap and hold with same behaviour
as dimming (one direction/other direction)
732.28.424
HDE 26.07.21
9/12
en
3.2 Standalone Mode with Remote Control as Provisioner
When using the Remote Control as Provisioner for the Standalone Mode, the 4-Channel Interface can be added as a
provisioned device.
3.2.1. Remote Control Standalone Mode functions 4-Channel Interface
The 4-Channel Interface will be added when the Remote Control is searching for new devices in the Standalone
Mode. This happens when the Remote Control is searching for Mesh Boxes to be provisioned (with Monochrome-,
Multi-White- or RGB-Lights), as described in section 3.2 of the Remote Control technical documentation.
Provisioning the 4-Channel Interface using the Standalone Mode of the Remote Control will provision the 4-Channel
Interface with the following described functions:
The 4-Channel Interface behaves as group 7 on the Remote Control
Group 7 Scene A
Scene B Scene C
[image 6]
Button Group or Scene Action
Upper Left
Upper Right Scene A (of all lights) Trigger Scene (click) Dimm Group (long press)
Lower Left Scene B (of all lights) Trigger Scene (click) Dimm Group (long press)
Lower Right Scene C (of all lights) Trigger Scene (click) Dimm Group (long press)
732.28.424
HDE 26.07.21
10/12
en
4. Connect Mesh 4-Channel Interface Installation Guidelines
4.1. General Information:
• Connect Mesh 4-Channel Interface has 4 Channels.
• These 4 Channels can be used to control Luminaire/Häfele Devices connected in Connect Mesh 6 way
distributor.
• Luminaire connected to Connect Mesh 6 way distributor are dimmable.
• Connect Mesh 4-Channel Interface is battery driven (CR2430).
• 1–4-way Push Switch is compatible but Normal Switch is not compatible.
[image 7] Connect Mesh 4-Channel Interface – Hardware Version 2 (With Reset button)
4.2. Step-by-Step Procedure:
In this document, we explicitly provide step-by-step procedure to install a Connect Mesh 4-Channel Interface with
a GIRA Switch. In this case, we used GIRA 014700 4-way push switch as an example. You can also use any similar
type of 4 way push switch.
1. Power Supply:
Connect the Red wire in the GIRA Switch power supply slot as illustrated in image 8.
2. Bridge Wire:
The Black wire is used as Bridge between the two sides of the GIRA switch. One side of the Black wire is
connected next to Red Wire of the Interface (L) and other side is connected to another L as shown in image
[image 8] [image 9]
Red wire (L) – Common
positive wire
Brown wire – Negative
wire for Channel 4
Green wire – Negative
wire for Channel 1
Blue wire – Negative
wire for Channel 2
Yellow wire – Negative
wire for Channel 3
732.28.424
HDE 26.07.21
11/12
en

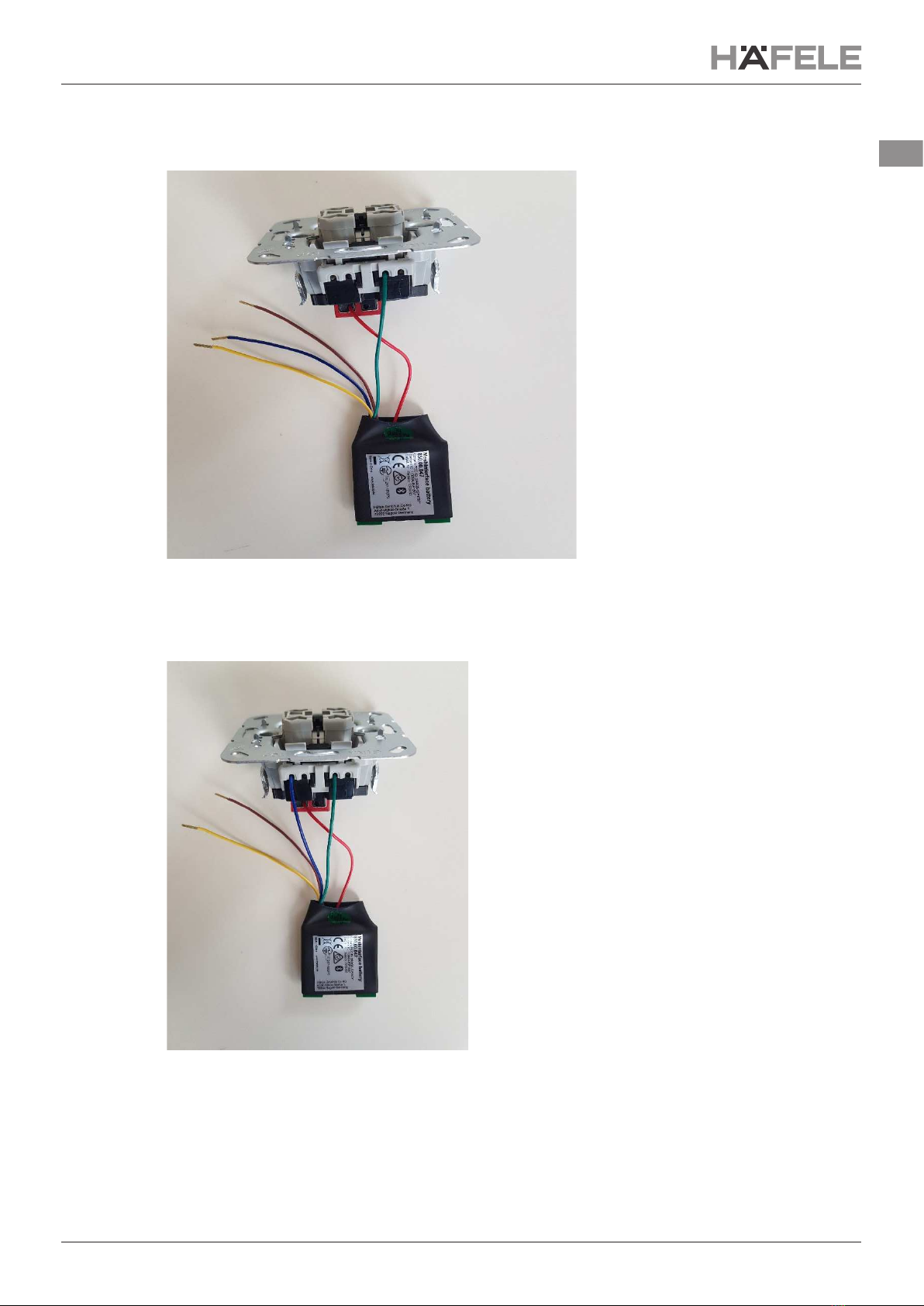

3. Channel 1:
Green Wire is negative terminal of Channel 1. Connect the Green wire in the 3rd slot of the GIRA Switch
(Top Side) as shown in image 10.
[image 10]
4. Channel 2:
Blue Wire is negative terminal of Channel 2. Connect the Blue wire in the 1st slot of the GIRA Switch (Top
Side) as presented in image 11.
[image 11]
Subject to
alteration
© 2021 by Häfele SE & Co KG
Adolf-Häfele-Str. 1 · D-72202 Nagold www.hafele.com
12/12
en
732.28.424
HDE 26.07.21
5. Channel 3
Yellow Wire is negative terminal of Channel 3. Connect the yellow wire in the 1st slot of the GIRA Switch
(Bottom Side) as demonstrated in image 12.
[image 12]
6. Channel 4
Brown Wire is negative terminal of Channel 4. Connect the brown wire in the 3rd slot of the GIRA Switch
(Bottom Side) as shown in image 13.
[image 13]
5. List of Compatible Switches
S. No. Manufacturer Model Number EAN
1GIRA 014700 4010337147008
2JUNG 532-4U 4011377021044
3Berker 503404 4011334255994
Apart from this list of compatible Switches, you can also use any similar type of 4-way Switch.
Table of contents
Other Häfele Recording Equipment manuals
