H.Koenig vio9 User manual

Microwave
Micro-ondes
Mikrowellenofen
Oven-magnetron
Horno microondas
Forno a microonde
oven
vio9

E NG LI S H
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliance basic safety
precautions should be followed, including the
following:
WARNING: To reduce the risk of burns, electric
shock, fire, injury to persons or exposuretoexcessive
microwave energy:
Read all instructions before using the appliance.
1. Use this appliance only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This type of
oven is specifically designed to heat, cook or dry
food. It is not designed for industrial or laboratory
use.
2. Do not operate the oven when empty.
3. Do not operate this appliance if it has a damaged
cord or plug, if it is not working properly or if it has
been damaged or dropped. If the supply cord is
damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person
inorder to avoid a hazard
4. WARNING: Only allow children to use the oven
without supervision when adequate instructions have
been given so that the child is able to use the oven
in a safe way and understands the hazardsof
improper use.
5. Warning: When the appliance is operated in the
combination mode, children should only use the
oven under adult supervision due to the
temperatures generated.

6. To reduce the risk of fire in the oven cavity:
a. When heating food in plastic or paper
container, keep an eye on the oven due tothe
possibility of ignition;
b. Remove wire twist-ties from paper or
plastic bags before placing bag in oven.
c. If smoke is observed, switch off or unplug
the appliance and keep the door closed in order to
stifle any flames.
d. Do not use the cavity for storage
purposes. Do not leave paper products, cooking
utensils or food in the cavity when not in use.
7. WARNING: Liquid or other food must not be heated
in sealed containers since theyare liable to explode.
8. Microwave heating of beverage can result indelayed
eruptive boiling, therefore care has to be taken when
handling the container.
9. Do not fry food in the oven. Hot oil can damage
oven parts and utensils and even result in skin burns.
10. Eggs in their shell and whole hard-boiled eggs
should not be heated in microwave ovens sincethey
may explode even after microwave heating has
ended.
11. Pierce foods with heavy skins such as potatoes,
whole squashes, apples and chest nuts before
cooking.
12. The contents of feeding bottles and baby jars should
be stirred or shaken and the temperature should be
checked before serving in order to avoid burns.
13. Cooking utensils may become hot because of heat
transferred from the heated food. Potholders may be
needed to handle the utensil.

14. Utensils should be checked to ensure that they are
suitable for use in microwave oven.
15. WARNING: It is hazardous for anyone other than
a trained person to carry out any service or repair
operation which involves the removal of any cover
which gives protection against exposure to
microwave energy.
16. This product is a Group 2 Class B ISM equipment.
The definition of Group 2 which contains all ISM
(Industrial, Scientific and Medical) equipment in
which radio-frequency energy is intentionally
generated and/or used in the form ofelectromagnetic
radiation for the treatment of material, and spark
erosion equipment. For Class B equipment is
equipment suitable for use in domestic
establishments and in establishments directly
connected to a low voltage power supply network
which supplies buildings used for domestic
purpose.
17. Children should be supervised to ensure that they do
not play with the appliance.
18. The microwave oven is only used in freestanding.
19. WARNING: Do not install oven over a range cooktop
or other heat-producing appliance. ifinstalled could
be damaged and the warranty would be avoid.
20. The accessible surface may be hot during operation.
21. The microwave oven shall not be placed in a

cabinet.
22. The door or the outer surface may get hot when
the appliance is operating.
23. The temperature of accessible surfaces may be
high when the appliance is operating.
24. The appliance shall be placed against a wall.
25. Appliance is not to be used by children or persons
with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or
instruction
26. Children being supervised not to play with appliance
27. WARNING: If the door or door seals are damaged,
the oven must not be operated until it has been
repaired by a competent person
28. The instructions shall state that appliances are not
intended to be operated by means of an external
timer or separate remote-control system.
29. The microwave oven is for household use only and
not for commercial use.
30. Never remove the distance holder in the back or
on the sides, as it ensures a minimum distancefrom
the wall for air circulation.
31. Please secure the turn table before you move the
appliance to avoid damages
32. Caution: It is dangerous to repair or maintain the
appliance by no other than a specialist because
under these circumstances the cover have to be
removed which assures protection against
microwave radiation. This applies o changing the
power cord orthe lighting aswell. Sendtheappliance
in these cases to our service centre.
33. The microwave oven is intended for defrosting,
cooking and steaming of food only.

34. Use gloves if you remove any heated food.
35. Caution! Steam will escape, when opening lids or
wrapping foil.
36. This device is not intended for use by persons
with reduced capacity on the physical, mental or
sensory or lack of experience and knowledge,
unless he has them was
asked to monitor or if they have had instructions
on the use of the appliance by a person
responsible for their safety. Children should be
supervised to ensure they do not play with the
device.
37. If smoke is emitted, switch off or unplug the
appliance and keep the door closed in order to stifle.
38. Cleaning and maintenance should not be carried
out by children unless they are at least 8 years of age
and are supervised by an adult.
39. Keep the appliance and its power cord out of reach
of children under 8 years of age.
40. Make sure that the voltage rating on the typeplate
corresponds to your main voltage of yourinstallation.
If this is not the case, contact the dealer and do not
connect the unit.
41. Please keep this document at hand and give it to
the future owner in case of transfer of your device.
42. The device must not be used if it has been dropped,
it obvious signs of damage are visible orif it has
leaks.
READ CAREFULLY AND SAVE FOR FUTURE
USE.
• This device is intended for use in domestic and

similar applications such as :
- staff kitchen areas in stores, offices and other
professional environments ;
- farms;
- guest use in hotels, motels and other residential
environments;
- bed and breakfast type environments.
• Metal containers for food and beverages are not
permitted when cooking in microwaves.
• The microwave oven is intended for heating food and
beverages. Drying foodstuffs or laundry andheating
heating pads, slippers, sponges, wet laundry and
similar items may result in the risk of injury, ignition
or fire.
• The appliance must not be steam cleaned.

Power Supply
230-240V~ 50Hz
Power Consumption
(Microwave)
1400W
Power Consumption (Grill)
1000W
Rated Microwave Power
Output:
900W
Operation Frequency:
2450MHz
Outside Dimensions:
281mm(H)×483mm(W)×420mm(D)
Oven Cavity Dimensions:
220mm(H)×340mm(W)×344mm(D)
Oven Capacity:
25Litres
Cooking Uniformity:
Turntable System
Net Weight:
Approx. 14.5 kg
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY
1. Do not attempt to operate this oven with the door open since open door
operation can result in harmful exposure to microwave energy. It is important
not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the
oven door close properly and that there is no damage to the
1）Door (bent),
2）Hinges and latches (broken or
loosened), 3）Door seals and sealing
surfaces.
4. The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
SPECIFICATIONS

INSTALLATION
RADIO INTERFERENCE
1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged
doorsealsandsealing surface, brokenorloosedoorhinges and latches and dents inside
the cavity or on the door. If there is any damage, do not operate the oven and contact
qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the
heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or near
combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above
the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on
the appliance. Do not remove feet.
6. Do not operate the oven without glass tray, roller support, and shaft in their proper
positions.
7. Make sure that the power supply cord is undamaged and does not run under the oven
or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in an
emergency.
9. Do not use the oven outdoors.
Operation of the microwave oven can cause interference to your radio, TV, or similar
equipment.
When there is interference, it may be reduced or eliminated by taking the following
measures:
1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver
are on different branch circuits.

GROUNDING INSTRUCTIONS
MICROWAVE COOKING PRINCIPLES
BEFORE YOU CALL FOR SERVICE
This appliance must be grounded. This oven is equipped with a cord having a grounding
wire with a grounding plug. It must be plugged into a wall receptacle that is properly
installed and grounded. In the event of an electrical short circuit, grounding reduces risk
of electric shock by providing an escape wire for the electric current. It is recommended
that a separate circuit serving only the oven be provided. Using a high voltage is
dangerous and may result in a fire or other accident causing oven damage.
WARNING Improper use of the grounding plug can result in a risk of electric shock.
Note:
1. If you have any questions about the grounding or electrical instructions, consult a
qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven
or personal injury resulting from failure to observe the electrical connection procedures.
The wires in this cable main are colored in accordance with the following code: Green
and Yellow = EARTH
Blue = NEUTRAL
Brown = LIVE
1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as
needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwaving to speed cooking of such foods as chicken
and hamburgers. Large items like roasts must be turned over at leastonce.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom
and from the center of the dish to the outside.
If the oven fails to operate:
1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from
the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be
operating properly, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly and the timer isset.
4. Check to ensure that the door is securely closed engaging the door safety lock system.
Otherwise, the microwave energy will not flow into the oven

UTENSILS GUIDE
IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A
QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN
YOURSELF.
1. The ideal material for a microwave utensil is transparent to microwave, it allows energy
to pass through the container and heat the food.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should
not be used.
3. Do notuse recycled paper products when microwave cooking, as they may contain small
metal fragments which may cause sparks and/or fires.
4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners
tends to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas.
But be careful don’t use too much and keep a distance of 1 inch (2.54cm) between foil
and cavity
The list below is a general guide to help you select the correct utensils.
Cookware
Microwave
Grill
Combinati
on
Heat–Resistant Glass
Yes
Yes
Yes
Non Heat–Resistant Glass
No
No
No
Heat–Resistant Ceramics
Yes
Yes
Yes
Microwave–Safe Plastic Dish
Yes
No
No
Kitchen Paper
Yes
No
No
Metal Tray
No
Yes
No
Metal Rack
No
Yes
No
Aluminum Foil & Foil
Container
No
Yes
No

1. Door Safety Lock System
2. Oven Window
3. Shaft
4. Roller Ring
5. Control Panel
6. Wave Guide(Please do not remove the mica plate covering the wave guide)
7. Glass Tray
8. Grill Heater
9. Metal Rack
PART NAMES

Display Screen
Cooking time, power, indicators and present time are
displayed.
Power Level
Touch this button a number of times to set microwave
cooking power level.
Grill
Touch to set a grilling cooking program.
Combi.1 & Combi.2
Touch to set a combination cooking program.
Weight / Clock
Press a number of times to specify weight.
Stop/Cancel
Press to cancel setting or reset the oven before
settingcooking program.
Press once to temporarily stop cooking, or twice to
cancel cooking altogether.
It is also used for setting child lock.
Menu/Time
Turn the dial to input cooking time, select the kind of
food you want to cook.
Start/Quick Start
Touch to start a cooking program.
Simply touch it a number of times to set cooking
time anthe oven will cook immediately at full power
level.

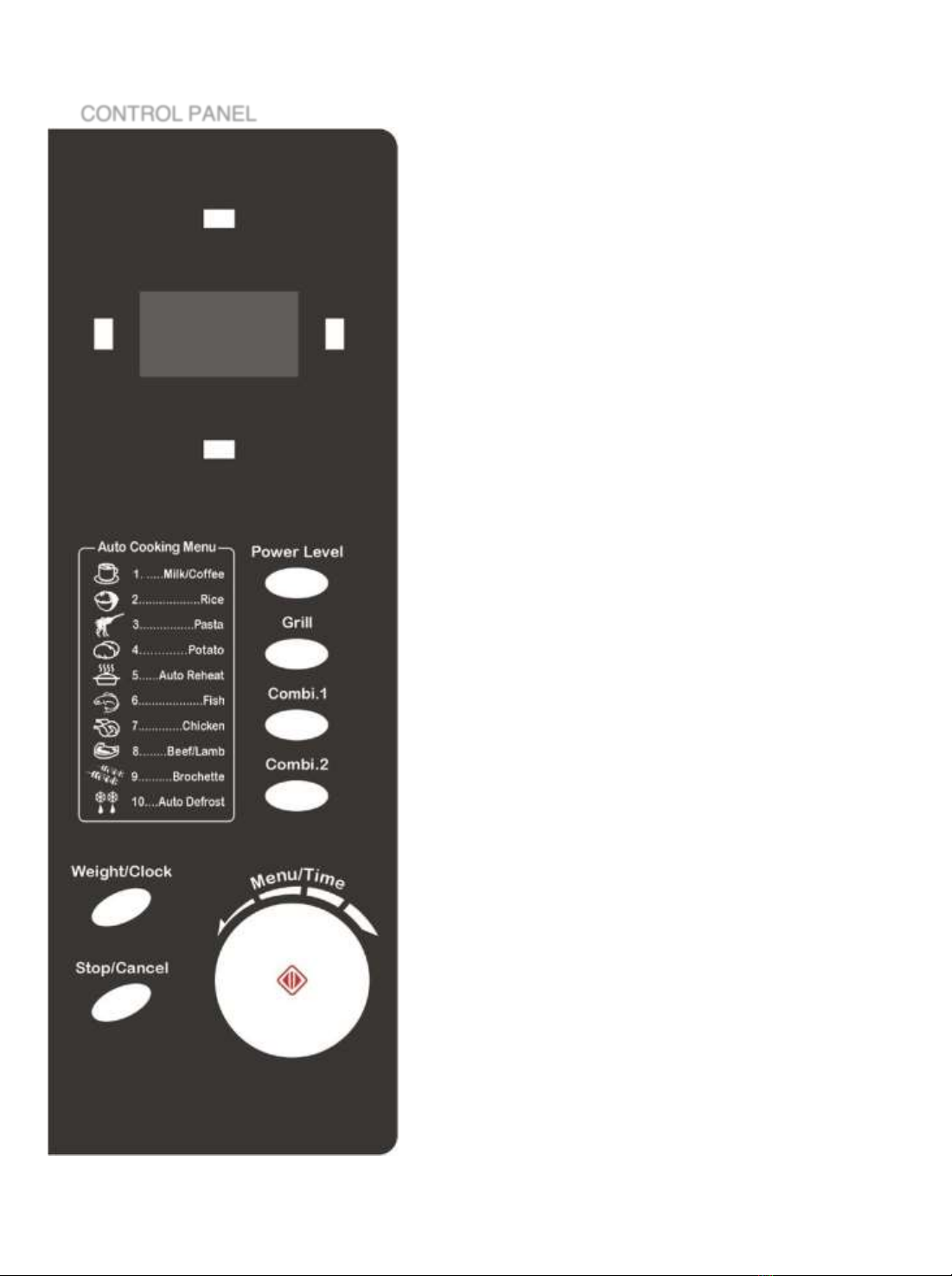

CONTROL PANEL

Each time a button is touched, a beep will sound to acknowledge the touch.
During cooking program，press STOP/CANCEL to pause it,then press start/quick start
to resume the rest program. Or press STOP/CANCEL twice to cancel theprogram.
After a cooking or defrosting program has completed, the oven will automatically
continue to sound every two minutes until the door is opened or STOP/CANCEL is
touched. (This note is available for other cooking programs.)
During the setting mode, the system will return to waiting mode if there is not any
operation within 20 seconds.
SETTING THE CLOCK
It is a 24-hour cycle clock.
FOR EXAMPLE: Suppose you want to set the oven clock time to 8:30.
1. Press WEIGHT/CLOCK once.
2. Turn MENU/TIME dial to indicate the hour digit 8.
3. Press WEIGHT/CLOCK once again.
4. Turn MENU/TIME dial to indicate the minute digits until the screen shows 8: 30.
5. Press WEIGHT/CLOCK to confirm the setting. NOTE：
To check clock time during cooking, press the WEIGHT/CLOCK once, the time will be
displayed for 5 seconds.
QUICK START
This feature allows you to start the oven quickly.
In waiting mode, press START/QUICK START a number of times to set the cooking time
(the maximum is 10 minutes), the oven starts work at full power level immediately.
MICROWAVE COOKING
To cook with microwave power alone, press the POWER LEVEL button a number of
times to select a cooking power level, and then use the MENU/TIME dial to set a desired
cooking time. The longest cooking time is 95 minutes.
For example, suppose you want to cook for 1 minute at 60% of microwave power.
1. In waiting mode, place food into oven ,close it.
2. Press POWER LEVEL button 3 times.
HOW TO SET THE OVEN CONTROLS

PRESS POWER LEVEL
BUTTON
COOKING POWER
Once
100%
Twice
80%
3 times
60%
4 times
40%
5 times
20%
3. Turn MENU/TIME dial clockwise to 1:00.
4. Press START/QUICK STARTto start. Note:
During cooking program, you can check present power by pressing POWER LEVEL.
GRILL
The grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs,
sausages of piece of chicken. It is also suitable for hot sandwiches and au gratin
dishes. For example, suppose you want to grill for 12 minutes.
1. In waiting mode, place food into oven ,close it.
2. Press GRILL button once.
3. Turn MENU/TIME dial to 12:00.
4. Press START/QUICK STARTto start. Note:
The longest grill cooking time can be set is 95 minutes.
COMBINATION 1
The longest cooking time is 95 minutes.
30% time for microwave cooking, 70% for grill cooking. Use for fish or au gratin. FOR
EXAMPLE: Suppose you want to set combination 1 cooking for 25 minutes.
1. In waiting mode, place food into oven ,close it.
2. Press COMBI. 1 button once.
3. Turn MENU/TIME dial to enter cooking time 25:00.
4. Press START/QUICK STARTto start.
COMBINATION 2
The longest cooking time is 95 minutes.
55% time for microwave cooking, 45% for grill cooking. Use for puddings omelettes,
baked potatoes and poultry.

FOR EXAMPLE: Suppose you want to set combination 2 cooking for 12 minutes.
1. In waiting mode, place food into oven ,close it.
2. Press COMBI. 2 button once.
3. Turn MENU/TIME dial to to enter cooking time 12:00.
4. Press START/QUICK STARTto start.
MENU COOK
For food or the following cooking mode, it is not necessary to program the duration and
the cooking power. It is sufficient to indicate the type of food that you wish to cook as
well as the weight of this food.
You need to turn food over at the middle of cooking time to obtain uniform cooking. For
example, to cook 400g of fish.
1. In waiting mode, place food into oven ,close it.
2. Turn MENU/TIME anti-clockwise to show food code(6).
3. Press WEIGHT/CLOCK to indicate weight of food.
4. Press START/QUICK STARTto start.
Auto Cook Menu
Code
Food/Cooking Mode
The result of auto cooking depends on factors
such as the shape and size of food, your
personal preference as to the doneness of
certain foods and even how well you happen to
place food in the oven. If you find the result at
any rate not quite satisfactory, please adjust the
cooking time a little bit accordingly.
For some foods, turn over in half cooking time,
such as chicken and beef, meet. This would
make better cooking result.
For Spaghettis add boiling water before
cooking.
1
Milk/Coffee (200ml/cup)
2
Rice(g)
3
Pasta(g)
4
Potato (230g/unit)
5
Auto Reheat (g)
6
Fish (g)
7
Chicken (g)
8
Beef/Lamb (g)
9
Brochette (g)
10
Auto defrost
WEIGHT DEFROST
The oven allows the defrosting ofmeat, poultry, and seafood. The time and thedefrosting
power are adjusted automatically once the weight is programmed. The rangeweight of
frozen foods varies between 100g and 1800g.
FOR EXAMPLE: Suppose you want to defrost shrimp.
1. In waiting mode, place the shrimp to be defrosted into the oven.

2. Turn MENU/TIME dial auti-clockwise to select 10.
3. Press WEIGHT/CLOCK to enter the food weight (100g~1800g).
4. Press START/QUICK STARTto start.
NOTE:
During defrosting program, the system will pause and sound beeps to remind user to
turn food over, and then press START/QUICK START to resume the defrosting.
CHILD PROOF LOCK
Use to prevent unsupervised operation of the oven by little children. The CHILD LOCK
indicator will show up on display screen, and the oven cannot be operated while the
CHILD LOCK is set.
To set the CHILD LOCK: In standby mode, if there is not any operation within 1
minute, the oven will auto enter child lock mode and lock indicator lights. All buttons
are invalid.
To cancel the CHILD LOCK: In child lock mode, open or close the oven door can
cancel the function and lock indicator on display turns off.
CLEANING AND CARE
1. Turn off the oven and remove the power plug
from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food
splatters or spilled liquids adhere to oven walls, wipe
with a damp cloth. Mild detergent may be used if the
oven gets very dirty. Avoid the use of spray and other
harsh cleaners as they may stain, streak or dull the door
surface.
3. The outside surfaces should be cleaned with a
damp cloth. To prevent damage to the operating
parts inside the oven, water should not be allowed to
seep into the ventilation openings.
4. Wipe the door and window on both sides, the
door seals and adjacent parts frequently with a damp
cloth to remove any spills or spatters. Do not use
abrasive cleaner.
5. Do not allow the control panel to become wet.

Clean with a soft, damp cloth. When cleaning the
control panel, leave oven door open to prevent oven
from accidentally turning on.
6. If steam accumulates inside or around the
outside of the oven door, wipe with a soft cloth. This
may occur when the microwave oven is operated
under high humidity condition. And it is normal.
7. It is occasionally necessary to remove the glass
tray for cleaning. Wash the tray in warm sudsy water
or in a dishwasher.
8. The roller ring and oven floor should be cleaned
regularly to avoid excessive noise. Simply wipe the
bottom surface of the oven with mild detergent. The
roller ring may be washed in mild sudsy water or
dishwasher. When removing the roller ring from
cavity floor for cleaning, be sure to replace in the
proper position.
9. Remove odors from your oven by combining a
cup of water with the juice and skin of one lemon in
a deep microwaveable bowl, microwave for 5
minutes. Wipe thoroughly and dry with a soft cloth.
10. When it becomes necessary to replace the
oven light, please consult a dealer to have it
replaced.
11. The oven should be cleaned regularly and any
food deposits removed. Failure to maintain the oven
in a clean condition could lead to deterioration of the
surface that could adversely affect the life of the
appliance and possibly result in a hazardous
situation.
12. Please do not dispose this appliance into the
domestic rubbish bin; it should be disposed to the
particular disposal center provided by the
municipalities.

13. When the microwave oven with grill function is
first used, it may produce slight smoke and smell.
This is a normal phenomenon, because the oven is
made of a steel plate coated with lubricating oil, and
the new oven will produce fumes and odor generated
by burning the lubricating oil. This phenomenon will
disappear after a period of using.
WARRANTY
The warranty period for our products is 2 years, unless otherwise stated, starting from
the date of initial purchase or the date of delivery.
If you have any problems or questions, you can easily access our help pages,
troubleshooting tips, FAQ, and user manuals on our service site:
https://sav.hkoenig.com.
By typing the reference name of your device in the search bar, you can access all
available online support, designed to best meet your needs.
If you still cannot find an answer to your question or problem, then click on “Did the
answer solve your problem?”. This will direct you to the Customer Support Request
Form, which you can fill out to validate your request and get help.
WARRANTY CONDITIONS
The warranty covers all failures occurring under normal use, in accordance with the
usage and specifications in the user's manual.
This warranty does not apply to packaging or transportation problems during shipment
of the product by the owner. It also does not include normal wear and tear of the
product, nor maintenance or replacement of consumable parts.
EXCLUSION OF WARRANTY
- Accessories and wearing parts (*).
- Normal maintenance of the device.
- All breakdowns resulting from improper use (shocks, failure to comply with power
supply recommendations, poor conditions of use, etc.), insufficient maintenance or
misuse of the device, as well as the use of unsuitable accessories.
- Damage of external origin: fire, water damage, electrical surge, etc.
- Any equipment that has been disassembled, even partially, by persons other than
those authorized to do so (notably the user).
- The products whose serial number would be missing, deteriorated or illegible that
would not allow its identification.

- The products subjected to leasing, demonstration, or exhibition.
(*) Some parts of your device, called wear parts or consumables, deteriorate with time
and frequency of use of your device. This wear and tear are normal but can be
accentuated by poor conditions of use or maintenance of your device. These parts are
therefore not covered by the warranty.
The accessories supplied with the device are also excluded from the warranty. They
cannot be exchanged or refunded. However, some accessories can be purchased
directly through our website: https://sav.hkoenig.com/.
ENVIRONMENT
CAUTION :
Do not dispose of this product as it has with other household products. There is a
separation of this waste product into communities, you will need to inform your local
authorities about the places where you can return this product. In fact, electrical and
electronic products contain hazardous substances that have harmful effects on the
environment or human health and should be recycled. The symbol here indicates that
electrical and electronic equipment should be chosen carefully, a wheeled waste
container is marked with a cross.
Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin, 77290 Mitry-Mory, France
www.hkoenig.com - [email protected] - [email protected] –
Tél: [phone]
