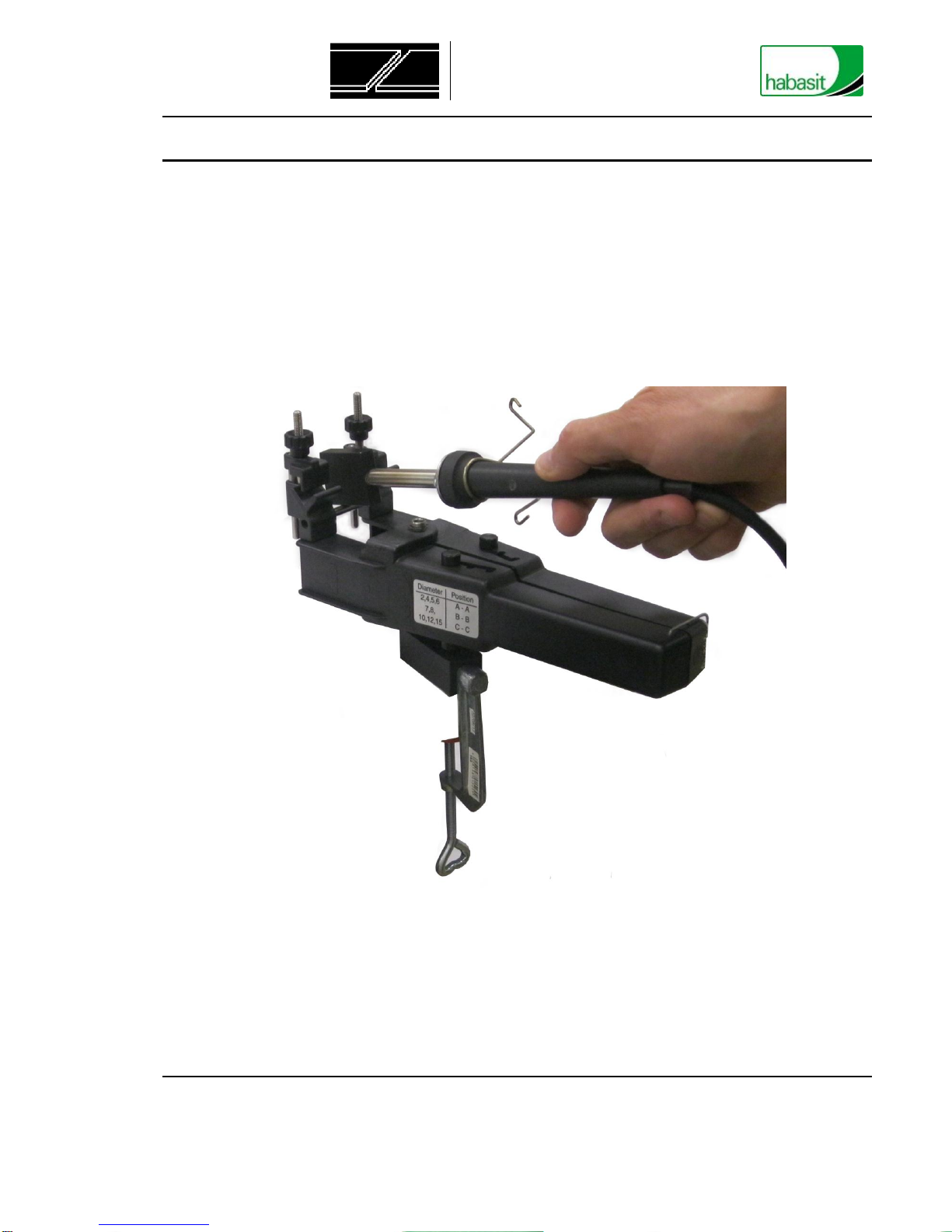

0 Introduction
The PG-18 heating welder is a device that welds thermoplastic round belts. Ends are joined by chamfer
welding: the ends of the belt are melted, pressing them against a precision-regulated hot welding plate.
After being suitably heated, the ends are pressed against each other with a set pressure and left to cool.
After the burr on the tip of the joint is removed with a blade or rectified, an excellent quality round belt is
obtained.
The PQ-18 welder is suited for on-site installation or for medium/small mass production in a workshop.
PQ-18 is used indistinctively to indicate models:
PQ-18/6 for 120 V power voltage
PQ-18/8 for 230 V power voltage
1 General information
1.1 Application
The PQ-18 heating welder has been specifically designed for rapid and safe welding of thermoplastic round
belts up to a diameter of 15 mm / 0.6 in.
The PQ-18 welder is manufactured according to recognized engineering principles and state-of-the-art
technology, and complies with applicable regulations.
These operating instructions imply that all assembly, maintenance, and repair work, as well
as operation of the heating welder device, be carried out by skilled personnel or monitored by
responsible specialists.
For reasons of scope, these instructions cannot cover all possible aspects of operation,
maintenance, or repair. The indications given herein refer to the use of the machines
according to their designated purpose by skilled personnel.
In case of doubt or if further detailed information is required, please consult the
manufacturer.
1.2 Important safety terms
Symbols ATTENTION and NOTE were included in this manual.
These symbols indicate hazards or special instructions to be observed.
WARNING
Serious injury and/or serious material damages may ensue if ignored.
INDICATION
Indicates important technical information that may not be known to even expert personnel.

Habasit Italiana S.p.A.
Via del Lavoro 50
I-31016 –Cordignano (TV)
Tel.: [phone]
Fax: [phone]
Use and maintenance manual
PQ-18
Author: AA Page 4 of 20
Edition: 03/2014
Replaces: 06/2013
1.2.1 General warnings
Read all hazard warnings and operating instructions.
Failure to observe the hazard warnings and operating instructions may lead to electrical shock, fire and/or
serious injury hazards.
The device power plug must be suited to the socket. Strictly avoid modifying the plug. Do not use adapter
plugs. Unmodified plugs and sockets suited for the purpose reduce electrical shock risks.
Store the tool away from rain or humidity. Water penetration in the tool increases electrical shock risk.
Do not use the cord for purposes other than those intended and, specifically, do not use it to transport or
hang the device and do not pull on it to unplug the tool.
Keep the cord away from heat, oil, sharp corners and machine parts in motion. Damages and tangled cords
increase electrical shock risks.
1.2.2 Personnel safety
Never use the tool when tired or under the influence of drugs, alcohol or prescription medicine.
Always wear personal safety devices as well as protective gloves.
When the tool is not used, keep out of reach of children. Do not allow untrained personnel or personnel who
have not read these instructions use the tool.
1.2.3 Improper use
The PQ-18 heating welder was exclusively designed for the applications described in this user manual.
Inappropriate use or application for purposes other than those described in the manual are inadmissible.
Habasit is not liable for the consequences due to improper use.
Observe all the machine assembly, operating and maintenance indications as well as technical
specifications! This will prevent any personal or property problems and/or damages.
QUALIFIED PERSONNEL means people authorised to perform the required operations.
These people have been sufficiently trained and have acquired experience in their field that lets them
recognise and avoid hazards. They are aware of specific safety provisions and regulations.
1.3 EC declaration of conformity
The PQ-18 welder uses a 120Vac or 230Vac version welder, EC certified by the manufacturer.

Habasit Italiana S.p.A.
Via del Lavoro 50
I-31016 –Cordignano (TV)
Tel.: [phone]
Fax: [phone]
Use and maintenance manual
PQ-18
Author: AA Page 5 of 20
Edition: 03/2014
Replaces: 06/2013
1.4 Supply conditions
Qty.
Item
Code
1
Welder 1x230V~ EURO per PQ-18/8
H08N060924
1
Welder 1x120V~ USA per PQ-18/6
H08N060925
1
Guiding tongs with PQ-18/0 holding device
H080690240
1
Operating instructions
1.5 Available accessories
Also refer to chapter “REQUIRED ACCESSORIES”.
Cutting device S-16 (H080690010).

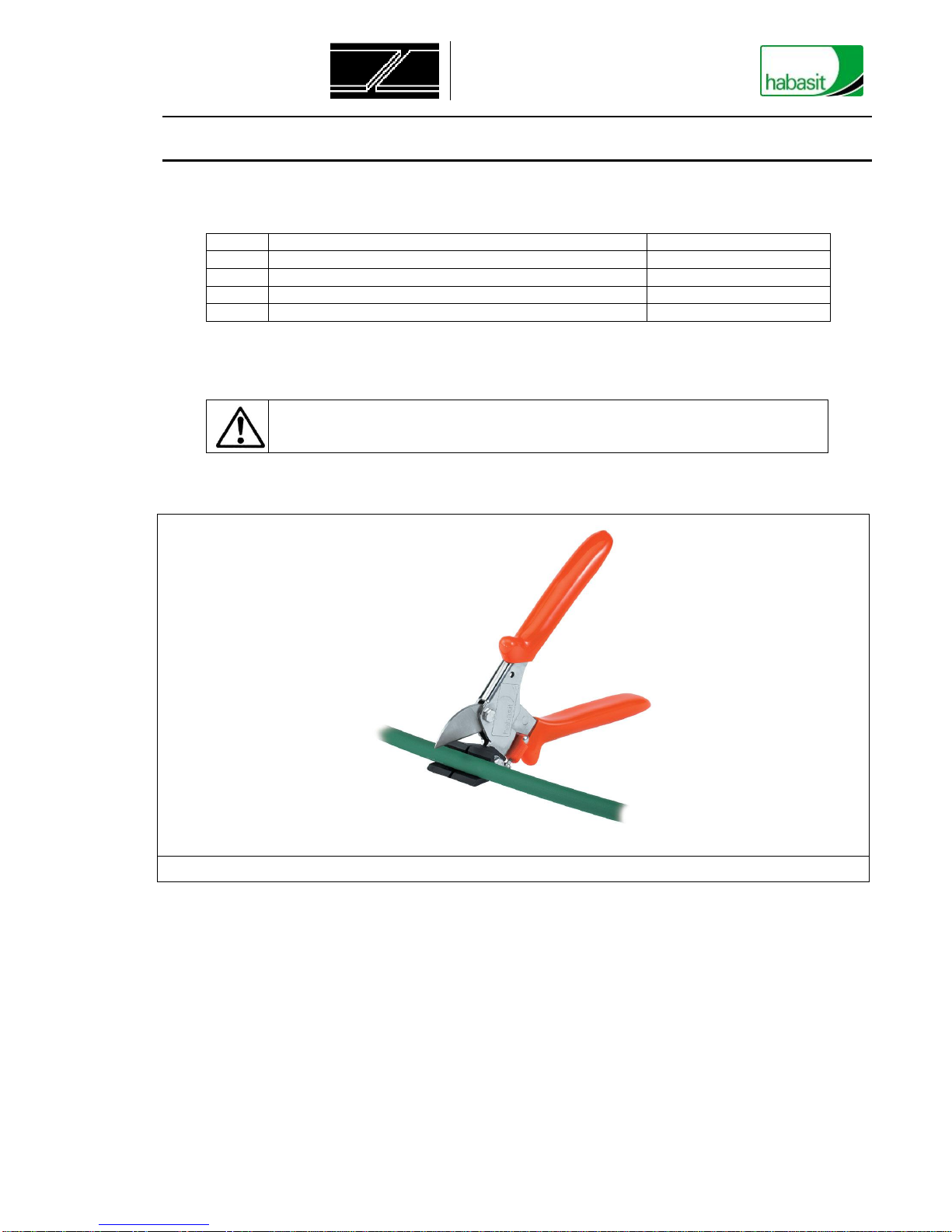

Figure 5: Cutting device S-16

Habasit Italiana S.p.A.
Via del Lavoro 50
I-31016 –Cordignano (TV)
Tel.: [phone]
Fax: [phone]
Use and maintenance manual
PQ-18
Author: AA Page 6 of 20
Edition: 03/2014
Replaces: 06/2013
2 General machine description

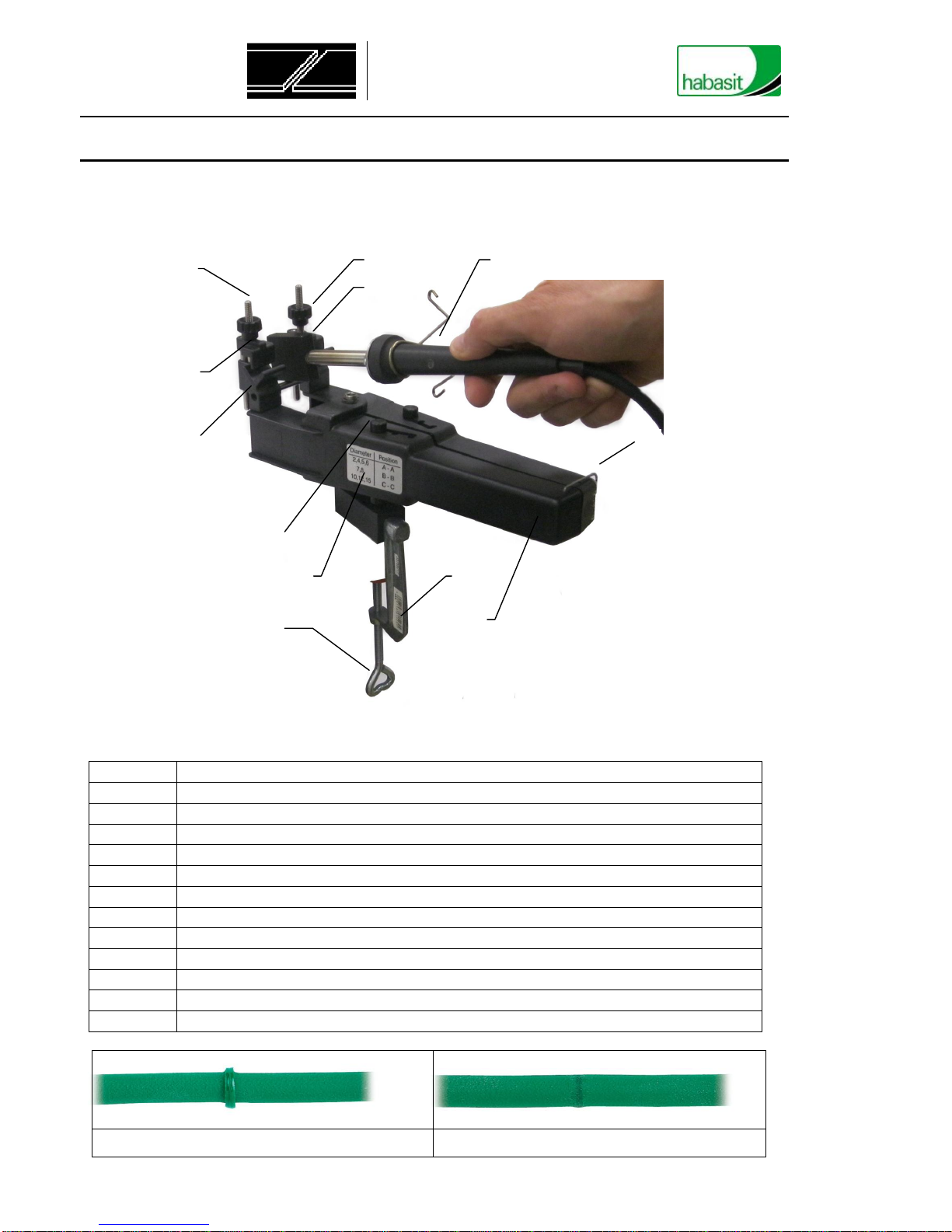

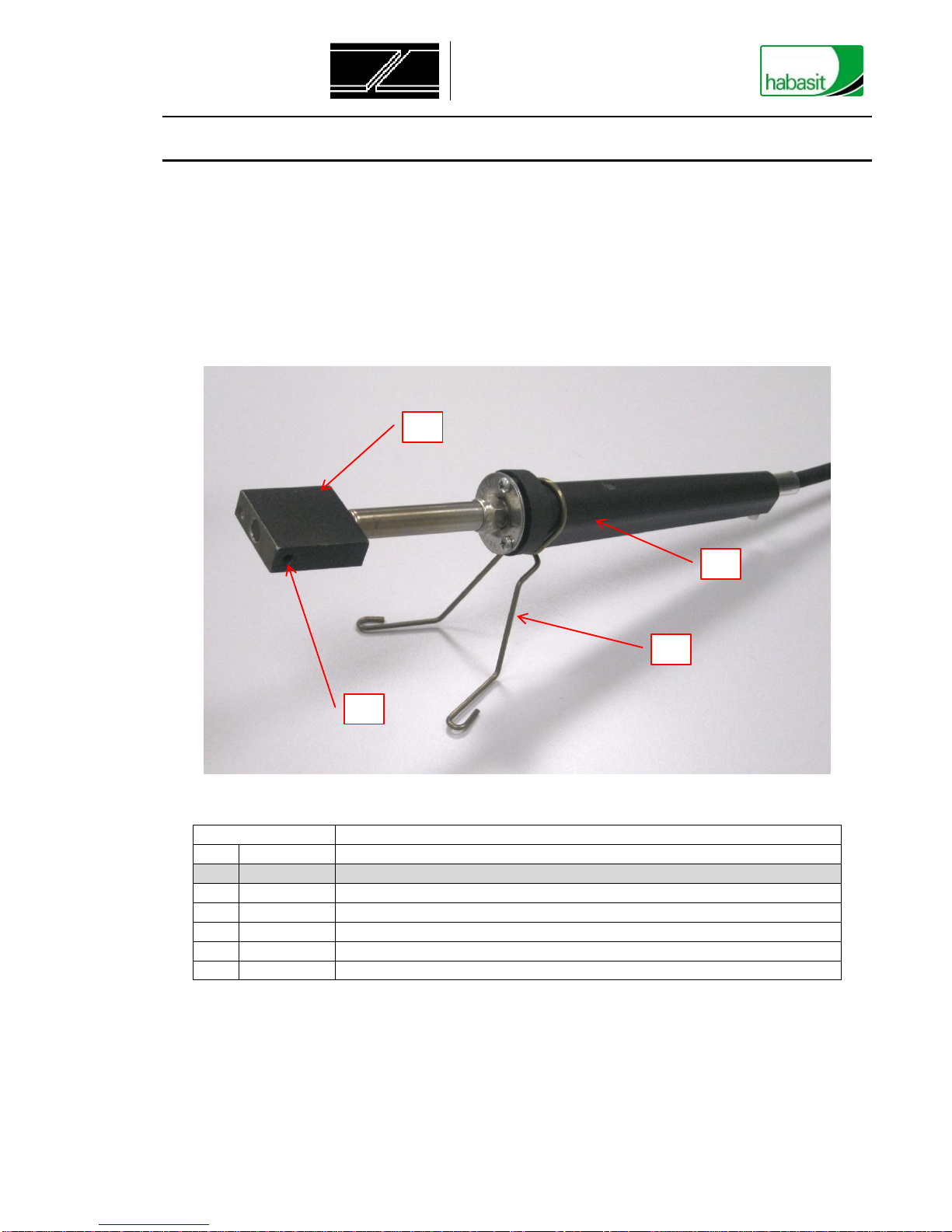

Figure: 1 Overall view
Pos.
Description
1
HEATING PLATE
2
WELDER
3
LOCKING SPRING
4
SECURING BRACKET
5
GUIDING TONGS
6
HOLDING DEVICE
7
CLAMPING SCREW
8
RATING PLATE
9
AXLE PIN
10
GUIDE BAR
11
GUIDE HEAD
12
KNURLED NUT
Figure 2: Polycord joint with bead
Figure 3: Polycord joint after grinding
1
5
6
3
2
10
4
9
8
7
11
12

Habasit Italiana S.p.A.
Via del Lavoro 50
I-31016 –Cordignano (TV)
Tel.: [phone]
Fax: [phone]
Use and maintenance manual
PQ-18
Author: AA Page 7 of 20
Edition: 03/2014
Replaces: 06/2013
3 Technical Specifications
Characteristics
UM
Value
ELECTRICAL DATA
-Rated power voltage
Vac
1x230 V 50/60 Hz (PQ-18/8)
1x120 V 50/60 Hz (PQ-18/6)
-Total installed power
W
80
PRODUCTION
-Belt diameter
mm [inc]
2÷15 [0,08 ÷0,6]
-Max Temperature
°C [°F]
250 [482]
-Max. deviation of plate temperature
°C [°F]
± 10 [± 18]
-Preheating time
[min]
15
DIMENSIONS
-Dimensions (length x width x height)
mm
[inc]
420L x 140W x 115H [16,5L x 5,5W x 4,5H]
WEIGHT
-Net weight
kg [lbs]
0,68 [1,50]

Habasit Italiana S.p.A.
Via del Lavoro 50
I-31016 –Cordignano (TV)
Tel.: [phone]
Fax: [phone]
Use and maintenance manual
PQ-18
Author: AA Page 8 of 20
Edition: 03/2014
Replaces: 06/2013
4 Operating mode
The heating power and the output control of the welder [2], in combination with the heating plate [1], are
optimally adapted to the energy requirement for butt-end welding of thermoplastic round belts.
The design of the guide heads [11] on the guiding tongs [5], which is adjustable in 3 positions makes it
possible to join the ends of thermoplastic round belts under approximately optimum joining pressures. The
label on the guiding tongs [5] indicates the spring position for the relevant thermoplastic round belt diameter..
The holding device [6] facilitates handling. With a corresponding number of guiding tongs [5] and holding
devices [6], efficient production in series is possible.
5 Getting started
Make sure the voltage specified in chapter “TECHNICAL SPECIFICATIONS” corresponds to connected
mains voltage
A tool marked 230 V can also be connected to the 220 V mains.
Similarly, for the 120 V version, 110 V power is tolerated.
Clamp holding device [6] to work table by means of clamping screw [7].
Place guiding tongs [5] on Holding device.
Check parallel adjustment of welding plate to flat support area of handle of welder [2]. When laid
down on a table, the welding plate may not touch the supporting table.
Make sure the voltage specified on the rating plate corresponds to connected mains voltage.
Make sure the heating plate [1] are clean.
Connect the welder [2] to mains and place it on a sufficiently flat surface. Respect preheating time of
15 min.
Check temperature of the heating plate. The temperature is preset at the factory at 250 °C / 482 °F.
WARNING
Do not touch the hot zone!
Keep device away from water and meltable substances.
Do not suspend the welder [2] from its cable with the heating plate [1] swinging. The
heat rising from the heating plate [1] may destroy the welder [2] electronic regulator.. If
need be (e.g. when joining a belt in a machine), bend a wire into a support hook, from
which you can hang the welder by the welding plate.

Habasit Italiana S.p.A.
Via del Lavoro 50
I-31016 –Cordignano (TV)
Tel.: [phone]
Fax: [phone]
Use and maintenance manual
PQ-18
Author: AA Page 9 of 20
Edition: 03/2014
Replaces: 06/2013
6 Welding of round belts
Procedure: refer to the Habasit Polycord joint guide.
Cut thermoplastic round belt to length at right angles with cutting device S-16 (available
accessories). Refer to the Habasit guide to determine belt length
Lock locking spring [3] in appropriate position.
Open guiding tongs [5] and secure them by closing the bracket [4].
Open guide heads [11] by turning the knurled nuts [12].
Introduce belt ends laterally into guide heads [11] and let ends protrude 2÷4 mm / 0,08÷0,16 in.,
depending on diameter (larger diameters to protrude more).
Fix belt ends by turning knurled nuts [12].
INDICATION
Fix belt without twisting, i.e. according to its „inner disposition“!
Introduce welder [2] with heating plate [1] between guide heads 11].
Free securing bracket [4] and carefully close guiding tongs [5].
Let belt ends melt until the bead measures about 1-2 mm / 0,04-0,08 in., depending on belt
diameter.
Then block the handles of the guiding tongs [5], by hand, so that the guiding tongs [5] can not close
any further. This makes the belt ends stay in contact with the heating plate but without pressure
(about 5-10 s, depending on the diameter of the belt). This permits the belt ends to melt to the core
without further enlarging the bead.
WARNING!
Accidental contact between the belt and hot blade surface may generate fumes harmful
to health.
Do not inhale vapours generated during welding. Only weld thermoplastic belts in
suitably aerated rooms!
The installation of suitable exhaust devices and/or personal protection equipment must
be assessed by the user based on work site characteristics and current local laws
Slightly open the guiding tongs [5] by pressing the handles.
Pull out the welder [2] and place it on a flat table. At the same time, carefully close guiding tongs [5]
(joining the two melted sections).
WARNING
Do not touch the hot zone of the welder!
Keep device away from water and meltable substances.
Let joint cool in guiding tongs [5] for about 1-2 min.
Open Guide head [11] by loosening the knurled nuts [12] and remove joined belt.
Open guiding tongs [5] and lock securing bracket [4].
Whenever the welder is not in use, pull out mains plug.
Remove bead with pliers, file or grinding disk.
WARNING
After use, disconnect the welder from the power supply and allow it to cool completely
before storing it.

Habasit Italiana S.p.A.
Via del Lavoro 50
I-31016 –Cordignano (TV)
Tel.: [phone]
Fax: [phone]
Use and maintenance manual
PQ-18
Author: AA Page 10 of 20
Edition: 03/2014
Replaces: 06/2013
7 Maintenance
Always keep the welding device clean. Clean the heating plate [1] regularly and remove all material residues.
Clean the heating plate [1] while heated with a cotton cloth.
Unplug the welder from the mains before cleaning with a water or alcohol dampened
cloth.
Burning hazard! Fold cotton cloth in several layers to assure good insulation!. Do not
touch hot surfaces!
Never clean heating plate [1] with hard objects (such as screwdrivers, spatulas etc.)!
This will damage the Teflon coating.
Check guiding tongs [5] for smooth running. If necessary clean and very slightly oil axle pin [9] and guide bar
[10].
Periodically inspect the welder power supply cable and connector plug for defects (insulation damage, etc.)
and rectify or replace with the correct type where necessary.
7.1 Measuring of the plate temperature
Check the operating temperature of the hot-pressing device once a month.
Carry out this check in an interior room in a draft-free environment with an ambient temperature of between
18 °C and 25°C.
-Heat up the welder for at least 15 minutes.
-Hold sensor of temperature gauge against the heating plate [1]
-The temperature gauge ought to indicate 250°C ± 10°C / 482°F ± 18°F.
-Should plate temperature vary more than 10°C/18°F, replace the welder with a new one.
7.2 Replacement of the power cord
Check power cord periodically. In case of damage replace with the same type (H05-RNF). To make sure
only skilled staff will do this repair, special tools are required for this operation.
All work on the hot-pressing device involving electrical parts has to be carried out by the
respective specialists only.
Observe your local laws about required training of such personnel.
7.3 Accessory/spare part orders
Spare parts and accessories can be directly ordered from the manufacturer at the following address:

Habasit Italiana S.p.A.
Via del Lavoro 50
I-31016 –Cordignano (TV)
Tel.: [phone]
Fax: [phone]
Use and maintenance manual
PQ-18
Author: AA Page 11 of 20
Edition: 03/2014
Replaces: 06/2013
Please clearly specify ordered part codes.
Enter codes based on Drawings, see chapter “SPARE PARTS” and, if possible, the power voltage required
for mains connection.
The use of other branded spare parts that do not meet Habasit specifications is prohibited.
Habasit is not liable for the use of non-original Habasit spare parts.
7.4 Warranty
All tools are subject to attentive final inspection. They are guaranteed free of material and factory defects for
1 year provided they are used correctly.
7.5 Technical consulting
Our experts are available for all consultations. For technical questions concerning Hot-pressing device
operations and conditions, contact the manufacturer at the address listed above.
Habasit Italiana S.p.A.
Via del Lavoro, 50.
31016 CORDIGNANO (TV) - ITALY
Phone: [phone]
Fax: + 39 0438 912374
E-mail : [email protected]
Internet : www.habasit.com

Habasit Italiana S.p.A.
Via del Lavoro 50
I-31016 –Cordignano (TV)
Tel.: [phone]
Fax: [phone]
Use and maintenance manual
PQ-18
Author: AA Page 12 of 20
Edition: 03/2014
Replaces: 06/2013
8 Dismantling and scrapping
The press must be uninstalled by HABASIT Assistance Service technicians or authorized HABASIT
technicians with experience in:
Machine assembly/disassembly
Assembly/disassembly of the electrical, pneumatic and hydraulic plant, consulting the corresponding
diagrams.
Generally the machine is decommissioned and dismantled when replaced.
This operation may be performed by specialised companies or the owner; in any case, current regulations
must be observed.
If demolished by the user’s personnel, the various parts must be separated by type and specialised (and
authorised) companies employed for the disposal of the various products.
We would like to remind you that the most important materials used in machine construction are:
Steel
Aluminium
Electrical wires
Plastic materials
Rubber
Habasit Italiana Spa has adopted suitable measures to reduce the disposal of RAEE
generated by the use of AEE incorporated in its machines in order to reduce RAEE as
mixed solid waste to a minimum, to ensure the correct processing and high level of
RAEE separate waste collection.
Habasit collects the RAEE generated by its production, maintenance and customer
service activities as per Directive 2012/19/EU article 13.
In order to reduce the presence of hazardous substances when recycling new AEE,
Habasit requests suppliers comply with Directive 2012/19/EU and accompany AEE
with an explicit declaration of conformity to Directive 2002/95/EC (RoHS).
This machine was designed and constructed with recyclable materials and
components.
If demolished by the customer’s staff, the various components must be separated by
type.
RAEE must be collected separately (art. 3-h) and discarded according to art. 6 in
directive 2012/19/EU.
WARNING!
Before carrying out any kind of work on the machine it is essential to ensure that the electrical system is
disconnected from energy supplies.

Habasit Italiana S.p.A.
Via del Lavoro 50
I-31016 –Cordignano (TV)
Tel.: [phone]
Fax: [phone]
Use and maintenance manual
PQ-18
Author: AA Page 13 of 20
Edition: 03/2014
Replaces: 06/2013
9 Customer service
For any further clarifications, contact Habasit Italiana S.p.A. customer service at the following address:
Product liability, application considerations
The proper selection and application of Habasit products, including the related area of product
safety, is the responsibility of the customer.
All indications / information are recommendations and believed to be reliable, but no
representations, guarantees, or warranties of any kind are made as to their accuracy or suitability
for particular applications. The data provided herein are based on laboratory work with small-scale
test equipment, running at standard conditions, and do not necessarily match product performance
in industrial use. New knowledge and experiences can lead to modifications and changes within a
short time without prior notice.
BECAUSE CONDITIONS OF USE ARE OUTSIDE OF HABASIT’S AND ITS AFFILIATED COMPANIES
CONTROL, WE CANNOT ASSUME ANY LIABILITY CONCERNING THE SUITABILITY AND PROCESS
ABILITY OF THE PRODUCTS MENTIONED HEREIN. THIS ALSO APPLIES TO PROCESS RESULTS /
OUTPUT / MANUFACTURING GOODS AS WELL AS TO POSSIBLE DEFECTS, DAMAGES,
CONSEQUENTIAL DAMAGES, AND FURTHER-REACHING CONSEQUENCES
This use and maintenance manual and its attachments are translated from original language
(Italian).
Habasit Italiana S.p.A.
Via del Lavoro, 50.
31016 CORDIGNANO (TV) - ITALY
Phone: [phone]
Fax: + 39 0438 912374
E-mail : [email protected]
Internet : www.habasit.com

Habasit Italiana S.p.A.
Via del Lavoro 50
I-31016 –Cordignano (TV)
Tel.: [phone]
Fax: [phone]
Use and maintenance manual
PQ-18
Author: AA Page 14 of 20
Edition: 03/2014
Replaces: 06/2013

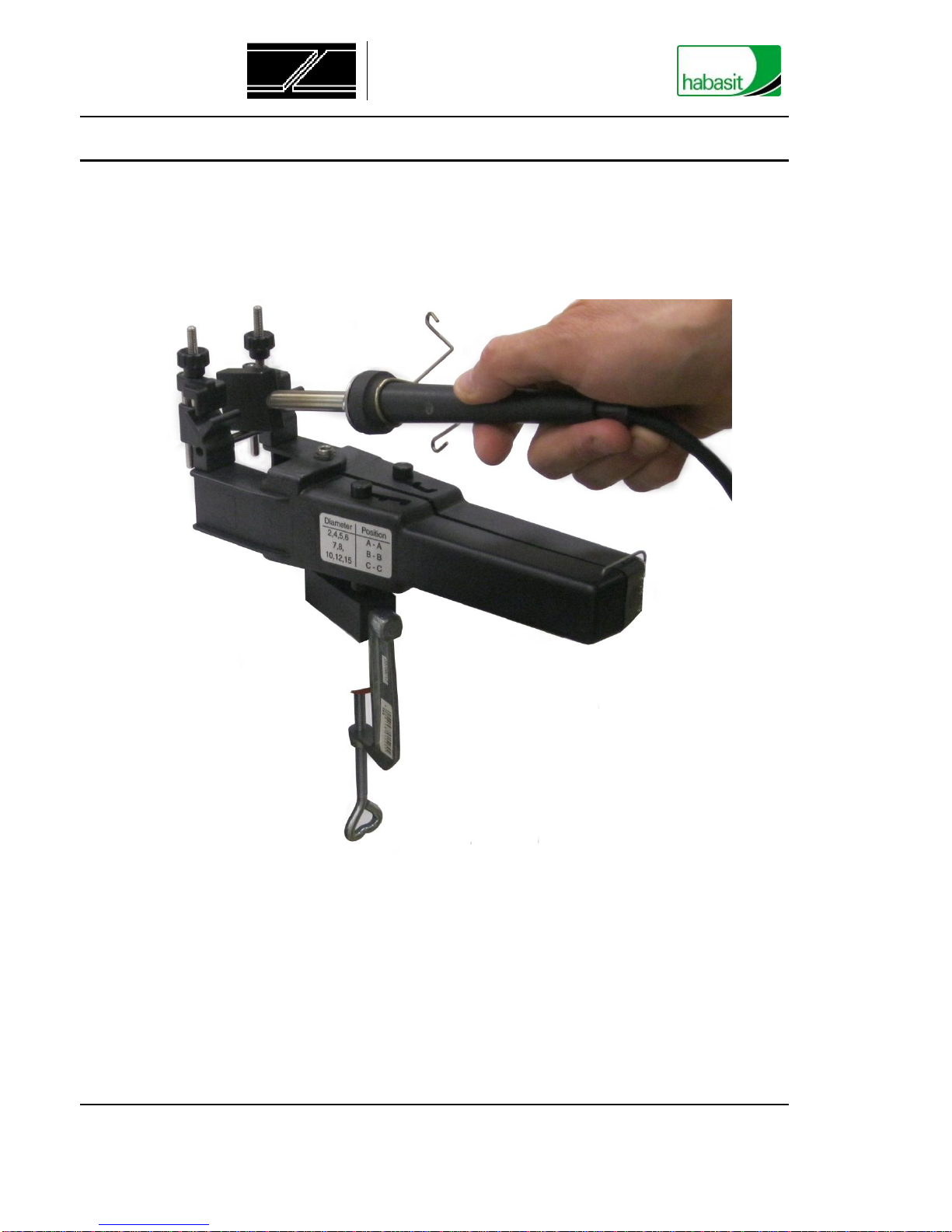

PQ-18 Heating welder
Appendixes

Habasit Italiana S.p.A.
Via del Lavoro 50
I-31016 –Cordignano (TV)
Tel.: [phone]
Fax: [phone]
Use and maintenance manual
PQ-18
Author: AA Page 15 of 20
Edition: 03/2014
Replaces: 06/2013
10 Spare parts list
10.1 Welder
WELDER
POS.
CODE
DESCRIPTION
20
H080700024
TEFLON COATED PQ-18 HEATING PLATE
21
H080701015
M4X8 FLAT-TIPPED GRUB SCREW
22
H08N060926
PQ-18 WELDER CABLE SUPPORT
23
H08N060925
WELDER 120 Vac PLUG SOCKET USA
23
H08N060924
WELDER 230 Vac PLUG SOCKET EURO
20
21
22
23

Habasit Italiana S.p.A.
Via del Lavoro 50
I-31016 –Cordignano (TV)
Tel.: [phone]
Fax: [phone]
Use and maintenance manual
PQ-18
Author: AA Page 16 of 20
Edition: 03/2014
Replaces: 06/2013

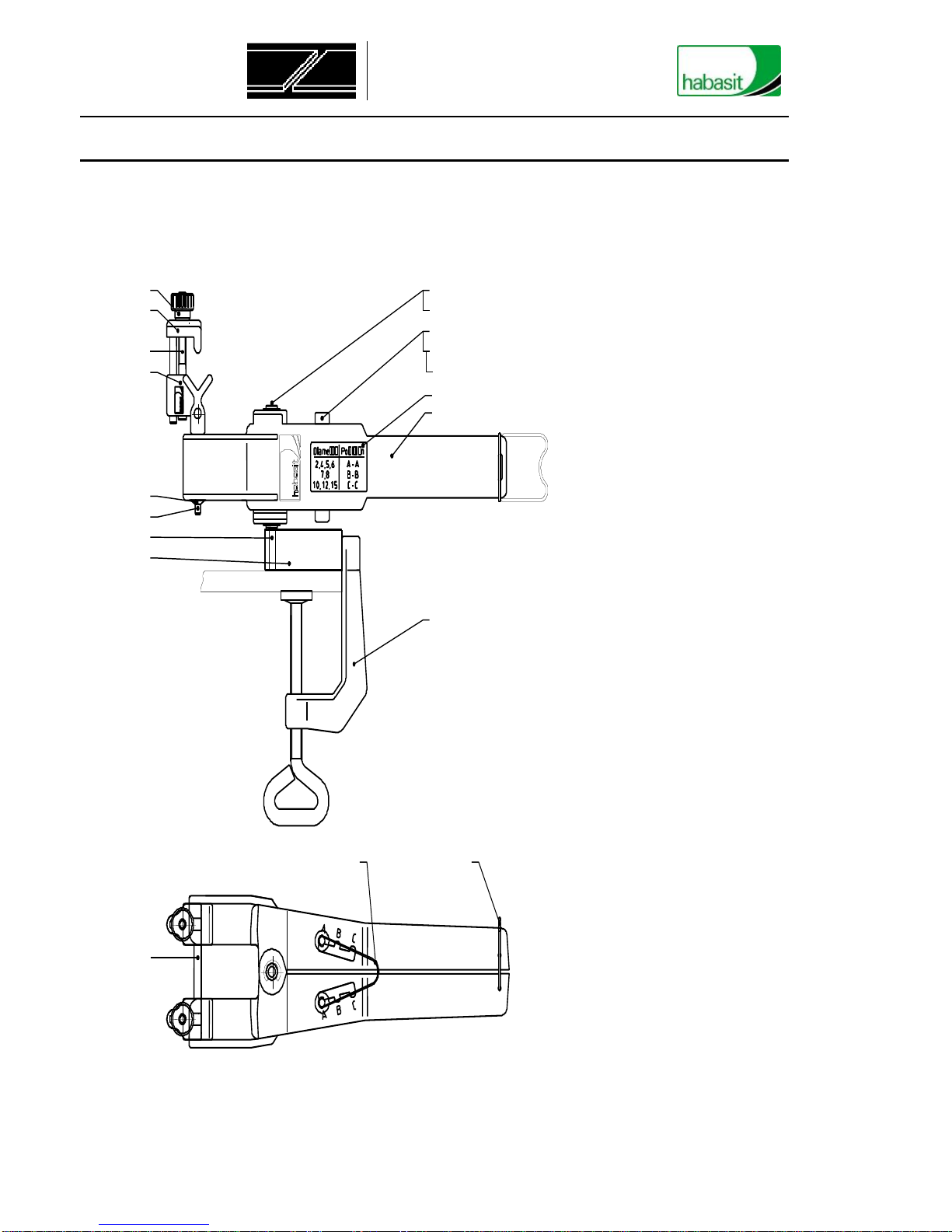

10.2 Guiding tongs with holding device
24 33
25 34
35
27 36
28 37
38
39
29
30
31
32
40
42 43
41

Habasit Italiana S.p.A.
Via del Lavoro 50
I-31016 –Cordignano (TV)
Tel.: [phone]
Fax: [phone]
Use and maintenance manual
PQ-18
Author: AA Page 17 of 20
Edition: 03/2014
Replaces: 06/2013
H080690240 LOCK CLAMP
POS.
Q.TY
CODE
DESCRIPTION
24
H080700534
M4 KNURLED KNOB
25
H080702021
PQ-18 BELT CLAMP CLOSING HOOK
27
H080700029
PQ-18 BELT CLAMP GUIDING PIN
28
H080702020
PQ-18 BELT CLAMP GUIDING LOCK
29
H080701021
PIN LOCK ELASTIC RING
30
H080701019
AXLE PIN
31
H080701018
PIN
32
H080702022
TABLE SECURING BRACKET
33
H080700025
PIN CD-60/CD-61/PQ-18
34
H080701022
ELASTIC RING SEEGER DIN6799 GR6
35
H080701017
CYLINDRICAL PIN 4X50 ISO2338
36
H080700027
PQ-18 PRESS PIN PLUG
37
H080702516
Ø 4MM O-RING
38
H080708035
RATING PLATE
39
H080702019
HANDLE CD-60/CD-61/PQ-18
40
H080700529
HOLDING DEVICE
41
H080701016
CYLINDRICAL PIN ISO2338 5X60 H8
42
H080700026
LOCKING SPRING
43
H080700028
SECURING BRACKET

Habasit Italiana S.p.A.
Via del Lavoro 50
I-31016 –Cordignano (TV)
Tel.: [phone]
Fax: [phone]
Use and maintenance manual
PQ-18
Author: AA Page 18 of 20
Edition: 03/2014
Replaces: 06/2013
11 Required accessories
11.1 Cutting device
The cutting device S-16 is a manual cutting tool to cut thermoplastic round belts to the required length before
the Quickmelt joining procedure takes place.
The S-16 allows to perform a proper right-angled cut up to 15 mm/0.6 in. diameter.
Figure 5

Habasit Italiana S.p.A.
Via del Lavoro 50
I-31016 –Cordignano (TV)
Tel.: [phone]
Fax: [phone]
Use and maintenance manual
PQ-18
Author: AA Page 19 of 20
Edition: 03/2014
Replaces: 06/2013
12 A1 - Preventive maintenance checklist
Job positions: A: Machine operator
B: Maintenance technician
Work to be performed
Frequency
Spare part code
(for additional information and reference numbers, see user manual)
Periodic (monthly)
Evaluation criteria
Daily
1
6
Note
1. Cleaning
1.1 Clean the device after use removing residue deposits
A
2. Inspect the power cord
2.1 Inspect the cord and plug to ensure there are no defects
B
Insulation damaged,
Defective connections
3. Measure heating plate temperature
3.1 Proceed as thoroughly indicated in user manual chapter “MAINTENANCE”
B
Observations and notes:

Habasit Italiana S.p.A.
Via del Lavoro 50
I-31016 –Cordignano (TV)
Tel.: [phone]
Fax: [phone]
Use and maintenance manual
PQ-18
Author: AA Page 20 of 20
Edition: 03/2014
Replaces: 06/2013
13 A2 - Preventive maintenance summary sheet
Machine type:
Machine nr..: Start date:
Actions –see checklist
check
completed
check
completed
check
completed
check
completed
(daily unrecorded work)
next
approv
al
date
next
appro
val
date
next
appro
val
date
next
appro
val
date
2.1 Check for cord damages
3.1 Measure heating plate temperature
Observations, repairs:
