Haden HL306W User manual

USER’S MANUAL
HL306W
To request a service call
Tel. [phone]
Or visit
www.appliancesupport.co.uk

1
1. SAFETY WARNINGS
1)
WARNING―
Keep ven la on openings, in the appliance enclosure or in the built-in structure,
clear of obstru on.
2)
WARNING―
Do not damage the refrigerant circuit.
3)
WARNING―
Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
4) The appliance has to be unplugged a er use and before carrying out user maintenance on
the appliance.
5) This appliance can be used by children aged from 8 years and above and persons with reduce
physical sensory or mental capabili es or lack of experience and knowledge if they have been
given supervision or instruc on concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
6) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
7) Please abandon the refrigerator according to local regulators for it use flammable blowing
gas and refrigerant.
8) Please according to local regula ons regarding disposal of the appliance for its flammable
refrigerant and blowing gas. Before you scrap the appliance, please take offthe doors to prevent
children trapped.
9) This appliance is intended to be used in household and similar applica ons such as
–staffkitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residen al type environments;
– bed and breakfast type environments;
– catering and similar non-retail applica ons.
Warning; Risk of fire / flammable materials
WARNING
: When posi oning the appliance, ensure the supply cord is not trapped or
damaged.
WARNING : Do not locate mul ple portable socket-outlets or portable power supplies at the
rear of the appliance.
Children aged from 3 to 8 years are allowed to load and unload refrigera ng appliances.
To avoid contamina on of food, please respect the following instruc ons:
Opening the door for long periods can cause a significant increase of the temperature in the
compartments of the appliance.
Clean regularly surfaces that can come in contact with food and accessible drainage systems.
Clean water tanks if they have not been used for 48 h; flush the water system connected to
a water supply if water has not been drawn for 5 days.
Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact
with or drip onto other food.
If the refrigera ng appliance is le empty for long periods, switch off, defrost,clean, dry, and
leave the door open to prevent mould developing within the appliance.

2
2. INSTALLTION
2.1Locaon
When selecng a posionfor your unit you should make sure the floor is flat and firm, and the
room is well venlated. Avoid locang your unit near a heat source, e.g. cooker,boiler or radiator.
Also avoid direct sunlight as it may increase the electrical consumpon. Extreme cold ambient
temperatures may also cause the unit not to perform properly. This unit is not designed for use in
a garage or outdoor installaon. Do not drape the unit with any covering.
When installing the unit,ensure that 10cm of free space is leat both sides, 10cm at the rear
and 30 cm at the top of the unit. This will allow cold air to circulate around the wine cooler and
improve the efficiency of the cooling process.
2.2 Reversing the Door Swing
Tools Required:
Phillips style screwdriver / Flat blated screwdriver / Hexagonal spanner
1) Remove the right top hinge cover.
10) Do not store explosive substances such as aerosol cans with a flammable propellant inthis
appliance.
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISEDSERVICE PERSONNEL TO
CARRY OUT SERVICING OF REPAIRS WHICHINVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPTREPAIRS YOURSELF.

3
3) Remove the hinge shasleeve and the door block to the other side.
2) Remove the screws fixed the top-hinge with cross-slot screwdriver.

4
4) Disassemble the screws fixed the bottom hinge assembly with cross slot screwdriver and
remove the adjustable foot
Note：the refrigerator-freezer incline angle less 45°.
5) Replace the bottom hinge to the other side then fix it with screws.
6) Install the two screws on the right and Remove the left top hinge cover

5
7) Install the letop hinge cover on the right and Remove the two screws
8) Install the top-hinge. set the top door right posion, fix the top-hinge and the cover.
9) Install the letop hinge cover on the le
A. Remove the nut with sleeve. Take offthe washer then remove the axes to the other
side and fixed.

6

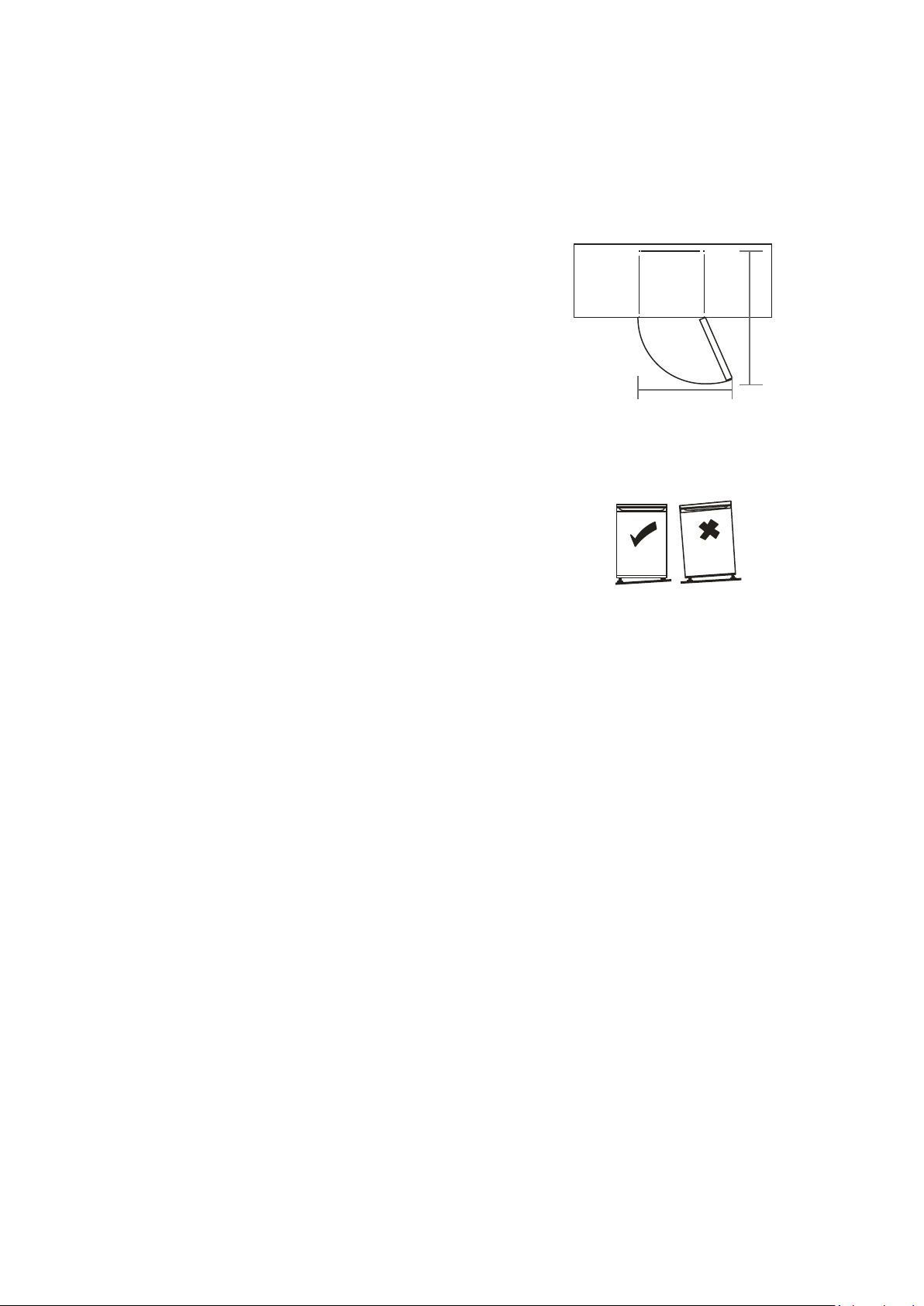

2.3Door Space Requirements
The unit's door must be able to open fully as shown.
W×D≥902×1052mm
2.4 Levelling the Unit
To do this adjusts the two levelling feet at the front of the unit.
If the unit is not level, the door and magnetic seal alignments
will not be covered properly.
Make sure that the foot touches the ground before use.
Look down from the top, clockwise and counterclockwise loosening, tightening.
2.5 Cleaning Before Use
Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm
water using a' Wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water
and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.
If you require more information refer to the Cleaning section.
2.6 Before Using Your Unit
Do not damage the power cord under any condition so as to ensure safety use, do not use when
the power cord is damaged or the plug is worn.
Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent
damages to the product or fire accidents.
Do not place flammable items near the refrigerator to avoid fires.
This product is household refrigerators and shall be only suitable for the storage of foods.
According to national standards, household refrigerators shall not be used for other purposes,
such as storage of blood, drugs or biological products.
Do not place items such as bottled or sealed container of fluid such as bottled beers and
beverages in the freezer to prevent bursts and other losses.
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working
W
D

7
properly andto allow it time to fall to the correct temperature. Your unit should not be overfilled.
◆Before Plugging in
You must check that you have a socket which is compatible with the plug supplied
with the unit.
◆Before Turning On!
Do not turn on until two hours after moving the unit.
2.7 Interior Accessories
Various glass or plastic storage shelves are included with your appliance - different
models have different combinations.
You should always slide one of the full size glass storage shelves into the lowest set of
guides, above the fruit and vegetable containers, and keep it in this position. To do
this, pull the storage shelf forward until it can be swivelled upwards or downwards
and removed.
Please do the same in reverse to insert the shelf at a different height.
In order to make the most of the volume of the fresh food storage compartment and
frozen-food storage compartment, the user can remove one or more shelves, drawers out
of the appliance, according to your daily use.
3. PRODUCT OVERVIEW
*All images in this instruction manual are for indication only; please refer to your individual unit fordetails.

8
4. OPERATION
4.1 Switching On Your Unit
◆The temperature selector knob is located on the right hand sidewall of the refrigerator interior
Setting“Min”： Less Cool Temperature
Setting“Med”： Normal Operation (adequate for most situations)
Setting“Max”： Coolest Temperature
◆During high ambient temperatures e.g. on hot summer days. It may be necessary to set the
thermostat to the Coolest setting (position“Max”).This may cause the compressor running
continuously in order to maintain a low temperature in the cabinet.
◆For the first time you install your refrigerator, set the thermostat knob at “Med”.
Give your refrigerator time to cool down completely before adding food. It is the best to wait
24 hours before adding food. The thermostat knob controls the temperature.
4.2 Noise Inside the Unit!
You may notice that your unit makes some unusual noises. Most of these are perfectly normal,
but you should be aware of them!
These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has
become more pronounced since the introduction of CFC free gases. This is not a fault and will not
affect the performance of your unit. This is the compressor motor working, as it pumps the
refrigerant around the system.
4.3 Tips for Keeping Food in the Unit
◆Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid
bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices
and cover it properly. Place the container on the lowest shelf.
◆Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the
unit are kept cool.
◆To prevent transfer of favors and drying out, pack or cover the food separately. Fruit and
vegetables do not need to be wrapped.
◆Always let pre-cooked food cool down before you put in the unit. This will help to maintain
the internal temperature of the unit.
◆To prevent cold air escaping from the unit, try to limit the number of times you open the
door. We recommend that you only open the door when you need to put food in or take food
out.
5. CLEANING
5.1 Defrosting
Auto-defrost for Frost-free Refrigerator
5.2 Cleaning the Interior and the Exterior of the Unit
◆Remove all the shelves and the salad bin. To remove the salad bin first remove the lower
door shelf.
◆Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with

9
warm water using a“wrung-out”sponge or cloth. Wipe completely dry before replacing the
shelves and salad bin.
◆Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make
sure that thedoor is closed to avoid the polish geng on the magnec door seal or inside the
unit.
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
The grille of the condenser at the back of the unit and the adjacent components can be
vacuumed using asobrush aachment.
5.3 Cleaning Tips
Condensaon may appear on the outside of the unit. This may be due to a change in room
temperature. Wipe ofany moisture residue. If the problem connues, please contact a qualified
technician for assistance.
6. MAINTENANCE
6.1 Care When Handling / Moving Your Unit
Hold the unit around its sides or base when moving it. Under no circumstances should it be lied
by holding the edges of the top surface.
6.2 Servicing
The unit should be serviced by an authorized engineer and only genuine spare parts should be
used. Under no circumstances should you aempt to repair the unit yourself. Repairs carried out
by inexperienced persons may cause injury or serious malfuncon. Contact a qualitave
technician.
Dusts behind the refrigerator and on the ground shall be mely cleaned to improve the
cooling effect and energy saving.
The interior of the refrigerator should be cleaned regularly to avoid odor.
Check the door gasket regularly to make sure there are no debris.
Clean the door gasket with mild soap and water.
Please turn offthe power before cleaning, remove all food, shelves, drawers, etc.
Use a so cloth or sponge to clean the inside of the refrigerator, with two tablespoons of
baking soda and a quart of warm water. Then rinse with water and wipe clean, and open the
door and dry it naturally before the power is turned on.
For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or
corners), it is recommended to wipe them regularly with a so rag, so brush, etc. and
when necessary, combined with some auxiliary tools (such as thin s cks) to ensure no
contaminant accumula on in these areas.
Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in
the interior of the refrigerator.
Clean the bo le frame, shelves and drawers with a mild detergent and dry with a so cloth.
Wipe the outer surface of the refrigerator with a so cloth dampened with soapy water,
detergent, etc., and then wipe dry.
Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes,
organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline
items clean refrigerator considering that this may damage the fridge surface and interior.
Boiling water and benzene may deform or damage plas c parts.
Do not rinse with water so as not to affect the electrical insula on proper e

10
Illuminang light does not
shine
Whether the refrigerator is connected to power,
whether the illuminang light is damaged.
The refrigerator door cannot
be properlyclosed.
The freezer door is stuck by food packages;
Too much food;
Tilt refrigerator.
Loud noises
Whether the food is leveled, whether the refrigerator is
balanced;
Whether the refrigerator parts are properly placed.
7.1 Warm ps:
◆The refrigerator enclosure may emit heat during operaon specially in summer, this is caused
by the radiaon of the condenser, and it is a normal phenomenon.
◆Condensaon: Condensaon phenomenon will be detected on the exterior surface and door
seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the
condensaon can be wiped away with a dry towel.
◆Buzz: Buzz will be generated by running compressor specially when starng up or shung
down.
8. TIPS FOR ENERGY SAVING
Try not to open the door too oen, especially when the weather is wet and hot. Once you open
the door, close it as soon as possible.
7. Trouble shoong
The following simple issues can be handled by the user. Please call the aer-sale service
department if the issues are not seled.
Inoperaon
Whether the freezer is plugged and connected to power;
Low voltage;
Failure power or tripping circuit
Odor
Odorous foods should closely wrapped;
Whether foods are roen;
Whether the interior shall be cleaned.
Long-term operaon of
compressor
It is normal that refrigerator operates for longer me in
summer when the ambient temperature is higher;
Do not put too much food in the freezer at one me;
Do not put foods unl they are cooled;
Frequent opening of refrigerator door.
6.3 Switching Of for Long Periods of Time
When the unit is not in use for a long period of me, disconnect it from the mains supply, empty
all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

11
9. DISPOSAL
Old units s ll have some residual value. An environmentally friendly method of disposal will
ensure that valuable raw materials can be recovered and used again. The refrigerant used in your
unit and insula on materials require special disposal procedures. Ensure that none of the pipes
on the back of the unit are damaged prior to disposal. Up to date informa on concerning op ons
of disposing of your old unit and packaging from the new one can be obtained from your local
council office.
When disposing of an old unit break of any old locks or latches and remove the door as a
safeguard.
Correct Disposal of this product
Correct Disposal of this product
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To return your used device,
please use the return and collec on systems or contact the retailer where the
product was purchased. They can take this product for environmental safe recycling.
For more informa on, please contact the local authority or your retailer where you purchased
the product.
If it is the outer condenser, the rear wall should be always clean free of dust or any impuries.
◆The appliance should be located in the coolest area of the room, away from heat producing
appliances or heang ducts, and out of the direct sunlight.
◆Let hot foods cool to room temperature before placing in the appliance. Overloading the
appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or
spoil.
◆Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance.
This cuts down on frost build-up inside the appliance.
◆Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling.
Liners interfere with cold air circulaon, making the appliance less efficient.
◆Organize and label food to reduce door openings and extended searches. Remove as many
items as needed at one me, and close the door as soon as possible.
Every now and then check if the appliance is sufficiently venlated (adequate air circulaon
behind the appliance).
In normal temperature condions, please arrange the thermostat at the middle seng.
Before loading the appliance with packages of fresh food, make sure they are cooled to ambient
temperature.
Ice and frost layer increase energy consumpon, so clean the appliance as soon as the layer is 3-5
mm thick.

5 021961 195449
