Haden HUR120I User manual

INSTRUCTION MANUAL
MODEL: HUR120I
BUILT UNDER LARDER FRIDGE
To request a service call our helpline on 01759 487830
Or visit www.appliancesupport.co.uk
www.haden.com

SAFETY INFORMATION
For your safety and correct usage, before installing and first using
the appliance, read this user manual carefully, including its hints and
warnings. To avoid unnecessary mistakes and accidents, it is important
to make sure that all people using the appliance are thoroughly
familiar with its operation and safety features. Save these instructions
and be sure that they remain with the appliance if it is moved or sold,
so that anyone using it throughout its life, will be properly informed on
its usage and safety notices.
For the safety of life and property, keep the precautions of these user’s
instructions as the manufacturer is not responsible for damages
caused by omission.
Safety for children and others who are vulnerable people
According to EN standard
This appliance can be used by children aged from 8 years and above
and  persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance.
CONTENTS
Safety 02
Installation 08
Appliance Overview 14
Using Your Appliance 18
Cleaning & Care 20
Troubleshooting 24
Specifications 28
Recycling 28
Warranty 29
www.haden.com
02

Cleaning and user maintenance shall not be made by children
without supervision.
According to IEC standard
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person being
responsible for their safety.
Keep all packaging away from children as there is risk of suffocation.
If you are discarding the appliance, pull the plug out of the socket,
cut the connection cable (as close to the appliance as you can) and
remove the door to prevent children playing from suffering an electric
shock or from closing themselves inside it.
If this appliance, featuring a magnetic door seals, is to replace an
older appliance having a spring lock (latch) on the door or lid, be
sure to make the spring lock unusable before you discard the old
appliance. This will prevent it from becoming a death trap for a child.
WARNING — this appliance is intended to be used in household and
similar applications such as:
• staff kitchen areas in shops, offices and other working
environments;
• farm houses and hotels, motels and other residential type
environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
WARNING — Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
WARNING — If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
www.haden.com 03

WARNING — Keep ventilation openings, in the appliance enclosure or
in the built-in structure, clear of obstruction.
WARNING — Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended by
the manufacturer.
WARNING — Do not damage the refrigerant circuit.
WARNING — Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the type
recommended by the manufacturer.
WARNING — The refrigerant and insulation blowing gas are
flammable. When disposing of the appliance, do so only at an
authorized waste disposal centre. Do not expose to flame.
WARNING —When positioning the appliance, ensure the supply cord is
not trapped or damaged.
WARNING —Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
WARNING—To avoid a hazard due to instability of the appliance, it
must be fixed in accordance with the instructions.
Replacing the illuminating lamps
WARNING—The illuminating lamps must not be replaced by the user!
If the illuminating lamps is damaged, contact the customer helpline
for assistance. This warning is only for refrigerators that contain
illuminating lamps.
www.haden.com
04

Refrigerant
The refrigerant isobutene (R600a) is contained within the
refrigerant circuit of the appliance, a natural gas with a high level of
environmental compatibility, which is nevertheless flammable. During
transportation and installation of the appliance, ensure that none of
the components of the refrigerant circuit becomes damaged.
The refrigerant (R600a) is flammable.
WARNING — Refrigerators contain refrigerant and gases in the
insulation. Refrigerant and gases must be disposed of professionally
as they may cause eye injuries or ignition. Ensure that tubing of the
refrigerant circuit is not
WARNING: Risk of fire/flammable materials
If the refrigerant circuit should be damaged:
- Avoid opening flames and sources of ignition.
- Thoroughly ventilate the room in which the appliance is situated.
It is dangerous to alter the specifications or modify this product in any
way. Any damage to the cord may cause a short circuit, fire, and/or
electric shock.
www.haden.com 05

Electrical Safety
Daily Use
1.The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged. A crushed
or damaged power plug may overheat and cause a fire.
3. Make sure that you can access the main plug of the appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the power plug. There
is a risk of electric shock or fire.
6. You must not operate the appliance without the interior lighting lamp
cover.
7. The fridge is only applied with power supply of single phase
alternating current of 220~240V/50Hz. If fluctuation of voltage in the
district of user is so large that the voltage exceeds the above scope, for
safety sake, be sure to apply A.C. Automatic voltage regulator of more
than 350W to the fridge. The fridge must employ a special power socket
instead of common one with other electric appliances. Its plug must
match the socket with ground wire.
Do not store flammable gas or liquids in the appliance, There is a risk of
an explosion.
Do not operate any electrical appliances in the appliance (e.g. electric
ice cream makers, mixers etc.
When unplugging always pull the plug from the mains socket, do not
pull on the cable.
Do not place hot items near the plastic components of this appliance.
Do not place food products directly against the air outlet on the rear
wall.
Store pre-packed frozen food in accordance with the frozen food
manufacture’s instructions.
www.haden.com
06

The appliances manufactures storage recommendations should be
strictly adhered to. Refer to relevant instructions for storage.
Do not place carbonated or fizzy drinks in the freezer compartment
as it creates pressure on the container, which may cause it to explode,
resulting in damage to the appliance.
Frozen food can cause frost burns if consumed straight from the freezer
compartment.
Do not place the appliance in direct sunlight.
Keep burning candles, lamps and other items with naked flames away
from the appliance so that do not set the appliance on fire.
The appliance is intended for keeping food stuff and/or beverages in
normal household as explained in this instruction booklet. You should
take care when move it as the appliance is heavy.
Do not remove nor touch items from the freezer compartment if your
hands are damp/wet, as this could cause skin abrasions or frost/freezer
burns.
Never use the base, drawers, doors etc. to stand on or as supports.
Frozen food must not be refrozen once it has been thawed out.
Do not consume ice popsicles or ice cubes straight from the freezer as
this can cause freezer burn to the mouth and lips.
To avoid items falling and causing injury or damage to the appliance, do
not overload the door racks or put too much food in the crisper drawers.
Care & Cleaning
Before maintenance, switch off the appliance and disconnect the mains
plug from the mains socket.
Do not clean the appliance with metal objects, steam cleaner, ethereal
oils, organic solvents or abrasive cleansers.
Do use a plastic scraper instead of a sharp objects to remove frost from
the appliance.
www.haden.com 07

INSTALLATION
SERVICE
Any electrical work required to do the servicing of the appliance should
be carried out by qualified electrician or competent person.
This product must be serviced by an authorized Service Center, and only
genuine spare parts must be used.
1) If the appliance is Frost Free.
2) If the appliance contains freezer compartment.
Note: Children aged from 3 to 8 years are allowed to load and unload
refrigerating appliances.
For electrical connection carefully, follow the instructions given in this
manual. Unpack the appliance and check if there are damages on it.
Do not connect the appliance if it is damaged. Report possible damages
immediately to the place you bought it. In this case retain packing.
It is advisable to wait at least four hours before connecting the appliance
to allow the oil to flow back in the compressor.
Adequate air circulation should be around the appliance, lacking
this leads to overheating. To achieve sufficient ventilation, follow the
instructions relevant to installation.
Wherever possible the back of the product should not be too close
to a wall to avoid touching or catching warm parts(compressor,
condenser) to prevent the risk of a fire, follow the instructions relevant
to installation.
The appliance must not be locate close to radiators or cookers.
Make sure that the mains plug is accessible after the installation of the
appliance.
www.haden.com
08

INSTALLING YOUR NEW APPLIANCE
Positioning:
Position the appliance away from sources of stoves, radiators, direct
sunlight etc. Maximum performance and safety are guaranteed by
maintaininng the correct indoor temperature for the class of unit
concerned as specified on the rating plate. This appliance performs
well from SN to ST. The appliance may not work properly if left at a
temperature above or below the indicated range.
Climate Class Ambient Temperature
SN +10°CC to +32°
N +16°CC to +32°C
ST +16°CC to +38°C
T +16°CC to +43°C
Appliance must not be exposed to rain. Sufficient air must be
allowed to circulate in the lower rear section of appliance, as poor air
circulation can affect performance.
Built-in appliance should be positioned away from heat sources such
as stoves, fires or heaters.
www.haden.com 09

Before installing, carefuully read the instruction in order to avoid
a certain number of problems.
This is Dimensions of mounting slot.

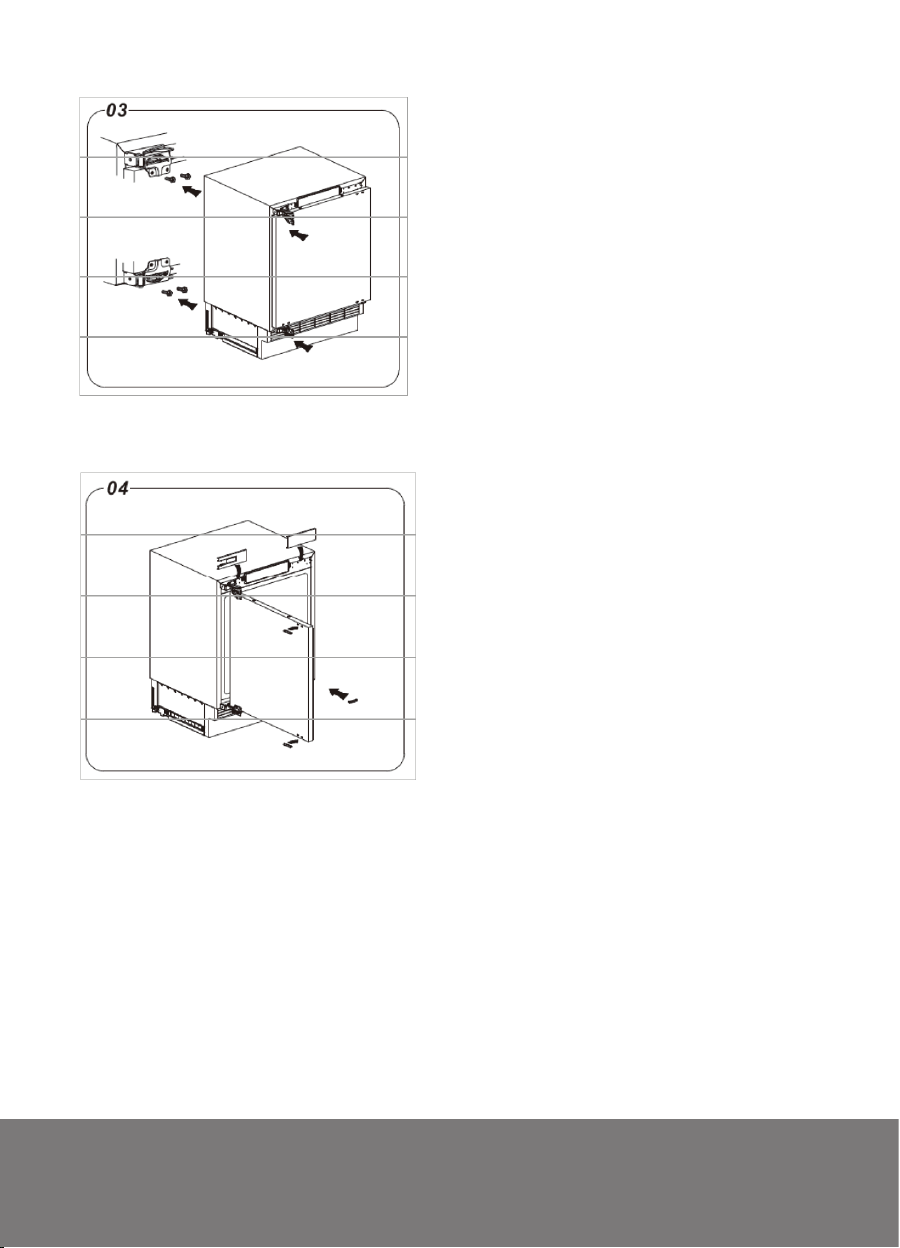

INSTALLATION INSTRUCTIONS
www.haden.com
010

Follow the steps in the installation guide provided.
Note: Your product is designed and built for domestic household
use only. The product must be correctly installed, located and
operated in accordance with the instructions contained in the User
Instructions guide provided.
Reversing the fridge door
The side at which the dooor opens can be changed, from the right
side (as supplied) to the left side, if the installationon site requires.
Warning! When reversing the door, the appliance must not be
connected to the mains. Ensure that the plug is removed from the
mains socket.
Tools you will need (not provided):
Phillips Head Screwdriver
Wrench (8mm)
Slotted Screwdriver
www.haden.com 011

Note:
When required, tilt the refriigerator back in order to gain access to
the base, you should rest the appliance on soft foam packaging
or similar maaterial to avoid damaging the backboboard of the
refrigerator. To reverse the door, the following steps are generally
recommended.
1. Stand the refrigerator upright.
Open the door, remove the upper
hinge cover (left and right). Remove
the lower screw hole cover for the
cabinet. Remove the screw hole
cover for the door.
2. With the door closed, remove the
screws on the outside of hinges. Open
the hinges away from the door. With
the hinge open undo the screws
holding it to the cabinet. Be careful
with the hinge, use a long shafted
screwdriver if you have one.
www.haden.com
012

3. Turn the hinge over and place it
on the diagonally opposite comer of
the cabinet. Screw back in place.
Repeat with the other hinge.
Replace the door and re-attach the
hinges. Check that the door is
aligned horizontally and vertically
and that the door seals are secure
on all sides before finally tightening
the hinge bracket screws.
4. Replace the upper hinge cover
(left and right). Replace the lower
screw hole cover for the cabinet.
Replace the screw hole cover for
the door.
www.haden.com 013

1. Controller part
2. Freezer room
3. Storage shelf
4. Crisper box cover
5. Crisper box
6. Upper door rack
7. Movable door rack
8. Lower door rack
9. Egg tray
10. Ice tray
APPLIANCE OVERVIEW
www.haden.com
014

To get the best energy from this product, please place all drawers,
shelves and baskets in the position outlined in the diagram.
Use your appliance accorddiing to the following control regulations,
your appliance has the corresponding functions as the control
panels showed in the pictures below.
Controlling the temperature
For optimum food preservation, we recommend that when you start
your refrigerator for the first time the temperature of the
refrigerator is set to 4°C. If you want to change the temperature,
follow the inststrructions below.
Caution!
When you set a temperature, you set an average temperature
for the whole refrigerator cabinet. Temperatures inside each
compartment may vary from the temperatures displayed on the
panel depending on how much food you store and where you place it.
High or low room temperature may also affect the temperature
inside the appliance.
DISPLAY CONTROLS
www.haden.com 015

Power
Press and hold the “POWER” button for 3 seconds to turn the power
function on or off.
When the power function is on, the display board will show “- -”. If no
buttons have been pressed, the display board will turn off about 1
minute later.
If you want to turn off the power function, make sure the display
board is lighting up. If not, you can press any bbuutton to light up
the display board.
Important! When the poowwer function is on, the refrigerator stops
cooling. Do not store any food in the fridge during this time. If you
will not use the refrigerator for a long time, please pull out the plug.
Super
Super will quickly lower the temperature with in the freezer so food
will freeze faster. This will help to retain the vitamins and nutrients
and keep the food fresher for longer. Press the button to activate the
super freeze function. The light will be illuminated and panel will
display 2°C.
Super freeze automaticacally switches off after 52 hours.
When super freeze functnction is on, you can switch off super
freeze function by pressing the middle part of button and the
freezer temperature setting will revert back to the previous setting.
www.haden.com
016

Temp

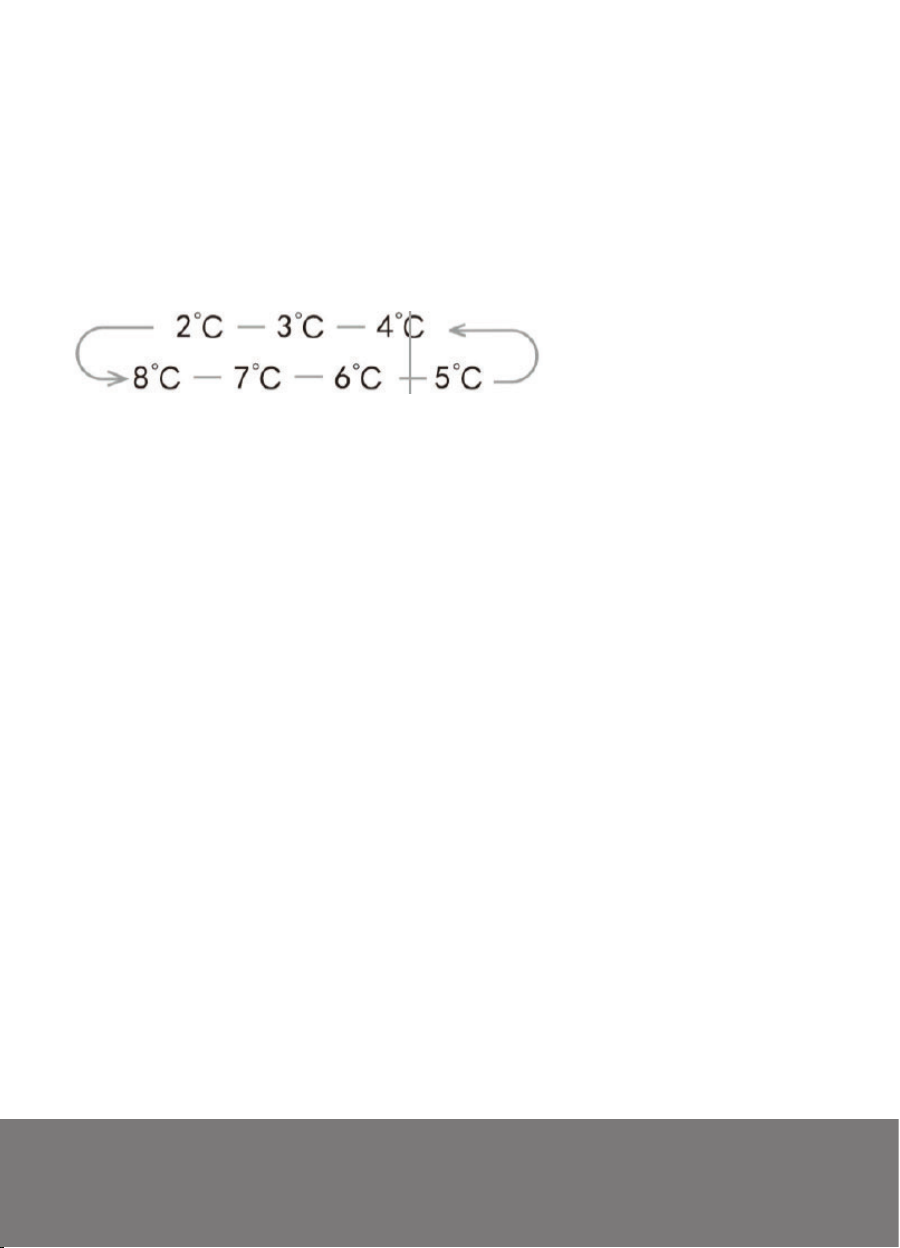

Press the middle part of the button to set fridge temperature
betweeen 2 and 8 as needed, and control panel will display
corresponding figures accoccording to the following sequence.
NOTE: High temperature setting will accelerate food waste.
Alarm
In case of alarm, icon will light up and flashes, meanwhile a
buzzing sound will start. Leaving the door of refrigerator open for
over 1 minute will activate door alarm, the icon will light up and
flashes, the buzzer will beep 3 times per minute for 10 minutes.
Closing the door cancels the door alarm and buzzer.
Press “ALARM” button to stop alarm, the buzzing and icon will
turn off. To save energy, please avoid keeping the door open for a
long time when using refrigerator.
www.haden.com 017

USING YOUR APPLIANCE
This section tells you how to get the most out of your appliance. We
recommend that you read through them carefully before using your
appliance.
Door rack
It is suitable for the storage of eggs, canned liquid, bottled drinks and
packed food, etc. Do not place too many heavy things in the racks. To
adjust, gradually pull the rack in the direction of the arrows until it
comes free, then reposition as required.
Crisper Box
For storing fruit & vegetables.
Caution: never close the door
when the crisper box is pulled
out, this may damage the box.
Remove the door rack Install the door rack
www.haden.com
018

Refrigerator compartment
For storing food that doess not need to be frozen and different
sections suitable for different kinds of food.
Shelf in Refrigerator chamber
There are shelves in refrigerator chamber, and they can be taken out
to be cleaned. Please push the shelf inside when replacing it.
Freezer compartment
For freezing fresh food and storing frozen and deep-frozen food for
long periods of time.
Ice-cube tray
For making ice and storing ice-cubes.
www.haden.com 019

CLEANING & CARE
For hygienic reasons the appliance (including exterior and interior
accessories) should be cleaned at least every two months.
Warning!
To avoid electrical shock, the appliance must not be connected to
the main power supply during cleaning. Before cleaning, switch the
appliance off and remove the plug from the main socket.
Exterior cleaning
To maintain good appearance of your appliance, you should clean it
regularly.
Spray water onto a cleaning cloth instead of spraying directly on the
surface of the appliance. This helps ensure an even distribution of
moisture to the surface.
Clean the doors, handles and cabinet surfaces with a mild detergent
and then wipe dry with a soft cloth.
Caution!
Don’t use sharp objects to clean with, as they are likely to scratch the
surface.
Don’t use Thinner, Car detergent, bleach, ethereal oil, abrasive
cleansers or organic solvent such as Benzene for cleaning. They may
damage the surface of the appliance and may cause fire.
Interior cleaning
You should clean the appliance interior regularly. It will be easier to
clean when food stocks are low. Wipe the inside of the fridge freezer
with a weak solution of backing soda and water, and then rinse with
warm water using a wrung-out sponge or cloth.
www.haden.com
020
