HAEGER Xplorer FX-400 User manual

EN
User
Manual
P Manual de Utilização
Model
:
Xplorer FX-400
PMR
–
2
Way
Rádio
Emissor / Receptor PMR

EN The features described in this manual are published
subject to modifications.
P As características descritas neste manual são
publicadas sob reserva de modificações.
The CE Symbol indicates that the unit complies with the
essential requirements of the R&TTE directive.
O símbolo CE indica que esta unidade cumpre com os
requisitosessenciais da Directiva R&TTE.
For use / Para uso em:
AT,BE, CH, CY, CZ,DE, DK, EE, GR, E, FI,FR, GB, HU, IRL,I, LT,
LU,LV, MT, NL, PL, PT, SE, SK, SI

Index
1INTRODUCTION............................................................................. 1
2INTENDED PURPOSES..................................................................... 1
3SAFETY INSTRUCTIONS.................................................................... 1
3.1 General.................................................................................... 1
3.2 Burning Injuries........................................................................ 1
3.3 Personal Safety........................................................................ 2
3.4 Poisoning Danger..................................................................... 2
3.5 Legal........................................................................................ 2
3.6 Notes....................................................................................... 3
4INCLUDED IN PACKAGE...................................................................3
5CLEANING AND MAINTENANCE........................................................ 3
6DISPOSAL OF THE DEVICE................................................................ 4
7GETTINGSTARTED.........................................................................4
7.1 Diagram and functions............................................................. 4

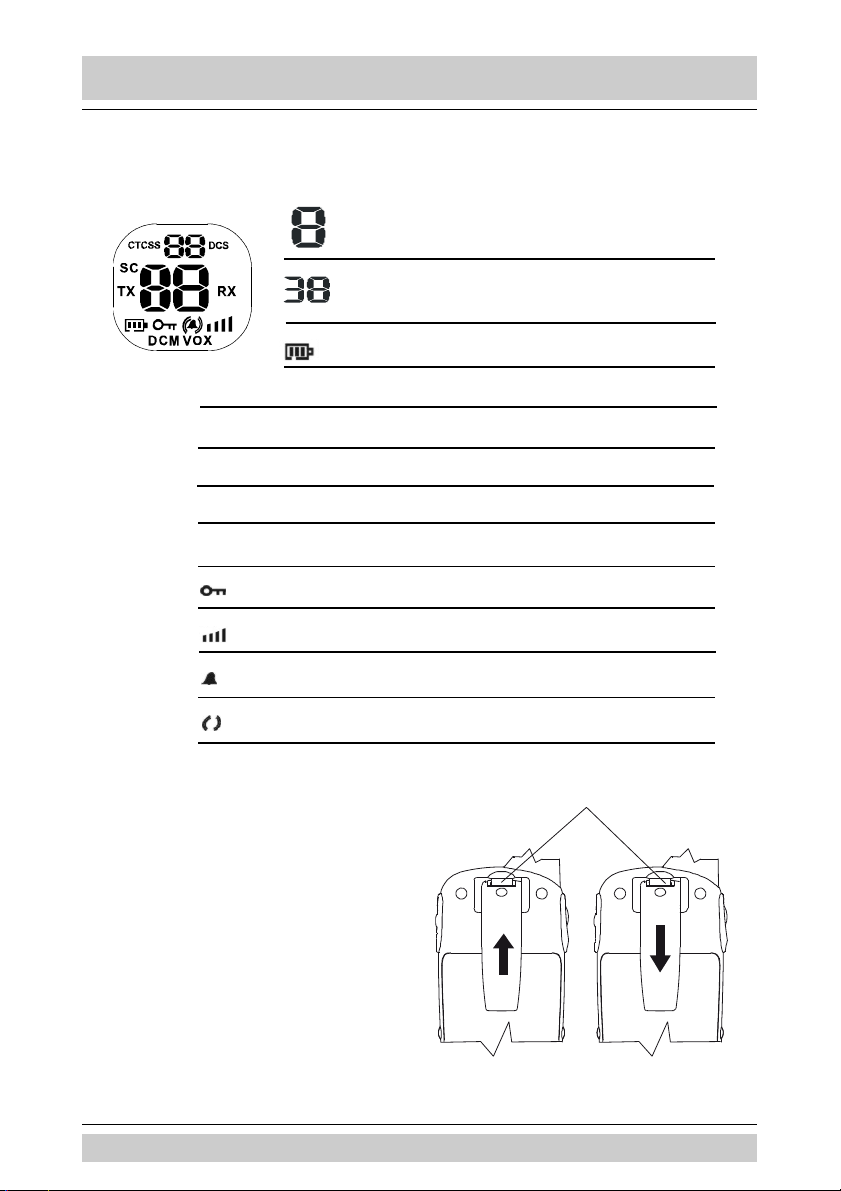

7.2 LCDScreen............................................................................... 5
7.3 Removing Installing the Belt Clip.............................................. 5
7.4 Battery Installation................................................................... 6

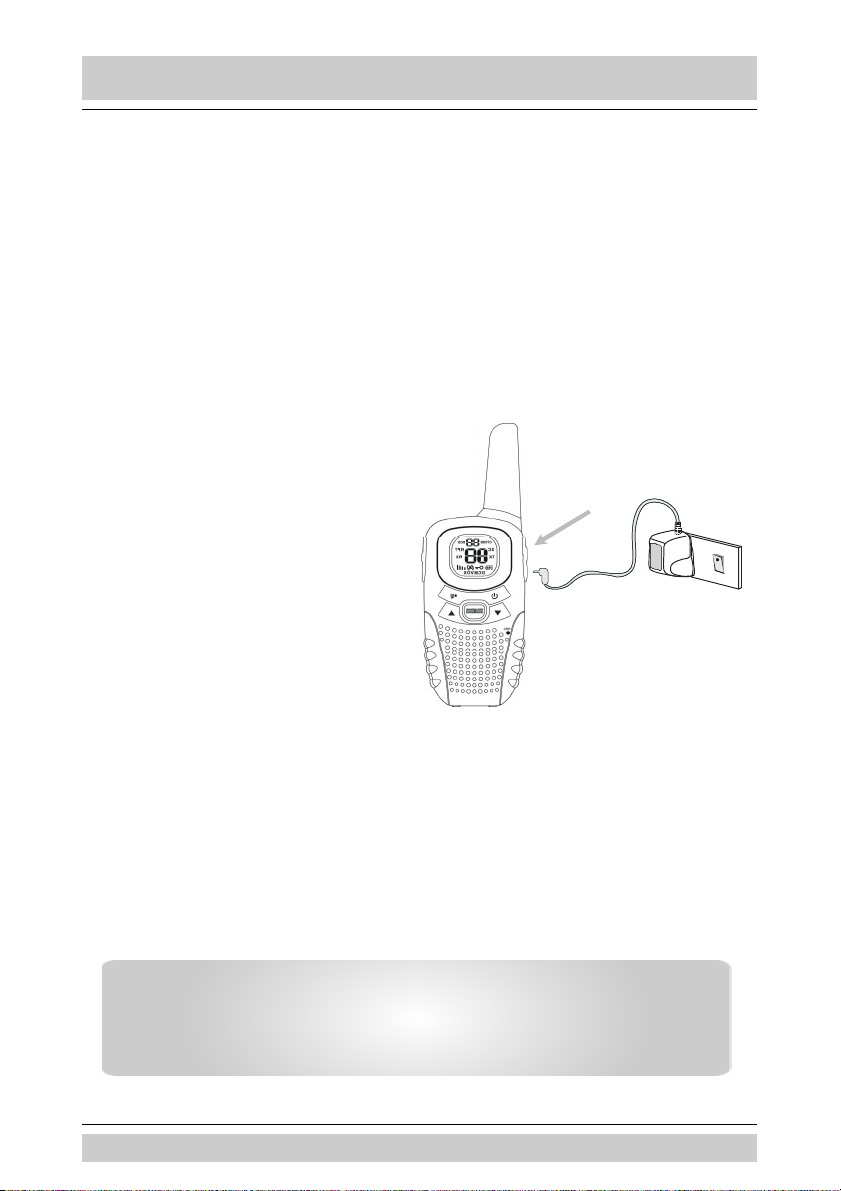

7.5 Charging the batteries using direct charger.............................. 7
7.6 Charging the batteries using Desktop charger.......................... 7
7.7 Battery meter.......................................................................... 8
7.8 Battery life............................................................................... 9
8OPERATION................................................................................. 9
8.1 Transmitting range................................................................... 9
8.2 Turning the Unit ON/OFF......................................................... 9
8.3 Adjusting the Speakervolume................................................ 10
8.4 Changing Channels................................................................. 10
8.4.1 Setting the CTCSS sub-channel..................................................... 10
8.4.2 Setting the DCS advanceddigital code......................................... 11
8.4.3 Transmitting (sending a speech).................................................. 11
8.4.4 Monitor...................................................................................... 12
8.5 Setting the VOX (Voice Activated) Sensitivity.......................... 12
8.6 Activating the auto Channel andsub-channel Scan................. 13
8.7 Vibrator andCall alert............................................................ 13
8.8 Call-Ring tone......................................................................... 13

8.9 Selecting a Call- Ring tone...................................................... 13
8.10 Activating the Vibrator mode................................................. 14
8.11 Setting the Roger Beep .......................................................... 14
8.12 Setting the Key ToneON or OFF............................................. 14
8.13 Setting the Dual Watch Mode................................................ 15
9AUXILIARY FEATURES................................................................... 15
9.1 Key Lock................................................................................. 15
9.2 LCDScreenBackLight............................................................ 16
9.3 Microphone/Earphone/ChargeJack....................................... 16
10 SPECIFICATIONS...................................................................... 16
11 CHANNEL FREQUENCY TABLE..................................................... 16
12 WARRANTY ........................................................................... 17
12.1 Warranty Period .................................................................... 17
12.2 Warranty Handling................................................................. 17
12.3 Warranty Exclusions............................................................... 17
13 CECONFORMITY DECLARATION.................................................. 18

Índice
1INTRODUÇÃO............................................................................. 19
2FINALIDADE ESPECÍFICA................................................................ 19
3INSTRUÇÕES DE SEGURANÇA.......................................................... 19
3.1 Geral...................................................................................... 19
3.2 Queimaduras......................................................................... 19
3.3 SegurançaPessoal.................................................................. 20
3.4 PerigodeEnvenenamento..................................................... 20
3.5 Legislação.............................................................................. 20
3.6 Notas:.................................................................................... 21
4CONTEÚDODO PACOTE................................................................ 21
5MANUTENÇÃOE LIMPEZA............................................................. 21
6ELIMINAÇÃODO APARELHO........................................................... 22
7PRIMEIROSPASSOS ..................................................................... 22
7.1 Diagramaefunções............................................................... 22
7.2 VisorLCD............................................................................... 23
7.3 Retirar/Instalaro Clipe paracinto .......................................... 23
7.4 Instalaçãodaspilhas.............................................................. 24
7.5 Carregar as pilhas usando o carregador directamente............ 25
7.6 Carregar as pilhas usando o carregador de escritório ............. 25
7.7 Indicadorde cargadaspilhas................................................. 26
7.8 Vidaútil das pilhas................................................................. 27
8OPERAÇÃO................................................................................ 27
8.1 Alcance deTransmissão......................................................... 27
8.2 Ligare Desligaro aparelho..................................................... 27
8.3 Regular ovolumedo altifalante ............................................. 28
8.4 MudardeCanal ..................................................................... 28
8.4.1 Configuraro sub-canal CTCSS...................................................... 28
8.4.2 Configuraro Código Digital avançado DCS .................................. 29
8.4.3 Transmitir (enviar uma fala)........................................................ 29
8.4.4 Monitor...................................................................................... 30
8.5 Configurar Sensibilidade da função VOX (Voz Activada).......... 30
8.6 Activar a procura automática de Canal e sub-canal ................ 31
8.7 Função Vibração e Alerta de Chamada................................... 31
8.8 Tom de Chamada................................................................... 31

8.9 Definir oTom de Chamada..................................................... 31
8.10 ActivaromododeVibração................................................... 32
8.11 DefinirRogerBeep................................................................. 32
8.12 Activar ou Desactivar o Tom de Tecla..................................... 32
8.13 DefiniromodoCanal Duplo................................................... 33
9FUNÇÕES AUXILIARES................................................................... 33
9.1 BloqueiodeTecla................................................................... 33
9.2 IluminaçãodovisorLCD......................................................... 34
9.3 Microfone/Auricular/Tomada de Carga.................................. 34
10 ESPECIFICAÇÕES...................................................................... 34
11 TABELADE FREQUÊNCIAS.......................................................... 34
12. GARANTIA............................................................................ 35
12.1 PeríododeGarantia............................................................... 35
12.2 Modo de Funcionamento da Garantia.................................... 35
12.3 ExcluídodaGarantia.............................................................. 35
13. DECLARAÇÃODE CONFORMIDADE ............................................... 36

English
1
1 INTRODUCTION
Thank you for purchasing the Xplorer FX-400.It’s a short range, low
powered radio communication device that has no running costs other
than the minimal cost of the batteries.
The Xplorer FX-400 operates on Private Mobile Radio frequencies and can
be used in any country where PMR446 frequencies are authorised as
indicated on the packing box and in this manual.
2 INTENDED PURPOSES
It can be used for different professional as well as for recreational
purposes. For example: to keep in contact during travelling with 2 or more
cars, biking, skiing. It can be used to keep in contact with your children
when they are playing outside, etc.
Restriction:
Check the local regulations before using it outside the
country where it was purchased. The standard may be
prohibited in this country.
3 SAFETY INSTRUCTIONS
3.1 General
Please read carefully through the following information concerning
safety and proper use. Make yourself familiar with all functions of the
device. Keep this manual on a safe place for future use.
3.2 Burning Injuries
If the cover of the antenna is damaged, do not touch because when an
antenna comes in contact with the skin, a minor burn may result when
transmitting.
Batteries can cause property damage such as burns if conductive
material such as jewellery, keys or beaded chains touches exposed

English
2
terminals. The material may complete an electrical circuit (short
circuit) and become quite hot. Exercise care in handling any charged
battery, particularly when placing it inside a pocket, purse or other
container with metal objects. Do not replace or charge batteries in a
potentially explosive atmosphere. Contact sparking may occur while
installing or removing batteries and cause an explosion.
3.3 Personal Safety
Use in cars: do not place your device in the area over an air bag or in
the air bag deployment area. Air bags inflate with great force. If a
communicator is placed in the bag deployment area and the air bag
inflates, the communicator may be propelled with great force and
cause serious injury to the occupants of the vehicle.
Keep the radio at least 15 centimetres away from a pacemaker.
Turn your radio OFF as soon as interference is taking place with
medical equipment.
Do not replace batteries in a potentially explosive atmosphere.
Contact sparking may occur while installing or removing batteries and
cause an explosion.
Turn your communicator off when in any area with a potentially
explosive atmosphere. Sparks in such areas could cause an explosion
or fire resulting in bodily injury or even death.
Never throw batteries in fire as they may explode.
3.4 Poisoning Danger
Keep the batteries away from small children.
3.5 Legal
In some countries it is prohibited to use your PMR while driving a
vehicle. In this case leave the road before using the device.

English
3
Turn your unit OFF when on board an aircraft when instructed to do
so. Any use of the unit must be in accordance with airline regulations
or crew instructions.
Turn your unit OFF in any facilities where posted notices instruct you
to do so. Hospitals or health care facilities may be using equipment
that is sensitive to external RF energy.
Replacing or modifying the antenna may affect the PMR radio
specifications and violate the CE regulations. Unauthorised antennas
could also damage the radio.
3.6 Notes
Does not touch the antenna while transmitting, it could affect the
range.
Remove the battery if the device is not going to be used for a long
period.
4 INCLUDED IN PACKAGE
2 x Xplorer FX-400Units
2 x Desktop chargers pods
2 x Power adaptors
8 x AAA Rechargeable batteries
2 x Belt Clips
User manual with service card
5 CLEANING AND MAINTENANCE
To clean the unit, wipe with a soft cloth dampened with water. Don’t
use a cleaner or solvents on the unit; they can damage the case and
leak inside,causing permanent damage.
Battery contacts may be wiped with a dry lint-freecloth.
If the unit gets wet, turn it off and remove the batteries immediately.
Dry the battery compartment with a soft cloth to minimize potential

English
4
water damage. Leave the cover off the battery compartment
overnight or until completely dry. Do not use the unit until completely
dry.
6 DISPOSAL OF THE DEVICE
Dispose of the unit and used batteries in an
environment friendly manner.
Do not dispose of batteries in normal household
garbage.
7GETTING STARTED
7.1 Diagram and functions
Antenna
LCD
Screen
Displays the current
channel selection and
other radio symbols.
PTT (PUSH toTALK)
button
Press and hold to
transmit.
CALL
button
Press to send
ringing tone to
other PMR units.
MENU
Button
Press to change to
switch between modes.
Speaker
PWR (POWER)
Button
Press and hold to turn
the unit ON or OFF.
MIC (
Microphone
)
Ear
/
Mic
/
Charger
jack
UP/DOWN
Buttons
Press to change
channels, volume,
and to select

English
5
7.2 LCD Screen
Channel Number: Changes from1 to 8 as selected
by the user
CTCSS Code: Changes from 1 to 38 as selected by
the user
Displays whenBatterylevel goes low
TX Displayed when transmitting a signal
RX Displayed when receiving a signal
DCM Displayed when the Dual watch function is turned ON
VOX Displayed whenthe VOX feature is enabled
SC Displays when the PMR is scanning all channels
Displayed when the Key Lock feature is activated
Displays the current Speaker volume level
Displays when the call signal is ON
Displays when the vibrator function is activated
7.3 Removing Installing the Belt Clip
1. To remove the clip from the unit, push the
belt clip towards the antenna, while
pulling the clip tab as shown in
Fig.1.
2. When re-installing the belt clip,
a click indicates the Belt Clip is
locked into position.
Figure 1 Figure 2

English
6
7.4 Battery Installation
Caution: Observe the proper battery polarity orientation when
installing batteries. Incorrect positioning can damage both the
batteries and the unit.
1. Pull up the battery cover latch, Lift up Battery Compartment Cover.
2. Install the rechargeable batteries by following the orientation as
shown in Figure 3 (the arrow is showing and pointing upward.)
3. Replace the Battery Compartment Cover. See Figure 4.
Important
Read these Safety Warnings before you charge the batteries.
When placing the FX-400 in the charger, use only the
rechargeable batteries supplied with the FX-400.
Don’t try to recharge non-rechargeable batteries.
Make sure the battery compartment cover is securely locked in
place when you are charging the batteries.
Dispose of used batteries safely and in a way that will not harm
the environment - never try to burn them or put them anywhere,
they could get burnt or punctured.
Don’t leave dead batteries in your FX-400 units. They might leak
if you do and damage the unit.
Figure 3 Figure 4

English
7
7.5 Charging the batteries using direct charger
1. Lift up the Mic/Ear/Charger cover; insert the round connector at the
side of the unit.
2. Plug in the mains adaptor into a 220-240V AC, 50Hz main socket with
the switch on the socket set to OFF.
3. Switch ON the main socket.
4. It takes about 10 hours to fully recharge the batteries if they are
completely run down. New batteries take up to 14 hours to fully
charge.
Note:
During PMR directcharging mode,
the unit transmit and receive
mode is disabled.
7.6 Charging the batteries using Desktop charger
1. Insert the small plug on the end of the mains adaptor into the Power-
in Connection Jack atthe back of the desktop charger.
2. Plug the mains adaptor into a 240V AC, 50Hz main socket with the
switch on the socket set to OFF.
3. Switch ON the main socket.
The FX-400 must be charged using the mains adaptor provided.
Using any other adaptor will result in non-compliance with
EN60950 and will invalidate any approvals & warranty.

English
8
4. Place the FX-400 units in the charge cradle in an upright position and
facing outward. The Charge LEDindicators will light up.
5. It takes about 10 hours to fully recharge the batteries if they are
completely run down. New batteries take up to 14 hours to fully
charge.
7.7 Battery meter
The battery meter is located in the left corner of the LCD Screen. It
appears like a battery with three bars inside. These indicate the amount of
power available. When the battery level reaches it minimum level in PMR
on mode, unit will emit two beep tones and automatically the power will
turn off. The FX-400 can detect the battery charge in 4 levels;
Battery charge at high level
Battery charge at medium level
Battery charge at low level. At this level
Important: Charge the unit for 10-14 hours.
Battery charge at very low level. When the battery level
reaches it minimum level, the unit will emit two beep tones
and automatically the power is switched to off. Important:
Charge the unit for 10-14 hours.
Important:
Always turn off the PMR units when
charging. This will shorten the charging time.
Main
socket

English
9
7.8 Battery life
The FX-400 has a built in power saver feature to make the batteries last
longer. But when you are not using the units, turn them OFF to conserve
power.
8 OPERATION
8.1 Transmitting range
The talk range depends on the environmental and terrain. It should be
longest (up to about 8km) in wide open spaces, without obstructions such
as hills or buildings. Don’t try to use two PMR units which are less than
1.5m (5feet) apart. If you do, you may experience interference.
Important safety warning
To reduce radio frequency exposure when you are using your
FX-400,hold the unit at least 5cm (2 inches) away from your face.
Never use your FX-400 outdoors during a thunderstorm.
Don’t use the FX-400 in the rain.
If your FX-400 ever gets wet, turn it off and remove the battery.
Dry the battery compartment and leave the cover off for a few
hours. Don’t use the unit until it is completely dry.
Keep the FX-400 out of the reach of babies and young children.
8.2 Turning the Unit ON/OFF
To Turn ON
a. Press and hold the POWER button until the LCD
Screen turns ON and displays the current channel.
To switch OFF
b. Press and hold the POWER button until the LCD screen
turns blank. You can hear musical tone each time to
confirm.

English
10
8.3 Adjusting the Speaker volume
The volume level is shown by vertical bars on the LCD screen. You can
change the volume while using your FX-400, or while the unit is idle
(switched on but not in use).
Press the UP button to increase, or press the DOWN button to decrease
the speaker volume.
8.4 Changing Channels
The FX-400 has 8 available channels, to communicate with other FX-400
users within a range; you must all have your FX-400 tuned in to the same
channel.
a. Press the MENU button once, the current channel number
flashes on the LCD Screen.
b. Press the UP or DOWN button to select the desired
channel. The channel changes from 1 to 8, or vice versa.
c. Press the PTT button to confirm the channel setting.
Note: Refer to the “Channel Table” section of this Owner’s Manual
for detailed frequency listing.
8.4.1 Setting the CTCSS sub-channel
Each channel also has 38 sub-channels to let you set up group of users
within the same channel for more private communication. If you have set
the sub-channel, you can only communicate with other PMR users turned
to the same channel and sub-channel.
a. Press the MENU button twice, the current CTCSS sub-
channel number flashes on the LCD Screen.
b. Press the UP or DOWN button to select one of the 38
CTCSS sub-channels.
c. Press the PTT button to confirm the sub-channel setting.

English
11
To turn the sub-channel function off simply set the sub-channel to 0
(zero). You can communicate with any FX-400 user set to the same
channel who also turns off the sub-channel operation (or whose FX-400
unit does not have the feature).

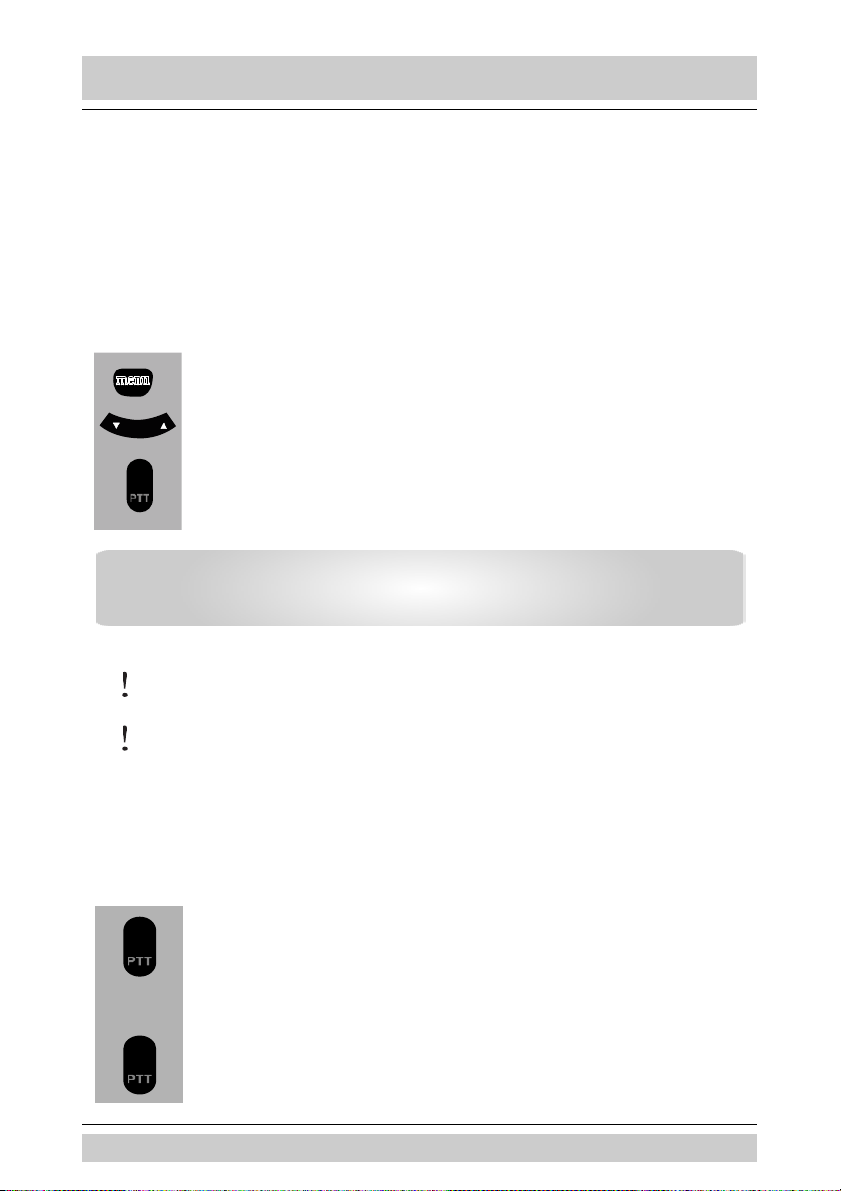

8.4.2 Setting the DCS advanced digital code
Each channel also has 83 digital codes to let you set up group of users for
more secured private communication.
a. Press the MENU button 3times. DCS code flasheson the
LCD screen.
b. Press the UP or DOWN button to select the desired DCS
code.
c. Press PTT button to confirm the DCS setting.
Note: Once you set the DCS code, CTCSS will automatically set to off
mode or vice versa.
Transmitting and Receiving
The FX-400 transmission is “one way-at-a-time.” While you are
speaking, you can not receive a transmission.
The FX-400 is an open-license band. Always identity yourself when
are transmitting on the same channel.
8.4.3 Transmitting (sending a speech)
The unit is continuously in the Receive mode when the unit is turned ON
and not transmitting. When a signal is received on the current channel,
“RX” will be displayed on the LCD Screen and the receiver LED lights up.
a. Press and hold the PTT (Push to Talk) button to transmit
your voice. The transmit signal icon “TX” will display on
the LCD screen.
b. Hold the unit in a vertical position with the Mic
(Microphone) 5 cm away from the mouth. While holding

English
12
the PTT button, speak into the microphone in a normal
tone of voice.
c. Release the PTT button when you have finished
transmitting.
8.4.4 Monitor
You can use the Monitor feature to check for weak signals on the current
channel.
a. Press the MENU and DOWN buttons at the same time,
“RX” will be displayed on the LCD Screen. Your FX-400 will
pick up signals on the current channel, including
background noise.
b. Press the PTT button to stop thechannel monitoring.
8.5 Setting the VOX (Voice Activated) Sensitivity
In VOX mode, the FX-400 will transmit a signal only when it is activated by
your voice or other sounds around you. The unit will transmit further for 2
seconds even if you stop talking.
The level of VOX sensitivity is shown by a number on the LCD Screen. At
the highest level, the units will pick up softer noise (including background
noise); at the lowest level, it will pick up only quite loud noise.
a. Press the MENU button 4 times, “VOX” will be displayed
and “OF” flashes on the LCD Screen.
b. Press the UP button to set the VOX sensitivity level (the
maximum level is “3”). To deactivate the VOX function,
press the DOWN button until “OF” appears on the LCD
Screen.
c. Press the PTT button to confirm your setting. “VOX” will
steadily appear on the LCD Screen as along as the VOX
feature is activated.
VOX operation is not recommended if the FX-400 will be used in a
noisy or windy environment.

English
13
8.6 Activating the auto Channel and sub-channel Scan
Channel scan perform searches for active signals in an endless loop for all
8 channels, 38 CTCSS codes and all 83 DCS codes.
a. Press the MENU button 5 times
b. Press the UP or DOWN button to begin scanning channels
when an active signal is detected, channel scan pauses on
the active channel.
c. Press the MENU button again, CTCSS flashes on the LCD
screen press the UP or DOWN button to begin scanning
CTCSS 1-38.
d. Press the MENU button again, DCS flashes on the LCD
screen. Press the UP or DOWN button to begin scanning
DCS code 1-83.
e. Press the PTT button to confirm your setting.
8.7 Vibrator and Call alert
Your FX-400 can alert you to incoming signal by emitting an audible call
tone and vibration signal.
8.8 Call-Ring tone
You can send a Call-ring tone to other PMR users to give an
alert that you want to communicate with them.
Press the CALL button
You will hear a ring tone for about two seconds; “TX” appears
on the LCD Screen. Any other units within the transmitting
range and turned to the same channel and sub-channel ( if
applicable) will hear the Call-ring tone.
8.9 Selecting a Call- Ring tone
The FX-400 is equipped with 5 different types of Call-Ring tones.

English
14

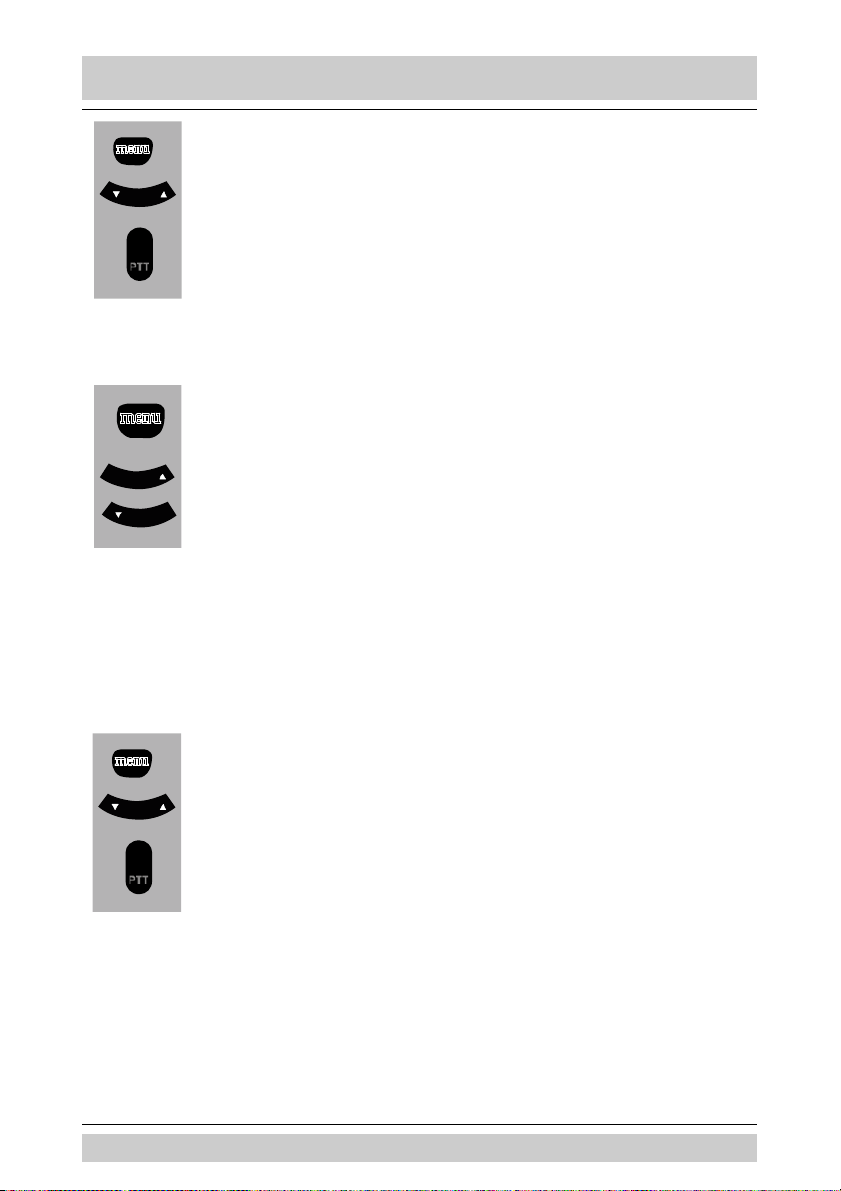

a. Press the MENU button 8 times; the LCD Screen will
display Call Icon and blinking.
b. Press the UP or DOWN button to select the desired Call-
ring tone. A respective Call- Ring tone sound will be played
when changing from one tone to another.
c. Press the PTT button to confirm your setting.
8.10 Activating the Vibrator mode
a. Press the MENU button 9 times; “0I” flashes on the LCD
Screen.
b. Press the UP or DUWN button to activate the vibrator
function.
8.11 Setting the Roger Beep
The Roger Beep is a tone which is automatically transmitted whenever the
PTT button is released. This alerts the receiving party to inform that you
have intentionally ended the transmission, and you are now in receive
mode.
a. Press the MENU button 10 times, “ON” flashes on the LCD
Screen.
b. Press the UP or DOWN button (“ON” will be displayed on
the LCD screen) or deactivate (“OFF” will be displayed on
the LCD screen)
c. Press the PTT button to confirm your setting.
8.12 Setting the Key Tone ON or OFF
This feature allows the FX-400 to emit a confirmation tone after pressing
each button.
