Hafele HF-BI60A User manual

EN BUILT IN REFRIGERATOR
Fridge - Freezer
User manual
HF-BI60A

EN - 3 -
Index
INSTRUCTIONS PREALABLES ............................................................... 4
General warnings ........................................................................................4
Safety warnings ...........................................................................................6
Installing and operating your fridge .............................................................7
Electrical cennection (for UK type plug) ......................................................8
Before using your fridge ..............................................................................9
HOW TO OPERATE THE APPLIANCE..................................................... 9
Thermostat setting.......................................................................................9
Warnings about temperature adjustments...................................................9
Accessories ...............................................................................................10

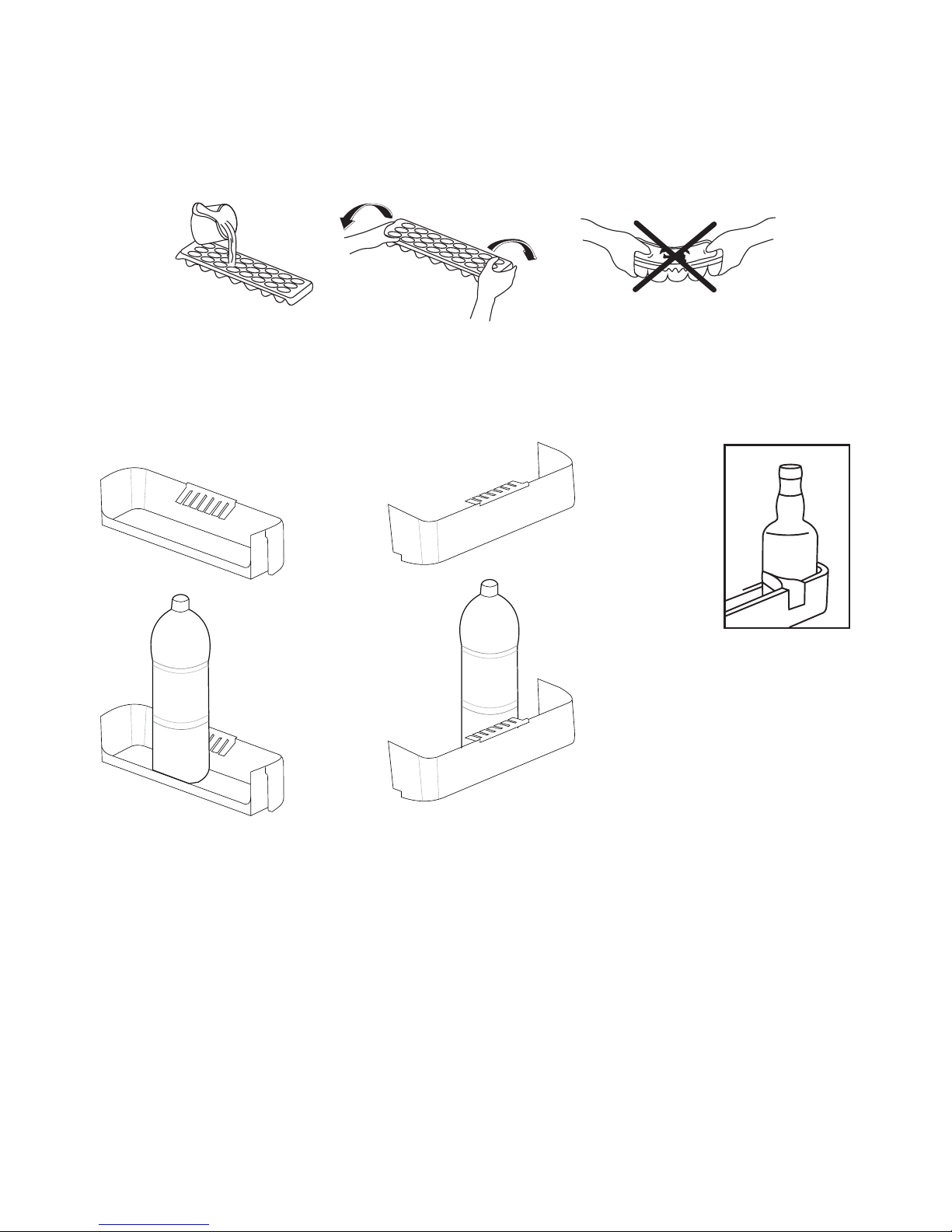

Ice tray .....................................................................................................................10
Bottle holder (In some models) ................................................................................10
FOOD STORAGE IN THE APPLIANCE .................................................. 11
Refrigerator compartment.......................................................................... 11
Freezer compartment ................................................................................ 11
CLEANING AND MAINTENANCE .......................................................... 12
Defrosting the refrigerator compartment....................................................13
Defrosting the freezer compartment ..........................................................13
Replacing the refrigerator light bulb...........................................................14
SHIPMENT AND REPOSITIONING......................................................... 14
BEFORE CALLING YOU'RE AFTER SALES SERVICE ........................ 14
Tips for saving energy ...............................................................................15
PARTS OF THE APPLIANCE AND THE COMPARTMENTS ................. 16
Installation instructions and door reversibility ............................................17
Assembly parts.........................................................................................................17
Installation instructions.............................................................................................18
Door reversing..........................................................................................................22

EN - 4 -
INSTRUCTIONS PREALABLESPART - 1.
General warnings
WARNING: Keep ventilation openings, in the appliance enclosure or
in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended by
the manufacturer.
WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the type
recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: To avoid a hazard due to the instability of the appliance,
it must be xed in accordance with the instructions.
• If your appliance uses R600a as a refrigerant – you can learn this
information from the label on the cooler- you should be careful
during shipment and installation to prevent your appliance’s
cooler elements from being damaged. Although R600a is an
environmentally friendly and natural gas. As it is explosive, in the
event of a leak due to damage to the cooler elements, move your
fridge from open ame or heat sources and ventilate the room
where the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not damage the
cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a
ammable propellant in this appliance.
• This appliance is intended to be used in household and similar
applications such as;
- staff kitchen areas in shops, ofces and other working
environments
- farm houses and by clients in hotels, motels and other residential
type environments
- bed and breakfast type environments;
- catering and similar non-retail applications

EN - 5 -
• If the socket does not match the refrigerator plug, it must be
replaced by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.
• A specially grounded plug has been connected to the power cable
of your refrigerator. This plug should be used with a specially
grounded socket of 13 amperes. If there is no such socket in your
house, please have it installed by an authorized electrician.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazard involved. Children shall
not play with the appliance. Cleaning and user maintenance, shall
not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similar qualied persons in
order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding
2000 m.

EN - 6 -
Safety warnings
• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• Do not twist and bend the cables, and keep them away from hot surfaces.
• After installation make sure that the power cable is not trapped underneath
appliance.
• This appliance is designed for use by adults, do not allow children to play
with the appliance or let them to hang over the door.
• Do not plug-in or out the plug from the receptacle with wet hands to prevent
electrocution!
• Do not place glass bottles or beverage cans in the freezer department.
Bottles or cans may explode.
Old and out-of-order fridges
• If your old fridge has a lock, break or remove the lock before discarding it, because
children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with
CFC. Therefore, take care not to harm environment when you are discarding
your old fridges.
Please ask your municipal authority about the disposal of the WEEE for the
reuse, recycle and recovery purposes.
Notes:
• Please read the instruction manual carefully before installing and using your appliance.
We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual
in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic
environments and for the specied purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the appliance to be cancelled and
our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing
foods. It is not suitable for commercial or common use and/or for storing substances
except for food. Our company is not responsible for the losses to be occurred in the
contrary case.

EN - 7 -
• Do not place explosive or ammable material in your fridge for your safety.
Place drinks with higher alcohol amount vertically and by closing their necks
tightly in the fridge department.
• When taking ice made in the freezer department, do not touch it, ice may cause
ice burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes
immediately after you take them out of the freezer department!
• Do not re-freeze the frozen goods after being melted. This may cause health issues like
food poisoning.
• Do not cover the body or top of fridge with lace. This affects the performance of your
fridge.
• Do not operate any electrical appliances inside the refrigerator or freezer.
• Fix the accessories in the fridge during transportation to prevent damage to accessories.
Installing and operating your fridge
Before starting to use your fridge, you should pay attention to the following points:
• Operating voltage for your fridge is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• There can be an odor when you rst switch on the appliance. It will disappear after the
appliance starts to cool.
• Before making the connection to the power supply, ensure that the voltage on the
nameplate corresponds to the voltage of electrical system in your home.
• Insert the plug into a socket with an efcient ground connection. If the socket has
no ground contact or the plug does not match, we suggest you to call an authorized
electrician for assistance.
• The appliance must be connected with a properly installed fused socket. Power supply
(AC) and voltage at the operating point must with the details on the name plate of the
appliance (name plate is located on the inside left of the appliance).
• We do not take responsibility for damages that occur due to ungrounded usage.
• Place your fridge in a place that it would not be exposed to direct sunlight.
• Your fridge should never be used outdoors or left under the rain.
• Your appliance should be at least 50 cm away from stoves, Gas ovens and heaters, and
should be at least 5 cm away from electrical ovens.
• When your fridge is placed next to a deep freezer, there should be at least
2 cm between them to prevent humidity on the outer surface.
• Do not place heavy items on the appliance.
• Clean the appliance thoroughly, especially in the interior, before use (See
Cleaning and Maintenance).
• Installation procedure into the kitchen unit is given in the The installation procedure into
the kitchen unit is given in the Installation Manual. This product is intended to be used
in proper kitchen units only.
• The adjustable front legs should be adjusted to an appropriate height to allow your
freezer to operate in a stable and proper way. You can adjust the legs by turning them
clockwise (or in the opposite direction). This should be done before placing food in the
freezer.

EN - 8 -
• Before using your fridge, wipe all parts with warm water added with a tea spoonful
of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after
cleaning.
• Install the distance adjustment plastic (the part with white vanes at the
rear) by turning it 90° as shown in the gure to prevent the condenser from
touching the wall.
• Refrigerator should be placed against a wall with a free distance not
exceeding 75 mm.
Electrical cennection (for UK type plug)
For your safety please read the following information
Warning: This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in
the plug.
The appliance is supplied with a standard 13 amp 3-pin mains plug tted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and
approved to BS1362.
If the mains plug which is tted is unsuitable for the socket outlet in your home or is removed
for any other reason, please follow the instructions below on how to wire a 13 amp 3 pin
plug..
How to wire a 13 amp plug.
Important
The wires in the mains lead on this appliance are
coloured in accordance with the following code:
Green and Yellow - Earth
Blue – Neutral
Brown – Live
As the colours may not correspond with the markings identifying the terminals in your plug
proceed as follows.
The green and yellow wire must be connected to the terminal in the plug which is marked
with the letter E or with the earth symbol or coloured green and yellow.
The blue wire must be connected to the terminal marked N.
The brown wire must be connected to the terminal marked L.
You must make sure the lead is rmly secured under the cord clamp.
GREEN/YELLOW
Earth
BROWN
Live
FUSE
13 Amps
BLUE
Neutral
Cord Clamp

EN - 9 -
Before using your fridge
• When it is operated for the rst time or after transportation, keep your
fridge in the upright position for 3 hours and plug it on to allow efcient
operation. Otherwise, you may damage the compressor.
• Your fridge may have a smell when it is operated for the rst time; the smell will fade
away when your fridge starts to cool.
Thermostat setting
HOW TO OPERATE THE APPLIANCE
PART - 2.
Freezer thermostat automatically regulates the inside temperature of the compartments. By
rotating the knob from position 1 to 5, colder temperatures can be obtained.
Freezer & Refrigerator Thermostat Setting;
1 – 2 : For short-term storage of food in the freezer compartment,
you can set the knob between minimum and medium position.
3 – 4 : For long-term storage of food in the freezer compartment,
you can set knob medium position.
5 : For freezing the fresh food. The appliance will work longer.
So after you get the cold condition you must position to previous
position.
Thermostat knob
Warnings about temperature adjustments
• It is not recommended that you operate your fridge in environments colder than 10°C in
terms of its efciency.
• Temperature adjustments should be made according to the frequency of door openings
and the quantity of food kept inside the fridge.
• Your fridge should be operated up to 24 hours according to the ambient temperature
without interruption after being plugged in to be completely cooled. Do not open doors
of your fridge frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your
fridge, when you take the plug off and then plug it on again to operate it or when an
energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the
standards, according to the climate class stated in the information label. We do not
recommend operating your fridge out of stated temperatures value limits in terms of
cooling effectiveness.
• This appliance is designed for use at an ambient
temperature within the 16°C - 32°C range.
Climate class Ambient (oC)
T16 to 43 (oC)
ST 16 to 32 (oC)
N16 to 32 (oC)
SN 10 to 32 (oC)

EN - 10 -
Bottle holder (In some models)
In order to prevent bottles from slipping or falling over you can use the bottle holder. It also
helps prevent noise when you open or close the door.
Accessories
Ice tray
• Fill the ice tray with water and place in freezer compartment.
• After the water completely turned into ice, you can twist the tray as shown below to get
the ice cube.
All written and visual descriptions in the accessories may vary according to the
appliance model.

EN - 11 -
Refrigerator compartment
Refrigerator compartment is used for storing fresh food for few days.
• Do not place food in direct contact with the rear wall of the refrigerator compartment.
Leave some space around food to allow circulation of air.
• Do not place hot food or evaporating liquid in the refrigerator.
• Always store food in closed containers or wrapped.
• To reduce humidity and avoid formation of frost, never place liquids in unsealed
containers in the refrigerator.
• Meat of all types, wrapped in packages, is recommended to be placed on the glass shelf
just above the vegetable bin, where the air is colder.
• You can put the fruits and vegetables into crisper without packing.
• To avoid the cold air escaping, try not to open the door too often, and not leave the door
open for a long time.
Freezer compartment
Freezer compartment is used for freezing fresh foods and for storing frozen foods for the
period of time indicated on packaging, and for making ice cubes.
• For freezing fresh food; wrap and seal fresh food properly, that is the packaging
should be air tight and shouldn’t leak. Special freezer bags, aluminum foil (heavy grade,
in doubt double wrap), polythene bags and plastic containers are ideal.
• Do not allow the fresh food to be frozen to come into contact with the already frozen
food.
• Always mark the date and the content on the pack and do not exceed the stated storage
time.
• In case of a power failure or malfunction, the freezer compartment will maintain a
sufciently low temperature for food storage. However, avoid opening the freezer door
to slow down the temperature rise within the freezer compartment.
• The maximum amount of fresh foods that can be loaded in the freezer within 24 hours is
indicated on the name plate ( see Freezing Capacity).
• Never place warm food in the freezer compartment.
• When purchasing and storing frozen food products; ensure that the packaging is
not damaged.
• The storage time and the recommended temperature for storing frozen foods are
indicated on the packaging. For storing and using, follow the manufacturer’s instructions.
If no information is provided, food should not be stored for more than 3 months.
• Place frozen food in the freezer compartment as soon as possible after buying it.
• Once the food is thawed, it must not be refrozen; you must cook it as quickly as possible
in order to consume or to freeze once again.
• Storage: If you want to use the maximum net capacity, you can remove the drawers and
store the items directly on the cooling tubes. This will enable you to make use of the
entire volume of the compartment.
FOOD STORAGE IN THE APPLIANCEPART - 3.

EN - 12 -

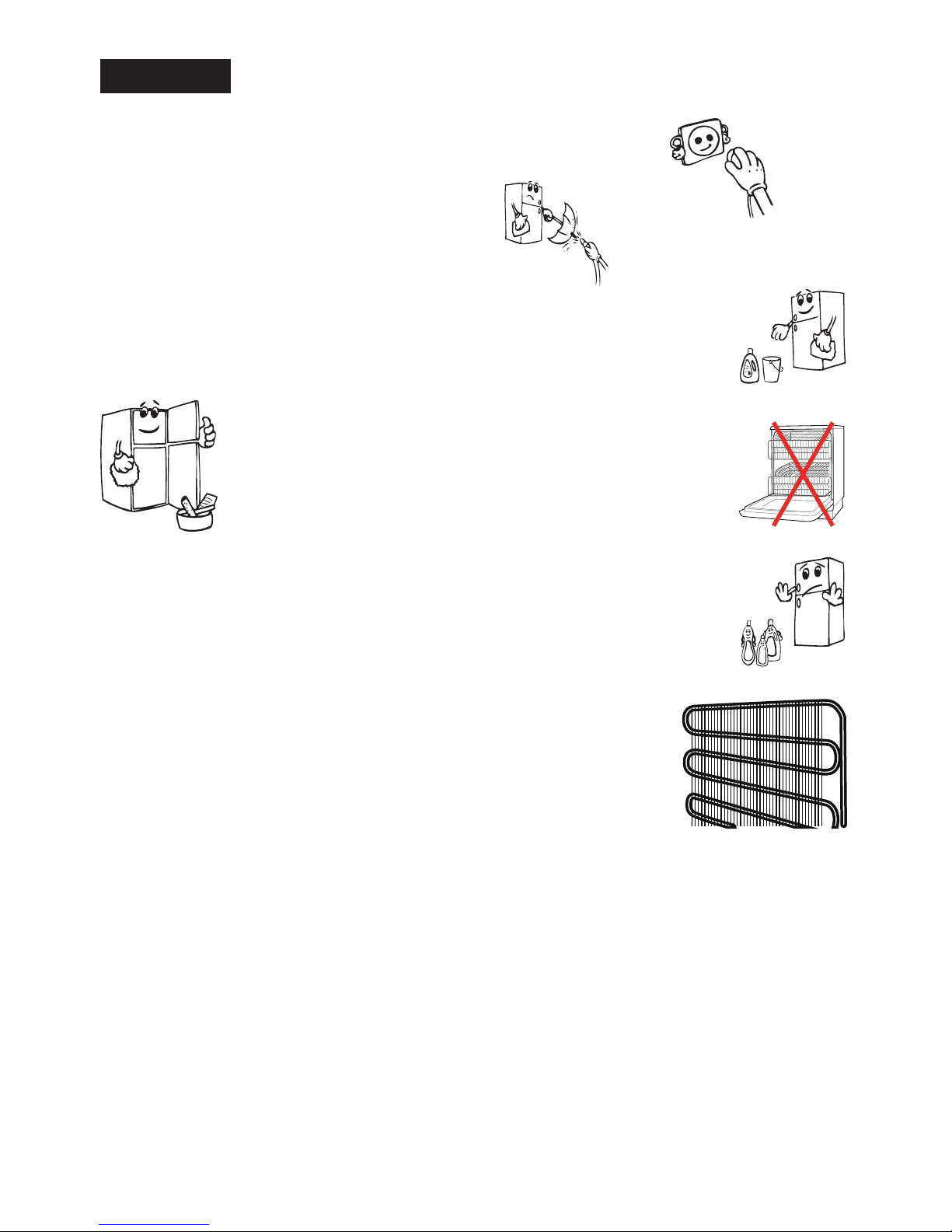

CLEANING AND MAINTENANCEPART - 4.
• Make sure to unplug the fridge before starting to clean it.
• Do not wash your fridge by pouring water.
• You can wipe the inner and outer sides with a soft cloth or a sponge
using warm and soapy water.
• Remove the parts individually and clean with soapy
water. Do not wash in dishwasher.
• Never use ammable, explosive or corrosive material like thinner,
gas, acid for cleaning.
• You should clean the condenser with broom at least once
a year in order to provide energy saving and increase the
productivity.
Make sure that your fridge is unplugged while cleaning.

EN - 13 -
Defrosting the refrigerator compartment
• Defrosting occurs automatically in refrigerator compartment during operation; the defrost
water is collected by the evaporating tray and evaporates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically with
defrost drain plug to prevent the water from collecting on the bottom of the refrigerator
instead of owing out.
• You can also pour ½ glass of the water to drain hole to clean inside.
Defrosting the freezer compartment
• The frost, which covers the shelves of the freezer compartment, should be removed
periodically.
• Do not use sharp metal objects for this operation. They could puncture the refrigerator
circuit and cause irreparable damage to the unit. Use the plastic scraper provided.
• When there is more than 5 mm of frost on the shelves, defrosting must be done.
• Before defrosting operation, place the frozen food in a cool place after wrapping them in
sheets of newspaper in order to obtain its temperature steady for long time.
• To accelerate the defrosting process place one or more basins of warm water in the
freezer compartment.
• Dry the inside of the compartment with a sponge or a clean cloth.
• Once the unit has been defrosted, place the food into freezer and remember to consume
them in a short period of time.

EN - 14 -
Replacing the refrigerator light bulb
1.Unplug the unit from the power supply,
2.Remove the refrigerator light cover (A) by
pressing the hooks placed on both sides of the
cover.
3.Change the light bulb (B) with a new one (not
more than 15 W).
4.Place the light cover in its place and plug the
unit.
• Please keep the packaging if the appliance will be moved in the future.
• In transportation the appliance should be tied with a strong rope. The rules written on the
corrugated box must be applied while transporting.
• Before transporting or changing an old
installation position, all the moving objects
(i.e. shelves, crisper …) should be taken
out or xed with bands in order to prevent
movement.
Carry your fridge in the upright position.
SHIPMENT AND REPOSITIONINGPART - 5.
BEFORE CALLING YOU'RE AFTER SALES
SERVICE
PART - 6.
If your refrigerator is not working properly, it may be a minor problem, therefore check the
following, before calling an electrician to save time and money.
What to do if your appliance does not operate;
Check that;
• There is no power,
• The fuse has not blow in the plug,
• The fuse box for the house to ensure this has not tripped.
What to do if your appliance performs poorly;
Check that;
• You have overloaded the appliance ,
• The thermostat setting is “1” position (if so set the thermostat dial suitable value)
• The doors are closed perfectly ,
• There is no dust on the condenser ,
• There is enough place at the rear and side walls.
Replacing LED lighting
If your refrigerator has LED lighting contact the help desk as this should be changed by
authorized personnel only.

EN - 15 -
If there is noise;
The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling
sound) even when the compressor is not running. Do not worry this is quite normal. If these
sounds are different check that;
• The appliance is well levelled
• Nothing is touching the rear.
• The stuffs on the appliance are vibrating.
If there is water in the lower part of the refrigerator,
Check that;
The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole)
Recommendations
• The compressor protection thermal fuse will cutout after sudden power breakdowns or
after unplugging the appliance, because the gas in the cooling system is not stabilised.
This is quite normal, and the fridge will restart after 4 or 5 minutes.
• The cooling unit of your refrigerator is hidden in the rear wall. Therefore, water droplets or
icing may occur on the rear surface of your fridge due to the operation of the compressor
in specied intervals. This is normal. There is no need to perform a defrosting operation
unless the icing is excessive.
• If the appliance is not used for a long time (for example during the summer holidays),
unplug from main socket. Defrost and clean the refrigerator leaving the door open to
prevent the formation of mildew and smell.
• If there is still a problem with your refrigerator although you have followed the instructions
in this book, please consult you're nearest authorized service center.
• The appliance you have purchased is designed for home type use and can be used only
at home and for the stated purposes. It is not suitable for commercial or common use. If
the consumer use the appliance in a way that does not comply with these features, we
emphasise that the producer and the dealer shall not be responsible for any repair and
failure within the guarantee period.
Tips for saving energy
1– Install the appliance in a cool, well ventilated room , but not in direct sunlight and not
near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2– Allow warm food and drinks to cool down outside the appliance.
3– When thawing frozen food, place it in the refrigerator compartment. The low
temperature of the frozen food will help to cool the refrigerator compartment when it is
thawing. So it reduces the energy requirements.
4– When placing, drinks and liquids they must be covered. Otherwise humidity increases
at the appliance. Therefore the working time gets longer. Also covering drinks and
liquids helps preserve the smell and taste.
5– When placing food and drinks, open the appliance door as briey as possible.
6– Keep the covers closed of any different temperature compartment in the appliance
(crisper, chiller ...etc ).
7– Door gasket must be clean and pliable. Replace gaskets if worn.

EN - 16 -
This presentation is only for information about the parts of the appliance.
Parts may vary according to the appliance model.
PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
PART - 7.
A) Refrigerator compartment
B) Freezer compartment
1) Thermostat knob
2) Refrigerator lamp & cover
3) Refrigerator shelves
4) Crisper shelf
5) Crisper
6) Freezer room cover
7) Freezer comp. drawer
8) Freezer comp. bottom drawer
9) Ice box
10) Bottle shelf
11) Door shelves
12) Egg holder

EN - 17 -
Installation instructions and door reversibility
Figure.B
Figure.A
Assembly parts

EN - 18 -
Installation instructions
! It is recommended that this installation be performed by authorized technical stuff.
! Before installation, read the instructions carefully.
! Fit the refrigerator/freezer in stable kitchen units only.
! If necessary, reverse the door according to instructions.
1.See g.A for the necessary attachment components.
2.Open the package. Take gasket spacer9 and brake into three as shown in gure.D. The
middle part is door hang rail10. The other two parts are unit door spacers11. (g.D)
3.Insert trim ap1into slot and screw by screws6. (g.E)
4.Pass the power cord through ventilation shaft and position it so that the appliance could
be easily plugged in once it has been installed. (g.B - g.C)
5.Cut trim gasket4to the height of the recess and stick it on reverse side of the door hinges
of the appliance. (g.E)
6.Raise the appliance and slide into the kitchen unit.
7.Lean the appliance to the kitchen unit through the hinges and align the front feet with front
surface of the kitchen unit. (g.F)
8.Open the appliance doors and screw the front feet by using screws7. (g.G)
9.Screw trim ap1to kitchen unit using screws7. (g.G)
10. Screw the hinges to the kitchen unit using screws7. (g.G)
11. Close the appliance doors. Unscrew and take out the nuts14, washers13 and adjustment
bolts12 from the appliance upper door19. (g.H)
12. Take out the liners of the tapes on door hang rails10. Place door hang rails10 on the
appliance upper door19 by inserting the bosses on the holes of the appliance upper door19,
aligning the front surfaces of the door hang rails10 and appliance door parallel. Let the
door hang rails10 stick onto the appliance upper door19. (g.H)
13. Slide the door hang2into door hang rails10. (g.J – g.K)
14. Take out the liners of the tapes on the front side of the door hang2.
15. Take out the liners of the tapes on the unit door spacers11 and and stick them onto the
unit upper door15, closer to the upper corners. (g.K)
16. Lean the unit door15 to the door hang2, aligning the unit door spacers11 on the left, right
and top edges with the sides of the unit or the doors of the nearer and upper kitchen
units. (g.K)
17. Make sure that the unit upper door15 sticks onto the door hang2. Pull the unit door15
allowing the door hang2slide out the door hang rails10. Observe that the door hang2stays
sticked on the unit upper door15. (g.L)
18. Lay down the unit upper door15 to the oor and screw the door hang2to the unit upper
door15 by screws7. (g.L)
19. To overcome some of the furniture mistakes, there are plastic spacersAsticked on the
door hang2. Remove these plastic spacersA. (g.M)
20. Remove the door hang rails10 from the appliance upper door19. Screw the adjustment
bolts12 to the holes on the appliance upper door19 by leaving the necessary space using
unit door spacer11. (g.N)

EN - 19 -
21. Open the appliance upper door19. Place the unit upper door15 onto the appliance door
inserting adjustment bolts12 into the slots on the door hang2. (g.N)
22. Place the washers13 and screw the nuts14 onto the adjustment bolts12. (g.N)
23. 1~2 mm gap between the unit itself and unit door is vital for appliance performance.
Close the door and make the accurate adjustment of the unit door15 by screwing or
unscrewing the adjustment bolts12 for vertical adjustment and by the help of the slots on
the door hang2 for other directions. (g.P1)
24. Place the door bottom xings5to the bottom of the appliance upper door19 between the
appliance upper door19 and unit upper door15. Screw the door bottom xings15 to the
appliance door with screws6. (g.O)
25. Screw the door bottom xings5to the unit upper door15 by screws7. (g.O)
26. For the adjustment of the space between the unit upper door15 and the unit itself, you
can unscrew the screws6then adjust the space between the appliance upper door19 and
unit upper door15 by the spring effect of the door bottom xings5while screwing back the
screws6.
27. Slide the hang cover3onto the door hang2. (g.P2)
28. Repeat the same procedure for the lower door.

EN - 20 -
Figure.F Figure.E
①
⑧
④
Figure.G
⑦
⑦
⑦
Figure.D
⑨
⑩
⑪
⑪
90°
Figure.C
A B C D E
1770 722 684 934 1770-1790
mm
