Hagleitner integral 4PLUS User manual

integral 4PLUS
ita eng

2|integral 4PLUS
ecosol POWER
ecosol BRITE N
Benvenuti!
Con l‘integral 4PLUS si ha deciso per un dispenser di dosaggio per lavastoviglie profes-
sionali, preciso e completamente automatico. Con l‘integral 4PLUS dosa detergenti e
brillantanti liquidi ad altra concentrazione e copre le esigenze nel retrocucina.
In questo manuale d‘uso vengono spiegati il motaggio e funzionamento del dispenser.
Come sostegno troverà sul sito www.hagleitner.com und film illustrativo del montaggio,
messa in servizio e uso del Suo nuovo sistema di dispenser.
La ringraziamo di aver deciso per questo prodotto di HAGLEITNER.
Per domande, problemi o proposte ci invii il Suo indirizzo e numero telefonico per po-
terLa contattare!
Nella cartuccia di ricarica multiFILL: detergente e brillantante ad alta
concentrazione. Un assortimento compatto per lavastoviglie professionali
Per l‘istruzione d‘uso nella Sua lingua scanneriz-
zi questo codice-QR:
http://www.hagleitner.com/en/downloads/
detergenti brillantanti
ecosol POWER Art.-Nr. 4220101119
ecosol POWER ALU Art.-Nr. 4220101319
ecosol POWER OSMO GL
Art.-Nr. 4220101219
ecosol BRITE N Art.-Nr. 4220200319
ecosol BRITE S Art.-Nr. 4220200419

integral 4PLUS | 3
ecosol POWER
ecosol BRITE N
Welcome!
With your selection of the integral 4PLUS dispenser, you have chosen a precise and fully
automated dosing unit for industrial, commercial dishwashing machines. Integral 4PLUS
dispenser is a dosing device for liquid, concentrated dishwashing detergent and rinse-
aid. Specially developed to cover the requirements of commercial dishwashing.
These operating instructions explain the installation and operation of the unit. For further
support, go to www.hagleitner.com and view a user video about the installation, initial
start-up and use of your new dispensing system.
Thank you for choosing this HAGLEITNER product. We look forward to receiving your
address and telephone number to make contact in the event of questions, problems or
suggestions!
In the multiFILL cartridge: concentrated detergent and rinse-aid
A compact assortment for commercial dishwashing
Please scan this QR code for instructions for
use in your language:
http://www.hagleitner.com/en/downloads/
Cleaner Rinse-aid
ecosol POWER Art.-No. 4220101119
ecosol POWER ALU Art.-No. 4220101319
ecosol POWER OSMO GL
Art.-No. 4220101219
ecosol BRITE N Art.-No. 4220200319
ecosol BRITE S Art.-No. 4220200419

4|integral 4PLUS
Di cosa ha bisogno .................................................................................... 6
Volume di consegna................................................................................... 7
integral 4PLUS Dispenser ................................................................................. 7
integral 4PLUS FLOWMETER ........................................................................... 8
integral 4PLUS PUMP POWER / BRITE ........................................................... 8
integral 4START POWER / BRITE .................................................................... 9
integral 4PLUS powerPACK ex ........................................................................ 9
Optione: integral 4WALL ................................................................................... 10
Optione: integral 4PLUS DISPLAY ................................................................... 10
Lista dei attrezzi ................................................................................................ 10
Possibilità di montaggio ........................................................................... 11
Montaggio sotto banco/ a muro ...................................................................... 11
Inserire pompa ........................................................................................... 13
Inserire Label ..................................................................................................... 18
Montaggio di dispenser singoli ................................................................ 19
Montaggio sotto banco di dispenser singoli .................................................. 19
Montaggio a muro di dispenser singoli ........................................................... 22
Montaggio in linea ..................................................................................... 24
Montaggio in linea sotto banco ....................................................................... 24
Montaggio in linea a muro ................................................................................ 28
Montaggio integral 4PLUS FLOWMETER ............................................... 32
Posa dei tubi e cavi per dispenser singoli .............................................. 34
Posa dei tubi e cavi ........................................................................................... 34
montare le parti laterali ..................................................................................... 36
Inserimento dispenser ...................................................................................... 37
Collegare pezzo a L .......................................................................................... 39
Collegare cavo ................................................................................................... 41
Posa dei tubi e cavi per montaggio in linea ............................................ 43
Posa dei tubi e cavi ........................................................................................... 43-44
montare le parti laterali ..................................................................................... 45
Inserimento dispenser ...................................................................................... 46
Collegare pezzo a L .......................................................................................... 48
Collegare cavo ................................................................................................... 51
Montaggio del collegamento per detergente ......................................... 52
Montaggio del passaparete .............................................................................. 52
Montaggio del collegamento per il brillantante ...................................... 54
Montaggio della valvola antiritorno ................................................................. 54
Allacciamento elettrico ............................................................................. 55
App: attivazione del dispenser ................................................................. 56
Parti di usura .............................................................................................. 56
Uso .............................................................................................................. 57
Cambio cartuccia .............................................................................................. 57
Pittogrammi ............................................................................................... 58
Indice

integral 4PLUS | 5
What you need ........................................................................................... 6
Scope of delivery ....................................................................................... 7
integral 4PLUS dispenser ................................................................................. 7
integral 4PLUS FLOWMETER ........................................................................... 8
integral 4PLUS PUMP POWER / BRITE .......................................................... 8
integral 4START POWER / BRITE .................................................................... 9
integral 4PLUS powerPACK ex ........................................................................ 9

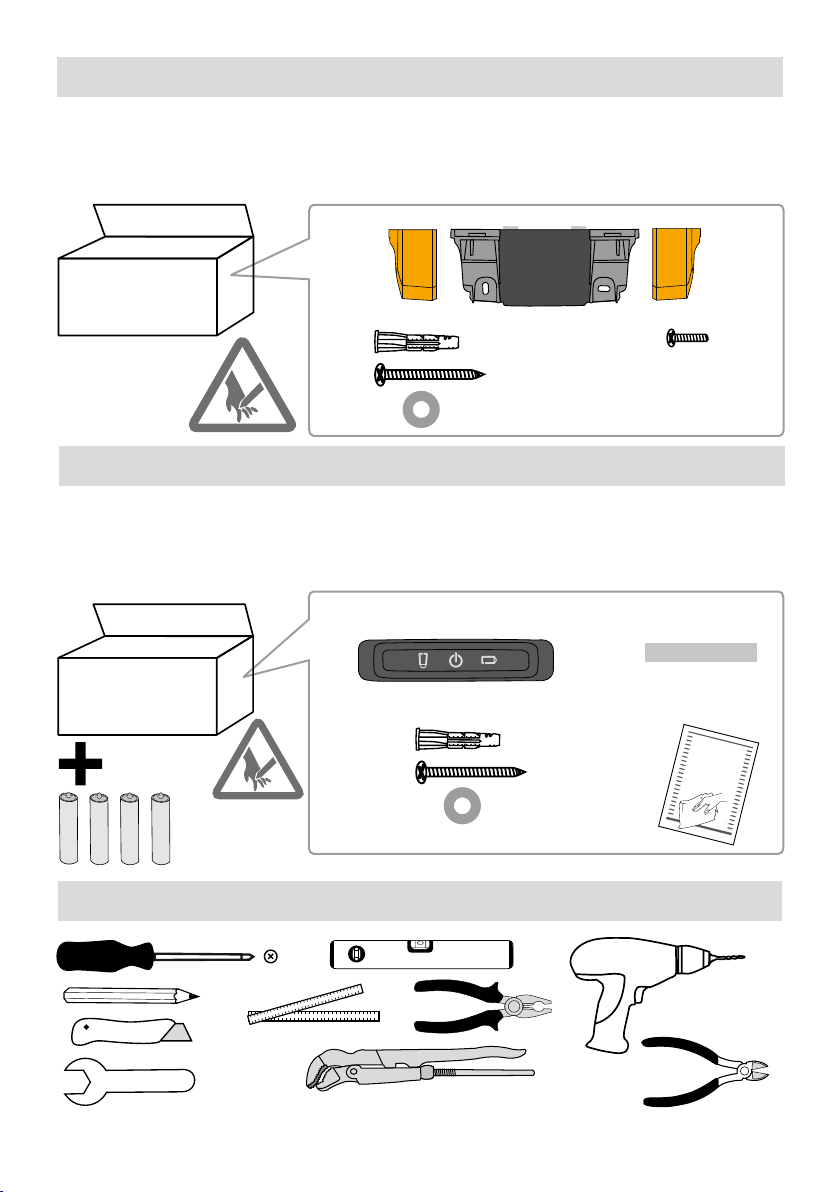

Option: integral 4WALL ..................................................................................... 10
Option: integral 4PLUS DISPLAY ..................................................................... 10
Tool list ............................................................................................................... 10
Mounting options ...................................................................................... 11
Undertable/wall mounting ................................................................................ 11
Insert pump ................................................................................................ 13
Insert label ........................................................................................................ 18
Installation individual dispenser .............................................................. 19
Under table installation individual dispenser ................................................. 19
Wall installation individual dispenser .............................................................. 22
Row installation ......................................................................................... 24
Row installation under table ............................................................................ 24
Row installation wall ......................................................................................... 28
Installation integral 4PLUS FLOWMETER ............................................... 32
Hose and cable installation individual dispenser.................................... 34
Hose/cable installation ..................................................................................... 34
Side part mounting ............................................................................................ 36
Dispenser mounting .......................................................................................... 37
Connecting L-part ............................................................................................. 39
Connecting cable .............................................................................................. 41
Hose and cable installation row installation ........................................... 43
Hose/cable installation ..................................................................................... 43-44
Side part mounting ............................................................................................ 45
Dispenser mounting .......................................................................................... 46
Connecting L-parts ........................................................................................... 48
Connecting cable .............................................................................................. 51
Installation cleaner connection ................................................................ 52
Installation tank inlet ........................................................................................ 52
Installation rinse-aid connection ............................................................. 54
Installation check valve .................................................................................... 54
Power connection ..................................................................................... 55

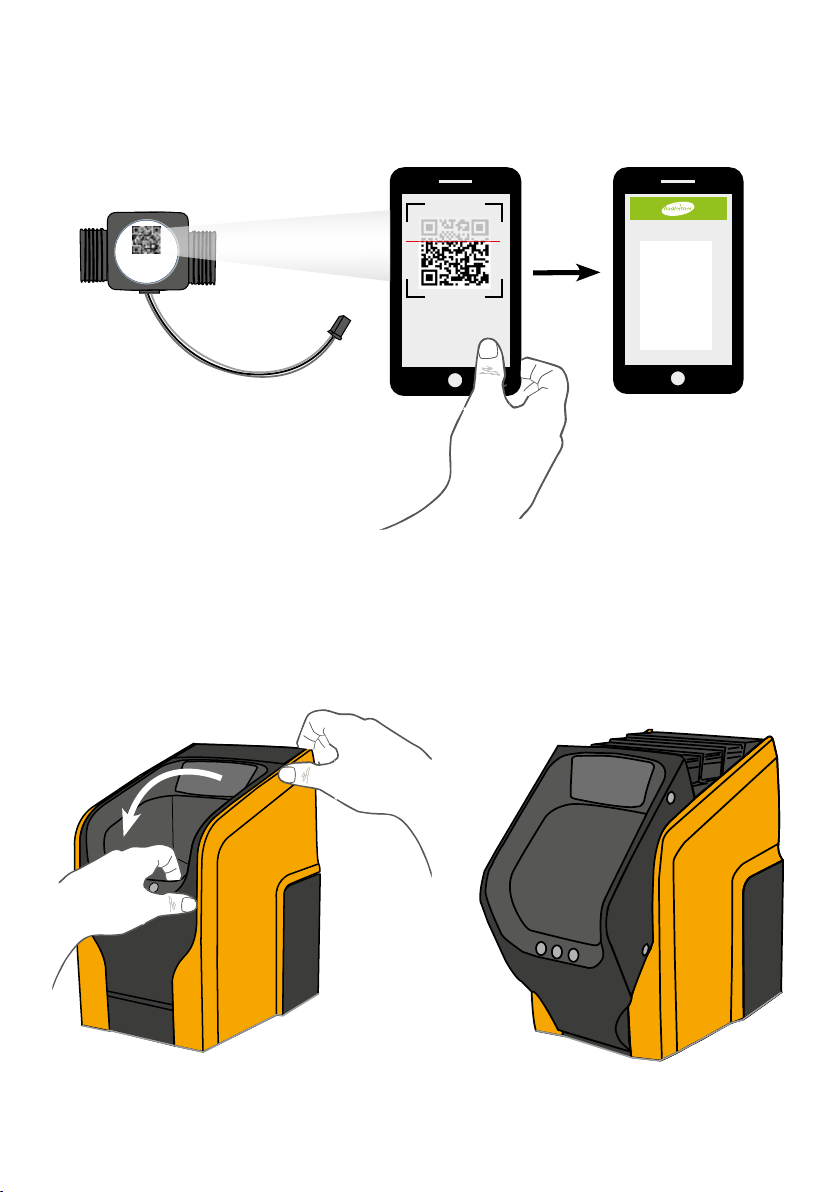

App: activation dispenser ......................................................................... 56
Wearing parts ............................................................................................ 56
Operation ................................................................................................... 57
Cartridge exchange ........................................................................................... 57
Pictograms ................................................................................................. 58
Content

6|integral 4PLUS
iOS
+ Android
Di cosa ha bisogno / What you need
Dati tecnici / Technical specifications:
Peso / Weight: Muro/wall 3,7 kg,
Pavimento/floor 3,37 kg
Misura / Dimensions: Muro/wall 34,5, Pavimento/floor
27,5 (a) x 17,8 (l) x 22,2 cm (p)
Flusso d‘acqua / Water flow rate: min. 1 l/min., max. 20 l/min
Allacciamento dell‘acqua / Water connection: 3/4 pollice/inch
Pressione / Pressure: max. 8 bar @ 20° C
max. 5 bar @ 40° C
Temperatura dell‘acqua / Water temperature: 5–60° C
Temperatura dell‘ambiente / Ambient temperature: 5–30° C
Tensione in entrata / Supply voltage: 24 V-DC / 1,5 A max.
Tensione di rete / System voltage: 230 V (EU); 110 V (USA)
Montaggio in linea / Row installation: max. 3 dispenser / devices
Grado di protezione / Protection class: IP21
Scarichi l‘app di HAGLEITNER.
Download the HAGLEITNER App.

integral 4PLUS | 7
integral 4PLUS
1 Stück/piece
4 x
4 x
4 x

 



integral 4PLUS
ger eng

Volume di consegna / Scope of delivery
integral 4PLUS - Dispenser
Parte laterale sinistra
Parte laterale destra
Lastra di montaggio sopra
Lastra di montaggio sotto
Manuale d‘uso
Set di montaggio
Lastra di collegamento
integral 4PLUS - Dispenser
side part left
side part right
mounting plate top
mounting plate bottom
operating instructions
mounting kit
connecting plate
Integral 4PLUS Dispenser / integral 4PLUS dispenser

8|integral 4PLUS
integral 4PLUS FLOW METER
1 Stück/piece
integral 4PLUS PUMP POWER
1 Stück/piece
integral 4PLUS PUMP BRITE
1 Stück/piece
integral 4PLUS powerPACK ex
1 Stück/piece




100~240VAC
50/60Hz
3 m

 Contatore dell‘acqua
cavo BUS 3 m
Guarnizione
flow meter
bus cabel 3 m
seal

Alimentatore con cavo di allacciamento 2m
cavo allacimento alimentatore 1,8m
power supply unit with cable 2 m
plug 1,8 m
100~240VAC
50/60Hz
Integral 4PLUS FLOW METER / integral 4 PLUS FLOW METER
integral 4PLUS PUMP POWER / integral 4PLUS PUMP POWER
integral 4PLUS powerPACK ex / integral 4PLUS powerPACK ex
integral 4PLUS PUMP BRITE / integral 4PLUS PUMP BRITE

integral 4PLUS | 9
integral 4START POWER
1 Stück/piece



integral 4START BRITE PIPE
1 Stück/piece

5 x
5 x


integral 4START POWER PIPE
1 Stück/piece

5 x
5 x

integral 4START BRITE
1 Stück/piece

Pezzo a L
passaparete
L-part
tank inlet
tubo per il brillantante 6 m - Ø 6 mm
Faschetta serracavo
attaco adesivo per faschette
Panno per la pulizia
hose for rinse-aid 6m - Ø 6 mm
cable ties
adhesive mounts
cleaning cloth
integral 4START POWER / integral 4START POWER
integral 4START BRITE PIPE / integral 4START BRITE PIPE
Tubo per il detergente 6 m - Ø 8 mm
Faschetta serracavo
attaco adesivo per faschette
Panno per la pulizia
hose for detergent 6 m Ø 8 mm
cable ties
adhesive mounts
cleaning cloth
integral 4START POWER PIPE / integral 4START POWER PIPE
Pezzo a L
Valvola uni
L-part
check valve
integral 4START BRITE / integral 4START BRITE

10 |integral 4PLUS
integral 4WALL
1 Stück/piece


integral 4PLUS DISPLAY
1 Stück/piece

2 x
2 x
2 x
2 x
2 x
2 x
AAA
(LR03, 24A)
++
4 x
+ +

2 x

Ø 14 mm
+ Ø 6 mm
2 x

-- - -
Set di montaggio a muro a 3 parti
2 viti, 2 tasselli
2 rondelle
Vite corta
3 parts module for wall
2 screw, 2 dowel, 2 washer
screw short
integral 4PLUS DISPLAY
2 viti, 2 tasselli
2 rondelle
Nastro adesivo
Panno per la pulizia
integral 4PLUS DISPLAY
2 screw, 2 dowel, 2 washer
adhesive strip
cleaning cloth
Lista dei attrezzi / tool list
Optione: integral 4WALL / Option: integral 4WALL
Optione: integral 4PLUS DISPLAY / Option: integral 4PLUS DISPLAY

integral 4PLUS | 11
Possibilità di montaggio / mounting options
Montaggio sotto banco / undertable mounting
Montaggio a muro / wall mounting
mind.
410 mm

12 |integral 4PLUS


max. 3 m
230V
max. 3 m
3/4 pollici
max. 6 m
DIN VDE 100
Zone 3
DIN VDE 100
Zone 2
24V
6 m

integral 4PLUS | 13
1.
2.
01-01-0001-413110036600
TTMMJJMM-XXXX
AA:BB:CC:DD:EE:FF
01-01-0001-413110036600
TTMMJJMM-XXXX
AA:BB:CC:DD:EE:FF
Inserire pompa / insert pump
scansione dispenser / scan dispenser
Inserire pompa / insert pump
scansione pompa / scan pump

14 |integral 4PLUS
3.
4. 5.
01-01-0001-413110036600
TTMMJJMM-XXXX
AA:BB:CC:DD:EE:FF
scansione contatore dell‘acqua / scan flow meter

integral 4PLUS | 15
2
5
6.
4
3
1

16 |integral 4PLUS
7.
8.
1
2
1
2
CLICK

integral 4PLUS | 17
9.
3
1
2
Si assicuri che l‘aggancio sia ben in-
serito e solido
Make sure that the chemistry coupling is cor-
rectly locked and fixed.
PRESS
PUSH
UP
sopra /
upside

18 |integral 4PLUS
1
ecosol
2
1.
2.
3.
Inserire Label / insert label
Segua le indicazioni dell‘app / follow the APP

integral 4PLUS | 19
2.
1.
1
2
Montaggio di dispenser singoli / Installation individual dispenser
Montaggio sotto banco di dispenser singoli / under table installation individual dispenser
400 mm
Minimo 10 mm

20 |integral 4PLUS
4 x
3.
4.
Rigips
