Hague Quality Water Maximizer User manual

Series 96
Owner’s Manual
REV. 2.0

Table of Contents
INTRODUCTION 1
ROUTINE CARE 2
SERIES 96 AND YOUR WATER 4
INSTALLATION 5
PROGRAMMING THE SERIES 96 8
BLENDING VALVE ADJUSTMENTS/
HOW AND WHEN TO USE THE BYPASS 14
TROUBLESHOOTING 15

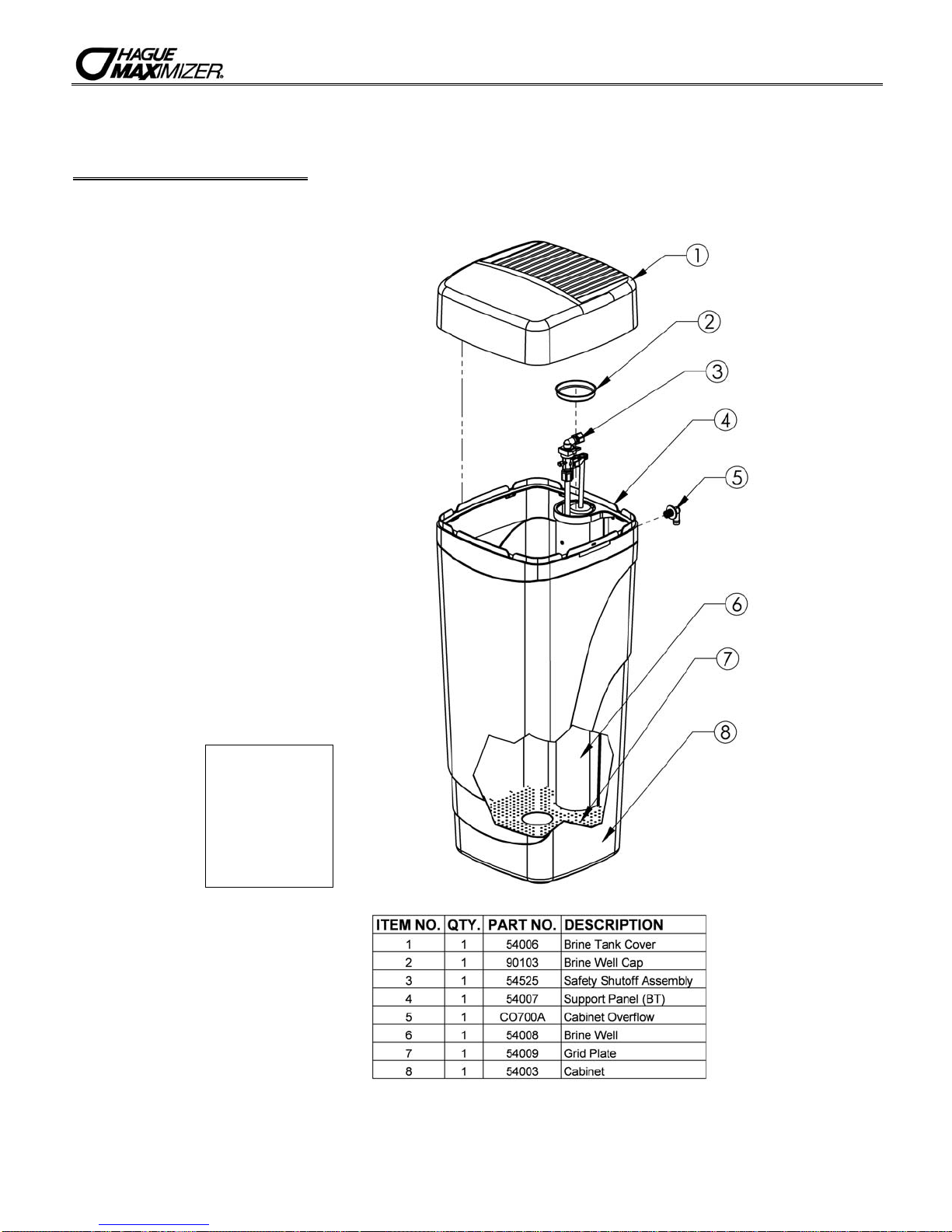

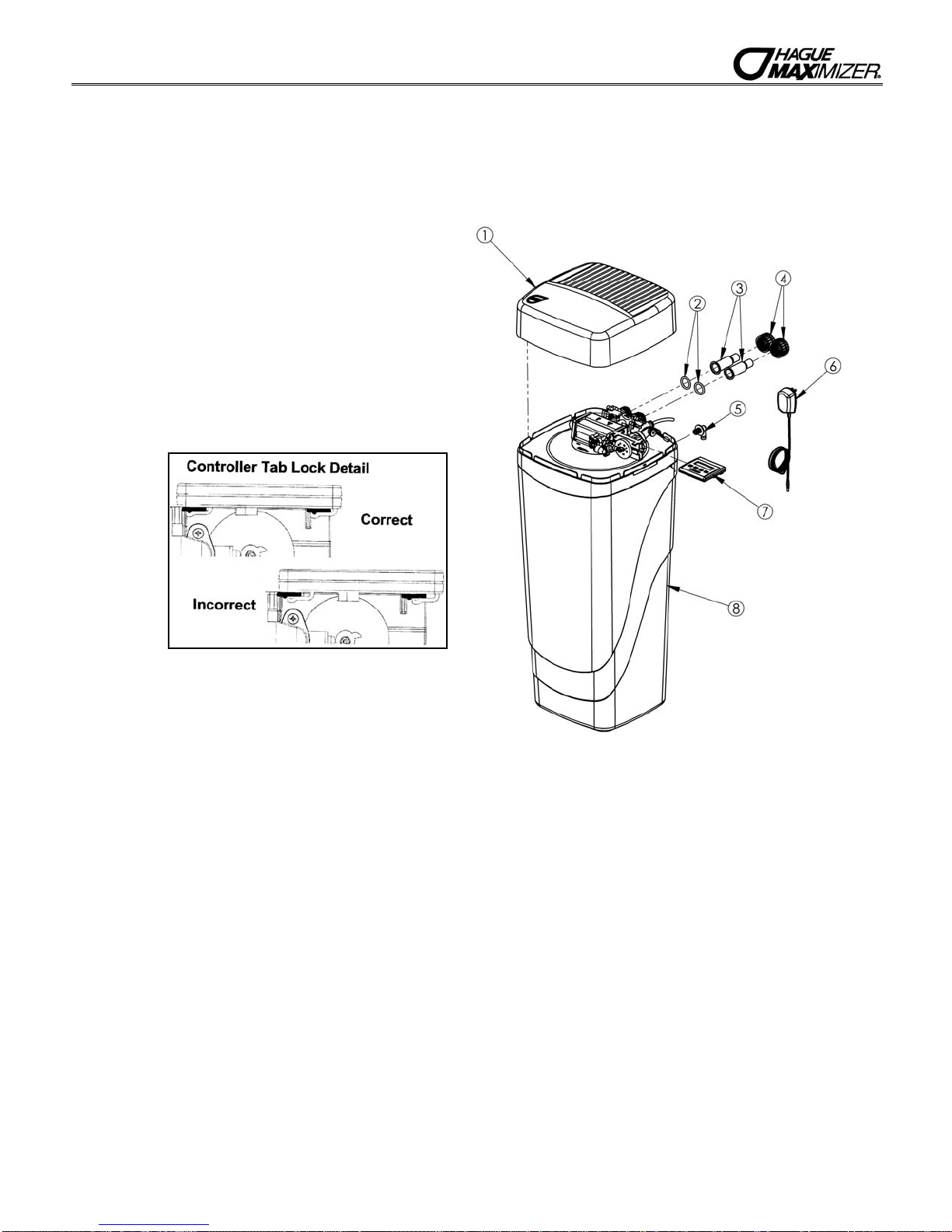

PARTS, DIAGRAMS 17
Brine Valve Elbow Installation 32
Brine Cabinet Data 33
CYCLE SETTINGS 34
EQUIPMENT SPECIFICATIONS 35
WARRANTY 36
Page
Installation Record and Water Readings
Date of Installation
Model Number
Serial Number
Date Warranty Card Returned
Hardness
Iron
pH
Other
NOTES:

INTRODUCTION
Congratulations on your decision to purchase a Hague Series 96 water
treatment appliance. Recognized internationally for built-in quality,
dependability, and ease of service, this appliance represents the state-of-the-art
in home water treatment.
While your appliance should be installed and serviced by a professional
Hague dealer, important information is contained in this manual which will
help you get the maximum benefit and enjoyment from your Series 96.
We urge you to read this information carefully and review it again at any time
you notice a change in your water or appliance. Later in the manual is a
Troubleshooting section. If you are unable to fix a problem simply, please call
your Hague dealer for expert service.
How the Series 96
Works Rain water is naturally soft. As water travels through the ground, it dissolves
some of the rocks and minerals it touches. When the dissolved minerals are
calcium and magnesium, the water is said to be hard. Hard water often also
contains traces of dissolved iron, dirt, and sediment particles. Although hard
water is not harmful to drink, it can damage your plumbing, appliances and
clothing.
The Series 96 contains a media tank filled with thousands of very small resin
beads. The beads enable the ion exchange process. As hard water flows over
the resin, the beads attract calcium, magnesium, and iron ions. These ions
attach themselves to the beads, pushing sodium ions out of the way.
Depending on your water hardness, after so many gallons have gone through
the softener, the beads are full of hardness and iron and the resin bed is said to
be exhausted. An exhausted resin bed must be cleaned or regenerated. During
regeneration, concentrated salt solution washes over the resin. This time the
beads pick up sodium ions from the salt solution and let go of the hardness
and iron ions, which are washed down the drain. Fresh water rinses the salt
from the resin tank and the water softener is ready to soften water again.
Series 96 Owner’s Manual
1

ROUTINE CARE
Salt A brine solution is used during regeneration to remove calcium and
magnesium from the softening resin. Maintain salt level at least 1/3 full; do
not let the brine tank run out of salt. Use solar or pellet salt; do not mix the
two. Be sure to purchase a clean grade of salt. Rock salt is not recommended
because it contains impurities that can plug the injector assembly.
To add salt to the Series 96:
Remove the brine tank lid
Add up to 200 lb (90 kg) of salt to the brine cabinet.
During initial installation, or if the brine tank has been emptied of salt and
water, add 5 gallons (18.9 liters) of water or 2" over grid plate.
When using potassium chloride as an alternative to nugget or pellet salt
(sodium chloride), you must select the potassium option during the
programming of the controller.
We do not recommend the use of Potassium Chloride when iron is
present in the raw water supply.
Disinfection The Series 96 unit may be disinfected with 5.25% sodium hypochlorite, which
is the active ingredient in household bleach. To disinfect your appliance:
Add four fluid ounces of hypochlorite solution to the brine tank. (The
brine tank should have water in it to permit the solution to be carried into
the softener.)
Initiate a manual regeneration by pressing and holding the REGENERATE
pushbutton for 5 seconds.
WARNING: Do NOT mix bleach with commercial resin cleaners since a
dangerous chemical reaction may occur.
NOTES: ______________________________________________________________________________________
•
•
•
•
Series 96 Owner’s Manual
2
NOTE: When you can see water above
the salt in the brine cabinet, you need
to add salt.

Recommendations Water used for lawns and gardens does not require softening.
To achieve maximum efficiency from your Series 96:
1. Protect your Series 96, including the drain line, from freezing.
2. If dirt, sand, or large particles are present in your water supply, consult
your Hague dealer for filters that will eliminate this problem.
3. Bypass the appliance(s) if well, plumbing, or pump work is required, and
turn on an outside tap until water runs clear before putting the appliance
back in service.

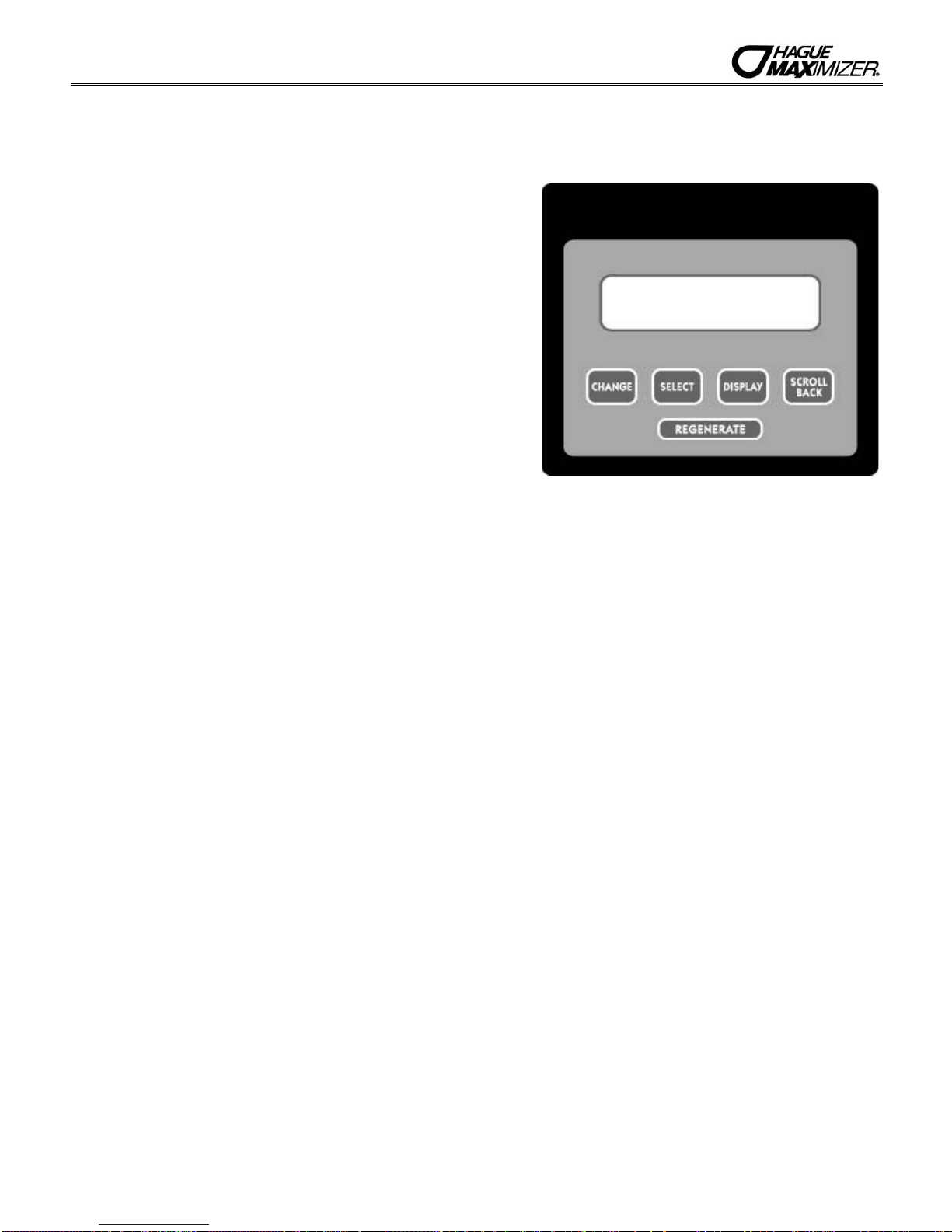

Control Panel The Series 96 uses an electronic controller to determine how often the
appliance regenerates and the amount of salt used in each regeneration.
During installation, the control panel is set for your water conditions and the
number of people in your family.
If your electricity is out longer than 17 hours, please reset time of day. All
other settings will be maintained. For information on programming your
electronic controller see pages 8 through 13.
Manual Regeneration You may want to force your appliance to regenerate if you anticipate using a
large amount of softened water. To manually regenerate the Series 96:
Press and hold the Regenerate button until the screen displays “GOING
TO 1.” This forces the appliance into an immediate regeneration.
The appliance will then follow the regeneration steps: Backwash 1,
Brine/Rinse, Backwash 2, Brine Refill, and then return to the Service
position.
NOTES: ______________________________________________________________________________________
•
•
Series 96 Owner’s Manual
3
NOTE: Performing a manual regeneration
will not affect your normal regeneration
settings.

SERIES 96 AND YOUR WATER
Water Testing The Series 96 like any other appliance, requires correct installation and setting
for optimum performance. To ensure proper settings, you need to obtain an
accurate water test. Your representative has probably already tested your
water for you and determined that the Series 96 is the best water softener for
your needs. If you need to obtain a water test you can do so as follows:
For municipally supplied or “City” water, call your water utility company.
Ask them the hardness, iron content and pH level of your water.
Series 96 Abilities The Series 96 services 95% of the water conditioning market. It treats
hardness, ferrous iron, and sediment. If the water supply being processed
through this product has a compensated hardness of more than 90 grains per
gallon or contains bacteria, iron bacteria, tannins, algae, oil, acid, salt or other
unusual substances, special equipment must be installed ahead of the Series
96. Consult your dealer for more information about special equipment.
The Series 96 will automatically reduce influent ferrous iron concentrations
from up to 10 parts per million to below 0.3 ppm.
For the Series 96 to operate at peak performance when iron is present in
your water, the water must have a pH of 7 or greater.
The Series 96 automatically filters to a nominal 20 microns. Each time the
appliance regenerates, the sediment filter is automatically cleaned with
soft water.
NOTES: ______________________________________________________________________________________
*Iron reduction capability has been tested in the field by the manufacturer.
•
•
•
Series 96 Owner’s Manual
4

INSTALLATION
Pre-Installation
Checklist
Be sure to check the following items before installing a Series 96:
Water Pressure
— Not less than 20 psi (138 kPa) nor greater than 120 psi
(828 kPa).
Minimum Flow Rate Required
— 2.4 gpm at the end of drain line.
Drain
— Drain the appliance to a floor drain or washer drain. To prevent
back siphoning, the installer must provide an adequate air gap or a siphon
break.
Water Quality—If water supply contains sulfur, bacteria, iron bacteria,
tannins, algae, oil, acid, salt, or other unusual substances, special equipment
must be installed ahead of the Series 96.
Building Codes
— All installations must conform to local plumbing and
electrical codes.
Minimum Inlet Pipe Size
— Well water recommended minimum inlet pipe
size 3/4" I.D. (19 mm). Municipal water recommended minimum inlet pipe
size is 1/2" I.D. (12.7 mm).
Installation Cautions
Do not install if the above items are not satisfactory.
Do not install if incoming or outlet piping water temperature exceeds
120°F (49°C).
Do not allow soldering torch heat to be transferred to valve components or
plastic parts.
Do not use for treating water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after the
system.
•
•
•
•
•
•
•
•
•
Series 96 Owner’s Manual
5
NOTE: If your water pressure is greater
than 90 psi (621 kPa), it is
recommended that you use a pressure
reducing valve.

Where to Locate The
Series 96 Where you will locate the Series 96 depends on what other water treatment
equipment you currently have installed. The Series 96 should be located:
After:Before:
Water Meter Water Heater
Pressure Tank

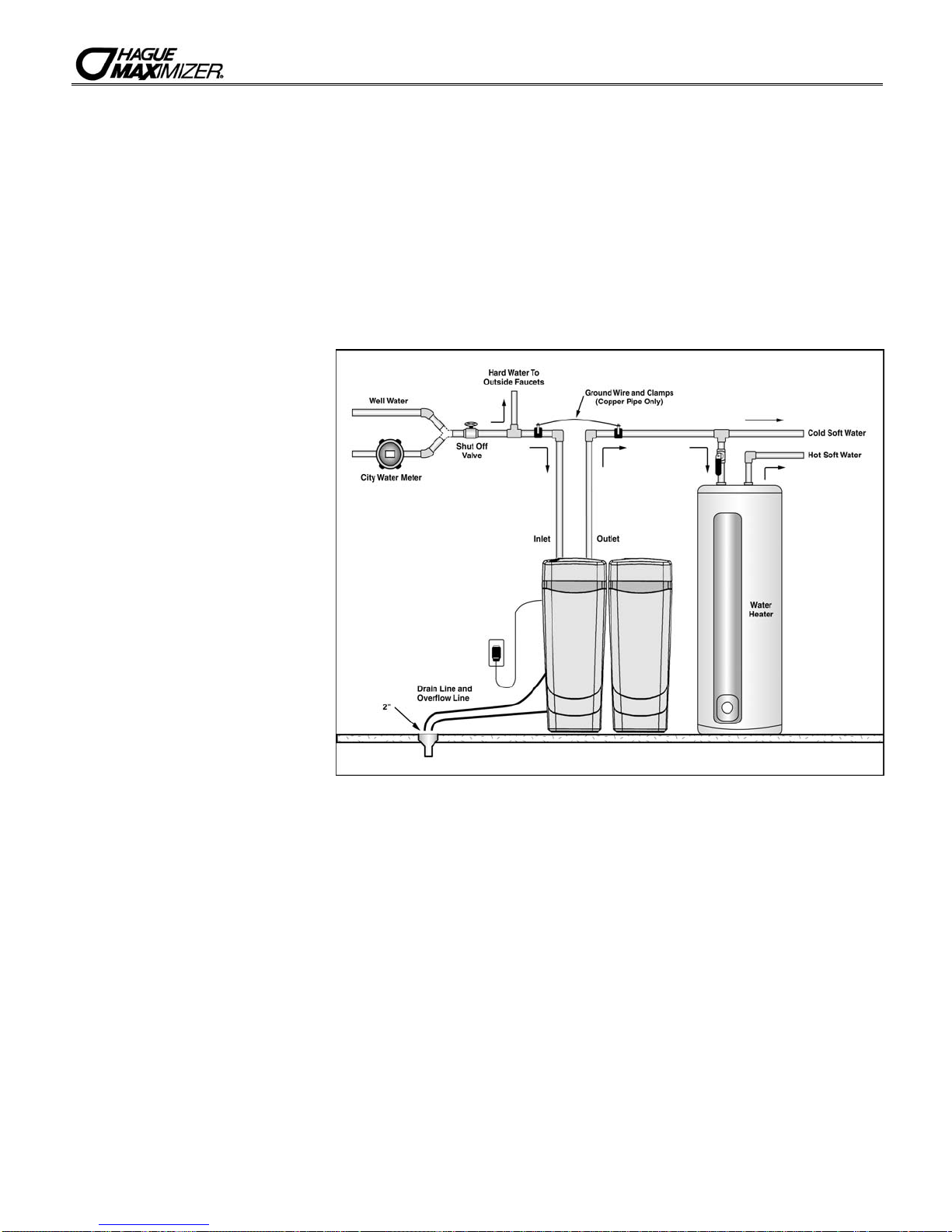

TYPICAL 96 SERIES INSTALLATION
Figure 1
Keep in mind that you need to have a drain available nearby for waste water.
In placing the Series 96, consider the following:
Install the Series 96 ahead of the water heater to prevent build-up of hard
water deposits in the water heater. This placement will maintain the water
heater efficiency.
Install pressure reducing valve if inlet pressure exceeds 90 psi (620 kPa).
A minimum of 10 feet (3 m) of 3/4" (19 mm) pipe from the outlet of the
water conditioner to the inlet of the hot water heater is recommended to
reduce the potential for hot water back flowing into the valve.
•
•
•
Series 96 Owner’s Manual
6

Connecting the
Series 96 1. Place the Series 96 in the desired location. (See Figure 1.)
2. Turn off the electricity and/or water supply to the water heater. For gas
heaters, turn gas cock to “PILOT”.
3. Make sure the inlet, outlet and drain connections comply with local codes.
4. Check arrows on the bypass valve to be sure the water flows in the proper
direction.
Caution: Do not plumb backwards. Inlet is unsoftened water; outlet is
softened water.
5. Install the drain line so that there is a 2" (50 mm) air gap between the
drain line and the drain line receptacle. The drain hose must be a
minimum of 1/2" (12.7 mm) I.D. tubing and should make the shortest run
to a suitable drain.
6. Connect the salt tank to the valve head with the flexible 3/8" (9.5 mm)
plastic tube included with the system. Be sure to insert the plastic insert
in the end of the tube when connecting it to the salt tank.
7. Place the appliance in the bypass position and turn on the main water
supply.
8. Open the nearest cold water faucet to flush the plumbing of any excess
soldering flux, air, or any other foreign material.
9. Close the faucet and check for leaks. If leaks are found turn off the main
water supply and open the nearest cold water faucet to depressurize the
lines. Close the faucet to eliminate siphoning action. Repair leaks. Return
the bypass to the “service” position.
10. Add water to the brine tank. Fill to a minimum of 2" (50 mm) above the
salt shelf. After the first regeneration, the appliance will automatically
refill the correct amount of water in the brine tank.
11. Plug in the transformer.
12. Program the Electronic Controller as outlined on pages 8 through 13.
13. Initiate a manual regeneration and monitor appliance for proper operation.
14. Make sure the bypass valve is left in the “service” position.
15. Fill the brine tank with pellet or solar salt.
16. Open the inlet line and turn on the electricity to the water heater. For gas
heater, turn gas cock to “ON”.
17. To complete the installation, open a cold water tap and allow the unit to
flush for 20 minutes or until approximately 72 gallons has passed through
the unit. Verify flow rate on controller, indicating water flow. Test water
at test port to verify soft water.
18. Place covers on both cabinets.
Series 96 Owner’s Manual
7

PROGRAMMING THE SERIES 96
The Series 96 allows a variety of programming options, from setting the time
of regeneration and the number of people to adjusting the hardness, capacity
settings, and cycle settings*.
Here’s how it works:
The Series 96 calculates how much water a family will need in a day based on
the number of people. Whenever the gallons remaining drops below the
reserve capacity, the gallons remaining will be replaced with the word “Regen
Scheduled” and the Series 96 will automatically regenerate when it reaches
the REG TIME. Also as a safety feature, if the appliance's capacity is
exceeded, a demand (immediate) regeneration will occur. This way a family
should never run out of soft water and the appliance will not regenerate more
than it needs to.
*For optional cycle settings, see page 36
NOTES: ______________________________________________________________________________________
Series 96 Owner’s Manual
8
NOTE: To ensure expected performance,
the controller will not allow you to enter
certain values for the number of people
if it means the amount of softening
required would exceed the appliance’s
capacity. Should the controller not
accept a value, check the capacity and
salt settings.

Figure 2
SERVICE SETTINGS
This section is recommended for qualified service personnel
only. The appliance control must be set correctly for proper
performance.
REGENERATE
FUNCTION: Multi-purpose. 1.) Used to put the appliance
into an immediate regeneration. Press and hold (approximately
5 seconds) until display changes to “Going to 1”. The appliance
is now in regeneration and will return to “Gal. Remain” after
completion of all cycles. 2.) Used to “speed up” or toggle
through all the regeneration cycles.
CUSTOMER SETTINGS
This section is recommended for qualified service personnel
only. Must be set correctly for proper performance.
CHANGE
FUNCTION: Used to change values of parameters that can be set. Used in conjunction with SELECT button.
Press and release the Select button to move cursor one digit to the right of parameter that can be set. When cursor is
at extreme right position, press again to reset cursor to extreme left position.
SELECT
FUNCTION: Used to control cursor movement when in CUSTOMER & SERVICE SETTINGS modes. Used in
conjunction with CHANGE button. Press and release the Select button to move cursor one digit to the right of
parameter that can be set. When cursor is at extreme right position, press again to reset cursor to extreme left
position.
DISPLAY
FUNCTION: When pressed and held, “CUSTOMER SETTINGS” is displayed. Hold for 5 seconds and the
customer programming mode is entered. Used simultaneously with the SELECT button to enter service settings
program mode, press and hold both buttons for 5 seconds while holding “SERVICE SETTINGS” is displayed.
(Note: both buttons must be pressed.)
SCROLL BACK
FUNCTION: Used to toggle back to the previous parameter setting in the event of a mistake in programming.
This feature eliminates the need to toggle through the entire program to correct an input error.
CONTROL PANEL DISPLAY Note: It is normal to see the display area toggle between “Gal. Remain”, “Flow
GPM” and “Days to Regen” (Mode 1 only).
FUNCTION: Shows status of control; NORMAL OPERATING mode, SERVICE SETTINGS mode or
CUSTOMER SETTING mode. It is very important to know which mode the control is in for proper operation.
WATER FLOWING INDICATOR
FUNCTION: Shown in the LCD display, it indicates that water is flowing through the Series 96. Flow rate is
displayed in gallons per minute. This is useful for checking for proper plumbing and leaks.
Series 96 Owner’s Manual
9
Gal. Remain 00979

Description Of The Two Series 96 Operating Modes
CAUTION: Be sure the controller is firmly “locked” onto the drive end cap assembly.” The four tabs on top of the drive end
cap will allow the clips on the bottom of the controller case to lock onto the end cap tabs. (See detail diagram on page 18; fig.
3.)
MODE 1
TIMER MODE: Will regenerate based on frequency. Example: every 2 days or as specified up to 12 days.
Time of regeneration can be set.
MODE 2
PATENTED SAVEMATIC - DEMAND DELAYED: Is based on actual water usage and total capacity of the appliance. Time
of regeneration can be set. If total capacity is depleted before set regeneration time, a forced regeneration will occur.
Note: Mode 1 and 2 are equipped with capacity Guard. This ensures that you do not run out of conditioned water due to
excess water usage.
THE FOLLOWING EXAMPLE takes you through the steps involved for setting the Series 96 SYSTEM CONTROL. If you
follow these steps, you will set the Series 96 for OPERATING MODE 2, DEMAND DELAYED operation. Mode 1 uses a
similar procedure. It is necessary to enter the “SERVICE SETTINGS” first, followed by the “CUSTOMER SETTINGS”.
Press and hold the SELECT and DISPLAY buttons simultaneously for 5 seconds. The display will show: Set Language ENG.
Release both buttons.
1.00 Push the DISPLAY button to step to the next parameter. The display will show: Units ENG
1.00a Push the CHANGE button to toggle English/metric units of measure.
For this example, set to: Units ENG.
2.00 Push the DISPLAY button to step to the next parameter. The display will show: Soft.V.#1.07.
This parameter may not be set.
3.00 Push the DISPLAY button to step to the next parameter. The display will show: Mode 2 The “Mode #” is the number
of the OPERATING MODE for which the systems control is set. For this example, leave at: Mode 2.
4.00 Push the DISPLAY button to step to the next parameter. The display will show: Hard. Gr. 040 The 040 is the
hardness number of the water tested. This number is to be the actual hardness reading and is not compensated
for iron.
4.00a Push and release the SELECT button until the cursor ( _ ) is positioned in the display as follows:
Hard. Gr. 040. The cursor is now under the “ten” position.
4.00b Continue pushing the SELECT and CHANGE buttons until the desired hardness number is displayed.
Example: Hard. Gr. 025
5.0 Push the DISPLAY button to step to the next parameter. The display will show: Iron ppm 00
This parameter is used to calculate a compensated hardness automatically.
5.00a Push the SELECT and CHANGE buttons until the desired iron number is displayed.
Example: Iron ppm 00
6.00 Push the DISPLAY button to step to the next parameter. The display will show: Mang. ppm 00
6.00a Push the SELECT and CHANGE buttons until the desired manganese number is displayed.
Example: Mang. ppm 00
6.00b Push the DISPLAY button to step to the next parameter. The display will show:
SALT = Sodium. WARNING! When iron and/or manganese is present in the water supply, we do not
recommend using potassium chloride as a regenerant. Iron and/or manganese bacteria may develop and
foul the conditioning media and may void the warranty.
6.00c Push the SELECT and CHANGE buttons until the desired regenerant is selected.
EXAMPLE: Salt = Sodium.
Series 96 Owner’s Manual
10

7.00 Push the DISPLAY button to step to the next parameter. The display will show: Comp. Hard. 00025
This parameter is the calculated compensated hardness using the hardness, iron and manganese settings.
The formula is (4 x each ppm iron) + (4 x each ppm manganese) + hardness = compensated hardness.
This is not a parameter that can be set. The display should now read: Comp. Hard. 00025
8.00 Push the DISPLAY button to step to the next parameter. The display will show: Capty. Gr. 24480
This parameter is used to set the softening capacity of the appliance. (For optional cycle settings, see page 36.)
8.00a Push the SELECT and CHANGE buttons until the desired capacity number is displayed.
In this example, set to: Capac. Gr. 24480
9.00 Push the DISPLAY button to step to the next parameter. The display will show: 72-96hr Regen Yes
This parameter, if set to “Yes”, is used to force the appliance to regenerate every 96 hours if regularly
scheduled regenerations based on water usage do not occur in 96 hours or less intervals. This should
always be “yes” if iron is present in the water.
9.00a Push the CHANGE button to toggle parameter value from “No” to “Yes”. In this example, set to: 96hr Regen No
10.00 Push the DISPLAY button to step to the next parameter. The display will show: Backwash 1 03.0
(See page 36.) The “03.0” is the time, in minutes to the nearest tenth, for which the first
backwash cycle can be set.
10.00a Push the SELECT and CHANGE buttons until the desired backwash time is displayed.
In this example, set to: Backwash 1 03.0
11.00 Push the DISPLAY button to step to the next parameter. The display will show: Brine/Rinse 30.0
The “30.0” is the time, in minutes to the nearest tenth, for which the first brine and slow rinse cycles
can be set.
11.00a Push the SELECT and CHANGE buttons until the desired combined brine and slow rinse cycle time is
displayed. In this example, set to: Brine/Rinse 30.0
12.00 Push the DISPLAY button to step to the next parameter. The display will show: Backwash 2 01.0
The “01.0” is the time, in minutes to the nearest tenth, for which the second backwash can be set.
12.00a Push the SELECT and CHANGE buttons until the desired backwash time is displayed.
In this example, set to: Backwash 2 01.0
NOTES: ______________________________________________________________________________________
Series 96 Owner’s Manual
11

13.00 Push the DISPLAY button to step to the next parameter. The display will show: Salt lbs. 06.0
This parameter sets the amount of salt to be used to achieve the capacity setting.
13.00a Push the SELECT and CHANGE buttons until the desired salt setting is displayed.
In this example, set to: Salt lbs 06.0
14.00 Push the DISPLAY button to step to the next parameter. The display will show: Turbine Test NO
This feature should only be used by qualified service personnel. It is intended to be used for diagnostic
purposes only. WARNING! Do not engage this feature.
14.00a Push the SELECT and CHANGE buttons until the correct value is displayed.
In this example, set to: Turbine Test NO
15.00 Push the DISPLAY button to step to the next parameter. The display will show: Reg. Tonight NO
This parameter, if set to YES, will force a regeneration at the next set regeneration time (i.e. 02.00.) After
the regeneration, the parameter will automatically reset to “No.”
15.00a Push the CHANGE button to toggle between Yes or No. In this example, set to: Reg. Tonight YES
16.00 Push the DISPLAY button to step to the next parameter. The display will show: Filter? No.
This parameter, if set to YES, is for model selection only and has no effect on the function of
the appliance. In this example, set to: Filter, NO.
17.00 Push the DISPLAY button to step to the next parameter. The display will show:
Gal. Remain 00979
NOTES: ______________________________________________________________________________________
Series 96 Owner’s Manual
12

This is the normal operation display for OPERATING MODE 2. The 00979 represents the number of
gallons of softening capacity between regenerations. This completes the SERVICE SETTINGS mode.
Even though the SERVICE SETTING mode has been completed, the Series 96 is not ready for service until the
CUSTOMER SETTINGS mode is completed. The following example takes you through the steps required for
setting the parameters of the CUSTOMER SETTINGS mode for OPERATING MODE 2.
1.00 Push and hold the DISPLAY to enter CUSTOMER SETTINGS mode. The display will show:
Set Time 00:00 AM This parameter is to be set to the current time of day.
1.00a Push the SELECT and CHANGE buttons until the desired time is displayed.
In this example, set time to: Example: 11:00 AM or 05:00 PM.
2.00 Push the DISPLAY button to step to the next parameter. The display will show: Reg Time 02:00 AM
This parameter is to be set for the desired time a normally scheduled regeneration is to occur.
2.00a Push the SELECT and CHANGE buttons until the desired time is displayed.
In this example, set to: Reg. Time 02:00. (02:00 is 2:00am)
3.00 Push the DISPLAY button to step to the next parameter. The display will show: # People 04
3.00a Push the CHANGE button until the correct number of people in the household is displayed.
In this example, set to: # People 05
5.00 Push the DISPLAY button to save the parameter settings and exit the CUSTOMER SETTINGS mode.
The display will show: Gal Remain 00979
If you followed the above directions correctly, your Series 96 Control
is ready for OPERATING MODE 2 service.
NOTES: ______________________________________________________________________________________
Series 96 Owner’s Manual
13

Blending Valve
Adjustment In some situations, a blending valve may be desired. The amount of hardness
blended back into the water line is determined by the hardness of the
incoming water and the setting of the blending valve. Where extremely hard
water is present, the blending valve may only need to be “cracked” open.
Where the incoming water has relatively low levels of hardness, the blending
valve will need to be opened further.
The blending valve is located between the input and output connections on the
top of the bypass valve. It is adjusted by placing a flat blade screwdriver in
the slot provided and turning clockwise to open. Total movement of the
blending valve from full closed to full open is 1/4 revolution.
Precise setting of the blending valve will require “trial and error” testing. The
initial setting should be conservative. Because of the blending valve's ease of
access and adjustment, the end user can increase or decrease the setting
according to their preference over a period of time.
WHEN & HOW TO USE THE BYPASS VALVE
The bypass valve is intended to provide isolation of the Series 96 appliance in the event of a system malfunc-
tion, leak, or if the use of untreated water for watering plants, shrubs, or lawns is not available otherwise.
Facing your appliance from the front, the bypass is located on the main control valve (See below.) To engage
the bypass, locate the cone-shaped knob on the right hand side, behind the controller. Turn the knob counter-
clockwise until it stops. Now the appliance is bypassed and all water to the home is raw, untreated water.
To prevent untreated water from entering the home, do not use water while watering your landscape. When
watering is finished, return the appliance to service by turning the knob clock-wise until it stops.
Series 96 Owner’s Manual
14
TEST PORT
BYPASS KNOB
BLENDING VALVE
NOTE: Use of the blending valve is not
recommended where objectionable
concentrations of ferrous iron or
sediment are present. Because the
blending valve is mixing “raw” water
with softened, any ferrous iron or
sediment in the “raw” water will also
be blended and reintroduced into the
softened water line.

TROUBLESHOOTING
This section describes solutions to the most common problems that can occur. If you cannot solve the problem
easily, call your Hague dealer for service.
Problem Cause Action
NOTES: ______________________________________________________________________________________
Series 96 Owner’s Manual
15
No soft water after
regeneration No salt in brine tank. Add salt
Sediment in brine tank has plugged the
brine line and/or air check.
(See Fig. 4, 11.)
Remove the brine line and flush clean. Clean air check.
Clean brine tank.
Refill control is plugged.
(See Fig. 9.) Remove brine piston housing and clear debris from the flow control.
Drain line is pinched, frozen or
restricted (See Fig. 1.) Straighten, thaw or unclog the drain line.
Clogged injector assembly.
(See Fig. 6.) Remove injector cap and clean nozzle and throat with a wooden toothpick. Replace throat if removed.
Salt bridge has formed. High humidity or the wrong kind of salt can create a salt
bridge. This is a crust that forms an empty space
between the water and salt. To test, use a blunt object
like a broom handle. Push the handle into the salt to
dislodge the salt bridge.
No soft water. The plumbing bypass valve is in the
bypass position (See pg. 14.) Place bypass valve in the service position.
Appliance is plumbed in backwards.
(See Fig. 1.) Check that appliance is plumbed properly.
Extended power outage. Reset time. (See Customer Settings.)
Water hardness has increased. Reset water and reset hardness. (See Installation
Record.)
Not metering water. Flow should be indicated with water usage.
If no flow, see below.
Blending dial is open. Make sure blending dial is closed.
No flow is indicated
when water is flowing. The bypass valve is in the bypass position (See pg. 14.) Place bypass in the service position.
Appliance is plumbed in backwards.
(See Fig. 1.) Check that appliance is plumbed properly.
Sensor not receiving signal from
magnet. (See Fig. 7.) Remove sensor from bypass housing. Test with magnet on each flat side of sensor. One side should indicate
flow. The other will not. If flow is indicated, check
turbine. If no flow, replace sensor.
Turbine is jammed. (See Fig. 7.) Remove bypass valve and clear debris from turbine.

TROUBLESHOOTING
Problem Cause Action
Series 96 Owner’s Manual
16
Flow is indicated when
water is not being used.
(Fig. 2.)
There is a leak in your household
plumbing system Repair the leak.
No read-out in display. Electric cord is unplugged. Plug in transformer. (Fig. 1.)
No electric power at outlet. Check power source. Make sure outlet is not controlled
by a switch.
Defective transformer. Test with volt meter for 12 VAC at control. If less than
10 VAC or greater than 14 VAC, replace transformer.
Defective circuit board. With 12 VAC present at control, replace computer
control.
High ambient temperature. If
temperature exceeds 120 degrees F,
display will blank out. This does not
affect the operation of the controller.
See Equipment Specifications, page 37.
Appliance stays in
regeneration. Cycle
display remains “going
to __ ? __”.
Defective magnet disk. Replace magnet disk. (See Fig. 8.)
Foreign object in valve body. Remove foreign objects from valve body (See Fig. 5.)
Broken valve assembly. Motor
running. Magnet disk not turning. Repair drive end cap. (See Fig. 8)
Excess water in brine
tank. Restricted, frozen or pinched drain line. (See Fig. 1.) Remove restriction, thaw or straighten drain line.
Plugged brine line, brine line flow
control or air check (See Fig. 9, 11.) Clean flow control, air check and brine line. (See Fig. 9, 11.)
Sticking brine refill valve.
(See Fig. 9.) Remove brine valve. Lubricate piston with silicone grease and reassemble.
Not regenerating in
proper sequence. Defective magnet disk. Replace magnet disk. (See Fig. 8.)
Defective controller Replace controller. (See Fig. 3.)
Salty water. Plugged injector. Clean injector screen, nozzle and throat (See Fig. 6.)
Low water pressure. Maintain minimum pressure of 20 psi
(See Equipment Specifications, pg. 37.)
Drain line or flow control is restricted. Remove restriction.
Brine line restricted or crimped. Remove restriction, replace if crimped.
Excessive amount of water in brine
cabinet. Verify correct water level relative to salt setting. Check brine line and fittings for loose connections (See Brine
Cabinet Data, page 35.)
Insufficient rinse time. Check cycle setting (pg 36) for proper brine rinse time.
Adjust time, if necessary.
Intermittent pressure drop from feed
source. Install check valve on the inlet water line to the appliance. (Check local plumbing codes first.)

SERIES 96 HOOK-UP/COVER ASSEMBLY
Series 96 Owner’s Manual
17
Figure 3
ITEM NO QTY. PART NO. DESCRIPTION
1 1 54501 Media Cabinet Cover Assembly
2 2 90837 Bypass Nut Gasket
3 2 90254 1" or ¾" Copper Adapter
2 90256 PVC Adapter (optional)
2 90258 1" Copper Adapter (optional)
4 2 90251 Bypass Nut
5 1 CO700A Cabinet Overflow
6 1 93245 12V Transformer/Power Cord
7 1 54550 5 Button Control Assembly
8 1 54003 Cabinet

SERIES 96 BRINE
TANK ASSEMBLY
Series 96 Owner’s Manual
18
For brine tank
information
on water
depth and
salt usage,
see page 34
Figure 4
