Haier DW12-TFE3ME User manual

Dishwasher
DW12-TFE3 Series
DW12-UFE3 Series
Instructions for Use
en

1
Index
Safety information
Installation
Getting to know your dishwasher
How to fill the salt
How to fill rinse aid
How to fill the detergent dispenser
Not suitable for the dishwasher
Arranging crockery, glasses, etc. in the dishwasher
Programme overview
Washing dishes
How to keep your dishwasher in shape
Care and maintenance
Fault finding
Technical data
Important information
2
4
7
8
9
9
10
11
13
15
18
19
21
25
25
en

2
Safety information
At time of delivery
Check packaging and dishwasher immediately for signs of transport damage. If the appliance is
damaged, do not put it into use but contact your supplier or customer service without delay.
Please dispose of packaging materials properly.
The dishwasher must only be used by adults for the washing of household dishes and cooking utensils.
This appliance cannot be installed outdoor, not even if the area in which it is installed is covered by a
roof; it is also very dangerous to leave it exposed to the rain and elements.
Do not place any heavy objects or stand on the door when it is open. The appliance could tip forward.
The water inside the dishwasher is not suitable for drinking.
Do not use solvents of any kind inside your dishwasher. They could cause an explosion danger.
Open the door very carefully if the dishwasher is operating. There is a risk of water squirting out.
During normal use
Do not touch the heating element during or after a wash cycle.
Fundamental rules to follow when using the appliance:
- Never touch the dishwasher when barefoot or with wet hands or feet;
- We discourage the use of extension cords and multiple sockets;
- If the appliance is not operating properly or maintenance must be performed, disconnect the
appliance from the power supply.
Site the dishwasher and connect it up in accordance with the installation instructions.
The dishwasher must not be connected to the electricity supply while installation is being carried out.
Ensure that the domestic wiring is properly earthed.
The mains electricity supply must conform to the details shown on the dishwasher nameplate.
Do not connect the dishwasher to the electricity supply via an extension cable.
Built-under and built-in appliances should always be installed under a continuous work surface which
is attached to the adjacent cupboards, in order to ensure that the appliance is entirely stable.
After the appliance has been installed,the mains plug should still be easily accessible.
During installation, the power supply cord must not be excessively or dangerously bent or flattened.
During installation
en

3
If your family includes children
The appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not play with the appliance.
Keep detergents out of the reach of children, who must also be kept away from the dishwasher when
it is open.
If a fault occurs
If the appliance malfunctions, turn off water supply to the appliance and disconnect the plug from the
wall socket. Then, consult the section entitled, "Fault finding" .If you cannot solve the problem, con-
tact a service center.
Only specialised personnel are authorised to make repairs.
If the supply cord is damaged, it must be replaced by the manufacture, its service agent of similarly
qualified persons in order to avoid a hazard.
To maintain the EFFICIENCY and SAFETY of this appliance,we recommend:
- call only the Service Centers authorized by the manufacturer.
- always use original Spare Parts.
When disposing of old appliances
Appliances which are no longer being used must be made inoperable by cutting the power supply
cord and removing the door lock.
Take the appliance to a designated waste disposal center.
Warning
Children could get locked in the appliance (risk of suffocation)
or get stuck in other positions. Therefore: Remove the mains
plug, cut the mains wire and set aside. Damage the door lock so
that the door can no longer be closed.
Dangerous voltage
en

4
Positioning the appliance
Positioning the appliance in the desired location. The back should rest against the wall behind it, and the
sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain
hoses that can be positioned to the right or the left to facilitate proper installation.
Levelling the appliance
Once the appliance is positioned, adjust the feet (screwing them in or out) to adjust the dishwasher,
making it level. In any case, the appliance should not be inclined more than 2˚. If the appliance is level, it
will help ensure proper performance.
Installation
fig.A
Cold water connection

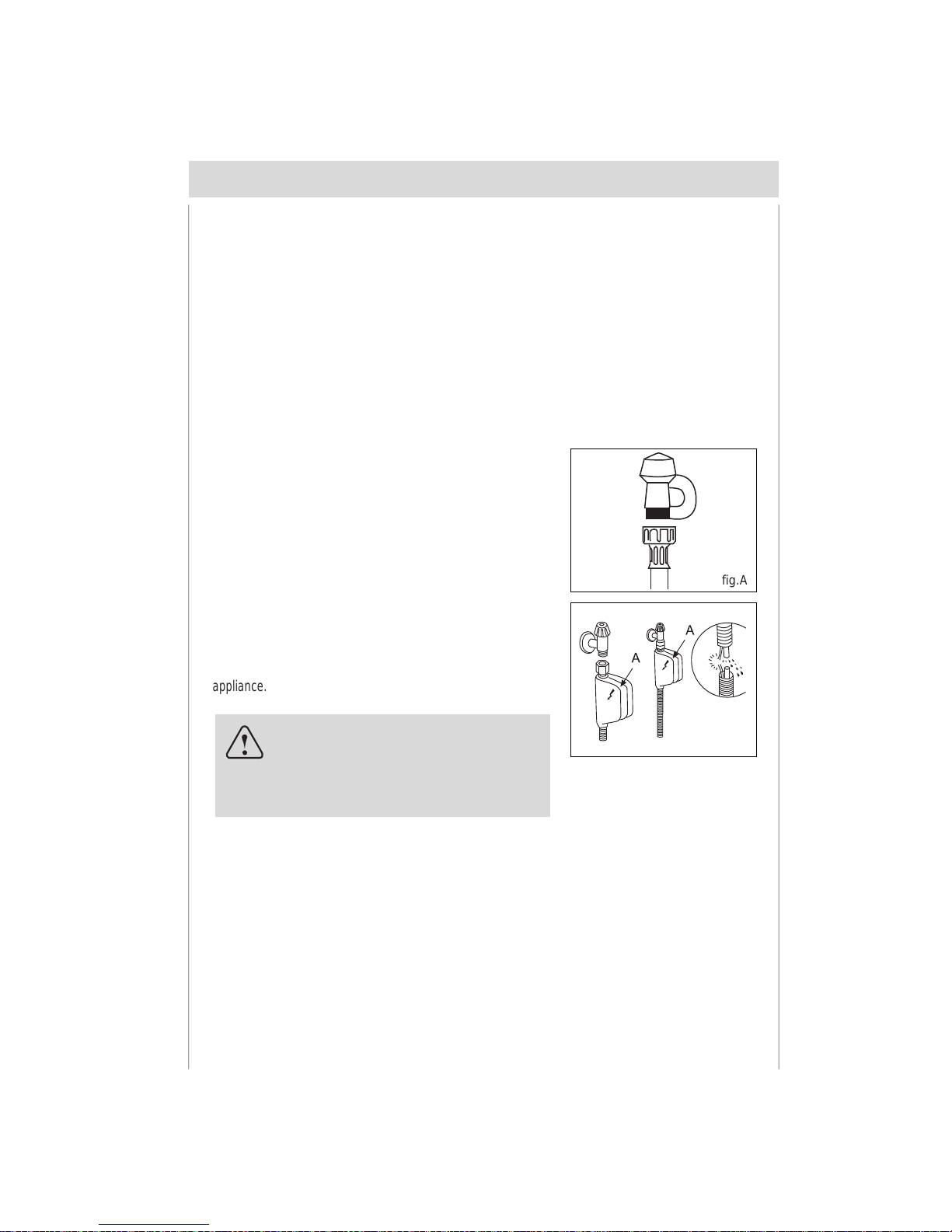

Connect the water supply hose to a threaded 3/4 (gas) connector,
making sure that it is fastened tightly in place (see fig.A).
Some models are fitted with an "Aquastop" water supply hose
(see fig.B) in which the small filter is already housed in the
threaded end.
If the water pipes are new or havenot been used for an extended
period of time, let the water run to make sure that the water is
clear and free of impurities. If this precaution is not taken, there
is a risk that the water inlet can get blocked and damage the
appliance.
Anti-Flooding protection
The dishwasher is equipped with a system that stops the supply of water in the event of a problem with the water
supply hose, or leaks within the unit, in order to prevent damage to your home. If for any reason the box
containing the electrical components happens to get damaged, remove the plug for the appliance from the
socket immediately. In order to guarantee that the anti-flooding feature operates properly, the "A" box with water
supply hose must be attached to the water supply tap asshown in fig.B. No other typeof connection is acceptable.
The water supply hose must not, under any circumstances, be cut, as it contains electrical parts which are live.
If the length of the hose is not adequate to make a proper connection, the hose must be replaced with one which
is long enough. This hose is available upon request from specialised retailers and service center.
fig.B
Warning
The appliance is to be connected to the
water mains using new hose-sets and
that old hose-sets should not be reused.
en

5
Electrical Connection
After making sure that the voltage and frequency values for the current in the home correspond to those
on the rating plate (located on the stainless steel inner door of the appliance) and that the electrical
system is correct for the maximum voltage on the rating plate, insert the plug into an electrical socket
which is earthed properly (the earthing of the appliance is a safety requirement mandated by law).
If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace
the whole cable, rather than using adaptors or the like as they could cause overheating and burns.
Caution:
The dishwasher plug must be accessible even when the appliance
is installed as a built-in unit so that maintenance can be done safely.

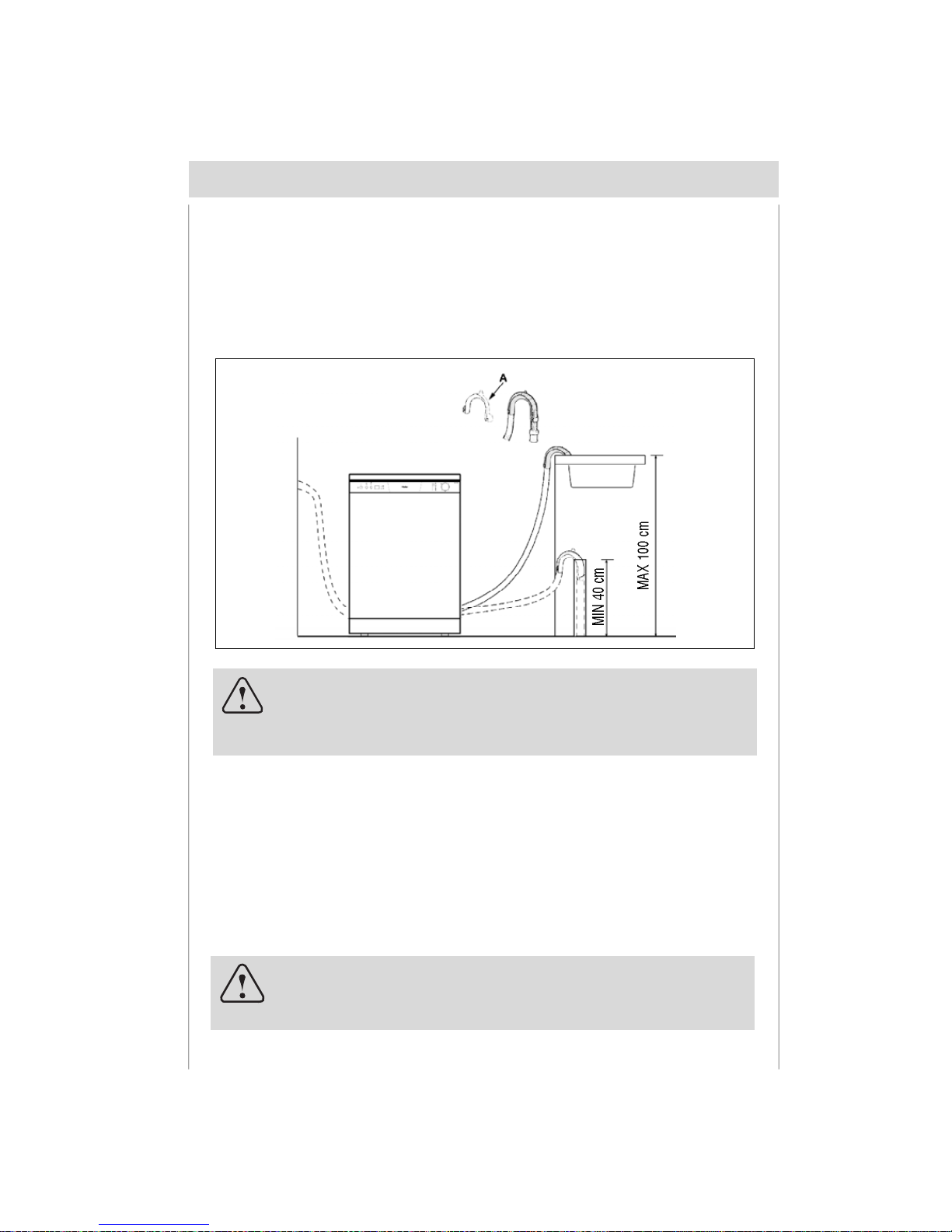

Drain hose connection
Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making
sure to avoid bending or crimping it. If necessary, fit a syphon trap (U-bend) with a connecting piece for
the drain hose (fig.C). The free end of the hose must be at a height between 40 and 100 cm and must not
be immersed in water.
Attention:
The connecting piece for syphon trap (U-bend) must be solidly fas-
tened to the wall to prevent the drain hose from moving and allow-
ing water to spill outside the drain.
fig.C
en

6
ELECTRICAL CONNECTION (UK ONLY)
For your safety please read the following information.
Warning: This appliance must be earthed.
The appliance must be connected to a 220-240 volts 50 cycle AC supply by means of a three pin socket,
suitably earthed and should be protected by a 13 amp fuse in the plug or a 15 amp fuse in the consumer
unit.
The appliance is supplied with a moulded 13 amp 3 pin mains plug fitted with a 13 amp fuse. Should the
fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.
The plug contains a removable fuse cover that must be refitted when the fuse is replaced. In the event of
the fuse cover being lost or damaged, the plug must not be used until a replacement cover has been
obtained.
If the moulded mains plug is unsuitable for the socket outlet in your home or is removed for any other
reason, then the fuse should be removed and the cut off plug disposed of safely to prevent the hazard of
electric shock.
There is a danger of electric shock if the cut off plug is inserted into any 13 amp socket outlet.
Caution:
The dishwasher plug must be accessible even when the appliance is installed as a built-in unit so that
maintence can be done safety.
en

7
Getting to know your dishwasher
Close-up view (control panel)
Dishwasher interior
Upper Rack
a
b
c
d
e
f
Top Spray Arm
Silverware Basket
Bottom Spray Arm
Lower Rack Detergent and Rinse Aid Dispenser
g
h
i
j
k
Salt Container Cap
Washing Filter
Water Inlet Hose
Drain Hose
Power Supply Cord
a
d
e
f
h
b
c
i
j
k
g
"3 in 1" Indicator Low Salt Indicator
Time-remaining Indicator
F
G
H
I
J
A
B
C
D
E
State Indicator
ON-OFF Button
Delayed Start Button
Delayed Start Indicator
Low Rinse Aid Indicator
Knob For Selecting Cycle
"3 in 1" Button
B
A
DF
C
G
E
I
H
J
B
A
DF
C
G
E
I
H
J
en

8
Salt
The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits
will form on the dishes and utensils.
The appliance is equipped with a special softener that uses a salt specifically designed to eliminate lime
and minerals from the water.
How to fill the salt
Loading the salt into the container
Always use salt intended for use with dishwashers.
The salt container is located beneath the lower rack and should be filled as follows:
Adjusting salt consumption
The dishwasher is designed to allow for adjusting the amount of salt consumed based onthe hardness of
the water used. This is intended to optimize and customize the level of salt consumption so that it re-
mains at a minimum.

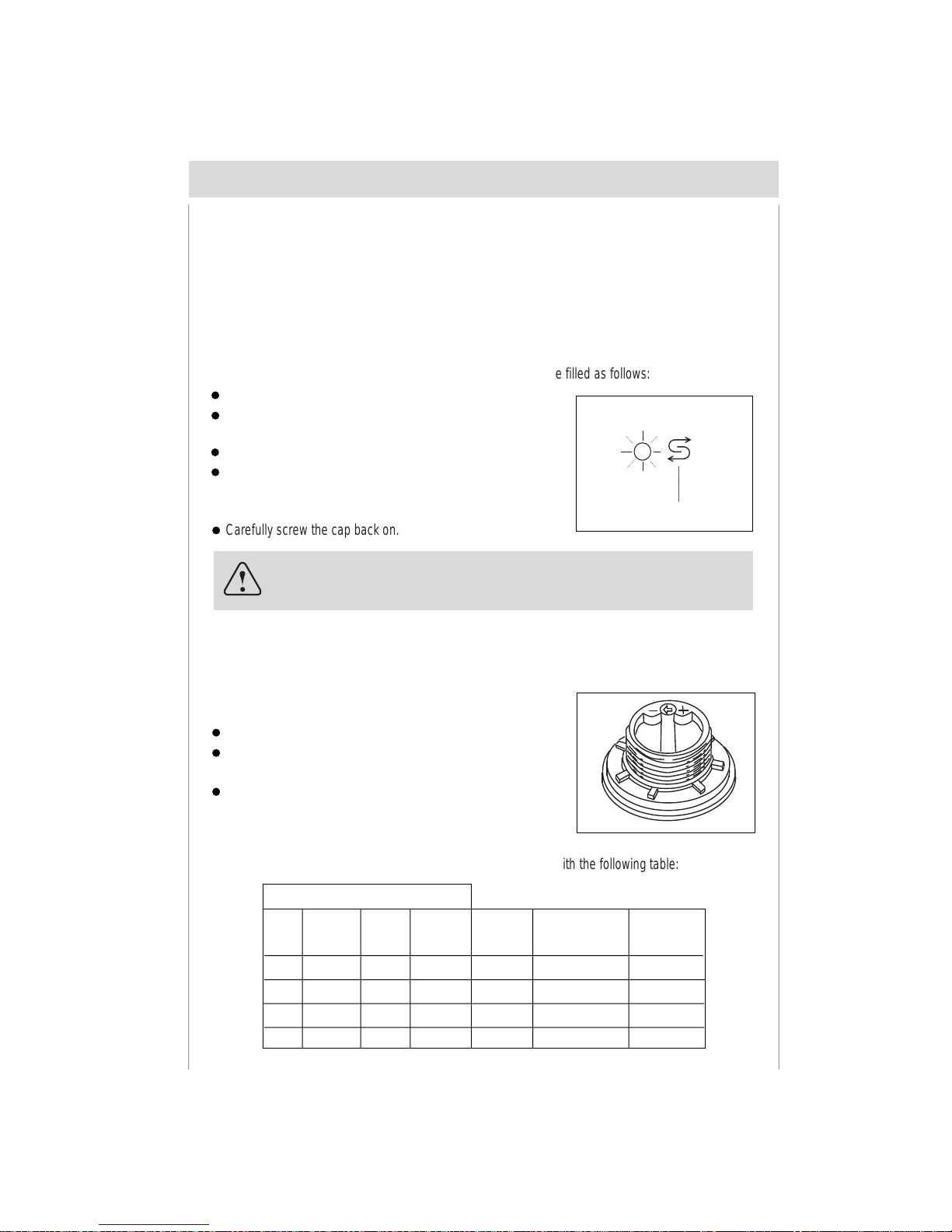

To adjust salt consumption, proceed as follows:
It is recommended that adjustments be made in accordance with the following table:
When the low salt indicator “1” lights, you must fill the salt.
Remove the lower rack and then unscrew and remove the cap
from the salt container;
If you are filling the container for the first time, fill it with water;
Place the end of the funnel (supplied) into the hole and introduce
about 2 kg of salt. It is normal for a small amount of water to
come out of the salt container.
Carefully screw the cap back on.
1
Important
To prevent the formation of rust, load the salt just before beginning a wash cycle.
Unscrew the cap from the salt container;
There is a ring on the container with an arrow on it (see figure to
the side).
If necessary, rotate the ring in an anticlockwise direction from the
"-" setting towards the "+" sign, based on the hardness of the
water being used.
Water Hardness
Clarke
degrees ºdH mmol/l Selector
position Salt
consumption
(Grams/cycle) Autonomy
(cycles/2kg)
0-14 0-17 0-1,7
1,8-4,418-4414-36
36-71 45-89 4,5-8,9
>89>71 >8,9
/
"-"
Middle
/0
20
40
60"+"
60
40
25
Level
1
2
3
4
en

5
4
9
Rinse aid
This product makes dishes sparkle and helps them to dry without
spotting. The dispenser is located on the inside panel of the door .
Loading the rinse aid
Regardless of the type of detergentdispenser installed on your appliance,
you must proceed as indicated below when loading the rinse aid.
To open the dispenser, turn the "2"cap in an anti-clockwise direction
and then pour in the rinse aid, making sure not to overfill. The amount of
rinse aid used for each cycle can be regulated by turning the " 3" dose
adjustor, located beneath the "2"cap, with a screwdriver. There are 6
different settings; the normal dosage setting is 3.
How to fill rinse aid
When the low rinse aid indicator “H”lights, you must load rinse aid .
How to fill the detergent dispenser
H
Important
Proper dosage of the rinse aid improves drying. If drops of water remain on the dishes or spot-
ting occurs, the dosage adjustor should be turned to a higher setting. If the dishes have white
streaks, turn the dosage adjustor to a lower setting.
Detergent
Detergentspecifically intended for use with dishwashers must be used.
The dispenser must be refilled before the start of each wash cycle
following the instructions provided in the "Programme overview". The
detergent dispenser is located on the inside panel of the door.
Loading the detergent
To open the " 4 "cover on the dispenser, press the "5"button.
The detergent for the wash cycle should be poured into the " 6 "
compartment.
The detergent for the pre-wash cycle should be poured into the
“7 ”compartment.
After the detergent has been placed in the dispenser, close the
cover and press down until it clicks in place.
Notice:
To facilitate closing thecover, removeany excessdetergent onthe edges of the dispenser.
23
6
7
en

10
Not suitable for the dishwasher
What you should not put into the dishwasher
Cutlery and tableware manufactured in whole or part from wood.They become faded and unsightly in
appearance.Furthermore,the adhesives that are used are not suitable for the temperature that occur
inside the dishwasher.Delicate decorative glassware and vases,special antique or irreplaceable china.
The decorative patterns on such items will not be dishwasher-proof.
Plastic objects that are not resistant to hot water, copper and pewter utensils are also not suitable.
Decorative patterns printed or painted onto the surface of crockery, glasses, etc.,aluminium and silver
items tend to become discoloured or faded if washed in the diswasher. Some types of glass can become
opaque in appearance after they have been washed many times in a dishwasher. Highly absorbent
materials, such as sponges and towels,should never be placed in the dishwasher.
Our recommendation
In future, only purchase table or kitchenware that has been confirmed as being dishwasher-proof.
Important
Dishes or cutlery that have been soiled by tobacco ash, wax,
Iubricating grease or paint, should not be put in the dishwasher.
Damage to glassware and other dishes
Possible causes
type of glass or manufacturing process
chemical composition of detergent
water temperature and duration of dishwasher programme.
Use glassware or porcelain dishes that have been marked ‘dishwasher-proof’ by the manufacture.
Use a mild detergent that is described as ‘kind to dishes’. If necessary, seek further information from
detergent manufacturers.
Select a programme with a low temperature and a short duration as possible.
To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the
programme has ended.
Suggested remedy
en

11

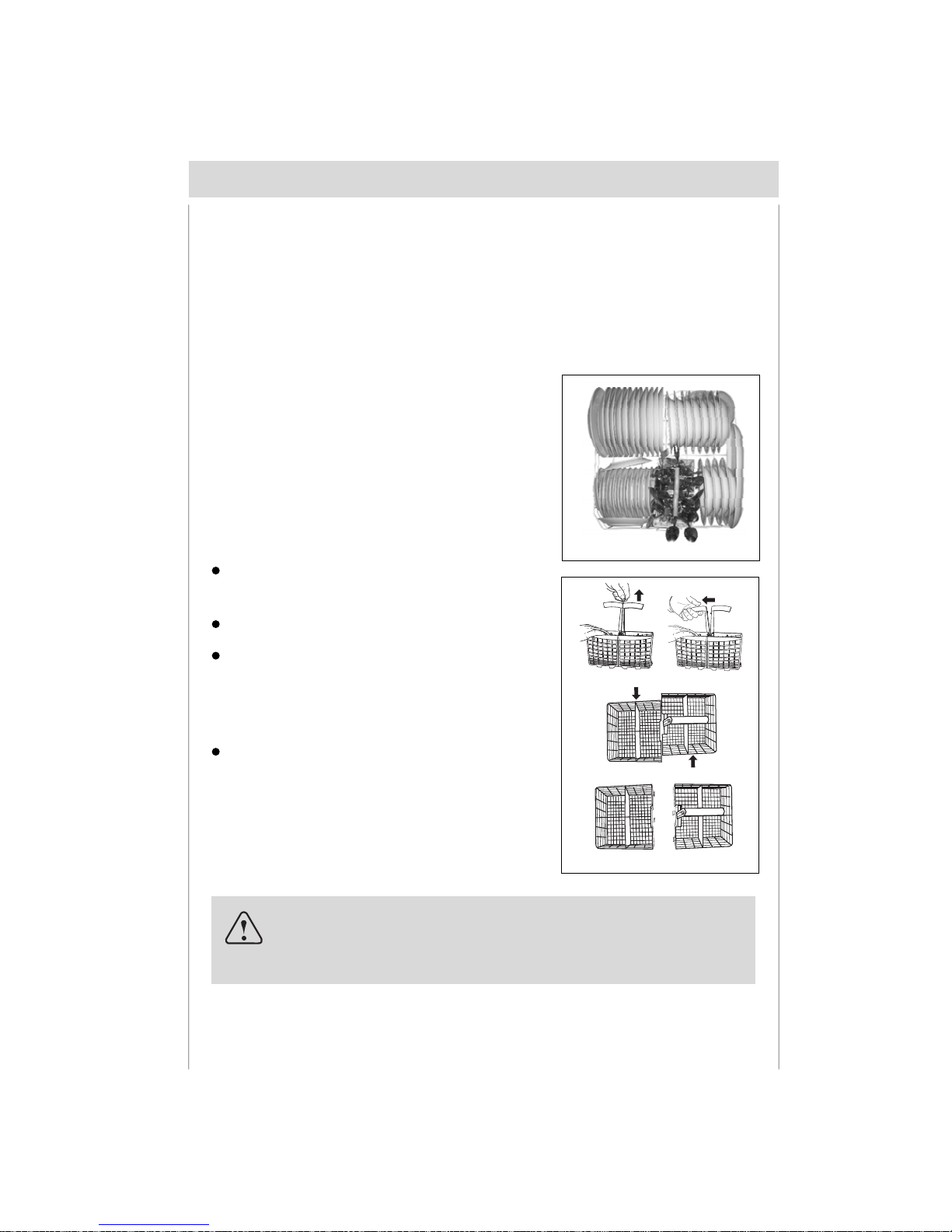

Arranging crockery, glasses, etc. in the dishwasher
Before placing the dishes in the dishwasher, remove larger food particles to prevent the filter from be-
coming clogged, which results in reduced performance.
If the pots and pans have baked-on food that is extremely hard to remove, we recommend that they are
soaked before washed. This will eliminate the need for extra wash cycles.
Pull out the rack to load the dishwasher.
How to use the lower rack
We recommend that you place the most difficult to clean items
on the bottom rack: pots, pans, lids, serving dishes and bowls,
as shown in the figure to the right.
It is preferable to place serving dishes and lids on the sides of
the racks in order to avoid blocking the rotation of the top spray
arm.
Pots, serving bowls, etc. must always be placed face down
(see fig.D) .
fig.D
Normal daily load
fig.E
Deep pots should be slanted to allow the water to flow out.
The silverware basket can be doubled (see fig.E) so that
only one section may be used when the silverware load is
light. This also makes space for additional pots and pans
and it can also be placed in the upper rack.
Silverware should be placed in the silverware basket with
the handles at the bottom; if the rack has side baskets, the
spoons should be located individually into the appropriate
slots. Especially long utensils should be placed in the hori-
zontal position at the front of the upper rack.
Warning
knives and other utensils with sharp points must be loaded in the
basket with their points down or placed in a horizontal position.
en

12
The upper rack is designed to hold more delicate and lighter
dishware, such as glasses, cups and saucers, plates, small
bowls and shallow pans (as long as they are not too dirty).
How to use the upper rack
fig.G
fig.F
Shelf
Lean tall glasses and those with long stems against the shelf-
not against other items to be washed.
Place glasses, cups and small bowls on theadditional cup rack.
The additional cup rack can be swivelled in or out as required
(see fig.G).
Adjust the upper basket to the higher level and you have
more space to accommodate those taller pans and trays in
the bottom basket.
Position the dishes and cookware so that they do not get
moved by the spray of water.
The upper rack can be adjusted for height by using the knobs
located on both sides of the rack itself (see fig.F).
en

13

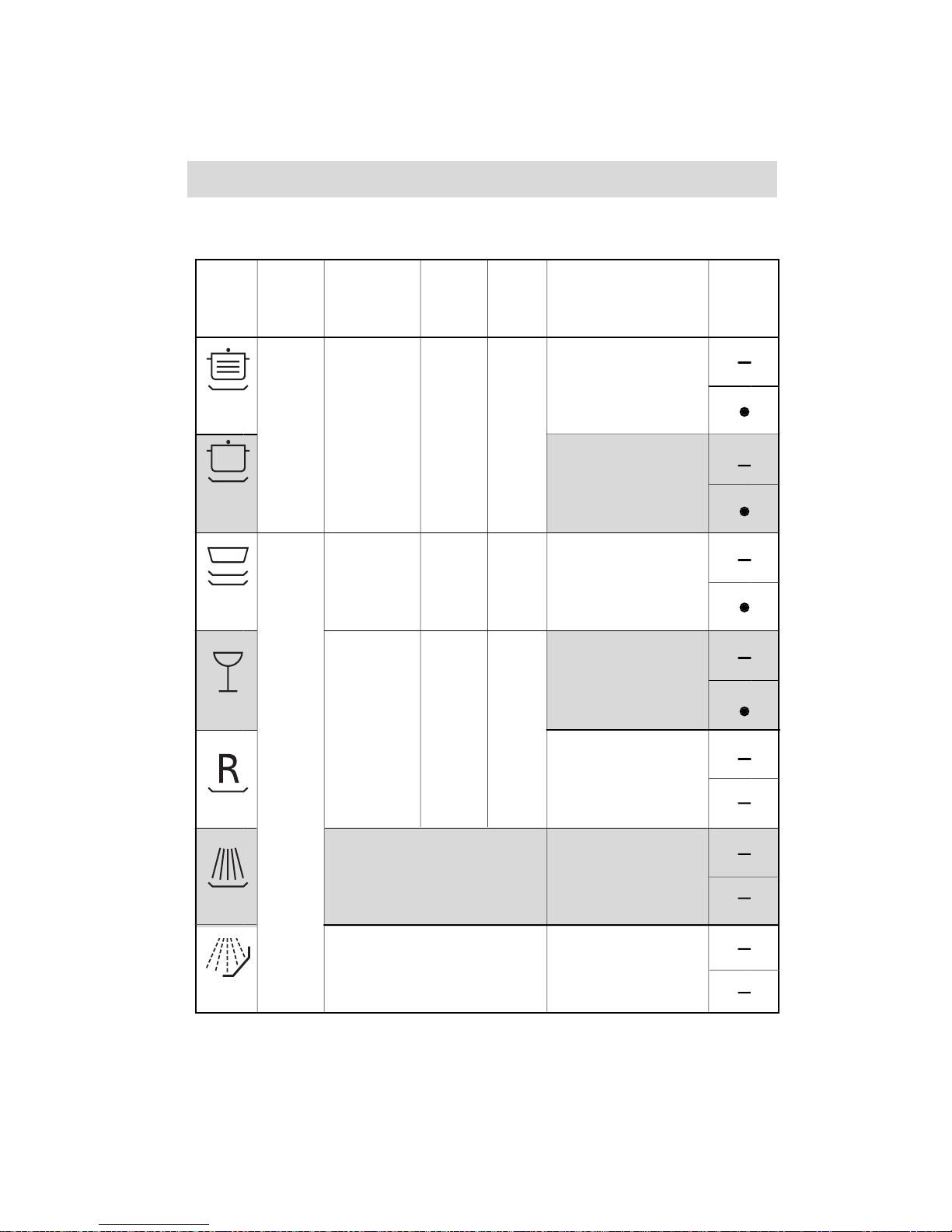

Programme overview
Wash
programme
Type of
crokery e.g.
china, pots/
pans,
cutlery,
glasses, etc
Amount of
food
remains Description of cycle
Condi-
tion of
food
remains
Pre-wash with warm water.
Extended wash at 70°C.
Rinses with cold water.
Rinse with hot water.
Drying.
Pre-wash use cold water.
Extended wash at 55°C.
Rinse with cold water.
Rinse with hot water.
Drying.
Short wash at 40°C.
Cold rinse.
Short cold wash to pre-
vent food residue from
drying on the dishes .
Pre-wash use cold water.
Extended wash at 50°C.
Rinse with cold water.
Rinse with hot water.
Drying.
Wash at 45°C.
Rinse with warm water.
Hot rinse.
Drying.
Soups,
potatoes,
pasta, rice,
eggs, roast or
fried food.
loosely
attached
Coffee,cakes,
milk, sausage,
cold drinks,
salads
Very little loosely
attached
Rinse off if the dishes have been
stacked for several days in the dish-
washer prior to washing.
Type of
food
remains
Non-
delicate
Mixed
Intensive
Wash
Normal
Wash
Light Wash
(EN50242)
Glass ware
Soak
Rapid wash
3 in 1
Heat
Hot rinse at 65°C.
Drying.
For dishes that need to be rinsed
and dried only.
en

14
Delayed
Start
Detergent Rinse Aid Duration in
minutes
Energy
consump-
tion in kWh
Water
consump-
tion in litres
*EN50242 test with rinse aid setting 5
112
112
102
102
162
162
92
92
32
54
12
1.62
1.24
1.24
1.24
1.05
1.05
1.12
1.12
0.40
0.50
0.02
18
16
15
13
15
12
12
10
9
5
3
()
Prewash
5g
5g
5g
Extended
Wash
25g
25g
25g
15g
15g
15g
en

15

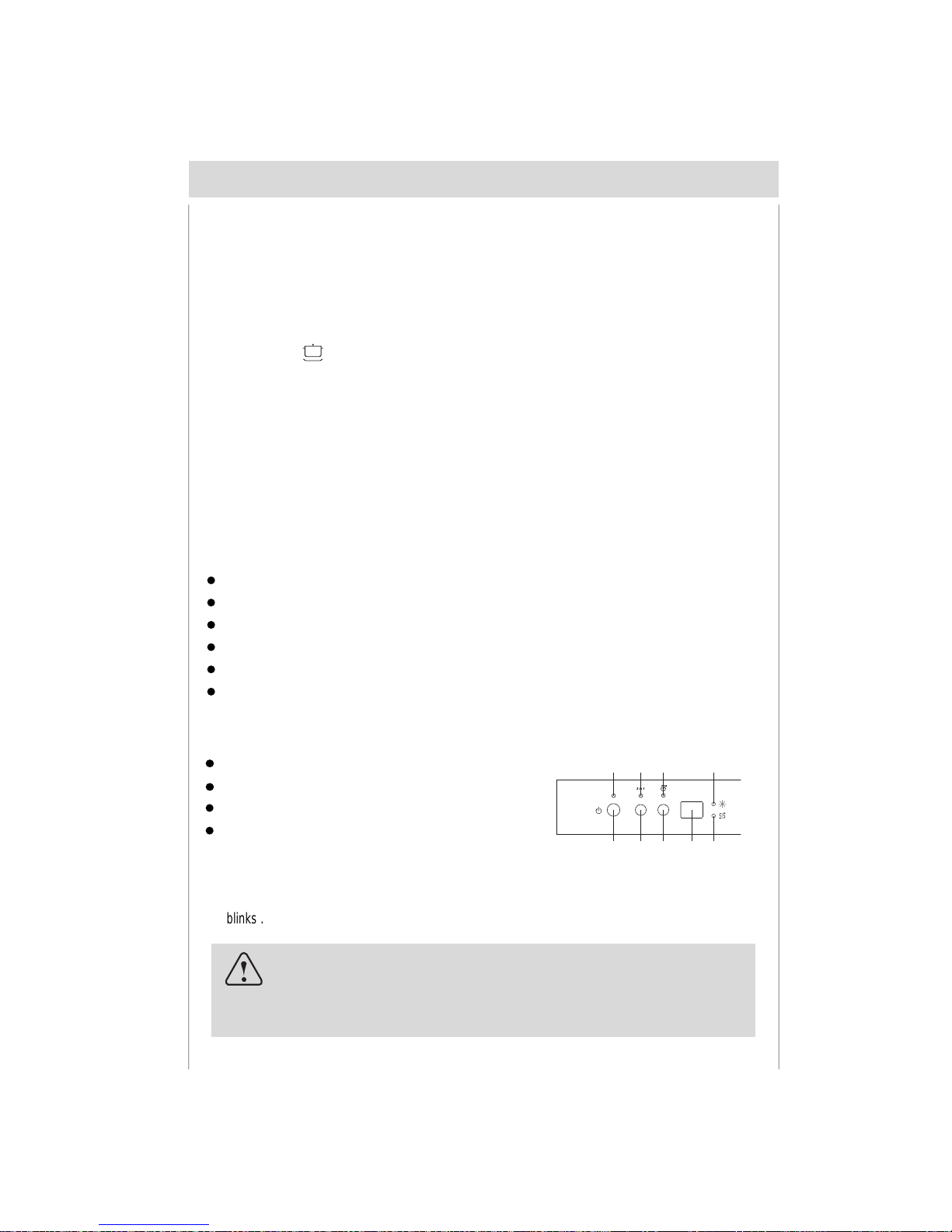

Washing dishes
Programme selection
The most appropriate programme can be identified by comparing the type of crockery, cutlery, etc., as
well as the amount and condition of food remains, with the details contained in the wash cycle table.The
corresponding programme sequence, duration and consumption details are shown in the right half of the
overview. For example:
Use the« normal» programme for dishes and utensils which have plenty of food remains stuck on
hard.
Earn savings
If only a small number of dishes have been loaded into the dishwasher,selecting a programme that
operates at the next lowest temperature will usually be sufficient.
Programme data
The stated programme data are based on standard operating conditions. The values can vary consider-
ably according to:
different amounts of dishes
temperature of mains water supply
pressure of mains water supply
ambient temperature
fluctuations in mains voltage
machine-related factors (e.g. temperature, water volume,...)
Switching the dishwasher ON
Turn on the tap.
Close the door after loading the appliance
Set On-Off button to On. The state indicator "A" light.
Rotate the knob to select programme you wish, the time-
remaining indicator display the time of the programme you
selected. After 3 seconds the appliance emits a short warn-
ing signal, and start the programme ,the state indicator "A"
blinks .
Warning
When the dishwasher power on, the programme which the knob indicated
can not be carried out, you must Rotate the knob to another programme
and then back to it.
B
A
DF
C
G
E
I
H
en

16
End of programme
Interrupping the programme
Open the door. Caution! There is a risk of water squirting out from inside the appliance. Do not open
the door fully until spray arm has stopped rotating.
When you open the door, the dishwasher will beep ten times every thirty seconds.
If the appliance has already heated up or the hot water was switched ON and then the appliance door
opened, leave the door ajar for several minutes and then close. Otherwise, the appliance door may
open due to expansion.
Delayed start programming
You can delay the start of a programme in increments of 1 hour up to 24 hours.
B
A
DF
C
G
E
I
H
Switch dishwasher ON.
Immediately press the Delayed Start button “ F ”, the delayed start indicator “ E ” blinks, the remain-
ing time indicator “ G” changes to “ ”.
Press the Delayed Start button for 2 seconds until the numerical display show the required delay.
To cancel the time delay setting, pressing the Delayed Start button until the delayed start indicator
“ E” goes out.
Rotate programme knob “ J ” to select the desired programme.
J
en
Close the door after loading the appliance.
Notice:
When the appliance is already underway press the button "B" for 3 seconds, all of
the settings will be cancelled.
Switching the dishwasher OFF
Several minutes after the programme has ended:
Set On-Off button to Off
Open the door .
Turn the water tap off.
Remove dishes, etc. when they have cooled down.
Six beeps will indicate that the wash cycle has finished and the state indicators "A" light.

17
After 3 seconds the delayed start indicator “ E” blinks, the time-remaining indicator “ G” will blink and
decrease , the programme will start until the delayed start indicator “ G” goes out .
3in1 function
When using "3 in 1"combination products, the rinse-aid and salt lights are no longer useful. It may be
helpful to select the lowest possible setting for water hardness.
If you decide to switch to the use of a standard detergent system we advise that you:
1: Refill both the salt and rinse aid compartments.
2: Switch the water hardness setting to the highest possible position and run for three normal cycles
without a load.
3: Readjust the water hardness setting again according to the conditions for your region (For more
information please refer to your instruction manual).
Reset drain function
You can use Reset drain function to stop the washing cycle under running by Rotating the knob to
"Reset ", and the appliance will stop after a few minutes drain phase.
Warning
Do not place the tablets in the tub or the cutlery basket as this will result in
poorer wash results. The tablets should be placed in the detergent doser.
Cancelling or modifying a cycle
Acycle that is underway can be modified if it has only been running for a short time. Otherwise, the
detergent may have already been used, and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled ( see the paragraph entitled, “ Loading the
detergent ”).
To modify a cycle that is already underway, follow the instructions contained in the paragraph entitled
"Reset drain function", and select the programme you wish (see the paragraph entitled, "Switching
the dishwasher ON").
B
A
D
C
G
E
I
H
Notice:
The usage of 3 in 1 or similar tablets is forbidden when Heat, Rapid Wash
and Soak programmes are selected.
en

18
How to keep your dishwasher in shape
After Every Wash
After every wash, turn off the water supply the appliance and leave the door slightly ajar so that moisture
and odors are not trapped inside.
Remove the plug
Before cleaning or performing maintenance, always remove the plug from the socket. Do not run risks.
No solvents or Abrasive Cleaning Products
To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning
products. Rather, use only a cloth and warm soapy water.
To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little
while vinegar, or cleaning product made specifically for dishwashers.
Moving the Appliance
If the appliance must be moved, try to keep it in a vertical position. If absolutely necessary, it can be
positioned on its back.
Seals
One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this from occurring.
The door should not be left in the open position since this could present a tripping hazard.
When You Go on Holiday
When you go on holiday, it is recommended that you run a wash cycle with the dishwasher empty and
then remove the plug from the socket, turn off the water supply and leave the door of the appliance
slightly ajar. This will help the seals last longer and prevent odors from forming within the appliance.
en
