Haier GE GDF510P M4 Series User manual

31-9335
2020 Plastic Tub Dishwasher
Technical Service Guide
GDF510PxM4xx
GDF511PxM4xx
GDF530PxM4xx
GDF630PxM4xx
GDF640HxM4xx
GDP615HxM4xx
GDP615HxN4xx
GDT530PxP0xx
GDT530PxP4xx
GDT540PxP4xx
GDT535PxM4xx
GDT540PxM4xx
GDT605PxM4xx
GDT630PxM4xx
GDT635HxM0xx
XDF300PxN4xx
XDF400PxN4xx
XDT500PxP4xx
June 2020

– 2 –
Safety Information
IMPORTANT SAFETY NOTICE
The information in this service guide is intended for use by
individuals possessing adequate backgrounds of electrical,
electronic, and mechanical experience. Any attempt to repair a
major appliance may result in personal injury and property
damage. The manufacturer or seller cannot be responsible for the
interpretation of this information, nor can it assume any liability in
connection with its use.
WARNING
To avoid personal injury, disconnect power before servicing
this product. If electrical power is required for diagnosis or test
purposes, disconnect the power immediately after performing the
necessary checks.
RECONNECT ALL GROUNDING DEVICES
If grounding wires, screws, straps, clips, nuts, or washers used to
complete a path to ground are removed for service, they must be
returned to their original position and properly fastened.
GE Appliances, a Haier Company
Copyright © 2020
All rights reserved. This service guide may not be
reproduced in whole or in part in any form without written
permission from GE Appliances, a Haier Company.
For Warranty Information:
1. Go to http://products.geappliances.com
2. Search the model number.
3. Click on the Literature tab.
4. Click on Use and Care Manual.
5. Locate the Warranty page.
Warranty

– 3 – (Continued next page)
Table of Contents
Safety Information ........................................................................................................................2
Warranty .......................................................................................................................................2
Table of Contents..........................................................................................................................3
Safety Requirements....................................................................................................................6
Nomenclature ...............................................................................................................................7
Specications ..............................................................................................................................8
Product Specications ..........................................................................................................8
Electrical Specications........................................................................................................8
Operation and Cycle Information..................................................................................................9
Troubleshooting ............................................................................................................................12
Flashing Lights .....................................................................................................................12
Will Not Start.........................................................................................................................12
Critical Errors........................................................................................................................13
Component Locator Views ...........................................................................................................14
Front Control.........................................................................................................................14
Top Control ...........................................................................................................................14

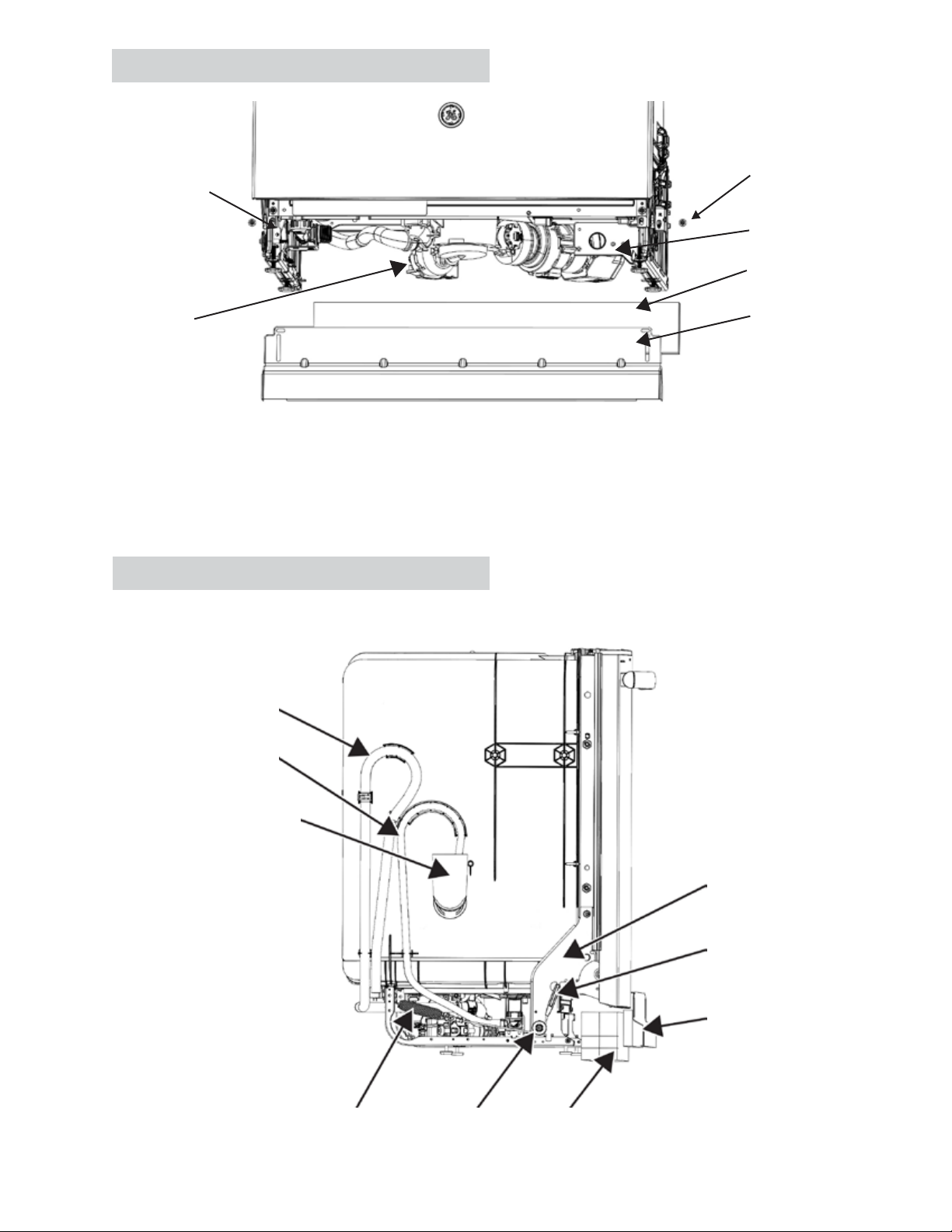

Toe Kick Area........................................................................................................................15
Side ......................................................................................................................................15

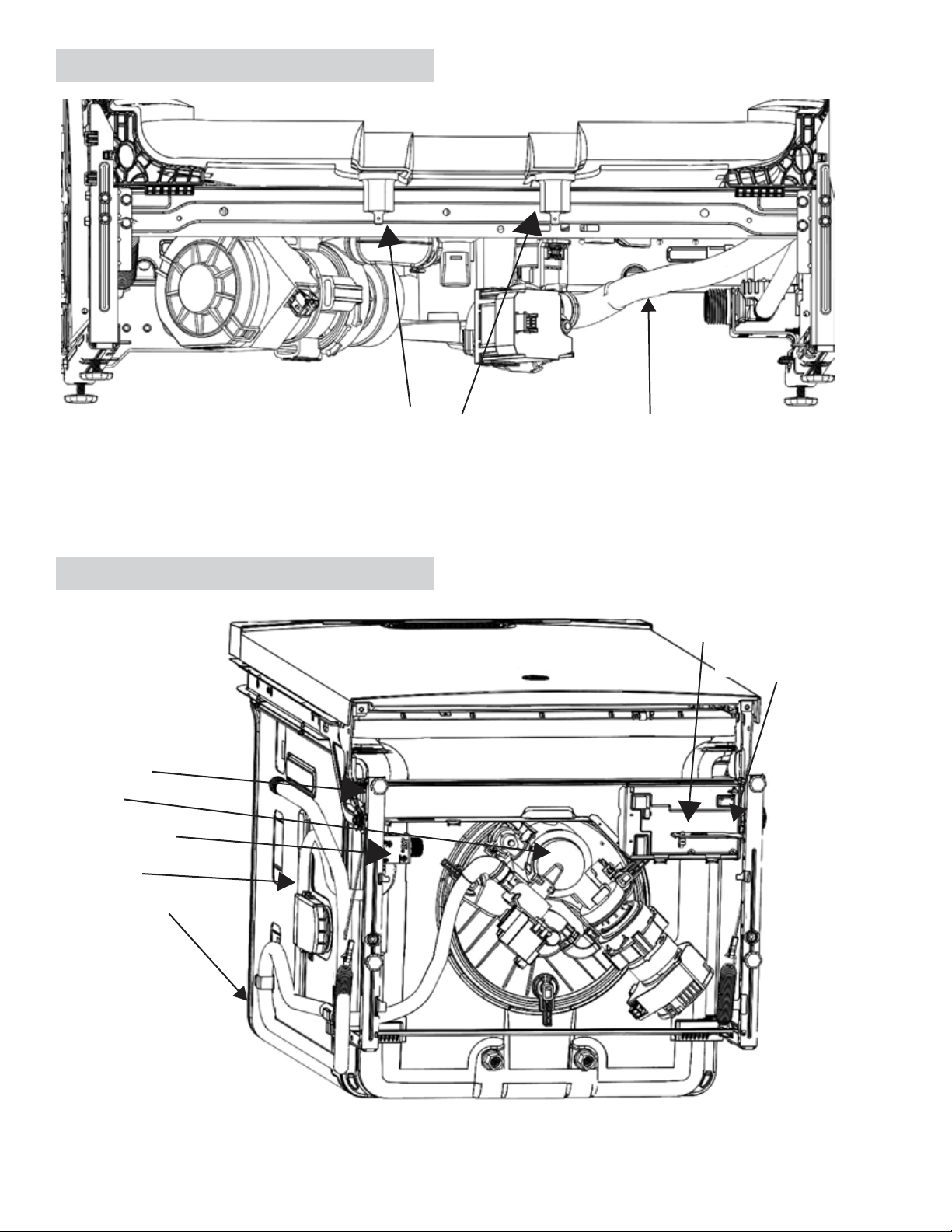

Back......................................................................................................................................16
Bottom ..................................................................................................................................16

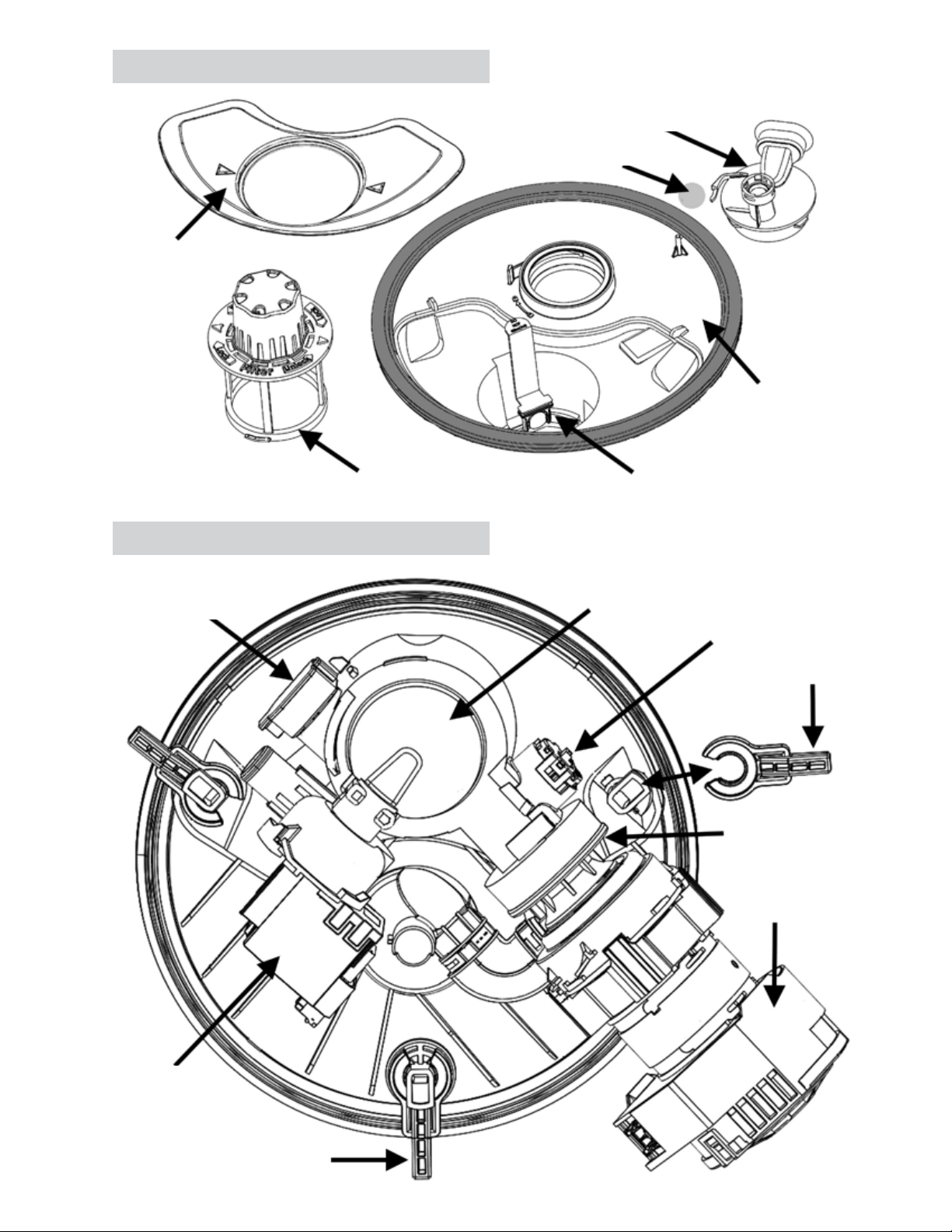

Sump (Top) ...........................................................................................................................17
Sump (Bottom) .....................................................................................................................17

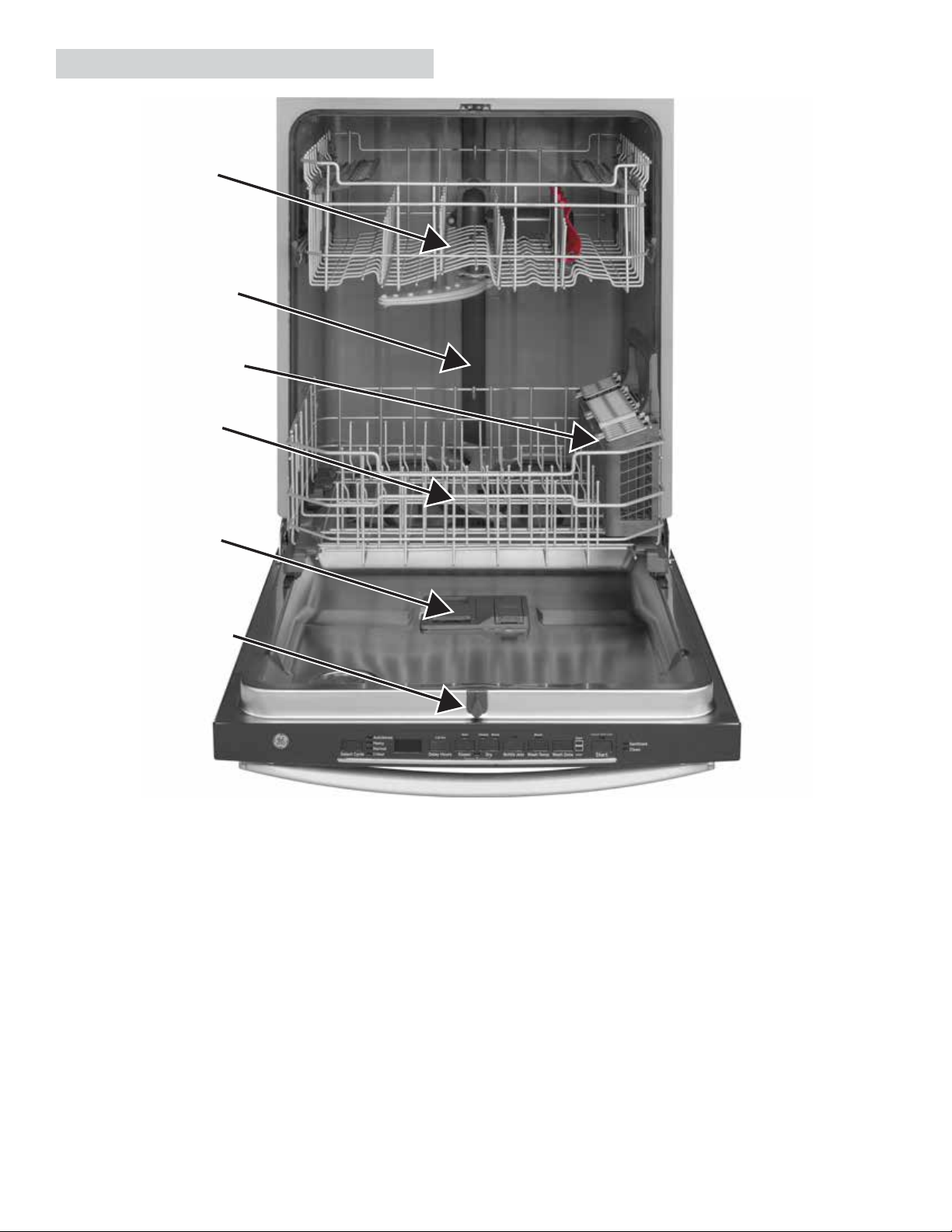

Inside ....................................................................................................................................18

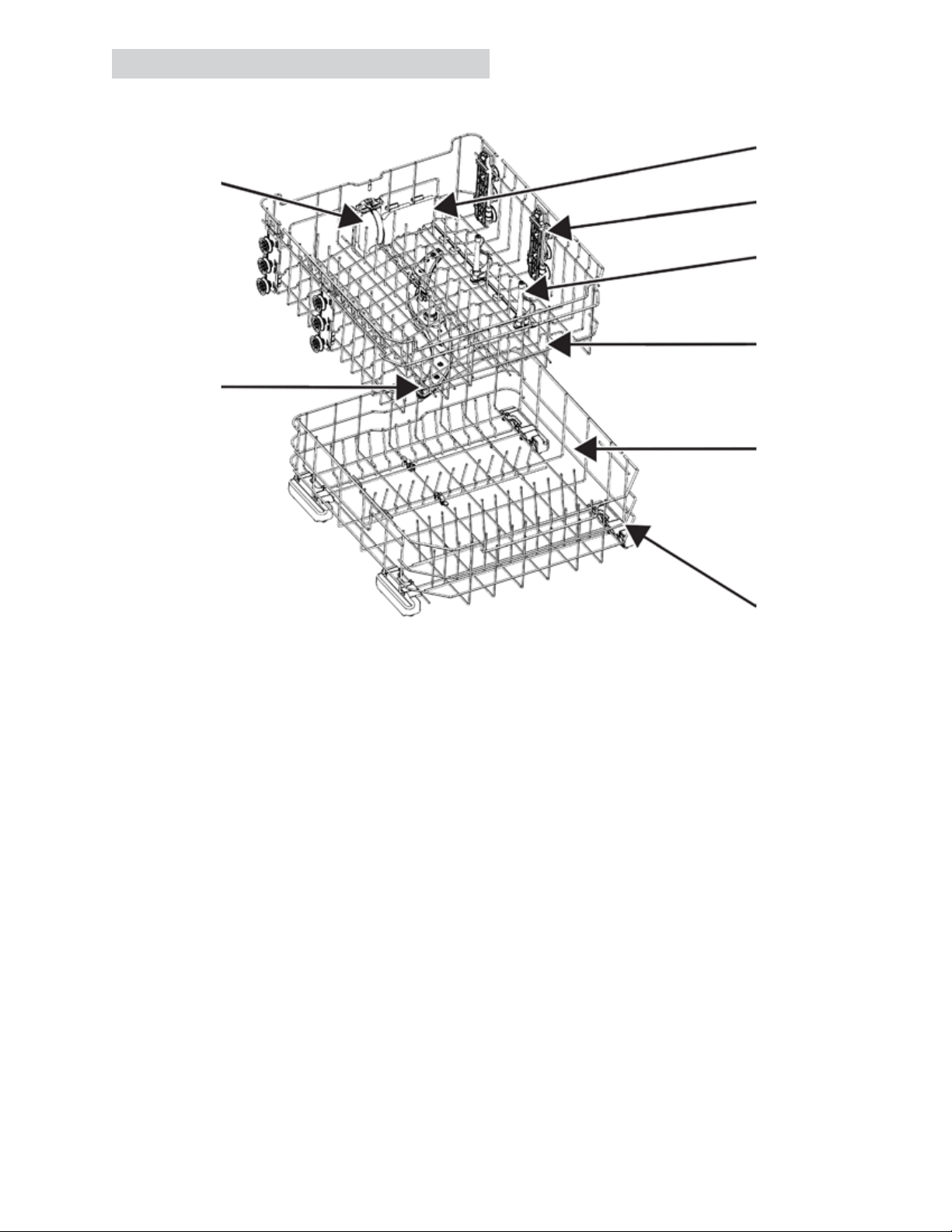

Racks....................................................................................................................................19
Tub and Structure .........................................................................................................................20
Tub Trim (some models).......................................................................................................20
Toe Kick ................................................................................................................................20
Junction Box and House Wiring Connection ........................................................................20
Leveling Legs .......................................................................................................................21
Door Balance System...........................................................................................................21
Hinge ....................................................................................................................................22

– 4 –
Tub Gasket ...........................................................................................................................22
Latch System........................................................................................................................23
Tub Latch Switch Diagnosis .................................................................................................24
Racks....................................................................................................................................24
Door......................................................................................................................................28
Inner Door Vent Cover..........................................................................................................30
Front Control Console ..........................................................................................................31
User Interface (UI) ................................................................................................................31
Front Control UI, Light Pipe and Buttons..............................................................................32
Pocket Handle (Front Control Only) .....................................................................................33
Pocket Handle (GDP615) .....................................................................................................33
Fan Assist Dry (On Some Models) .......................................................................................34
Top Control Panel, UI, Light Pipe and Buttons .....................................................................34
Top Control Console Cover ..................................................................................................35
Outer Door Panel..................................................................................................................36
Inner Door Panel ..................................................................................................................36
Door Gasket .........................................................................................................................37
Vent Parts (on some models) ...............................................................................................37
Detergent Dispenser.............................................................................................................37
Door Strike............................................................................................................................38
Sump Module .......................................................................................................................39
Sump Gasket........................................................................................................................44
Installing Sump Module ........................................................................................................44
Electronic Controls .......................................................................................................................45
Consumer Error Mode ..........................................................................................................45
Service Mode........................................................................................................................46
Diagnosing Electronic Control Boards..................................................................................46
Main Control Diagnostics......................................................................................................46
On the Main Control Board CSM..........................................................................................47
User Interface (UI) Diagnostics ............................................................................................49
Fill System....................................................................................................................................50
Water Level...........................................................................................................................50
Pressure Switch....................................................................................................................50
(Continued next page)

– 5 –
No Fill Diagnostics................................................................................................................52
Fill Funnel and Hose.............................................................................................................53
Fill Valve ...............................................................................................................................53
Circulation System .......................................................................................................................54
Diagnostics ...........................................................................................................................55
No Circulation and Drain ......................................................................................................56
Filtration................................................................................................................................57
Circulation Motor and Pump Assembly.................................................................................58
Two Port Diverter ..................................................................................................................59
Turbidity Sensor and Thermistor ..........................................................................................61
Thermistor.............................................................................................................................62
Conduits and Spray Arms.....................................................................................................63
Main Conduit ........................................................................................................................64
Spray Arms ...........................................................................................................................64
Middle Conduits....................................................................................................................65
Bottle Wash System (Some Models) ....................................................................................66
Upper Spray System ............................................................................................................66
Drain System................................................................................................................................67
Operation..............................................................................................................................67
Drain Pump Diagnostics .......................................................................................................67
Drain Components................................................................................................................67
Failure to Drain Diagnostics .................................................................................................68
Drain Pump...........................................................................................................................69
Dry System...................................................................................................................................70
Introduction and Operation ...................................................................................................70
Heater Components .............................................................................................................71
Heat Element Removal.........................................................................................................74
Venting / Airow ....................................................................................................................75
Schematics...................................................................................................................................76
GDF530, GDF540, GDF630, GDF640, GDP615, GDP615, GDT605, GDT630, GDT635, XDF300,
XDF400, XDT500 ...................................................................................................................76
GDF510, GDF511, GDT535, XDF300..................................................................................77
Index.............................................................................................................................................78

– 6 –
Prior to disassembly of the dishwasher to access components, GE
Factory Service technicians are REQUIRED to follow the Lockout /
Tagout (LOTO) 6 Step Process:
Safety Requirements
GEA Factory Service Employees are required to use safety glasses with side shields, safety gloves and
steel toe shoes for all repairs.
Step 1
Plan and Prepare
Step 4
Apply LOTO device and lock
Step 2
Shut down the appliance
Step 5
Control (discharge) stored
energy
Step 3
Isolate the appliance
Step 6
“Try It” verify that the appliance
is locked out
Steel Toed Work Boot
Electrically Rated Glove and
Dyneema® Cut Resistant Glove
Keeper
Dyneema®Cut Resistant
Glove
Cut Resistant Sleeve(s)
Plano Type Safety Glasses
Prescription Safety Glasses
Safety Glasses must be
ANSI Z87.1-2003 compliant

– 7 –
Serial Number
The rst two characters of the serial number identify the month and year of manufacture. The letter
designating the year repeats every 12 years.
Example: FL123456S = March, 2018
A: JAN
D: FEB
F: MAR
G: APR
H: MAY
L: JUN
M: JUL
R: AUG
S: SEP
T: OCT
V: NOV
Z: DEC
2024: Z
2023: V
2022: T
2021: S
2020: R
2019: M
2018: L
2017: H
2016: G
2015: F
2014: D
2013: A
Model and Serial Tag
Mini Manual
Model Number
G D T 6 3 0 P M M 4 E S
Brand
H: Hotpoint
G: GE
P: Prole
C: Cafe
Z: Monogram
Conguration
D: Built-In
P: Portable
Control Appearance
F: Front Control
T: Top Control
P: Top Control with Pocket Handle
Wash System
3: Low
5: Mid
6: Mid/Bottle Wash
7: High
8: Monogram
Feature Package
0 - 99
Interior Material
H: Hybrid (Plastic Tub/SS Inner Door)
P: Plastic Tub/Inner Door
S: Stainless Tub/Inner Door
Exterior Finish
G: Generic Color (Glass)
I: Panel Ready
M: Metallic
P: Pro
S: Stainless
Model Year
M: 2018
N: 2019
P: 2020
Engineering
Digit
0 - 99
Color
WW: White
CC: Bisque
BB: Black
II: Panel Ready
SA: Silver Metallic
SS: Stainless
ES: Slate
TS: Black Stainless
BS: Black Slate
The nomenclature breaks down and explains what the letters and numbers mean in the model number.
Nomenclature

– 8 –
Specications
AC Voltage
• Circulation Pump: 120 VAC, .8 amp – 3.8
LRA, 8GPM @ 5PSI
• Drain Pump: 120 VAC, ~40 Ω*, .65 amp, ~70
second cycle
• Main Control: Input 120 VAC, Output 120
VAC, and Output 5 and 13.5 VDC
Heater 120 VAC
Wet Dry
Watts 800 500 +/- 5%
Ohms 18 28.8 +/- 5%
Amps 6.67 4.17 +/- 5%
Thermistor Specications
Resistance Temperature
20k 50°F
11k 75°F
5.8k 100°F
3.4k 125°F
2.1k 150°F
1.3k 175°F
Product Specications
Electrical Specications
DC Voltage
• Door Switch: 13.5 VDC
• Water Valve: 13.5 VDC, 32 Ω, .83 GPM, ~1
minute cycle time
• User Interface (UI) Control: 13.5 VDC (some
models have 13.5 VDC output to detergent
module and dry fan)
• Detergent Cup: 13.5 VDC, 25 Ω, .5 second
to release detergent cup, 15 seconds to
release rinse aid
• Fan Assist Dry On some models, 13.5 VDC
• Flood Switch: 13.5 VDC, .42 amp
• Turbidity Sensor: 5 VDC to LED, 10K Ω
• Approximate Shipping Weight (lb.) ~ 70 pounds (depending on model)
• Height w/ Legs Retracted (in.) 33 3/8"
• Height w/Legs Extended (in.) 34 5/8"
• Overall Width (in.) 23 3/4"
• Overall Depth (in.) 24"

– 9 –
Operation and Cycle Information
This section of the guide provides details on segments of cycles, timing of cycles, temperature
expectations and cycling of the heater during the dry portion of a cycle.
Auto Hot Start
If incoming water temperature is below 75°F, Auto Hot Start is initiated at the beginning of the cycle
in an attempt to purge the home water lines of cooler water. Auto Hot Start can add up to 10 minutes
to overall cycle time. One Auto Hot Start segment includes a 1-minute ll, 1-minute circulate and
70-second drain, repeating this sequence if the 75°F temperature is not met. The dishwasher can
repeat this up to three times, if needed. If the temperature is met in one or two segments, the cycle
advances to the rst prewash segment of the cycle.
Cycle Times
Times will vary depending on options selected, incoming water temperature, and soil level (on some
models).
Incoming water temperature of 120°F through 140°F is recommended.
The cycle chart below explains the segments of a cycle (cycles for all models included, some cycles
are only in select models). The chart below details ll and drain times which depend on either a full or
partial drain. It provides the circulation time in each segment, but does not include dry cycles (see the
Dry System section in this service guide). Times will vary depending on turbidity response (on some
models), options selected and water temperature.
Cycle Algorithm Comparisons
Segment Description
Diverter
Position
Zonal
Use Light
Normal AutoSense
Heavy
1-hour/
ExpressFixed
Light
Soil
Heavy
Soil
Light
Soil
Heavy
Soil
PW1
Fill (gal)
Circ (min)
Heat
Drain
30LSA/
30USA No
0.8
3
No
No Drain
0.8
10
No
Empty
0.8
7
No
Empty
0.8
10
No
Empty
0.8
7
No
Empty
0.8
7
No
Empty
0.8
4
No
Empty
PW2
Fill (gal)
Circ (min)
Heat
Drain
LSA
with
pulsing No
0.8
10
No
Empty
0.8
10
No
Empty
0.8
10
No
Empty
0.9
4
No
Empty
PW3
Fill (gal)
Circ (min)
Heat
Drain
60 LSA/
60 USA No
0.8
5
No
Empty
0.8
5
No
Empty
0.8
5
No
Empty
PW4
Fill (gal)
Circ (min)
Heat
Drain
60 LSA/
60 USA
Yes
Shorten
~30%
0.8
15
Yes
Empty
Main
Wash
Fill (gal)
Circ (min)
Heat
Drain
180 LSA/
180 USA Yes will
Shorten
~30%
0
20
Yes
Empty
0.8
40
Yes
Empty
0.8
40
Yes
Empty
0.8
45
Yes
Empty
0.8
45
Yes
Empty
0.8
45
Yes
Empty
0.9
17
Yes
Empty
PR1
Fill (gal)
Circ (min)
Heat
Drain
180 LSA/
180 USA Yes will
Shorten
~30%
0.9
12
No
Empty
0.9
12
No
Empty
0.9
12
No
Empty
0.9
12
Yes
Empty
0.9
4
No
Empty
PR2
Fill (gal)
Circ (min)
Heat
Drain
60 LSA/ 60
USA Yes will
Shorten
~30%
0.95
4
No
Empty
0.8
4
Yes
Empty
0.8
4
No
Empty
0.8
4
No
Empty
0.8
5
No
Empty
0.8
5
No
Empty
0.8
4
No
Empty
0.9
4
No
Empty
Final
Rinse
Fill (gal)
Circ (min)
Heat
Drain
60LSA/
120USA No
0.95
5
No
Empty
0.8
15
Yes
Empty
0.8
15
Yes
Empty
0.8
15
Yes
Empty
0.9
30
Yes
Empty
0.9
30
Yes
Empty
0.9
30
Yes
Empty
0.9
9
Yes
Empty

– 10 –
NOTES:
• The previous chart has maximum segment parameters listed. The control will bypass some rinse
cycles if the turbidity sensor detects lower soil than the selected cycle maximum parameter, and
temperature targets are met.
• Selecting the Wash Temp option will add 5 minutes to Pre-Wash 4 (PR4) and Post-Rinse 1 (PW1).
This extra time is used to heat water.
• The Sani/Steam option will change the segments Pre-Wash 4 (PW4), (increasing heater operation).
• The Bottle Wash option (on some models) may increase the cycle time, adding up to 23 minutes;
water usage does not change.
• USA (Upper Spray Arm): When a number is placed before the USA, it indicates the approximate
time in seconds of operation.
• LSA (Lower Spray Arm): When a number is placed before LSA, it indicates the approximate time in
seconds of operation.
• PW: Pre Wash
• PR: Post Rinse
• FR: Final Rinse
Heater Algorithm, Dry Cycle
Normal with Heated Dry
Time
(minutes)
Calrod Description
7 Calrod on
27 Calrod Pulse - 2 minute on/1 minute off
14 Calrod off - Cool Down
Normal with Temp Boost or Steam/Sani Selected
7 Calrod on
57 Calrod Pulse - 1 minute on/1 minute off
Boost Dry Option
7 Calrod on
57 Calrod Pulse - 2 minute on/1 minute off
15 Calrod off - Cool Down
Target / Max Temperature Limits
Cycle PW4 MW Rinse FR
Light 125 130 135
Normal 125 140
Auto 130 130 140
Heavy 130 130 130 145

– 11 –
Cycle Option Selected Rinse Light Normal
Sensor Auto Heavy 1-Hour
No
Options
16 51 80 107 143 60
Boost
Dry N/A 155 184 211 247 164
Heated
Dry N/A 115 128 127 207 124
Bottle
Wash N/A 74 103 130 166 83
Temp
Boost N/A N/A 111 129 156 N/A
Sani-
Steam N/A N/A 155 171 176 N/A
Bottle
Wash
Boost
Dry N/A 178 207 234 270 187
Temp
Boost
Boost
Dry N/A N/A 215 233 260 N/A
Sani-
Steam
Boost
Dry N/A N/A 259 275 280 N/A
Bottle
Wash
Heated
Dry N/A 138 151 150 230 147
Temp
Boost
Heated
Dry N/A N/A 175 149 220 N/A
Sani-
Steam
Heated
Dry N/A N/A 219 197 211 243
Temp
Boost
Bottle
Wash
Boost
Dry N/A N/A 238 256 283 N/A
Sani-
Steam
Bottle
Wash
Boost
Dry N/A N/A 282 298 303 N/A
Sani-
Steam
Temp
Boost
Boost
Dry N/A N/A 259 275 280 N/A
Temp
Boost
Bottle
Wash
Heated
Dry N/A N/A 198 172 243 N/A
Sani-
Steam
Bottle
Wash
Heated
Dry N/A N/A 242 258 263 N/A
Sani-
Steam
Temp
Boost
Heated
Dry N/A N/A 219 235 240 N/A
Sani-
Steam
Temp
Boost
Bottle
Wash
Boost
Dry N/A N/A 282 298 303 N/A
Sani-
Steam
Temp
Boost
Bottle
Wash
Heated
Dry N/A N/A 242 258 95 N/A
All Zones

– 12 –
Troubleshooting
• Check voltage input to the dishwasher.
• Verify door switch operation, consult Consumer Error Mode, in the Electronic Controls section of
this service guide.
• Door must be closed within 5 seconds of pressing Start Pad (Safety Feature).
• Check the main board Service LED (see Main Control Diagnostics in Electronic Controls).
• Verify that the dishwasher is not in Demo Mode.
• CSM (Current Sense Module) tripped. Please refer to On the Main Control Board CSM in the
Electronic Controls section of this guide.
This troubleshooting section is an overview of diagnostic capabilities of the electronic control. The
control also features retrieval of fault codes when Consumer Error Mode is initiated; operation of loads
is achieved in Service Mode.
Details on Consumer Error Mode and Service
Mode, as well as Service LED are located in the
Electronic Controls section of this service guide.
Single mounting screw
If the control beeps and some LED's ash, this indicates the dishwasher door may be in the open
position. If the User Interface (UI) is ashing all the LED's or the Display (some models) is ashing, this
is an indication of a tripped CSM and the dishwasher is non-responsive, all the LED's will ash until the
CSM is reset. CSM diagnostics are covered in this service guide.
Flashing Lights
Will Not Start
Symptom: If the dishwasher is “dead”, no LED operation, no button operation or beeping occurs.
Diagnosis: Attempt placing the dishwasher in Consumer Error Mode.
Solution: The CSM (Current Sense Module) is tripped and must be fully diagnosed. Refer to On
the Main Control Board CSM section of this guide.
Symptom: If the start button either does not respond or it makes a triple beep sound every time it’s
pressed AND all other buttons respond as normal.
Diagnosis: The dishwasher may be in Demo Mode.
Solution: To exit Demo Mode, hold “SELECT CYCLE” and “HEATED DRY” at the same time for 5
seconds.

– 13 –
Critical errors will turn a cycle off and show a display alerting the consumer of a fault which will not
allow the dishwasher to function or cause an undesirable condition.
No Water Detected
In the event the internal water level does not change, the cycle will be cancelled and the user interface
will display the following:
• Models with SSD (Seven Segment Display) Screens: H20 will be displayed on the SSD screen.
• Models without SSD Screens: Wash Temp LED will blink continuously.
Water may be turned off. The consumer is directed to verify the water supply line is connected properly,
the supply line valve is turned on, and then restart the cycle. If this fails, the consumer is directed to
call for service.
Pressure Sensor Errors
In the event that the pressure sensor signal is undetectable or out of range, the cycle will be canceled
and the user interface will display the following:
• Models with SSD: PrS or PrF will be displayed.
• Models without SSD: Dry LED or Wash Temp+Dry LEDs will blink.
The control does not see a change in pressure during ll. Verify pressure sensor harness, then replace
the pressure sensor if needed.
Continuous Fill Error
In the event that consecutive signals from the pressure sensor detect high water level, the drain pump
will run and the User Interface (UI) will display the following:
• Models with SSD Screens: CFE will be displayed on the SSD screen.
• Models without SSD Screens: Cycle Indication LEDs will blink continuously.
The consumer is directed to turn off the water supply. Diagnose reasons for the water valve not
shutting off.
Critical Errors

– 14 –
Component Locator Views
Appearances may vary throughout this service guide. Some models do not have all features shown, or
may be different depending on the model number.
Front Console
Vent
Pocket Handle
Outer Door Panel
Front Control
Top Control
Latch Switch
Handle
Buttons
Vent
Console Cover

– 15 –
Toe Kick Area
Side
Water
Valve
Sump Toe Kick
Insulation
Junction Box
Toe Kick Screws
(x2)
Toe Kick
High Drain
Loop Hose
Fill Hose
Fill Funnel
Offset Leg
Balance Cable
Door
Spring
Pulley
Hinge
Bottom Insulation
(some models)

– 16 –
Heater Tower Nuts High Drain Loop
Back
Bottom
Level Leg
Sump
Water Valve
Fill Hose
Machine Control
Junction Box
High Drain Loop Hose

– 17 –
Fine Filter
Coarse Filter
Diverter
Diverter Check Ball
Sump
Drain Check Valve
Sump Latch Cam
Turbidity Sensor
Circulation Pump
Sump
Sump Latch Cam
Drain Pump
Pressure Switch
Floating Seal
Sump (Top)
Sump (Bottom)

– 18 –
Inside
Latch Striker
Detergent Module
Lower Rack
Silverware Basket
Main Conduit
Upper Rack

– 19 –
Mid Conduit
Mid Spray
Arm
Bottle Wash Hose
and Cover
(some models)
Upper Rack Rollers
and Brackets
Bottle Wash
Manifold
and Jets
(some models)
Upper Rack
Lower Rack
Lower Rack
Rollers
and Carrier
Racks

– 20 –

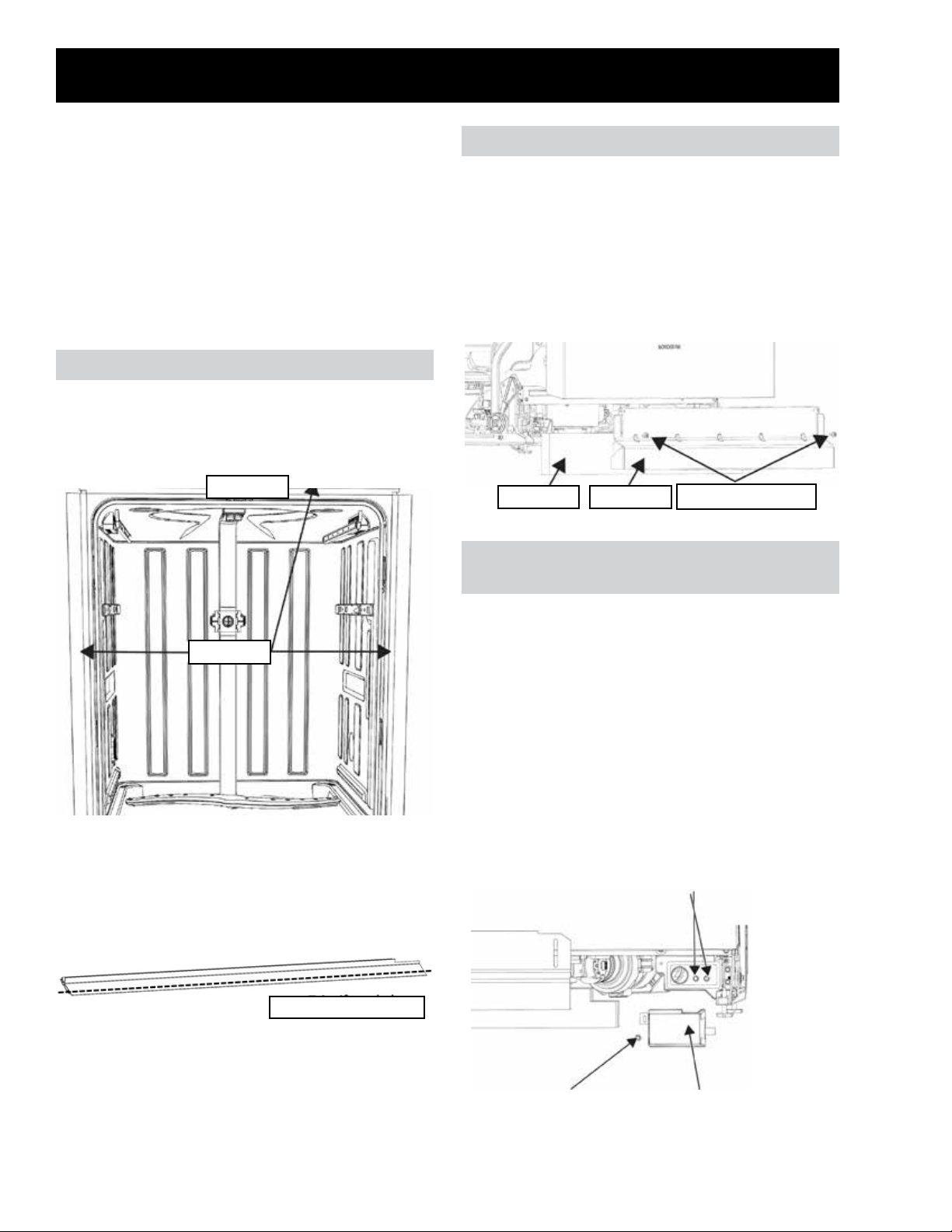

Tub and Structure
WARNING: GE Factory Service Technicians
are REQUIRED to follow Lockout / Tagout
(LOTO) 6 Step Process prior to beginning
repair.
The tub and structure section of this guide
will cover the toe kick, junction box, racks,
leveling legs, door balance, gaskets, trim (on
some models), main control board, door, door
components, as well as the removing and
separation of the screwless appearance door. It
will also cover the sump module and removal.
Details of the sump components will be covered
in the Circulation System or Drain System
sections of this service guide.
Tub Trim (some models)
Some models include tub trim which clips to the
plastic tub to reduce sound levels and provides a
cleaner appearance to the installation.
If the cutout prevents the dishwasher from being
fully installed, or if the trim rolls inward preventing
the door from closing, it may be trimmed to
t properly. The wiper edge must contact the
cabinet to be an effective sound barrier.
Toe Kick
The toe kick is a decorative panel covering the
machine area of the dishwasher. The panel
provides a safety barrier, closing the front of the
dishwasher machine compartment. The toe kick
prevents injury from electrical components under
the dishwasher. To remove the panel, remove
two 1/4-inch hex-head screws and pull the panel
away from the dishwasher.
Junction Box and House Wiring
Connection
The junction box is located behind the toe kick
on the right-hand side of the dishwasher. The
junction box is where the 120 VAC house voltage
connects to the dishwasher. The dishwasher
may be hardwired or an optional cord may
be installed (available separately, Part #:
WX09X70910), which plugs into a wall outlet and
connects to the harness plug into the control (see
the separate Installation Instructions for more
information). The cover is held in place with a
1/4-inch hex-head screw on the left side, and tab
on the right side. To remove the cover, remove
the screw and pull out and left to release the tab.
Tub Trim
Tub Trim
Tub Trim
Trim if needed
Insulation Toe Kick Toe Kick Screws
