Haier HDW13V1 User manual

User Manual
Dishwasher
HDW13V1 Models
AA

1
Please read these instructions carefully before using this appliance. The
instructions contain important information which will help you get the
best out of the appliance and ensure safe and proper installation, use and
maintenance.
Keep this manual in a convenient place so you can always refer to it for
the safe and proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move
house, make sure you also pass on this manual so that the new owner
can become familiar with the appliance and safety warnings.
Legend
General information and tips
Warning – Important Safety information
Environmental information
Disposal
Help protect the environment and human health. Put the packaging
in applicable containers to recycle it.Help to recycle waste of elec-
trical and electronic appliances. Do not dispose appliances marked
with this symbol with the household waste. Return the product to
WARNING!
Risk of injury or suffocation!
Disconnect the appliance from the mains supply. Cut off the mains
cable and dispose of it. Remove the door catch to prevent children
and pets to get closed in the appliance.
Thank you for purchasing a Haier product

2
Safety............................................................................................... 3
Product Description....................................................................... 5
Control Panel ................................................................................. 6
Programmes ................................................................................... 8
9
..............................................................................
Daily Use ....................................................................................... 12
Care and Cleaning........................................................................ 20
Troubleshooting .......................................................................... 22
Economic and Environmental Use ............................................. 25
Installation .................................................................................... 26
Technical Data ............................................................................. 30
Customer Service ........................................................................ 31
Content
Standards Test ............................................................................. 32

3
Intended Use
The appliance is designed for domestic use inside the house. It is not
intended for commercial or industrial use. Do not use it for purposes other
than that for which it was designed.
may cause hazards and loss of warranty claims.
Standards and Directives
This product meets the requirements of all applicable EC directives with
the corresponding harmonised standards, which provide for CE marking.
Safety
Before Switching on the Appliance for the FirstTime
Do…
▶
make sure all packaging is removed and is kept out of children’s reach.
▶make sure that the electrical information on the rating plate agrees
with the power supply. If it does not, contact an electrician.
▶use a separate earthed socket for the power supply.The appliance
must be earthed.
▶make sure the plug is easy accessible.
▶make sure only the delivered electric cable and hose set are used.
▶hold the plug and not the electric cable when unplugging the power
supply.
▶make sure not to damage the electric cable and the plug. If damaged,
have it replaced by an electrician.
▶
leakage.
Do not…
install or use the appliance where the temperature is below 5 °C.
use multi-plug adapters and extension cables.
let persons,children included,with reduced physical sensory,reduced
mental functions or lack of experience and knowledge use the appli-
ance if not supervised by a person responsible for their safety.
products in, near, or on theappliance.

4
During Daily Use
Do…
▶supervise children to prevent them playing with the appliance.
▶put sharp pointed objects (e.g. knives) in a way that there is no
danger of injury.
Do not…
open the door while a programme operates. The appliance can
release hot steam.
keep the appliance door open without supervision to prevent trip-
ping and falling.
let children or pets come close to the appliance when the door is
open.
sit or place heavy items on the open door.
remove the dishes from the appliance until the programme is
completed.There can still be detergent on the dishes.
drink the water in the appliance. The water may be contaminated
with detergent residues.
cover any ventilation openings in the base by a carpet or similar
object.
use water spray or steam to clean the appliance.
Safety
let the children make the cleaning and user maintenance without
supervision.
WARNING:
Some dishwasher detergents are strongly alkaline.They can be extremely
dangerous if swallowed.Avoid contact with the skin and eyes and keep
children away from the dishwasher when the door is open.Check that
the detergent receptacle is empty after completion of the wash cycle.

5
Product Description
1.
8.

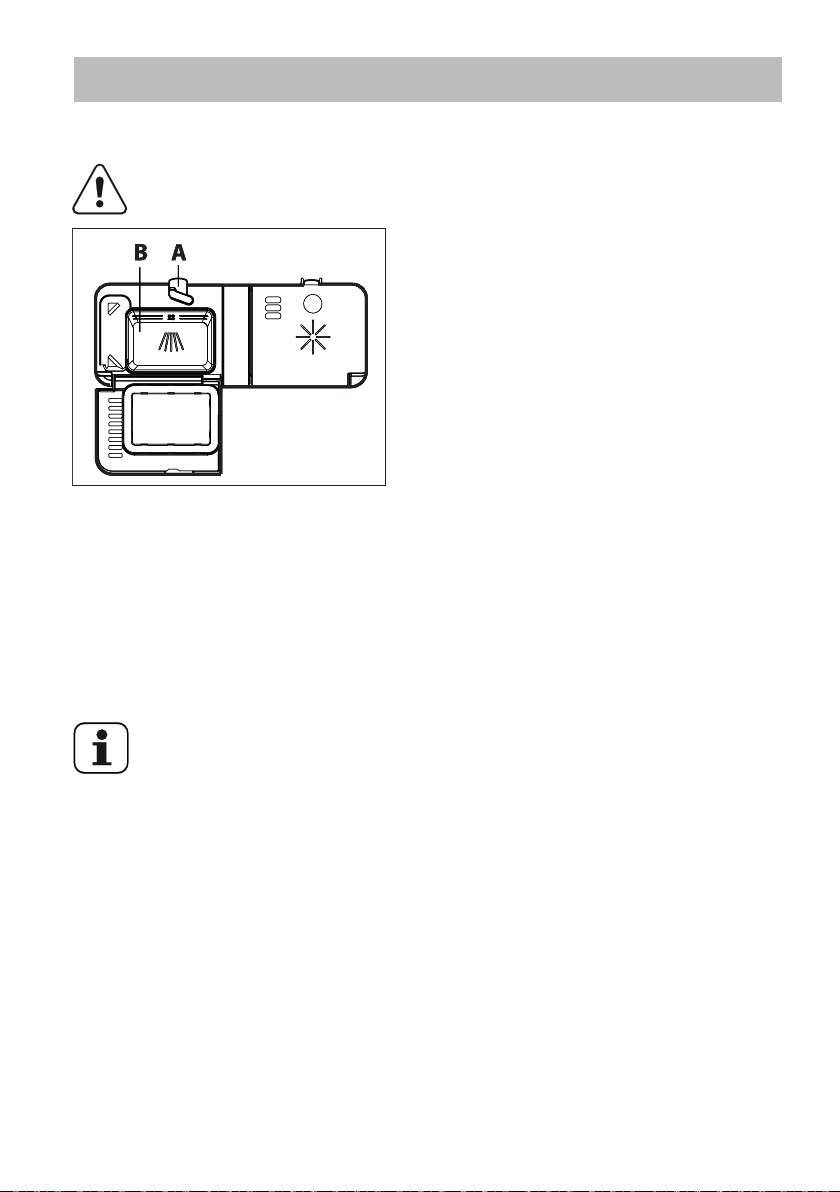

Detergent dispenser
2.
9.
Rating label

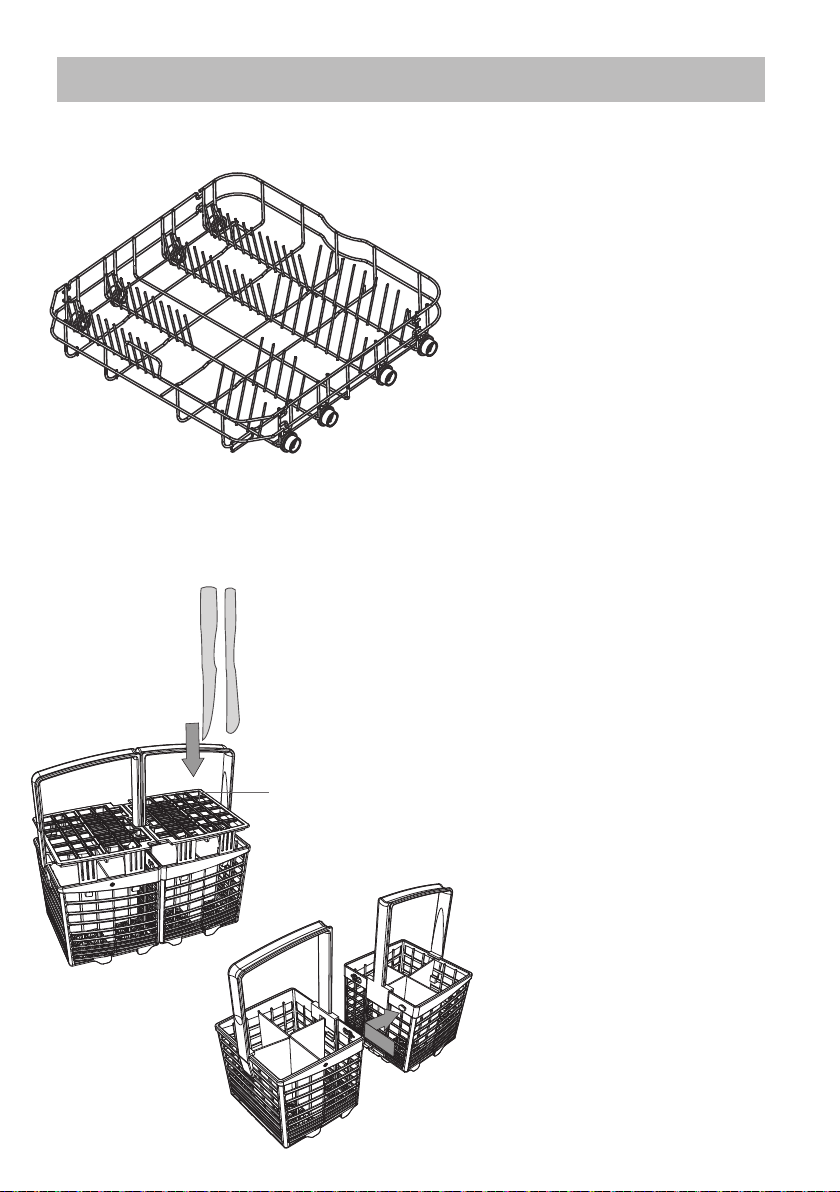

3.
Cutlery basket
4. Filters
Lower basket
5.
6.
Rinse aid dispenser
User manual
Accessories
Check the accessories and literature in accordance with this list:
U-support
water inlet hose
7.
Upper basket
Upper spray arm
Lower spray arm

6
Control Panel
HDW13V1W1/S1 :
12433 7
5
6
1. ON / OFF button
PROGRAMME SELECT button
Programme Indicators
Status Indication
Time & Info Display/Indicator Icon
START DELAY button
3.
5.
4.
6.
START / PAUSE button
7.
2.
Time & Info display
like
►Programme cycle time
►Programme start delay time
►Error codes and service information
►Remaining time in hours of a delayed programme starts, e.g.
►Remaining programme cycle time in hours + minutes, e.g.
While running it may vary due to local conditions and daily
working load.

Control Panel
7
Rinse aid
Water tap
If the indicator lights up
If the indictor lights up:Child lock mode has been opened
If the indictor lights up:Delay start mode has been opened
:Rinse aid is empty!
After adding Rinse Aid, press for 3 seconds
and the light goes out.
water.
Check section:“TROUBLESHOOTING”
Child Lock
Delay start
Status Indicators
Wash If the indicator lights up: the Dishwasher is washing.
Rinse If the indicator lights up: the Dishwasher is rinse washing.
Dry If the indicator lights up: the Dishwasher is drying.
Indicator Icon
Option Indication
Delay start
You can delay the start of a programme in 1 hour steps up
to 24 hours. Check the according paragraph under “Daily
use”.
Child Lock To activate or cancel Child lock , press and hold
until the Child lock indicator comes on or turn off.

8
Programmes
Light to heavy soil:
Casseroles, sauces, potatoes,
roasted or fried food
Non-delicate:
Dinnerware, cutlery,
pots and pans
Auto
Heavy
ECO
Heavy soil:
Casseroles, sauces, potatoes ,
rice,
roasted or fried food
Non-delicate:
Dinnerware,
pots and pans
Normal soil:
Soups, eggs, sauces, potatoes,
pasta, rice, roasted or fried food
Non-delicate:
Dinnerware cutlery,
glassware
Fresh soil:
Coffee, cake, milk, cold drinks,
salad, sausages
Non-delicate:
Dinnerware,
cutlery, glassware
Light soil:
Coffee, cake, milk, cold drinks,
salad, sausages
Delicate:
Glassware, dinnerware,
cutlery
Dishes to be stored
for a few days
before washing
All:
Dinnerware, cutlery,
glassware, pots and pans
Glass
Rinse
1) The appliance senses the type of soil and the quantity of items in the baskets. It automatically
adjusts the temperature and quantity of water, energy consumption and programme duration.
2)
3)
With this programme you can wash a load with fresh soil. It gives good washing results in a
short time.
Use this programme to quickly rinse the dishes. This prevents the remaining food to bond on
the dishes and bad odours to come out from the appliance. Do not use detergent with this
programme!
Light
pasta, rice,
pasta,
cutlery,
1)
2)
3)

9
First Steps
Remove all packaging materials, keep them out of children’s reach and
dispose them in an environmentally friendly manner.There could be water
residue inside the appliance due to quality checks in the factory.
Perform the following steps:
1. Install the appliance.
▶Refer to section INSTALLATION.
2.
3.
4.
Only for use of Multitabs:Adjust the rinse aid setting.
▶Refer to section DIFFERENT SETTINGS FOR RINSE AID.
Fill the rinse aid dispenser.
▶Refer to section HOW TO FILL THE RINSE AID DISPENSER.
Open the water tap.
Start any wash programme (apart from Rinse programme）
with detergent but no load to remove possible manufacturing resi-
dues.
Activate / De-Activate the Buzzer
An accoustic signal informs about the end of a programme.This signal
can be switched off.
Refer to section HOW TO ADJUST SETTINGS and select the -setting:
▶If the display shows the signal is switched off.
▶If the display shows the signal is switched on.
5.

10
Different Settings for Rinse Aid
Rinse aid is added during the last rinsing phase to dry the dishes without
streaks and stains.
Detergent (e.g. powder, tablets, ...)
▶requires separate rinse aid:
Factory default setting: . No settings are necessary.
The rinse aid is added from the rinse aid dispenser only.
Detergent with multifunction (e.g. Multitabs)
▶combine detergent and rinse aid:
The rinse aid setting should be adjust to . Please use the setting
instructions in section HOW TO ADJUST SETTINGS and select the
-setting.
The rinse aid is added from the rinse aid dispenser in addition to the
multitabs rinse aid.
Setting cuts off the rinse aid dosage and the rinse aid indication.
The higher the value for the higher the dosage.
Usually the recommended setting performs well. In case of streaks,
stains, shimmer etc.; refer to section TROUBLESHOOTING.
CAUTION!
Only use rinse aid for dishwashers.
Other products can cause damage to the appliance!

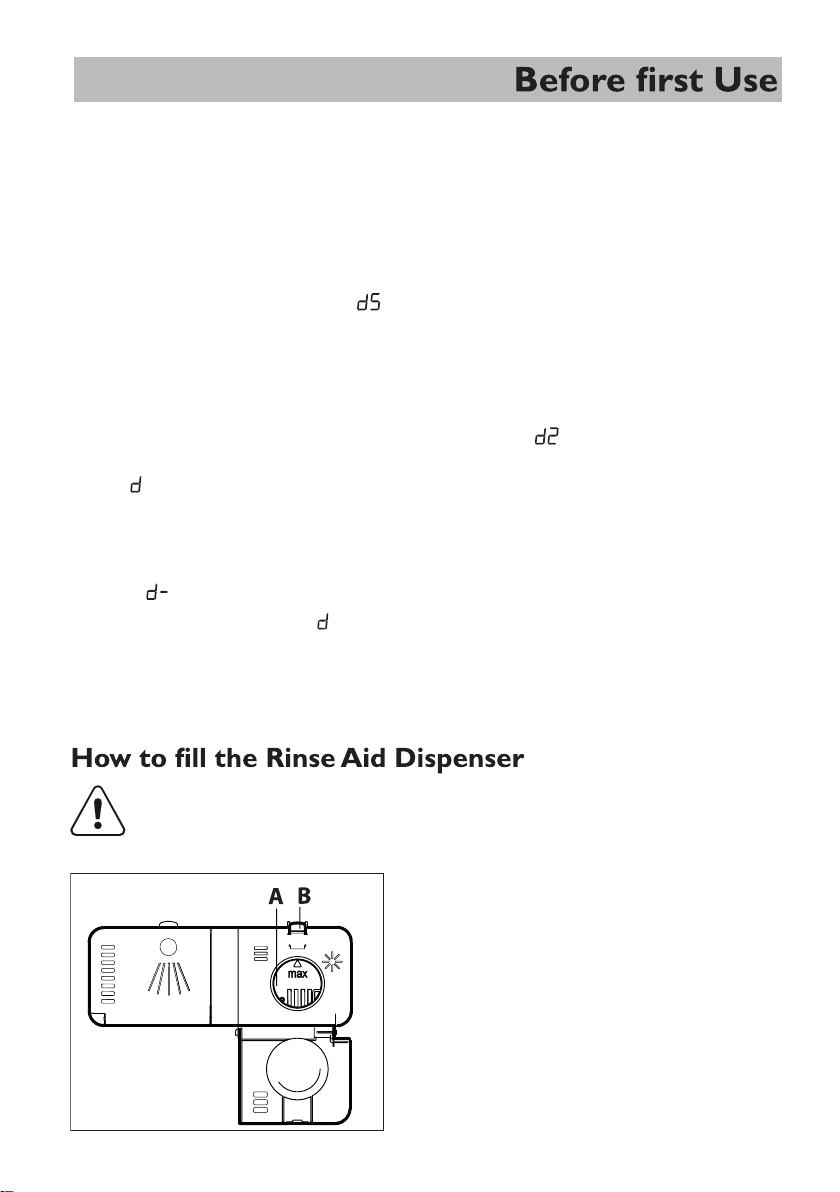

1. Press the release button (B) to open
the lid.
2.
Fill the tank (A) up to the ‘max’ mark.
3. Remove any spilled rinse aid with
an absorbent cloth. Overdosed or
spilled rinse aid may cause problems
creating foam
4.
Close the lid. Make sure that the
release button locks into position.

11
How to Adjust Settings
1. The appliance is switched off.
2. Press and hold
about 3 seconds until
3.
4.
To adjust the Rinse Aid level
►The display shows the current Rinse Aid setting (the default is ).
Press
to change the Rinse Aid setting
(minimum dispense) and
(maximum dispense).
To exit the Rinse Aid menu, press and hold for 1 second.
Activate / De-Activate the Buzzer
1. The appliance is switched off.
2. Press and hold for about 3 seconds until
►The display shows the current Rinse Aid setting.
3. Press to scroll to the buzzer menu.
4. The display will show (buzzer off) or (buzzer on).
Press to toggle between
5.
To exit ,press and hold 1 second.6.
Child lock
This feature disables all the buttons on the dishwasher. If any other
buttons are pressed while Child lock is activated, the Child lock
indicator will flash for a few seconds.
1.To activate Child lock, press and hold for 3 seconds.
2.The display will remain on (if no programme has been started it will
continue to flash while the control panel is locked).
3.To cancel Child lock, press and hold for 3 seconds.
in steps between
:
(buzzer off) or (buzzer on).
:

12
Please note that not all sales models comes with identical features and
options. So pictures of that chapter are sometimes different to your dish-
washer model. Explanations try only to point out basic model variants.
1. Load the baskets.
2. Press the ON/OFF button to activate the appliance.
▶
the rinse aid indicator; refer to section HOW TO RESET
THE RINSE AID IDNICATOR.
3. Add the detergent; refer to section DETERGENT.
4. Close the door.
5. Set the programme according to the type of load and how dirty the
dishes, cups and cutlery are.
6. Maybe select a start delay time.
7. Press the START / PAUSE button to start the programme.
8. After programme end the appliance change to auto off. Unload the
baskets.
How to Reset Rinse Aid Indicator
The appliance is switched on.
The rinse aid indicator is on:
1.
2. Press and hold the START/PAUSE button until the Rinse Aid
light up. The Status Indicators light up.
Daily Use
If the rinse aid indicator is on, fill the rinse aid dispenser and
reset
Always completely fill the rinse aid before starting the next wash
cycle.
indicators

13
Daily Use

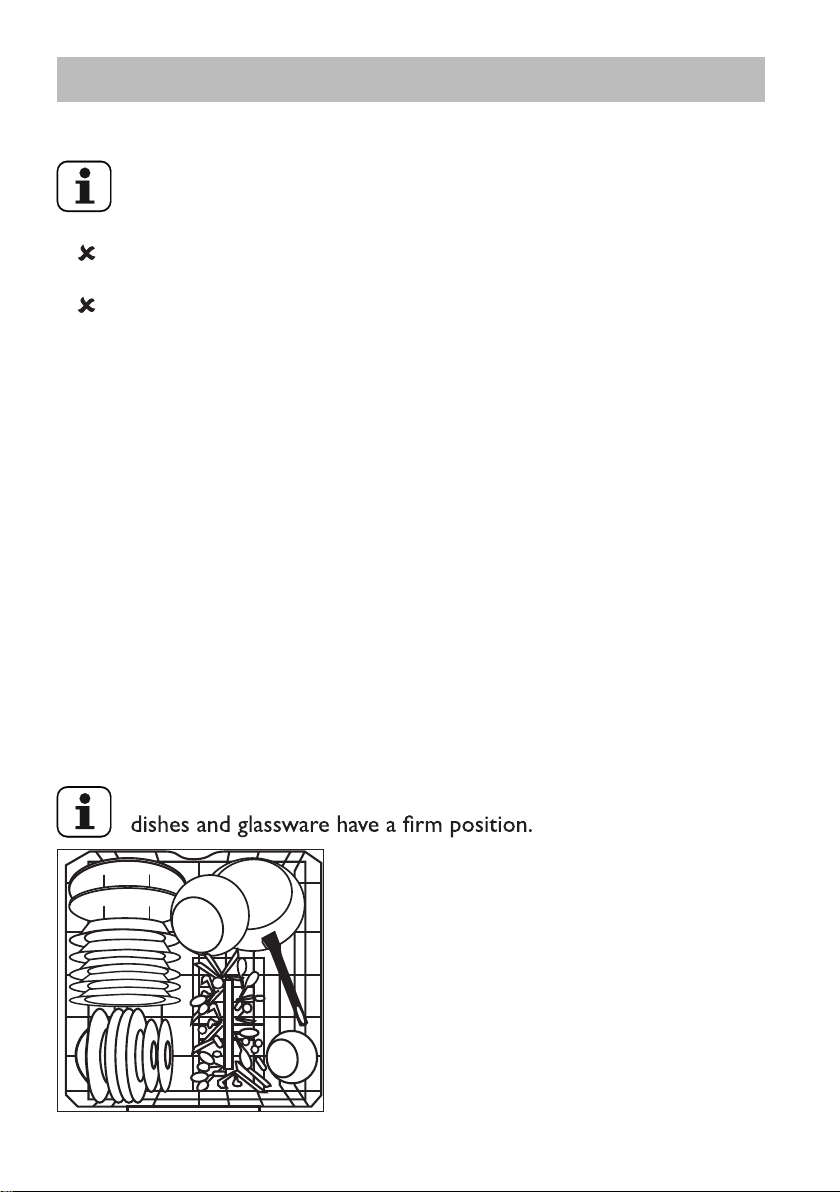

Load the Baskets
With delicate glasses and porcelain make sure they are labelled
dishwasher-proof.
Do not put in the appliance items made of wood, horn, aluminium,
pewter and copper.
Do not put in the appliance items that can absorb water (sponges,
household cloths).
▶Only use the appliance to wash items that are dishwasher-safe.
▶Remove remaining food from the items.
▶Soften burned food on the items before washing.
▶Put hollow items (cups, glasses and pans) with the opening down.
▶Put items with deep hollows in a slanted position.
▶Mix spoons with other cutlery to prevent them to bond together.
▶Make sure that cutlery and dishes do not bond together and there
is a gap between each item.
▶Make sure that glasses do not touch other glasses.
▶Put small items in the cutlery basket.
▶Put light items in the upper basket. Make sure that the items do
not move.
▶Make sure that the spray arms can move freely before you start a
programme.
If jingling noises are heard during a programme run: Check that the
Lower Basket
Place heavily soiled items (like pots and
pans or dinner plates) in the bottom
basket. The more powerful spray jet
provides a better dishwashing result.

14
Daily Use
Upper basket
Adjusting the height of the upper basket
The upper basket is designed
to hold items like glasses,
cups, saucers, plates, small
bowls and shallow pans.
You can adjust the height of
the upper basket to create
more space for tall items in
the lower basket. See below.
Place small items on the
foldable cup holder.
IMPORTANT!
Place sharp and pointed
items with the blade
pointing downward into the
knife rack, to keep
them out of harms way.
IMPORTANT!
Before you adjust its height,
make sure the basket is
empty.
1Turn the front safety stops on
either side outwards.
2
Slide the empty basket out of
the runners.
3
Reinsert the higher or lower
set of rollers in the runners
and slide the basket all the
way back in.
4
Turn the front safety stops
inwards.
Front safety
stop
Runner
▶
▶
▶

15
Daily Use
Lower basket
Cutlery basket
Place the largest items here:
pots, pans, lids, serving dishes
and bowls.
Fold down the tines to place
pots and pans flat on the
bottom.
Ensure dishware items do not
block the spray arm above
from rotating.
If you need more height for
tall items, you can raise the
upper basket. See instructions
on previous pages.
To reduce the risk of injury,
we recommend loading
knives and sharp utensils with
handles facing up.
Mix spoons, knives and forks
within each section to stop
cutlery nesting together and
to ensure the water circulates
freely. Alternatively, use the
clip-on anti-nesting grids to
keep cutlery items apart.
Keep stainless steel from
touching silver cutlery to
avoid staining.
You can halve the cutlery
basket as shown and use just
one section. This is useful if
the cutlery load is light or if
you want to make more space
for other dishes.
Removable
anti-nesting grid
►
►
►
►
►
►
►
►

16
Detergent
Please use only a dedicated dishwasher detergent and follow the
related instructions and dosage on its package.
1.
If the lid is closed press the release
button (A) to open the lid.
2.
Put any detergent into compart-
ment (B).
3.
If the programme has a pre-wash
phase, put a small quantity of
detergent on the inner part of the
appliance door. Refer to section
PROGRAMMES.
4.
Close the lid. Make sure that the
release button locks into position.
Daily Use
Multitabs
These Multitabs detergent tablets could include two different agents for
water
softening, rinse aid and other functions.The softener and rinse aid
setting must be adjusted according to section BEFORE FIRST USE.
Usually the default setting performs well. If there are streaks, stains, shim-
mer etc.; refer to sectionTROUBLESHOOTING and BEFORE FIRST USE.
Detergent tablets do not fully dissolve with short programmes.That
may cause bad washing results and detergent residues.
If detergent without multifunction should be used again:
1. Save 3 to 5 tablets
2. Adjust the softener and rinse aid setting according to section BEFORE
FIRST USE.
3. Use
Multitabs detergent tablets for the next 3 to 5 wash cycles.

17
Daily Use
Start a Programme
1. Close the door.
2. Press the ON/OFF button .
3. and then the required
programme indicator lights up.
4. If desired select a start time for a delay start. Refer to section START
A PROGRAMME WITH DELAY.
5. Press the START/PAUSE button to activate the programme or
the delay start.
The programme starts.The display acts now as countdown of the
remaining run-time.
The appliance remembers the last programme you used.The next
time the appliance will switch on, the appliance pre-selects the
programme last used.
Interrupt a Running Programme
To interrupt a programme run:
▶Press the START/PAUSE button . In the display is flashing.
and/or
▶
Press the START/PAUSE button and/or close the door to continue
the programme from the point of interruption. Longer breaks may cause
bad cleaning results.
On some models, the combination of all options is possible with all
programmes. You can set one option or combine all options.
1. Switch on the appliance.
2.
The display shows the duration of the programme.
3.
Activate / Deactivate options
Press the program button you want to select
Press any of the currently extinguished washing procedure icons to
select the washing procedure.
If needed，press any unlit additional function button (1/2, wash block,
increase the brightness).
If it can be matched with the current washing procedure,

18
Start a Programme with Delay
Set a start time by the following procedure in order to delay a programme
start:
1.
Set a programme.
2.
3.
4.
Daily Use
Cancel a Delayed Start
4.
Press the START/PAUSE button .
▶The display shows the countdown of the start delay.The count-
down decreases with steps of 1 hour.
▶When the countdown is completed, the programme starts.
The selected programme starts after a few seconds
the additional function indicates that the icon will be lit, and if it cannot
be matched, it will not be lit.
If the currently selected washing procedure is rapid washing, washing and
single rinsing, press the and add the button, the washing time can be
increased by 10 minutes at a time ,up to three times .
5. Press the button to start the program.
until the display flashes the
required delay time (from 1 to 24hours).
When the current reservation time is displayed for 24h,
press the reservation button again to cancel the reservation
Press and hold the reservation button
Afterwards the display flashes with the duration time
for the set programme.

19
Daily Use
3. Remove dishes:
▶
▶
Let the dishes become cold before removing them from the appli-
ance. Hot dishes damage more easily.
▶First remove the items from the lower basket, then from the
upper basket.
There can be water on the sides and on the door of the appliance.
Stainless steel becomes cool more quickly than the dishes.
End of Programme
When the programme is completed, the display shows and an ac-
coustic signal is heard (if it is not switched off).The display switches off.
1. Press to switch off the appliance or the appliance switches into
standby mode automatically after 2 minutes.
2. Open the door.
CAUTION!
If the door will be opened immediately after the end of
programme, hot steam can escape. Danger of scalding!
Open the door carefully!
Standby Mode
Cancel Start Delay / Programme
1. Press the ON/OFF button for about 1 second.
▶The start delay is cancelled.
▶The programme is aborted.
▶The appliance is switched off.
2. Start a new programme and a delayed start if desired.
CAUTION!
If a programme will be aborted in the process of washing dishes,
the residue of detergent remains on the dishes.These can cause
damage to health! Make sure to rinse off the detergent residues
completely before using these dishes again.
Make sure that there is detergent in the detergent dispenser before
start a new programme.
The switched on appliance will go into standby mode if it is not activated
within 2 minutes before starting a programme, or at the end of a
programme. This saves energy. The display switches off. To interrupt the
standby mode push one button.
Open the door slightly and leave it ajar (about 100 mm) to
help the drying process.
