Haier HDW15V3S1 User manual

User Manual
Dishwasher
HDW15V2/ HDW15V3 Models
AA

1
Please read these instructions carefully before using this appliance. The
instructions contain important information which will help you get the
best out of the appliance and ensure safe and proper installation, use and
maintenance.
Keep this manual in a convenient place so you can always refer to it for
the safe and proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move
house, make sure you also pass on this manual so that the new owner
can become familiar with the appliance and safety warnings.

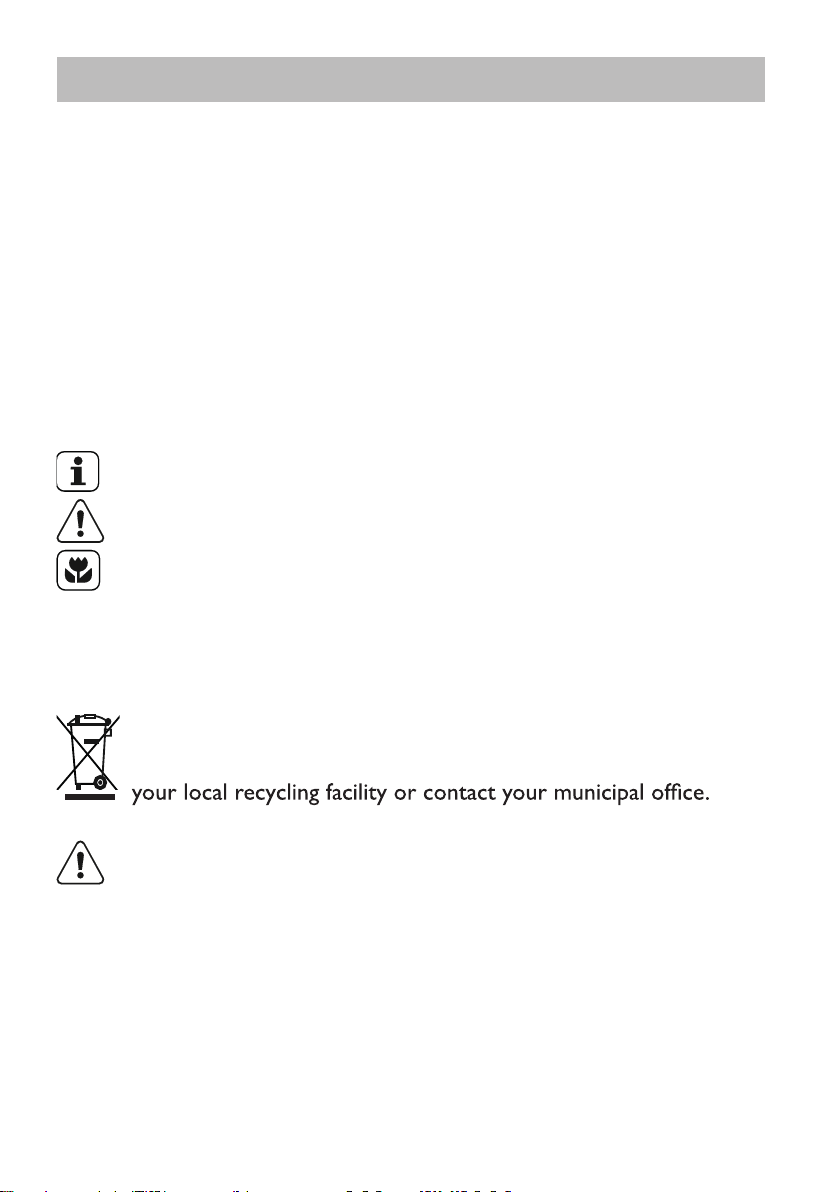

Legend
General information and tips
Warning – Important Safety information
Environmental information
Disposal
Help protect the environment and human health. Put the packaging
in applicable containers to recycle it.Help to recycle waste of elec-
trical and electronic appliances. Do not dispose appliances marked
with this symbol with the household waste. Return the product to
WARNING!
Risk of injury or suffocation!
Disconnect the appliance from the mains supply. Cut off the mains
cable and dispose of it. Remove the door catch to prevent children
and pets to get closed in the appliance.
Thank you for purchasing a Haier product

2
Safety............................................................................................... 3
Product Description....................................................................... 5
Control Panel ................................................................................. 6
Programmes ................................................................................... 9
11
............................................................................
Daily Use ....................................................................................... 14
Care and Cleaning........................................................................ 24
Troubleshooting .......................................................................... 26
Economic and Environmental Use ............................................. 29
Installation .................................................................................... 30
Technical Data ............................................................................. 34
Customer Service ........................................................................ 35
Content
Standards Test ............................................................................. 36

3
Intended Use
The appliance is designed for domestic use inside the house. It is not
intended for commercial or industrial use. Do not use it for purposes other
than that for which it was designed.
may cause hazards and loss of warranty claims.
Standards and Directives
This product meets the requirements of all applicable EC directives with
the corresponding harmonised standards, which provide for CE marking.
Safety
Before Switching on the Appliance for the FirstTime
Do…
▶
make sure all packaging is removed and is kept out of children’s reach.
▶make sure that the electrical information on the rating plate agrees
with the power supply. If it does not, contact an electrician.
▶use a separate earthed socket for the power supply.The appliance
must be earthed.
▶make sure the plug is easy accessible.
▶make sure only the delivered electric cable and hose set are used.
▶hold the plug and not the electric cable when unplugging the power
supply.
▶make sure not to damage the electric cable and the plug. If damaged,
have it replaced by an electrician.
▶
leakage.
Do not…
install or use the appliance where the temperature is below 5 °C.
use multi-plug adapters and extension cables.
let persons,children included,with reduced physical sensory,reduced
mental functions or lack of experience and knowledge use the appli-
ance if not supervised by a person responsible for their safety.
products in, near, or on theappliance.

4
During Daily Use
Do…
▶supervise children to prevent them playing with the appliance.
▶put sharp pointed objects (e.g. knives) in a way that there is no
danger of injury.
Do not…
open the door while a programme operates. The appliance can
release hot steam.
keep the appliance door open without supervision to prevent trip-
ping and falling.
let children or pets come close to the appliance when the door is
open.
sit or place heavy items on the open door.
remove the dishes from the appliance until the programme is
completed.There can still be detergent on the dishes.
drink the water in the appliance. The water may be contaminated
with detergent residues.
cover any ventilation openings in the base by a carpet or similar
object.
use water spray or steam to clean the appliance.
Safety
let the children make the cleaning and user maintenance without
supervision.
WARNING:
Some dishwasher detergents are strongly alkaline.They can be extremely
dangerous if swallowed.Avoid contact with the skin and eyes and keep
children away from the dishwasher when the door is open.Check that
the detergent receptacle is empty after completion of the wash cycle.

5
Product Description
1. Top spray 8.
Detergent dispenser
2. Upper spray arm 9.
Rating label
3. Lower spray arm 10.
Cutlery basket
4. Filters 11.
Lower basket
5. 12.
Upper basket
6. Rinse aid dispenser
Knife rack
User manual
Accessories
Check the accessories and literature in accordance with this list:
U-support
water inlet hose
The third basket
13.
7.
Thermo dry
1)
2)
1) Applicable to models HDW15V2. 2) Applicable to models HDW15V3.

6
Control Panel
HDW15V2W1/S1 :
12
HDW15V3W1/S1 :
1. ON / OFF button
3.
5.
Time & Info Display/Indicator Icon
4.
START / PAUSE button
6.
Option Indication
PROGRAMME Touch button
Status Indication
2.
4
5 3 36 5
124
5 3 6 3 5
1. ON / OFF button
3.
5.
Time & Info Display
4.
START / PAUSE button
6.
Option Indication
PROGRAMME Touch button
Status Indication
2.

Control Panel
7
Time & Info display
like
►Programme cycle time
►Programme start delay time
►Error codes and service information
►Remaining time in hours of a delayed programme starts, e.g.
►Remaining programme cycle time in hours + minutes, e.g.
While running it may vary due to local conditions and daily
working load.
Rinse aid
Water tap
If the indicator lights up
If the indictor lights up:Child lock mode has been opened
If the indictor lights up:Delay start mode has been opened
:Rinse aid is empty!
After adding Rinse Aid, press for 3 seconds
and the light goes out.
water.
Check section:“TROUBLESHOOTING”
Child Lock
Delay start
Status Indicators
Wash If the indicator lights up: the Dishwasher is washing.
Rinse If the indicator lights up: the Dishwasher is rinse washing.
Dry If the indicator lights up: the Dishwasher is drying.
Indicator Icon

8
Control Panel

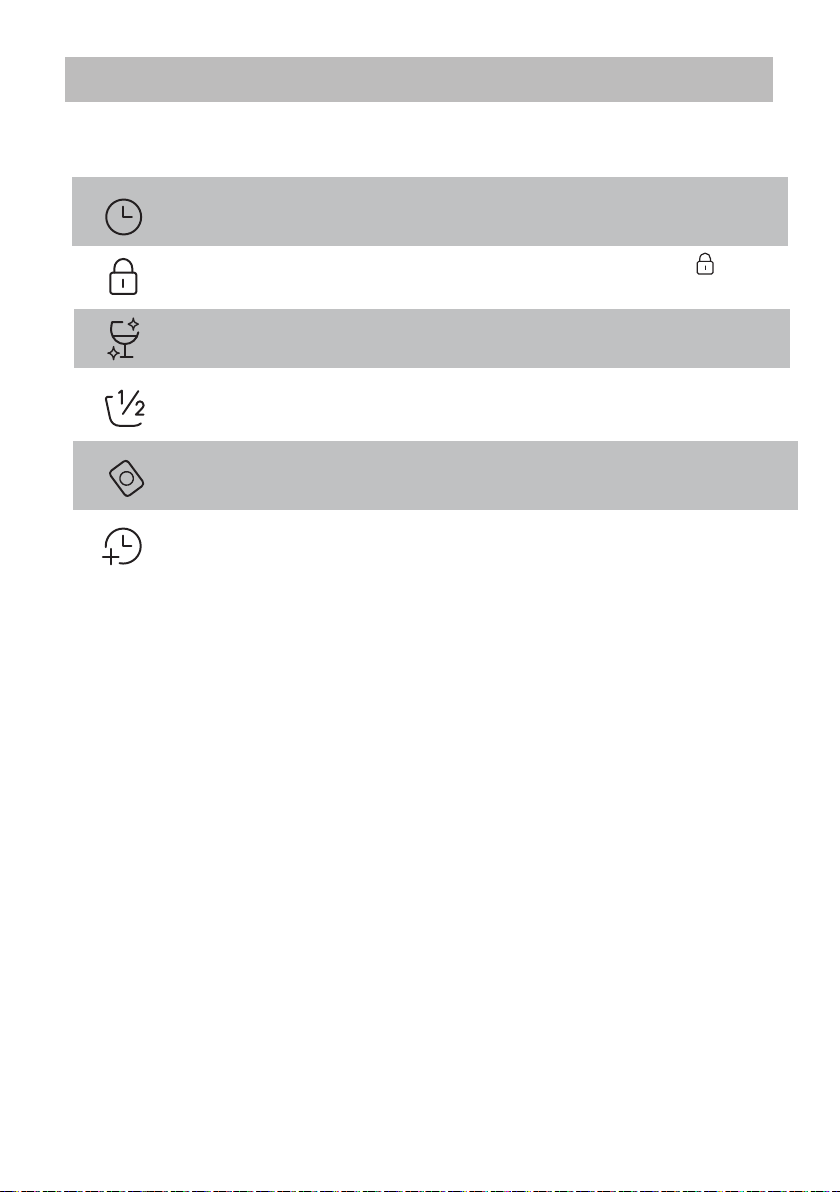

Option Indication
Delay start
You can delay the start of a programme in 1 hour steps up
to 24 hours. Check the according paragraph under “Daily
use”.
Child Lock To activate or cancel Child lock , press and hold
until the Child lock indicator comes on or turn off.
Extra shine This option reduces spots on glassware and dinnerware.
The option adds an extra intermediate rinse.
Half load
Add time
Use this option if you have only a few items to wash.
This will save water, energy and time. If you use powder
detergent use a little less detergent than for a full load.
Multitab
Activate this option only when you use the Tablet detergent
Related indication. The programme duration can increase.
tablets. This option decreases the flow of rinse aid and salt.
Press this button when you want to increase washing time
increase by 10 minutes at a time ,increase to three times.

9
Programmes
Light to heavy soil:
Casseroles, sauces, potatoes,
roasted or fried food
Non-delicate:
Dinnerware, cutlery,
pots and pans
Auto
Heavy
ECO
Heavy soil:
Casseroles, sauces, potatoes ,
rice,
roasted or fried food
Non-delicate:
Dinnerware,
pots and pans
Normal soil:
Soups, eggs, sauces, potatoes,
pasta, rice, roasted or fried food
Non-delicate:
Dinnerware cutlery,
glassware
Fresh soil:
Coffee, cake, milk, cold drinks,
salad, sausages
Non-delicate:
Dinnerware,
cutlery, glassware
Light soil:
Coffee, cake, milk, cold drinks,
salad, sausages
Delicate:
Glassware, dinnerware,
cutlery
Dishes to be stored
for a few days
before washing
All:
Dinnerware, cutlery,
glassware, pots and pans
Glass-Auto
Rinse
1) The appliance senses the type of soil and the quantity of items in the baskets. It automatically
adjusts the temperature and quantity of water, energy consumption and programme duration.
2)
3)
With this programme you can wash a load with fresh soil. It gives good washing results in a
short time.
Use this programme to quickly rinse the dishes. This prevents the remaining food to bond on
the dishes and bad odours to come out from the appliance. Do not use detergent with this
programme!
Fast
Mix
Hygiene
Hygiene soil:
Casseroles, sauces, potatoes,
pasta, rice,
Non-delicate:
Dinnerware
cutlery, pots and pans
Mixed soil:
Coffee, cake, milk, cold drinks,
salad, sausages, casseroles,
potatoes, pasta, rice,
roasted or fried food
Non-delicate:
Dinnerware, cutlery,
glassware
pots and pans
sauces,
pasta, rice,
pasta,
cutlery,
roasted or fried food
1)
2)
3)

Programmes
10
Saving
Pre-Rinse
Non-delicate:
cutlery
Dinnerware,
Light or fresh soil:
Soups, eggs, sauces,
pasta, rice, roasted or fried food
Mixed soil:
Coffee, cake, milk, cold drinks,
salad, sausages, casseroles,
potatoes, pasta, rice,
roasted or fried food
Non-delicate:
Dinnerware, cutlery,
glassware
pots and pans
sauces,
potatoes,
On HDW15V3 models

11
First Steps
Remove all packaging materials, keep them out of children’s reach and
dispose them in an environmentally friendly manner.There could be water
residue inside the appliance due to quality checks in the factory.
Perform the following steps:
1. Install the appliance.
▶Refer to section INSTALLATION.
2.
3.
4.
Only for use of Multitabs:Adjust the rinse aid setting.
▶Refer to section DIFFERENT SETTINGS FOR RINSE AID.
Fill the rinse aid dispenser.
▶Refer to section HOW TO FILL THE RINSE AID DISPENSER.
Open the water tap.
Start any wash programme (apart from Rinse programme）
with detergent but no load to remove possible manufacturing resi-
dues.
Activate / De-Activate the Buzzer
An accoustic signal informs about the end of a programme.This signal
can be switched off.
Refer to section HOW TO ADJUST SETTINGS and select the -setting:
▶If the display shows the signal is switched off.
▶If the display shows the signal is switched on.
5.

12

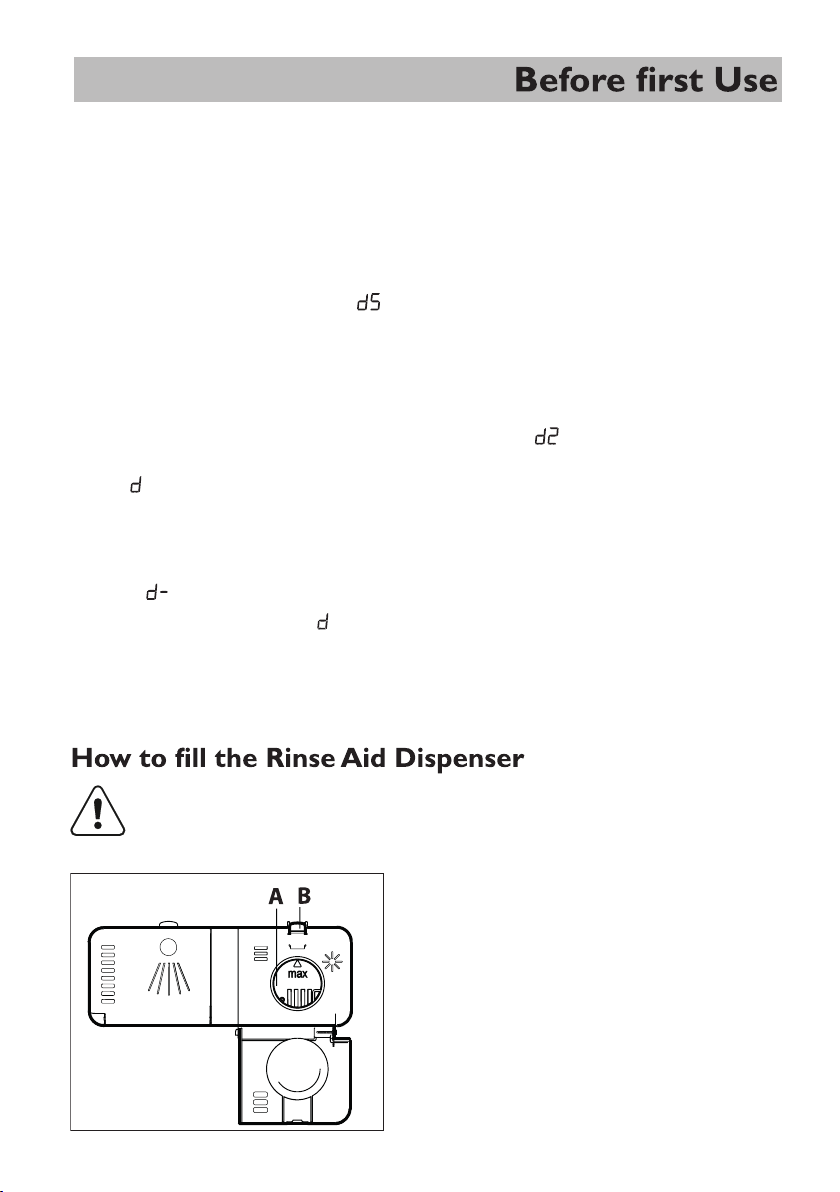

Different Settings for Rinse Aid
Rinse aid is added during the last rinsing phase to dry the dishes without
streaks and stains.
Detergent (e.g. powder, tablets, ...)
▶requires separate rinse aid:
Factory default setting: . No settings are necessary.
The rinse aid is added from the rinse aid dispenser only.
Detergent with multifunction (e.g. Multitabs)
▶combine detergent and rinse aid:
The rinse aid setting should be adjust to . Please use the setting
instructions in section HOW TO ADJUST SETTINGS and select the
-setting.
The rinse aid is added from the rinse aid dispenser in addition to the
multitabs rinse aid.
Setting cuts off the rinse aid dosage and the rinse aid indication.
The higher the value for the higher the dosage.
Usually the recommended setting performs well. In case of streaks,
stains, shimmer etc.; refer to section TROUBLESHOOTING.
CAUTION!
Only use rinse aid for dishwashers.
Other products can cause damage to the appliance!
1. Press the release button (B) to open
the lid.
2.
Fill the tank (A) up to the ‘max’ mark.
3. Remove any spilled rinse aid with
an absorbent cloth. Overdosed or
spilled rinse aid may cause problems
creating foam
4.
Close the lid. Make sure that the
release button locks into position.

13
How to Adjust Settings
1. The appliance is switched off.
2. Press and hold
and about 3 seconds until
3.
4.
To adjust the Rinse Aid level
►The display shows the current Rinse Aid setting (the default is ).
Press
to change the Rinse Aid setting
(minimum dispense) and
(maximum dispense).
To exit the Rinse Aid menu, press and hold for 1 second.
Activate / De-Activate the Buzzer
1. The appliance is switched off.
2. Press and hold and for about 3 seconds until
►The display shows the current Rinse Aid setting.
3. Press to scroll to the buzzer menu.
4. The display will show (buzzer off) or (buzzer on).
Press to toggle between
5.
To exit ,press and hold 1 second .6.
Child lock
This feature disables all the buttons on the dishwasher. If any other
buttons are pressed while Child lock is activated, the Child lock
indicator will flash for a few seconds.
1.To activate Child lock, press and hold for 3 seconds.
2.The display will remain on (if no programme has been started it will
continue to flash while the control panel is locked).
3.To cancel Child lock, press and hold for 3 seconds.
in steps between
:
(buzzer off) or (buzzer on).
:

14
Please note that not all sales models comes with identical features and
options. So pictures of that chapter are sometimes different to your dish-
washer model. Explanations try only to point out basic model variants.
1. Load the baskets.
2. Press the ON/OFF button to activate the appliance.
▶
the rinse aid indicator; refer to section HOW TO RESET
THE RINSE AID IDNICATOR.
3. Add the detergent; refer to section DETERGENT.
4. Close the door.
5. Set the programme according to the type of load and how dirty the
dishes, cups and cutlery are.
6. Maybe select a start delay time.
7. Press the START / PAUSE button to start the programme.
8. After programme end the appliance change to auto off. Unload the
baskets.
How to Reset Rinse Aid Indicator
The appliance is switched on.
The rinse aid indicator is on:
1.
2. Press and hold the START/PAUSE button until the Rinse Aid
light up. The Status Indicators light up.
Daily Use
If the rinse aid indicator is on, fill the rinse aid dispenser and
reset
Always completely fill the rinse aid before starting the next wash
cycle.
indicators

15
Daily Use
Load the Baskets
With delicate glasses and porcelain make sure they are labelled
dishwasher-proof.
Do not put in the appliance items made of wood, horn, aluminium,
pewter and copper.
Do not put in the appliance items that can absorb water (sponges,
household cloths).
▶Only use the appliance to wash items that are dishwasher-safe.
▶Remove remaining food from the items.
▶Soften burned food on the items before washing.
▶Put hollow items (cups, glasses and pans) with the opening down.
▶Put items with deep hollows in a slanted position.
▶Mix spoons with other cutlery to prevent them to bond together.
▶Make sure that cutlery and dishes do not bond together and there
is a gap between each item.
▶Make sure that glasses do not touch other glasses.
▶Put small items in the cutlery basket.
▶Put light items in the upper basket. Make sure that the items do
not move.
▶Make sure that the spray arms can move freely before you start a
programme.
If jingling noises are heard during a programme run: Check that the
Lower Basket

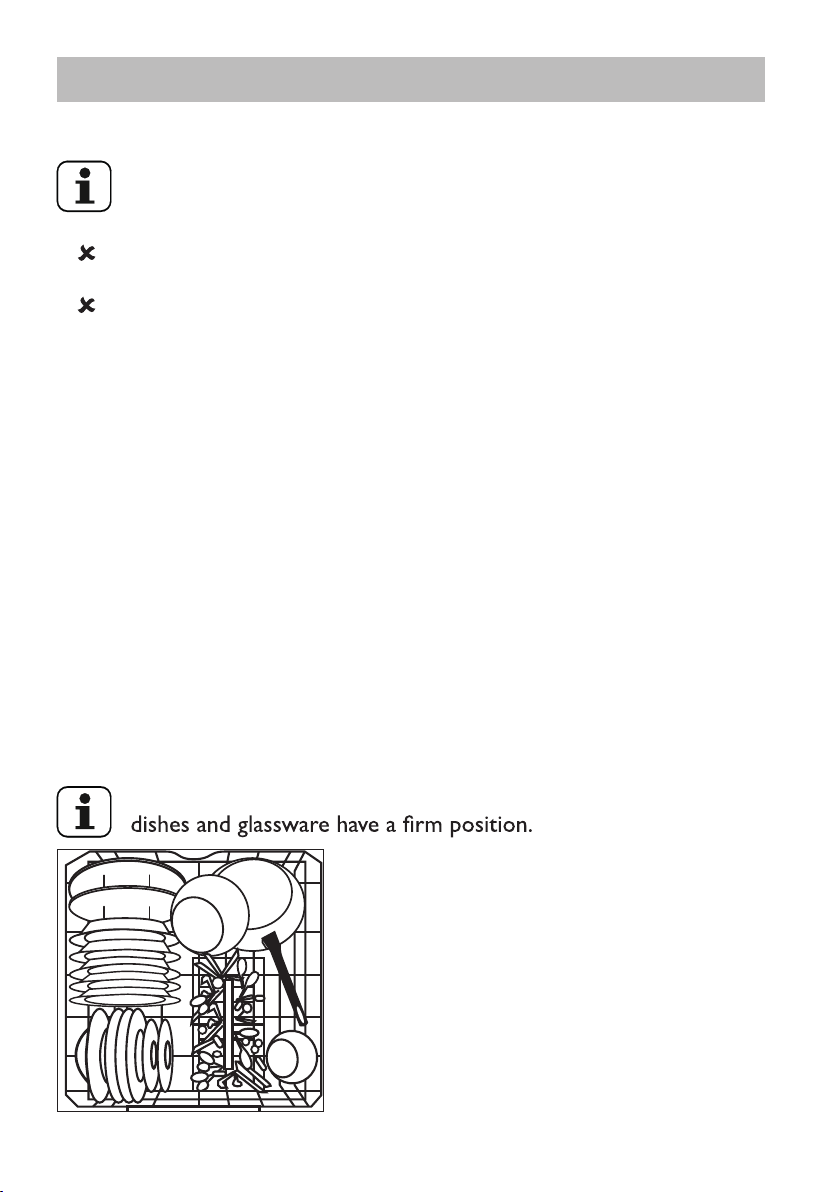

Place heavily soiled items (like pots and
pans or dinner plates) in the bottom
basket. The more powerful spray jet
provides a better dishwashing result.

16
Daily Use
Cutlery Basket
▶ Mix spoons with other cutlery to
prevent them to bond together.
▶
Use the grid element in order to
separate the cutlery.
▶
Place cutlery with the handles down
for better washing results.
▶
If long items may block the spray
the upper basket.
CAUTION!
Put sharp and pointed items with
the blade pointing downward to
keep them out of harm’s way.
The lower basket has folding spikes.
Fold down these spikes to improve
arrangement of pots, pans and bowls.
HDW15V2:
HDW15V2 and HDW15V3:

17
Upper Basket and utensil tray
Place small items on the foldable cup
holder.
Daily Use
Utensil tray ►The upper basket is designed to hold
items like glasses, cups, saucers, plates,
small bowls and shallow pans.
►Use the utensil tray to securely hold
long or sharp items like knives,
chopsticks, or ladles. Ensure that knife
blades are facing down.
►Slide or remove the utensil tray if you
need the space for other items below.
►You can adjust the height of the upper
basket to create more space for tall
items in the lower basket.
HDW15V2:
CAUTION!
Place sharp and pointed items
with the blade pointing down-
ward into the knife rack, to keep
them out of harm’s way.
Utensil tray
►
HDW15V3: For best washing results place the
table knifes in the knife rack.

18
Daily Use

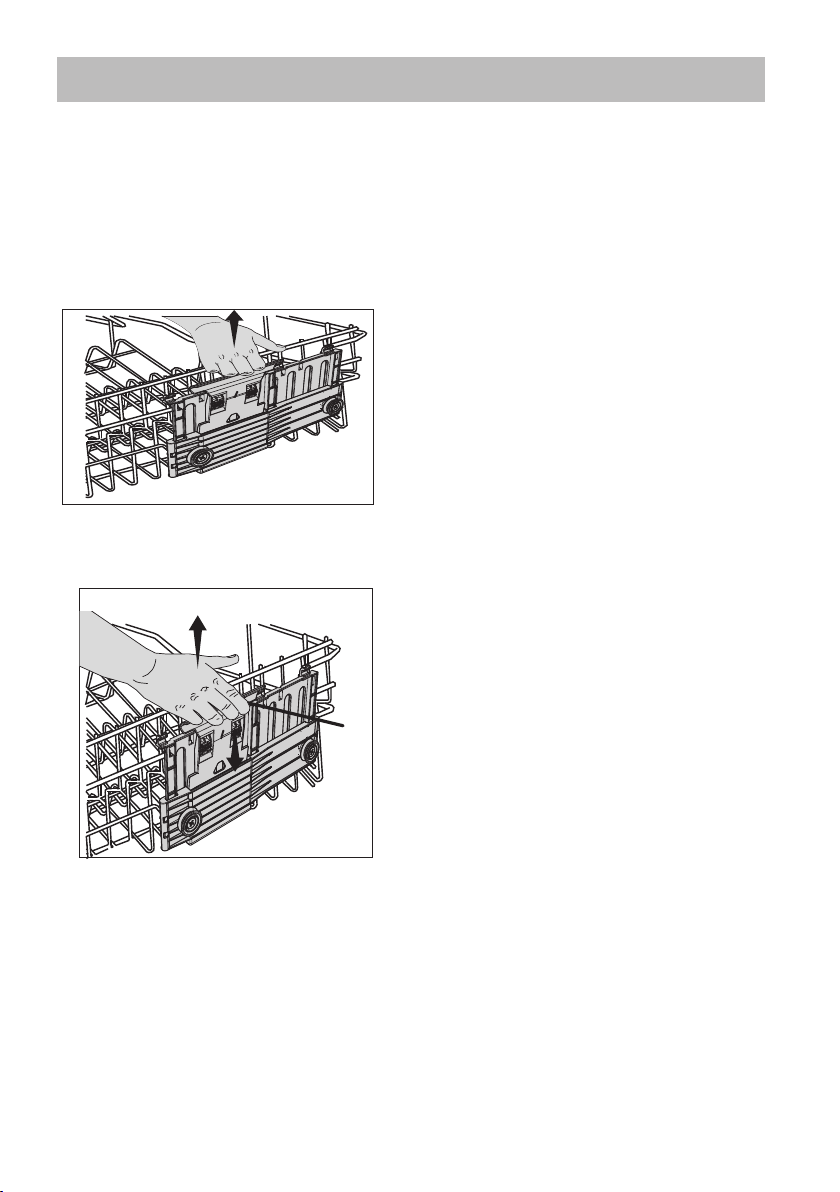

Lift the basket
1. Pull out the upper basket.
2. Hold the basket on both sides on
the edge above the lever.
3. Lift the basket till you hear a click.
4. Check the horizontal position and
safe lock of the basket.
Model with lever for easy height adjustment of the upper basket.
HDW15V2 / HDW15V3 :
Lower the basket
1.
Press the lever on both sides to
lower the basket.
2. Check the horizontal position and
safe lock of the basket.
2
Lever
1
2

19
Daily Use

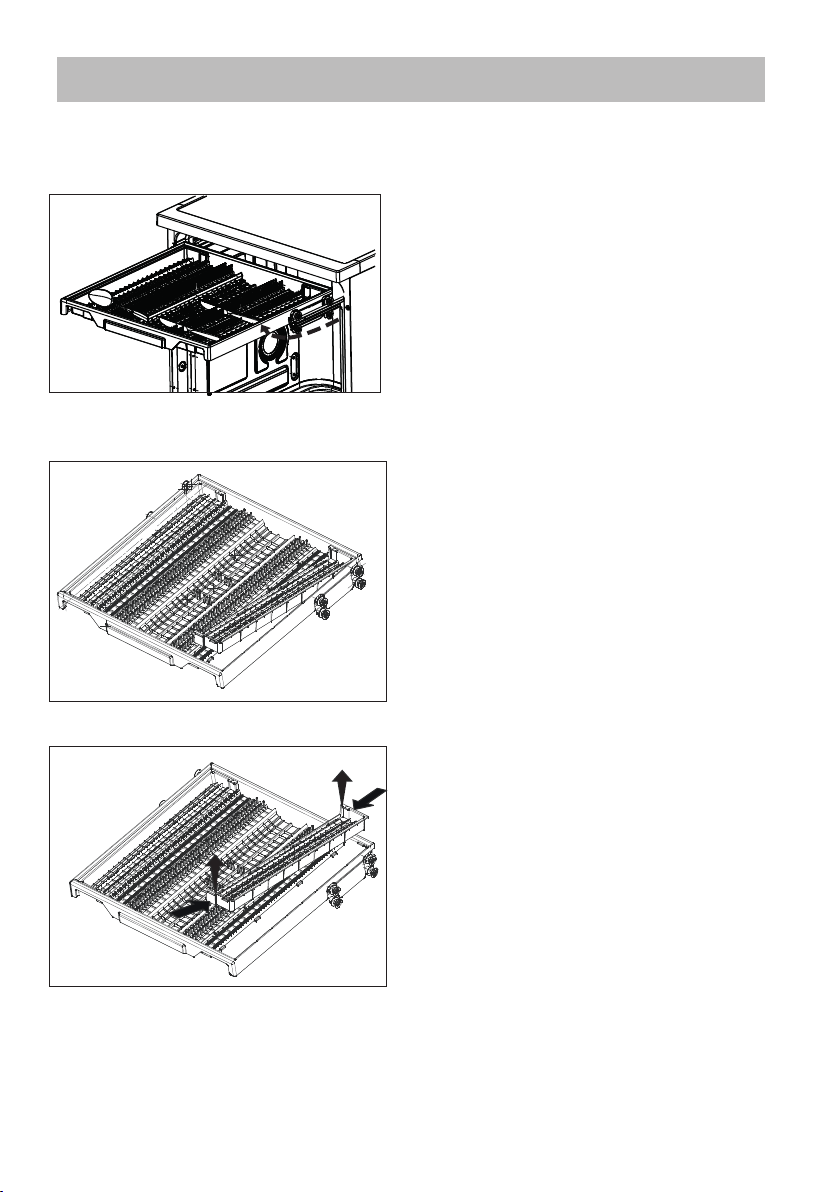

The third Basket
The third basket can be pulled out,
it is easy to put down and take out
the cutlery.
Depending on the model, you can
take out the left and right side
shelves to provide more room for
taller goblet.
Depending on the model, you can
take out the third basket.
