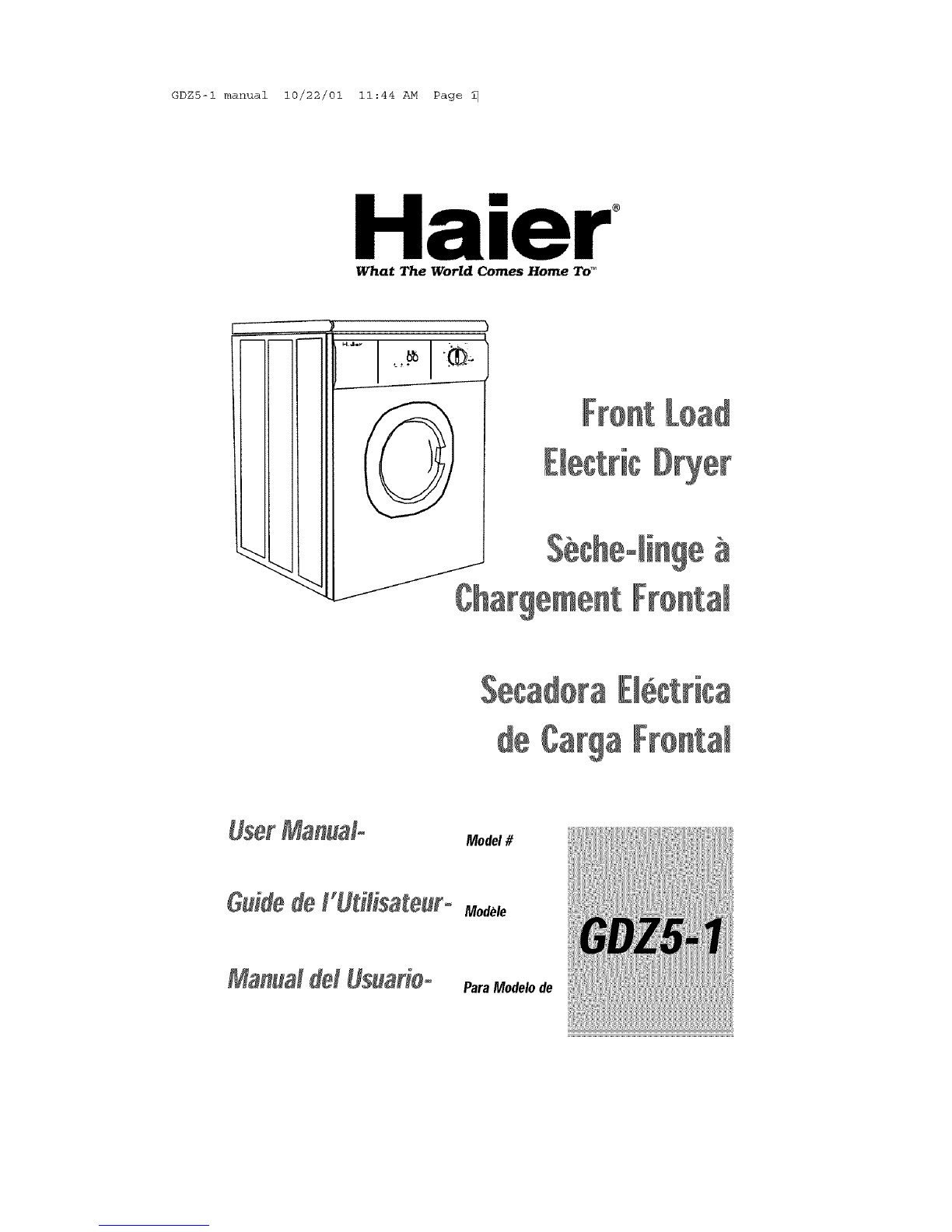

Haier GDZ5-1 User manual

GDZS-I manual 10/22/01 11:44 AM Page
Haier
What The World Comes Home To _
a
UserManual- Model#
GuidedeI'Utilisateuro Modele
__ _ _S_ Para Modelode

GDZ5-1 manual 10/22/01 11:44 AM Page 2
IMPORTANTSAFETYINSTRUCTIONS
Warning - To reduce the risk of fire, electric shock, or injury
to persons when using your appliance, follow basic
precautions, including the following:
1. Read all instructions before using the appliance.
2. Do not dry articles that have been previously cleaned in, washed in,
soaked in, or spotted with gasoline, dry-cleaning solvents, or other
flammable or explosive substances, as they give off vapors that
could ignite or explode.
3. Do not allow children to play on or in the appliance. Close supervision
of children is necessary when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the
door to the drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to water
and/or to the weather.
7. Do not tamper with controls.
8. Do not repair or replace any part of the appliance or attempt any
servicing unless specifically recommended in the user-maintenance
instructions or in published user-repair instructions that you understand
and have skills to carry out.
9. Do not use fabric softeners or products to eliminate static unless
recommended by the manufacturer of the fabric softener or product.
10. Do not use heat to dry articles containing foam rubber or similarly
textured rubber-like materials.
11. Clean lint screen before or after each load.
12. Keep area around the exhaust opening and adjacent surrounding
areas free from the accumulation of lint, dust and dirt.
13. The interior of the appliance and the exhaust duct should be cleaned
periodically by qualified service personnel.
14. Do not place items exposed to cooking oils in your dryer. Items
contaminated with cooking oils may contribute to a chemical
reaction that could cause a load to catch fire.
15. If material has been used with any flammable liquids or solids it should
not be used in the dryer until all traces of the flammable liquids and its
fumes have been removed.

GDZS-I manual 10/22/01 11:44 AM Page
16.This dryer must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions
in the installation section.
17. Proper grounding must be ensured to reduce the risk of electric shock
and fire. Check with a qualified electrician or service personnel if you
are in doubt as to whether the dryer is properly grounded.
18. Use the dryer only for its intended purpose, drying clothes.
19. Always disconnect dryer from electrical supply before attempting any
service. Disconnect power cord by grasping the plug, not the cord.
20. Replace worn power cords and/or loose plugs.
21. To reduce the risk of electric shock or fire, do not use extension cords or
adapters to connect dryer to electrical power source.
SAVETHESEINSTRUCTIONS
ForFutureUse

GDZS-I manual 10/22/01 11:44 AM Page
DANGER
Risk of child entrapment. Before you throw away your old
dryer, take off the door so that children may
not easily get trapped inside.
Thank you for using our Haler
product. This easy-to-use manual will
guide you in getting the best use of
your dryer.
Remember to record the model and
serial number. They are on a label in
back of the dryer.
Model number
Serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain
warranty service.
As dry cleaning solvents, gasoline, vegetable and cooking oils are highly
hazardous materials, items soaked in or spotted with such should not be used in
the dryer, items may still contain a substantial amount of the hazardous material
after being washed. When such items are exposed to heat they could ignite. As
clothes are stacked and piled up in the dryer the heat cannot escape. Due to this,
items become hot enough to possibly ignite, Washing in hot water with extra
detergent would reduce but not eliminate the risk of fire,

GDZS-I manual 10/22/01 11:44 AM Pager6
PAGE
Safety Instructions ............................................................................ 1
OPERATING INSTRUCTIONS ............................................................ 5
Features .......................................................... .5

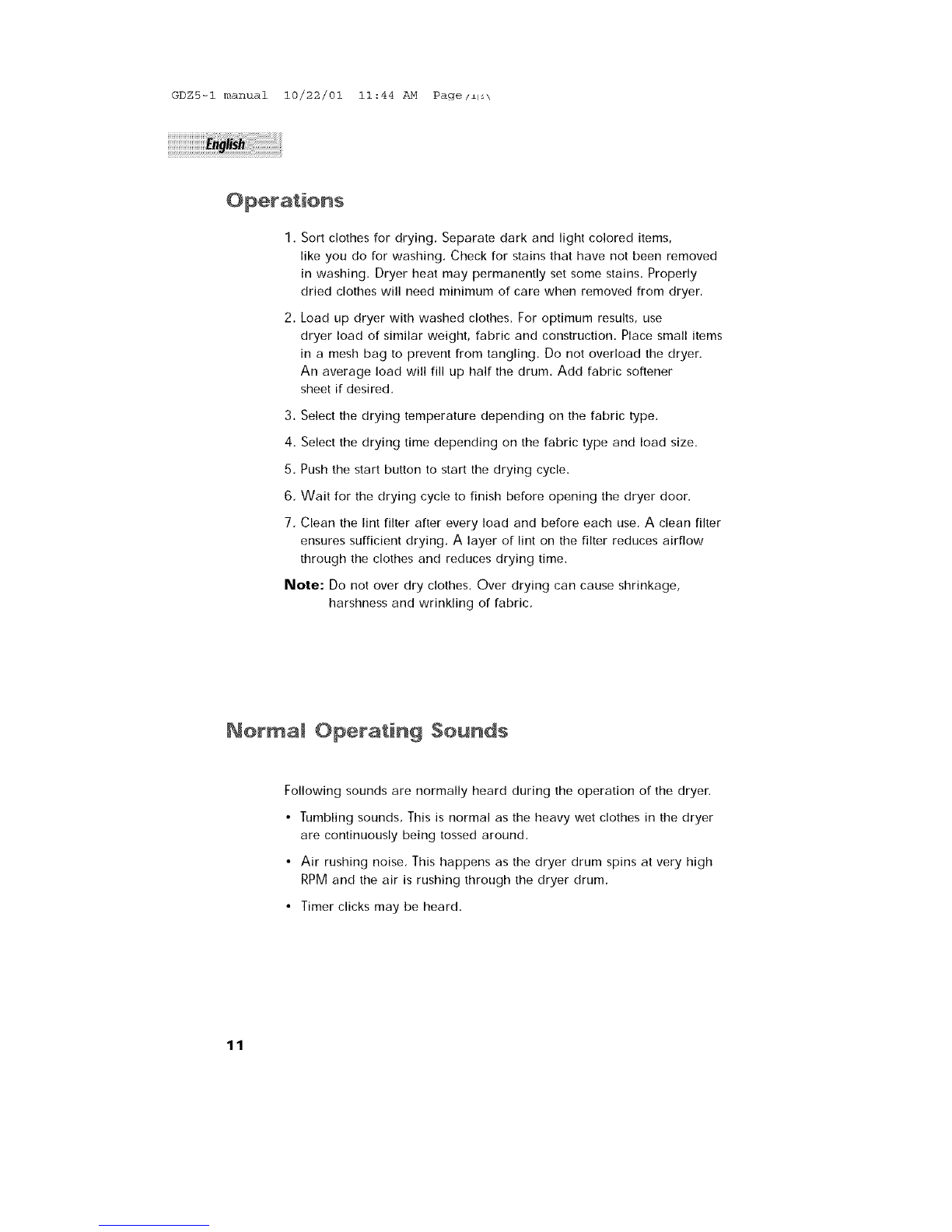

Operations. ......................................................................................... 11
Normal Operating Sounds, .................................................................. .1 1
Drying Tips,......................................................................................... 12

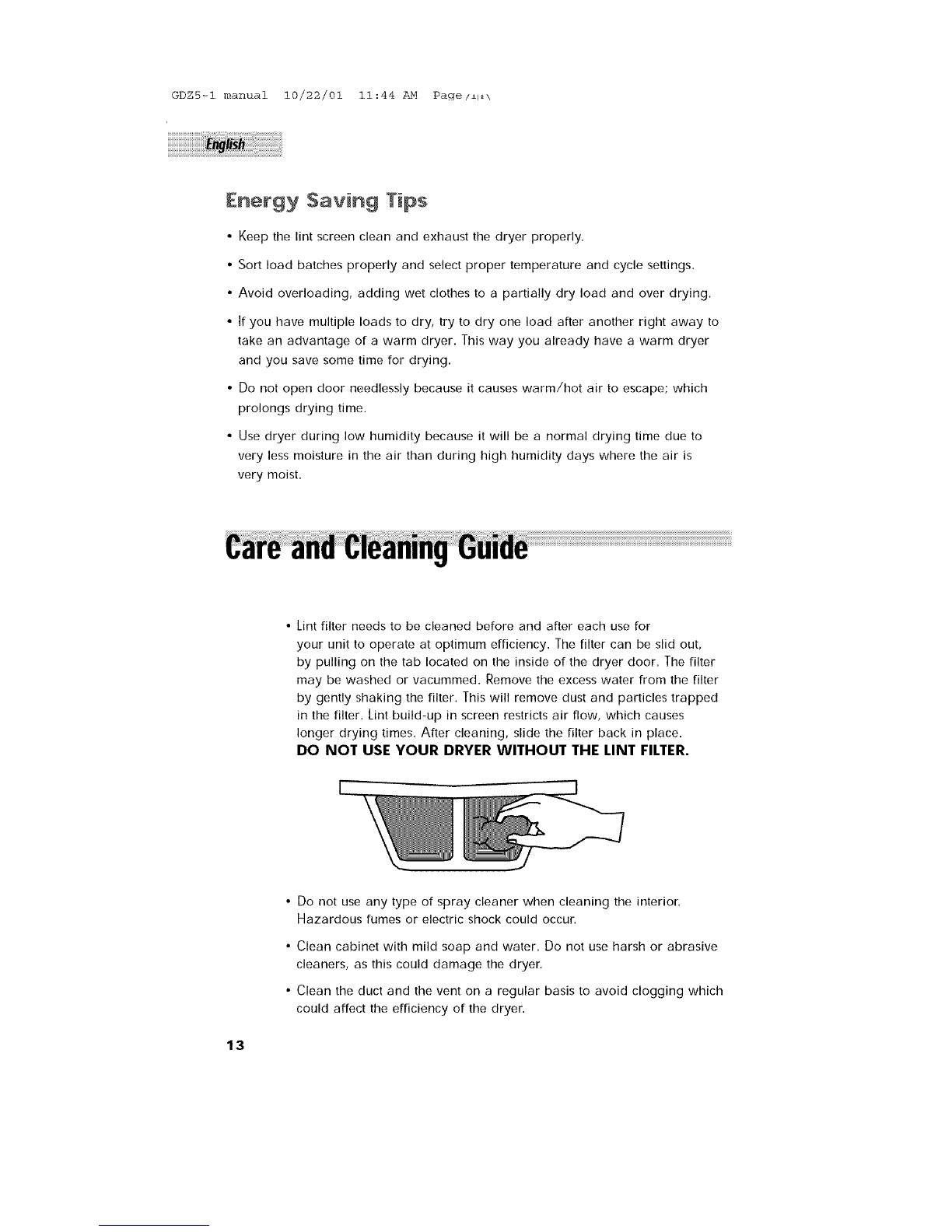

Energy Saving Tips ............................................................................. .I 3
Care and Cleaning Guide .................................. 13
Troubleshooting .............................................................................. 14

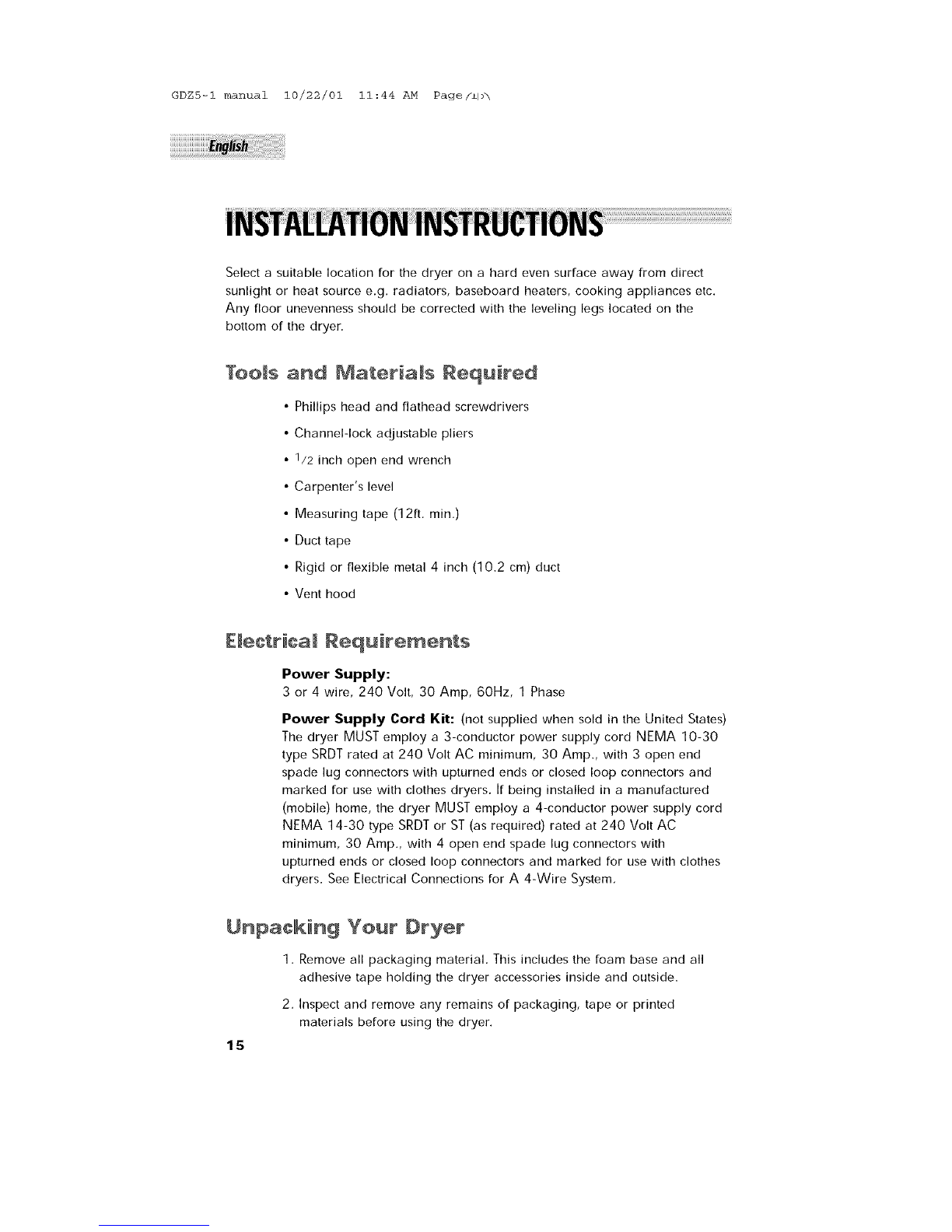

INSTALLATION INSTRUCTIONS ............................ 15
Tools and Materials Required. ............................................................... 15
Electrical Requirements ........................................... .15
Unpacking Your Dryer .......................................................................... 15

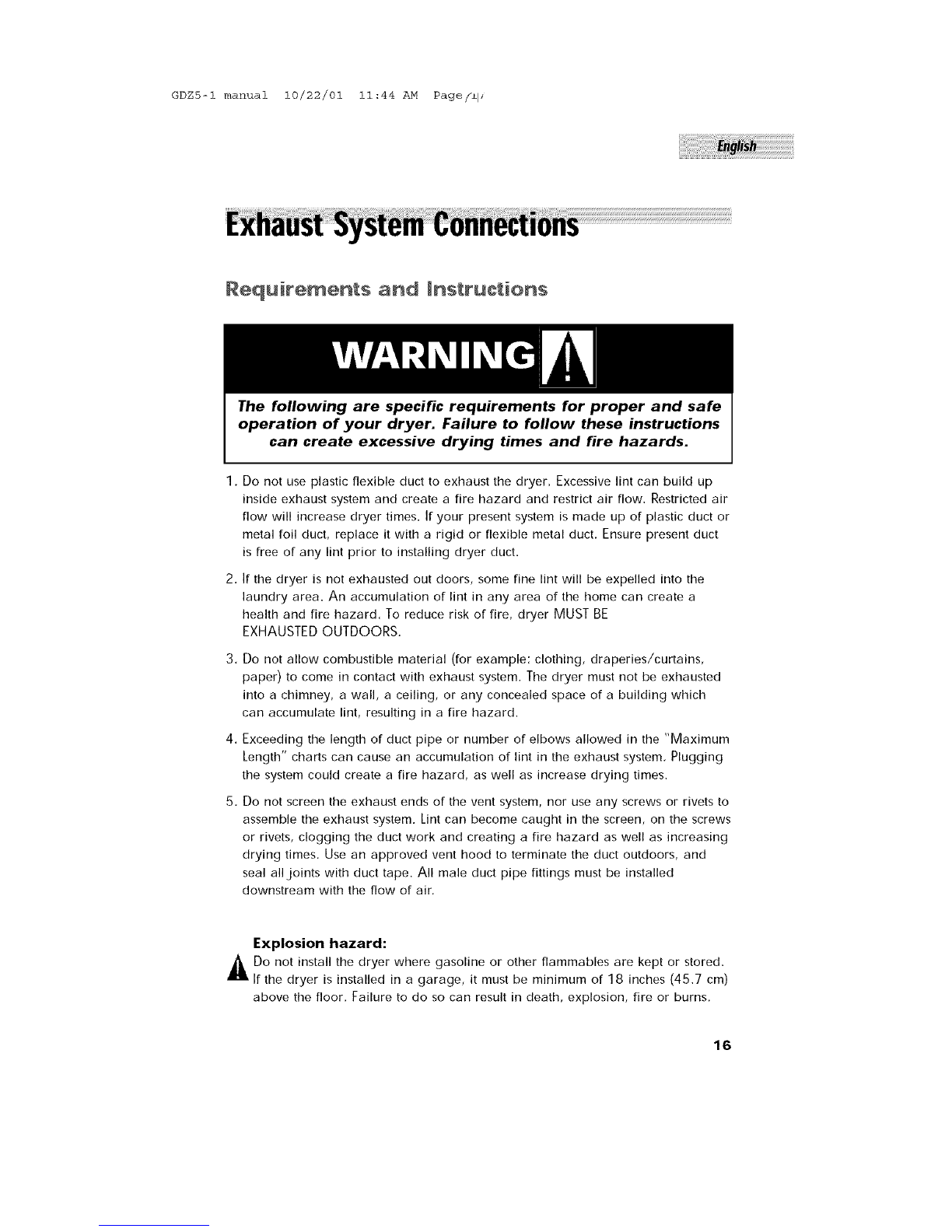

Exhaust System Connections ................................. 16
Requirements and Instructions ..................................... 16
Materials ........................................................ /17
Location of Your Dryer .......................................................................... 19
Installation in Mobile Home ................................................................. 20
Electrical Connections ................................................................... 21
Requirements and Instructions ............................................................. 21
3-Wire Cord Connections ................................................................... 22
4-Wire Cord Connections ................................................................... 23
Warranty ....................................................................................... 25

GDZS-I manual 10/22/01 11:44 AM Pag( /_
Dryer Timer:
ii=_r
_=
• Dryer Timer: The timer will let you set the time for up to 120 minutes to
dry your clothes depending on the fabric type and load size,
• Cotton/Synthetic Dry Button Setting: In order to dry COTTON clothes
push button in its outward position This means it is on HIGH HEAT
setting In order Io dry SYNTHETIC/DEUCATE clothes push button in its
inward position This means it is on I_OW HEAT setting, This convenient
setting gives you flexibility of your desired heat setting for any cycles
o o o
_ml L I .V(__
1 Cotton Button in OUTWARD POSITION means HIGH heat
2 Synthetic Button in INWARD POSITION means LOW heat

GDZ5-1 manual 10/22/01 11:44 AM Page/'/I
Cotton Cycle: This can be either HIGH or LOW heat dry cycle
depending on what type of clothes you want to dry for up to
120 minutes,
• Synthetic Cycle: This cycle is used for synthetic fabrics where you can
use dry time up to 60 minutes at low heat setting. (Please refer to
Cotton/Synthetic Dry Button setting explanation, p.5)
• Delicate Cycle: This cycle is used for delicate fabrics where you can use
dry time up to 80 minutes. The low heat setting is preset in this cycle.
Understanding the Drying Temperature:
•In your dryer if the temperature goes over 117 Degree [/47 Degree C
the sensor will shut off the heat and the drum will stop spinning. At 99
Degree [/37 Degree C temperature the heat will come on and drum
will resume spinning.
• Each cycle ends with a cool down period. The heat automatically turns
off and load continues to tumble for 5-10 minutes. This will reduce
wrinkling of your clothes.

GDZS-I manual 10/22/01 11:44 AM Page/_
Please follow the chart below for proper cycle/time/clothes
selections.
CYCLE TYPE
Cotton Cycle
Synthetic Cycle
HEATTYPE
H_gh
Low
CLOTHES/FABRICS
For heavy/lightweight cottons and
"Tumble Dry" labeled clothes
Synthetic fabrics, Cotton knits
Synthetic Cycle High Synthetic fabrics: nylon, orlon,
Polyester etc
Delicate Cycle Low For heat sensitive clothes and for
"Tumble Dry" low and warm label
clothes, special care fabrics, wool
Note: Cotton Cycle is also known as Regular Cycle Synthetic Cycle is also
known as Permanent Press Cycle
Note: Drying time varies depending on size, dampness of load,
weight, fabric type, room temperature, humidity and type
of exhaust installation.

GDZS-I manual 10/22/01 11:44 AM Page/_ I
Start Button:
•Once you have made your selection of the cycle, time and heat setting,
you need to push start button to turn the power on, You will see the
power light comes on indicating that power is on.
oo 0
Note: The way this start button is designed that when you press the
button, it will return to outward position instead of staying in
inward position,
00
0 0 0
Note: If you want to add or remove clothes while dryer is on, simply by
pressing START button will stop the dryer, Open the door and
make your changes, Close the door and by pressing START button
will reset the dryer.

GDZ5-1 manual 10/22/01 11:44 AM Page/_w\
Synthetic Light:
•You must have synthetic button in its inward position in order to have the light
"ON", When cycle is about to finish and goes in cool dry at the end, you will
notice that the light will go "OFF",
Note: If the light does not come on then check the position of synthetic button,
(Please refer to Cotton/Synthetic Button setting explanation, p.5)
oO
[_I ,IF Im m &)ri.,(m_-
O0
0
m=_,
Clean Filter Light:
• When there are last 10 minutes left in the cycle, you will see that the light will
come "ON". This is a reminder to clean the filter after the cycle is finished.
00
00 0
Clean Filter _/=_ 'a ._ I.v,,"
Note: The light will come on automatically if the outside temperature of the exhaust
duct is higher than 117°F/47°C.
