Haier GE UltraFresh GFD55ESSN How to use

UltraFresh Dryer
31-9349
Technical Service Guide
January 2021
GFD55ESSN
GFD55GSSN
GFD55ESPN
GFD55GSPN
GFD65ESSN
GFD65GSSN
GFD65ESPN
GFD65GSPN
GFD85ESSN
GFD85GSSN
GFD85ESPN
GFD85GSPN
GFV55ESSN
Rev. 1 ~ 1/05/22

– 2 –
Safety Information
IMPORTANT SAFETY NOTICE
The information in this service guide is intended for use by
individuals possessing adequate backgrounds of electrical,
electronic, and mechanical experience. Any attempt to repair a
major appliance may result in personal injury and property
damage. The manufacturer or seller cannot be responsible for the
interpretation of this information, nor can it assume any liability in
connection with its use.
WARNING
To avoid personal injury, disconnect power before servicing
this product. If electrical power is required for diagnosis or test
purposes, disconnect the power immediately after performing the
necessary checks.
RECONNECT ALL GROUNDING DEVICES
If grounding wires, screws, straps, clips, nuts, or washers used to
complete a path to ground are removed for service, they must be
returned to their original position and properly fastened.
GE Appliances, a Haier Company
Copyright © 2020
All rights reserved. This service guide may not be
reproduced in whole or in part in any form without written
permission from GE Appliances, a Haier Company.
For Warranty Information:
1. Go to http://products.geappliances.com
2. Search the model number.
3. Click on the Literature tab.
4. Click on Use and Care Manual.
5. Locate the Warranty page.
Warranty

– 3 –
Table of Contents
Safety Information ........................................................................................................................2
Warranty .......................................................................................................................................2
Table of Contents..........................................................................................................................3
Safety Requirements....................................................................................................................6
Nomenclature ...............................................................................................................................7
Specications Electric Models......................................................................................................8
Specications Gas Models ...........................................................................................................9
Control Features...........................................................................................................................10
Quick Start ...........................................................................................................................10
Wi-Fi Connect ......................................................................................................................10
Dryer Features .....................................................................................................................11

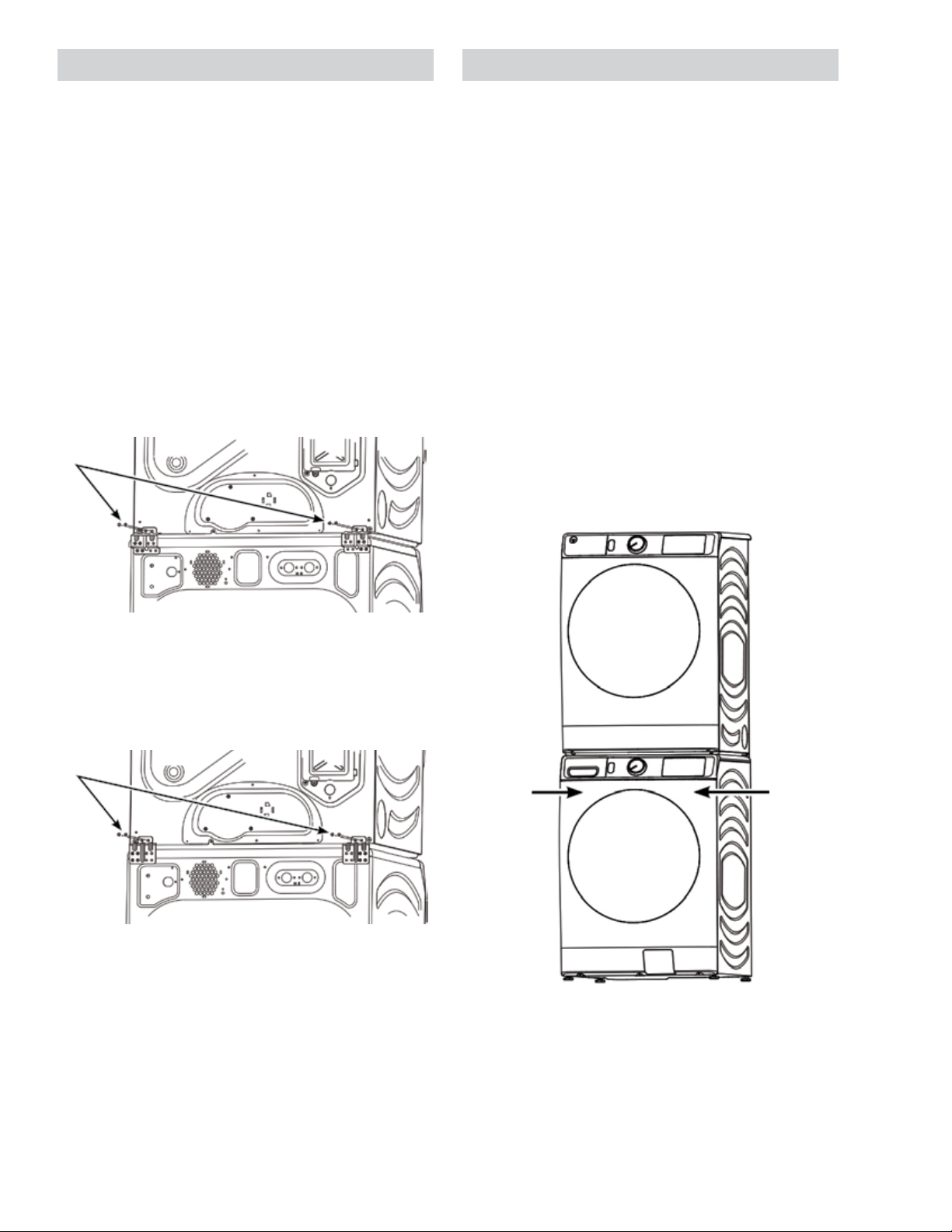

Stacking Instructions ....................................................................................................................17
Tools Needed........................................................................................................................17
Installation Preparation.........................................................................................................17
Remove the Leveling Dryer Legs .........................................................................................18
Install Spacers to Dryer Bottom............................................................................................18
Installing Appropriate Brackets .............................................................................................18
Prepare the Washer and Dryer.............................................................................................19
Install Dryer and Bracket on Washer ....................................................................................20
Finalize the Installation .........................................................................................................20
Component Locator Views ...........................................................................................................21
Top View ...............................................................................................................................21
Front View.............................................................................................................................21
Bottom View (Gas)................................................................................................................22
Bottom View (Electric) ..........................................................................................................22
Main Board ...........................................................................................................................23
User Interface Board (UI) .....................................................................................................24
Wi-Fi Board...........................................................................................................................24
(Continued next page)

– 4 –
Dryer Components .......................................................................................................................25
Control Panel and Front RJ45 Access..................................................................................25
Top Panel..............................................................................................................................26
Door......................................................................................................................................26
Door Reversal.......................................................................................................................26
Misting Nozzle and Base ......................................................................................................29
Misting/Steam Valve .............................................................................................................31
Front Panel ...........................................................................................................................31
Front Drum Support..............................................................................................................32
Drum/Tub Lamp....................................................................................................................34
Sensor Rods.........................................................................................................................34
Drum.....................................................................................................................................35
Electric Heater Assembly......................................................................................................36
Burner Assembly .................................................................................................................37
Gas Valve ............................................................................................................................37
Radiant Sensor (Flame Detector).........................................................................................38
Igniter ...................................................................................................................................39
Ignitor Circuit Operation........................................................................................................40
Blower Wheel .......................................................................................................................41
Drive Motor ...........................................................................................................................42
Inlet Thermistor.....................................................................................................................43
Inlet Backup Thermostat.......................................................................................................44
High Limit Thermostat...........................................................................................................45
Outlet Thermistor..................................................................................................................46
Outlet Thermostat.................................................................................................................47
Safety Thermostat ................................................................................................................48
Electronics....................................................................................................................................49
User Interface (UI) Board .....................................................................................................49
Wi-Fi Board...........................................................................................................................50
Main Board ...........................................................................................................................50
(Continued next page)

– 5 –
Diagnostics and Service Information............................................................................................52
Consumer Fault Code Mode ................................................................................................52
Service Mode........................................................................................................................52
Service Mode Tests ..............................................................................................................53
Fault Codes ..................................................................................................................................56
Electric Schematic........................................................................................................................57
Gas Schematic .............................................................................................................................58
Index.............................................................................................................................................59

– 6 –
Prior to disassembly of the washer to access components, GE
Factory Service technicians are REQUIRED to follow the Lockout /
Tagout (LOTO) 6 Step Process:
Step 1
Plan and Prepare
Step 4
Apply LOTO device and lock
Step 2
Shut down the appliance
Step 5
Control (discharge) stored
energy
Step 3
Isolate the appliance
Step 6
“Try It” verify that the appliance
is locked out

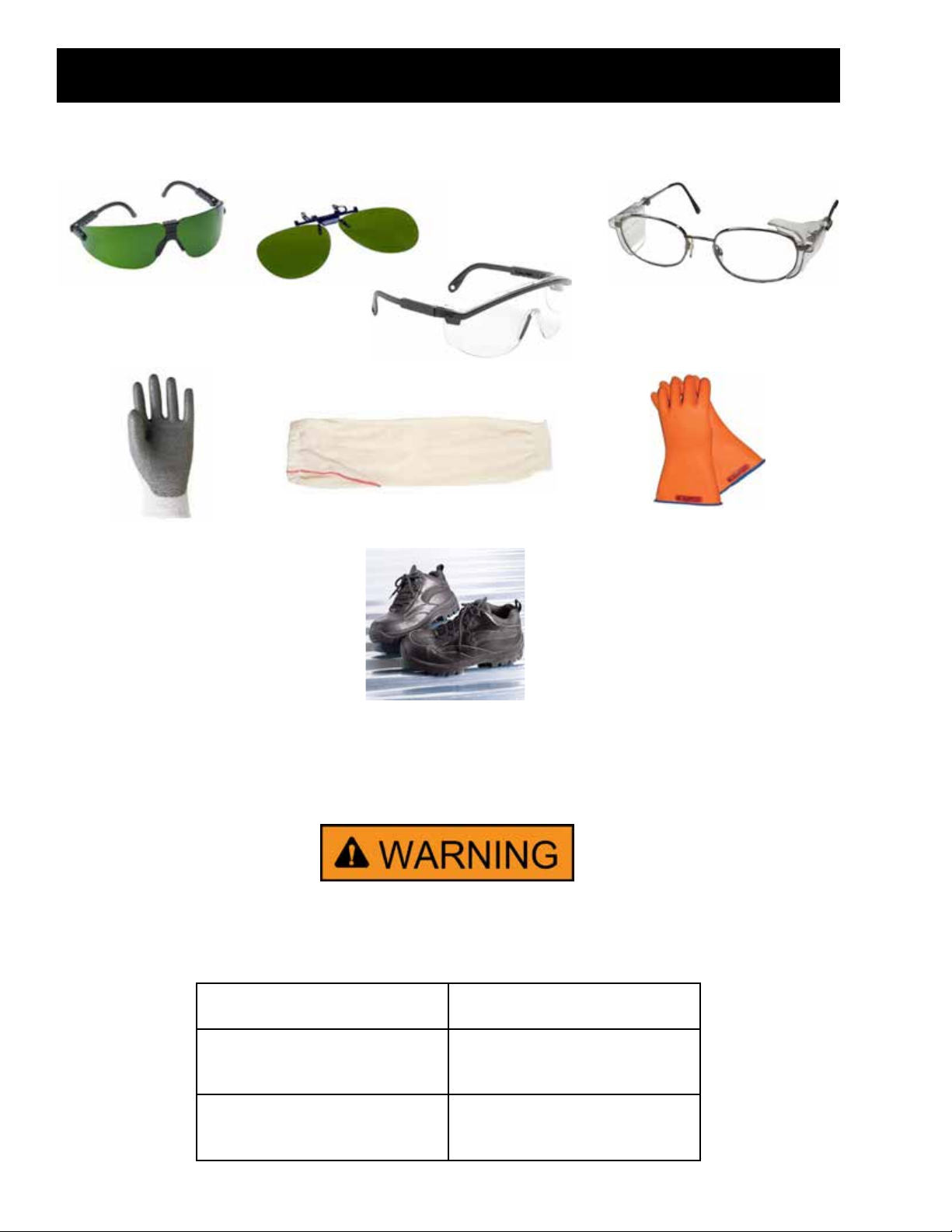

Safety Requirements
Steel Toed Work Boot
Electrically Rated Glove and
Dyneema® Cut Resistant Glove
Keeper
Dyneema®Cut Resistant
Glove
Cut Resistant Sleeve(s)
Plano Type Safety Glasses
Brazing Glasses Prescription Safety Glasses
Safety Glasses must be
ANSI Z87.1-2003 compliant
GEA Factory Service Employees are required to use safety glasses with side shields, safety gloves and
steel toe shoes for all repairs.

– 7 –
Nomenclature
The nomenclature tag is
located behind the door
at the bottom of the door
opening.
Model Number
Nomenclature
A: JAN
D: FEB
F: MAR
G: APR
H: MAY
L: JUN
M: JUL
R: AUG
S: SEP
T: OCT
V: NOV
Z: DEC
2030: L
2029: H
2028: G
2027: F
2026: D
2025: A
2024: Z
2023: V
2022: T
2021: S
2020: R
2019: M
The Mini Manual is located
behind the control panel on
the right side.
Platform
D: Dryer
V: Long Vent
Brand
G: GE Appliances
Conguration
F: Front Load Engineering Revision
Alpha or Numeric
Color
WW: White
Model Year
N: 2019
Series/
Features
Product Type
S: Standard/Stationary
Partner Type
S: Standard
P: Premium Color
G F D 8 5 E S S N 0 W W
The nomenclature breaks down and explains what the letters and numbers mean in the model number.
Serial Number
The rst two characters of the serial number identify the month and year of manufacture. The letter
designating the year repeats every 12 years.
Example: TR123456S = October, 2020
Fuel/Voltage
E: Electric
G: Gas
P: Propane
Mini Manual

– 8 –
Specications Electric Models
Windings and Coils Resistance Values (W)
Main Motor
Normal Vent
Models
Run 2.84 to 3.27
Start 2.82 to 3.12
Main Motor
Long Vent
Models
Run 2.72 to 3.12
Start 2.25 to 2.48
Heater Coils Upper 18.26 to 20.18
Lower 18.26 to 20.18
Water Valve - 891 to 1089
Thermistors Resistance Values (W)
K OHMS TEMP. °F TEMP. °C
76 to 84 86 30
95 to 105 77 25
118 to 132 68 20
DC Voltage Output
Board Component Connector Pin DC Volts
Dryer Main
Control Board
User Interface J601 8 13.5
2 GND
Outlet Thermistor J302 1 5
2 GND
Inlet Thermistor J302 3 5
4 GND
RJ45 J302 5 13.5
8 GND
LED Lamp J303 1 5
3 GND
Wi-Fi J604 1 5
5 GND
Dryer User
Interface Board UI J101 5 13.5
4 GND
Dryer Wi-Fi
Board Wi-Fi J103 1 5
5 GND
Thermostat TEMP. °F TEMP. °C
Open Close Open Close
Outlet
Control
Backup
165 155 74 68
Inlet Control
Backup 255 232 124 111
High Limit 290 -31 or
below 143 -35 or below

– 9 –
Specications Gas Models
DC Voltage Output
Board Component Connector Pin DC Volts
Dryer Main
Control Board
User Interface J601 8 13.5
2 GND
Outlet Thermistor J302 1 5
2 GND
Inlet Thermistor J302 3 5
4 GND
RJ45 J302 5 13.5
8 GND
LED Lamp J303 1 5
3 GND
Wi-Fi J604 1 5
5 GND
Dryer User
Interface Board UI J101 5 13.5
4 GND
Dryer Wi-Fi
Board Wi-Fi J103 1 5
5 GND
Windings and Coils Resistance Values (W)
Main Motor
Normal Vent
Models
Run 2.84 to 3.27
Start 2.82 to 3.12
Main Motor
Long Vent
Models
Run 2.72 to 3.12
Start 2.25 to 2.48
Gas Valve Main 1135 to 1595
Booster 460 to 660
Safety 1095 to 1555
Igniter - 40 to 400 @ 75°F
Water Valve - 891-1089
Thermistors Resistance Values (W)
K OHMS TEMP. °F TEMP. °C
76 to 84 86 30
95 to 105 77 25
118 to 132 68 20
Thermostat TEMP. °F TEMP. °C
Open Close Open Close
Outlet
Control
Backup
165 155 74 68
Inlet Control
Backup 221 200 105 93
High Limit 302 -31 or
below 150 -35 or below
Safety 190 151 88 66

– 10 –

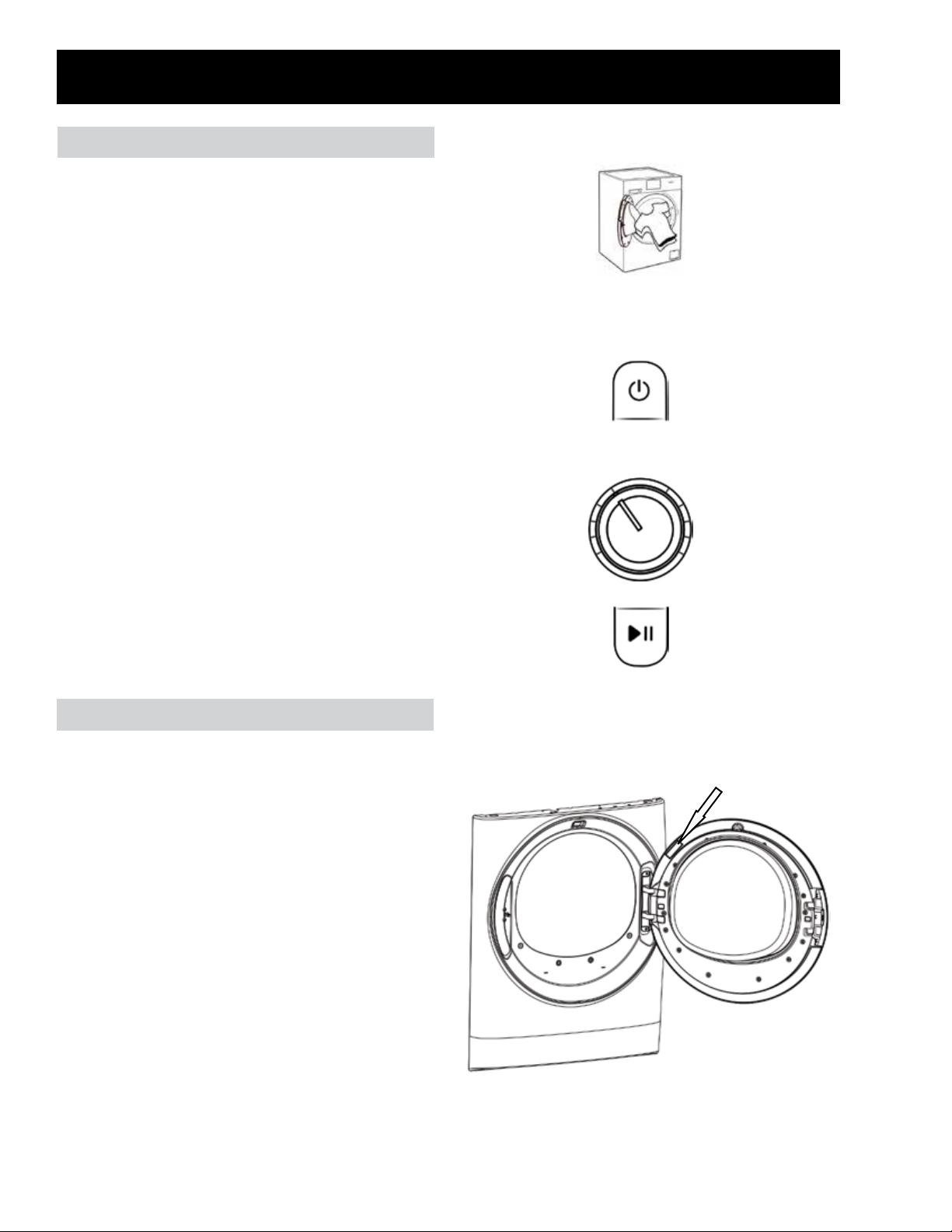

Control Features
Quick Start
1. Clean lint lter. Loosely add items. Close
door.
NOTE: Dryer will not start with door open.
2. If the screen is dark, press the Power pad or
turn the knob to “wake up” the display.
3. Turn the knob to select the desired cycle.
4. Press Start/Pause pad.
Wi-Fi Connect
The dryer is GE Appliances Wi-Fi Connect
enabled.
Visit geappliances.com/connect and enter the
model number to show the proper steps to
connect the appliance.
Please visit GEAppliances.com/connect to learn
more about connected appliance features, to
learn what connected appliance apps will work
with smartphones.
Wi-Fi Connectivity: For assistance with
the appliance or the ConnectPlus network
connectivity, please call GE Appliances at 800.
GE.CARES.
Wi-Fi Label

– 11 –

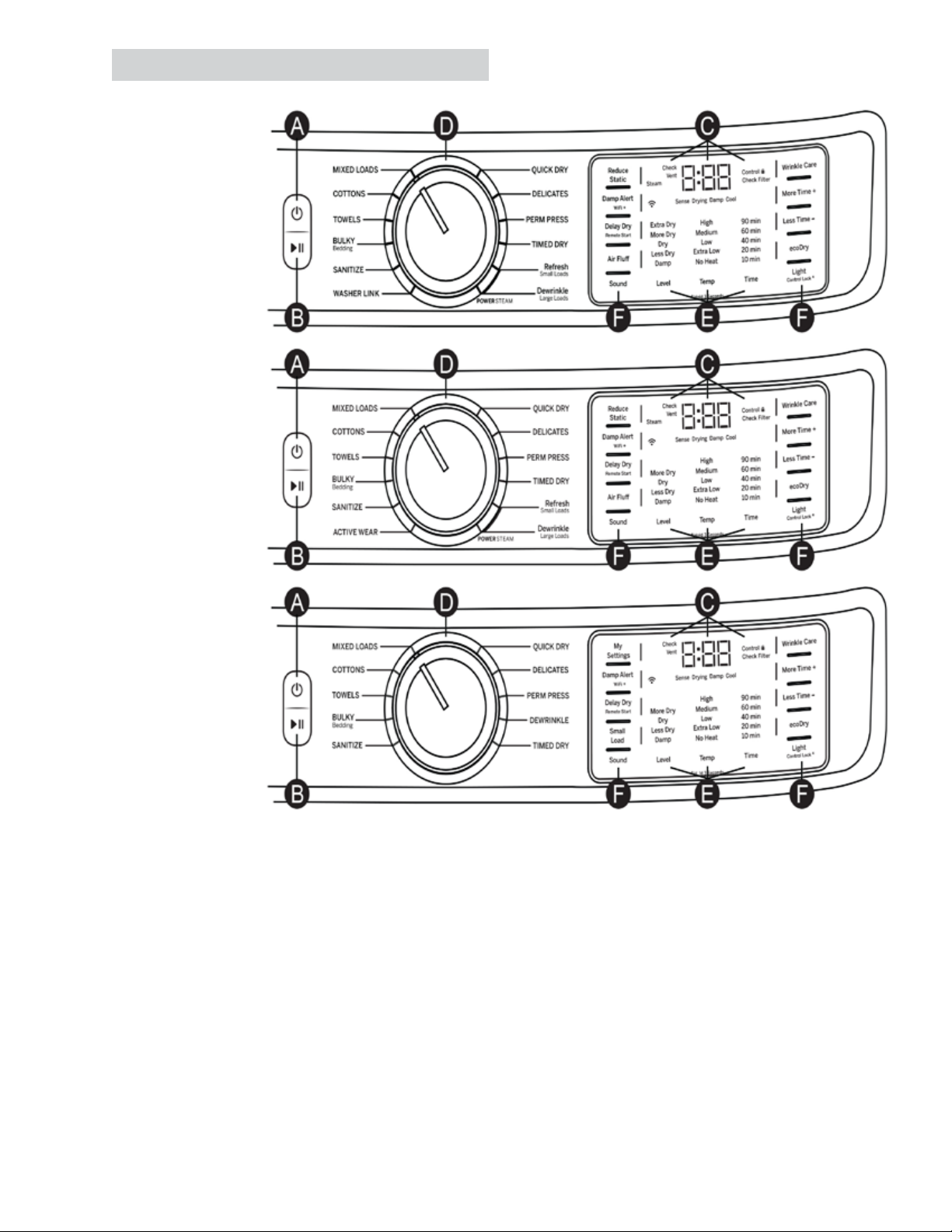

Dryer Features
(Continued next page)
Models:
GFD85
Models:
GFD65
Models:
GFD55
GFV55

– 12 –
Press Start to begin the cycle. NOTE: The door must be closed for the dryer to start the
cycle. Pressing Start again will pause the cycle, the Start light will blink and “Pause” will
display. To continue the cycle, press Start again.
Press to “wake up” the display. If the display is active, press to put the dryer into idle mode.
NOTE: Pressing Power does not disconnect the appliance from the power supply.
A
B
Power
Start and Pause
(Continued next page)
Display and Status Lights
The display shows the approximate time remaining until the end of the cycle and the
dryer cycle status (Sense, Drying, Damp and Cool). In addition, the display will show:
Wi-Fi Will allow the appliance to communicate with a smartphone for remote
appliance monitoring control and notications.
Controls The dryer is locked; will blink once if any pad is pressed or the cycle knob
is turned.
Check
Filter
The Check Filter light will stay on for 15 seconds after the cycle stops.
Check
Vent
The Check Vent light indicates an issue has been found due to reduced
airow from a possible blocked or restricted vent. Checking and/or
cleaning the vent system is recommended.
C

– 13 –
Drying Cycles Sensor cycles automatically determine fabric dryness.
Timed cycles run for the selected time.
Mixed Loads For loads consisting of cottons and poly-blends.
Cottons For cottons and most linens. NOTE: ENERGY STAR® models are
tested on COTTONS cycle with default settings (Temp setting on Low,
Level setting on Dry, and ecoDry default on).
Towels For most towels and linens.
Bulky For large coats, bedspreads, mattress covers, sleeping bags, and
similar large/bulky items such as blankets, comforters, jackets, and
small rugs.
Sanitize This option reduces certain types of bacteria including: Staphylococcus
aureus, Pseudomonas aeruginosa and Klebsiella pneumoniae. The
anti-bacterial process occurs when high heat is used during a portion
of the drying cycle; cool down also will be longer to protect from a hot
garment. NOTE: Do not use this cycle on delicate fabrics.
Washer Link When selected (and if connected to a compatible washer through
Wi-Fi communication), the dryer receives load information from the
washer to automatically make cycle, dryness, temperature and time
recommendations to optimize drying.
Active Wear Clothing worn for active sports exercise and some casual wear. Fabrics
include new technology nishes and stretch bers such as Spandex.
Also, for clothing labeled Easy Care or Perma Press: For wrinkle-free
and permanent-press items.
Quick Dry For small loads that are needed in a hurry, such as sport or school
uniforms. Can also be used if the previous cycle left some items damp,
such as collars or waistbands. NOTE: On some models, the time
remaining in the cycle will show counting down in the display.
Delicates For delicate items, special-care fabrics and knits.
Perm Press For wrinkle-free, permanent press and special sports items that need
extra drying care.
Dewrinkle For removing wrinkles from items that are dry or slightly damp. This
cycle is not recommended for delicate fabrics.
Steam
Dewrinkle
For use with larger loads than STEAM Refresh. Ideal for loads left in
the dryer for an extended time. STEAM Dewrinkle is recommended for
larger loads (9 to 13 garments). NOTE: Steam cycles are not intended
for use with towels. Important: The temperature setting must be set to
High and water must be turned on before running the STEAM Dewrinkle
cycle.
(Continued next page)
D

– 14 –
Steam
Refresh
For slightly wrinkled dry garments. Signicantly reduces wrinkles. After
the STEAM Refresh cycle, the unit will beep (if Sound is selected)
and display “00”. STEAM Refresh is recommended for small loads
(3 to 5 garments). NOTE: Steam cycles are not intended for use with
towels. NOTE: A single extremely light fabric item may need to have
an additional item included in the STEAM Refresh cycle to achieve
optimum results. Important: The temperature setting must be set to
High and water must be turned on before running the STEAM Refresh
cycle.
Timed Dry Use to set specic dry time. To use:
1. Turn cycle dial to TIMED DRY.
2. Increase the drying time by pressing the Time pad.
NOTE: This pad only increases the time. When max time is reached,
pressing the pad again will reset the counter to the lowest setting.
3. Select the Temp.
4. Close the door.
5. Press Start/Pause pad.
(Continued next page)
D
E
Settings Individual settings for cycle minutes (Time), dryness level (Level) and
temperature (Temp) can be set from the minimum (lowest in column) to
maximum (highest in column). In general, the higher up the column, the
more energy will be used. NOTE:The selected cycle set Time can be
further adjusted, in 1-minute increments, by pressing the More Time (+)
and Less Time (-) pads.
Dryness Level: Selection only used for Sensor cycles. Timed cycles
run for the selected time.
Extra Dry Use for heavy-duty fabrics or items that should be very dry, such as
towels.
More Dry Use for heavy-duty or mixed type fabrics.
Dry Use for a normal dryness level suitable for most loads. This is the
preferred cycle for energy savings.
Less Dry Use for lighter fabrics.
Damp For leaving items partially damp.
Temperature
High For regular to heavy cottons.
NOTE: STEAM Dewrinkle and STEAM Refresh require the High
temperature setting.
Medium For synthetics, blends, delicates and items labeled permanent
press.
Low For delicates, synthetics and items labeled tumble dry low.
Extra Low For lingerie and special-care fabrics.
No Heat For u󰀩ng items without heat. For use only with the AIR FLUFF cycle.

– 15 –
Options
Reduce Static (on some models).
When selected, the dryer will spray a mist of water onto the load, at the end of the drying
cycle, to reduce static. This option is not available with BULKY, SANITIZE or STEAM cycles.
Damp Alert (Damp Alert/WiFi Pad): This option causes the dryer to beep when clothes
have dried to a damp level. Remove items that are wished to hang dry. The Damp Alert
will only beep when this option is selected (but the dry cycle will keep running). Removing
clothes and hanging them when they are damp can reduce the need to iron some items.
Delay Dry
Press the Delay Dry pad to set the delay start time in 1 hour increments up to 24 hours, and
then back to clear (0 hours). After selecting the delay start time, press Start, and the delay
time will count down the time remaining until the cycle starts. NOTE: To set the amount of
delay time faster, press and hold the Delay Dry pad.
Delay Dry for Wi-Fi Connected Dryers
There are two options to set Delay Dry using a smartphone.
• Option 1: Follow Delay Dry instructions. Use the GE Appliances Laundry App to adjust
the amount of time via smartphone.
• Option 2: Remote Start: Set dryer to “AP” using the Delay Dry pad. This allows use of
the GE Appliances Laundry App via smartphone to start the dryer remotely at the time of
choosing. If the dryer is set to AP with no activity, it will start the dryer 24 hours later.
Air Flu󰀨 (on some models)
Provides 10 minutes of tumbling time with no heat. NOTE: On models without AIR FLUFF
cycle, select TIMED DRY and set Temp to No Heat.
Sound
Use the Sound pad to change the volume of the pad presses and the end of cycle signal.
Press the pad until the desired volume is reached (High, Med, Low) or is turned o󰀨. The
clothes should be removed when the end of cycle signal goes o󰀨, so wrinkles do not set in.
NOTE:
• Remove garments promptly at the sound of signal. Place clothes on hangers so wrinkles
will not set in.
• Use the Sound especially when drying fabrics like polyester, knits and permanent press.
These fabrics should be removed so wrinkles will not set in.
(Continued next page)
F

– 16 –
Options (Cont.)
Wrinkle Care
Use this option to minimize the wrinkles in clothes. It provides 1 hour of no-heat tumbling after
the clothes are dry. If using the cycle Sound, and select the Wrinkle Care option, a signal will
sound at the end of the drying time and several times during the Wrinkle Care cycle. This will
remind the user that it is time to remove the clothes.
More Time (+) / Less Time (-)
The selected cycle set Time can be further adjusted, in 1-minute increments, by pressing the
More Time (+) and Less Time (-) pads.
ecoDry
Available for BULKY, TOWELS, COTTONS, MIXED LOADS, ACTIVE WEAR and
DELICATES. When the ecoDry pad is pressed, cycle settings change to reduce the total
energy consumption of the selected sensor cycle. NOTE: Cycle times will change when
ecoDry is selected. The ecoDry option will default to ON for COTTONS. For optimal energy
savings, turn ecoDry ON. For optimal drying times, turn ecoDry OFF. NOTE: Energy savings
will vary across loads and cycles.
Light
The drum light will turn on if the Light pad is pressed or the door is opened. It will turn o󰀨 when
the door is shut, the Light pad is pressed again or after 5 minutes if the door is left open.
Small Load (on some models)
Select to use for a small load with any sensor cycle (except SANITIZE).
My Settings
As the cycle selector knob is turned, the Time (timed dry), Level (dryness level) and Temp
(temperature) settings change to automatic pre-set default settings. If a di󰀨erent setting is
desired, press the appropriate pad(s). Then press and hold the My Settings pad for 3 seconds
and the dryer will “remember” these settings for that Knob Selection. In the future, when turning
the selector knob to that cycle, settings will be automatically recalled.
NOTE: Signal sound cannot be set for My Settings.
Control Lock
Lock the controls to prevent any selections from being made. Or lock the controls after a cycle
has started. Children cannot accidentally start the dryer by touching pads with this option
selected.
To lock/unlock the dryer controls, press and hold the Light pad for 3 seconds. The control lock
icon will ash while locking/unlocking, stay on when locked, and turn o󰀨 when unlocked.
NOTE: The Power pad can still be used when the machine is locked.
WiFi (Damp Alert/WiFi pad)
Press and hold the Damp Alert/WiFi pad for 3 seconds to activate.
F

– 17 – (Continued next page)

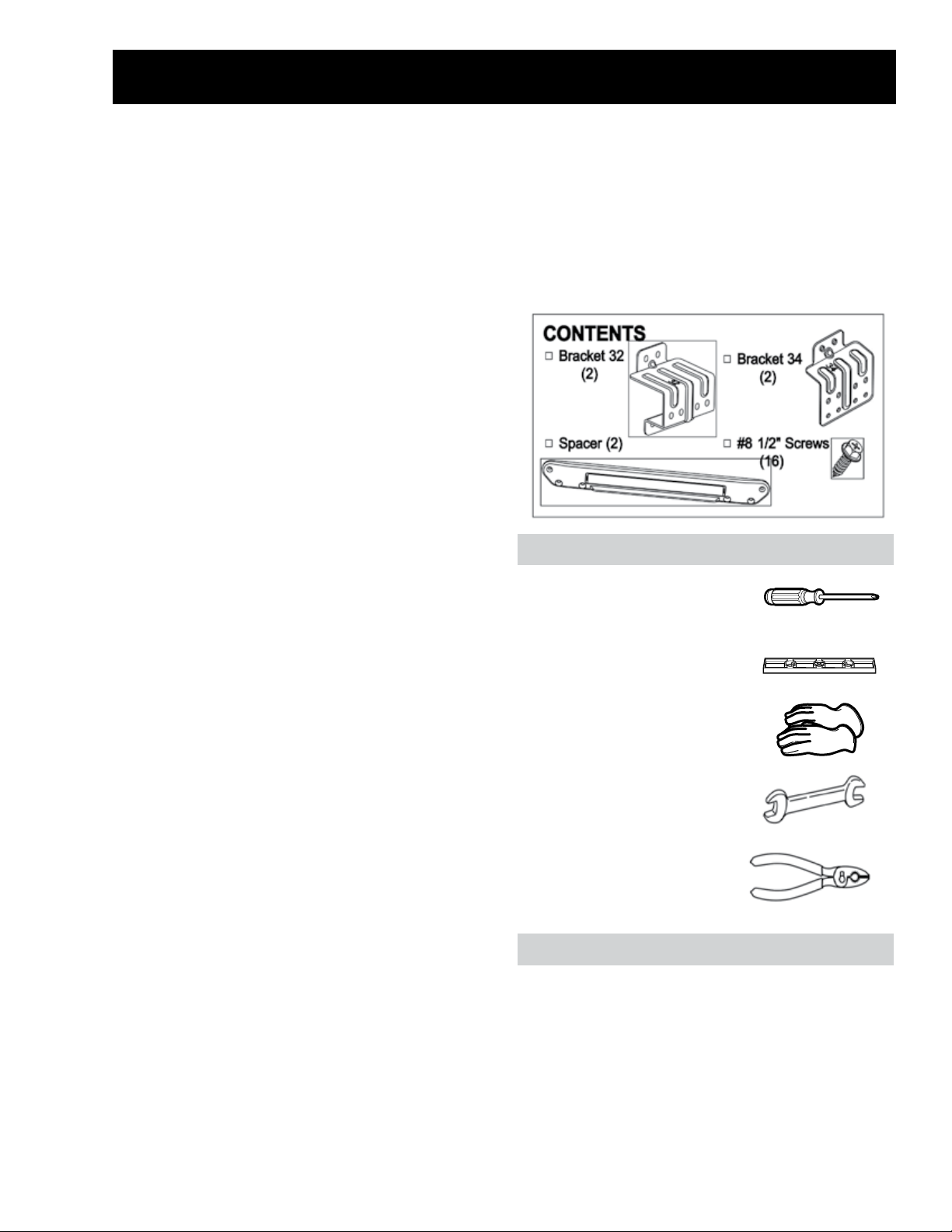

If planning to stack the washer and dryer, order
Stacking Kit number GFA28KITN to be used for
this dryer.
Kit sold separately.
Stack dryer only on washer. Do not stack
washer on dryer, washer on washer or dryer
on dryer.
Do not modify this installation kit. Any
modication will void the product Warranty.
Make sure the dryer is unplugged.
Two or more people are recommended to safely
lift the dryer into and out of position.
Avoid damage to the existing utility services.
DO NOT place the washer on top of the dryer.
Location Requirements
When installed in a location other than an alcove
or closet, the minimal clearances to combustible
surfaces and for air opening are: 1-inch on both
sides, and 3-inches' front and rear, and 1-inch
on top. Consideration must be given to provide
adequate clearance for installation and service.
NOTE: If the dryer is approved for installation in
an alcove or a closet, it will be stated on a label
on the back.
When Installed in an Alcove or Closet
• The dryer MUST be vented to the outdoors.
• Minimum clearance between dryer cabinet
and adjacent walls or other surfaces is:
• 0-inches either side*
• 0-inches front
• 0-inches rear
• 0-inches top
• Minimum vertical space from oor to
overhead shelves, cabinets, ceilings, etc., is
67.7-inches.
Stacking Instructions
WARNING!
Tools Needed
• Closet doors must be louvered or otherwise
ventilated and have at least 60 square inches
of open area equally distributed. If the closet
contains both a washer and a dryer, doors
must contain a minimum of 120 square inches
of open area equally distributed.
• Phillips-head Screw-driver
• Level
• Gloves
• Open End Wrench
• Pliers

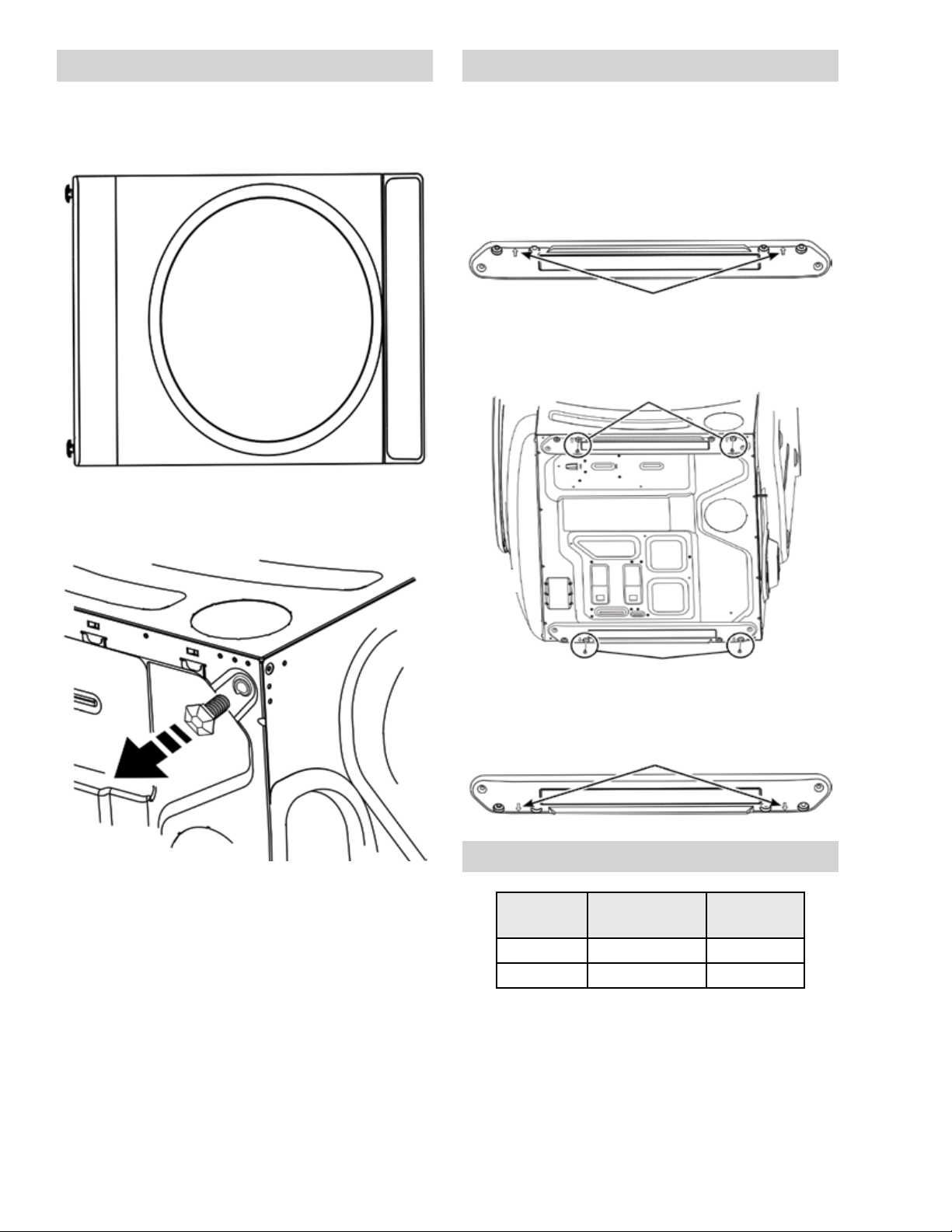

Installation Preparation
1. Remove the packaging.
2. Flatten the product carton to use as a pad to
lay the dryer down on its side. Continue using
the carton to protect the nished oor in front
of the installation location.
*For improved performance, a 1/2-in. clearance is
suggested on either side.

– 18 –
1. Locate a spacer on the bottom side with its
holes over the leveling leg holes. Attach
spacer using two screws. Attach the second
spacer on the other bottom side using two
screws. NOTE: The arrows on the spacers
should point to the outside.
1. Carefully lay the dryer on its side. Use the
packing material so not to scratch the nish
on the dryer.
2. Use an open-end wrench or pliers to remove
all four dryer leveling legs. NOTE: Retain the
leveling legs for future use.
Remove the Leveling Dryer Legs Install Spacers to Dryer Bottom
Installing Appropriate Brackets
Select the appropriate brackets for the model
sizes. Using the outside holes in the bracket,
attach it to the top left corner of the washer back
using four screws. Repeat on the top right corner
of the washer back.
Make sure the arrows on the
spacers point to the outside
Front
Attach spacer
using two screws
Back
Attach spacer
using two screws
Make sure the arrows on the
spacers point to the outside
Washer
Depth Dryer Depth Bracket Number
32-inch 32-inch 32-inch
34-inch 32-inch 34-inch
(Continued next page)

– 19 –
32 Brackets for 32-Inch Washer and Dryer
Combinations
Attach brackets to washer using four screws on
each side.
34 Brackets for 34-Inch Washer and 32-Inch
Dryer Combinations
Attach brackets to washer using four screws on
each side.
Install brackets ush
at washers edges
Do not install brackets
overhanging washers
edges
OR
Install brackets ush
at washers' edges
Do not install brackets
overhanging washers'
edges
Prepare the Washer and Dryer
1. Place the washer in the approximate nal
installation location.
2. Make sure the washer is level. Refer to the
washer Installation Instructions for details.
3. Upright the dryer.
4. Reverse the washer and dryer door swings,
if desired, before stacking the dryer on
the washer. See the washer and dryer
Installation Instructions for details.

– 20 –
Finalize the Installation
CAUTION: Do not push on the dryer once
installed to top of the washer. Pushing on the
dryer may result in pinched ngers.
1. Refer to the washer Installation Instructions to
complete the washer installation.
2. Refer to the dryer Installation Instructions to
complete the dryer installation.
3. Carefully slide or walk the stacked washer
and dryer into place. Use felt pads or other
sliding device to assist moving and to protect
ooring.
4. Verify the units are level. Make adjustments
to the washer feet if necessary, to level. It
is always best to set the washer feet to
the minimum height necessary to level the
washer and dryer properly.
Dryer
Place
Hands
Here
Washer
Place
Hands
Here
Install Dryer and Bracket on Washer
1. Lift the dryer onto the top of the washer. Be
sure to lift the dryer high enough to clear
the washer control panel. Be careful not
to scratch the top of the washer with the
spacers. Protect the washer control panel
with cardboard or other protection.
2. Align the holes in the back of the dryer with
the holes in the bracket sticking up from the
washer. Attach both brackets to the dryer with
two screws on each side.
OR
32 Brackets for 32-Inch Washer and Dryer
Combinations
Attach brackets to washer using two screws on
each side.
34 Brackets for 34-Inch Washer and 32-Inch
Dryer Combinations
Attach brackets to washer using two screws on
each side.
