Haier HD90-A636 User manual

GB
User manual
Heat-Pump-Dryer
HD90-A636

Thank you GB
2
WARNING!
Risk of injury or suocation!
Disconnect the appliance from the mains supply. Cut o the mains cable and dispose
of it. Remove the door catch to prevent children and pets to get closed in the appliance.
Legend
Warning! – Important safety information
General information and tips
Environmental information
Disposal
To protect the environment, please dispose of the
packaging materials in an environmentally friendly
manner.
Do not dispose appliances marked with this symbol
with the household waste. Return the product to your
local recycling facility or contact your municipal oce.
The heat exchanger of the dryer contains the green-
house gas HFKW-134a. This must be disposed of
properly.
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.

GB Content
3
Safety information.................................................................................................................................4
Intended use............................................................................................................................................7
Product description............................................................................................................................... 8
Control panel...........................................................................................................................................9
Programmes..........................................................................................................................................13
Consumption ........................................................................................................................................14
Suggestions and tips...........................................................................................................................15
Daily use..................................................................................................................................................17
Care and cleaning.................................................................................................................................21
Troubleshooting ...................................................................................................................................25
Installation..............................................................................................................................................28
Accessories ...........................................................................................................................................29
Technical data .......................................................................................................................................30
Customer Service ................................................................................................................................32

Safety information GB
4
WARNING!
Before rst use
▶Make sure there is no transport damage.
▶Remove all packaging and keep out of children´s reach.
▶Handle the appliance always with at least two persons because it is
heavy.
Daily use
▶This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervi-
sion or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
▶Keep away children under 3 years of age from the appliance unless
they are constantly supervised.
▶Children shall not play with the appliance.
▶Do make sure the room is dry and well ventilated. The ambient tem-
perature should be between 5 °C and 35 °C.
▶Do not cover any ventilation openings in the base by a carpet or
similar object.
▶Keep the area around the tumble dryer free of dust and lint.
▶Do make sure that there is only only laundry inside the appliance and
no pets or children before you use it.
▶Only touch the mains plug with dry hands and do not touch or use
the appliance if you are barefoot or have wet or damp hands or feet.
▶Only dry textiles washed in water.
▶Do make sure not to load more than nominal load.
▶Remove all items such as lighters and matches from pockets.
▶Use fabric softeners or similar products as specied by the
manufacturer´s packaging.
▶Do not use ore store any flammable sprays or flammable gas in close
vicinity to the appliance.
▶Do not place heavy objects or sources of heat or damp on top of the
appliance.
▶Hold the plug, not the cable, when unplugging the appliance.
▶Do not touch the rear wall and the drum during operation; they are
hot.

GB Safety information
5
WARNING!
Daily use
▶Do not dry following items in the appliance:
▶Items which are unwashed.
▶Items which have been contaminated with inflammable sub-
stances such as cooking oil, acetone, alcohol, benzine, petrol,
kerosene, spot removers, turpentine, waxes, wax removers
or other chemicals. The fumes can cause a re or explosion.
These items must always be washed rst by hand in hot wa-
ter with an extra amount of detergent and then be dried in the
open air before drying in the appliance.
▶Items which contain padding or llings (e.g. pillows, jackets), as
the lling can get out with the risk of igniting in the dryer.
▶Items which contain a large proportion of rubber, foam rubber
(latex foam) or rubber like materials such as shower caps, wa-
terproof textiles, rubberised articles and items of clothing and
pillows with foam rubber lling.
▶Do not drink the condensed water.
▶Do not use the appliance without the lint lter or condensor lter
in place or with damaged lter.
▶Notice that the last part of the drying cycle occurs without heat
(cool down cycle) to ensure remaining the garments at a temper-
ature which does not damage them.
▶Do not leave the appliance unattended during run time for some
time. If a long absence is intended, the drying cycle have to be
interrupted by switching o the unit and unplugging the mains.
▶Do not switch o the appliance except drying cycle is nished,
unless all items are quickly removed and spread out that the heat
can be released.
▶Switch o the appliance after each drying programme to save
electricity and for safety.
Maintenance / cleaning
▶Make sure children are supervised if they carry out cleaning and
maintenance.
▶Disconnect the appliance from the electrical supply before un-
dertaking any routine maintenance.

Safety information GB
6
WARNING!
Maintenance / cleaning
▶Clean the lint lter and the condenser lter after each pro-
gramme (see CARE AND CLEANING).
▶Do not use water spray or steam to clean the appliance.
▶Do not use industrial chemicals to clean the appliance.
▶Replace a damaged supply cord only by the manufacturer, its ser-
vice agent or similarly qualied persons in order to avoid a hazard.
▶Do not try to repair the appliance by yourself. In case of repair
please contact our customer service.
Installation
▶Ensure a location which allows opening the door fully. Do not in-
stall the tumble dryer behind a lockable door, a sliding door or a
door with hinges on the opposite side of the tumble dryer door
as this limits the full opening of the tumble dryer door.
▶Install the appliance in a well-ventilated, dry place.
▶Never install the appliance outdoors in a damp place, or in an area
which may be prone to water leaks such as under or near a sink
unit. In the event of a water leak cut power supply and allow the
machine to dry naturally.
▶Install or use the appliance only where the temperature is above
5 °C.
▶Do not place the appliance directly on a carpet, or close to a wall
or furniture.
▶Do not expose the appliance to any frost, heat or direct sunlight
or in the near of heat sources(e.g. stoves, heaters).
▶Make sure that the electrical information on the rating plate
agrees with the power supply. If it does not, contact an electri-
cian.
▶Do not use multi-plug adapters and extension cables.
▶Make sure not to damage the electric cable and the plug. If dam-
aged have it replaced by an electrician.
▶Use a separate earthed socket for the power supply which is easy
accessible after installation. The appliance must be earthed.
▶Only for UK: The appliance’s power cable is tted with 3-cord
(grounding) plug that ts a standard 3-cord (grounded) socket.
Never cut o or dismount the third pin (grounding). After the ap-
pliance is installed, the plug should be accessible.

GB Intended use
7
Notice
The appliance contains the fluorinated greenhouse gas HFKW-134a (GWP:1430). This
gas is hermetically sealed.
Intended use
This appliance is intended for drying items which have been washed in a water solution and
are marked on the manufacturer‘s care label as being suitable for tumble drying.
It is designed exclusively for domestic use inside the house. It is not intended for commer-
cial or industrial use. Changes or modications to the device are not allowed. Unintended
use may cause hazards and loss of of all warranty and liability claims.
Standards and directives
This product meets the requirements of all applicable EC directives with the correspond-
ing harmonised standards, which provide for CE marking.
Environmentally responsible use
▶Thorough drainage: Spin the laundry with the maximum spin speed.
▶Maximum load: Use the maximum lling amount according to the programme table,
but do not overload the dryer. To take advantage of the maximum load, the laundry
which should be dried „READY to STORE“, can be rst dried easily with „READY to
IRON“. At the programme end remove the laundry which should be ironed and dry the
remaining laundry then to end.
▶Loosen up the laundry: Shake out the laundry before putting them into the dryer.
▶Avoid excess drying: An excessive drying should be avoided. Select the right pro-
gramme and the appropriate dry level.
▶Softener unnecessary: Do not use softener when washing, because the laundry will
become fluy and soft in the dryer .
▶Cleaning of the lint lters: Clean the lint lters after each cycle.
▶Ventilation: Make sure the appliance is properly ventilated (see INSTALLATION).
▶Condensed water reuse: The collected condensed water can be used for the steam
iron. Before it should be poured through a ne sieve or coee lter paper. Smallest
parts will be retained by the lter.

Product description GB
8
VORDERANSICHT
1
2
3
4
6
5
10
97
8
10
Fig.1: appliance front Fig.2: appliance backside
Fig.3: Accessories
This drawing may be slightly dierent from the layout of the drying machine you have just
purchased.
1 Water tank
2 Rating plate
3 Service flap
4 Control panel
5 Door
6 Ventilation slots
7 Power cord
8 Back cover
9 Drainage outlet
10 Adjustable feet
User manual
Warrant card
Accessories
Check the accessories and literature in accordance with this list.:
Drain hose
(optional) Energy lable

GB Control panel
9

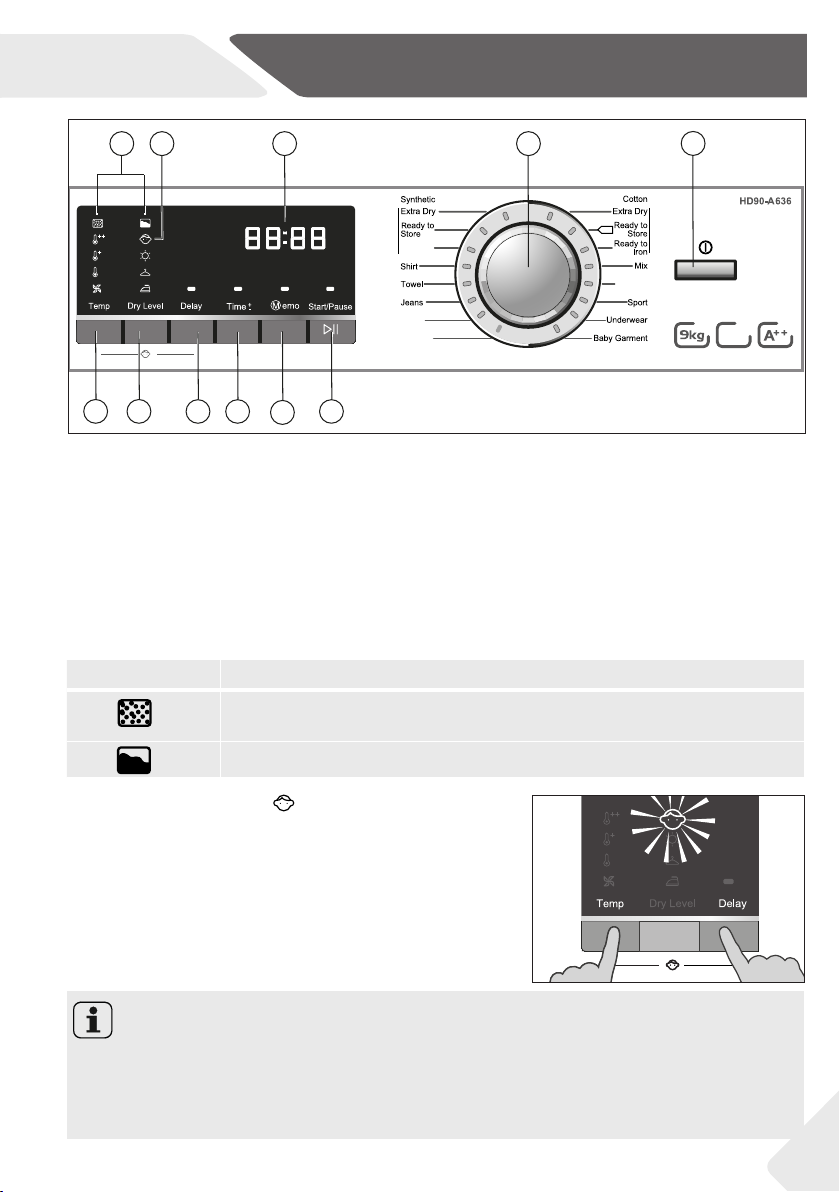

Fig.4: control panel
1-Maintenance indicators
The indicators light up in order to remind that the lter must be cleaned and the water
tank must be emptied (see CARE AND CLEANING).
Meaning of icons:
1 Maintenance indicators
2 Child-lock indicator
3 Display
4 Programme selector
5 On/O button
6 Temperature button
7 Dry Level button
8 Delay button
9 Time ±button
10 Memo button
11 Start/Pause button
Temp.Dry Level Intense Delay Start/Pause
Extra rinse
.
Bedding
Refresh
Timer
Ready to
Iron
Heat
Pump
1 2 3 4 5
11
10
9
8
7
6
Illuminated LED Meaning
Clean the lint lter in the lling opening and the condenser lter in
the base.
Empty the water tank or check it for correct positioning.
2-Child lock indicator
This option blocks all panel elements against activa-
tion. After starting a programme press simultaneously
“Temp“+“Delay“ for about 3 seconds (g. 5); the child
lock indicator lights up. For unlocking please press
again the two buttons.
The icon flashes if a button will be pressed or the pro-
gramme selector will be twisted, when the child lock is
activated. The change is not running.
Temp.Dry Level Intense Delay
Extra rinse
.
5
Notice
▶When the cycle ends or the power supply is interrupted, the function will not be can-
celled automatically.
▶We recommend to switch on this function if there are children in the household.
▶The On/O button can be activated during function child lock is selected.

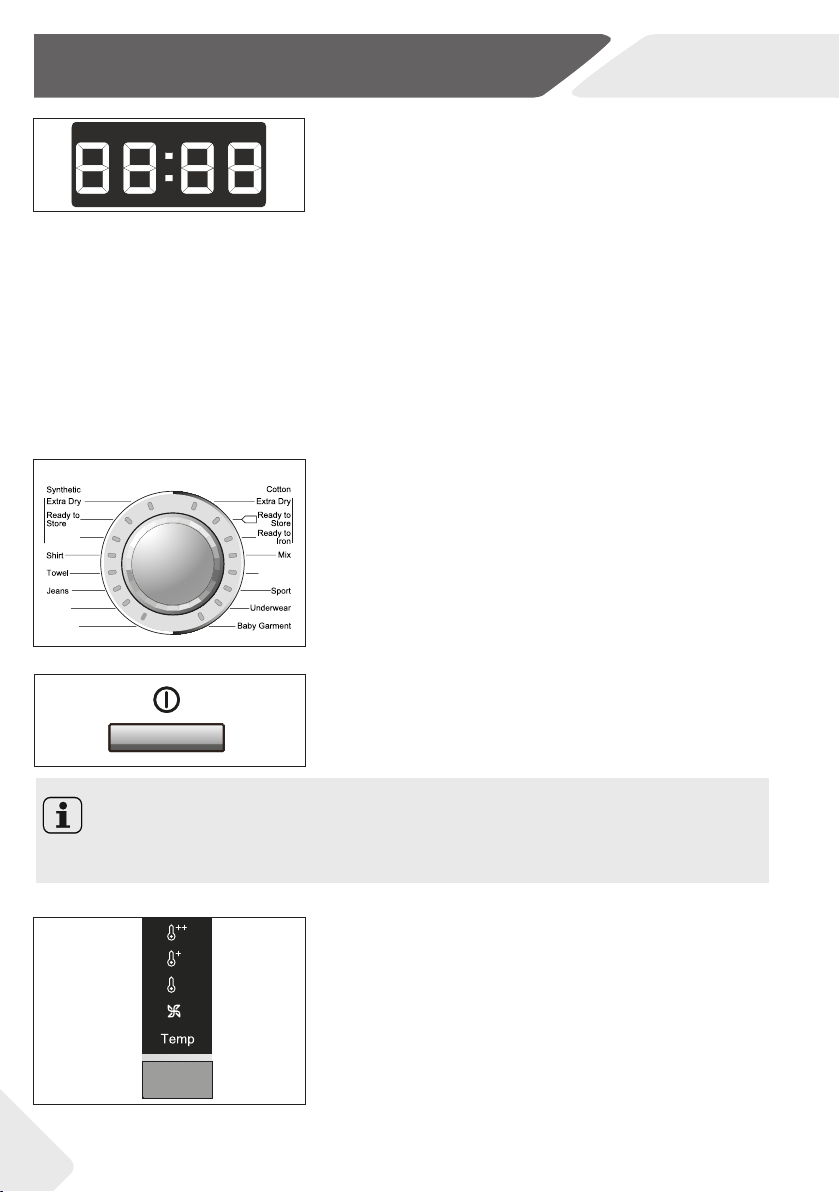

Control panel GB
10
5-On/O button
Press this button to switch on or switch o the appli-
ance (g. 8).
8
4-Programme selector
By turning the knob one of 16 programmes can be se-
lected (g. 7). The default settings will be displayed.
Bedding
Refresh
Timer
Ready to
Iron
7
Notice
After each switch-on, the appliance suggests the economical programme “Cotton-
Ready to store“ for drying normal wet cotton laundry.
3-Display
During any selection the display (g.:6) shows related
information like
▶Programme cycle time
▶Programme start delay time
▶Error codes (see TROUBLESSHOOTING)
After start of an operation it displays:
▶Remaining time in hours of a delayed programme
starts, e.g. 13:00
▶Remaining programme cycle time in hours + min-
utes, e.g.1:59
While running it may vary due to local conditions and
daily working load.
6
6-Temp. button
Touch this button (g.9) to select the drying tempera-
ture of the programme. Press sequentially the Temp.
button until the desired symbol flashes on the display.
In conjunction with the “Delay” button, the child lock
function can be switch on/o(see CHILD LOCK INDI-
CATOR).
Temp.Dry Level
Intense
.
9
