Haier GDZ3.5-61 User manual

GDZ3.5-61
GDZ5.0-61
Please read this manual
carefully before using.
Retain it for future reference.
Exhaust Type Tumble Dryer
User's Manual

1
9.Do not dry articles that have been previously cleaned in, washed in, socked
in, or spotted with gasoline, dry-cleaning solvents, or other flammable or
explosive substances, as they give off vapors that could ignite or explode.
Important Safety Instructions
Warning-To reduce the risk of fire ,electric shock, or injury to
persons when using your appliance, follow basic precautions,
including the following:
1.Read all instructions before using the appliance.
2.The tumble dryer is not to be used if chemicals have been used for cleaning.
3.The tumble dryer is intended only for drying textile material washed in water.
7.For appliances with ventilation openings in the base, that a carpet must not
obstruct the openings.
4.There has to be adequate ventilation to avoid the back flow of gases into the
room from appliances burning other fuels including open fires, when operating
the tumble dryer.
5.The lint trap is to be cleaned frequently.
6.Lint is not to be allowed to accumulate around the tumble dryer.
8.Exhaust air must not be discharged into a flue which is used for exhausting
fumes from appliances burning gas or other fuels.
11. Fabric softeners or similar products should not be used in a tumble dryer to
eliminate the effects of static electricity unless this practice is specifically
recommended by the manufacturer of the fabric softener or product.
12.Do not use heat to dry articles containing foam rubber or similarly textured
rubber-like materials.
10.Do not place items exposed to cooking oils in your dryer. Items contaminated
with cooking oils may contribute to a chemical reaction that could cause a
load to catch fire.

2
Important Safety Instructions
16.Do not use or place stove, gas device, water heater, tinder or similarities close to
your dryer. Do not install or store this appliance where it will be exposed to water
and/or to the weather.
18.Do not repair or replace any part of the appliance or attempt any servicing unless
specifically recommended in the user-maintenance instructions or in published
user-repair instructions that you understand and have skills to carry out.
17.Do not tamper with controls.
15.Keep your dryer away from combustible materials (such as gasoline) during
operation to prevent the risk of fire.
13.Do not allow children to play on, climb on or in the appliance. Close supervision
of children is necessary when the appliance is used near children.
14.Before the appliance is removed from service or discarded, remove the door to
the drying compartment.
20.If material has been used with any flammable liquids or solids it should not be
used in the dryer until all traces of the flammable liquids and its fumes have
been removed.
19.Keep area around the exhaust opening and adjacent surrounding areas free from
the accumulation of lint, dust and dirt.
22.Do not share a receptacle with other appliances. Do not use it when a plug
loosely inserted into a receptacle.
21.This dryer shall be connected to a three-wire, single phase, 220-240V AC
power receptacle more than 10A, which must be reliably grounded. A leakage
protector shall be used, if possible.
23.Do not excessively bend, stretch, twist, bind power cord or put heavy stuff on
it. Keep the terminator of power cord clean. Carefully clean it with dry cloth if
dusts accumulated. If damaged, power cord or plug must be replaced by our
service agent or qualified after-sale service person to avoid the risk of danger.

Important Safety Instructions
24.When normally using, the power cord of dryer shall be easily plugged or
unplugged by hand. It must be unplugged during power blackout, moving, not
in use or cleaning. Do not plug or unplug the power cord with wet hands.
25.Always disconnect dryer from electrical supply before attempting any service.
Disconnect power cord by grasping the plug, not the cord.
26.Do not block the exhaust vent when dryer operating to prevent it from
overheating or other dangers.
27.Do not let your dryer operate on packing foam. Otherwise it maybe cause fire
since heat accumulation or other external factors.
29.Do not place washed wet clothes in your dryer for a long time not drying them
(which may result in water leakage).
28.Only place sufficiently dehydrated clothes into your dryer for drying to prevent
leakage and longer drying time.
30.Don't touch the intake for the high temperature during the drying cycle.
31.Do not exceed dryer rated Max. Capacity.
32.The appliance must not be installed behind a lockable door, a sliding door
or a door with a hinge on the opposite side to that of the tumble dryer.

Names Of The Parts
Drum
Exhaust Shroud
Air Intake Shroud
Timer Selector Knob
Heat Selector Knob
Door
Power Cord Exhaust Vent
Back Cover
Casing
Please check if the power receptacle has good earthing
Condition before using to guarantee your safety.
The manufacturer will not take responsibility for those
Risks occurred from not obeying this manual.
Door Gasket
Window

Clothes with zipper
Dry this kind of clothes with zipper
zipped or fastener
buckled and inside
out (to reduce the
impact noise between
metal and the drum)
Clothes with ribbon or lace
should be dried in a nylon net
Put chemical fiber and/or clothes
with ribbon or lace
into a nylon net
before drying.
Do not load your dryer when
it is running.
Loading the dryer when it is running
shall be avoided to prevent the clothes
overdried or
incompletely
dried.
Please flip clothes over manually
from time to time, if necessary,
when drying large ones.
It is not easy to flip over large clothes
(such as overcoat) in the drum, uneven
drying therefore happens sometimes.
If necessary, flip them over manually
from time to time to make them dried
completely.
Operation Cautions
Put rumpled clothes in order
Put all clothes in order after
dehydrated
before drying
them.
Remove the clothes out of your dryer
as early as possible
to reduce rumples.
Please hang the easily crumpled clothes
up with a hanger after dried
Anti-wrinkle method for clothes
crumpled easily
Decrease capacity to get good anti-
wrinkle result (the capacity shall be
4/5 of that of normal clothes).
Avoid to dry starched clothes in
your dryer to prevent link filter
from clogging, which may lead
to bad exhaust performance.
Flip over clothes
Capacity reduced

Soft items
Leg
Installation Instructions
For your safety and correct using your dryer, please observe all the instructions
in this manual toinstall and adjust your dryer.
Location of your dryer
Dryer should be located in a dry and well-vented place, not filled with moisture and
vapors and where rain cannot reach (like bathroom,open balcony and water faucet).
Do not locate your dryer in a place where sunlight directly shines.
Locate your dryer on horizontal solid ground, floor or a
special bracket to prevent vibration and noise. Keep a dista
nce of 10cm-15cm away from the rear wall when installing.
Do not use stove, gas etc. near your dryer to avoid dangers.
The dryer has air intake and exhaust cycles,which
needs good air-exhaust vent in the rear and well-vented
room. If used in a small space, air exchange fan or
exhaust duct can be installed at the vent to exhaust
hot wet air outdoors.
The length of exhaust duct shall not exceed 2m.
10-15cm10-15cm
If the dryer is not used with bracket, take fixed
legs out of the accessory bag and screw them
into the assembly hole of the dryer to ensure
it be placed stable.
Install and use the fixed legs of your dryer

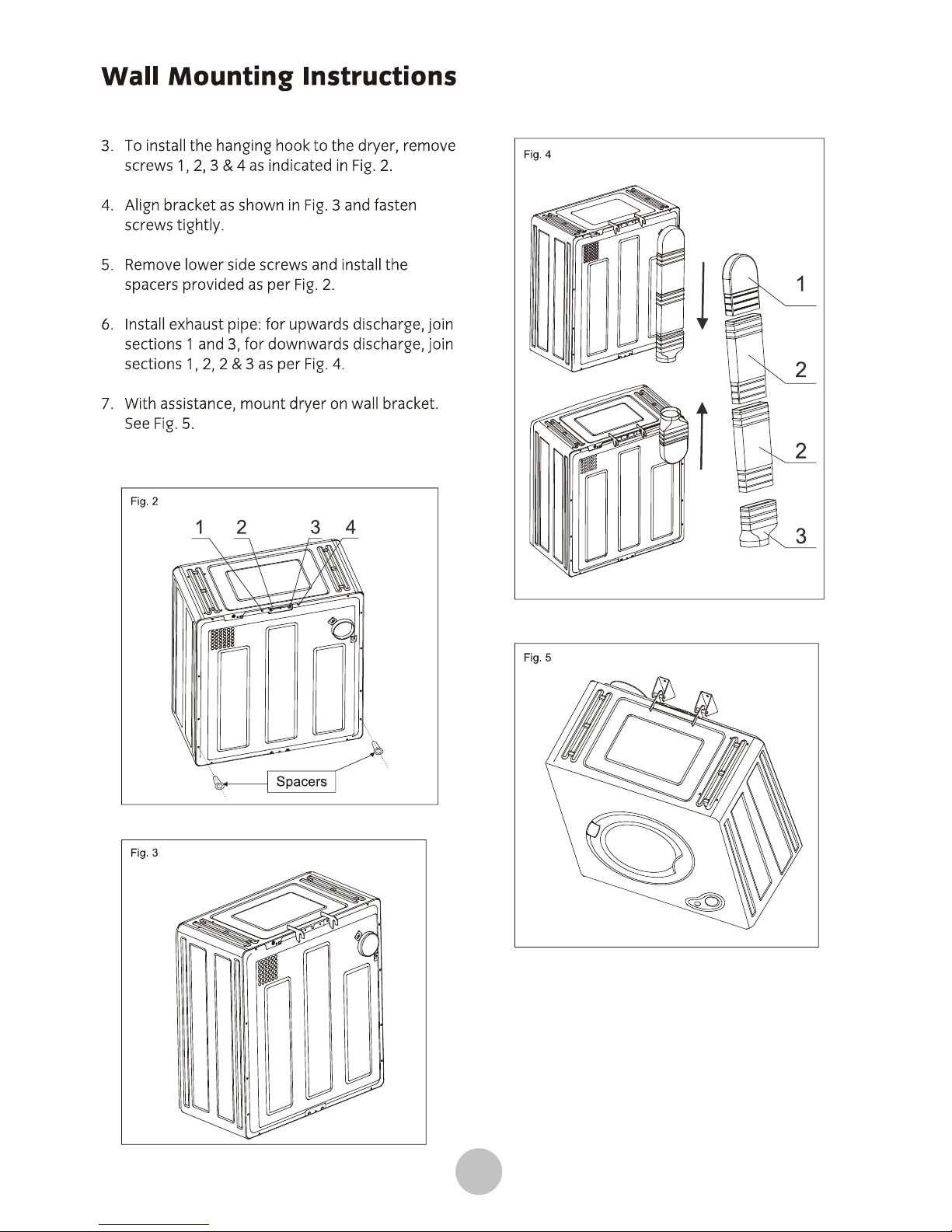

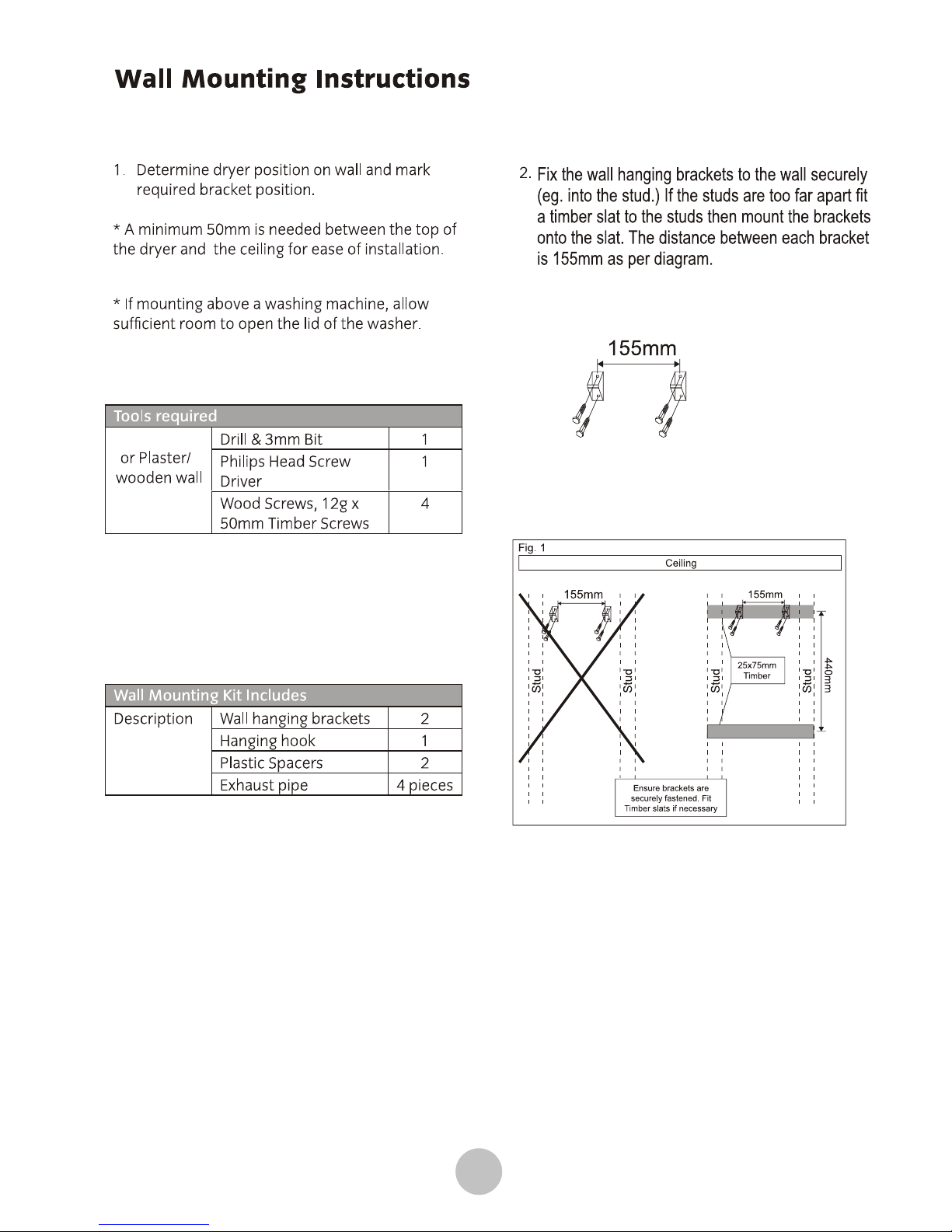

6

F
7

8

9
Using Method

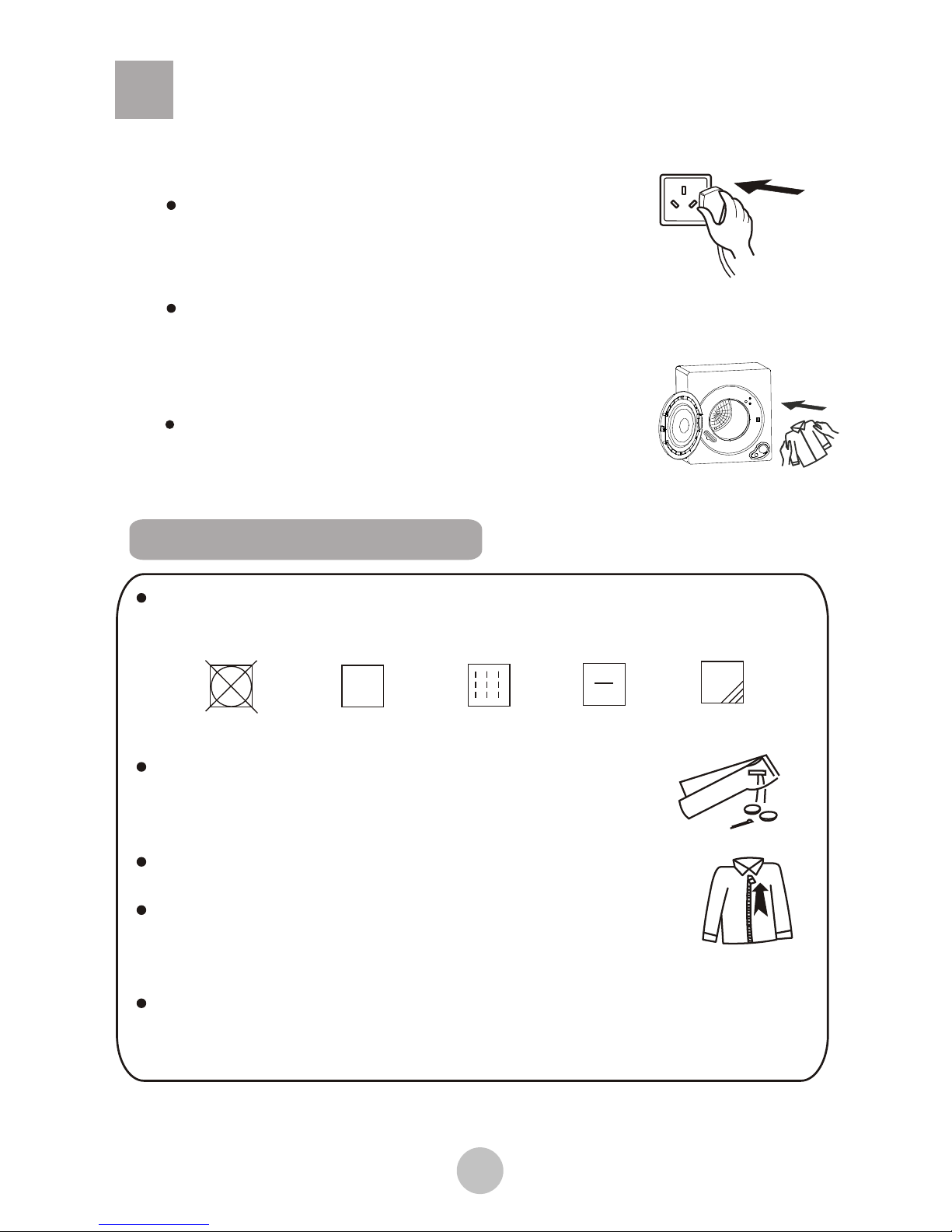

1. Plug the power cord
The appliance shall be supplied with220- 240V,50Hz,
connected to a special receptacle more than
10A (reliably grounded).
2. Place the dehydrated clothes in your dryer
Check the following items before putting clothes in.
They shall be loaded in such a way that 2-3 pieces
each time and not in a group to avoid tangling, which
is not easy to turn it over resulting in uneven drying
since the clothes were wrapped.
Before drying your clothes
Make sure if clothes have any special requirements and suitable for drying.
Do not dry your clothes in your dryer if the materials of which cannot be dried
in a dryer or they bear the following labels:
Carefully check the clothes to be dried and remove combustible
material such as lighter and match as well as sharp metal items
like coin, hair clip and safety pin maybe mixed with the clothes
and in pockets.
Clothes with zipper or fastener shall be put into your dryer inside
out with zipper zipped and fastener buckled.
Do not tumble dryDo not tumble dry
Hang to dryHang to dry Drip dryDrip dry Dry flatDry flat Dry in the shadeDry in the shade
Please put clothes into the drum. Avoid clothes being
pressed by the door due to exposure out of the port,
which will cause clothes entangle and door gasket
release and consequently poor drying effect.
Separate dark and light colored items, like you do for washing.
Check for stains that may not have been removed in washing.
Dryer heat may permanently set some stains. Properly dried clothes
will need minimum of care when removed from dryer.
For optimum results,use dryer load of similar fabric, weight and construction.
Placesmall items in a mesh bag prevent from tangling.Do not overload the dryer.
An average load will fill up half the drum.

10
Using Method

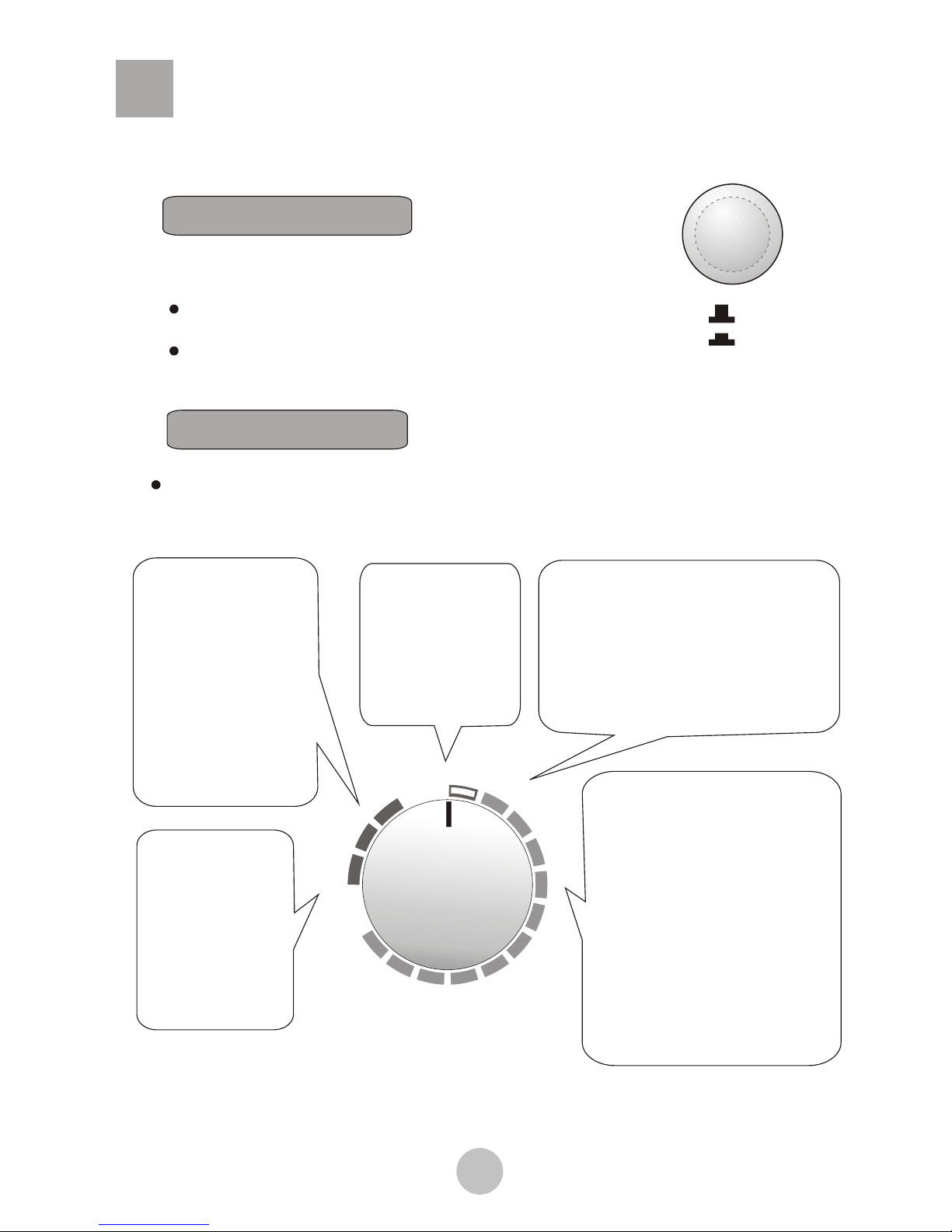

3. Control panel and its functions
Heat Selector Knob
Select strong Dry for clothes particularly thick and in large
quantities or in lower room temperature.
Select Soft Dry for clothes not resistant to heat (like nylon,
chemical fibre and silk).
' '
' '
Strong
Soft
Select drying level according to the material, quantity and drying
requirements of the clothes to be dried as shown in the figure
Heat Selector Knob
Drying Timer Knob
For down, sweater,
mohair, cotton sweater
and cotton-padded
clothes needing
freshening, tumbles
without heat. Also can
be individually used for
clothes long time in
closet with the
same results. For clothes resistant to heat,
(Check the lable on the article
to be dried, to make sure it
can be safely tumble dried) ,
the heater is working.
According to clothes materials
and quantity, turn the timer
knob to relative position.
Select 'Strong Dry' for clothes
particularly thick and in large
quantities. Refer to 'Dry Time
Reference Table'.
Motor keeps running after dryer time
heating finished while heater stops
working and cold air into the drum to
cool laundry. The whole cooling will be
finished once the timer knob gets to
'OFF ' position.
Power off when the
timer knob in
'OFF' position.
The dryer starts
when turn the knob
clockwise.
HotHot
Air dryAir dry CoolingCooling
OFFOFF
Power off when the
timer knob in
'OFF' position.
The dryer starts
when turn the knob
clockwise.
OFFOFF
OFFOFF
2020
4040
6060
8080
120120
100100
140140
160160
180180
200200
2020
4040
6060
00
220220
00
OFFOFF
CoolingCooling
Select dry program according to clothes materials and quantity, turn the timer knob to
relative position.

Using Method
6. Do not take the laundry out until drying process is done
The last 20 minutes of hot air drying is cooling
to reduce the temperature of laundry inside
the drum.
To take the laundry out during drying, please
run cooling operation first since the temperature
inside the drum must be high.
Static electricity, due to friction, will be
generated on clothes made of chemical fibre
after dried. You can feel it when taking them out,
which is normal and shall not to be worried about.
7. Unplug the power cord
Please hold plug to unplug power cord from
a receptacle. Do not pull electrical wire directly
to prevent internal breakage or bad connection.
8. Clean filters
Clean the lint filter after every load and before each use. A clean filter ensures
sufficient drying. A layer of lint on the filter reduces airflow through the clothes
and prolongs drying time
5. Dry time settings
Please refer to page 10 Control panel and its functions
and page 12 Dry Capacity ¡¤Dry Time Reference Table .
' '
' '
4. Set heat selector knob to select Strong
dry or Soft dry level.
' ' '
' ' '
' 'Strong dry level for large quantity and low room temperature.
' 'Soft dry for non heat-resistant clothes.
Soft
Heat selector knob
Select dry program according to clothes materials and
quantity, turn the timer knob to relative position. The
dryer starts running.
Strong
Caution: Dry timing knob cursor
shouldn't be set at the blank area,
as indicated in the right figure.
Refer to the instructions on page 13.
Do not
point the
cursor to
blank
OFF
OFF
Air dryingAir drying
CoolingCooling
Do not point the
cursor to blank.
2020
4040
6060
8080
120120
100100
140140
160160
180180
200200
2020
4040
6060
00
220220
00
Please refer to page 10 ' Control panel and its functions' .

DryCapacity DryTimeReferenceTable
Dry time affected by many factors, such as material, weight, thickness and the hydrated
ratio of clothes , the above listed dry time is only for reference.
Dry Capacity Approx.1kg Approx.2kg Approx.3.5kg Approx.5.0kg
Approx.200min
Approx.160minApprox.90minApprox.50min
Approx.90min Approx.150min
Soft
Strong
Dry time
Model GDZ3.5-61 GDZ5.0-61 GDZ5.0-61
Suggest use 'strong' Suggest use 'strong'

The filter fixed in the
bottom of the drum
Do not wash directly with water.
Do not use thinner, gasolene or alcohol.
Do not use any type of spray cleaner when
cleaning the interior. Hazardous fumes or electric
shock could occur. If dryer drum becomes stained,
clean the drum with a damp cloth. Remove any
residue before drying the next load.
Clean cabinet with mild soap and water. Donot use
harsh or abrasive cleaners, this could damage the
dryer.
Clean the buildup such as lints on filters in time after each use, otherwise it will affect
the performance of your dryer.
Please unplug the power cord first when cleaning it.
1. Remove the filters
Remove by pulling straight up with hands inserted
into the four holes around the exhaust vent shroud
in the sequence of Exhaust vent shroud - Lint filter -
Exhaust filter , as shown in figure 1.
'
'
3. Install the filters
After cleaning, assemble in the sequence of exhaust filter
-filter-exhaust vent shroud ,align the recesses in the center
of filter with the projection in the center of drum and make
sure that it is firmly inserted (as shown in figure 3).
'
'
2. Clean the lints
Separate exhaust vent shroud , lint filter and exhaust
filter and clean the lints on the filter and exhaust filter
with a soft brush or vacuum cleaner.
Do not damage the filters (as shown in figure 2)
' ' ' ' '
'
The lint filter must be used for drying.
It must be cleaned in time befor and after each use.
Cleaning of filters
Figure 3
Care And Cleaning
Note: The filter fixed in the bottom of the drum shall also
be cleaned with a soft brush.
Lints
Exhaust
vent shroud
Dust Cleaner
Figure 2
Figure 1
Clean the interior drum or dryer
housing, with wet soft cloth, if stained.
Lint
filter
Lint Filter
Exhaust
Filter
Exhaust Filter
DO NOT USE YOUR DRYER WITHOUT THE LINT FILTER.
Do not let any kind of liquid get into the air
intake or on the control panel.

(If your dryer exhibits problems, please unplug the power cord before checking) The following
maybe unrelated to a malfunction of the dryer itself, please reconfirm before calling a
serviceman. If it does relate to a malfunction, please contact our service agent or after-sales
service and do not repair it by yourself.
Trouble ShootingTrouble Shooting
Problem Possible Cause What to do
Is the door closed?
Is the powercord inserted
firmly?
Does the receptacle have
power?
Have the dryer have been
added during operation?
Is the timer incorrectly
set up in cold air?
Timer knob does not
turn
Drum does not turn
No hot air blown out
Close the door.
Insert the powercord firmly
Check the power cord
receptacle.
Set to hot air
Clean the filter.
Is the back filter
clogged?
Dryer does not start
Is the timer in OFF position? Set dry time
Is power failure?
Is the power cord inserted firmly?
Try again after power recovered
Insert the power cord firmly
Reduce the laundry quantity.
Have the clothes
been fully dehydrated?
Dehydrate the laundry
completely.
Is the laundry too much?
The laundry is not
throughly dried (some
of the clothes still wet
after dryer stops)
Is the power cord inserted? Insert the power cord firmly.
Is the door closed? Close the door
Does the laundry twist? Loose the twisted laundry and
dry again.
Have any clothes dry easily and
hardly been dried together?
Dry the undried laundry again.
Dry the undried laundry again.
Is the dryer placed in a small
and badly-vented space?
Place the dryer in a well-vented
place.

Specification
220-240V 50Hz
~~Model
Rated Voltage Frequency
Rated Input Power
Rated Fuse Current
Rated Max. Capacity
Overall Dimension
Net Weight
630mm 425mm 685mm
Extra 1020W Light 670W
10A
23kg
3.5kg
Extra 1070W Light 700W
GDZ3.5-61
GDZ5.0-61
GDZ3.5-61
GDZ5.0-61
5.0kg
630mm 515mm 685mm
26.5kg
GDZ3.5-61
GDZ5.0-61
GDZ3.5-61
GDZ5.0-61
