Haier HF-116R User manual

IMPORTANT : Congratulations for choosing a high quality refrigerator
by . Please read this owner's manual carefully
before using your new refrigerator. Now you will be cool,
with
12
M
O
N
T
H
S
W
A
R
R
A
N
T
Y
HF-116R
Freezer
Owner’s Manual
12
M
O
N
T
H
S
W
A
R
R
A
N
T
Y

Parts

The manufacturer reserves the right to improve the
product from time to time without further notice.
.1.
Parts
1 Control panel
2 Freezer tray
3 Slider
4 Drawer
5 Plug

Disposal of the old appliance
Before disposing an old appliance , please
make sure it’s inoperative
and safe. Unplug
the appliance and remove or destroy all of
the springs, latches, or bolt-locks in order
to avoid the risk of child entrapment.
It must be noted that the refrigeration sys-
tem contains insulating gases and
refrigerants, which require specialized
waste disposal. The valuable materials
contained in a refrigerator can be recycled.
Contact your local waste disposal center
for proper disposal of an old appliance
and contact your local authority or your
dealer if you have any question. Please en-
sure that the pipework of your refrigerator
does not get damaged prior to being picked
up by the relevant waste disposal center,
and contribute to environmental aware-
ness by insisting on an appropriate, anti-
pollution method of disposal.
Disposal of the packaging of your
new appliance
All the packaging materials employed in the
package of your new appliance may be
disposed without any danger to the
environment.
The cardboard box may be broken or cut
into smaller pieces and given to a waste
paper disposal service. The wrapping foil
is
made of polyethylene and the polyethylene
pads and stuffing contain no fluorochloric
hydrocarbon.
All these valuable materials may be taken
to a waste collecting center and used again
after adequate recycling.
Consult your local authorities for the name
and address of the waste materials collecting
centers and waste paper disposal services
nearest to your house.
Safety Instructions and Warnings
Before starting the appliance, read the
information given in the User’s Guide
carefully. The User’s Guide contains very
important observations relating to the
assembly, operation and maintenance of
the appliance.
Keep the User’s Guide in a safe place and
remember to hand it over to the subsequent
owner, if you ever sell the appliance.
The manufacturer does not accept
responsibility for any damages that may
arise due to non-observation of the
following instruction.
Damaged appliances are not to be put
into operation. In case of doubt, consult your
supplier.
Connection and installation of the
appliance are to be carried out in strict
compliance with the relative instructions set
forth in the User’s Guide.
.2.
Cautions

.3.
Cautions
For the purpose of safety, the appliance
must be properly earthed in accordance
with specifications.
Always remember to unplug the appliance
before cleaning. To disconnect the
appliance, pull at the plug itself not the cord.
All electrical repairs must be carried out
by qualified electricians. Inadequate repairs
may result in a major source of danger for
the user of the appliance.
Keep alcoholic beverages in airtight
bottles or containers and always store in
an upright position. In addition, do not store
any explosive substances inside the appliance-
Danger of explosion!
Do not damage any parts of the appliance
that carry refrigerant by piercing or perforating
the refrigerant’s grooves with sharp or
pointed items, crushing or twisting any tubes,
or scraping the coatings off the surfaces. If
the refrigerant spurts out and gets into eyes,
it may result in serious eye injuries.
Do not obstruct or cover the ventilation
grille of the appliance.
Do not allow children to play with the
appliance. In no case should children be
allowed to sit on the drawers or hang onto
the door.
If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent or a similarly qualified person in order
to avoid a hazard.
Specifications
This appliance is designed for frozen
food storage.
It is intended strictly for household use.
If using it for industrial or commercial
purpose, be sure to observe the relevant
norms and regulations.
The refrigerating circuit is leak-proof.
Never store anything dangerous in the
appliance, such as combustibles, exposives,
strong acid and alkali. etc.
The appliance is not intended for use by
young children or infirm persons without
supervision.
Young children should be supervised to
ensure that they do not play with the
appliance.
The plug should be accessible after the
appliance positioned.
! WARNING:

.4.
Installation
The appliance must stand on even flooring.If the refrigerator is not level,
adjust the front leveling leg to raise or lower it.
Install the appliance in a well-ventilated
room. Allow 10cm on each side and 10cm
over the top of the refrigerator for easy
installation and proper air circulation.
Do not expose the appliance to direct
sunlight or a heat source as cooker.
An extremely cold room is unsuitable
for installation of the appliance.
To prevent electric shock, do not
expose the appliance to rain or moisture.

.5.
Basic Operation
Please clean inner compartment of the appliance
thoroughly before the initial start-up.
After the appliance is levelled and cleaned, allow it
to stand still for 30 minutes before start-up.
1. Start-up
Start the appliance at least 4 hours before storing
foods in it for the first time.
Plug in the appliance and the green power in-
dicator (2) and red warning indicator (3) light.
The red warning indicator goes out after the
inner temperature is as low as the set one.
2. Temperature selection
Use the temperature regulator to adjust the inner
temperature. Adjust the inner temperature as desire
with a coin. To turn the temperature regulator
clockwise, the inner temperature falls accordingly.

.6.
Basic Operation
Green power indicator (2)
After the appliance is plugged in, the green power indicator lights. If the green power
indicator doesn’t work, check whether the light bulb is broken. The bulb is broken if the
compressor works normally. Otherwise, please check:
Whether the appliance is turned on
Whether the plug connection is loose or the fuse is broken
For problems that could not be settled by yourself, contact a qualified electrician.
Yellow fast freeze indicator (3)
Push the yellow fast freeze button (4) and the yellow fast freeze indicator lights. The fast
freeze system starts. Push the button again and the yellow fast freeze indicator goes out.
The fast freeze system is turned off.
Red warning indicator (1)
The red warning indicator lights when the inner compartment is not cold enough.
The red warning indicator always lights when the appliance is started for the first time.
The red warning indicator lights when a lot of fresh foods are stored in the appliance.
The red warning indicator lights when the temperature regulator is adjusted to a setting
of lower temperature.
After the inner temperature falls off to a certain degree, the red indicator goes out.
If the red indicator lights irregularly, check if the appliance door is well closed, if fresh
foods are just stored in the appliance, or if there is a long power failure before that. If not,
contact the nearest service center.
1--Red warning indicator
3--Yellow fast freeze indicator
5--On/Off switch
2--Green power indicator
4--Fast freeze switch
6--Temperature regulator
Control Panel

.7.
Use the freezer for long-time food
storage
The inner temperature of the freezer is lower than
-18oC. Bacteria reproduction is completely
suppressed under such circumstance. Therefore,
the freezer is suitable for long-time food storage,
provided that the expiry date on the food pack-
age is observed.
Fast freeze
To preserve the nutrition, taste and shape, use the
fast freeze function to freeze the food in the shortest
time.
Start the fast freeze system at least 6 hours
before placing fresh foods into the freezer. Push
the fast freeze button (4), and the fast freeze indi-
cator (3) lights. (For the amount less than 10% of
the freeze capacity, it’s unnecessary to start the
fast freeze system.)
Place the foods to be frozen into different drawers
if possible.
The foods will be frozen thoroughly in 24 hours.
Press the fast freeze button (4) again to switch off
the fast freeze system. The yellow indicator (3)
goes out.
Tips for freezing
The amount of food to be frozen at one time
should not exceed the freeze capacity (10kg/24h)
of the freezer.
Operation Instructions

.8.
Allow warm food or beverage to cool down
before placing them inside the appliance.
Divide a large amount into smaller pieces that
are easy to be frozen thoroughly, so that the qual-
ity of food is best preserved. For fruits, the amount
should be less than 1kg, and for meat, 2.5kg.
Wrap or cover foods well before storing them into
the freezer. The packing material must be durable,
odorless, impermeable and not breathable so as to
keep the foods in good condition. Label on the pack-
age the expiry date for reference.
It’s advisable to take out the necessary amount
of food only. Don’t refreeze foods that have been
thawed completely. Cook the thawed foods
before refreezing them.
Do not store bottles of beverages inside the
appliance.
How to take out the drawer
The drawers can be removed from the appliance
when it’s loaded or unloaded with food. To remove
it, pull the drawer forwards and twist out sideways.
Operation Instructions

Freezer tray
The special tray for soft fruit and berries allows
you to individually freeze your berries prior to bag-
ging for perfect results.
How to use the slider
The freezer drawers are printed with illustration
of foods and figures that represent months. Push
slider ‘1’under the food symbol, and slider ‘2’
of the same color under the month figure.
For example:
The quality period of sausage is 4 months. Placed
in the freezer in January, the sausage may be
stored until May. Push slider ‘1’under the sym-
bol of sausage and slider‘2’of the same color
under the figure 5, for reference.
Making ice
Fill 3/4 of the ice tray with water and place it in the
freezer compartment. To remove the ice cube,
twist the ice tray gently or has it stay in running
water for a while.
Operation Instructions
.9.

Defrosting
The freezer compartment does not automati-
cally defrost. A thick layer of frost or ice will in-
crease energy consumption. When the frost
layer is thick as 4-6mm, it should be removed
with a plastic scraper.
.10.
Unplug the appliance before defrosting.
Remove the foods from the freezer
compartment. Wrap foods in several layers of
newspapers and store in a cold place. To speed
up the defrosting process, you may place a
saucepan with warm water inside the freezer.
Even in summer, power failure that lasts for sev-
eral hours doesn’t affect the frozen food in the
appliance. If a power failure is announced.
Turn on the fast freeze system so as to make
the foods as cold as possible.
Do not place any fresh food in the freezer at
the power failure. Keep the door closed during
power failure if possible.
Note
A continued power failure will have adverse ef-
fect on the storage period and the food quality.
Defrosting/Cleaning
Never use a metallic tool to defrost-
Danger of damaging the appliance.
Never use an electric heater to
defrost.
At power failure
s
s

Cleaning
Unplug the appliance before cleaning.
Wash the inner compartment with lukewarm
water and neutral detergent. Rinse and dry with a
cloth or sponge. Do not use cleansers such as
soaps, paint, boiled water or acid, etc.
Dry the surface of the refrigerator thoroughly.
(1) Avoid splashing water on the freezer when
cleaning.
(2) Make sure that water doesn’t get into electric
components such as temperature regulator.
To clean the door seal, use only mild, soapy
water.
For efficient operation, dirt and dust should be
removed from back and bottom of your freezer
from time to time.
.11.
Defrosting/Cleaning
When not in use
If your freezer will not be used for a period
of time, turn the unit off and unplug. Clean the
freezer as described above.
Leave the door open.
Note: Do not stop the appliance frequently
otherwise the service life of the appliance
may be shortened.
s
s

Before calling the service center, check the following points and see if you
can solve the problem yourself.
Problem Possible cause
The freezer doesn’t work. Not plugged in.
Voltage is too low.
Not plugged in.
The light bulbs are broken.
The appliance doesn’t stand level.
The appliance is placed so near the wall that some
part of it rubs against the wall.
A Large amount of foods are placed in the appliance.
Initial start-up
The door is opened frequently.
The temperature regulator is not properly set.
The appliance is exposed to direct sunlight or a
heating vent.
Poor ventilation. The ventilating grille is blocked or
the condensor needs to be cleaned.
Foods with strong odors are not tightly covered.
Interior needs to be cleaned.
The indicator doesn’t work.
The compressor works
all the time.
Troubleshooting
Unusual noise
.12.
Unpleasant odor

.13.
Troubleshooting

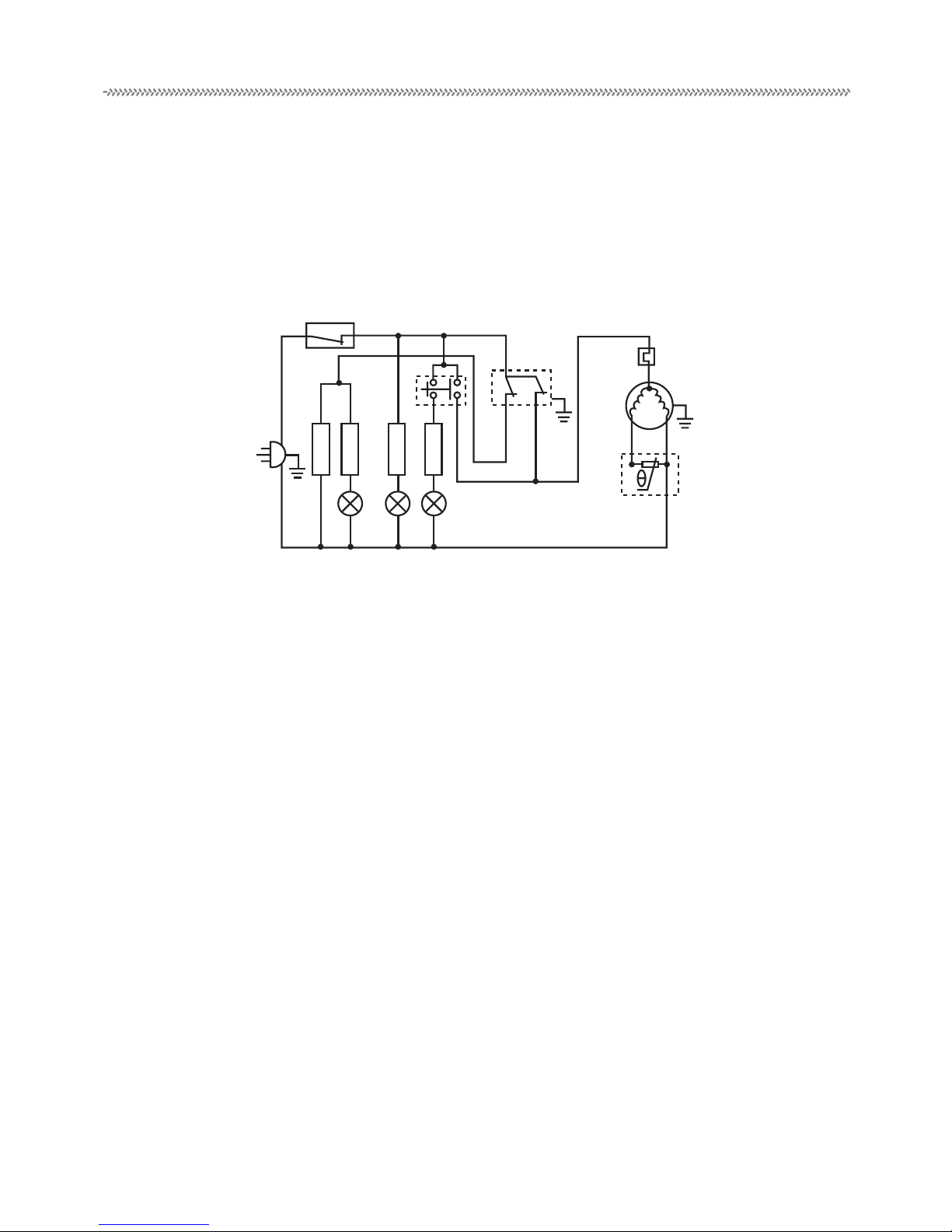

HF-116R WIRING DIAGRAM
A
B
J
E
CD
F
H
I
G
A-POWER PLUG
C-GREEN LAMP
E-QUICK FREEZING SWITCH
G-OVERLOAD PROTECTOR
I-PTC J-MAIN SWITCH
B-RED LAMP
D-YELLOW LAMP
F-THERMOSTAT
H-COMPRESSOR

Troubleshooting
MODEL
12Month's Guarantee
Capacity
Voltage
Total Input Power
Energy Consumption
Refrigerant
Size (WxDxH in mm)
Net Weight
Automatic Interior Light
Lock
Adjustable Feet
Adjustable thermostat
Drain Facility
Note: All capacities are gross.
reserves the right to change
specifications as part of its policy of continuous improvement.
HF-116R
YES
120Ltr.
220-240V, 50Hz
120W
1.1 kw.h / 24h
R134a 92g
550x623x850
45kg
NO
NO
YES
YES
NO

produce high quality refrigerators which are strong,
reliable,elegantly styled-yet practical and long lasting for the most demanding
tropical climate and conditions.
new generation refrigerators are convenient to use, highly
efficient, energy saving and are built for quiet running to withstand voltage
fluctuations.
Unique 12 MONTH GUARANTEE gives you peace of
mind and assured satisfaction from the moment of purchase. The 12 MONTH
GUARANTEE covers:
-Free part replacement under warranty
-Free repair under warranty
Unique NATIONWIDE SALES and SERVICE NETWORK
offers you fast, reliable service and replacement spare parts which will normally
be available for many years. Sales & Service is available in ILUPEJU, IBADAN,
BENIN, WARRI, PORT HARCOURT, ABA, ENUGU, ONITSHA, KADUNA,
ZARIA, KANO, JOS, MAIDUGURI, MINNA, ABUJA. Contact HPZ or your local
distributor for information.
