Haier L17L6A-G1 User manual

Owner s Manual
TFT-LCD COLOUR TV
MODEL:
L15SV6-A0, L17LV6-A1,L20AV6-A0
L17L6A-G1,L20L6A
Please read thismanual carefully before
using your televisionand keep thismanual
in a goodplace for futurereference.
TFT-LCD TV High Brightness & Contrast NICAM/A2 Stereo Sound

English-1
4
2
6
7
10
16
17
18
19
20
21
8
Contents
Warning
Loading battery
Functions of remote controller
Operation instructions
Screen display
Programme setup
Sound system & Video system set up
Others
External audio and video device connections
Connected to PC as a monitor
Specifications
Troubleshooting
Front control panel
Back cover interface 5
14
Picture control 15
Picture Control P.MODE 15
Sound Control
Set the Equalizer User
16
Sound Control S.MODE (Sound Status Mode)
11
13

English-2

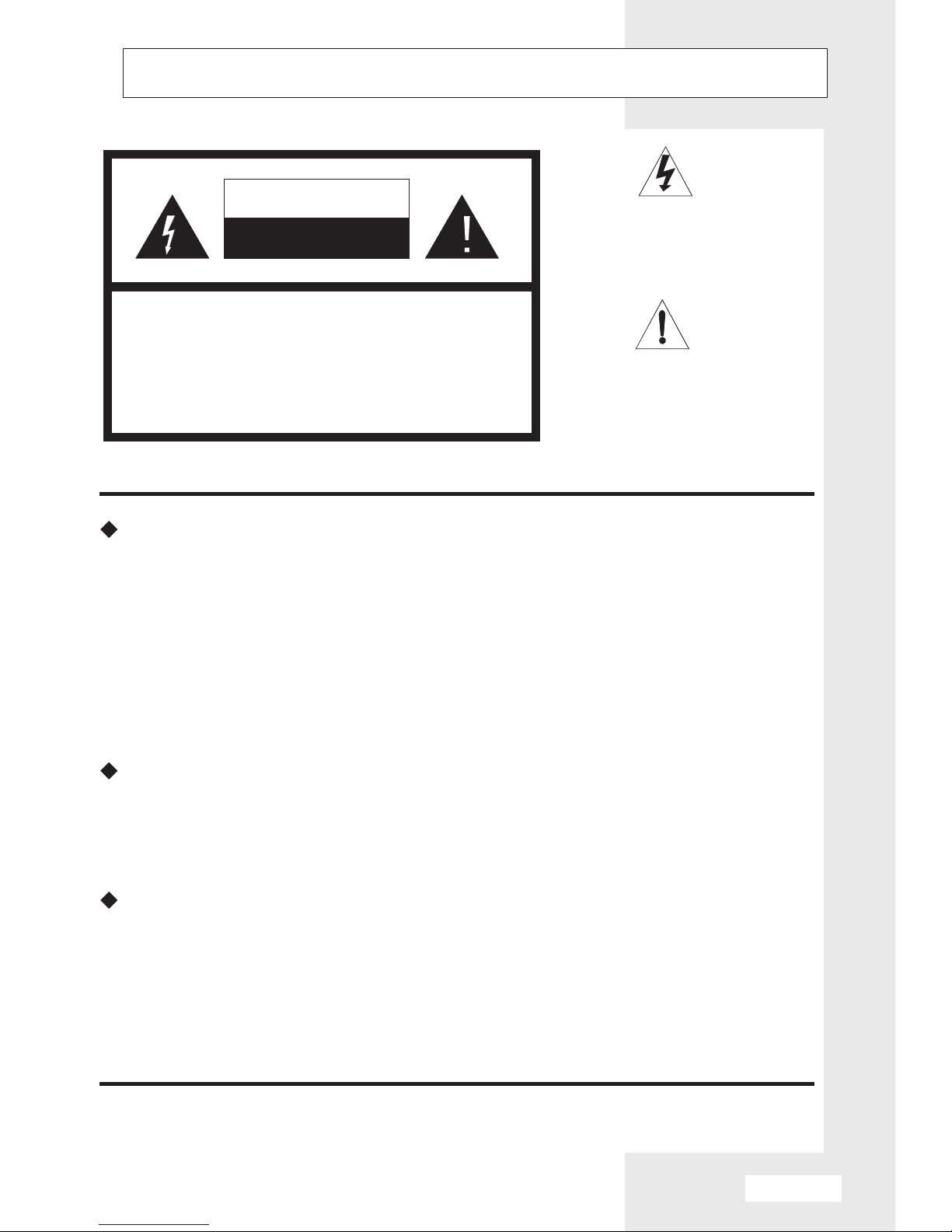

WARNING
RISK OF ELECTRICSHOCK
DO NOT OPEN
WARNING
Caution
Unauthorized disassembly of this product is prohibited.
Power supply
This product requires DC power supply which is switched by a AC-DC
converter. The voltage value is as per the information specified on the
rating label, which is fixed on the back of the television set. The
product will never be supplied with AC power source. The information
of AC-DC voltage is stated on the converter casing.
Warning
To avoid fire or electric hazards, never place your television receiver
in an area with heavy moisture. Attention should be paid to avoid
accidental scratches or impacts onto the LCD screen.The function of
sound may be lost and the function of picture may bedisordered in
electrostatic discharge, they can be restored by operation of the
controls.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE
PERSONNEL.
DANGEROUS VOLTAGE
Uninsulated Dangerous Voltage, that
may be of sufficient magnitude to
constitute a risk of electric shock, is
present within the cabinet of this unit.
ATTENTION
The Owner's Manual contains
important operating and maintenance
instructions. For your safety, it is
necessary to refer to the manual.

English-3
WARNING
Application area
Do not expose the television set directly to floodlight, sunlight, heavy
humidity, high temperature or thick dusts. Locate the television set in
a well-ventilated area, away from vibration and blockage of ventilation
port on the television rear side.
Cleaning
Unplug the television set when the LCD screen is to be cleaned. Use
soft fabrics for cleaning the screen and electric cables. If necessary, a
piece of wet but clean soft cloth can be used for cleaning the screen,
but never use any liquid or spray detergent.
Power source connection
1 Plug the 12V AC-DC converter to the 12V input jack of the television
set.
2 Correctly connect the AC wire to the AC-DC converter.
3 Insert the AC wire plug in the jack of AC power source.
Disconnect the television set with the power source or antenna plug
when it heavily rains with thunderstorm or power supply is interrupted.
Do not tie electric cables to any other objects to avoid accident
damages.

English-4

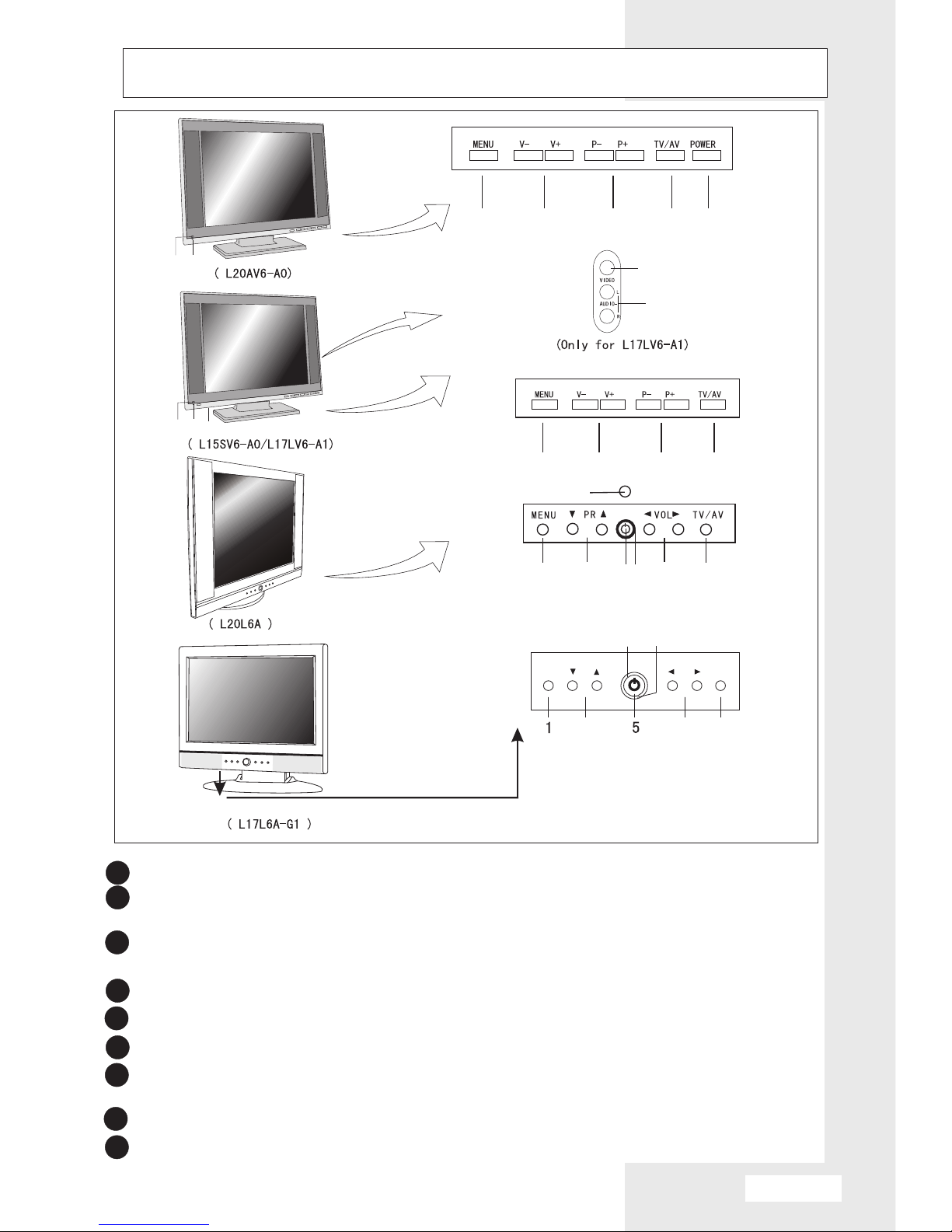

FRONT CONTROL PANEL
1 2
6
7
43 5
1 2
65
7
43
8
9
1 2
2
3
3
5
6
6
7
7
4
4
MENU PR VOL TV/AV
1MENU Display the menu.
3 P- P+ (programme number down/ up button)
Select a channel or select an option in the menu.
6 Power Indicator When the main power is turned on, the indicator is on.
5Power Turns the TV set on/off.
8Video video input terminal.
9Audio audio input terminal.
2V- V+ ( volume down /up button)
Adjust the volume or change the menu set.
4 TV/AV
To exchange between TV and other available video inputs
7 Remote Sensor
Receiving remote controller sends the infrared remote signal.
Note: The silk-screen or the array may be change without notice.

English-5
BACK COVER INTERFACE
D-SUB IN
DC IN S-VIDEO VIDEO
PC AUDIO IN
HEADPHONE ANT
AUDIO
21
3
4
5
6
7
8
9
SCART
1Antenna input
3External audio input
5SCART input
7Headphone output slot
912V power input
2External video input
4S terminal input
6Computer audio input
Computer/digital TV signal input8

English-6
LOADING BATTERY
Loading a battery to the compartment
1 Remove the cover of battery compartment
as shown in the figure.
2 Properly load one 3V Li-Battery in the
compartment of the remote controller.
3 Replace the cover of the battery compartment.
Cautions
1 Ensure that there is no obstacle to signals from
the remote controller to the receiving sensor of the
television set.
2 Keep the remote controller away from heat
source or high moisture and avoid impacts to the
remote controller.
3 Do not operate the remote controller directly
in floodlight or strong sunlight.
CAUTION
RISK OF EXPLOSION IF BATTERYIS REPLACED
BY ANINCORRECT TYPE.
DISPOSE OF USEDBATTERIES ACCORDING TO
THE INSTRUCTIONS.

English-7

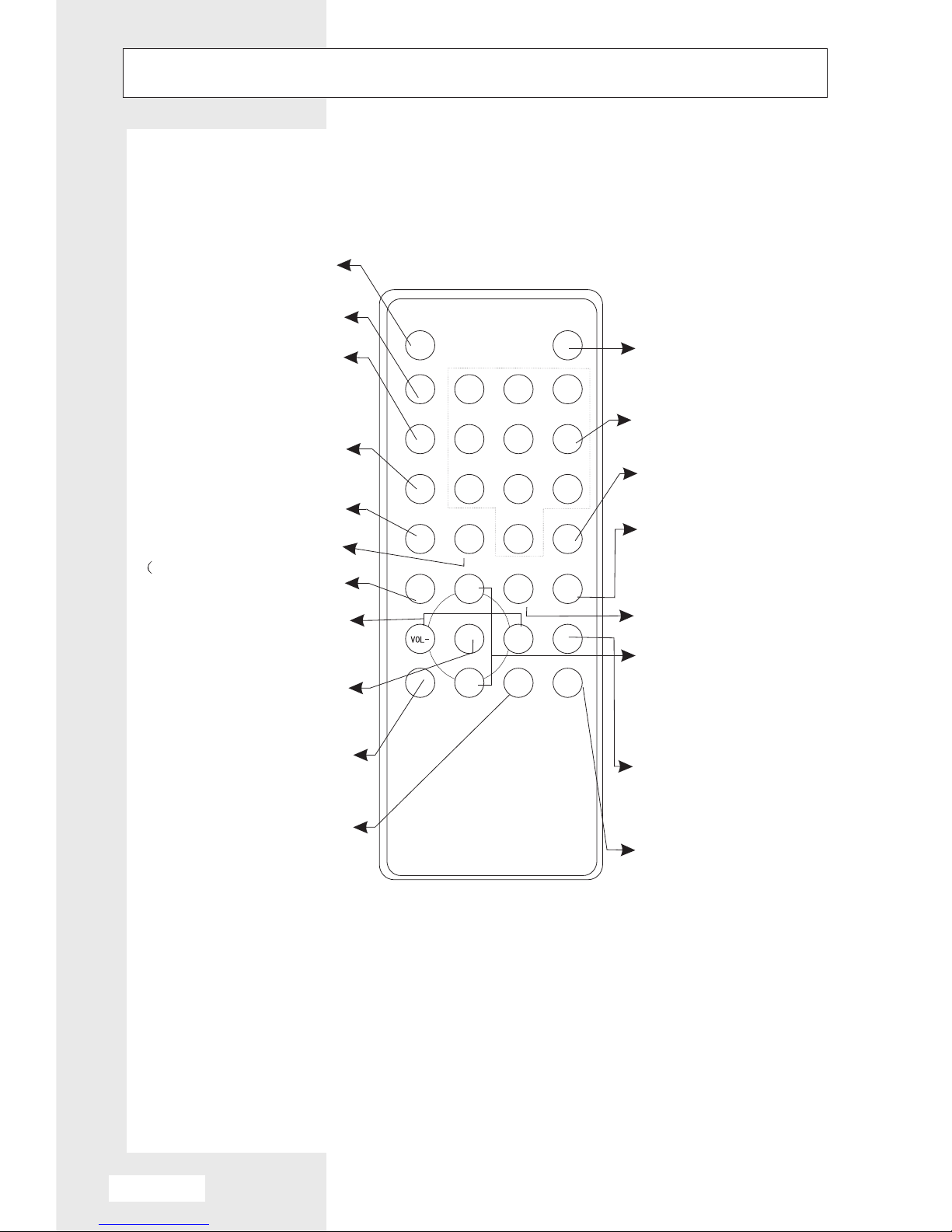

FUNCTIONS OF REMOTE CONTROLLER
0
8
5
2
9
6
3
7
4
1
POWER MUTE
PC
TV/AV
DISPLAY
SLEEP
NICAM
DIGITAL
BASS
CH+
VOL+
MENU DVD
CH-
AD
OK Q.VIEW
P.MODE S.MODE ARC
Press to conceal the
sound of programme
Channel direct
selection
To exchange between
TV and other available
video inputs
Option of computer
input
Option of DVD input
Programme quick
review
To select programme
or menu item
DC standby
DISPLAY
To display the SLEEP
TIME,press the
VOL+/- buttons to set
the sleep time
A2 stereo/NICAM
selection
Autoadjust the display
to match theTV screen
in PC mode)
To make sure the
selection
Adjusts volume, reset
menu or enter submenu
To call the main menu
Digital bass selection
Option of picture mode
Option of sound mode The ARC function
is not available except
L17LV6-A1 and
L17L6A-G1
(Press this key, the present
size will be on the screen.
Then use VOL +/- to adjust
the picture size between Fill
all and 4:3)

English-8
OPERATION INSTRUCTIONS
Turning the TV On and Off
Standby Setup: The AC-DC converter and the
AC power cord must be set up and connected to
have the TV in standby mode ready to be turned
on. Press the power button on the front panel of
the TV to go into standby mode.
1 If the TV is in standby mode, press the Power
button on the remote controller to turn on the TV
Set.
2 Press the Power button and the TV goes into
standby mode.
Note : If the TV is on and the power button on the
remote controller is pressed to turn the TV
off, the TV goes into standby mode.
Programme selection
1 You can select a channel with the CH-/+ or the
NUMBER button.
Volume adjustment
1 Press the VOL-/+ buttons to adjust the volume.
Quick view
1 Press the Q.VIEW button to view the last
programme you were watching.
POWER
CH+ CH-
VOL+ VOL-
Q.VIEW
23
1
56
4
89
7
0

English-9
OPERATION INSTRUCTIONS
SOUND SYSTEM
COLOR SYSTEM
SLEEP TIME
SOUND SYSTEM
COLOR SYSTEM
SLEEP TIME
DK
Auto
0 min/0 min
OSD TONEOSD TONE OFF

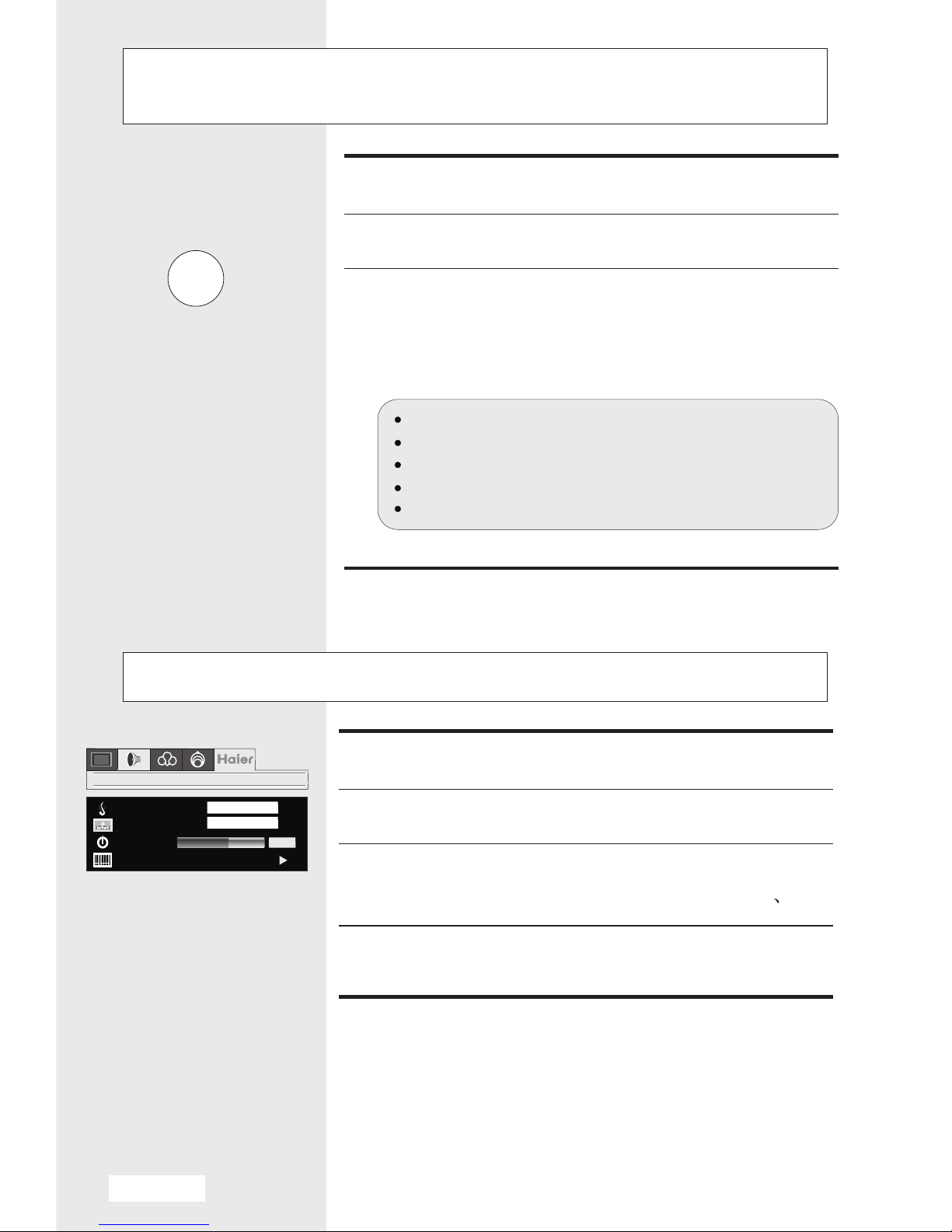

Mute function
1 Press the MUTE button then the sound will be
switched off and the display appears.
2 You can cancel it by pressing the MUTE again.
On screen language selection
The menu can be displayed on the screen in
desired language.
First select your language.
1 Press the MENU button.
2 Select the third menu.
3
to select LANGUAGE.
Press CH- button to enter the Menu then press
CH-/+ buttons
4 Press the VOL+ button to select desired language.
MUTE
LANGUAGELANGUAGE English

English-10

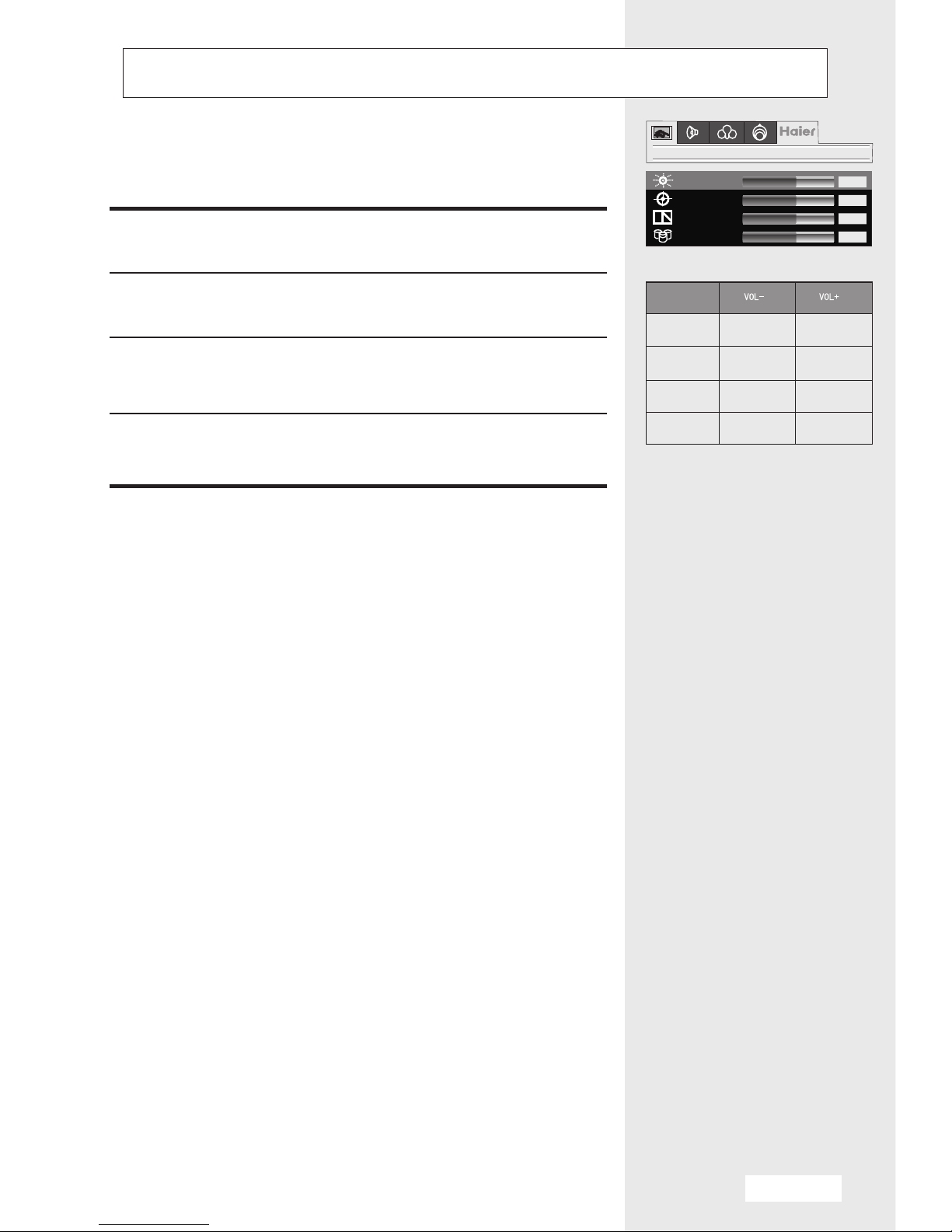

BRIGHTNESSBRIGHTNESS
CONTRASTCONTRAST
SHARPNESSSHARPNESS
COLORCOLOR
65
65
65
65
OSD TONEOSD TONE
LANGUAGELANGUAGE
SOUND SYSTEM
COLOR SYSTEM
SLEEP TIME
SOUND SYSTEM
COLOR SYSTEM
SLEEP TIME
OFF
English
DK
Auto
0 min/0 min
ATMATM
MANUAL STOREMANUAL STORE
FINE TUNEFINE TUNE
ADD/ERASEADD/ERASE OFF
How to select the item you want
to adjust.
1 Press the MENU button and the main menu will
appear on the screen.
2 Press VOL+/- buttons to select PICTURE,
SOUND,OPTIONS or TUNER Menu.
3 Press CH- button to enter the Menu then press
CH-/+ buttons to select the item.
4 Press VOL+/- buttons to adjust Menu items or
enter a submenu.
5 Press MENU or OK button to exit.
SCREEN DISPLAY
PICTURE MENU
SOUND MENU
TUNER MENU
OPTIONS MENU
65
DIGITAL BASSDIGITAL BASS
AVCAVC
BALANCEBALANCE
EQUAUZEREQUAUZER
OFF
OFF
2
CURRENT CHANNELCURRENT CHANNEL

English-11
PROGRAMME SETUP
Setting up TV programme
Up to 200 TV programmes can be stored in this set.
Once you have preset the programmes, you will be
able to use the CH-/+ or NUMBER button to
select the programmes . Programmes can be
tuned using automatic or manual modes.
Auto programme(ATM)
All programmes that can be received are stored
by this method. It is recommended that you use
auto programme during installation of this set.
1 Press the MENU button.
2 Press VOL+ button to select the fourth menu.
3 Press CH-
-/+
button to enter the menu then press
CH buttons to select the ATM .
4 Press VOL+ button to start the search.
CH+ CH-
23
1
56
4
89
7
0
ATMATM
MANUAL STOREMANUAL STORE
FINE TUNEFINE TUNE
ADD/ERASEADD/ERASE OFF
2
CURRENT CHANNELCURRENT CHANNEL

English-12
PROGRAMME SETUP
Manual programme
Manual programme lets you manually tune and arrange the
programmes in whatever order you desire.
1 Press the MENU button.
2 Press VOL+ button to select the fourth menu.
3 Press PRO- -/+
button to enter the menu then press CH buttons to
select the MANUAL STORE.
4 Press VOL+ button to start the search.
Channel fine tuning
Channel fine tuning is not suggested unless it is necessary when
abnormal status occurs to achieve a better picture or sound
quality.
1 Press the MENU button.
2 Press VOL+ button to select the fourth menu.
3 Press CH- -/+button to enter the menu then press CH buttons to
select the FINE TUNE.
4 Press VOL+ button to start fine tuning adjustment until the best
picture and sound are achieved.

English-13
PROGRAMME SETUP

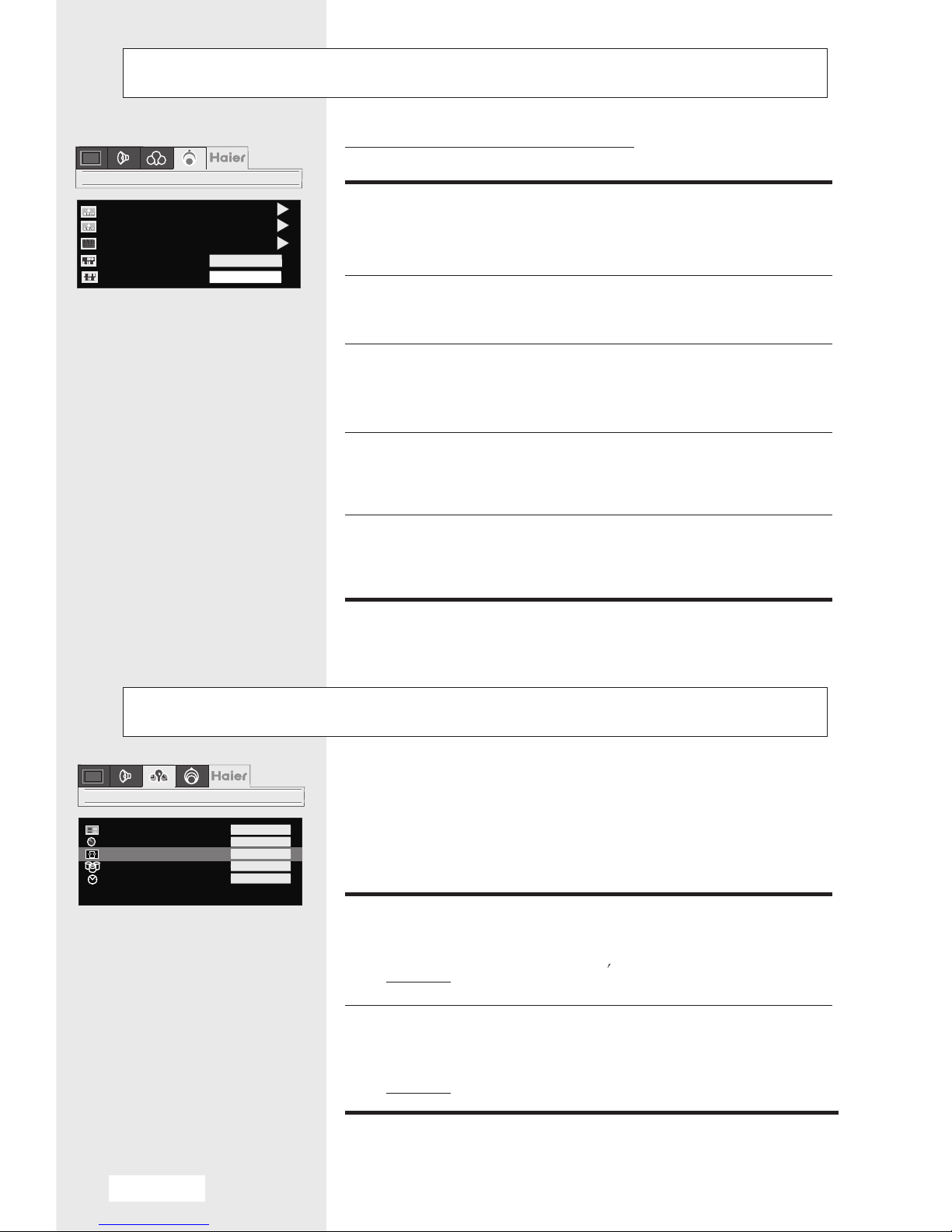

Skipping a programme
1 Select a channel to be skipped with the CH-/+
or Number button.
2 Press the MENU button.
3 Press VOL+ button to select the fourth menu.
4 Press CH-
-/+
button to enter the menu then press
CH buttons to select the ADD/ERASE.
5 Press VOL-/+ buttons to turn on/off the skip
channel.
Sound system & Video system set up
If the color or sound of one channel is
abnormal.It might be because the colour or
sound system has been set improperly.You may
follow the instruction below to adjust it.
1 Select a Sound system with the VOL+ button.
2 VOL+ button.Select a Video system with the
OSD TONEOSD TONE
LANGUAGELANGUAGE
OFF
English
0 min/0 min
Auto
Result: BG /I/DK /L/L
Result: PAL/SECAM/AUTO
DK
SOUND SYSTEM
COLOR SYSTEM
SLEEP TIME
SOUND SYSTEM
COLOR SYSTEM
SLEEP TIME
ATMATM
MANUAL STOREMANUAL STORE
FINE TUNEFINE TUNE
ADD/ERASEADD/ERASE OFF
2
CURRENT CHANNELCURRENT CHANNEL

English-14
PICTURE CONTROL
You can adjust Brightness, Contrast, Sharpness,
Colour to the levels you prefer.
1 Press the MENU button.
2 Press VOL+ button to select the first menu.
3 Press CH- button to enter the menu then press
CH-/+ buttons to select a picture item.
4 Press VOL-/+ buttons to adjust the picture
parameter on as you want.
CONTRASTCONTRAST
SHARPNESSSHARPNESS
COLORCOLOR
BRIGHTNESSBRIGHTNESS
65
65
65
65
Items
CONTRAST
SHARPNESS
BRIGHTNESS
COLOR
Low High
Low High
Light
Dark
Low
High

English-15
1 Press the P.MODE button.
2 Press the P.MODE button repeatedly to select .
PICTURE CONTROL P.MODE (PICTURE STATUS
Mode)
3 Each press of the button,the screen display
changes as below.
STANDARD: Standard Picture Appearance
DYNAMIC:High picture contrast
MOVIE: For moving picture
MILD: Softer Picture Appearance
CUSTOM:User mode
1 Press the MENU button.
2 Select the second menu.
3
to select the DIGITAL BASS AVC
and item.
Press CH- button to enter the menu then press
CH-/+ buttons
BALANCE
4 Press VOL+ button to make desired adjustment.
Sound Control
P.MODE
65
DIGITAL BASSDIGITAL BASS
AVCAVC
BALANCEBALANCE
EQUAUZEREQUAUZER
OFF
OFF

English-16
1 You can press the S.MODE button repeatedly to
select. Also you can define the CUSTOM mode by
set the Equalizer.
2 The sound mode
are for the good sound reproduction at
the factory and cannot be changed.
STANDARD, MUSIC, MOVIE and
SPEECH
SET THE EQUALIZER USER
120Hz
500Hz
1.5kHz
5kHz
10kHz
120Hz
500Hz
1.5kHz
5kHz
10kHz
65
65
65
65
65
1 Select Equalizer by pressing the CH- button and
press VOL+ button to enter the submenu.
2 Select a sound band by pressing the CH- button.
3 Make appropriate sound level with the VOL+
button.
4 Press the MENU button to exit.
Sound Control S.MODE (Sound Status Mode)
S
65
DIGITAL BASSDIGITAL BASS
AVCAVC
BALANCEBALANCE
EQUAUZEREQUAUZER
OFF
OFF

English-17
OTHERS
LANGUAGELANGUAGE
SOUND SYSTEM
COLOR SYSTEM
SLEEP TIME
SOUND SYSTEM
COLOR SYSTEM
SLEEP TIME
English
DK
Auto
0 min/0 min
OSD TONEOSD TONE OFF
Option Control
1 Press the MENU button.
2 Press VOL+ button to select the third menu.
3 Press CH- button to enter the menu then press
CH-/+ buttons to select the desired item.
OSD TONE
1 When the OSD TONE is set ON, the background
of the menu will be transparent.
SLEEP TIME
1 You can press VOL+ button to set the sleep time
among 10min/20min/30min/60min/90min/120min
180min/240min.
Listening to A2 Stereo/NICAM
1 Press the button on remote controller to
select between A2 stereo/NICAM if the signal
with A2 stereo/NICAM has been received.
NICAM
LANGUAGELANGUAGE English
DK
Auto
OSD TONEOSD TONE OFF
SOUND SYSTEM
COLOR SYSTEM
SLEEP TIME
SOUND SYSTEM
COLOR SYSTEM
SLEEP TIME 0 min/0 min
NICAM
30 min/25min
The sleep time
you set.
The remainder time

English-18
EXTERNAL AUDIO AND VIDEO DEVICE
CONNECTIONS
Headphone port
D-SUB IN
DC IN S-VIDEO VIDEO
PC AUDIO IN
HEADPHONE ANT
AUDIO
SCART
Stereo
To DVD
component input
DVD, VCD and other equipment
To outside input
To SCART
To SCART
ToS-VIDEO input
To audio input
To video input
DVD, VCD or otherunits
AC-DC
converter
To power
supply
Headphone port
Plug the headphone in the television headphone port, then the
television programme sound will be heard from the headphone, not
by the television speaker. Press VOL+/- buttons to increase or
decrease the sound volume. No sound will be heard if MUTE button
is pressed.
Some external signal sources, such as VCR, video camera or
PC, can be linked to the television.

English-19
CONNECTED TO PC AS A MONITOR
VGA input
D-SUB IN
DC IN S-VIDEO VIDEO
PC AUDIO IN
HEADPHONE ANT
AUDIO
SCART
To D-SUB IN
To PCAUDIO IN
1Connect PC VGA output port with television D-SUB IN port.
2Connect PC audio cable to television PC Audio IN port.
3Press PC button for PC mode option.
4Turn on PC and PC images will be displayed on the television screen.
It is recommended that television screens be set at 800X600(pixel)/60Hz. 3
1When the television temperature islow, initial pictures mightflicker a bit.
2Some red, green and blue spots may appear on the screen.
SCART input
You may get the Y Pb/Cb Pr/Cr signal of DVD from the SCART terminal by the
SCART-DVD connecting cable.
DVD Player with
Y Pb/Cb Pr/Cr
output terminal
NOTE
