Welcome
Important Information
01 Safety Warnings
2
2
Safety notice
Warning and cautions
3
4
Main Parameter
Base Stand Assembly Instruction
02 Introduction
5
7
Wall Mounting Installation Guidelines
Control Panel
8
9
Rear/Side Sockets 9

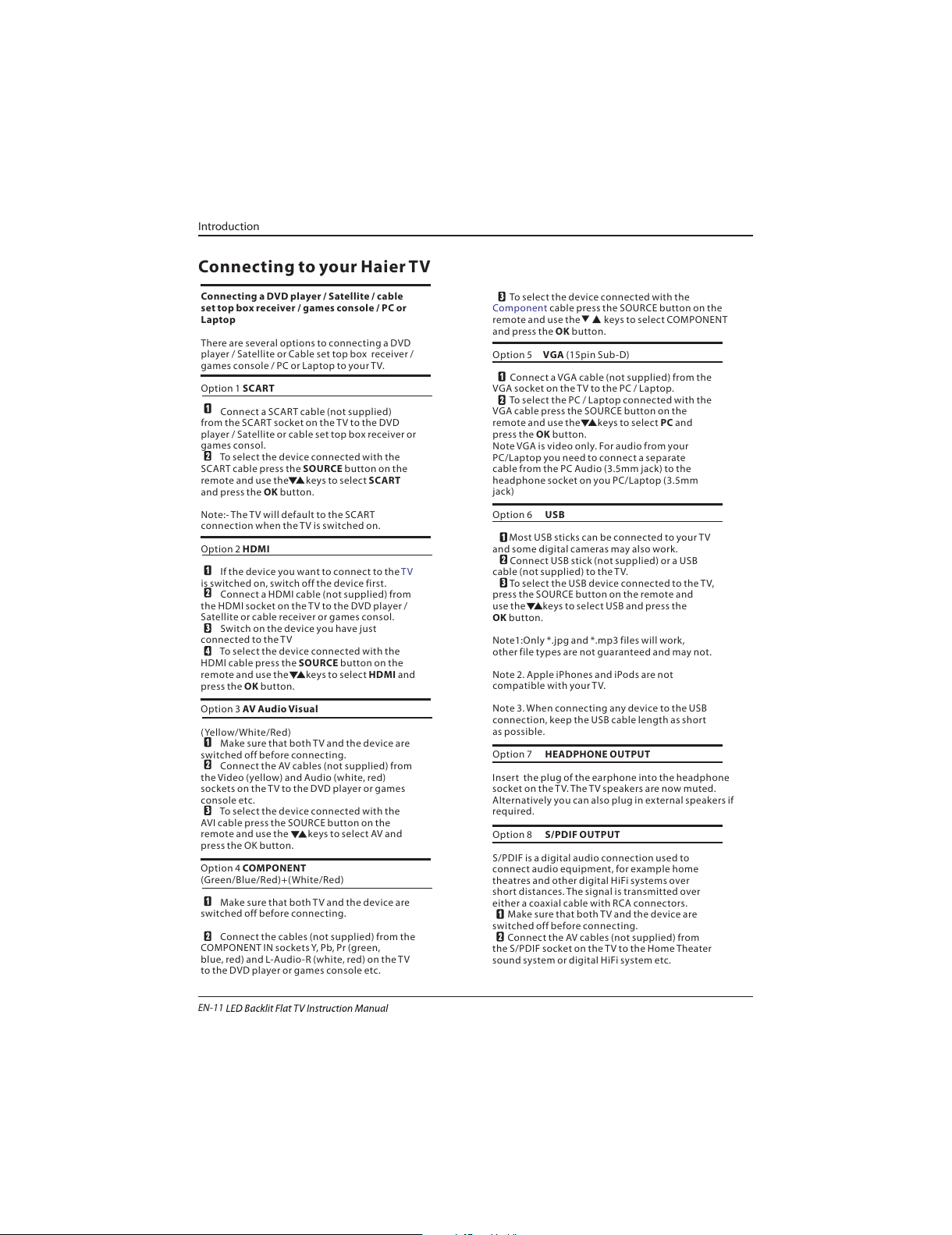

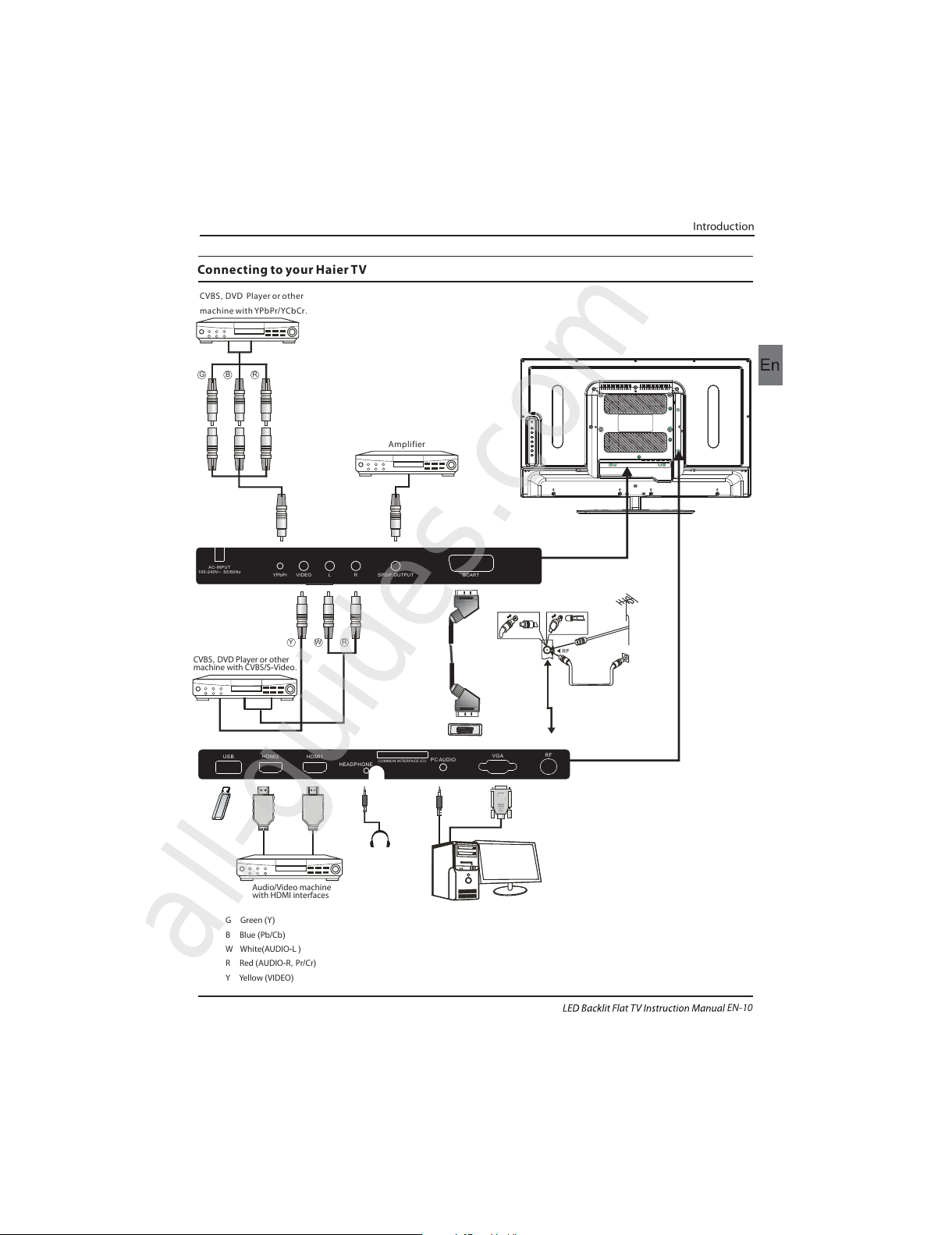

Connecting your Haier TV

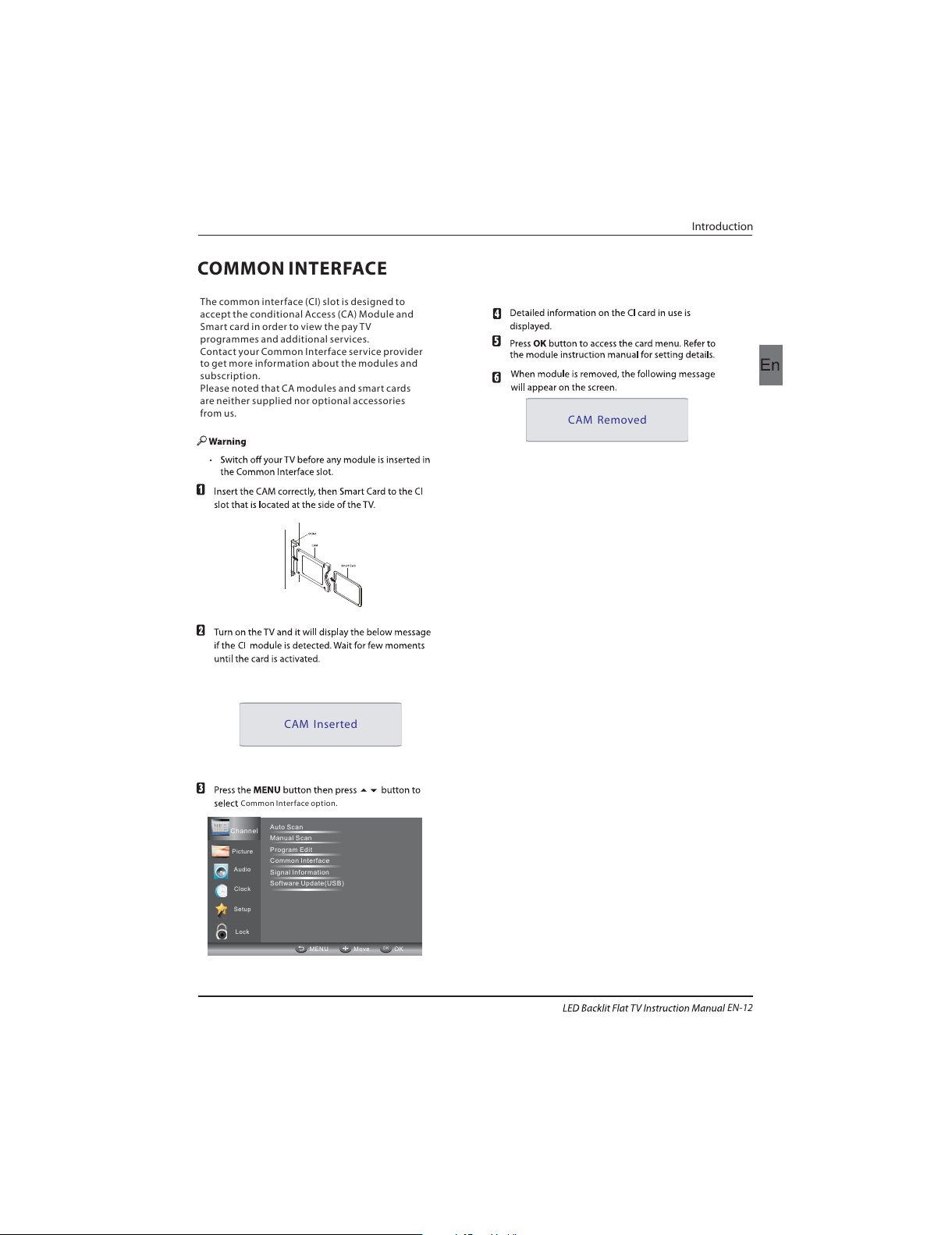

Common Interface
10
12

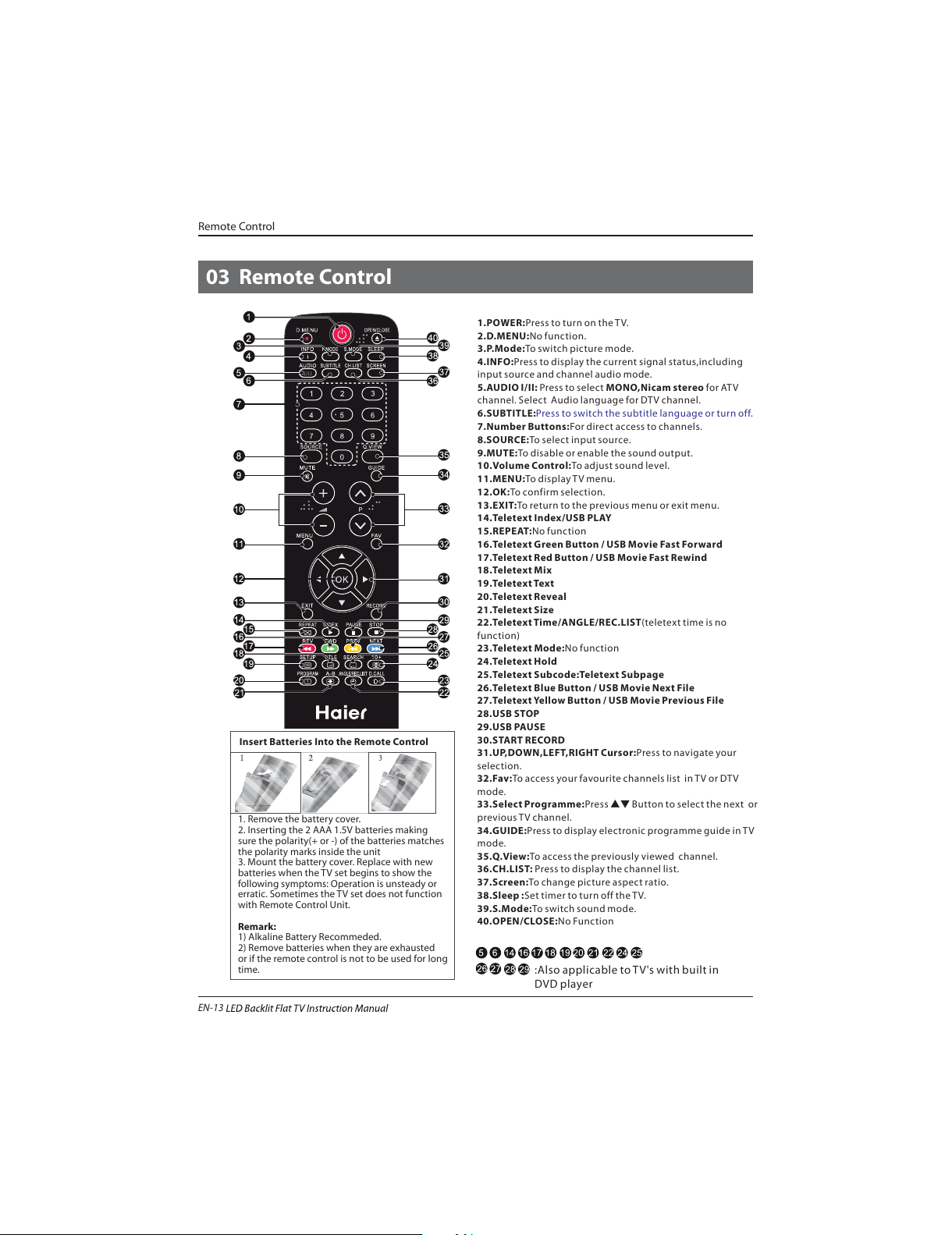

Remote Control
03 Remote Control
13
Teletext 14

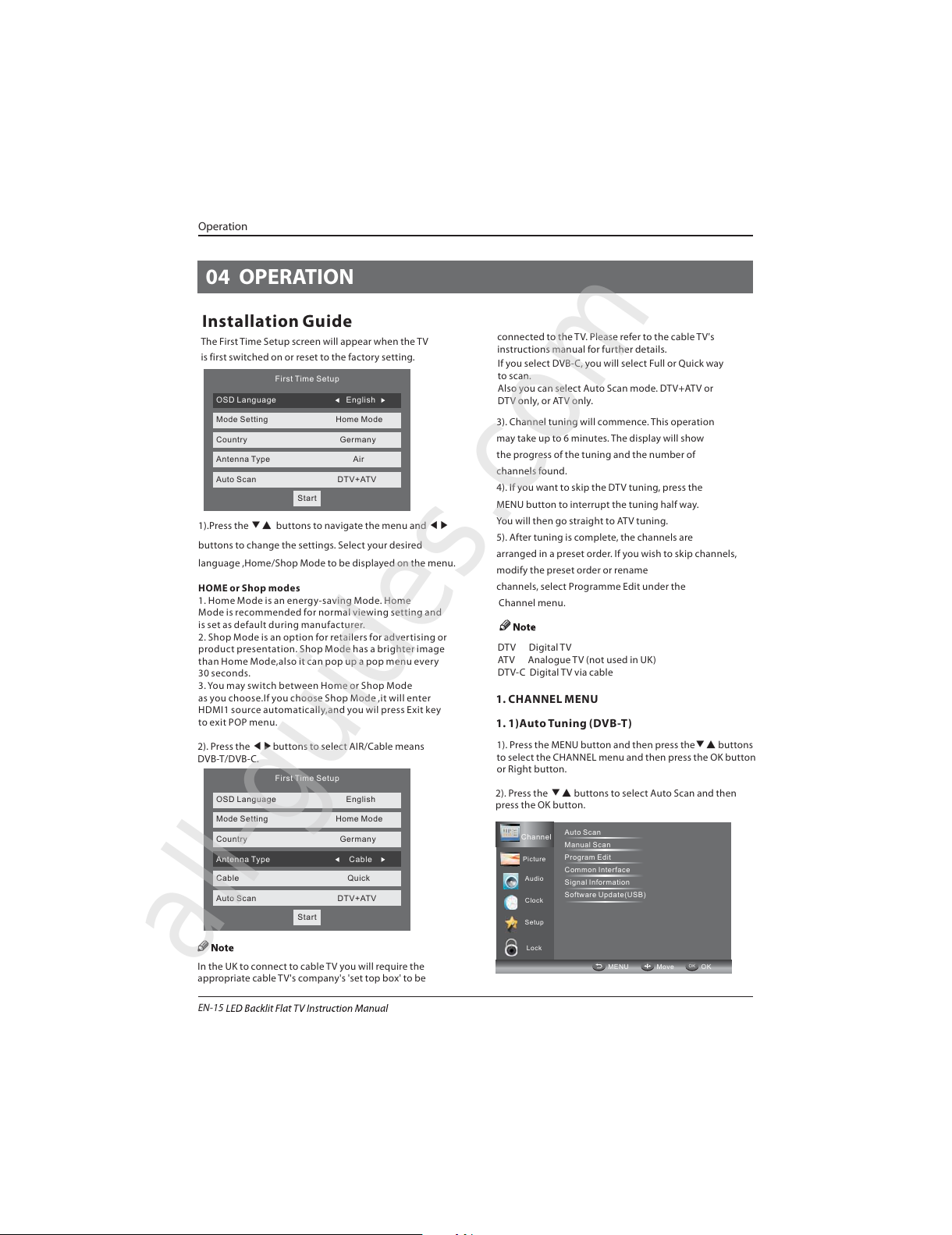

Installation Guide
04 Operation
15
CHANNEL MENU 15
Auto Tuning (DVB-T) 15

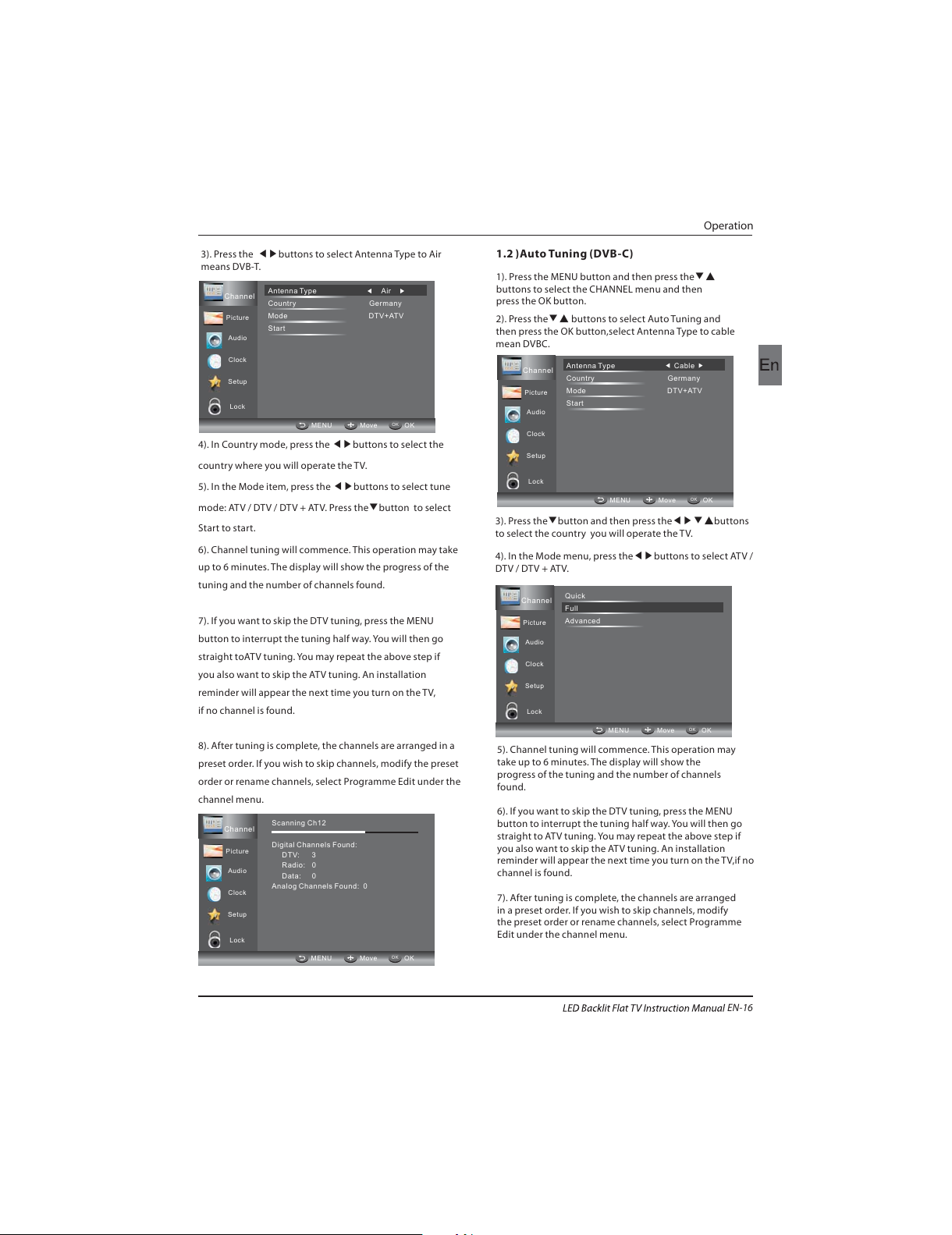

Auto Tuning (DVB-C) 16
DTV Manual Tuning (DVB-T)
DTV Manual Tuning (DVB-C)
ATV Manual Tuning
17
17
17
PICTURE MENU 18
19
Audio MENU 18
Clock MENU 18
SETUP MENU
LOCK MENU
EPG Menu(Electronic Program Guide) 20
PVR function 20
Prepare to record the program 20
19
Record the program 21
DTV Recording 21
Timeshift function 22
USB Player 23
Trouble shooting
05 Trouble shooting
25
Specification 28
Program edit
Common Interface
17
18
Signal Information
Software Updated(USB)
18
18
All manuals and user guides at all-guides.com

Thanks for buying this 29" LED LCD TV . This guide will help you set up and begin using your TV.
IMPORTANT INFORMATION
READ ALL INSTRUCTIONS BEFORE USE AND KEEP FOR FUTURE REFERENCE.
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).NO USER SERVICEABLE PARTS INSIDE.
FOR ANY PROBLEMS, REFER SERVICING TO THE CUSTOMER HELP LINE. THERE IS A LIGHTNING ARROW SYMBOL IN
THE TRIANGLE: THIS SYMBOL INDICATES HIGH VOLTAGE IS PRESENT INSIDE. IT IS DANGEROUS TO MAKE ANY KIND OF
CONTACT WITH ANYINSIDE PART OF THIS PRODUCT.
THERE IS A EXCLAMATION MARK IN THE TRIANGLE: THIS SYMBOL ALERTS YOU THAT IMPORTANT LITERATURE
CONCERNING OPERATION AND MAINTENANCE HAS BEEN INCLUDED WITH THIS PRODUCT.
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE, DO NOT PUT THE TV SET NEAR
SOURCES OF HUMIDITY. DO NOT USE ANY ABRASIVE CLEANERS WHICH MAY SCRATCH OR DAMAGE
THE LCD SCREEN. AVOID CONTACT WITH OBJECTS THAT MAY SCRATCH THE LCD SCREEN.
NOTE: SERVICING THE UNIT YOURSELF IS UNAUTHORISED AND COULD LEAD TO INJURY OR PRODUCT
DAMAGE. REFER ALL SERVICING TO THE CUSTOMER HELPLINE.
Now you can get started!
29" HD Ready Digital LED LCD TV
Remote control
Instruction Manual
Quick start guide
AAA ba x2ttery
YPbPr Connect Cable
01 Safety warnings
Stand
All manuals and user guides at all-guides.com

Safety notice
EN-3
All manuals and user guides at all-guides.com

Dim:515*320mm(不包括底座）
Warning
High voltages are used in the operation of this
television receiver. Do not remove the cabinet
back from your set. Refer servicing to qualified
service personnel.
Warning
To prevent fire or electrical shock hazard, do
not expose the television receiver to rain or
moisture.
Warning
Do not drop or push objects into the
television cabinet slots or openings. Never
spill any kind of liquid on the television
receiver.
Caution
Do not block the ventilation holes in the back
cover. Adequate ventilation is essential to
prevent failure of electrical components.
Caution
Do not trap the power supply cord under the
television receiver.
Caution
Never stand on, lean on, or suddenly push the
television or its stand. You should pay special
attention to children. Serious injury may result if
it should fall.
Caution
Do not place your television on an unstable cart,
stand, shelf or table. Serious injury to an
individual , and damage to the television, may
result if it should fall.
Caution
When the television receiver is not used for an
extended period of time, it is advisable to
disconnect the AC power cord from the AC
outlet.
Caution
If the television is to be built into a compartment
or similar enclosure, the minimum distances must
be maintained. Heat build-up can reduce the
service life of your television, and can also be
dangerous.
WARNING AND CAUTIONS
EN-4
All manuals and user guides at all-guides.com

Panel
PAL-B/G ,I , D/K
PAL/SECAM/MPEG2/MPEG4/H.264
AC 100 -240V 50/60Hz
2x8W
Analog RGB(PC) x1; PC audio x1
High-Definition Multimedia Interface (HDMI) x 2
Video Input x 1
Audio Input x1
YPbPr x 1
SCART x 1
42W
29
CI x 1
USB x 1
RF Co-Ax x 1
Composite video input >=350
YPbPr >=400
Headphone x 1
S/PDIF x 1
TV System
Video Signal System
Input Power Voltage
Power consumption
Standby Power consumption
Audio Output Power (THD 7%)
Signal Input
Signal output
Horizontal definition (TV line)
SECAM-B/G , D/K , L , L’
<0.30W
DVB-T, DVB-C
INSTALLATIONCAUTION
*Locate the TV in the room where light does
not strike the screen directly.
*Total darkness or a reflection on the picture
screen can cause eyestrain. Soft and indirect
lighting is recommended for comfortable
viewing.
*Allow enough space between the TV and the
wall to permit ventilation.
*Avoid excessively warm locations to prevent
possible damage to the cabinet or premature
component failure.
*Do not cover the ventilation openings when
using theTV.

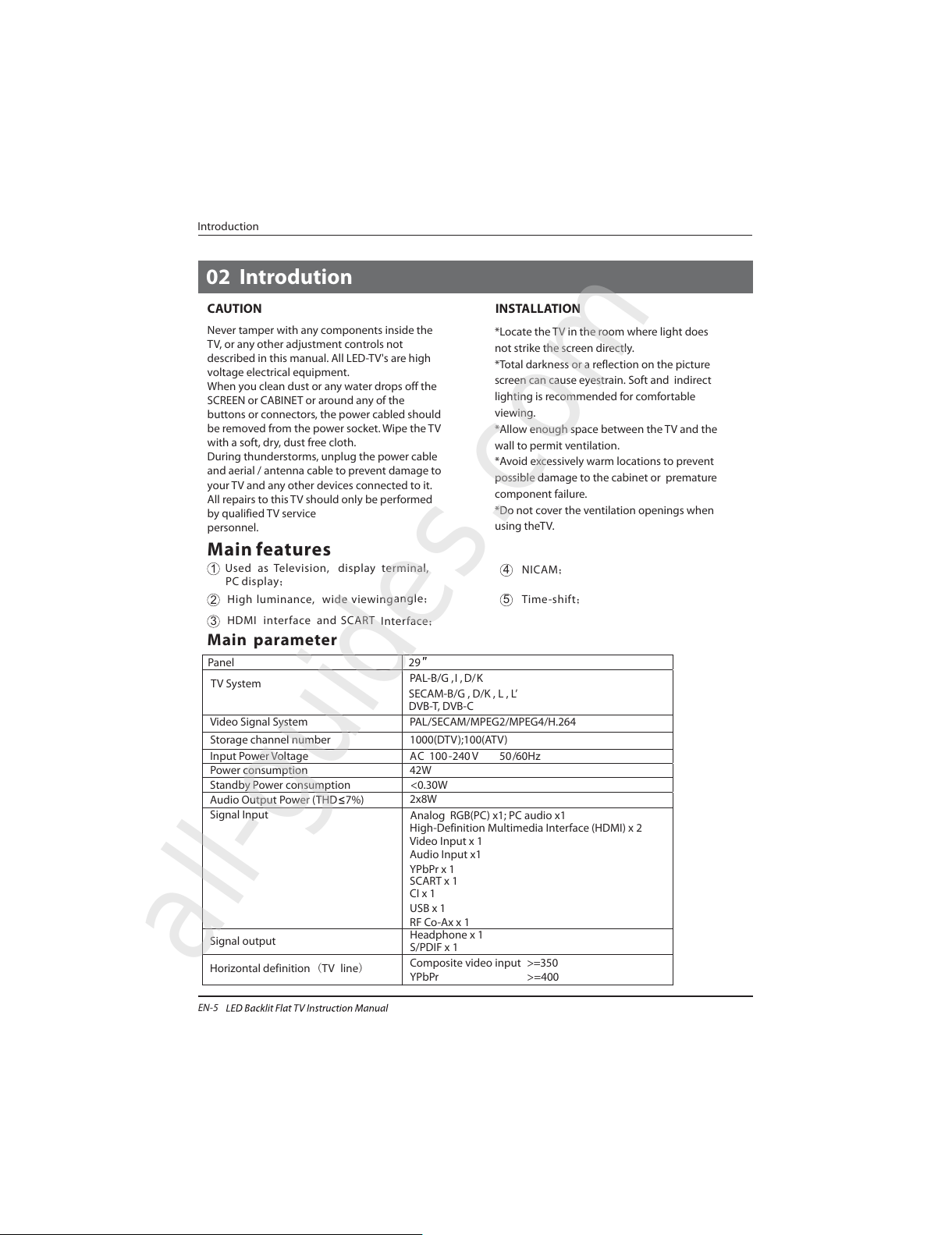

Main parameter
Main features
4 NICAM；
5 T；ime-shift
3
HDMI interface and SCART
Interface；
High luminance, wide viewing
angle；
2
Used as Television, display terminal,
PC display；
1
Never tamper with any components inside the
TV, or any other adjustment controls not
described in this manual. All LED-TV's are high
voltage electrical equipment.
When you clean dust or any water drops off the
SCREEN or CABINET or around any of the
buttons or connectors, the power cabled should
be removed from the power socket. Wipe the TV
with a soft, dry, dust free cloth.
During thunderstorms, unplug the power cable
and aerial / antenna cable to prevent damage to
your TV and any other devices connected to it.
All repairs to this TV should only be performed
by qualified TV service
personnel.
02 Introdution
Introduction
EN-5
1000(DTV);100(ATV)Storage channel number
All manuals and user guides at all-guides.com
all-guides.com

PRESET MODE
PC
3
5
1024x768
1280x1024
60
60
1
640x480 60 31.47
2
800x600 60 37.88
48.36
63.98
RESOLUTION V.Freq.(KHz) H.Freq.(KHz)
4
1360x768 60 47.7
Introduction
EN-6
All manuals and user guides at all-guides.com

Base Stand Assembly Instruction
INSTALLATION NOTES
Locate the TV in a room where light does not strike the screen directly. Total darkness or a
reflection on the screen can cause eyestrain. Soft and indirect lighting is recommended for
comfortable viewing.
Allow enough space between the TV and the wall to permit ventilation.
Please do not attempt to rotate the TV on the stand.
Avoid excessively warm locations to prevent possible damage to the cabinet or premature
component failure.
Introduction
EN-7
1. Place the TV with the display side down on a
flat surface. Use a cloth to protect
.
the
display Position the stand base plate onto the
bottom of the stand pole.
2. Attach the stand base plate to the stand pole
by firmly tightening the supplied screws.
All manuals and user guides at all-guides.com

WALL MOUNTING INSTALLATION GUIDELINES
2.Remove the screws from the lower part of the
television, where the base joins to the TV, and take
away the stand (put the stand somewhere safe for
future use).
1.Place the LED LCD Television onto a solid
surface. Please place some soft material
over the front of the screen to protect it
from any damage.
3.Use the four screws provided to fix the TV onto a wall mounting bracket (not included)
via the four VESA standard holes on the back of the television.
Introduction
EN-8
This television can be wall mounted as follows:
M4X10
M4X10
M4X10
M4X10
200mm
100mm
All manuals and user guides at all-guides.com

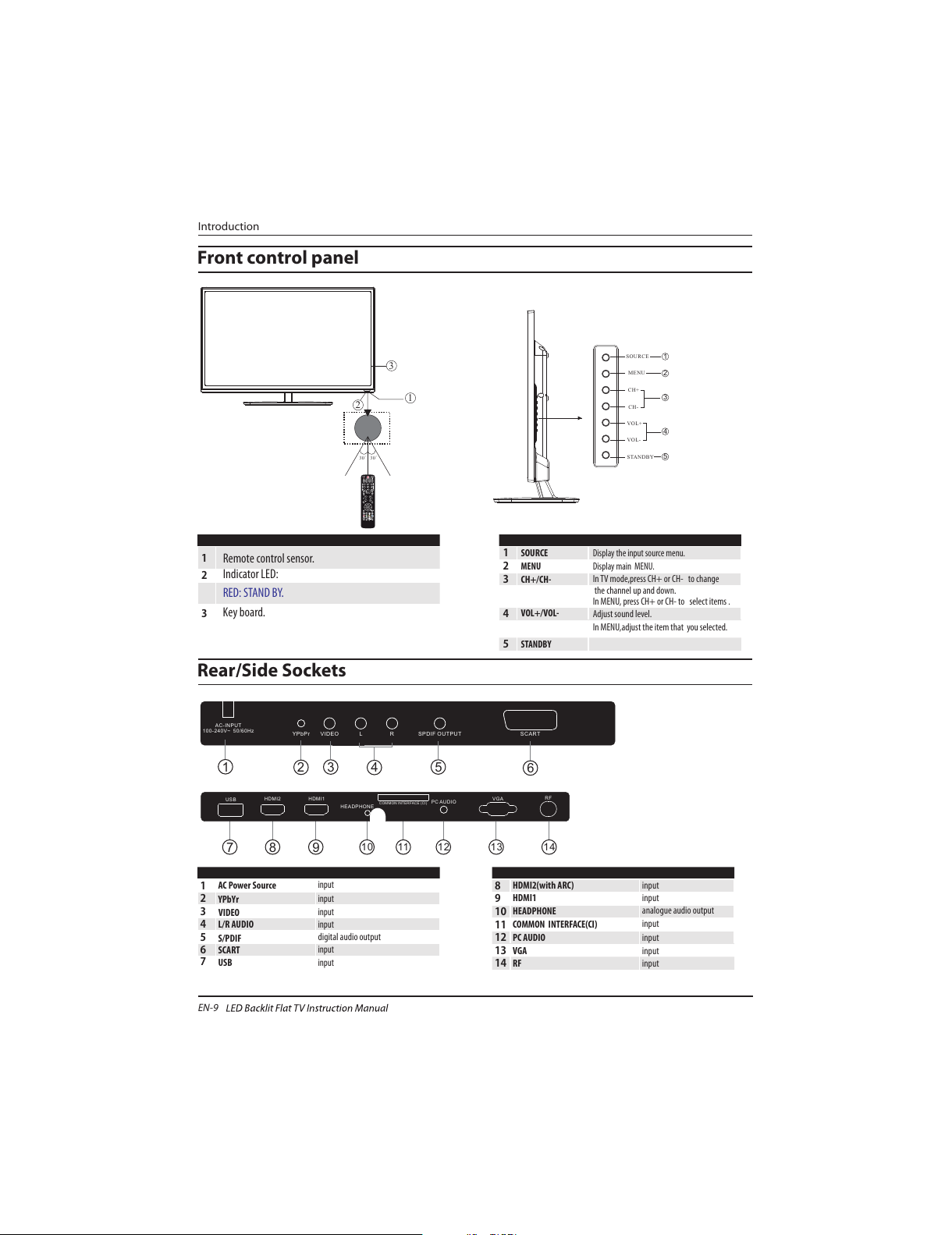

Rear/Side Sockets
1
2
3
Remote control sensor.
Indicator LED:
RED: STAND BY.
Key board.
1SOURCE
Display the input source menu.
MENU Display main MENU.
3
4
CH+/CH- In TV mode,press CH+ or CH- to change
the channel up and down.
In MENU, press CH+ or CH- to select items .
STANDBY
2
VOL+/VOL- Adjust sound level.
In MENU,adjust the item that you selected.
5
1
YPbYr
2
input
3
4
input
5digital audio output
input
AC Power Source
6
input
S/PDIF
SCART
L/R AUDIO
VIDEO
7
input
USB
input
8
9
HDMI2(with ARC) input
10
11
12
13
input
HDMI1
COMMON INTERFACE(CI)
PC AUDIO
input
analogue audio output
input
HEADPHONE
input
VGA
14 input
RF
Introduction
Front control panel
EN-9
AC-INPUT
100-240V~ 50/60Hz YPbPr VIDEO L R SPDIF OUTPUT SCART
2 3
146
5
7 8 9 11 12 13 1410
30 30
1
2
3
MENU
CH+
CH-
VOL+
VOL-
2
SOURCE 1
3
4
STANDBY 5
COMMON INT ERFACE (CI)
VGA RF
USB HDMI2 HDMI1
HEADPHONE PC AUDIO
COMMON INTERFACE (CI)
