Contents
Before Use
Features 2·············································································································
····················································································
································································································
························································································
·····························································································
··········································································································
······················································································
Technical Specifications 2
Circuit Diagram 3
Parts and Accessories 3
Safety Precautions 4
Placement 5
Unpacking·Installing 6
Use Your Oven
Control Panel 7····································································································
··································································································
·········································································
············································································
·························································
Use Your Oven 8

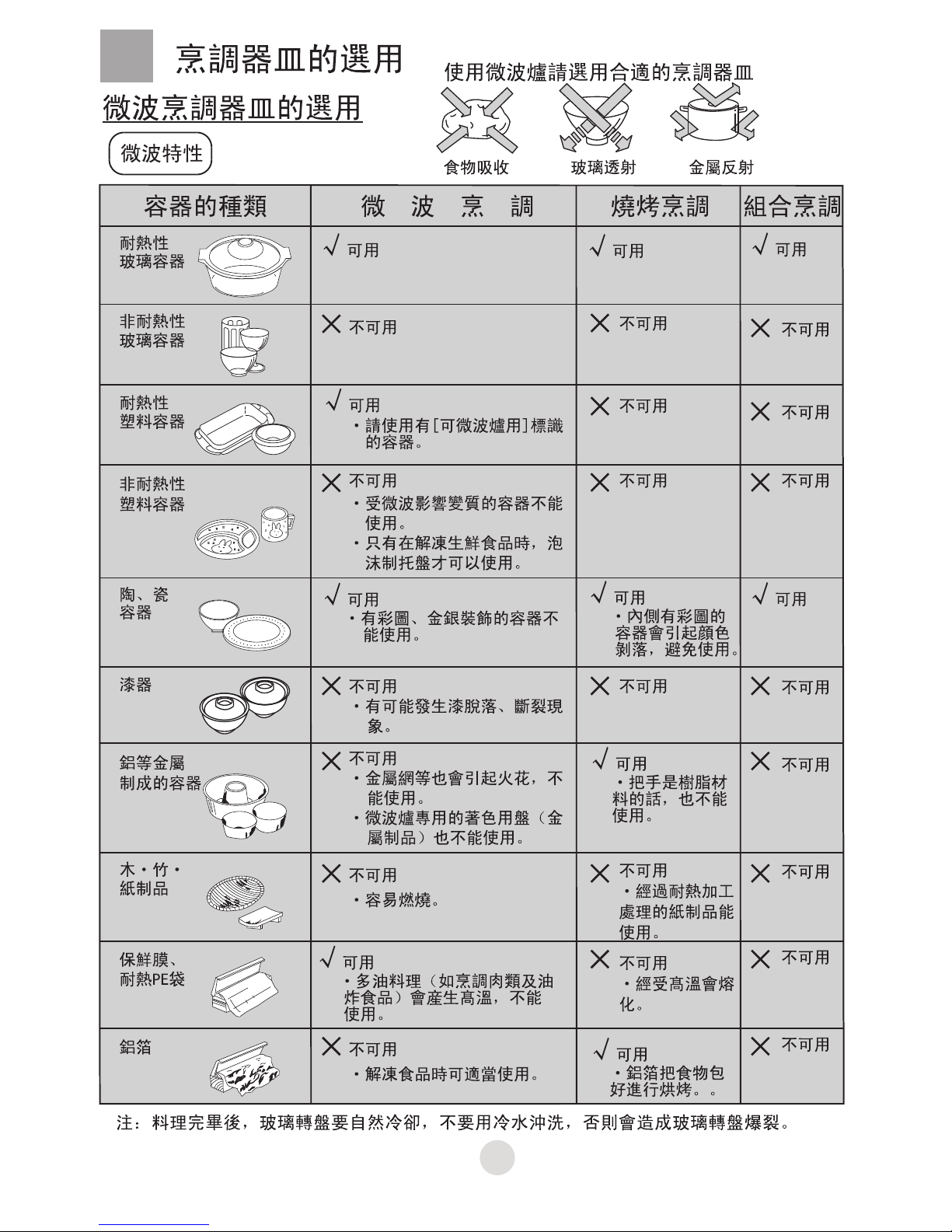

How to Select Cooking Utensil 12
Tips for Microwave Cooking 13

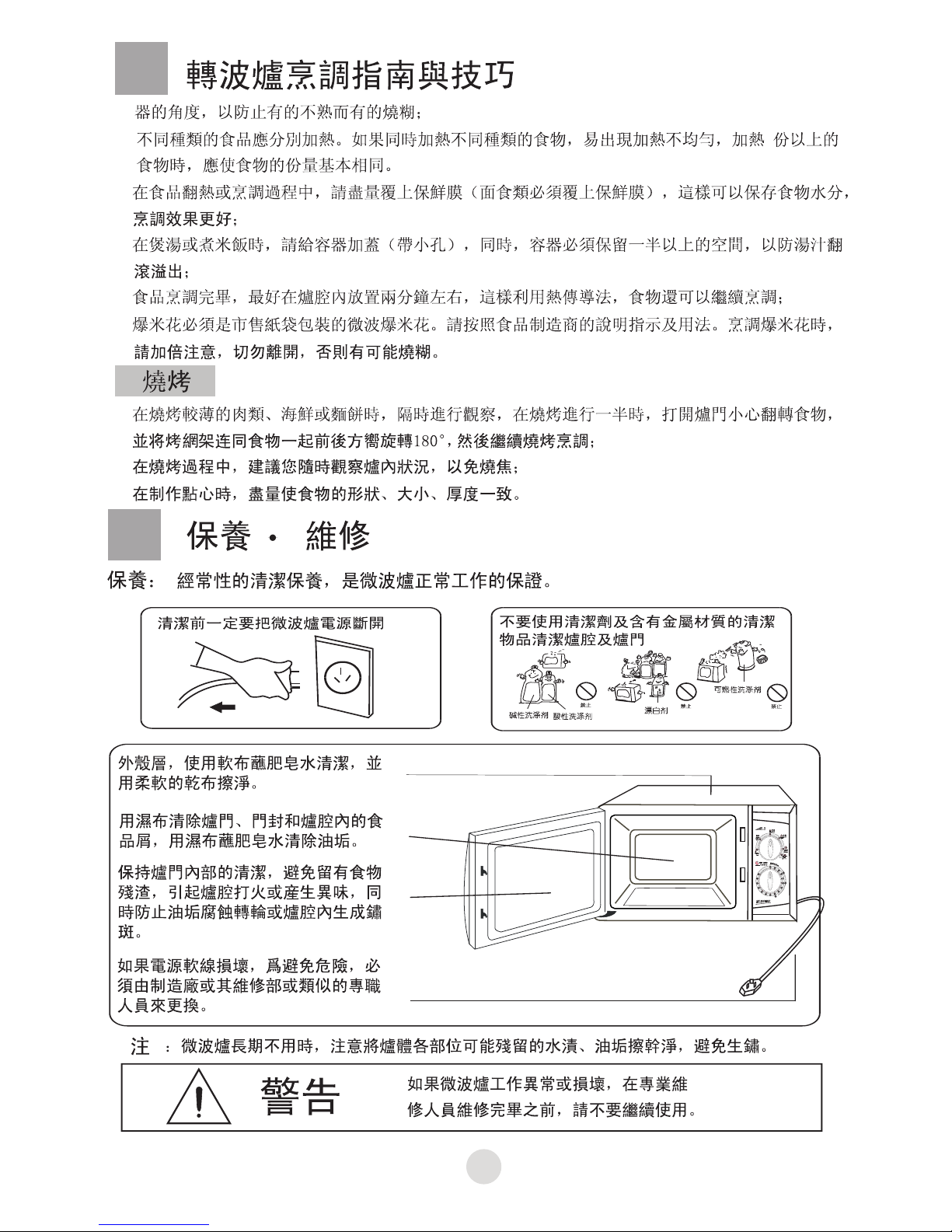

Guide and Tips for Rotary Wave Cooking 13
Maintenance·Repair
Maintenance·Repair 14·······················································································
························································································
····························································································

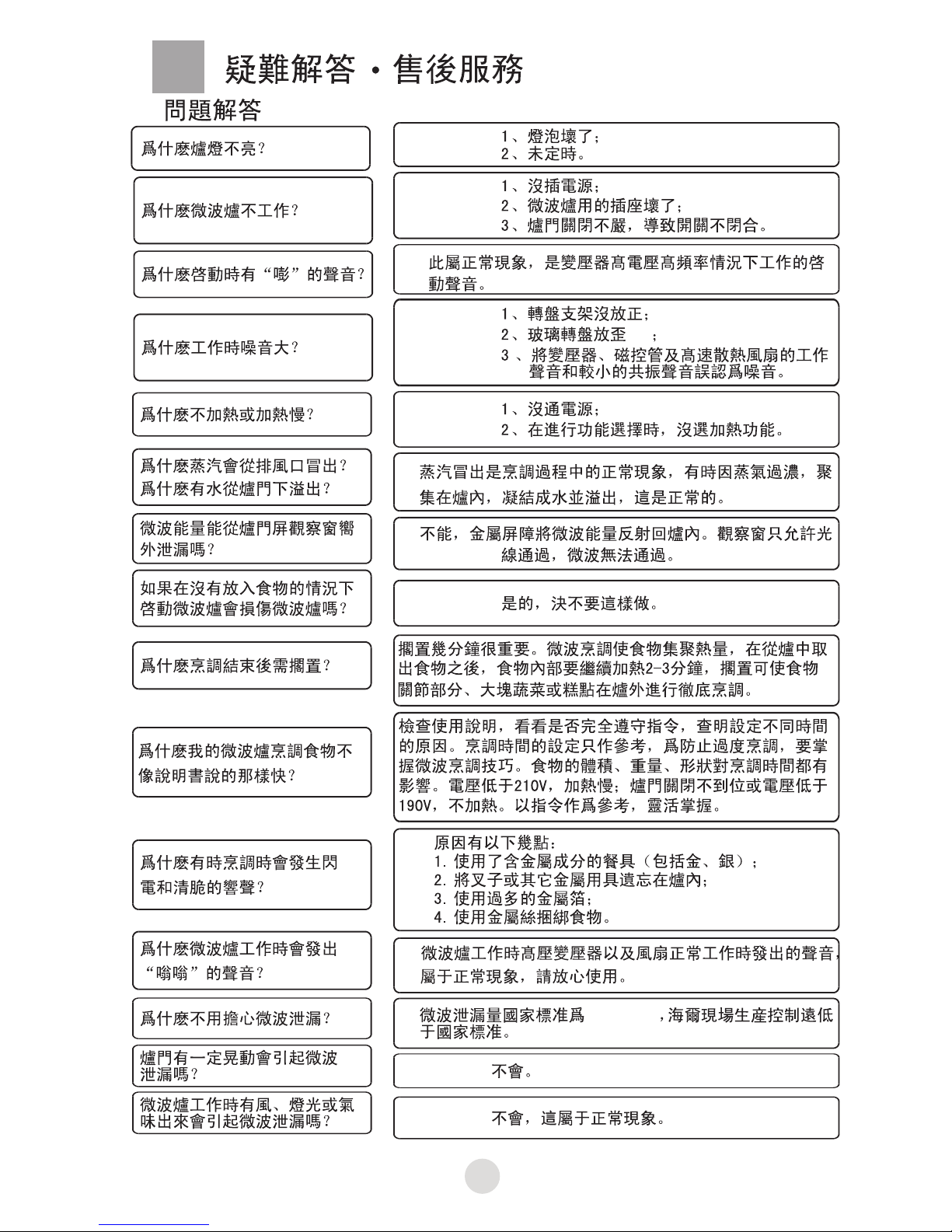

Questions & Answers 15
After-sale Services 16
Remarks:
·
The manual is checked carefully for the purpose of proper and precise, but still there
may exist defects on editing, printing etc. that may cause some difference between the
content and the practical situation. Please contact us in case of such defects occurred
and resulting in any inconvenience.
·Please refer to the physical product for the appearance, color and pattern.
·All of the marks following the model number of the product, such as (VC), (N) etc
are internal symbols of the factory, not belonging to any part of the model number.
·Before using the microwave oven, please first take the isolation poles out of the
steaming pot, and install them into the jacks at the rear side of the oven. Please refer
to Page 5 for details.
1

Before Use
The series of microwave oven comply with following national standards:
GB4706.21-2002 “Safety of household and similar electrical appliances—Particular requirements for microwave ovens”
GB/T 18800-2002 “Household microwave oven—Methods for measuring performance”
GB4706.22-2002 “Safety of household and similar electrical appliances—Particular requirements for stationary cooking ranges,
hobs, ovens and similarappliances”
Dear users,
Thank you for purchasing Haier products!
Haier products are featured with high quality and outstanding performance. To facilitate you to use the
product, please read the manual thoroughly and follow the instructions during operating.
Haier’s International Star Service will always accompany you. No matter what problems you meet in usage,
please contact us by the telephone number and address stated in the Certificate of Quality. We are at your service
all the time. Thanks again for choosing Haier products. Due to the improvement and modification, the microwave
oven you purchased may not be exactly in accordance with the figures of the manual.
Important safety instructions: please read the manual thoroughly, and keep it for future reference.
Features
1. Cubic microwave
The oven utilizes the advanced scattered radiation technology, bringing more even distribution of microwave
inside the cavity by a radiating antenna, and producing real cubic microwave.
2. Larger utilization ratio of cavity
The traditional turntable system is cancelled, which enhances about 25% of effective cavity volume more than the
microwave oven with turntable system under the same cavity volume.
3. Microwave & light wave grilling
The oven utilizes multilevel microwave and light wave grilling, a perfect combination in cooking food.
4. Safe in usage
Benefited from integrated stamping forming technology and unique choke structure, the door of the oven can
effectively avoid microwave radiation. It also adopts two-step interlock and opening monitor system, which can
switch off the power supply automatically if the door is opened, thus ensure the safe usage.
5. Particular “steam” function
Based on microwave shielding technology and bottom rotary wave technology, the oven offers a particular “steam”
cooking method, enriching the function of microwave oven to a large extent.
Technical specifications
Model Power
voltage
(V/Hz)
Input
(W)
Output
(W)
Grilling
power (W)
Microwave
frequency
(MHz)
Cavity
volume
(L)
Outside
dimensions
(H x W x D)
Effective
cavity
dimensions
(H x W x D)
MG-2070MGZ ~220/50 1200 700 950 2450 20 302x486x398 198x301x335
Please note that the dimensions and volume are estimated values. Due to the continuous improvement, the
technical specifications may be different from the above table, which will not be informed separately.
2

Circuit Diagram
Parts and Accessories
Suggestions: if the quantity of cooking food is small, you can put the food at the center of the tray
to acquire better cooking effect.
3
Earth

4

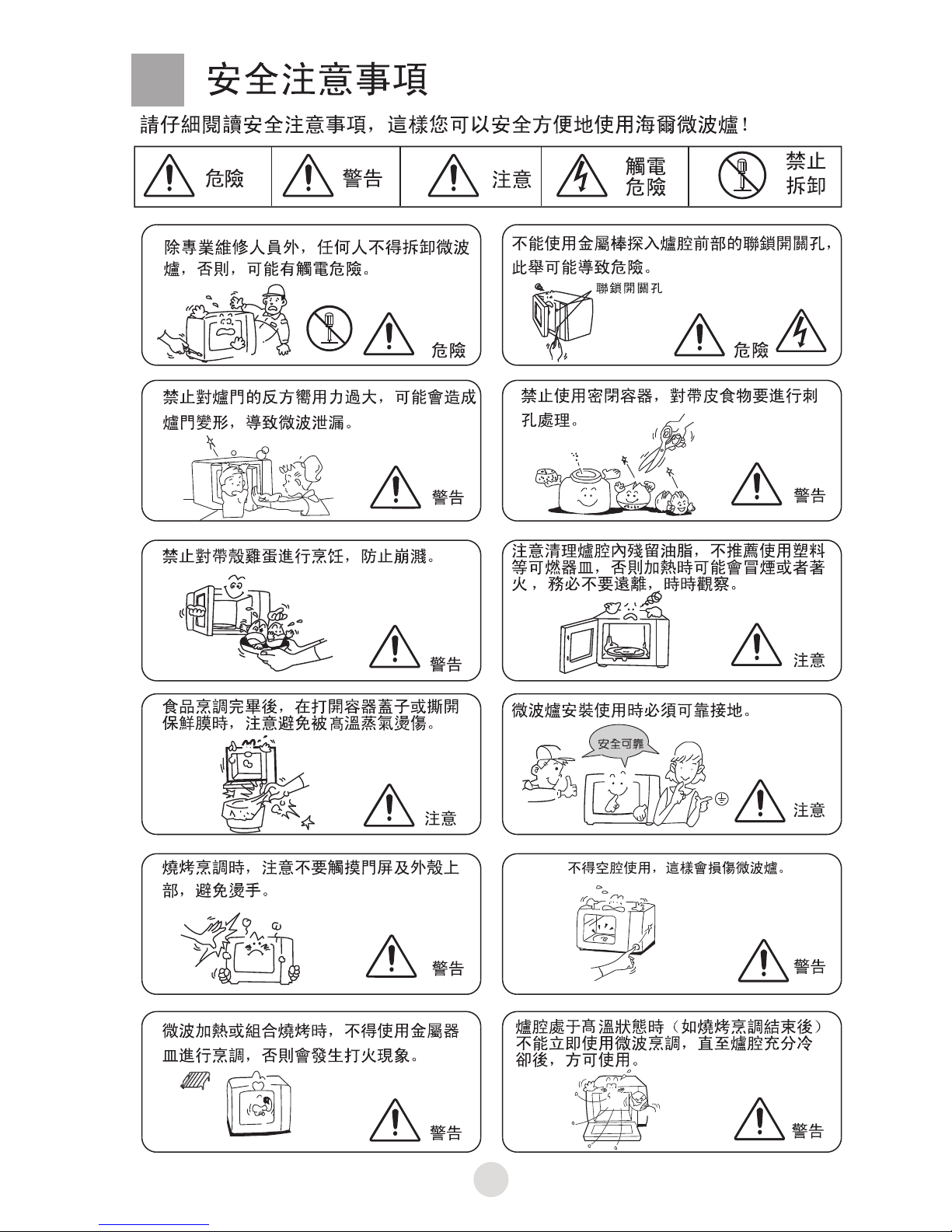

Safety Precautions:
·Please readthe safety precautions thoroughly for safe andconvenient usageof Haier microwave
oven.
Danger Warning Attention Electric shock Do not remove
The oven shall not be decomposed byanyoneexcept the
professional maintenance personnel. Electric shock may
occur!
Danger
Do not put metal stick into the interlock hole at the front
side of cavity. It maycausemicrowave leakage!
Do not add excessive force to the opposite direction on
the door. It may deform the door and cause microwave
leakage!
W
a
rn
i
n
g
Donot use enclosedcontainer incooking. For food with skin,
remember to puncture it before cooking, unless you use certain
containeras accessoryofthe oven(suchas the steam pot).
W
a
rn
i
ng
Do not cook eggs with shell to avoid bursting.
Warning
Remove the greaseremainedin thecavity before cooking.
Combustible cookwarelike plastic container is not recommended,
as it may cause smoke or fire in heating. Please keep an eye on the
oven during cooking. Donot leave for a long time.
A
t
ten
t
i
o
n
After cooking is finished, take care when opening the
container or removing the cover film. It may emit hot
vapor and cause scalding!
At
t
ent
i
o
n
Make sure to ground the microwave oven reliable in
installation.
A
t
ten
ti
o
n
Do not touch the view window and the upper part of the
cabinet to avoid scalding.
Warning
Do not use microwave oven if it is empty. It may
damage the oven!
Warning
Do not use metal container in microwave cooking or
combination grilling. It may ignite!
Warning
If the cavity is under high temperature (e.g. after
cooking), do not use the oven immediately.Please wait
for it cooling down before next usage.
Warning

Safety Precautions
Warning
- Warning: if the door or door seal is damaged, DO NOT use it until it is repaired by proper qualified
maintenance personnel.
- Warning: No one except the proper qualified maintenance personnel shall make inspection and maintenance,
including operations like dismantling the protective cover that prevents microwave energy from leaking.
- Warning: DO NOT cook liquid or food within enclosed container. It may cause explosion!
- Warning: Children are not allowed to use the microwave oven without supervision, unless they have received
sufficient instructions enough to use the oven with safe method, and understand that improper method can
result in danger.
- Use only cookware applicable for microwave inside the oven.
- When cooking food packed with plastic or paper, please keep an eye on the oven because there’s a chance to
ignite.
- If smoke should occur, pull off the power plug immediately and close the door of oven to control the
spreading of fire.
- The beverage heated with microwave oven may delay in boiling or splashing. Please take care of it when
taking out the beverage.
- Feeding bottles and baby food cans shall be stirred or shaken. Please check the temperature of the food inside
the bottle to avoid scalding.
- DO NOT cook fresh or boiled eggs with shell, as they may burst during heating or even after heating, unless
you use certain container as accessory of the oven (such as the steam pot).
- DO NOT operate the microwave oven when it is empty. No-load operation will damage the oven.
- DO NOT place combustible materials near the microwave oven. Please keep an eye on the cooking during
operation, and set proper cooking time. Overcooking may cause fire.
- Light food with little water may be uneven in heating, as different materials have different capability in
absorbing microwave.
- Do not perform defrost immediately after grilling or long-time heating with microwave. Please wait for the
cooling down of the bottom tray.
- Do not use sharp items (such as steel wire ball, spade) to clean the bottom tray.
- DO NOT pierce the mesh of the oven door. It may cause microwave leakage!
DO NOT use the product for industrial and commercial purpose!

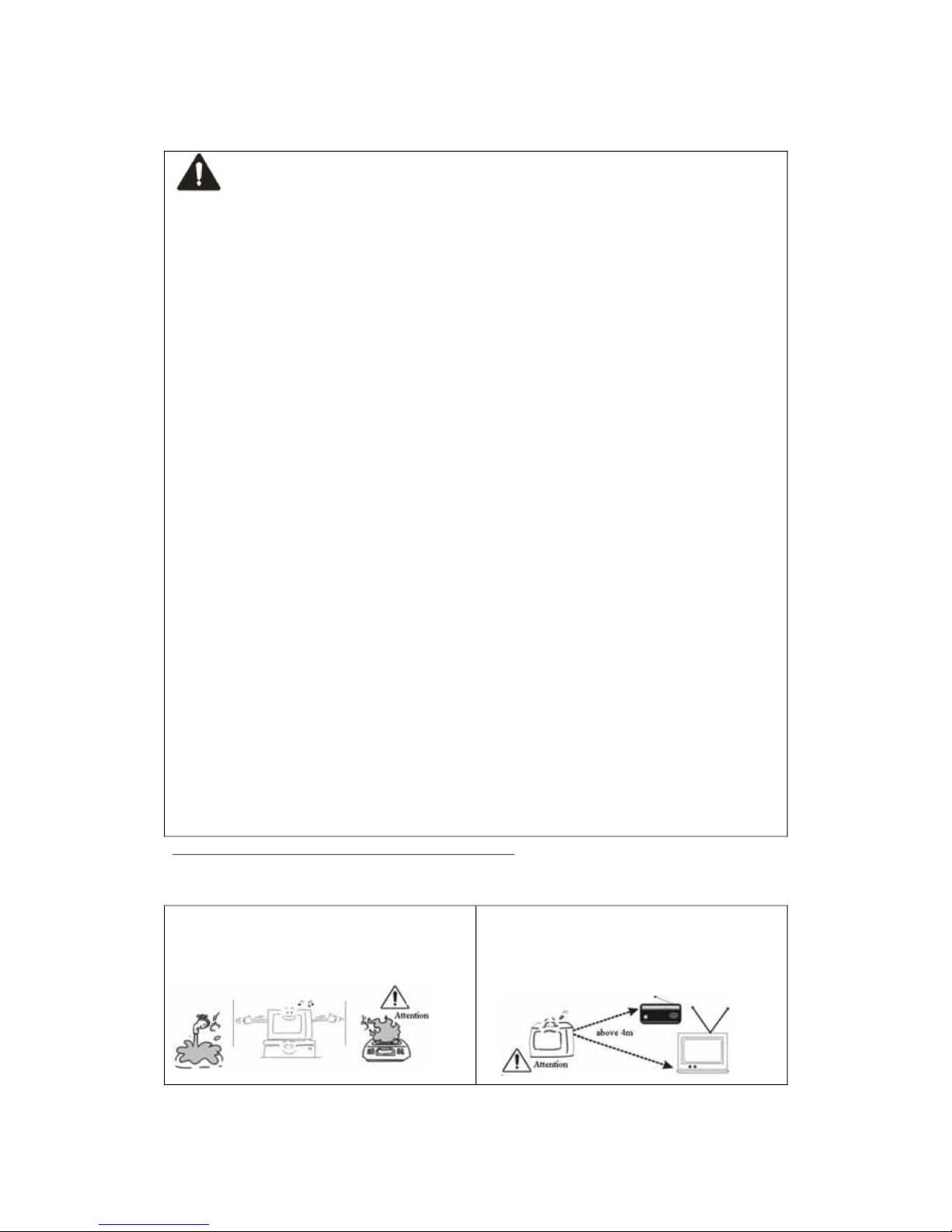

Placement
Make sure to keep ventilation space for the microwave
oven in installing. Do not placeit in environment with
high humidity and temperature.
Keep the oven awayfrom TV,radio etc. Otherwise it
will interfere the signals and make noises. It is
improper to measure microwave radiation with radio.
Please use professional device to make measurement.
5
