Haier 42EP24S - 42" Plasma TV User manual

PLASMA MONITOR

2 Plasma Monitor
THIS SYMBOL INDICATES THAT HIGH VOLTAGE IS PRESENT
INSIDE. IT IS DANGEROUS TO MAKE ANY KIND OF CONTACT
WITH ANY INSIDE PART OF THIS PRODUCT.
WARNING : To reduce the risk of electric shock do not remove cover or back.
No user-serviceable parts inside refer service to qualified service personnel.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rule. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, use and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However ,there is no
guarantee that interference with not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encourage to try to correct the interference by one or
more of the following measures:
*Reorient or relocate the receiving antenna.
*Increase the separation between the equipment and receiver.
*Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
*Consult the dealer or an experienced radio/TV technician for help.
This device compiles with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may be not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
FCC CAUTION:
To assure continued compliance and possible undesirable interference, the provided ferrite
cores must be used when connecting this plasma display to video equipment; and maintain
at least 40cm spacing to other peripheral device.
CANADIAN NOTICE:
This Class B digital apparatus compiles with Canadian ICES-003.
RISK ELECTRIC SHOOK
DO NOT OPEN
WARNING
Safety of operators has been taken into consideration at the design and manufacture
phase, but inappropriate operation may cause electric shock or fire. To prevent the product
from being damaged, the following rules should be observed for the installation, use and
maintenance of th product. Read the following safety instruction before starting the operation.
The User Manual uses the following symbols to ensure a safe operation and prevent
any damage to operators or properties:
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT
OPERATING AND MAINTENANCE INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE APPLIANCE.
FCC STATEMENT

Owner s Manual 3
IMPORTANT SAFETY INSTRUCTIONS
Read all of the instructions before using this appliance. When using this
appliance, always exercise basic safety precautions, including the following:
1)Save these Instructions ---the safety and operating instructions should be
retained for future reference.
2)All warning on the appliance and in the operating instructions should be followed.
3)Cleaning --- Unplug from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use only dry cloth for cleaning.
4)Attachments ---do not use attachments not recommended by the manufacturer
as they may cause hazards.
5)Water and moisture -- do not place this product near water, for example, near a
bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, or near a
swimming pool.
6)Accessories ---do not place this unit on an unstable cart, stand, tripod, bracket,
or table. Use only with a cart, stand, tripod, bracket, or table recommend by the
manufacture, or sold with the unit.
7)Ventilation ---Slots and openings in the cabinets and the back or bottom are
provided for ventilation. These openings must not be blocked. In a built in
installation such a bookcase or rack do not install product unless proper ventilation
is provided.
8)Power Source ---this monitor should be operated only from the type of power source
indicated on the rating label. If you are not sure of the type of power supply to your
home, consult your appliance dealer or local power company.
9)Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. Agrounding type plug
has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet. To prevent electric shock, ensure
the grounding pin on the AC cord power plug is securely connected.
10)Power cord protection ---Power supply cords should be routed so that they are
not likely to be walked on or pinched by items placed upon or against them. Pay
particular attention to cords or plugs, convenience receptacle, and the point where
they exit from the appliance.
11)Lighting precaution ---for added protection for this product during a lighting
storm or when it is left unattended for long period of time, unplug it from the wall
outlet and disconnect the antenna or cable system. This will prevent damage to the
product due to lighting and power line surges.
12)Never push objects of any kind into this product through openings as they may
touch dangerous voltage point or short out parts that could result in a fire or electric
shock. Avoid spilling liquid of any kind on the product.
13)Servicing ---do not attempt to service the product by yourself, as opening or
removing covers may expose you to dangerous voltage or other hazards. Refer all
servicing to authorized service personnel.
14)Unplug this unit from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
a. When the power supply cord or plug is damaged or frayed.

4 Plasma Monitor
b.If liquid has been spilled, or objects have been fallen into the unit.
c.If the unit has been exposed to rain or water.
d.If the unit does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions, as
improper adjustment of other controls may result in damage and will often
require extensive work by a qualified technician to restore the unit to its normal
operation.
e.If the unit has been dropped or damaged in any way.
f.When the unit exhibits a distinct change in performance; this indicates a need
for service.
15)Heat --- The product should be situated away heat source such as radiators, heat
registers, stoves, or other products (Including amplifiers) that product heat.
16)Overloading ---Do not overload wall outlets and extension cord as this can result
in a risk of fire or electric shock.
SAVE THESE INSTRUCTIONS
Thank you for using our Haier product. This easy-to-use manual will guide you in
getting the best use of your product. Remember to record the model and serial
number. They are on label in back of the unit.
Model number
serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain warranty service.

Owner s Manual 5

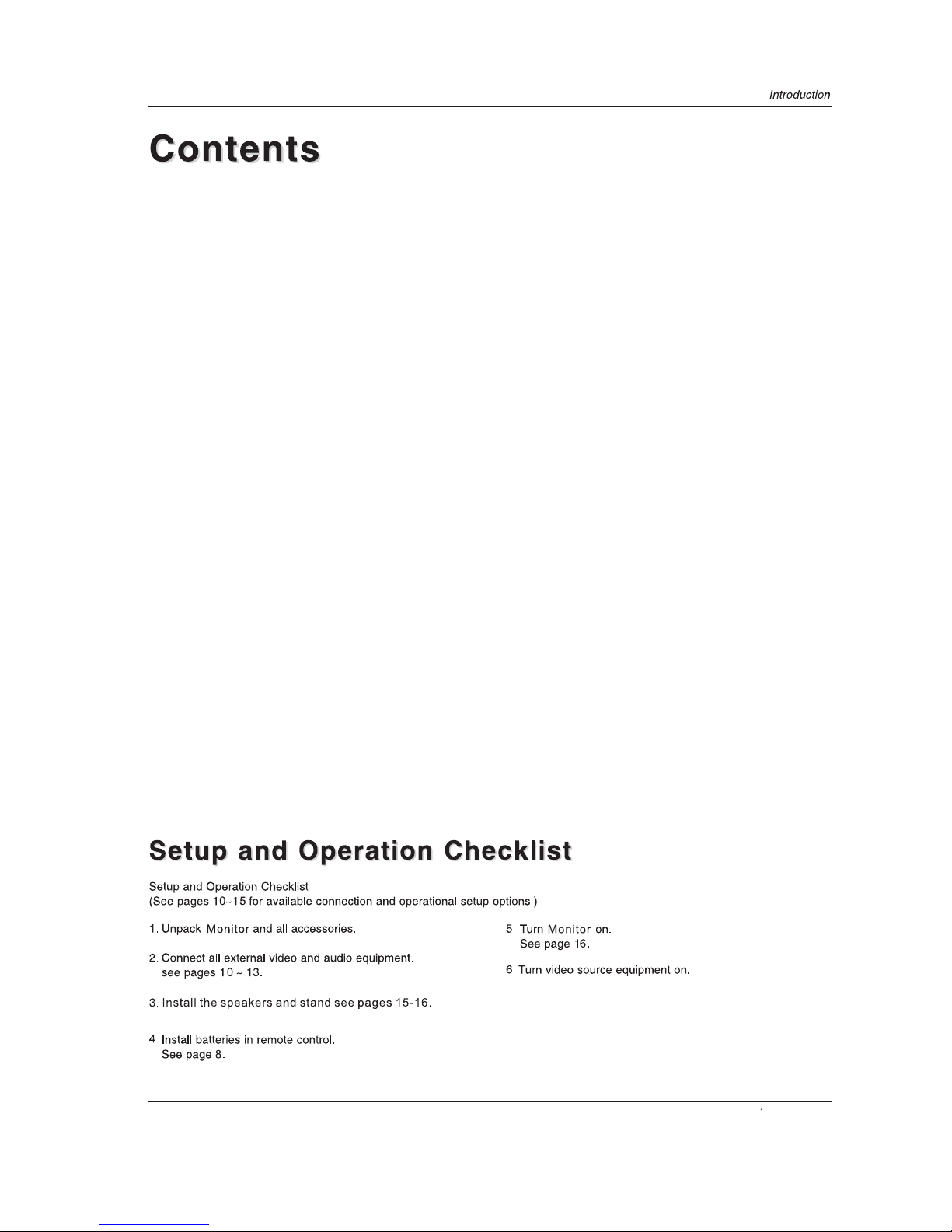

Warning..............................................................
Safety Instructions............................................
Instruction
Controls.......................................................
Connection Options.......................................
Remote Control KeyFunctions .......................
Installing Batteries........................................
Installation
Installation instructions................................

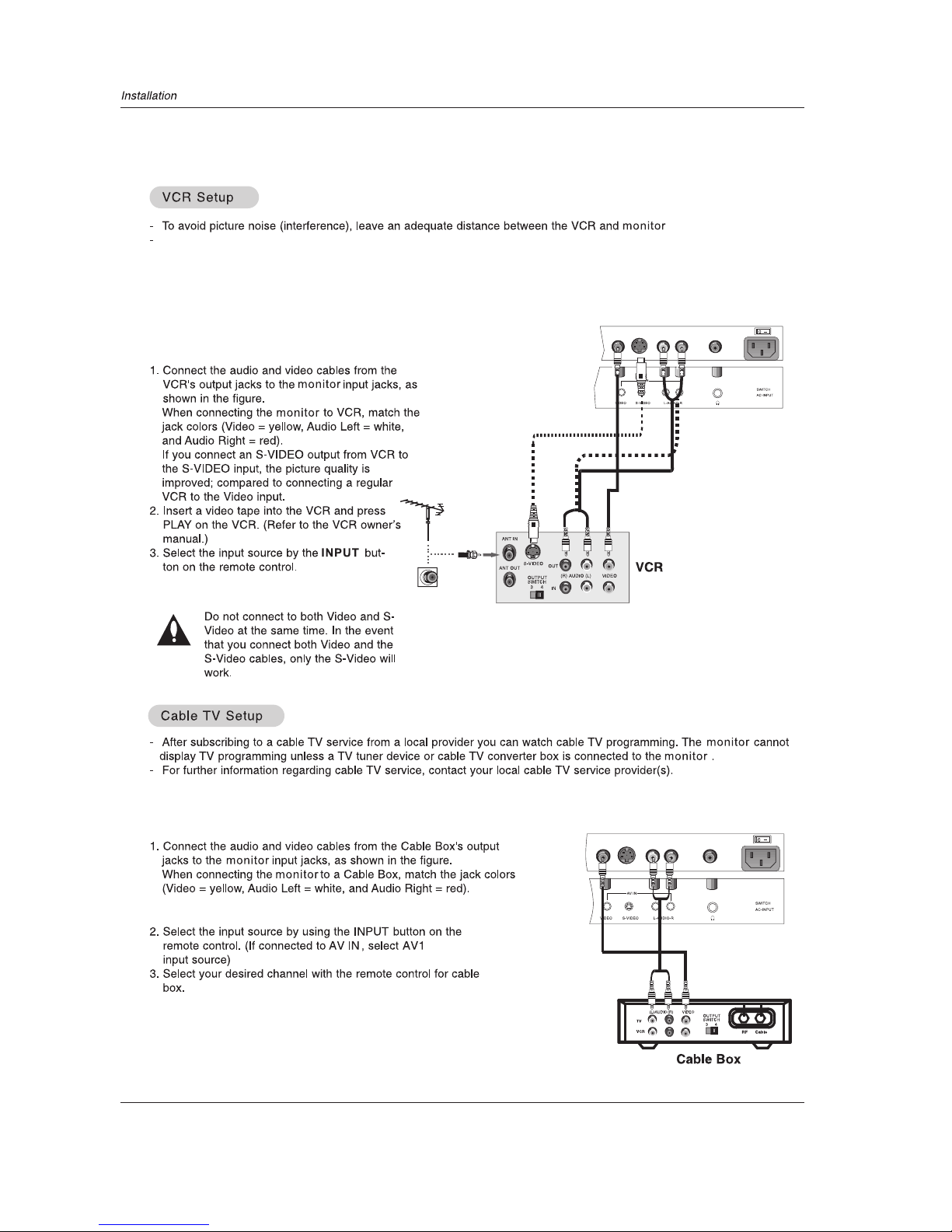

VCR Setup/ ................. .........

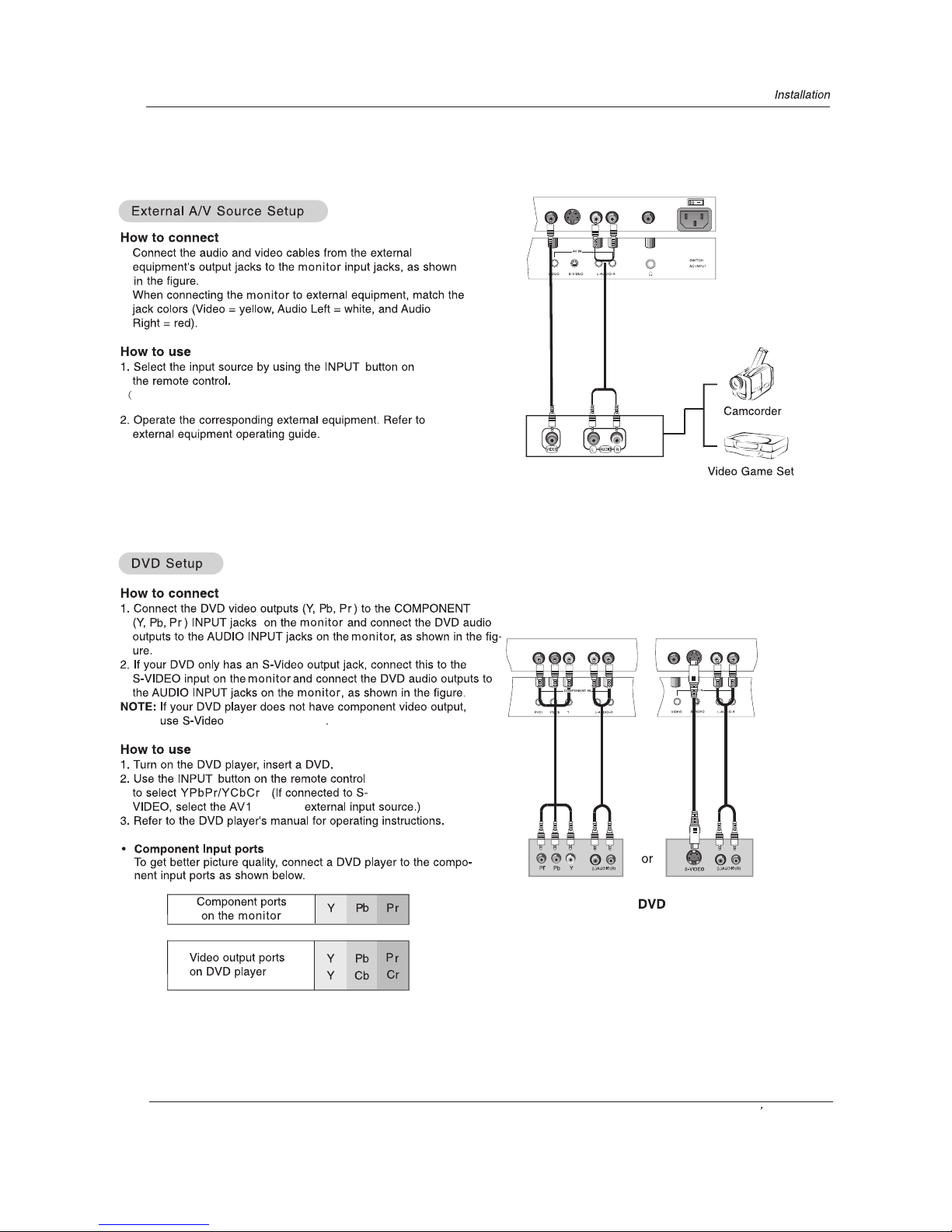

External A/VSource Setup...........................
DVD Setup..................................................

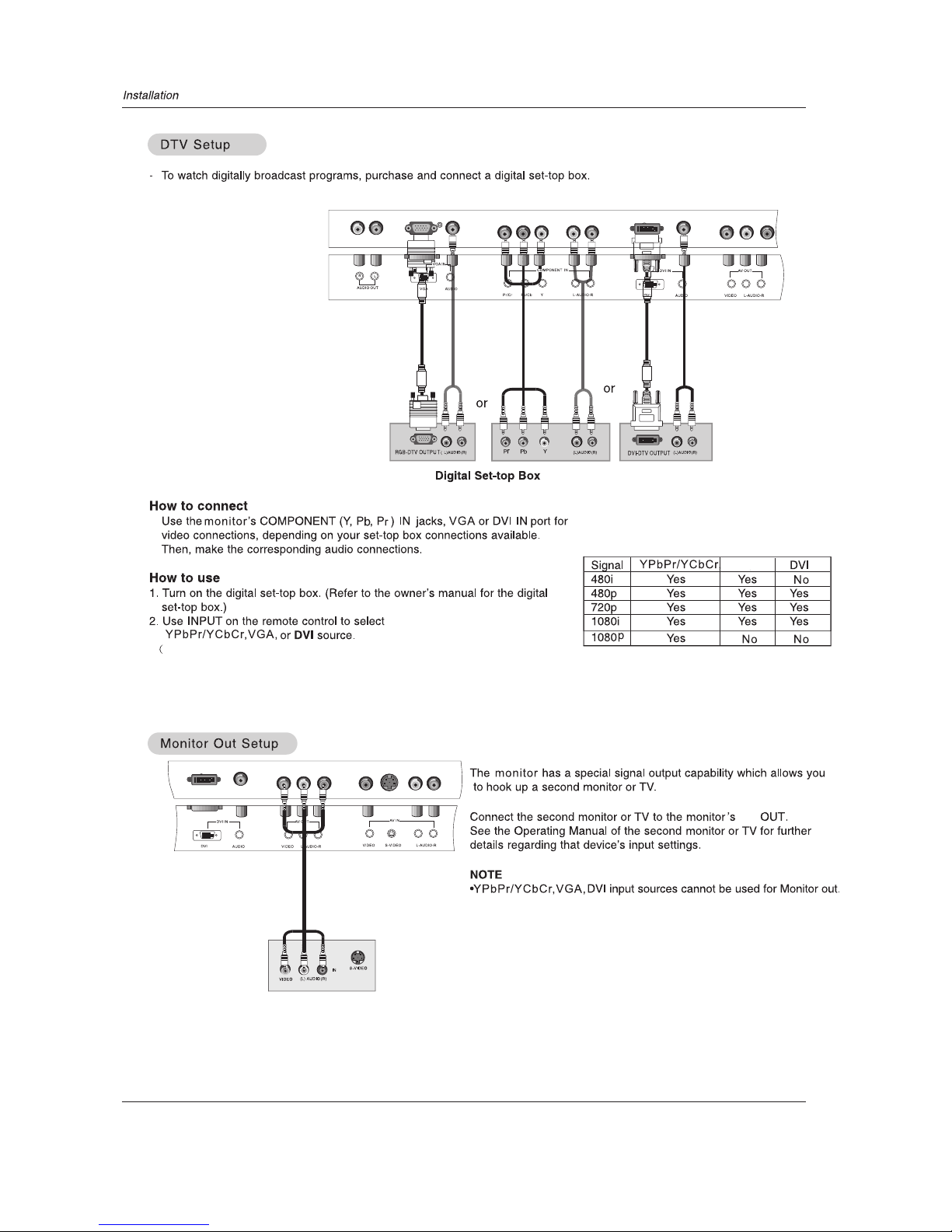

DTV Setup/Monitor OutSetup.......................

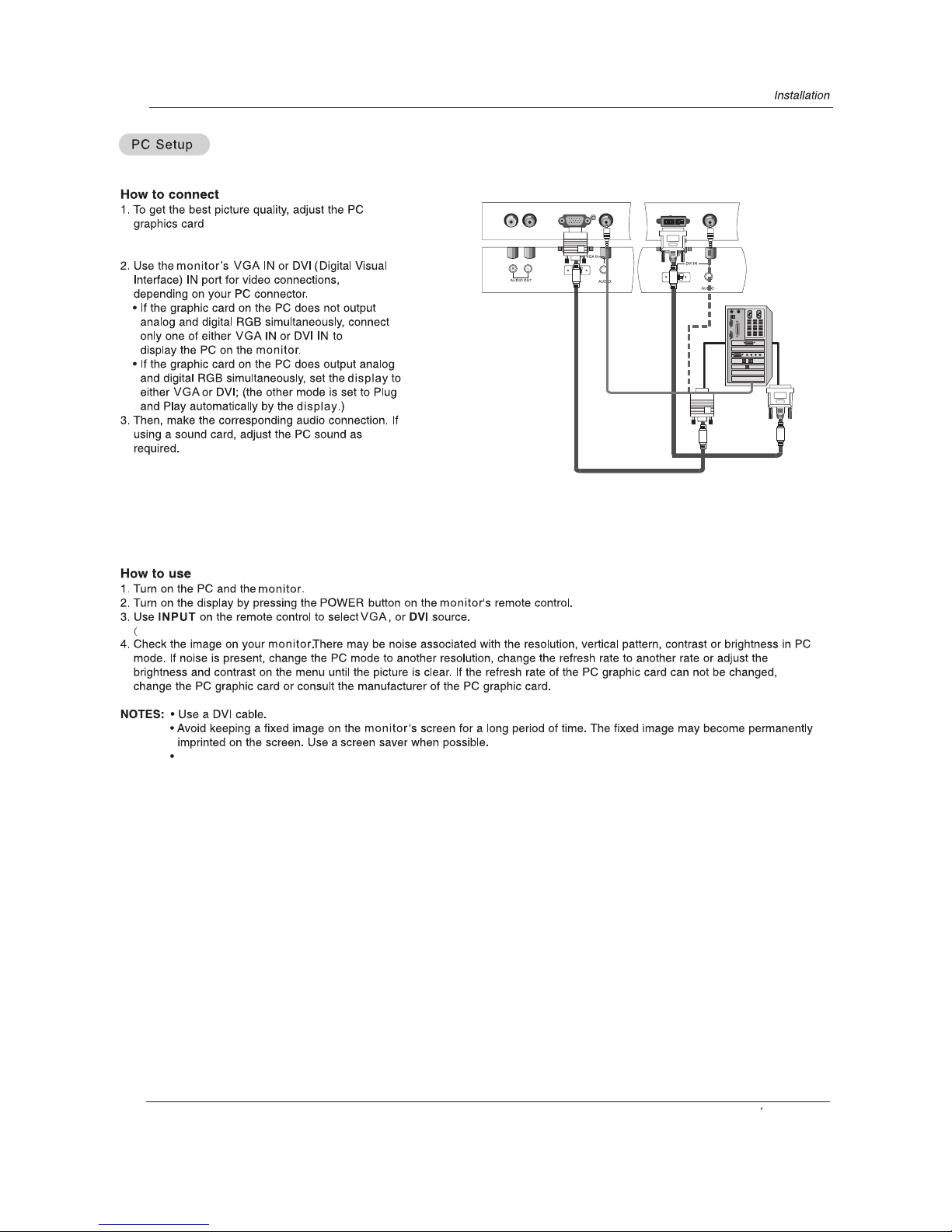

PC Setup....................................................

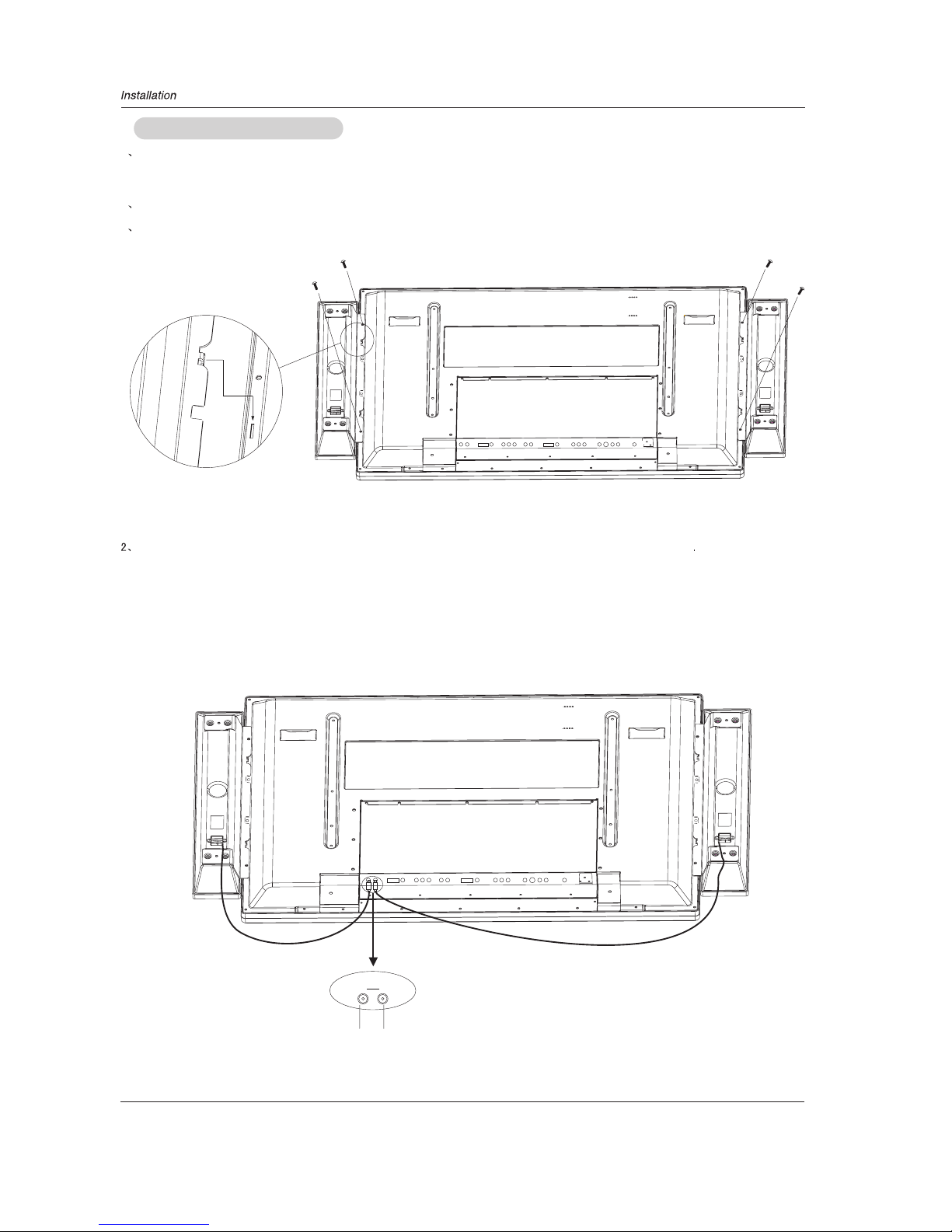

Install the Speakers.....................................

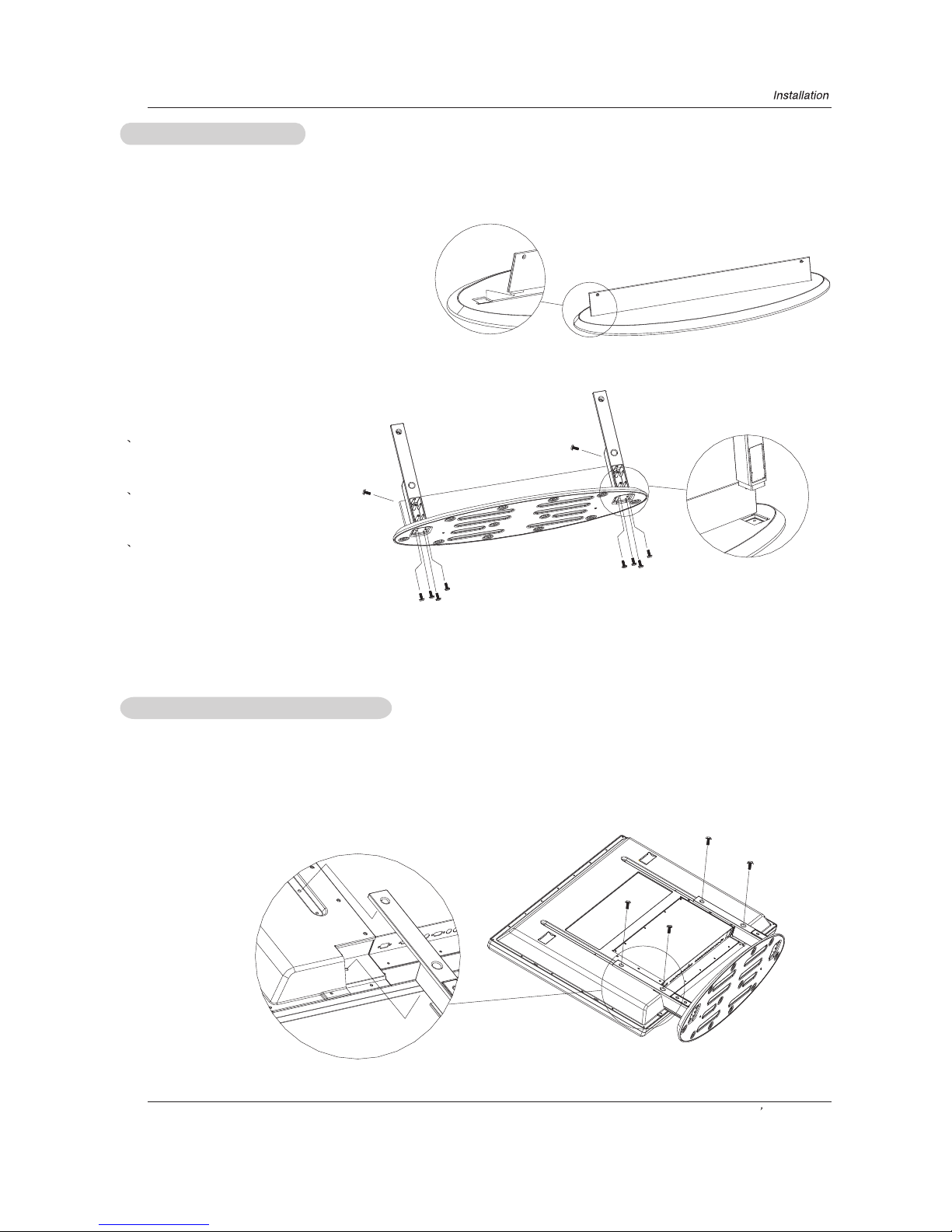

Install the Stand...........................................
Install the Standto the PDP...........................
Operation

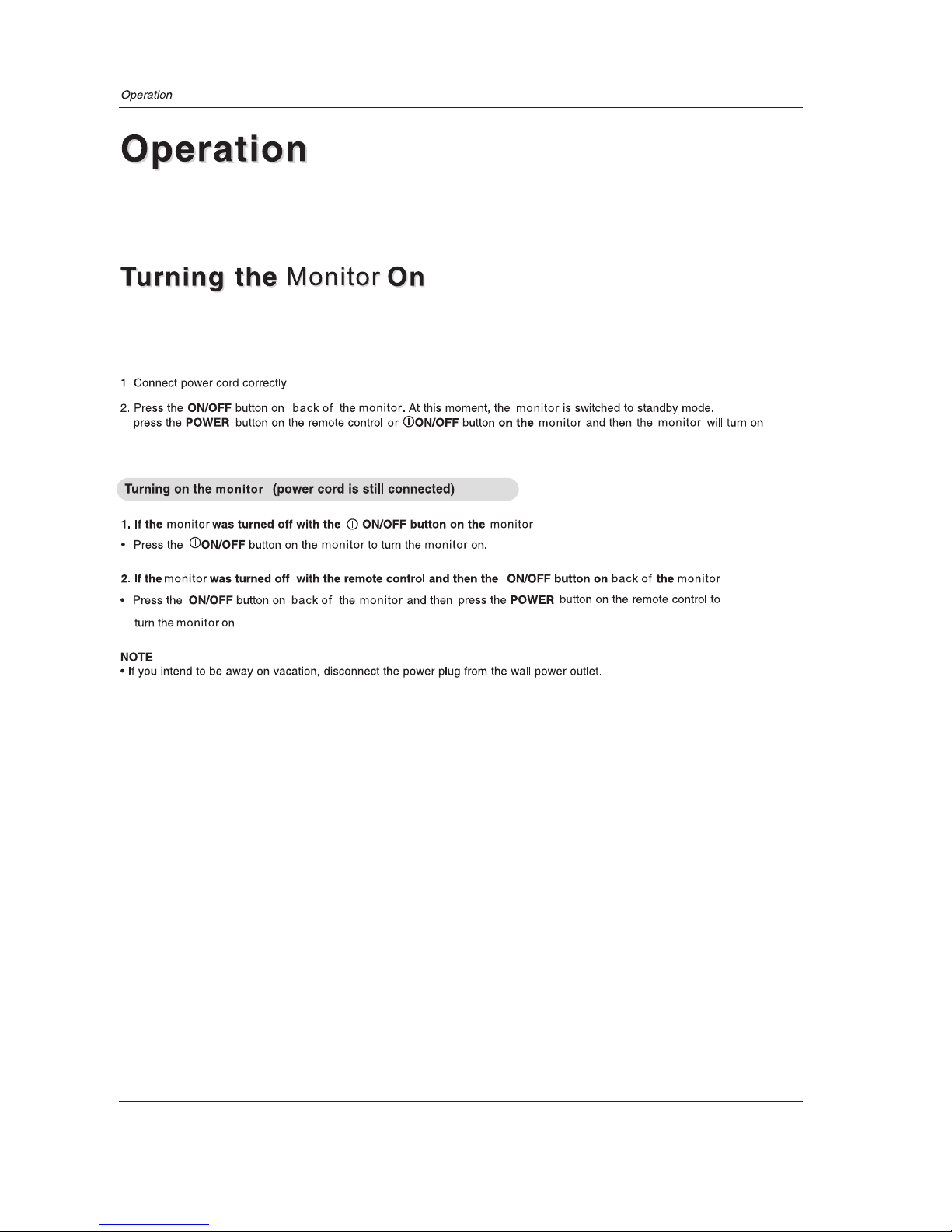

Turning theMonitor On.................................
Basic Function
Saving Mode............................................
Operation Menu........................................
Sound Mode.............................................
Picture Mode............................................
Sleep Timer..............................................
AV1/S-Video/YPbPr/YCbCr/VGA /DVIPlay..

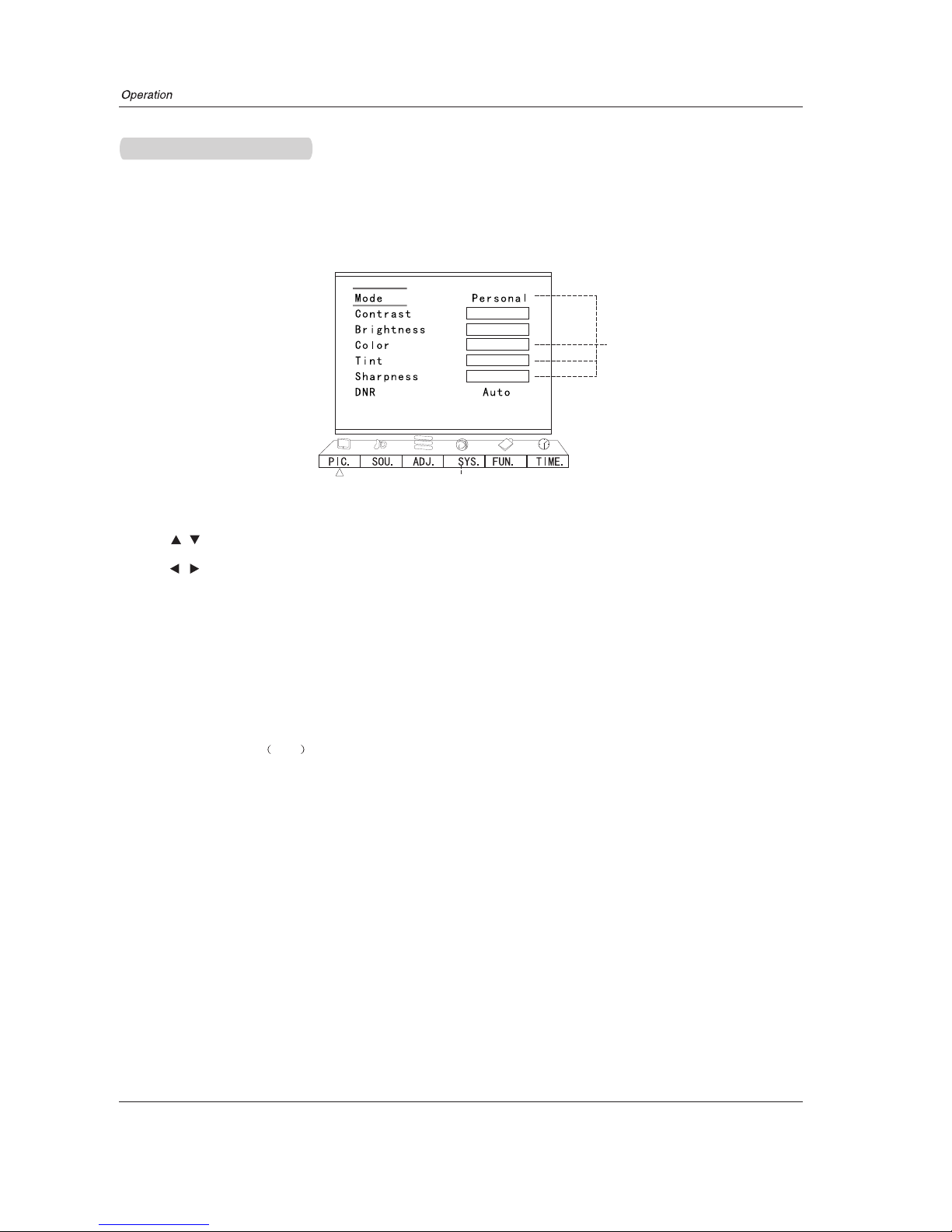

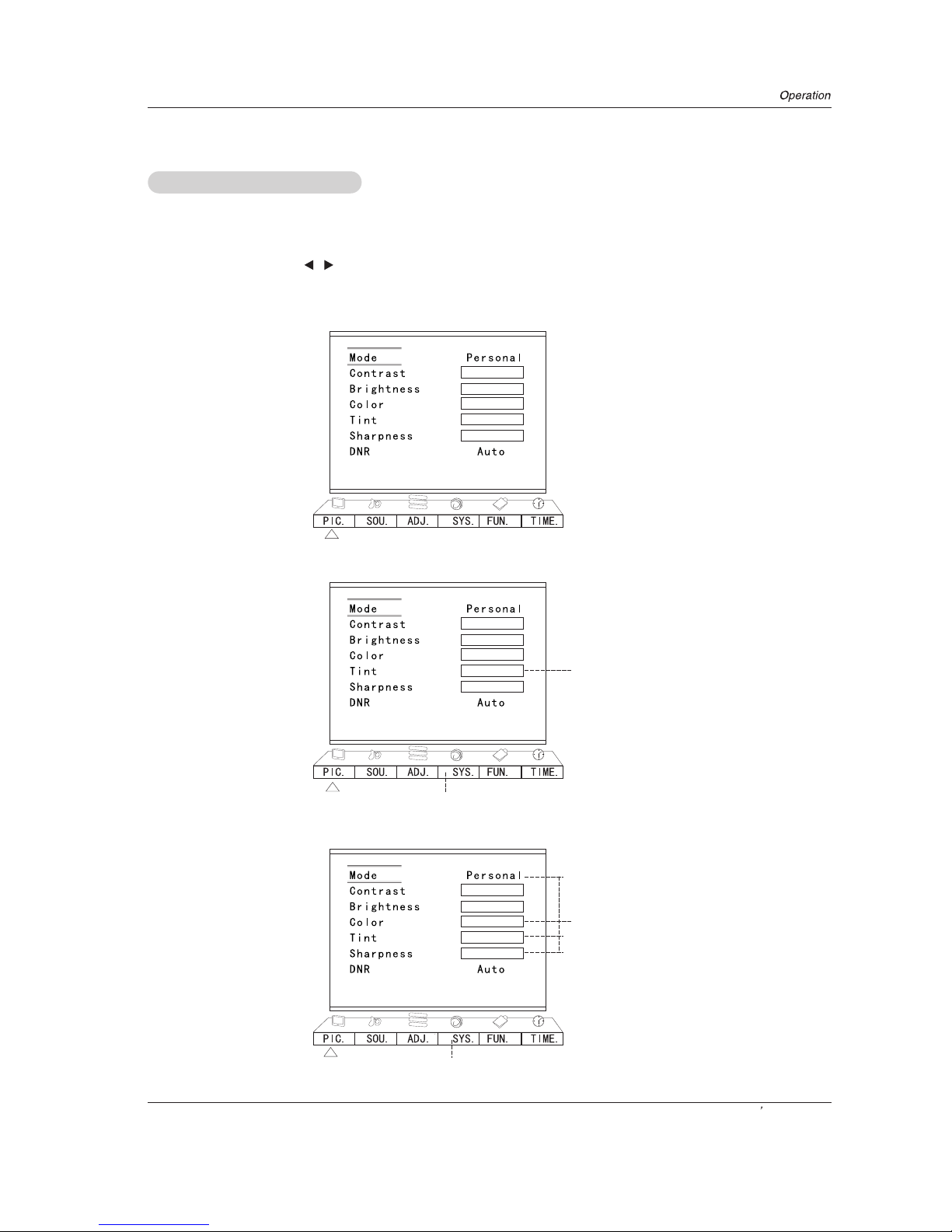

Picture QualityAdjust
Sound Adjustment........................................
Function Setup
Funtion Setup...........................................
Menu Language Option.............................
Menu TimeOut Option..............................
Menu Background Option..........................
Auto Off...................................................
Close Caption..........................................
Calendar Display andCheck.....................
Parental..................................................
Time Setup.................................................
Lock Menu Options
Lock Setup..............................................
Cable TV Setup
AV1/S-Video/YPbPr/YCbCr/VGA Menu.....
DVI Menu.................................................
Adjustment Setup........................................
Change Password.....................................26
Preset Prog.............................................. 27
Source Lock............................................. 27
Child Lock................................................ 27
Max Volume..............................................27
Unlock..................................................... 27
Screen Menu Options................................... 28
Troubleshooting Checklist....................................29
Maintenance....................................................... 30
Product Specifications......................................... 31
2
3-4
6
7
8
9
10
11
11
12
13
16
17
17
17
18
18
18
19
20
21
22
23
23
23
23
24
24
25
26
14
15
15
23
8
23

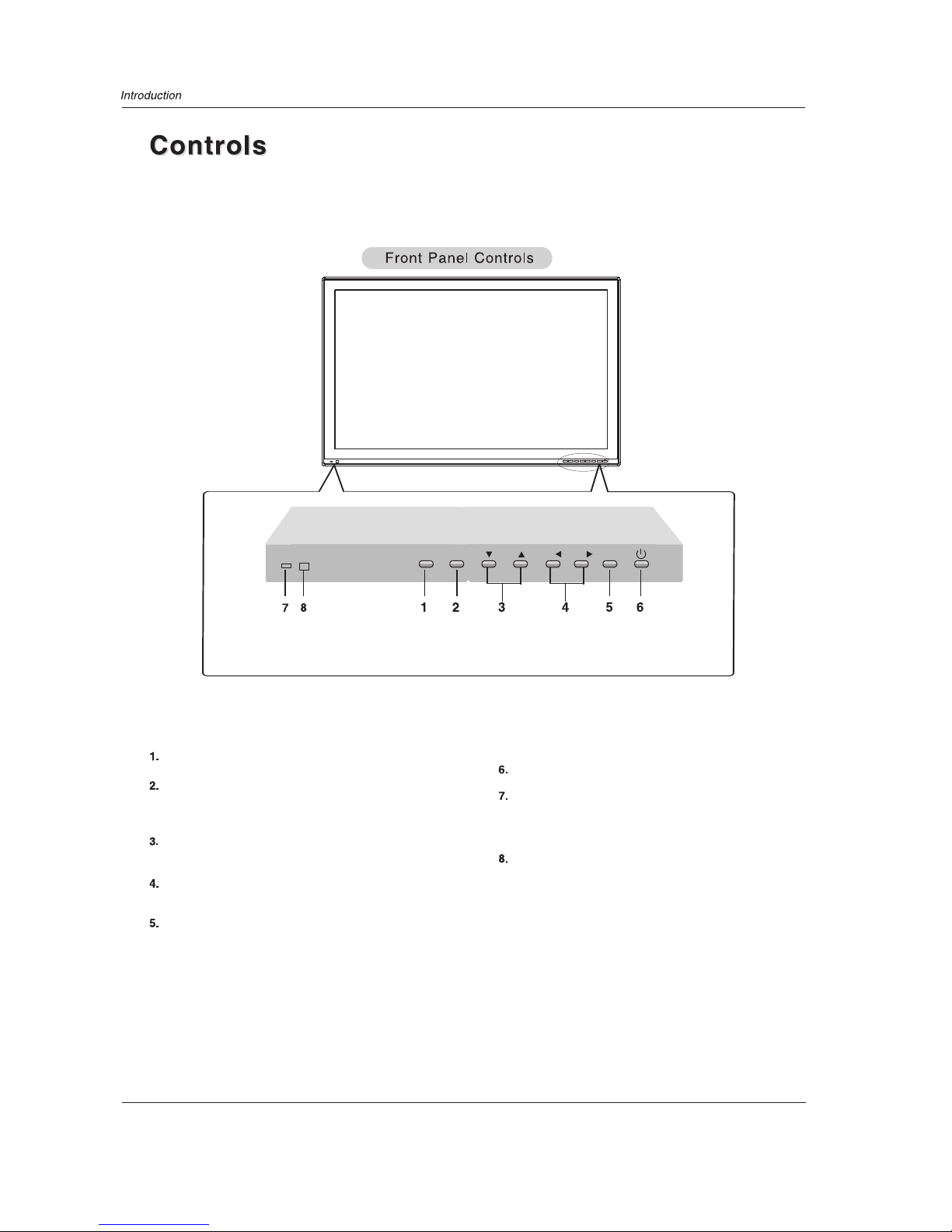

EXIT INPUT MENU
Signal source inputoption
Down/Up. Sel ct desired option on the menue
VOLUME Buttons
MENU Button
Power On/Off Button
Remote Control Sensor
illuminates red instandby mode,illuminates bluewhen
the display isturned on
MENUVOL+
CH+
CH-
INPUT
EXIT VOL-
Power Standby Indicator
Menu exit
6 Plasma Monitor

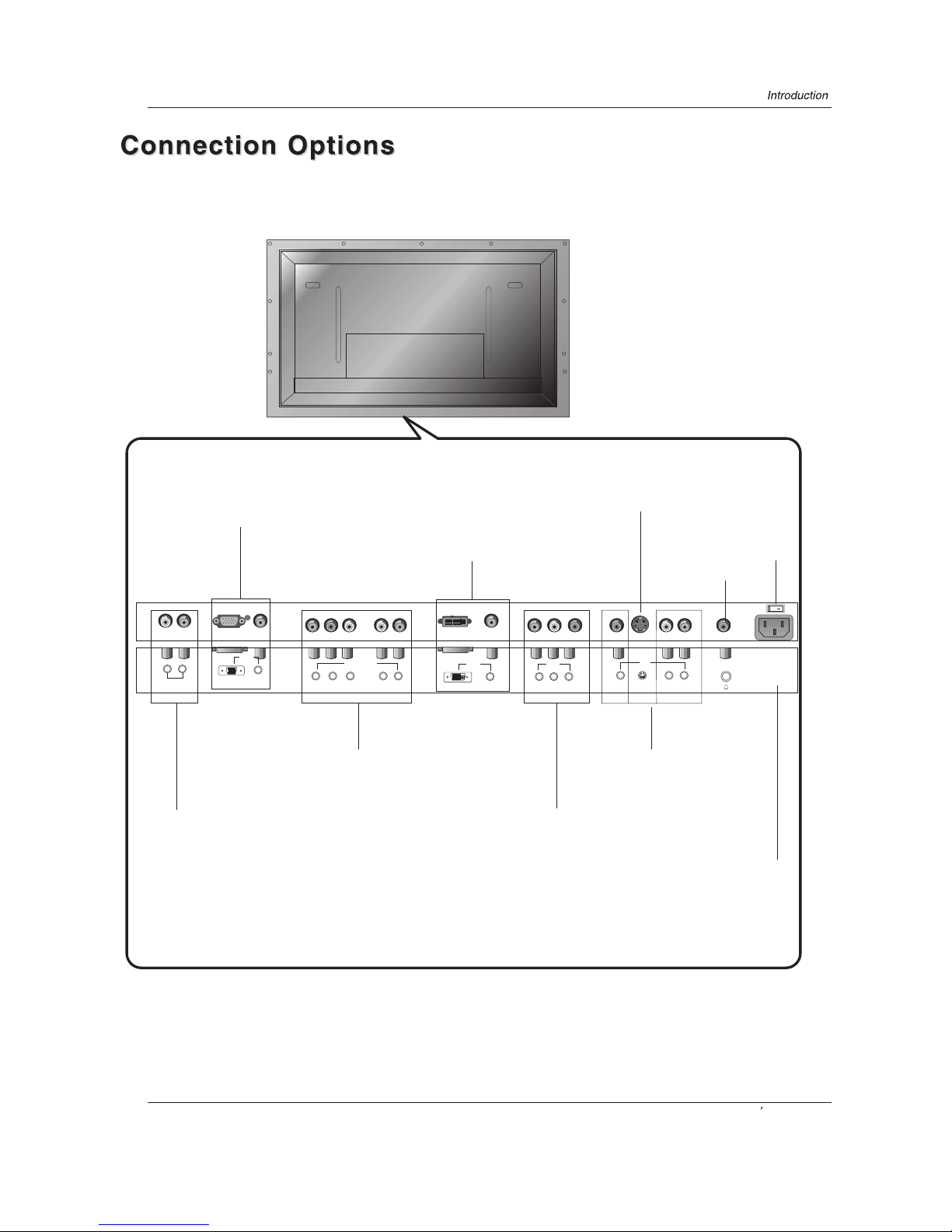

VOL VOL

AC-INPUT
DVI
VGA
L-AUDIO-R
AV IN
S-VIDEOVIDEO
L-AUDIO-R
AV OUT
VIDEOAUDIO
DVI IN
AUDIO
VGA IN
COMPONENT IN
Pr/Cr Pb/Cb YL-AUDIO-R
L
R
AUDIO OUT
SWITCH
VGA Input/Audioinput
DVD/DTV Input
Connect a componentvideo/audio
device to thesejacks
DVI Input/Audio input
connect your cable/PC
through the input
Audio/Video Input
Connect audio/video
output from anexternal
device to thesejacks
S-Video Input
Power Cord Socket
This monitor operates on AC power.The voltage is
indicated on thespecifications page. Never
attempt to operate the monitor on DC power
Earphone port
0
Power On/Off
Owner s Manual 7
External audio/
video output
AUDIO output

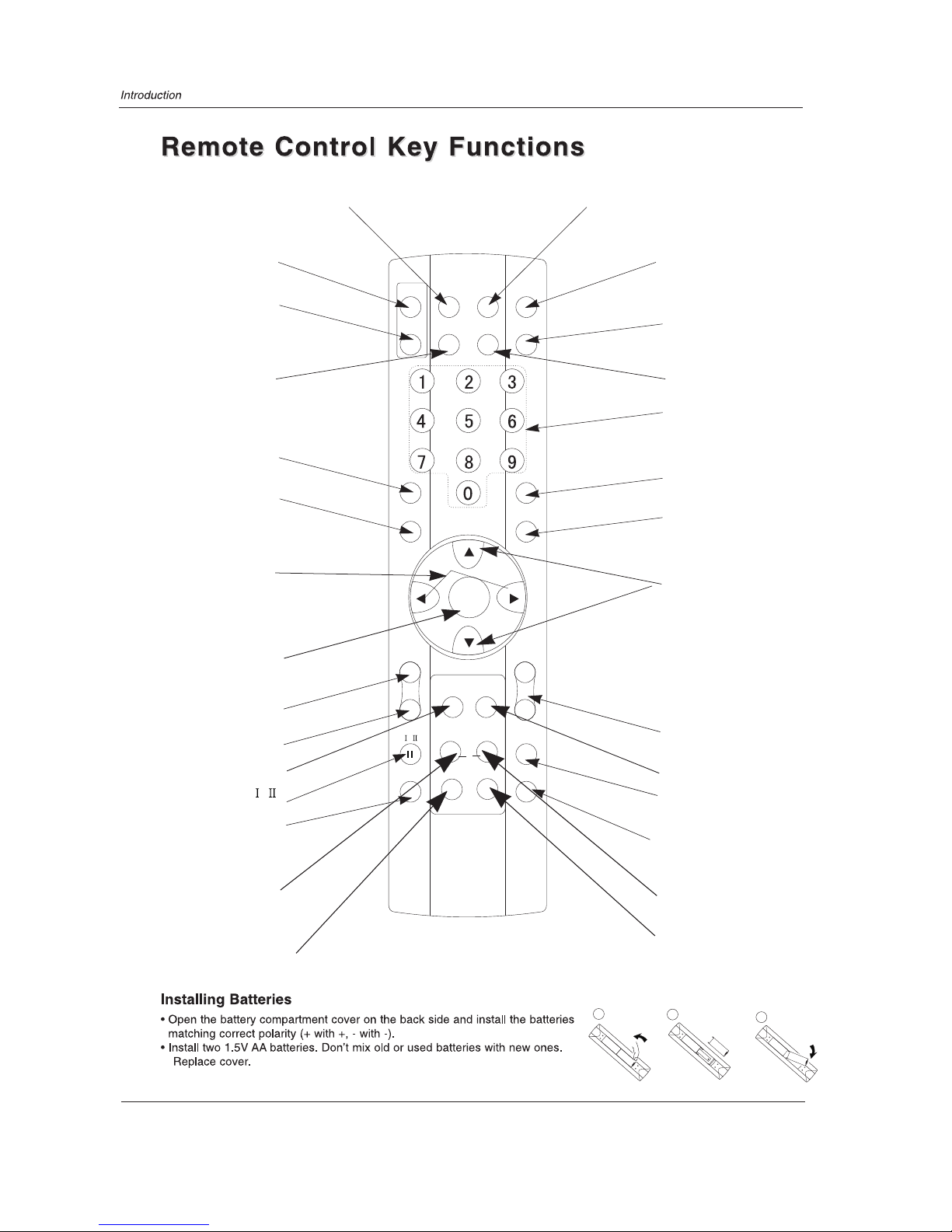

When using the remote control. Aim it towards the remote sensor on the monitor.
VIDEO INPUT POWER
PC
AUTO DVI MUTE
EXIT
AVC
DISPLAY
DNR
MENU
/
LOCK CALENDAR
CC
RATING FREEZE
SURROUND
ARC
ENTER
Q SET
SLEEP
PC
Select AV/S-Video source
VIDEO Selects:AV1/S-Video/YPbPr/YCbCr/VGA/ INPUT
POWER
Press this keyto set sleep
timer.
MUTE
Switches the soundon or off
NUMBER buttons
Picture mode menudisplay
Auto volume controlOn/Off
Sound mode menudisplay
Bring up the main menu to the screen
P STD
LOCK
SURROUND
EXIT
Q SET CC(Closed Caption)
P STD
S STD
VOL+
VOL-
3
2
1
Select PC source
DVI
Select DVI source
MENU
LEFT/RIGHT
ENTER
Press to confirm the selection
S STD
/
SLEEP
FREEZE
ARC
Changes the aspectratio
CALENDAR
VOLUME UP/DOWN
Increases/decreases sound
level
the
UP/DOWN
Clears all on-screendisplays
and return toviewing from
any menu
AVC
DNR
V-chip
Parental Control
AUTO
DISPLAY
Digital noise reduction
Auto adjust forPC
Press to selectleft/right/stereo
track
Press to selectsurround ON/OFF
Press to enterthe Lock Setmenu
Select different modes
DVI input source
Turn your monitor on
8 Plasma Monitor
Displays the currentinput
signal information
Freezes the imageon the screen
Selects pre-set userpreferences
for audio andvideo settings

VIDEO INPUT POWER
PC
AUTO DVI MUTE
EXIT
AVC
DISPLAY
DNR
MENU
/
LOCK CALENDAR
CC
RATING FREEZE
SURROUND
ARC
ENTER
SAVING
SLEEP
P.STD
S.STD
VOL+
VOL-
Speaker unit(X2)
(2.5MX2)
Connection cord (
1 M4X12 x8Screws 4x1Assembly instruction
5x1Stand
6 brace pole x2
2 M4X8 x2Screws 3 M5X16 x4Screws
7 PMMA baffle x1
Owner s Manual 9

So you shouldnot connect to
S-Video if you want touse Video.
(If you havea digital cable box please refer to page 12 , for
DTV setup)
10 Plasma Monitor
Do not leavea still picture from a VCR on the screen for a long time. Ifthe 4:3 format is used, the fixed images on the
sides of thescreen may remain visible on the screen, if this format is used day after day. This is known as burn-in, it
is uneven wearof the screen area. Reduce contrast when displaying fixed images on the screen for a long time.

Also,you could useshortcut key onthe remote control)
/S-Video
or composite(AV)
Owner s Manual 11

VGA
AV
Also,you could useshortcut key suchas PC,DVI onthe remote control)
12 Plasma Monitor

Also,you could useshortcut key suchas PC,DVI onthe remote control)
Owner s Manual 13
,if necessary.
The synchronization inputfrom horizontal andvertical frequencies areseparate.

Íâ¹ÒÑïÉùÆ÷ʹÓÃ˵Ã÷
Before turning onthe PDP , ensure you have connected the line between the speaker and the PDP
1 Face the PDPscreen upside downon a cleanblanket or abracket and payattention not toindent the casing. (See figure),
lay the two speaker aside of the PDP.
3 Fix the speakerto the PDPwith the screws4-ST 4X16 .
2 Insert the pothook to the faucet of the PDP screen .
Connect the speakerto the speakerterminal of plasmascreen:
Press the speakerterminal and insertthe connecting cableinto the terminalslot.
Release the speakerterminal and ensurethat the whiteconnecting cable isinserted in theterminal slot markedred and blackconnecting
cable is insertedin the blackterminal slot, andthat anode andcathode poles arecorrectly connected. (SeeFigure )
25.400 \U+2592\U+255A\U+2514\U+00B2
The left speaker
The right speaker
\U+2592\U+255A\U+2514\U+00B2 25.400
R L
EXT SPEAKER
Install the Speakers
14 Plasma Monitor

Install the brace pole
M4X8rom the front.
1 After put thebrace pole tothe stand,
use the screw8 M4x12 to fix it.
2 Takecare not totouch the standand
the brace pole;
3 Fix the PMMAbaffle with the
screw 2
Install the PMMA Baffle
After installing thebrace pole(see figurebelow)
baffle
and put thebaffle into the stand.
rip the protectivesheet off of the PMMA
Install the Stand
Face the PDPscreen upside downon a cleanblanket or thebracket and payattention not toindent the casing.(See figure)
Lay down thestand and putit to respondingposition of thePDP screen ,and make surethe brace poletowards the holeof the PDP.
Fix 2 PDPbrace pole to the PDP on the back of the plasmadisplay with 4M5X16 screws.
Install the Stand to the PDP
Owner s Manual 15

16 Plasma Monitor

Basic Function
Saving Mode
Quick Set Setup
Light
Sound
Bright
Noise
Normal
Normal
Gray
Quiet
Dark
Hold Q SET button pressed on the remote for 3 seconds until Quick Set mode setup menu appears on the screen.
1.Press buttonfor desired setupoption.
2.Press buttonfor setup option.
3.Press QSET button (Screen display seesright figure)
4.Press EXIT button to closescreen display.
(10 seconds laterafter the latestpress, the screendisplay will disappearautomatically.)
Operation Menu
1.Press MENU buttonto open themain menu. Press button to selectPIC., SOU., ADJ., SYS. , FUN. or TIME menu.
2.Press button toselect submenu, andpress button toincrease/decrease the valueor select thesetup.
4.The setup timein display willdisappear automatically whenthe latest presettime expiries. The menu displaytime can
be set to5,10,15,20,25,30 and 40seconds
5.Press EXIT button to exitany menu ifthe menu isin display.
Sound mode
Press S STDbutton on theremote controller formenu display, and press button to change
the mode asfollows:
Music Standard Theater Personal
Basic Function
/
/
/
//
/
3.Press MENU toreturn to mainmenu
(This feature canalso be changedfrom the soundmenu function screen)
Owner s Manual 17
Sou.Mode
Music
Standard
Theater
Personal

Picture mode
Press P STD button onthe remote controllerfor menu display, and press button for desired
mode as follows:
Bright Normal Soft Personal
Sleep Timer
Every press ofSLEEP button, the timer willbe set inthe following sequence:
Sleep 0Min Sleep 5Min Sleep 15Min Sleep 30Min Sleep 60Min Sleep 90Min Sleep 120Min Sleep 0Min
If remaining timeof set timeris to bedisplayed, press theSLEEP button once.
AV1/S-Video/YPbPr/YCbCr/VGA/DVI Play
1. Press INPUTbutton on theremote controller,the following menuwill appear onthe screen.
Source
AV1/S-Video
YPbPr/YCbCr
VGA
DVI
2. Press buttonfor option andthen press buttonor ENTER toconfirm.
Note: If AV1 and S-Video are insertedat the sametime, priority will
be given toS-Video.
/
//
(This change canalso be madefrom Picture menuadjustment screen)
18 Plasma Monitor
Pic.Mode
Bright
Normal
Soft
Personal

Picture Quality Adjust
Picture quality adjust
Picture quality canbe adjusted forany input separately.
The picture qualityon the screencan be adjusted as follows:
1. Press MENUbutton and untilthe following menuappears on thescreen:
AV1/S-Video menu:
(Not available)
(not available)
B
C
A
YPbPr/YCbCr menu:
(Not available)
VGA menu:
Picture Quality Adjust
50
50
50
0
50
B
C
A
50
50
50
0
50
B
C
A
50
50
50
0
50
Owner s Manual 19
/
(Not available)

Picture quality adjust
DVI menu:
(not available)
(not available)
3. Press buttonagain to adjustselected option.
Note:
1.When Personal modeis not selected,the Personal modecan be enteredautomatically if Contrast,Brightness,
Color, Tint and Sharpness parameters are adjusted.
2.Noise Reduction mode DNR can be setto Auto,Off, Weak, Medium or Strong.
B
C
A
50
50
50
0
50
/
/
20 Plasma Monitor
2.Press button toenter picture menuand to selectdesired option ,the current itemis marked yellow.
4. Repeat step2 and 3until desired picturequality has beenachieved . Whendisplayed time formenu setup expireswithout
any operation ,the menu disappearsfrom the picture, If MENUor EXIT button is pressed, the menuon display willdisappear
in sequence orimmediately respectively.
