Haier A2FE735CXJ User manual

C2FE732CMJ
C2FE732CSJ
C2FE732CWJ

1

ELEMENTS



ThanksforpurchasingaHaierProduct
Pleasereadtheseinstructionscarefullybeforeusingthisappliance.Theinstructionscontain
importantinformationwhichwillhelpyougetthebestoutoftheapplianceandensuresafeand
properinstallation,useandmaintenance.

Keepthismanualinaconvenientplacesoyoucanalwaysrefertoitforthesafeandproperuseof
theappliance.

Ifyouselltheappliance,giveitaway,orleaveitbehindwhenyoumovehouse,makesureyoualso
passonthismanualsothatthenewownercanbecomefamiliarwiththeapplianceandsafety
warnings.




Accessories

Checktheaccessoriesandliteratureinaccordancewiththislist:





1xUserManual



1xDoorHingeCover



1xWarrantyCard



1xEnergyLabel

GB

2
INDEX



Cautions...................................................................................................................................................3

BeforeUse...............................................................................................................................................9

Functions...............................................................................................................................................15

Maintenance.........................................................................................................................................21

Trouble‐Shooting...................................................................................................................................23

After‐SaleService..................................................................................................................................25



Legend

Yes
No
Attention
Caution



Disposal

Thepresenceofthissymbolontheproduct,accessoriesormaterialsthatgoeswiththisinformation
indicatesthatattheendofitsusefullifetheproductoritselectronicaccessories(ex.charger,headset,
USBcable)shouldbedisposedwithotherhouseholdwaste.
Topreventpossibledamagetotheenvironmentorhumanhealthfrom
uncontrolledwastedisposal,pleaseseparatetheseitemsfromothertypesof
wasteandrecyclethem.Thiswillpromotethesustainablereuseofmaterial
resources.

Householdusersshouldcontacteithertheretailerwheretheypurchasedthe
productortherelevantlocalauthoritiestofindouthowtheycantakethisitem
forenvironmentallysaferecyclingandsafe.
Businessusersshouldcontacttheirsupplierandchecktheconditionsofthe
purchase.Thisproductanditselectronicaccessoriesshouldbemixedwithother
commercialwaste.





3
CAUTIONS

Beforeusingtheapplianceforthefirsttime
Intendeduse:Thisappliancehasbeendesignedexclusivelyforuseindry‐interiorhouseholds.Everyother
useisimproperandmayleadtoinjuries,wherebytheliabilityofthemanufacturerwillcease.
Thingstodo…
9Makesurethattheplugisnottrappedunderthe
refrigerator.
9Holdtheplug,notthecable,whenunpluggingthe
refrigerator.
9Takecarenottorolloverthepowercordordamageitwhen
movingtherefrigeratorawayfromthewall.
9Takecarethattheplugisnotdamaged,ifitis,ifpossible
switchoffthepowersupplyandcarefullyunplugitand
consultanauthorizedserviceagentforreplacement.
9Makesurethatthereisnogasorotherinflammable
gasleakinginthevicinityoftherefrigerator.Inthe
caseofthisoccurring,turnoffthevalveoftheleaking
gas;opendoorsandwindowsbutdonotplugor
unplugthepowercordsoftherefrigeratororany
otherappliance.
9Unplugtherefrigeratorforcleaningormaintenanceorbecauseoflampreplacement.
9Openthedoorsbythehandle,cautionthegapbetweenthedoorscanbeverynarrow,soavoid
trappingyourfingers.
9Whenunpluggingtherefrigeratorallowatleast5minutesbeforerestarting,asfrequentstarting
bedamagethecompressor.
9Leavetheventilationopeningsfreeofobstruction.
9Whendiscardingtherefrigerator,toavoidtheaccidentaltrappingofchildren,pleaseremove
therefrigeratordoors,doorsealsandshelvesandputtheminanappropriateplace.
9Therefrigeratorshouldbeplacedinawell‐ventilatedplacenotfarfromadrinkwatersource.
Ensureaspaceofatleast20cmaboveand10cmaroundtherefrigerator.
9Theappliancemustbepositionedsothattheplugremainsaccessible.

Thingsnottodo…
8 Therefrigeratorisoperatedbya220‐240VAC/50Hzpowersupply.Plugtherefrigeratorto
incorrectvoltage,fluctuationmaycausetherefrigeratortofailtostart,ordamagetothe
temperaturecontrol,orthecompressor,ortheremaybeabnormalnoisewhenthecompressor
isoperating.Insuchacase,anautomaticregulatorshouldbemounted.
8 Adedicatesocketwithreliablegrounding/earthmustbeprovidedfortherefrigerator.The
refrigerator’spowercableisfittedwith3‐cord(grounding/earth)plugthatfitsastandard3‐cord

4
CAUTIONS

(grounded/earthed)socket.Nevercutoffordismountthethirdpin(grounding/earth).Afterthe
refrigeratorisinstalled,theplugshouldbeaccessible.
8 Neverstoreinflammables,explosivesorcorrosivematerialsintherefrigerator.
8 Donotstoremedicines,bacteriaorchemicalagentsintherefrigerator.Thisrefrigeratorisa
householdappliance.Itisnotrecommendedtoplacematerialsthatrequirestricttemperature.
8 Donotstoreorusegasolineorotherinflammablematerialsinthevicinityoftherefrigeratorto
avoidafire.
8 Donotplaceunstablearticles(heavyobjects,containersfilledwithliquids)onthetopofthe
refrigerator,toavoidpersonalinjurycausedbyfallingorelectricshockcausedbycontactwith
water.
8 Donotswingfromthedoororbottle
racksonthedoor.Thedoormaybe
pulledawayfromvertical,thebottle
rack,maybepulledaway,orthe
refrigeratormaytopple.
Donotsteponthefreezerstorage
compartmentdoor,shelvesorcabinet
whenfillingwithorremovingfoodand
drinks.
8 Donottouchtheinsidesurfaceofthefreezerstorage
compartmentwheninoperation,especiallywithwethandsasyour
handsmayfreezeontothesurface.
8 Toensuretherefrigerator’selectricalinsulation,donotsprayorflushtherefrigeratorwithwater
whencleaning,norplacetherefrigeratorinadampareaoralocationwhereitmaybesplashed
withwater.Cleananddrywatersplashesandstainswithasoftcleancloth.
8 Disassemblyandalterationoftherefrigeratormustbeauthorized.Anysharporroughmovement
oftherefrigeratormaydamagethecoolingpipes.Propertylossorpersonalinjurymayresult.
Repairoftherefrigeratormustbeperformedbyprofessionalpersonnel.
8 Neverstorebottledbeerorbeveragesinthefreezer,asthesewillburstduringfreezing.
8 Donotplacetherefrigeratorindirectsunlightorinaplacewhereitisexposedtoheatfrom
stoves,heatersorotherappliances.
8 Donotleaverefrigerator'sdoorsopenwithoutthepresenceofanadult,andnotletchildrenget
intherefrigerator.
8 Donotletinfantsorchildrentoclimbintothefreezerdrawer.
8 Donotuseelectricalappliancesinsidetherefrigerator,unlessyouarethetype
recommendedbythemanufacturer.
 8 Donotdamagetherefrigerantcircuit.

5
CAUTIONS

8 Donotuseahairdryertodrytheinsideoftherefrigerator.Donotplacelightedcandlesinthe
refrigeratortoremoveodors.
8 Donotsprayvolatilematerialssuchasinsecticideonanysurfaceoftheappliance.
8
Openorclosetherefrigeratordoorsonlywhentherearenochildrenstandingwithintherange
ofdoormovement.
8
Thisapplianceisnotintendedforusebypersons(includingchildren)withreducedphysical,
sensoryormentalcapabilities,orlackofexperienceandknowledge,unlesstheyhavebeen
givensupervisionorinstructionconcerninguseoftheappliancebyapersonresponsiblefor
theirsafety.
8
Donotstoretoomuchfoodinthefreezerstoragecomportmenttoavoidlongeroperationtime
ofthecompressororfallingfood.Itisrecommendednottoexceedtheloadlineofthedrawers.
Thetotalweightofthefoodshouldnotexceed30kg.Topreventthefoodfromfailingonthe
ground,donotpullopenthefreezerdrawertoostronglyoratanangle.
8
Donotusemechanicaldevicesorothermeanstoacceleratethedefrostingprocess,otherthan
thoserecommendedbythemanufacturer.
8
Incaseofanyproblemwiththelightofrefrigerator,pleasecontactwithourcustomerservice
departmentforhandling,anduserscannotreplaceitbythemselves.


 
F ridgestoragetips
 

Hotfoodsmustbecooledtoroomtemperature
beforestoringintherefrigerator.
Washor cleanthefoodanddryanywater
dropletsonitbeforeplacingintherefrigerator.
Foodtobestoredshouldbeproperlysealed.Thiswill
preventmoistureinthefoodfromevaporatingand
preventthemfromspoiling.
Sortedstorageoffood.Foodtobestoredshouldbe
sortedaccordingtotheircategory.Foodconsumed
dailyshouldbeplacedonthefrontpartoftheshelves.
Thiscanavoidunnecessarydelaysindooropeningas
wellasexpirationofthestorageperiodbecauseyou
forgottoeatit.
Donotstoreexcessquantitiesoffood.Foodshouldbe
storedwithspacesinbetweenthem.Thisallowscoldairtoflowsmoothlyandtherefore
obtainbetterstorageresults.


6
CAUTIONS


Donotplacethefoodtooneartotheinnerwalls.Donotstorefoodswithhighmoisture
contenttouchingtheinnerwalls.Otherwisethefoodmayfreezetothewalls.Placefood
alittleawayfromtheinnerwalls.

Avoidingfood(especiallyoilfood)touchingtheinnerlinerdirectly,assomeoilscan
damagetheinnerliner.Soit'sbettertocleantheoilycontaminationwheneveritis
found.
Forturnipradishandothersimilarvegetables,pleasecutofftheirleavesbeforestorage
soastopreventthenutritionfrombeingabsorbedbytheleaves.
Defrostfrozenfoodinthefridgestoragecompartment.Inthiswayyoucanusethe
frozenfoodtodecreasethetemperatureinthecompartmentandsaveenergy.
Somevegetables,forexample,onion,garlic,ginger,waterchestnut,andother
rhizomaticfoods,canbestoredforlongperiodsatnormaltemperature.Thereisno
needtostorethemintherefrigerator.
Themetabolismofvegetablemarrow,melons,pawpaw,banana,pineapplecanbe
quickenedintherefrigerator,soitisnotsuitabletostoretheminthefridgestorage
compartment.Butstoringgreenfruitsintherefrigeratorforcertainperiodscanpromote
itsmaturing.
Hotfoodshouldnotbestoredintherefrigeratoruntilithascooleddowntoroom
temperature.
Foodcutintosmallportionswillfreezefasterandbeeasiertodefrostandcook.The
recommendedweightforeachportionislessthan2.5kg.
It'sbettertopackfoodbeforeputtingitinthefreezer.Theoutsideofthepackingmust
bedrytoavoidbagsstickingtogether.Packingmaterialsshouldbeodor‐free,airtight,
non‐poisonousandnontoxic.
Inordertoavoidexpirationofstorageperiod,pleasenotethefreezingdate,timelimit
andnameofthefoodonthepackingaccordingtothestorageperiodsofdifferentfoods.
Onlytaketherequiredamountoffoodfromthefreezer.Defrostedfoodcannotbere‐
frozenunlessitisfirstcooked;otherwiseitmaybelessedible.
Donotloadexcessivequantitiesoffreshfoodinthefreezer.Itisbettertorefertothe
coolingcapacityoftherefrigerator.

EnergySavingTips

Installtheapplianceinacool,dryroomwithadequateventilation.
Neverblockanyventsorgrillesontheappliance.
Allowwarmfoodtocooldownbeforeplacingitintheappliance.
Putfrozenfoodintherefrigeratortothaw.Youcanthenusethelowtemperaturesof
thefrozenproductstocoolfoodintherefrigerator.


7
CAUTIONS

Donotkeepthedooroftheapplianceopenfortoolongwhenputtingfoodinortaking
foodout.Theshortertime,forwhichthedoorisopen,thelessicewillforminthe
freezer.
Cleantherearoftherefrigeratorregularly.Dustincreasesenergyconsumption.
Donotsettemperaturecolderthannecessary.
Ensuresufficientairexhaustattherefrigeratorbaseandatthebackwallofthe
refrigerator.
Donotcoverairventopenings.
Allowclearancetotheright,left,backandtopwheninstalling.Thiswillhelpreduce
powerconsumptionandkeepyourenergybillslower.

UKOnly13APlugConnection

 Ifyourrefrigeratorisconnectedtothemainssupplyusinga3pin13ampplug,the
voltageratingis220‐240voltsandshouldbeprotectedbya3ampfuseintheplug.
 Shouldthefuserequirereplacementforanyreason,thefusemustbereplaced
withafuseratedat3ampsandmanufacturedandapprovedtoBS1362.
 Ifthemainsplugisunsuitableforthesocketoutletinyourhomeorisremovedfor
anyotherreason,thenthecutoffplugshouldhaveitsfuseremovedandbe
disposedofsafelytopreventthehazardofelectricshock.
 Thereisadangerofelectricshockifthecutoffplugisinsertedintoany13amp
socketoutlet.
HowtowireaUK13ampplug. 




8
CAUTIONS

Important
ThewiresinthemainsleadonaTVarecolourcodedinaccordancewiththefollowingcode.
GreenandyellowEarth
Blue  Neutral
Brown  Live
Doubleinsulatedappliances
Ifthecoloursdonotcorrespondwiththemarkingsidentifyingtheterminalsinyourplug,
proceedasfollows.
Thegreenandyellowwire,mustbeconnectedtotheterminalintheplugwhichismarked
withtheletterEorwiththeearthsymbol orcolouredgreenandyellow.
ThebluewiremustbeconnectedtotheterminalmarkedNorcolouredBlueorBlack.
ThebrownwiremustbeconnectedtotheterminalmarkedLorcolouredBrownorRed.

















9
BEFOREUSE



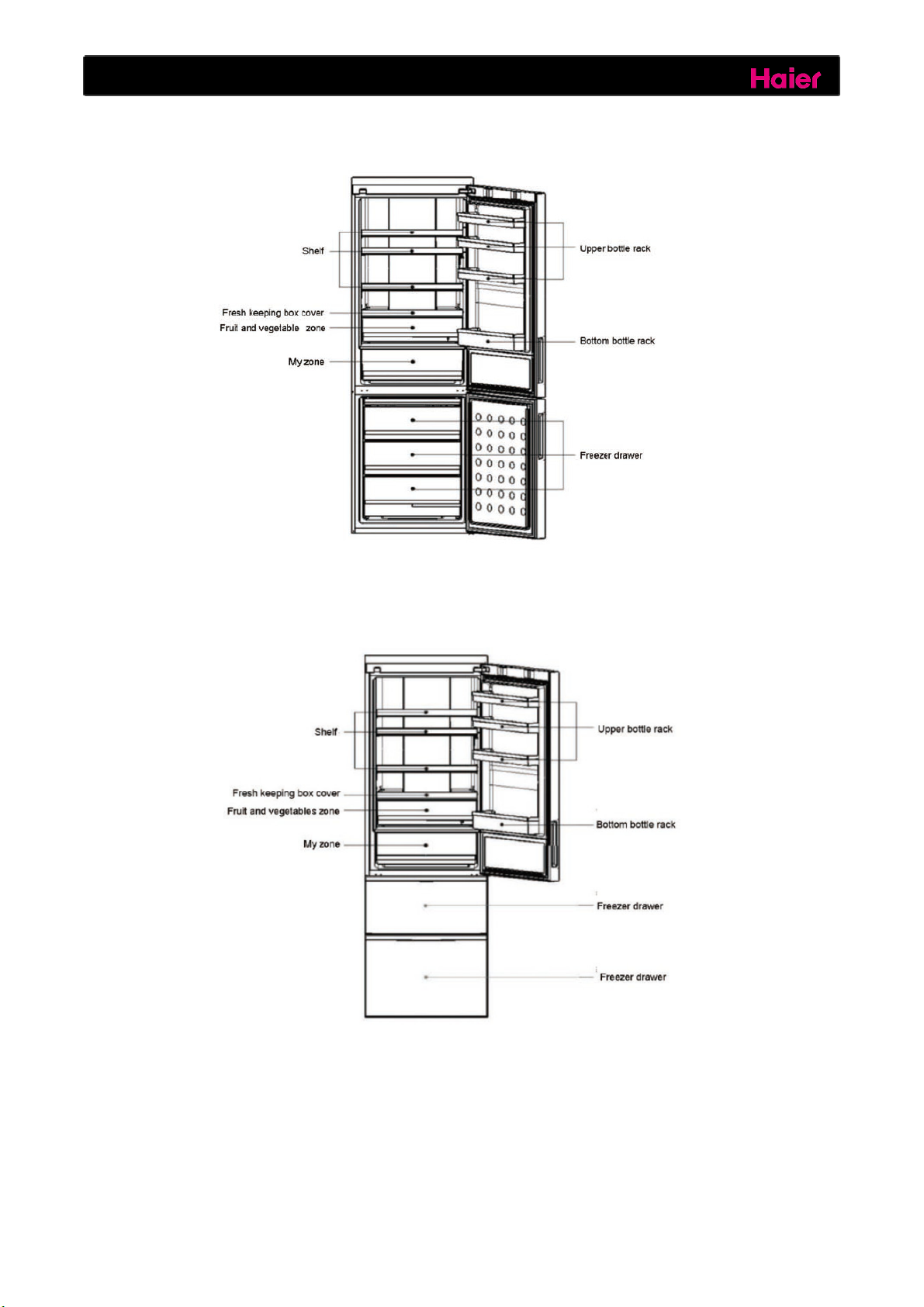

Description

Thisdiagrammaybeslightlydifferentfromthelayoutoftherefrigeratoryouhavejustpurchased.




























*C2FE736CFJ/C2FE736CSJ/C2FE736CWJ/C2FE636CXJ/C2FE636CFJ/C2FE636CSJ/C2FE636CWJ




*C2FE836CFJ/C2FE836CXJ


10
BEFOREUSE



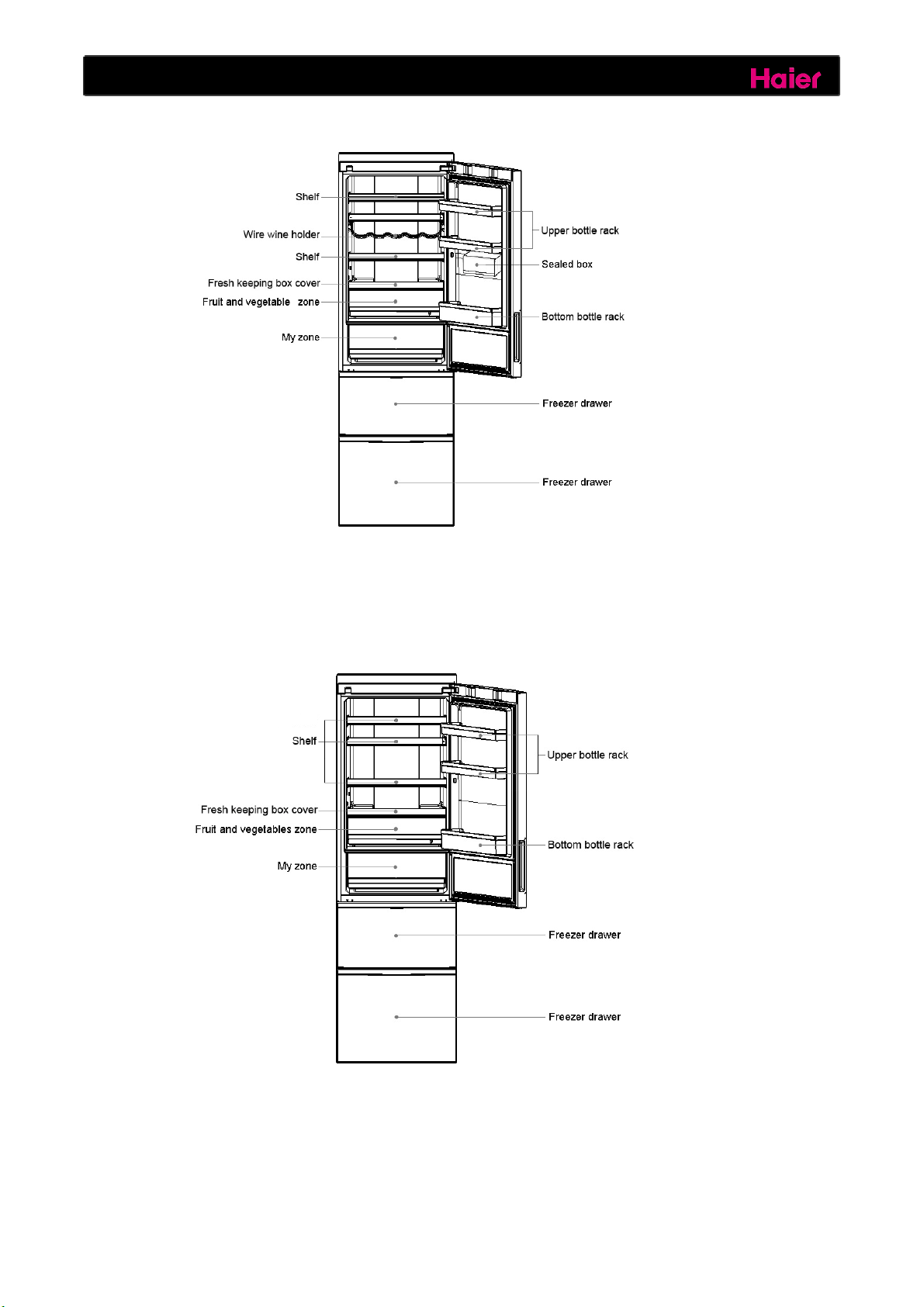

*A2FE735CXJ/A2FE735CFJ/A2FE735CWJ
*A2FE635CXJ/A2FE635CFJ/A2FE635CSJ/A2FE635CWJ




11
BEFOREUSE



 

*C2FE637CFJ

*A2FE737CXJ

12
BEFOREUSE


























*C2FE732CMJ/C2FE732CWJ/C2FE732CSJ
































13
BEFOREUSE


PlacingEnvironment

Levelingthecabinet.Therefrigeratorshouldbeplacedonaflatandsolid
surface.Iftherefrigeratorisplacedonanunevensurface,flatstrongand
fire‐resistantmaterialsmustbeused.Neverusethefoampackingmaterial
asapedestal.Iftherefrigeratorisslightlyunstable,youcanlengthenor
shortentheadjustablefeetoftherefrigeratorbyturningthemclockwiseor
anticlockwise.



Neverplacetherefrigeratorinadampareaorlocationwhereitmaybesplashedwith
water.Cleananddryanywatersplashesandstainswithsoftcloth.




Donotstoretoomuchfoodinthefreezerstoragecompartmenttoavoidlongoperation
timeofthecompressorofcoolingfood.Itisrecommendednottoexceedtheloadlineof
thedrawers.Thetotalweightofthefoodshouldnotexceed30kg.Topreventthefood
fromfallingontheground,donotpullopenthefreezerdrawertooquicklyorallowitto
tiportilt.




Therefrigeratorwithawaterconnectionshouldbeplacedinawell‐ventilatedplace
notfarfromadrinkwatersource.Aspaceofatleast20cmand10cmmustbekept
aboveandaroundtherefrigerator.



Keepventilationopenings,intheapplianceenclosureorinbuilt‐instructure,clearof
obstruction.























 


14
BEFOREUSE


Preparationpriortouse



Removeallpackageparts

Pleasealsoremovethefoambaseandtheadhesivetapefixingaccessories.


Checkaccompanyingaccessoriesanddocuments

ChecktheitemsinsidethepackageboxagainstthePackingList.Pleaseinquirewiththe
purchaseshopifthereisanydiscrepancywithin5daysofpurchase.



Move therefrigeratorintoaproperlocation

Seesection“PlacingEnvironment”


Itisadvisabletocleanthecabinetbeforeuse

Pleasecleantheinsideandoutsideoftherefrigeratorwithwaterbeforeputtingintoanyfoodonit.


IdleStanding

Aftertheappliancehasbeenleveledandcleaned,letitremainidleforatleast6hoursbefore
switchingitonsoastoensurenormalrunningoperation.


Connectiontopowersupply

Whentherefrigeratorisconnectedtopowersupply,thefridgetemperatureandthefreezer
temperatureareautomaticallysetto5oCand‐18oCrespectively.TheMyZonecompartmentison
chillermode.


Operationmodesoftherefrigerator

Manualadjustmentmode:cansettemperaturebypressingthetemperaturesetupkey.(see
“FunctionDescription”sectionofthismanual)


Loadingtherefrigeratorwithfood

Loadtherefrigeratorwithfoodafterithasbeenoperatingforaperiodandtheinsideiscoolenough.




15
FUNCTIONS



ControlPanel

Fridgestoragetemperaturesetup

PresskeyA1repeatedlyuntilindicatorsBilluminates;pressA2tosettherefrigeratortemperature.
correspondingindicatorsBandDbegintoflashsimultaneously.Thetemperatureincreasesby1oC
byeachsinglepress;Therefrigeratorsettingpositionsequencesthrough“2”‐“3”‐“4”‐“5”‐“6”‐“7”‐
“8”‐“2”.Therefrigeratortemperaturerangeisfromaminimumvalueof2oCtoamaximumvalueof
8oC.StoptopressA2toconfirmthesettemperature.


A1
A2
A3
A4
B
C
D
E
F
G
H
J
I

16
FUNCTIONS

Freezerstoragetemperaturesetup
PresskeyA1repeatedlyuntilindicatorsCilluminates;pressA2tosetthefreezertemperature.
correspondingindicatorsCandDbegintoflashsimultaneously.Thetemperaturereducesby1oCby
eachsinglepress;Thefreezersettingsequencesthrough“‐16”‐“‐17”‐“‐18”‐“‐19”‐“‐20”‐“‐21”‐“‐22”‐
“‐23”‐“‐24”‐“‐16”.Thefreezertemperaturerangesfromaminimumvalueof‐24oCtoamaximum
valueof‐16oC.StoptopressA2toconfirmthesettemperature.

Supercool
PresskeyA3repeatedlyuntilindicatorsEbegintoflash;pressA4toconfirmtheactivationofthe
SuperCoolingfunction.Thisfunctioncanbedisabledbyrepeatingtheactivationproceduremanually.
Thisfunctionwillbeautomaticallydisabledwhentemperaturedropsbelowminimumlevel.
Inthismode,theSuperCoolfunctionwillbedisabledbytheoperationofsettingtherefrigerator
temperature.

SuperFreeze
PresskeyA3repeatedlyuntilindicatorsGbegintoflash;pressA4toconfirmtheactivationofthe
SuperFreezefunction.Thisfunctioncanbedisabledbyrepeatingtheactivationproceduremanually.
Thisfunctionwillbeautomaticallydisabledafter56hours.Ifyouarefreezinglargequantitiesoffood
inthefreezercompartment,pleaseswitchonsuperfreezingby24hoursbeforethefoodisplacedin
thefreezercompartment.
Inthismode,theSuperFreezefunctionwillbedisabledbytheoperationofsettingthefreezer
temperature.

HolidayFunction
PresskeyA3repeatedlyuntilindicatorsIbegintoflash;pressA4toconfirmtheactivationofthe
HolidayFunction.Thisfunctioncanbedisabledbyrepeatingtheactivationproceduremanually.In
Holidaymode,therefrigeratorcompartmentoperatesatatemperatureof17oCautomatically.
Inthismode,theHolidayFunctionwillbedisabledbytheoperationofsettingtherefrigerator
temperature.

MyZoneQ‐coolFunction
PresskeyA3repeatedlyuntilindicatorsFbegintoflash;pressA4toconfirmtheactivationoftheMy
ZoneQ‐coolFunction.Thisfunctioncanbeautomaticallydisabledbychoosingtheotherfunctionsof
MyZonecompartment.

MyZoneD‐FrostFunction
PresskeyA3repeatedlyuntilindicatorsHbegintoflash;pressA4toconfirmtheactivationofMy
ZoneD‐Frostfunction.Thisfunctioncanbeautomaticallydisabledbychoosingtheotherfunctionsof
MyZonecompartment.


17
FUNCTIONS

MyZoneChillerFunction
PresskeyA3repeatedlyuntilindicatorsJbegintoflash;pressA4toconfirmtheactivationofMy
ZoneChillerFunction.Thisfunctioncanbeautomaticallydisabledbychoosingtheotherfunctionsof
MyZonecompartment.
Note: ThecompartmenttemperaturecanbereducedbyusingtheQ‐Coolfunctionorincreasedby
usingtheD‐Frostfunction. AmongthethreefunctionsofMyZonecompartment,oneofthe
functionsmustbeactivated.


DisplayControl

Thedisplayscreenwillturnoffautomatically30secondsafteranoperationisfinished.Itwillbelit
upbyopeningthedoororpressinganykey.(Alarmdoesnotlightupthedisplayscreen)

Door OpeningAlarm

Whentherefrigeratordoorisopened,thefridgeinteriorlightandthecontrolpanelwillilluminate.
After3minutes,thedooropenalarmwillsound.Thealarmcanbesilencedbyeitherclosingthedoor
ortouchingthecontrolpanel.Iftherefrigeratordoorisleftopenformorethan7minutes,the
internallightandcontrolpanelilluminationwillautomaticallyswitchoff.

Turningoff/ontheRefrigerator

Whentherefrigeratorisworking,ifyoupresskeyA4for5seconds,thewholerefrigeratorwillbe
switchedoff.ThebuzzerwillbegintobeepafterpressingkeyA3for5seconds.Thewhole
refrigeratorwillstoptoworkafterthebeep.
Whentherefrigeratorisswitchedoff,ifyoupresskeyA4for5seconds,therelevantindicator
lightsup,therefrigeratorbeginstooperate.
Note:Therefrigeratorneedstobeemptiedbeforeoperatingthisfunction;thisoperationisnot
equivalenttoturningoffthepower.


18
FUNCTIONS


Aboutthefridgestoragecompartment

Pleaseputthefoodtobestoredforshortperiodorfordaily
consumptioninthefridgestoragecompartment.

Althoughtheaveragetemperatureinmostareasinthefridge
storagecompartmentcanberegulatedbetween0oCand10oC,
extendedperiodoffoodstorageisnotrecommended.The
fridgestoragecompartmentshouldonlybeusedforshort‐term
storage.

Adjustingshelfheight

Theshelfcanberelocatedtoaccommodatefoodsizeorheight.Toadjusttheheightofashelf,
removeitfirstinthisway:upliftitsfrontedgeandthenpullitout.

Toinstalltheshelf,putthelugsonbothsidesoftheshelfonthesupportingribsandpushittothe
mostrearwardposition
.

Fruit andvegetablebox

Therefrigeratorhasacrisper.Youcanadjustthehumidityinsideitaccordingtothepropertiesofthe
foods.

Turningthehumiditycontrolbuttonrightwardenablesthecrispertokeepinahigherhumidity
suitableforcucumbers,grapes,Chinesegooseberries,persimmons,etc.

Turningthehumiditycontrolbuttonleftwardenablesthecrispertokeepinalowerhumiditysuitable
forstrawberries,oranges,beans,garlic,watermelon,plums,tomatoes,etc.

MyZoneCompartment

Q‐CoolFunction:Underthisfunction,MyZonecompartmentcanquickcool1‐5cannedbeverages
within60minutes.ThisfunctioncanbedisabledbychoosingtheotherfunctionsofMyZone
compartmentmanually. PleasemakesuretotakeoutthebeveragebottlesbeforetheQ‐Cool
functionbeingdisabled,otherwisethebottlesrisktobefrozen.

D‐FrostFunction：Underthisfunction,MyZonecompartmentcandefrostthefrozenfood.Therewill
benoliquidonthesurfaceofthefoodafterdefrosting.Thefoodwillbepartfrozen,convenientfor
cuttingandcooking.ThisfunctioncanbedisabledbychoosingtheotherfunctionsofMyZone
compartment.
Theestimateddefrostingtimetableisasthefollowing:




19
FUNCTIONS

DefrostTimeWeight
7hours500g
8hours1000g
10hours1500g

Theabovedefrosttimeisonlyforreference,differentsizeandthicknessofmeatandfishmayneed
differentdefrostingtime.
ChillerFunction:Underthisfunction,theMyZonecompartmentworksatatemperatureofaround
0oC;itmaybeslightlychangedduetothedifferentambienttemperatureorrefrigeratorworking
style.Itissuitabletostorefreshfish,meatandcookedfoodin1‐2days.

Disassembleofthebottleguard

Totakeoutabottleguard,upliftthebottleguardsindirectionandgripbothsidesandpullitoutin
direction.Aftercleaning,installitwiththeoperationinthereverseddirection.


Use ofthefoldawayshelf
Fig.1showstheextendedstateofthefoldawayshelfinwhich
youcanputlowerfoodcontainers.
Fig.2showsthefoldedstateofthefoldawayshelfinwhich
youcanputhigherfoodcontainers.

Tofoldtheshelffromstate1tostate2,simplypushstructure
Aupwards,andpushstructureBinwardinthedirectionofthe
arrowshowninthefigure.

Toextendtheshelffromstate2tostate1,pushstructureA
upwards,andpullstructureBinthedirectionofthearrow
showninthefigure.

Use ofthewirewineholder

Fig.1showsthefoldedstateofthewirewineholder.In
thisstatelargespacecanbespared.

Fig.2showstheextendedstateofthewirewineholder.In
thisstateitcanholdvariouswines.

Toextenditfromstateto1state2,simplypullthewire
down.Tofolditfromstate2tostate1,simplypushthe
wireup.

Makesuretokeepthetwoendsofashelfonthesamelevel.Otherwiseitmayfallorthefoodonitmayfall.

