Haier DIV46 User manual

m
m®®®®®
What The World Comes Home To TM
_p mount Ho Frost
@
(ong_at÷urAnt[Girt÷
@
con(ong÷_adorSuperior
sinEscarcha

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiill

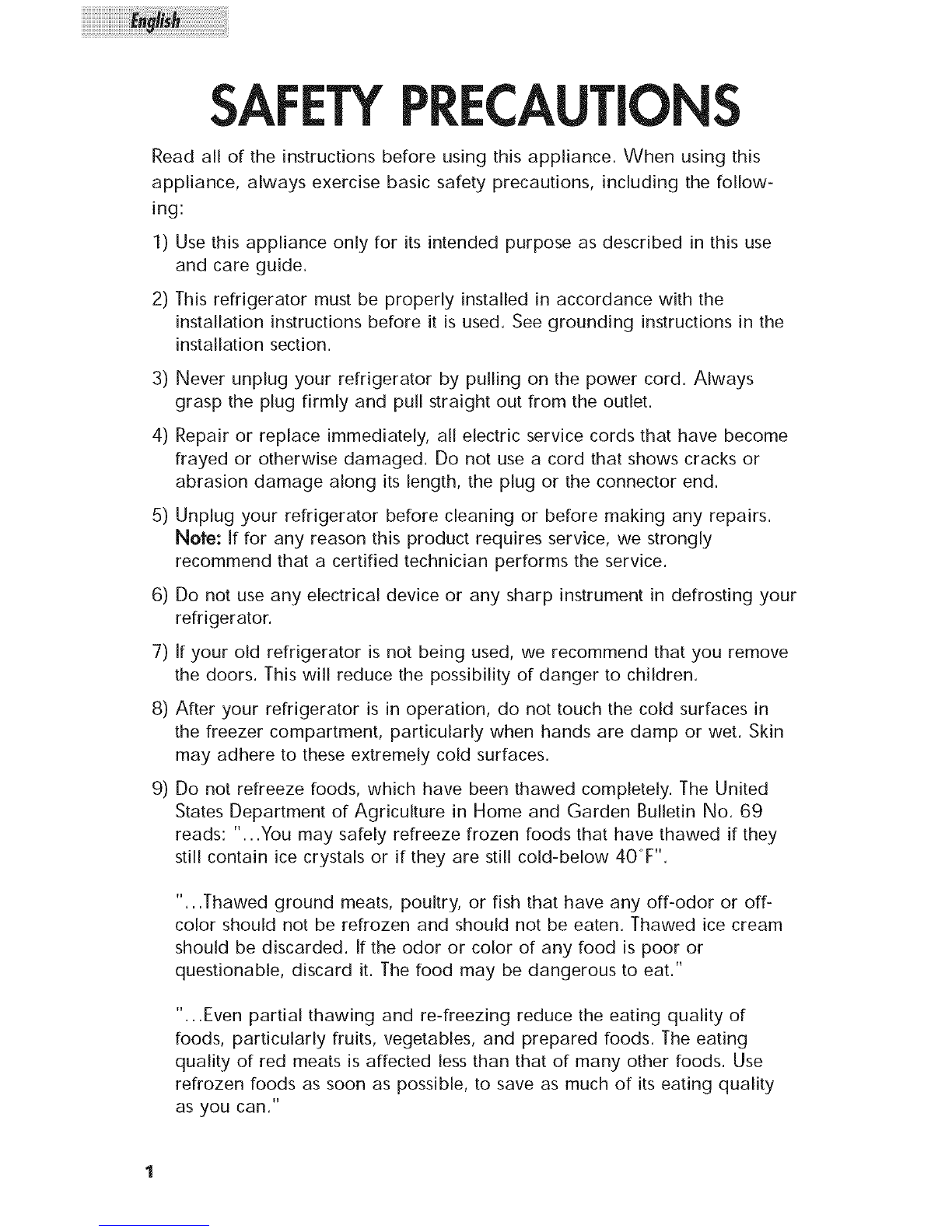

SAFETYPRECAUTIONS
Read all of the instructions before using this appliance. When using this
appliance, always exercise basic safety precautions, including the follow-
ing:
1)
2)
Use this appliance only for its intended purpose as described in this use
and care guide.
This refrigerator must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in the
installation section.
3)
4)
5)
6)
7)
8)
9)
Never unplug your refrigerator by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length, the plug or the connector end.
Unplug your refrigerator before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly
recommend that a certified technician performs the service.
Do not use any electrical device or any sharp instrument in defrosting your
refrigerator.
If your old refrigerator is not being used, we recommend that you remove
the doors. This will reduce the possibility of danger to children.
After your refrigerator is in operation, do not touch the cold surfaces in
the freezer compartment, particularly when hands are damp or wet. Skin
may adhere to these extremely cold surfaces.
Do not refreeze foods, which have been thawed completely. The United
States Department of Agriculture in Home and Garden Bulletin No. 69
reads: "...You may safely refreeze frozen foods that have thawed if they
still contain ice crystals or if they are still cold-below 40°F ''.
"...Thawed ground meats, poultry, or fish that have any off-odor or off-
color should not be refrozen and should not be eaten. Thawed ice cream
should be discarded. If the odor or color of any food is poor or
questionable, discard it. The food may be dangerous to eat."
"...Even partial thawing and re-freezing reduce the eating quality of
foods, particularly fruits, vegetables, and prepared foods. The eating
quality of red meats is affected less than that of many other foods. Use
refrozen foods as soon as possible, to save as much of its eating quality
as you can."

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiillii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_

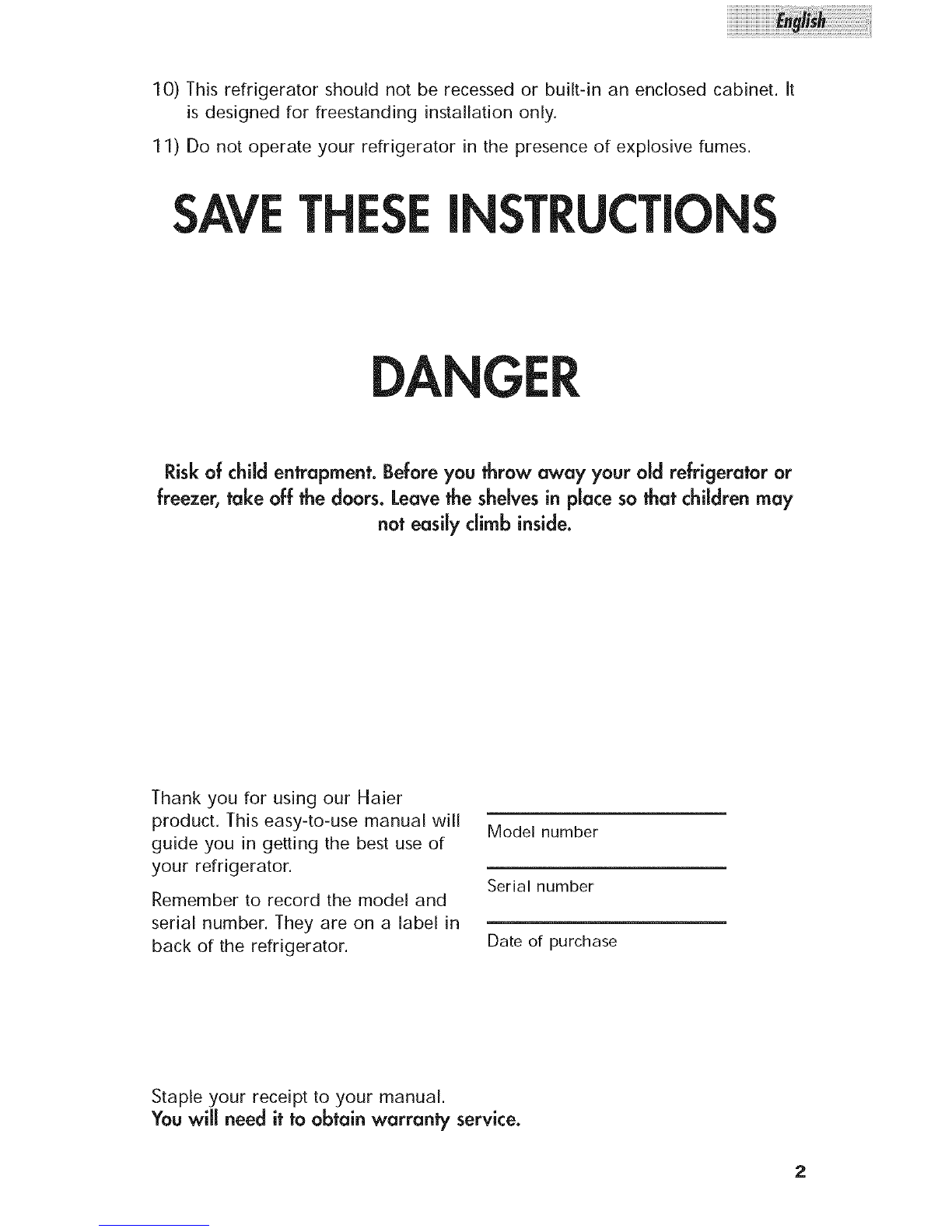

10) This refrigerator should not be recessed or built-in an enclosed cabinet, It
is designed for freestanding installation only,
11) Do not operate your refrigerator in the presence of explosive fumes.
SAVETHESEiNSTRUCTiONS
Riskof child entrapment. Before you throw away your oM refrigerator or
freezer, take off the doors. Leavethe shelvesin place so that children may
not easily climb inside.
Thank you for using our Haler
product, This easy-to-use manual will
guide you in getting the best use of
your refrigerator.
Remember to record the model and
serial number, They are on a label in
back of the refrigerator,
Model number
Serial number
Date of purchase
Staple your receipt to your manual.
You will need it to obtain warranty service.

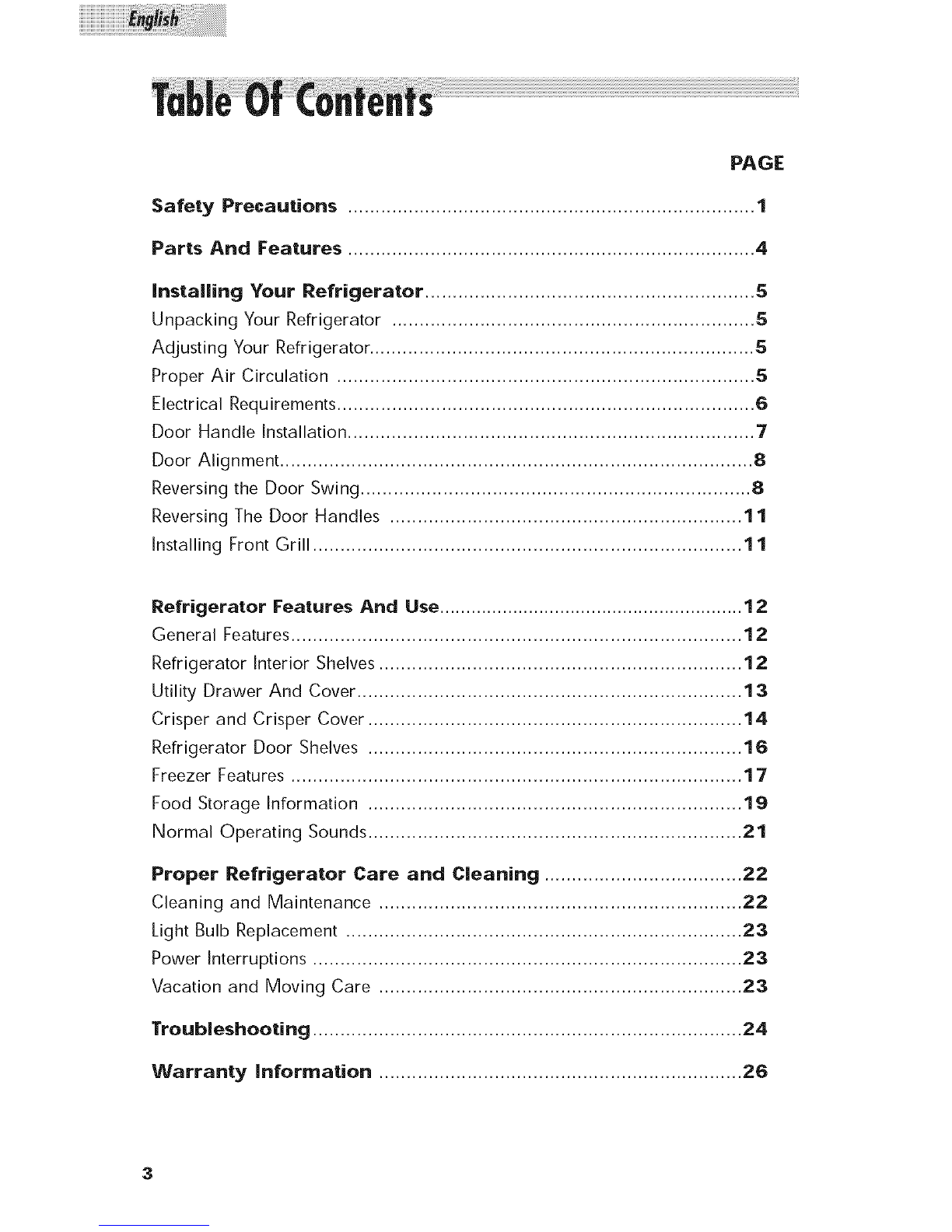

PAGE
Safety Precautions .......................................................................... 1
Parts And Features .......................................................................... 4
Installing Your Refrigerator ............................................................ 5
Unpacking Your Refrigerator .................................................................. 5
Adjusting Your Refrigerator ...................................................................... 5
Proper Air Circulation ............................................................................ 5
Electrical Requirements ............................................................................ 6
Door Handle Installation .......................................................................... 7
Door Alignment ...................................................................................... 8
Reversing the Door Swing ....................................................................... 8

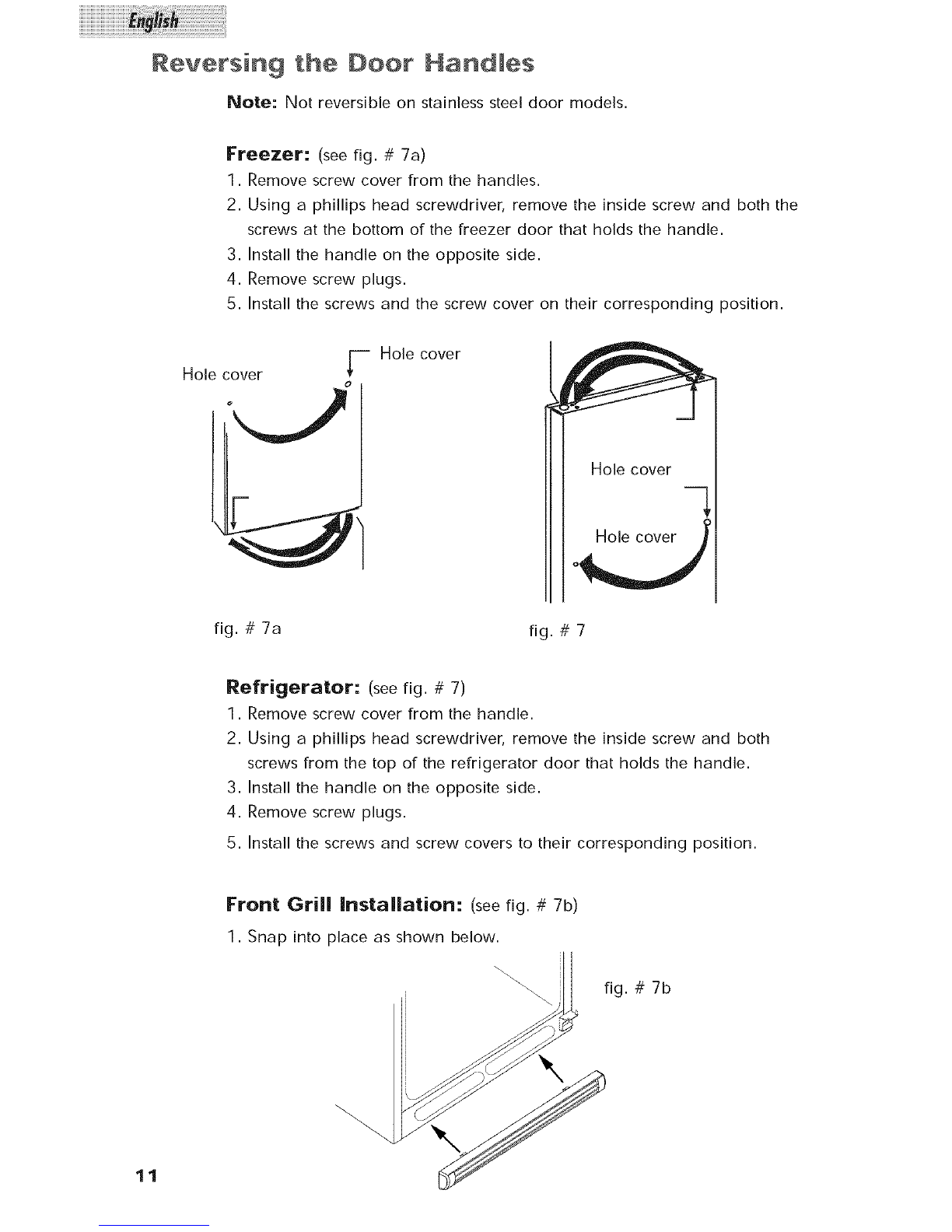

Reversing The Door Handles ................................................................ 11
Installing Front Grill .............................................................................. 11
Refrigerator Features And Use .......................................................... 12
General Features .................................................................................. 12
Refrigerator Interior Shelves .................................................................. 12
Utility Drawer And Cover ...................................................................... 13
Crisper and Crisper Cover .................................................................... 14
Refrigerator Door Shelves .................................................................... 16
Freezer Features .................................................................................. 17
Food Storage Information .................................................................... 19
Normal Operating Sounds .................................................................... 21
Proper Refrigerator Care and Cleaning .................................... 22
Cleaning and Maintenance .................................................................. 22
Light Bulb Replacement ........................................................................ 23
Power Interruptions .............................................................................. 23
Vacation and Moving Care .................................................................. :>3
Troubleshooting .............................................................................. 24
Warranty information .................................................................. :>6
3

® ®
® ®®
\/
// //
&@ _ ..........................................

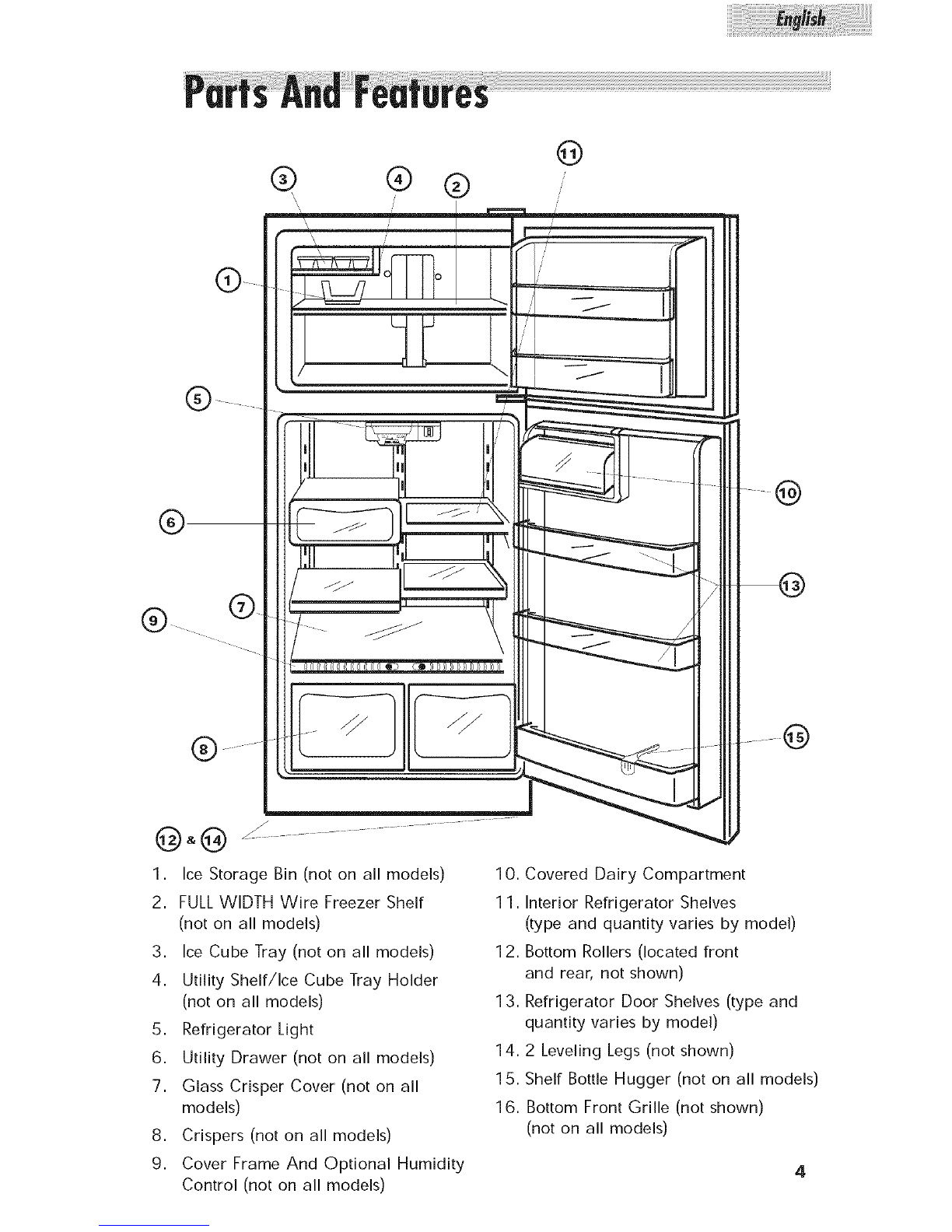

1. Ice Storage Bin (not on all models) 10.
2. FULL WIDTH Wire Freezer Shelf 11.
(not on all models)
3. Ice Cube Tray (not on all models) 12.
4. Utility Shelf/Ice Cube Tray Holder
(not on all models) 13.
5. Refrigerator Light
6. Utility Drawer (not on all models) 14.
7. Glass Crisper Cover (not on all 15.
models) 16.
8. Crispers (not on all models)
9. Cover Frame And Optional Humidity
Control (not on all models)
@
/
@
Covered Dairy Compartment
Interior Refrigerator Shelves
(type and quantity varies by model)
Bottom Rollers (located front
and rear, not shown)
Refrigerator Door Shelves (type and
quantity varies by model)
2 Leveling Legs (not shown)
Shelf Bottle Hugger (not on all models)
Bottom Front Grille (not shown)
(not on all models)

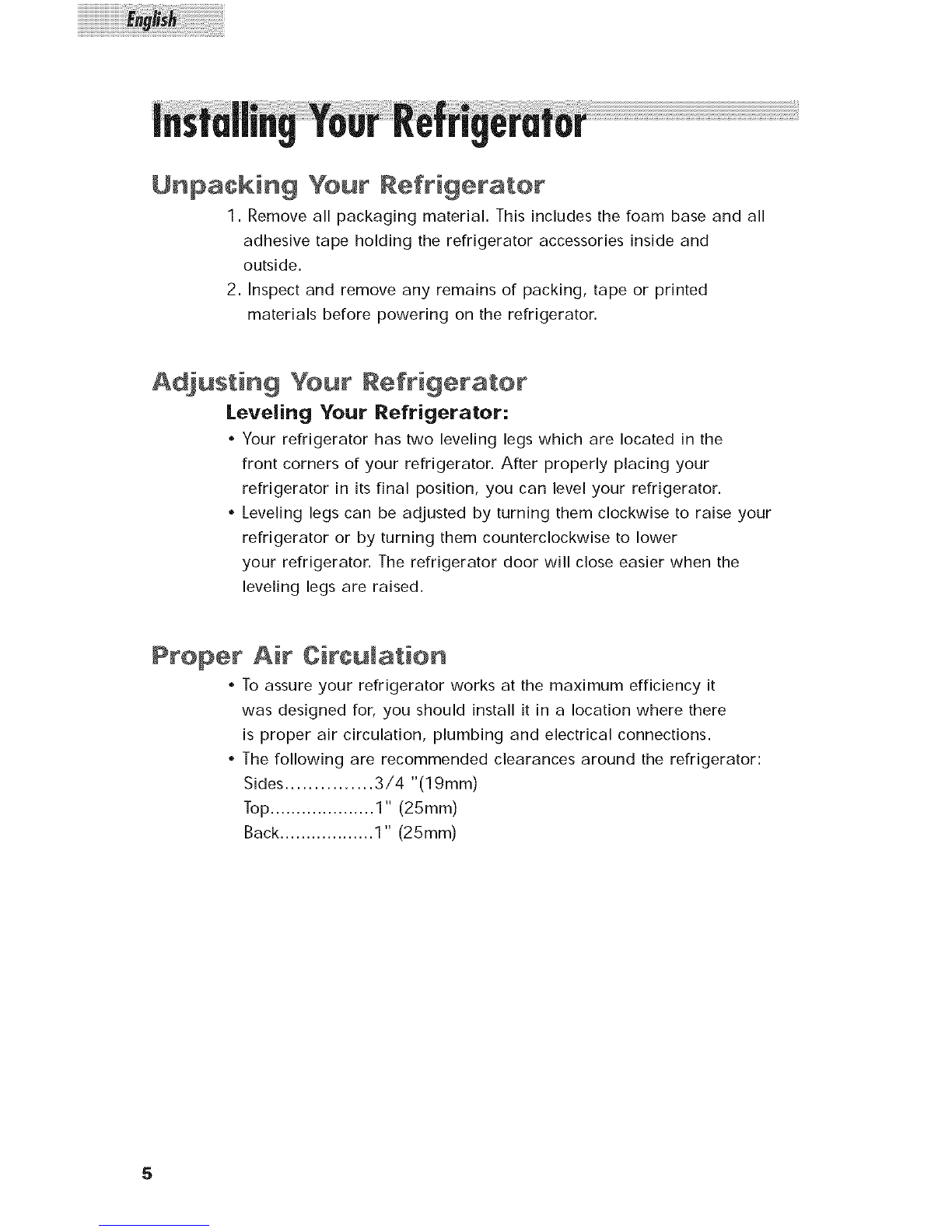

Unpacking Your Refrigerator
1. Remove all packaging material. This includes the foam base and all
adhesive tape holding the refrigerator accessories inside and
outside.
2. Inspect and remove any remains of packing, tape or printed
materials before powering on the refrigerator.
Adjusting Your Refrigerator
Leveling Your Refrigerator:
,, Your refrigerator has two leveling legs which are located in the
front corners of your refrigerator. After properly placing your
refrigerator in its final position, you can level your refrigerator.
,, Leveling legs can be adjusted by turning them clockwise to raise your
refrigerator or by turning them counterclockwise to lower
your refrigerator. The refrigerator door will close easier when the
leveling legs are raised.
Proper Air Circulation
, To assure your refrigerator works at the maximum efficiency it
was designed for, you should install it in a location where there
is proper air circulation, plumbing and electrical connections.
,, The following are recommended clearances around the refrigerator:
Sides ............... 3/4 "(19mm)
Top.................... 1" (25mm)
Back .................. 1" (25mm)
5

Electrical Requirement
Make sure there is a suitable power Outlet (115 volts, 15 amps outlet)
with proper grounding to power the refrigerator.
Avoid the use of three plug adapters or cutting off the third grounding in
order to accommodate a two plug outlet. This is a dangerous practice
since it provides no effective grounding for the refrigerator and may
result in shock hazard.
Use of Extension Cords
Avoid the use of an extension cord because of potential safety hazards
under certain conditions. If it is necessary to use an extension cord, use
only a 3-wire extension cord that has a 3-blade grounding plug and a
3-slot outlet that will accept the plug. The marked rating of the extension
cord must be equal to or greater than the electrical rating of the appli-
ance.
Limitations
Do not install your refrigerator in any location not properly insulated or
heated e.g. garage etc. Your refrigerator was not designed to operate in
temperature settings below 55 ° Fahrenheit.
Select a suitable location for the refrigerator on a hard even
surface away from direct sunlight or heat source e.g. radiators,
baseboard heaters, cooking appliances etc. Any floor unevenness
should be corrected with the leveling legs located on the front bottom
corners of the refrigerator.

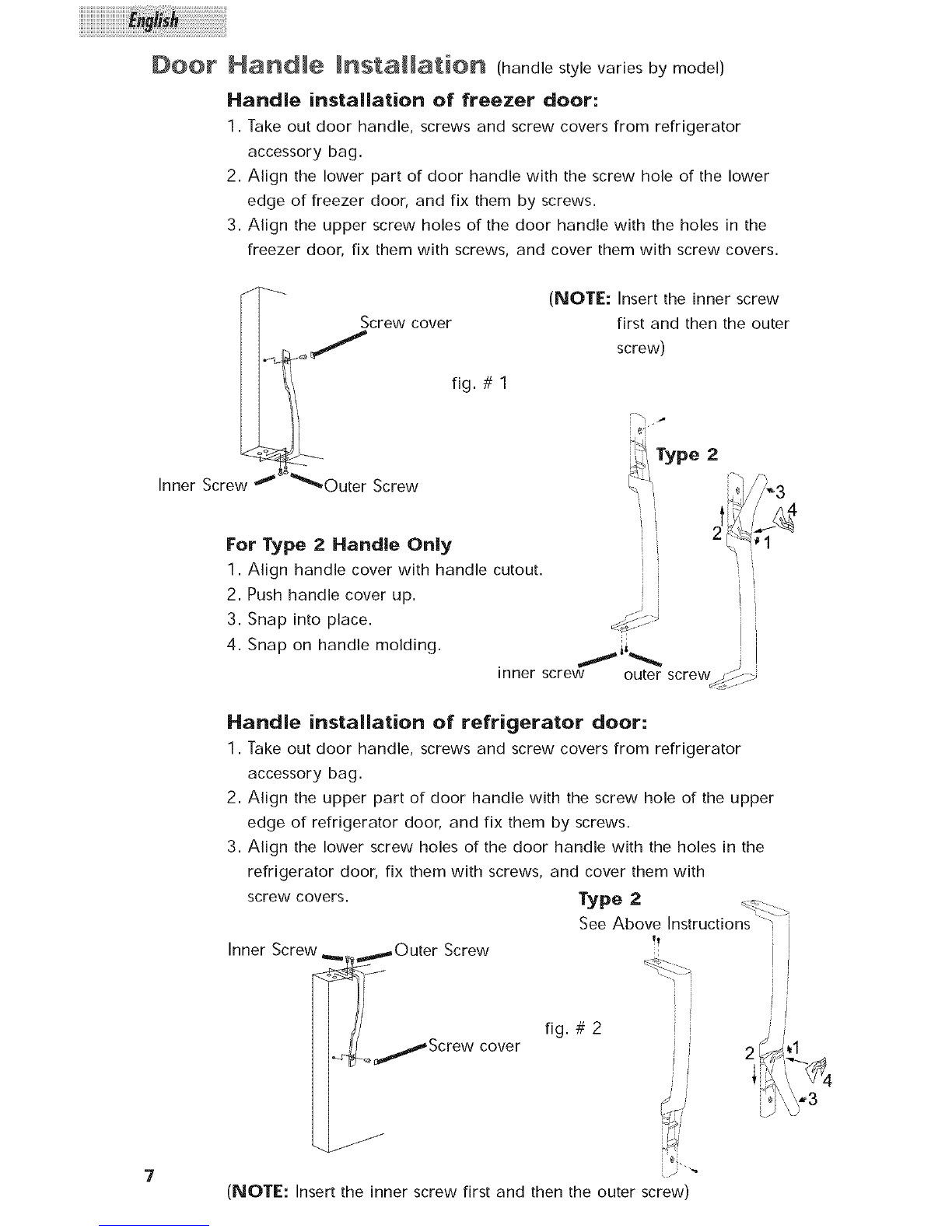

Door Handle Installation (handle style varies by model)
Handle instaBation of freezer door:
1. Take out door handle, screws and screw covers from refrigerator
accessory bag.
2. Align the lower part of door handle with the screw hole of the lower
edge of freezer door, and fix them by screws.
3. Align the upper screw holes of the door handle with the holes in the
freezer door, fix them with screws, and cover them with screw covers.
J
Inner Screw '_' _Outer Screw
(NOTE: Insert the inner screw
Screw cover first and then the outer
screw)
fig. # 1
ei
For Type 2 Handle Only
1. Align handle cover with handle cutout.
2. Push handle cover up.
3. Snap into place.
4. Snap on handle molding. _"_
inner screw outer
Type 2
Handle installation of refrigerator door:
1. Take out door handle, screws and screw covers from refrigerator
accessory bag.
2. Align the upper part of door handle with the screw hole of the upper
edge of refrigerator door, and fix them by screws.
3. Align the lower screw holes of the door handle with the holes in the
refrigerator door, fix them with screws, and cover them with
screw covers.
Inner Screw..,, _Outer Screw
< __Screw cover
J
Type 2 ........
See Above "<L--.-:;,
i_ Instructions '_ i
i
fig. # 2 i
,/
(NOTE: Insert the inner screw first and then the outer screw)

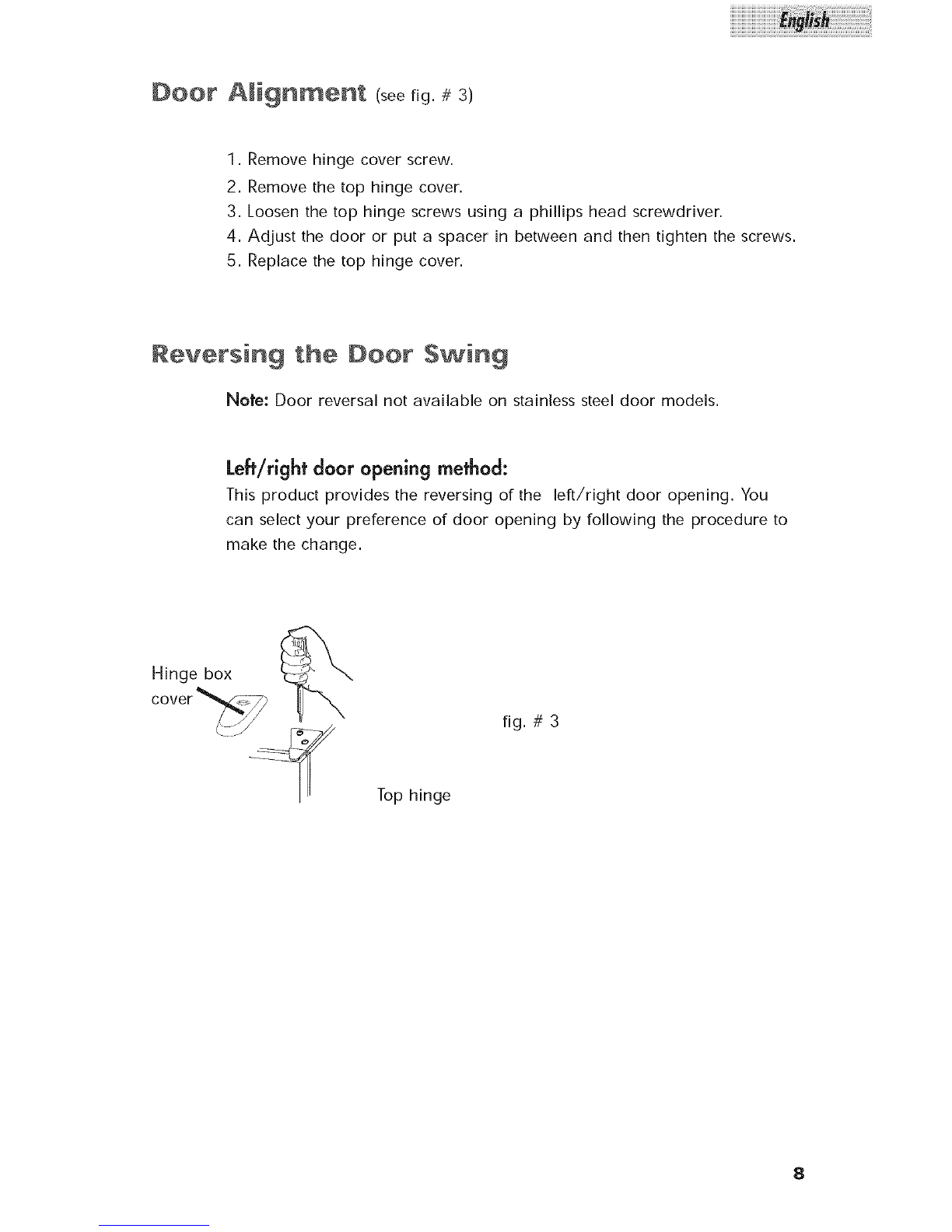

Door Alignment (seefig.# 3)
1. Remove hinge cover screw.
2. Remove the top hinge cover.
3. Loosen the top hinge screws using a phillips head screwdriver.
4. Adjust the door or put a spacer in between and then tighten the screws.
5. Replace the top hinge cover.
Reversing the Door Swing
Note: Door reversal not available on stainless steel door models.
Left/rlght door opening method:
This product provides the reversing of the left/right door opening. You
can select your preference of door opening by following the procedure to
make the change.
Hinge box
cover _? !_
Top hinge
fig. # 3
8

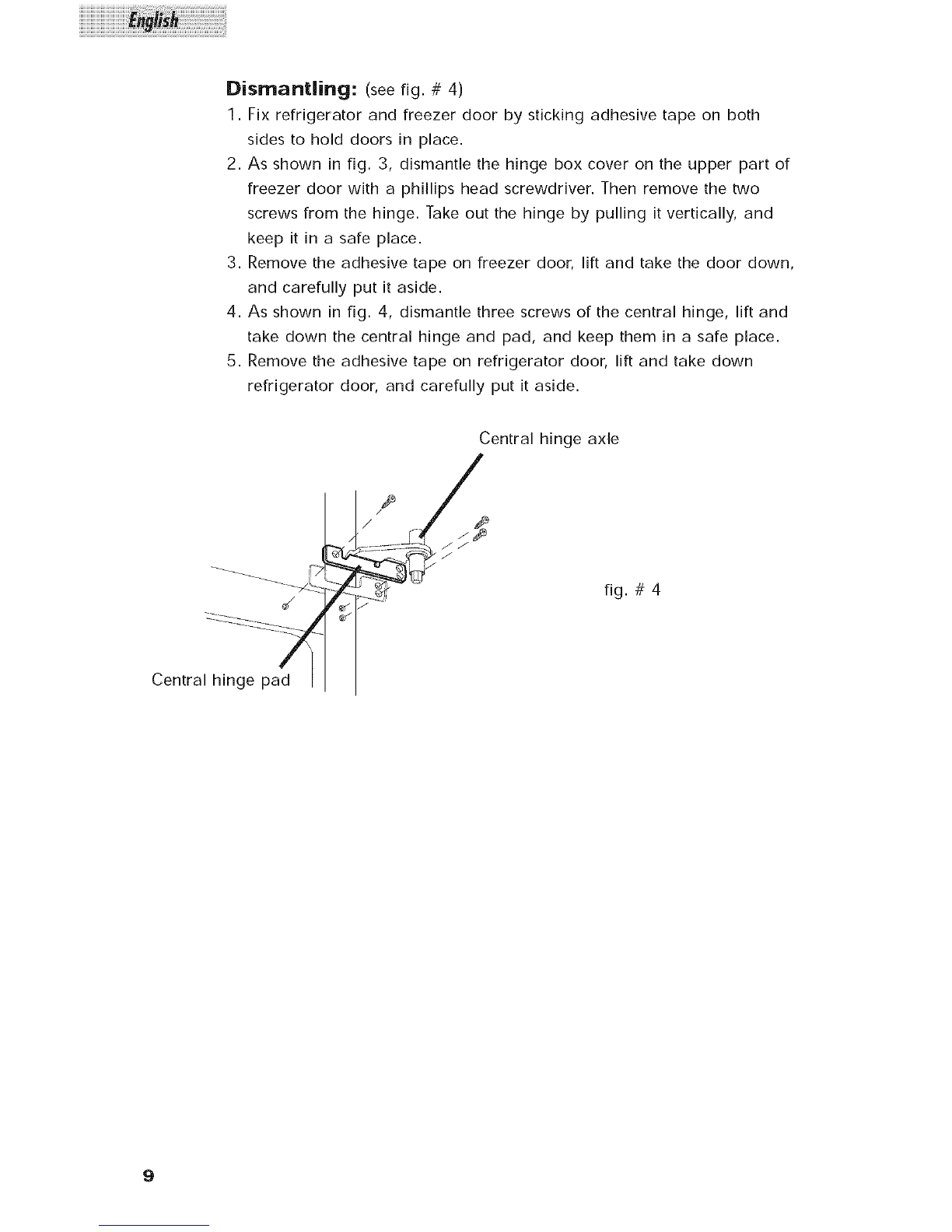

Dismant|ing: (see fig. # 4)
1. Fix refrigerator and freezer door by sticking adhesive tape on both
sides to hold doors in place.
2. As shown in fig. 3, dismantle the hinge box cover on the upper part of
freezer door with a phillips head screwdriver. Then remove the two
screws from the hinge. Take out the hinge by pulling it vertically, and
keep it in a safe place.
3. Remove the adhesive tape on freezer door, lift and take the door down,
and carefully put it aside.
4. As shown in fig. 4, dismantle three screws of the central hinge, lift and
take down the central hinge and pad, and keep them in a safe place.
5. Remove the adhesive tape on refrigerator door, lift and take down
refrigerator door, and carefully put it aside.
Central hinge axle
fig. # 4
Central hinge pad

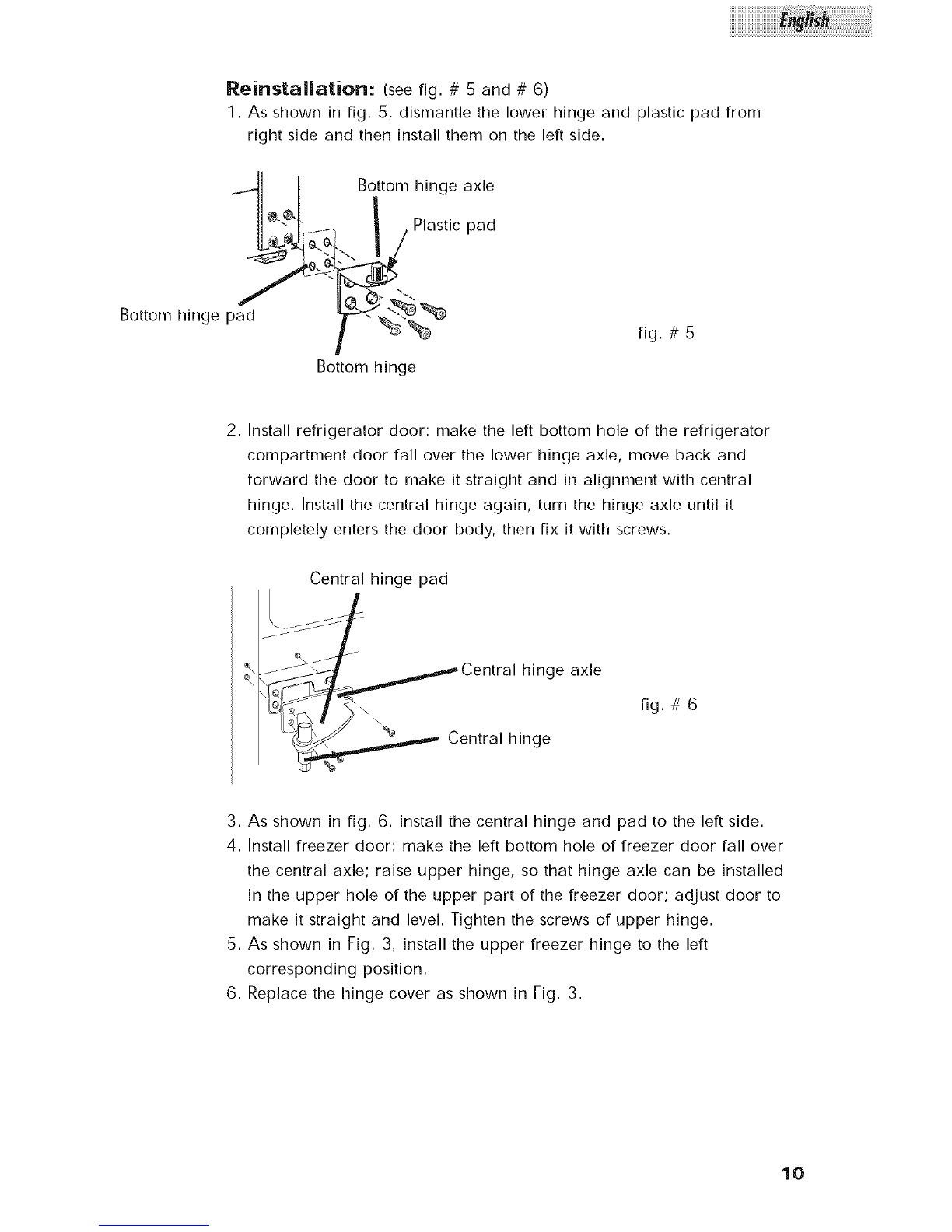

Reinstallalion: (see fig. # 5 and # 6)
1. As shown in fig. 5, dismantle the lower hinge and plastic pad from
right side and then install them on the left side.
/ Bottom hinge axle
¢_'¢" ......._ i ,Plastic pad
Bottom hinge
fig. # 5
2. Install refrigerator door: make the left bottom hole of the refrigerator
compartment door fall over the lower hinge axle, move back and
forward the door to make it straight and in alignment with central
hinge. Install the central hinge again, turn the hinge axle until it
completely enters the door body, then fix it with screws.
Central hinge pad
,_/_/Central hinge axle
\
\%
_ Central hinge
fig. # 6
3. As shown in fig. 6, install the central hinge and pad to the left side.
4. Install freezer door: make the left bottom hole of freezer door fall over
the central axle; raise upper hinge, so that hinge axle can be installed
in the upper hole of the upper part of the freezer door; adjust door to
make it straight and level. Tighten the screws of upper hinge.
5. As shown in Fig. 3, install the upper freezer hinge to the left
corresponding position.
6. Replace the hinge cover as shown in Fig. 3.
lO

Reversing the Door Handles
Note: Not reversible on stainless steel door models.
Freezer: (see fig. #7a)
1. Remove screw cover from the handles.
2. Using a phillips head screwdriver, remove the inside screw and both the
screws at the bottom of the freezer door that holds the handle.
3. Install the handle on the opposite side.
4. Remove screw plugs.
5. Install the screws and the screw cover on their corresponding position.
Hole cover _- Hole cover
Hole cover q
Hole cover _:'
,1,,,..,j
fig. # 7a fig. # 7
Refrigerator: (see fig. # 7)
1. Remove screw cover from the handle.
2. Using a phillips head screwdriver, remove the inside screw and both
screws from the top of the refrigerator door that holds the handle.
3. Install the handle on the opposite side.
4. Remove screw plugs.
5. Install the screws and screw covers to their corresponding position.
Front Grill Installation: (see fig. # 7b)
1. Snap into place as shown below.
\.
\\ fig. # 7b
11

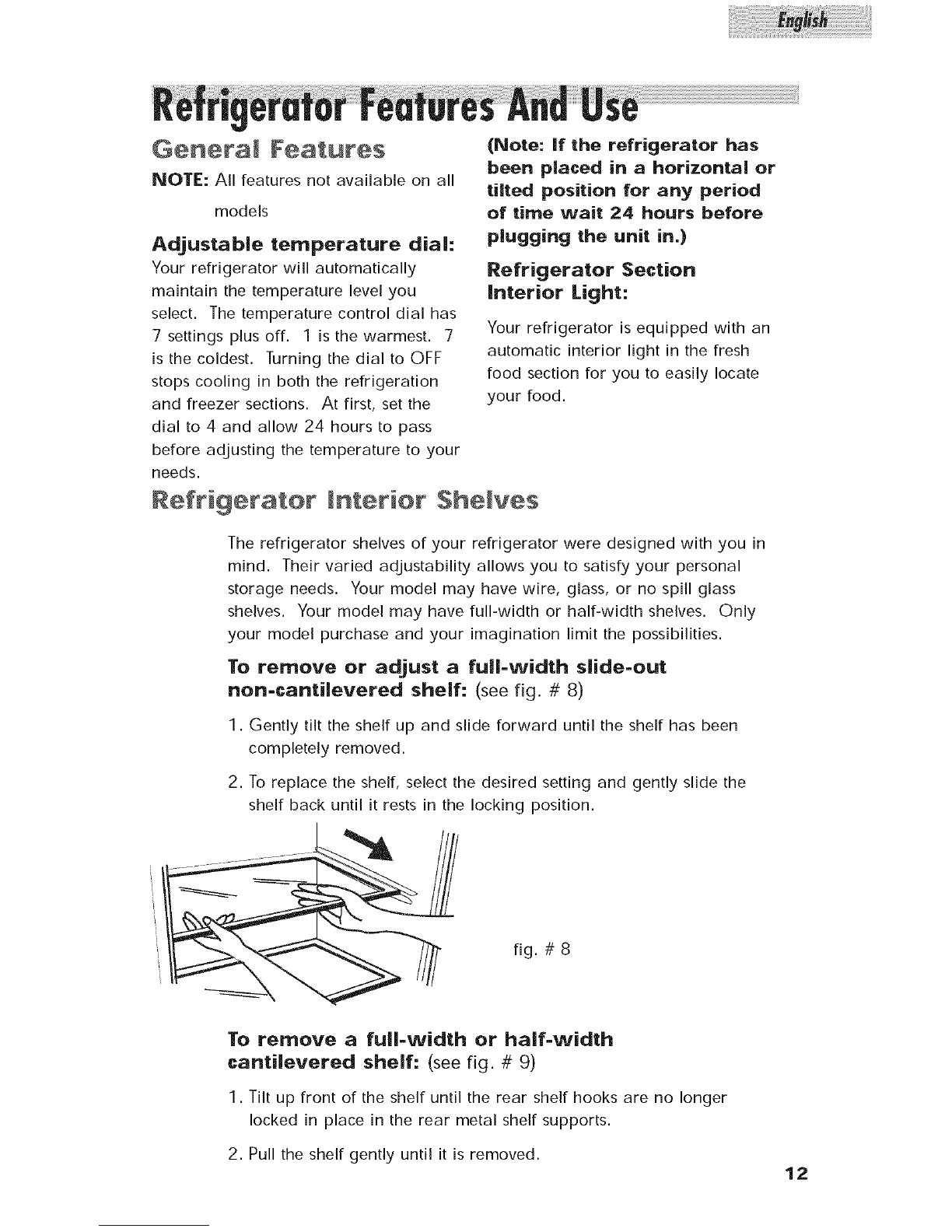

Genera[ Features
NOTE: All features not available on all
models
Adjustable temperature dial:
Your refrigerator will automatically
maintain the temperature level you
select. The temperature control dial has
7 settings plus off. 1 is the warmest. 7
is the coldest. Turning the dial to OFF
stops cooling in both the refrigeration
and freezer sections. At first, set the
dial to 4 and allow 24 hours to pass
before adjusting the temperature to your
needs.
(Note: if the refrigerator has
been placed in ahorizontal or
tilted position for any period
of time wait 24 hours before
plugging the unit in.)
Refrigerator Section
interior Light:
Your refrigerator is equipped with an
automatic interior light in the fresh
food section for you to easily locate
your food.
Refrigerator Interior Shelves
The refrigerator shelves of your refrigerator were designed with you in
mind. Their varied adjustability allows you to satisfy your personal
storage needs. Your model may have wire, glass, or no spill glass
shelves. Your model may have full-width or half-width shelves. Only
your model purchase and your imagination limit the possibilities.
To remove or adjust afull=width slide=out
non=cantilevered shelf: (seefig. # 8)
1. Gently tilt the shelf up and slide forward until the shelf has been
completely removed.
2. To replace the shelf, select the desired setting and gently slide the
shelf back until it rests in the locking position.
_ _ fig. # 8
To remove a full-width or half=width
cantilevered shelf: (see fig. # 9)
1. Tilt up front of the shelf until the rear shelf hooks are no longer
locked in place in the rear metal shelf supports.
2. Pull the shelf gently until it isremoved. 12

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiill:
To repJace afuji width or hail=width
cantilevered sheJf: (seefig. #9)
1. Guide the rear shelf hooks into the desired slots in the metal shelf
supports located on the back refrigerator wall.
2. Tilt up front of the shelf to set the shelf hooks in place.
3. Lower the front of the shelf into position until the rear hooks lock
into the slots of the metal shelf supports.
fig. # 9
Utility Drawer and Cover
To remove the utility drawer: (see fig. # 10)
1. Slide utility drawer out until it reaches the stop.
2. Grasp front of drawer with one hand while supporting the bottom
of the drawer with the other hand. Slide drawer out gently the rest
of the way.
fig. # 10
To remove utility drawer cover shelf: (seefig. #11)
1. Remove utility drawer first following the above instructions.
2. Tilt up front of the shelf until the rear shelf hooks are no longer
locked in place in the rear metal shelf supports.
3. Pull the shelf gently until it is removed.
13

i
To install utility drawer cover she|f: (seefig. #11)
1. Guide the rear shelf hooks into the desired slots in the metal shelf
supports located on the back refrigerator wall.
2. Tilt up front of the shelf to set the shelf hooks in place.
3. Lower the front of the shelf into position until the rear hooks lock
into the slots of the metal shelf supports. Replace the utility drawer.
fig. # 11
Crisper and Crisper Cover
To remove and install the crisper: (seerig. # 12)
1. Slide crisper straight out to the stop.
2. Gently lift the front of the crisper,
3. Grip the crisper firmly and slide out completely,
4. Replace the crisper by placing the crisper properly in its tracks and
gently sliding it back into place,
I
fig. # 12
14

To remove the crisper cover: (seefig. # 13)
1. First remove both crispers (see page 14 ).
2. Gently push upward from the underside of the crisper cover to
remove it from the crisper cover frame.
3. Carefully grasp the crisper cover and slide out to remove.
4. Lift crisper cover frame up and remove.
fig. # 13
To replace the crisper cover: (seefig. # 13)
1. Insert the rear of the crisper cover frame into the support bracket
the side walls of the refrigerator.
2. Lower the front of the crisper cover frame into place.
3. Slide the rear of the crisper cover into the frame and carefully lower
the front into place.
4. Replace the crispers as previously instructed.
Crisper Humidity Control: (see fig. # 14)
Your refrigerator model may be equipped with slide controls to raise
or lower the humidity levels of your crispers. ]his feature will increase
the storage life of your fruits and vegetables. Simply adjust the controls
to the appropriate setting for the items you are storing in the crispers.
15

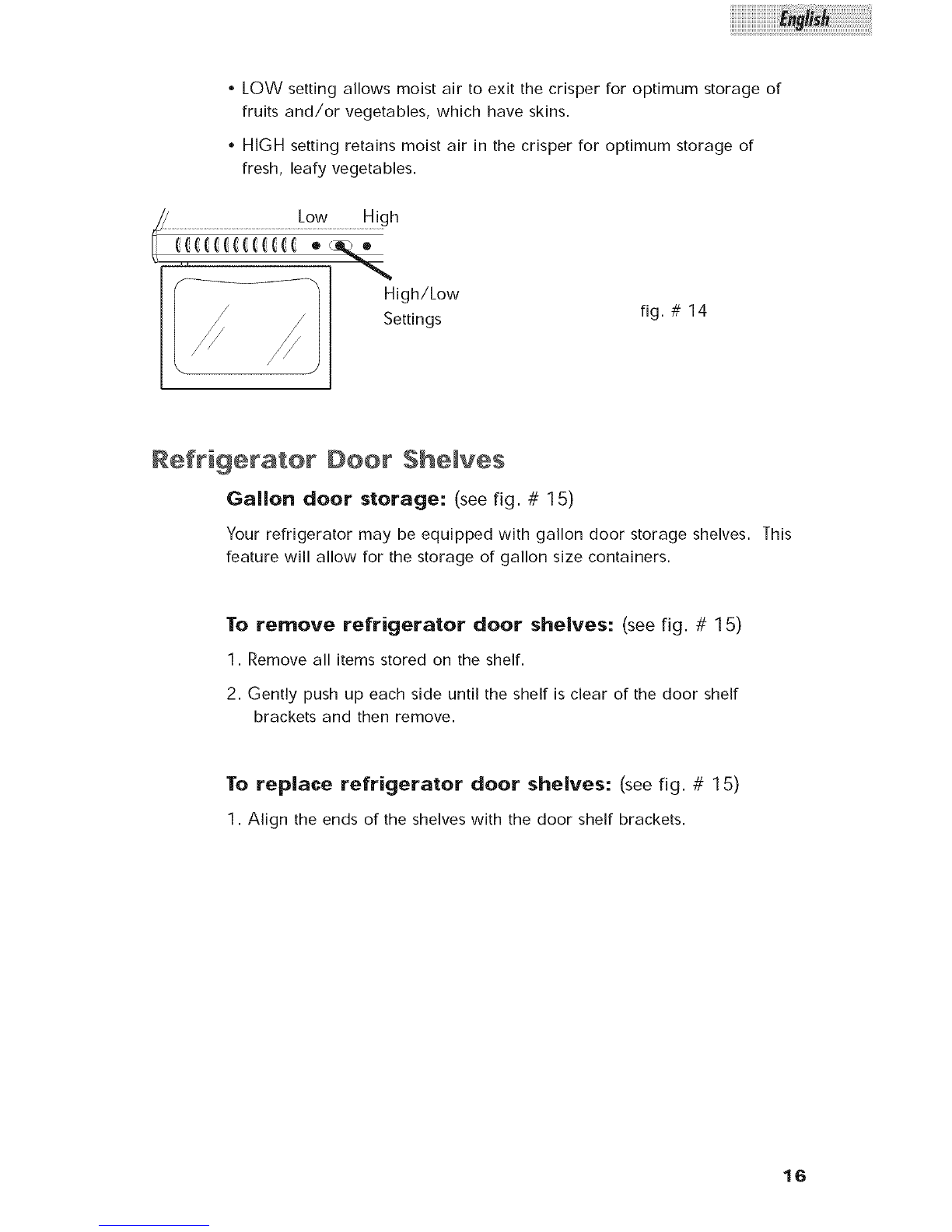

.LOW setting allows moist air to exit the crisper for optimum storage of
fruits and/or vegetables, which have skins.
.HIGH setting retains moist air in the crisper for optimum storage of
fresh, leafy vegetables.
Low High
High/Low
Settings fig. # 14
Refrigerator Door Shelves
Gallon door storage: (see fig. # 15)
Your refrigerator may be equipped with gallon door storage shelves. This
feature will allow for the storage of gallon size containers.
To remove refrigerator door shelves: (see fig. # 15)
1. Remove all items stored on the shelf.
2. Gently push up each side until the shelf is clear of the door shelf
brackets and then remove.
To replace refrigerator door shelves: (seerig. # 15)
1. Align the ends of the shelves with the door shelf brackets.
16

i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i! i i ii......

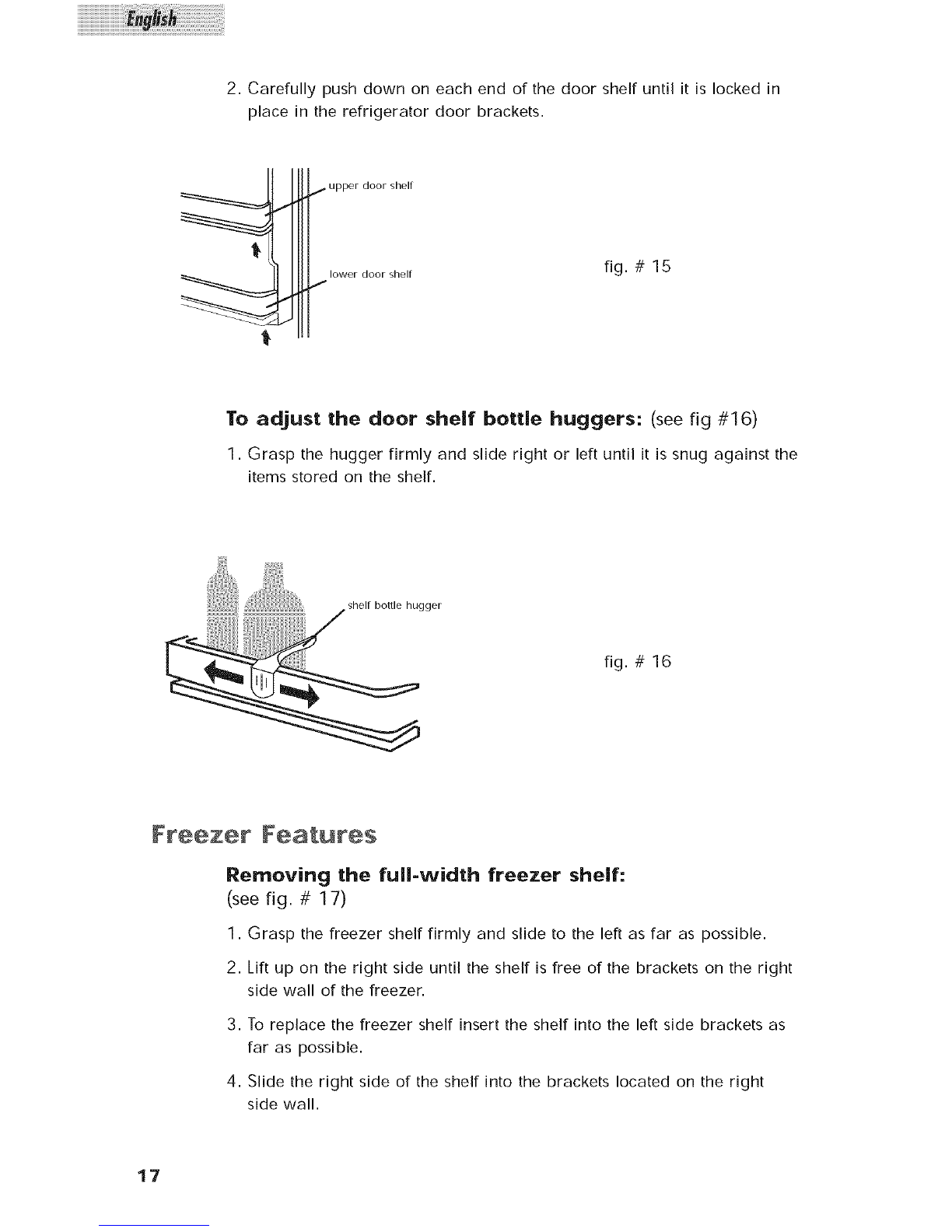

2. Carefully push down on each end of the door shelf until it is locked in
place in the refrigerator door brackets.
_,,,,. upper door shelf
lower door shelf
t" fig. # 15
To adjust the door shelf bottle huggers: (see fig #16)
1. Grasp the hugger firmly and slide right or left until it is snug against the
items stored on the shelf.
fig. # 16
FFeezer Features
Removing the full=width freezer shelf:
(see fig. # 17)
1. Grasp the freezer shelf firmly and slide to the left as far as possible.
2. Lift up on the right side until the shelf is free of the brackets on the right
side wall of the freezer.
3. To replace the freezer shelf insert the shelf into the left side brackets as
far as possible.
4. Slide the right side of the shelf into the brackets located on the right
side wall.
17

[J--....................

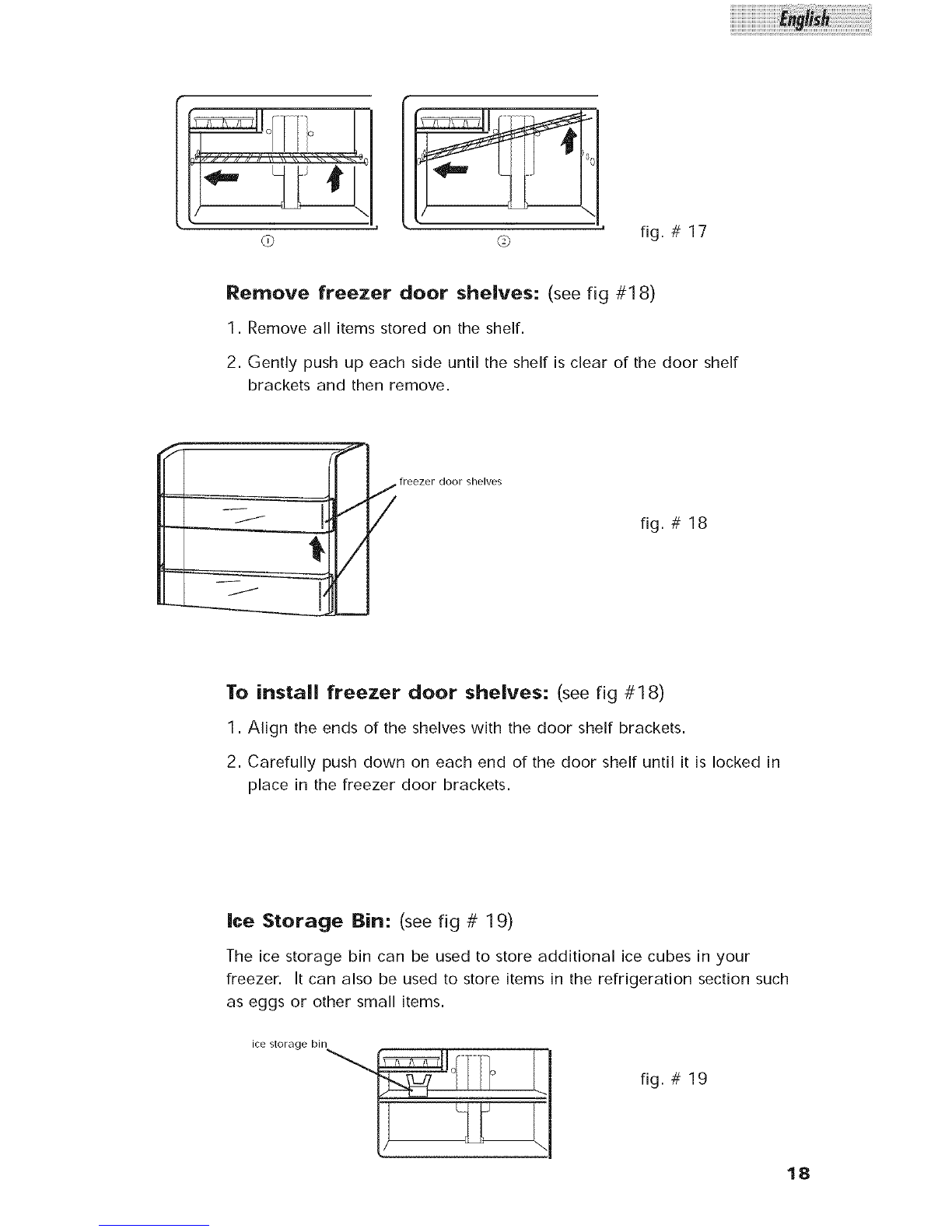

© © fig. # 17
Remove freezer door shelves: (seefig #18)
1. Remove all items stored on the shelf.
2. Gently push up each side until the shelf is clear of the door shelf
brackets and then remove.
J1t,
J
,_ freezer door
/- /
/
shelves
fig. # 18
]'o install freezer door shelves: (see rig #18)
1. Align the ends of the shelves with the door shelf brackets.
2. Carefully push down on each end of the door shelf until it is locked in
place in the freezer door brackets.
Ice Storage Bin: (see rig # 19)
The ice storage bin can be used to store additional ice cubes in your
freezer. It can also be used to store items in the refrigeration section such
as eggs or other small items.
ice storage bin ,, fig. # 19
18

i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!ii!i¸'''

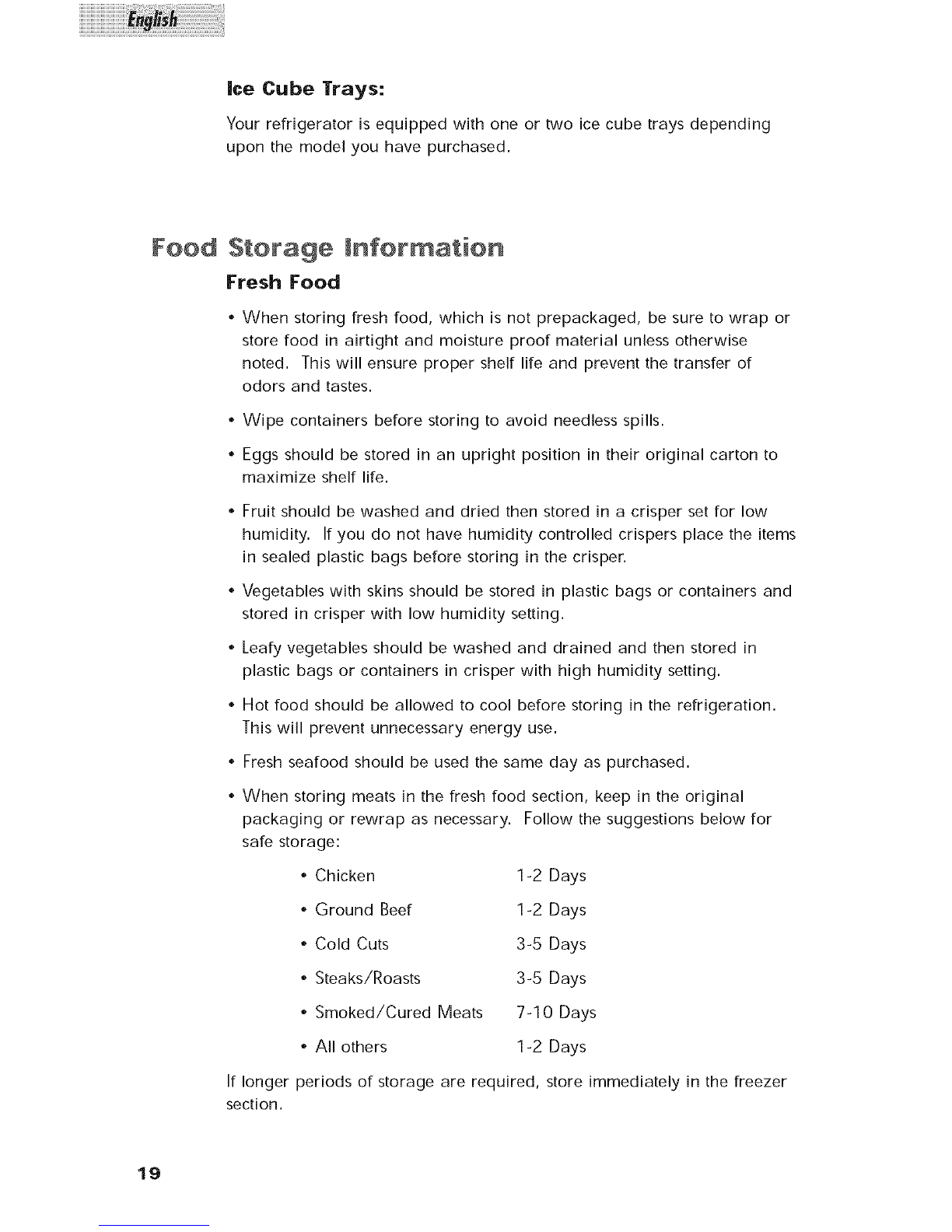

ice Cube Trays:
Your refrigerator is equipped with one or two ice cube trays depending
upon the model you have purchased.
Food Storage Information
Fresh Food
When storing fresh food, which is not prepackaged, be sure to wrap or
store food in airtight and moisture proof material unless otherwise
noted. This will ensure proper shelf life and prevent the transfer of
odors and tastes.
,, Wipe containers before storing to avoid needless spills.
,, Eggs should be stored in an upright position in their original carton to
maximize shelf life.
,, Fruit should be washed and dried then stored in a crisper set for low
humidity. If you do not have humidity controlled crispers place the items
in sealed plastic bags before storing in the crisper.
,, Vegetables with skins should be stored in plastic bags or containers and
stored in crisper with low humidity setting.
,, Leafy vegetables should be washed and drained and then stored in
plastic bags or containers in crisper with high humidity setting.
,, Hot food should be allowed to cool before storing in the refrigeration.
This will prevent unnecessary energy use.
,, Fresh seafood should be used the same day as purchased.
,, When storing meats in the fresh food section, keep in the original
packaging or rewrap as necessary. Follow the suggestions below for
safe storage:
,, Chicken 1-2 Days
,, Ground Beef 1-2 Days
,, Cold Cuts 3-5 Days
,, Steaks/Roasts 3-5 Days
,, Smoked/Cured Meats 7-10 Days
,, All others 1-2 Days
If longer periods of storage are required, store immediately in the freezer
section.
19
