Haier HRF 216 User manual

4Fast Cooling Fan
For Fast fast cooling and to avoid moisture in Refrigerator
compartment fan is installed
4
To Avoid smell in refrigerator compartment Deodorization
Accelerant is installed.
8-11
12
13
14
15
16
17
18-19
20-22
23
24-27

7
8
9
10
11
12
13
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
Deodorizer/Fan (As per packing list)
Note: Given parts/diagrams will be change subjected to Refrigerator Model.

*
LockFuzzy
Func. Set
OK
O3S
Power Cool Power Frz
*
Temp.Set
Temp.Zone
A
B
C
D
E
H
E
G
J
K
I
A.
B.
C.
D.
E.
F.
G.
H.
I.
J.
K.
Frz-Temp Display Zone
Cool- Temp Display Zone
Temp. Zone
Temp Display Zone
Temp. Set
Power-Cool
Power.Frz
Fuzzy
Lock
Fune. Set
OK/3S
9

Lock

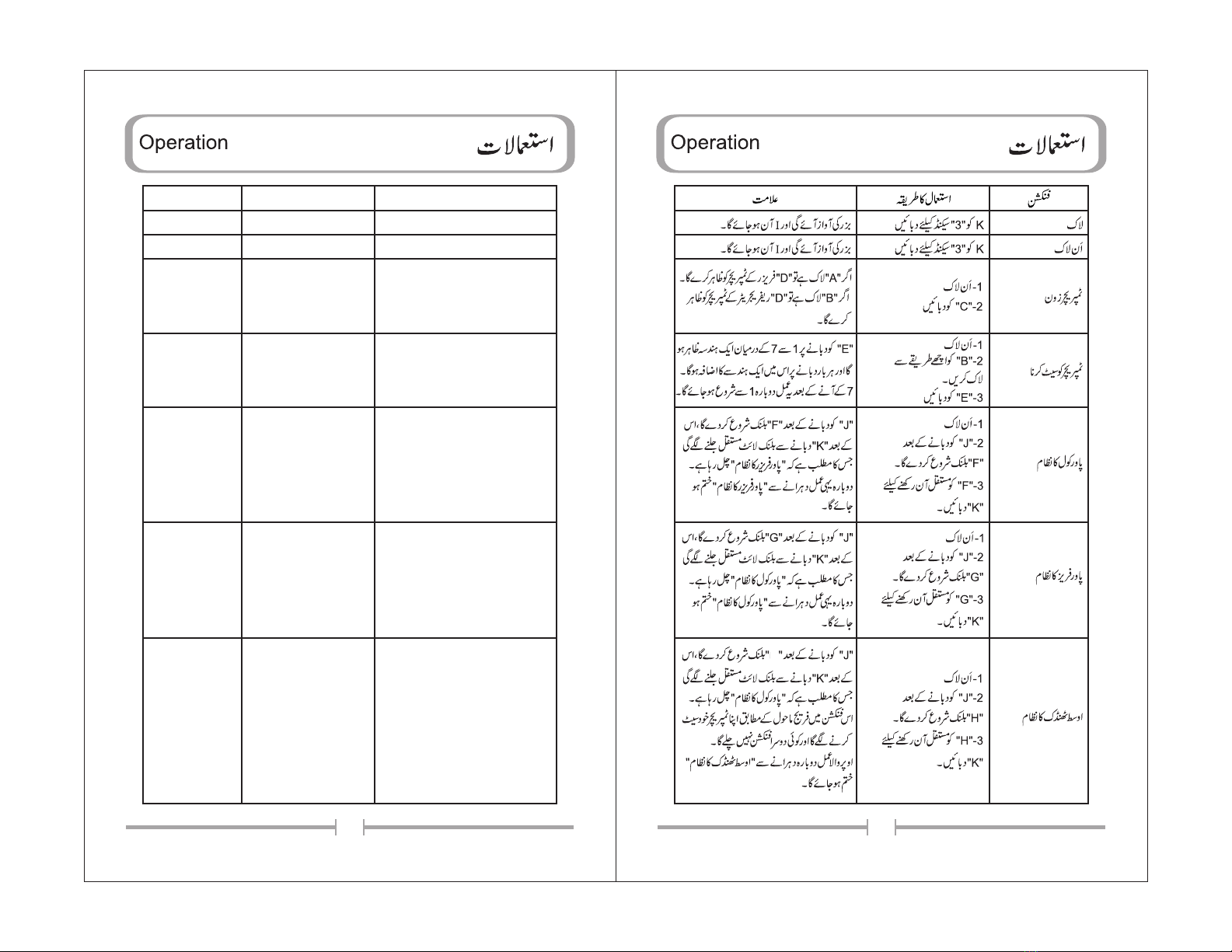

Function How to do Indication
Unlock
Temperature Zone
Temperature
adjustment
Power Cool
function
Power Freezer
function
Fuzzy Function
Press K for 3 second
Press K for 3 second
1. Unlock
2. Press C
1. Unlock
2. Lock B positively
3. Press E
1. Unlock
2. Press J to active F
start blinking
3. Press K to ensure F
remain ON
1. Unlock
2. Press J to active G
start blinking
3. Press K to ensure G
remain ON
1. Unlock
2. Press J to active H
start blinking
3. Press K to ensure H
remain ON
Buzzer sound and I will ON
Buzzer sound and I will OFF
If A is lock then D shows the
temperature of Freezer.
If B is locked then D shows the
temperature of Ref.
After pressing E a digital will appear
on it between 1 to 7, and each press
will increase 1 digit After 7, cycle
will again start from 1.
After pressing J, F will start blinking
and then pressing K will make the
blinking light stable which means
power cool function is enabled. To
exit from it, press J to activated F
and then press K to disable it.
After pressing J, G will start blinking
and then pressing K will make the
blinking light stable which means
power freezer function is enabled.
To exit from it. press J to activated
G and then press K to disable it
After pressing J, H will start blinking
and then pressing K will make the
blinking light stable which means
Fuzzy Function is enabled. In this
mode refrigerator will adjust its
temperature in accordance with
environment temperature, and any
other funtion will not be enable
To exit from the Fuzzy Function
press J to activate H and then
press K to disable it.
10 11
H

A) Filament Bulb/Lamp and replacement
Lamp: 200V, 15W
Lamp holder: E14 (lamps exceeding 15W
must not be allowed)
When replacing the lamp,
1. Unplug to disconnect the power
2. Remove the food shelf in front of the lamp.
3. Insert a flat tool into the slot Push upward to
remove the lampshade.
4. Remove the lamp by turning anti-clockwise and
install a new lamp by lamp by turning it clockwise.
5. Properly install the lampshade after ensuring
that all legs on the cover are placed into the holes
on the lamp holder.
B) LED Lamp and replacement
Lamp: 220V, 1.5W (1 Unit Assembly)
When replacing the LED,
1. Unplug to disconnect the power
2. Remove the food shelf in front of/below the
lamp.
3. Insert a flat tool into the slot Push upward to
remove the lampshade.
4. Disconnect the LED Thimbles and pull out the
LED from slot.
5. Install a new LED and fit in slot and connect the
thimbles again.
6. Properly install the lampshade after
ensuring that all legs on the cover are
placed into the holes on the lamp holder.
* For top mounted LED lamp, same method will
be followed.
Note: CSD technician should follow (A) or (B) according to unit, LED lamp / Filament Lamp Should be haier recommended.
1312
The refrigerator is for
short term food storage of
daily consumption

Freezing storage
compartment
Long-term storage of food
As the freezer storage temperature is very low, fresh
food can be stored in the freezer compartment for a
long time. Food requiring long-term storage can be
stored in the frozen food compartment. Follow the
instructions on the package for storage period.
Attention should be paid to the storage information
printed on the food packing.
Storage period is subject to the detailed information on the food
packing, property of the food for storage and special requirements.
Food
Stay Best (Month)Maximum (Month)
Meat
Lean Fish
Cakes, breads
Icecream
4
4
2
1
9
6
6
3
1514

Freezing storage
precautions
Food should be stored in accordance with
any information printed on the packing.
Do not load excessive quantity of fresh food
in the freezer compartment.
Quantity of the food in storage shall comply
with the cooling capacity of the refrigerator.
