1
English
GENERAL SAFETY RULES
WARNING: Read all of the instructions before using this appli-
ance. When using this appliance, always exercise
basic safety precautions, including the following:
NOTE: If the refrigerator has been placed in a horizontal or tilted
position for any period of time wait 24 hours before
plugging the unit in.
1) Use this appliance only for its intended purpose as described in this use
and care guide.
2) This refrigerator must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in
the installation section.
3) This refrigerator should not be recessed or built-in an enclosed cabinet.
It is designed for freestanding installation only.
4) Never unplug your refrigerator by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
5) Repair or replace immediately, all electric service cords that have
become frayed or otherwise damaged. Do not use a cord that shows
cracks or abrasion damage along its length, the plug or the connector
end.
6) If your old refrigerator is not being used, we recommend that you
remove the doors. This will reduce the possibility of danger to children.
7) WARNING: After your refrigerator is in operation, do not
touch the cold surfaces in the freezer compart-
ment, particularly when hands are damp or wet.
Skin may adhere to these extremely cold surfaces.
8) Do not refreeze foods, which have been thawed completely. The United
States Department of Agriculture in Home and Garden Bulletin No. 69
reads: "…You may safely refreeze frozen foods that have thawed if
they still contain ice crystals or if they are still cold-below 40°F".
"…Thawed ground meats, poultry, or fish that have any off-odor or
offcolor should not be refrozen and should not be eaten. Thawed ice
cream should be discarded. If the odor or color of any food is poor or
questionable, discard it. The food may be dangerous to eat."
"…Even partial thawing and re-freezing reduce the eating quality of
foods, particularly fruits, vegetables, and prepared foods. The eating
quality of red meats is affected less than that of many other foods. Use
refrozen foods as soon as possible, to save as much of they’re
eating quality as you can."

2
English
9) Do not use any electrical device or any sharp instrument in defrosting
your refrigerator.
10) Unplug your refrigerator before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly recom
mend that a certified technician perform service.
11) Do not operate your refrigerator in the presence of explosive fumes.
SAVE THESE INSTRUCTIONS
DANGER
Risk of child entrapment. Before you throw away your old
refrigerator or freezer, take off the doors. Leave the shelves
in place so that children may not easily climb inside.
Staple your receipt to your manual.
You will need it to obtain warranty service.

3
English
1
2
3
4
5
6
7
8
9
10
11
12
14
16
17

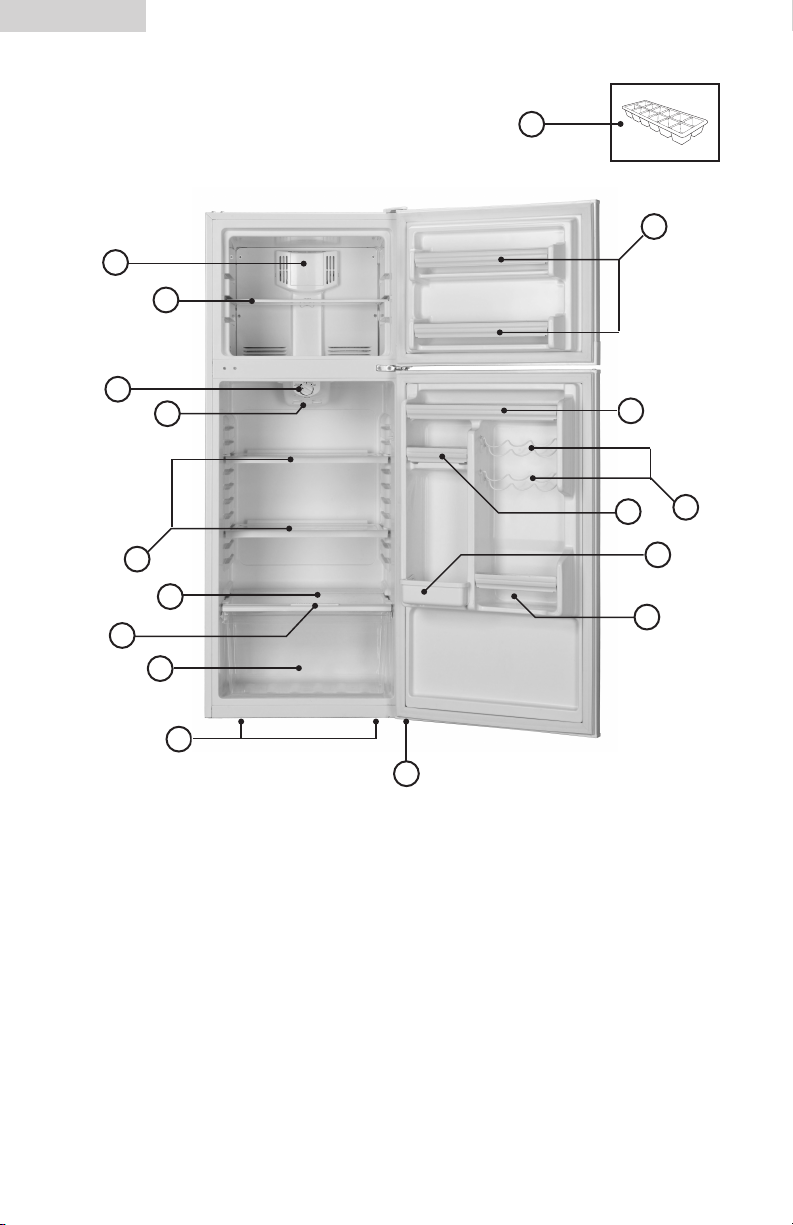

1. Ice Cube Trays
2. Full-Width Freezer Door Shelves
3. Full-Width Door Shelf
4. Adjustable Front Leveling Legs
(not shown)
5. Clear Crisper
6. Clear Glass Crisper Cover
7. Full-Width Glass Shelves
8. Adjustable Temperature Control
9. Interior Light
10. Freezer Shelf
11. Gallon Storage Compartment
12. Can Storage
13. 1/2 Width Shelf
14. Half-Width Shelf, 2 Liter Bottle
Storage Compartment
15. Crisper Humidity Control
16. Air Flow Control
17. Rear Casters (not shown)
(Features may vary per model)
Parts And Features
13
15

4
English
1. Remove all packaging material. This includes the foam base and all
adhesive tape holding the refrigerator accessories inside and outside.
2. Inspect and remove any remains of packing, tape or printed materials
before powering on the refrigerator.
• Your refrigerator has two leveling legs which are located in the front
bottom corners of your refrigerator. After properly placing your
refrigerator in its final position, you can level your refrigerator.
• Leveling legs can be adjusted by turning them counterclockwise to
raise your refrigerator or by turning them clockwise to lower your
refrigerator. The refrigerator door will close easier when the leveling
legs are extended.
• To ensure your refrigerator works at the maximum efficiency it was
designed for, you should install it in a location where there is proper
air circulation, plumbing and electrical connections.
• The following are recommended clearances around the refrigerator:
Sides……………3/4" (19mm)
Top....................2" (50mm)
Back..................2" (50mm)
Installing Your Refrigerator
Unpacking Your Refrigerator
Proper Air Circulation
Leveling Your Refrigerator

5
English
• Make sure there is a suitable power outlet (120 volts, 15 amps outlet)
with proper grounding to power the refrigerator.
• Avoid the use of three prong adapters or cutting off the third
grounding prong in order to accommodate a two prong outlet. This is
a dangerous practice since it provides no effective grounding for the
refrigerator and may result in shock hazard.
• Avoid the use of an extension cord because of potential safety hazards
under certain conditions. If it is necessary to use an extension cord,
use only a 3-wire extension cord that has a 3-blade grounding plug
and a 3-slot outlet that will accept the plug. The marked rating of the
extension cord must be equal to or greater than the electrical rating of
the appliance. DO NOT USE EXTENSION CORD LONGER THAN
12 FT.
• Do not install your refrigerator in any location not properly insulated or
heated, e.g. garage, etc. Your refrigerator was not designed to operate
in temperature settings below 55˚ Fahrenheit.
• Select a suitable location for the refrigerator on a hard even surface
away from direct sunlight or heat source, e.g. radiators, baseboard
heaters, cooking appliances, etc. Any floor unevenness should be
corrected with the leveling legs located on the front bottom corners of
the refrigerator.
Electrical Requirement
Installation Limitations
Use of Extension Cords
WARNING: ELECTRICAL REQUIREMENT - SHOCK HAZARD
WARNING: USE OF EXTENSION CORDS- POTENTIAL SAFETY HAZARD

6
English
WARNING: USE OF EXTENSION CORDS- POTENTIAL SAFETY HAZARD

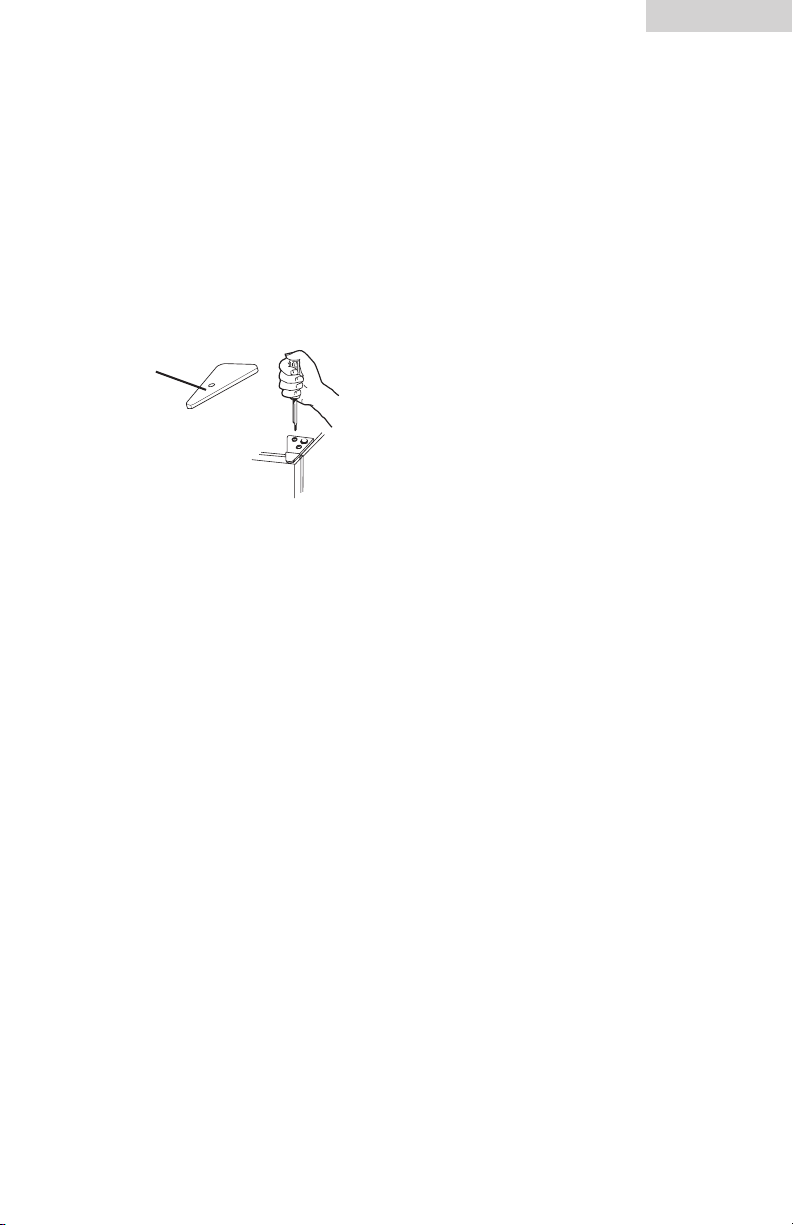

Freezer Door: (see fig. # 1)
1. Remove hinge cover screw.
2. Remove the top hinge cover.
3. Loosen the top hinge screws using a Phillips head screwdriver.
4. Adjust the door or put a spacer in between and then tighten the screws.
5. Replace the top hinge cover.
Door Alignment
Reversing the Door Swing
fig. # 1
Hinge
cover
Top hinge
Left/right door opening method:
This product allows you to reverse the door opening from left to right and
back. You can select your preference of door opening by following the
procedure to make the change.
Dismantling: (see fig. # 1 and fig. # 2)
1. Affix refrigerator and freezer door by sticking adhesive tape on both
sides to hold doors in place.
2. As shown in fig. 1, dismantle the hinge cover on the upper part of
freezer door with a Phillips head screwdriver. Then remove the three
screws that hold the hinge. Take out the hinge by pulling it vertically,
and keep it in a safe place.
3. Remove the adhesive tape on freezer door, lift it and take off the door,
and carefully put it aside.
4. Dismantle two screws of the central hinge, lift it and take off the central
hinge, and keep them in a safe place. (see fig # 2)
5. Remove the adhesive tape on refrigerator door, lift it and take
refrigerator door, and carefully put it aside.
6. Remove the doorstoppers from the refrigerator and freezer doors.
7. Insert left side doorstopper (provided in your packing) on the left side
bottom hole of the refrigerator door and on the left side bottom hole of
the freezer door. Fasten with screws provided.

7
screw holes
doorstopper (right side)
middle pivot pin
central hinge
fig. # 2
English
Reinstallation: (see fig. # 3 and fig. # 4)
1. Remove the lower pivot pin from the lower hinge by turning counter
clockwise. Move the pin to the opposite hole and tighten. (see below)
2. Tilt refrigerator on a 45-degree angle to have access to the
bottom front.
CAUTION: Two People Required.
lower pivot pin
fig. # 3
bottom of unit
bottom hinge

8
English
3. Remove both left and right front feet from bottom.
4. Loosen the screws holding the bottom hinge
and remove it.
5. Align the holes in the bottom hinge to the corresponding holes on the
opposite side of the cabinet. Insert and tighten the screws. Reinstall both
front feet.
6. To install refrigerator door: Line up the left bottom hole of the
refrigerator compartment door over the bottom hinge pin. Move
door forward to make it straight and align with central hinge.
Install the central hinge again, and turn the hinge axle until it
completely enters the door body. Secure it with the screws provided.
(see fig. 4)
NOTE: Remove plugs from doorframe and install on other side.
7. To install freezer door: Lineup left bottom hole of the door over the
central hinge middle pin. Move door forward to make it straight
and align with freezer compartment. Place over left side the top hinge,
align holes with hole on the refrigerator top and tighten with the
screws provided.
doorstopper (left side)
middle pivot pin
central hinge
screw holes
fig. # 4

9
Refrigerator Features And Use
General Features
Adjustable temperature dial:
Your refrigerator will automatically
maintain the temperature level you
select. The temperature control dial has
7 settings plus OFF. 1 is the warmest. 7
is the coldest. Turning the dial to OFF
stops cooling in both the refrigeration
and freezer sections. At first, set the
dial to 4 and allow 24 hours to pass
before adjusting the temperature to your
needs.
To adjust the temperature range in the
cold setting, turn the temperature dial in
a clockwise direction. For normal
operating conditions, keep the dial
halfway between cold and coldest. For
your convenience, the factory presets the
control at normal operating conditions.
(Note: If the refrigerator has
been placed in a horizontal or
tilted position for any period
of time wait 24 hours before
plugging the unit in.)
Freezer Section
Your freezer compartment is equipped
with adjustable airflow control. For
your convenience, airflow is preset by
the factory to the colder setting. There
is also an option to adjust the settings,
either to cold or to coldest.
Refrigerator Section
Interior Light:
Your refrigerator is equipped with an
interior light in the fresh food section for
you to easily locate your food.
Your refrigerator may be equipped with
slide control to raise or lower the
humidity levels or your crispers. This
feature will increase the storage life of
your fruits and vegetables. Simply adjust
the controls to the appropriate setting
for setting for items you are storing in
the crispers. Low settings allow moist air
to exit the crisper, for optimum storage
of fruit and/or vegetables that have
skins. High settings retains moist air in
the crisper, for optimum storage of fresh
vegetables.
English
Never need to defrost your freezer, as it automatically defrosts
any ice build up that may occur.
Frost- Free Refrigerator-Freezer

The refrigerator shelves of your refrigerator were designed with you
in mind. Their varied adjustability allows you to satisfy your personal
storage needs.
To remove or adjust a full-width
slide-out shelf: (see fig. # 5)
1. Gently tilt the shelf up and slide forward until the shelf has been
completely removed.
2. To replace the shelf, select the desired setting and gently slide the
shelf back until it rests in the locking position.
10
English
Refrigerator Interior Shelves
(Shelves May vary by Model)
fig. # 5
To remove and install the crisper: (see fig. # 6)
1. Grip the crisper firmly and slide out completely.
2. Replace the crisper by placing the crisper properly in position and
gently sliding it back into place.
Removing or replacing the crisper cover: (see fig. # 7)
1. Carefully grasp the crisper cover and slide out to remove.
2. To replace, slide the rear of the crisper cover into the right and
left slots above the crisper area and gently slide back into place.
Crisper and Crisper Cover
fig. # 6
fig. # 7

11
English
Fresh Food:
• When storing fresh food, which is not prepackaged, be sure to wrap
or store food in airtight and moisture proof material unless otherwise
noted. This will ensure proper shelf life and prevent the transfer of odors
and tastes.
• Wipe containers before storing to avoid needless spills.
• Eggs should be stored in an upright position in their original carton to
maximize shelf life.
• Fruit should be washed and dried then stored in a crisper set for low
humidity. If you do not have humidity controlled crisper place the items
in sealed plastic bags before storing in the crisper.
• Vegetables with skins should be stored in plastic bags or containers and
stored in crisper with low humidity setting.
• Leafy vegetables should be washed and drained and then stored in
plastic bags or containers in crisper with high humidity setting.
• Hot food should be allowed to cool before storing in the refrigerator.
This will prevent unnecessary energy use.
• Fresh seafood should be used the same day as purchased.
• When storing meats in the fresh food section, keep in the original
packaging or rewrap as necessary. Follow the suggestions below for
safe storage:
These are some suggestions for safe storage:
• Chicken 1-2 Days
• Ground Beef 1-2 Days
• Cold Cuts 3-5 Days
• Steaks/Roasts 3-5 Days
• Smoked/Cured Meats 7-10 Days
For detailed storage chart visit FDA website:
www.cfsan.fda.gov/~dms/fttstore.html
Food Storage Information

12
English
Frozen Food
• Wipe containers before storing to avoid needless spills.
• Hot food should be allowed to cool before storing in the freezer. This
will prevent unnecessary energy use.
• When storing meats, keep in the original packaging or rewrap as nec-
essary.
• Proper freezer storage requires correct packaging. All foods must be
in packages, which do not allow the flow of air or moisture in, or out.
Improper storage will result in odor and taste transfer and will result in
the drying out of the improperly packaged food.
• Follow package or container instructions for proper storage.
• Packaging Recommendations:
Plastic containers with air tight lids
Heavy duty aluminum foil
Plastic wrap made from saran film
Self-sealing plastic bags
• Do not refreeze defrosted/thawed foods.
• It is recommended that the freezing date be marked on the packaging.
These are some suggestions for safe storage:
• TV Dinners 3 - 4 Months
• Fresh Shrimp, scallops, crawfish 3 - 6 Months
• Hamburger & stew meats 3 - 4 Months
• Ground Turkey, veal, pork 3 - 4 Months
• Chops 4 - 6 Months
• Steaks 6 - 12 Months
• Chicken or turkey, whole 1 year
For detailed storage chart visit FDA website: www.cfsan.fda.gov/~dms/
fttstore.html
• Boiling water, gurgling sounds or slight vibrations that are the result of
the refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off.
Normal Operating Sounds You May Hear

13
Warning: To avoid electric shock always unplug your
refrigerator before cleaning. Ignoring this warning
may result in death or injury.
Caution: Before using cleaning products, always read and
follow manufacturer’s instructions and warnings to
avoid personal injury or product damage.
General:
• Prepare a cleaning solution of 3-4 tablespoons of
baking soda mixed with warm water. Use sponge or
soft cloth, dampened with the cleaning
solution, to wipe down your refrigerator.
• Rinse with clean warm water and dry with a soft cloth.
• Do not use harsh chemicals, abrasives, ammonia,
chlorine bleach,concentrated detergents, solvents or
metal scouring pads. Some of these chemicals may
dissolve, damage and/or discolor your
refrigerator.
• Clean door gaskets every three months according to
general instructions. Gaskets must be kept clean and
pliable to ensure a proper seal.
• Petroleum jelly applied lightly on the hinge side of
gaskets will keep the gasket pliable and ensure a good
seal.
Cleaning and Maintenance
Door Gaskets:
We recommend that you clean the rear of the refrigerator at least twice a year.
Some operating environments may require more frequent cleaning.
• Slowly pull the refrigerator straight out away from the wall.
Note: Do not move the refrigerator sideways as this may cause damage to the
floor covering of your refrigerator.
• Unplug the refrigerator.
• Use a vacuum or a brush to clean coils.
• When cleaning has been completed, plug the cord back into the outlet and slide
the refrigerator straight back to its original position.
Note: When pushing it back, be sure not to roll over the power cord.
English
Proper Refrigerator Care and Cleaning

14
English
1. Switch off power to refrigerator.
2. Remove the highest shelf.
3. Allow light bulb to cool before removing.
4. Pinch the plastic cover between fingers and
thumb and gently pull to the left.
5. Remove the bulb by screwing it counter-clockwise.
6. Always replace with appliance-type light bulb rated at 15 watts
or lesser wattage.
7. Caution: Do not exceed the 15 watts rating at any time.
8. To replace cover, insert rear clips in first and gently push front
clip in until the cover snaps into place.
• Occasionally there may be power interruptions due to
thunderstorms or other causes. Remove the power cord from AC outlet
when a power outage occurs. When power has been restored, replug
power cord to AC outlet. If outage is for a prolonged period, inspect
and discard spoiled or thawed food in freezer and refrigerator. Clean
refrigerator before reusing.
• For long vacations or absences, empty food from refrigerator and
freezer, move the temperature to the OFF position and clean the
refrigerator and door gaskets according to "General cleaning"
section. Prop doors open, so air can circulate inside.When moving
always move the refrigerator vertically. Do not move with the unit lying
down. Possible damage to the sealed system could occur.
Light Bulb Replacement
Power Interruptions
Vacation and Moving Care
WARNING: IF OUTAGE IS FOR A PROLONGED PERIOD, INSPECT
AND DISCARD SPOILED OR THAWED FOOD IN
FREEZER. CLEAN FREEZER BEFORE REUSING.

15
Unit Does Not Operate
• Check if thermostat control is not in the “OFF” position.
• Check if refrigerator is plugged in.
• Check if there is power at the AC outlet, by checking the circuit breaker.
Food temperature appears too warm
• Frequent door openings.
• Allow time for recently added warm food to reach fresh food or
freezer temperature.
• Check gaskets for proper seal.
• Adjust temperature control to colder setting.
Food temperature is too cold
• If temperature control setting is too cold, adjust to a warmer
setting and allow several hours for temperature to adjust.
Compressor runs too frequently
• This may be normal to maintain constant temperature during
high temperature and humid days.
• Doors may have been opened frequently or for an extended
period of time.
• Check gasket for proper seal.
• Check to see if doors are completely closed.
Moisture build-up on interior or exterior
of the refrigerator:
• This is normal during high humidity periods.
• Prolonged or frequent door openings.
• Check door gaskets for proper seal.
Refrigerator and Freezer Compartment has an odor:
• Interior needs cleaning.
• Foods improperly wrapped or sealed are giving off odors.
Refrigerator light does not work:
• Check power supply.
• Tighten bulb in socket.
• Replace burned-out bulb.
Refrigerator/Freezer door does not shut properly:
• Level the refrigerator.
• Realign refrigerator/freezer door.
• Check for blockages e.g. food containers, crisper cover,
shelves, bins etc.
Troubleshooting
English

16
English
What is covered and for how
long?
This warranty covers all defects in
workmanship or materials for a
period of:
12 months labor (In-Home Service)
12 months parts
5 years sealed system
The warranty commences on the date
the item was purchased and the original
purchase receipt must be presented to
the authorized service center before
warranty repairs are rendered.
EXCEPTIONS: Commercial or
Rental Use warranty
90 days labor
90 days parts
No other warranty applies
What is covered.
1. The mechanical and electrical parts,
which serve as a functional, purpose
of this appliance for a period of 12
months. This includes all parts except
finish, and trim.
2. The components of the sealed system
e.g. hermetic compressor, condenser
and evaporator from manufacturing
defects for a period of 5 years from
the date of purchase. Any damages
to such components caused by
mechanical abuse or improper
handling or shipping will not be
covered.
What will be done?
1. We will repair or replace, at our
discretion any mechanical or
electrical part which proves to be
defective in normal usage during the
warranty period so specified.
2. There will be no charge to the
purchaser for parts and labor on any
covered items during the initial 12
month period. Beyond this period only
parts are covered in the remaining
warranty. Labor is not provided and
must be paid by the customer.
3. Contact your nearest authorized
service center. For the name of the
nearest service center please call
1-877-337-3639.
THIS WARRANTY COVERS
APPLIANCES WITHIN THE
CONTINENTAL UNITED STATES,
PUERTO RICO AND CANADA.
IT DOES NOT COVER
THE FOLLOWING:
Damages from improper installation.
Damages in shipping.
Defects other than manufacturing.
Damage from misuse, abuse, accident,
alteration, lack of proper care and
maintenance or incorrect current or
voltage.
Damage from other than household use.
Damage from service by other than an
authorized dealer or service center.
Decorative trims or replaceable
light bulbs.
Transportation and shipping.
Labor (after the initial 12 months).
THIS LIMITED WARRANTY IS GIVEN
IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR, INCLUDING THE
WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR
PURPOSE
The remedy provided in this warranty
is exclusive and is granted in lieu of all
other remedies.
This warranty does not cover incidental
or consequential damages, so the above
limitations may not apply to you. Some
States do not allow limitations on how
long an implied warranty lasts, so the
above limitations may not apply to you.
This warranty gives you specific legal
rights, and you may have other rights,
which vary, from state to state.
Haier America
New York, NY 10018
Limited Warranty

Français
1
CONSIGNES GÉNÉRALES DE SECURITÉ
ATTENTION: Lire l’ensemble des instructions avant d’utiliser
l’appareil. Lors de l’utilisation de cet appareil,
prendre toutes les mesures de sécurité de base, y
compris les suivantes:
REMARQUE: Si le réfrigérateur a été placé en position horizontale ou
en position inclinée, que ce soit pour longtemps ou non,
attendez 24 heures avant de brancher l’appareil.
1) N’utiliser cet appareil que pour l’usage prévu, tel que décrit dans ce
guide d’utilisation et d’entretien.
2) Ce réfrigérateur doit être correctement installé, conformément aux
instructions d’installation avant d’être utilisé. Voir les instructions de
mise à la terre dans la section Installation.
3) Ce réfrigérateur ne doit être ni encastré, ni enclos dans un placard. Il
est uniquement conçu pour être installé tel qu’il se présente.
4) Ne jamais tirer sur le cordon d’alimentation pour débrancher le réfri-
gérateur. Toujours saisir fermement la fiche et la tirer tout droit hors de
la prise.
5) Réparer ou remplacer immédiatement tout cordon électrique effiloché
ou autrement endommagé. Ne pas utiliser un cordon fissuré, abrasé
ou dont la prise ou le connecteur est endommagé.
6) Si un ancien réfrigérateur n’est pas utilisé, nous recommandons d’en
retirer les portes afin de réduire le danger qu’il peut représenter pour
les enfants.
7) ATTENTION: Une fois le réfrigérateur en fonctionnement, ne pas
toucher les surfaces froides du congélateur,
particulièrement avec des mains mouillées ou
humides. La peau peut adhérer à ces surfaces
extrêmement froides.
8) Ne pas recongeler les aliments qui ont été complètement décongelés.
Le bulletin maisons et jardins du ministère de l’agriculture des États-
Unis no. 69 stipule : « ..Les aliments congelés peuvent être recongelés
en toute sécurité s’ils contiennent toujours des cristaux de glace ou si
leur température est toujours inférieure à 4,5 °C (40 °F) ».
« …Les viandes hachées, la volaille et le poison présentant une odeur
ou une couleur suspecte ne doivent être ni recongelés, ni mangés.
La crème glacée dégelée doit être jetée. Tout aliment présentant une
odeur ou couleur douteuse doit être jeté cas son ingestion pourrait être
dangereuse.»

Français
2
CONSIGNES GÉNÉRALES DE SECURITÉ « …La décongélation ou la recongélation, même partielle réduit la quali
é gustative des aliments, en particulier des fruits, légumes et plats pré-
parés. La qualité gustative des viandes rouge est beaucoup moins affec-
tée que celle de nombreux autres aliments. Utiliser les aliments recongelés
dès que possible, afin de conserver un maximum de leur qualité gustat-
ive. »
9) Ne pas utiliser d’appareils électriques ou d’objets acérés pour dégivrer le
réfrigérateur.
10) Débrancher le réfrigérateur avant de le nettoyer ou d’effectuer toute
réparation. Remarque: si, pour une raison quelconque, ce produit devait
être dépanné, nous recommandons vivement de confier le travail à un
technicien certifié.
11) Ne pas utiliser le réfrigérateur en présence d’émanations explosives.
VEUILLEZ CONSERVER CES
INSTRUCTIONS
DANGER
Les enfants pourraient se retrouver coincés dans votre
réfrigérateur ou congélateur usagé avant que vous ne
puissiez vous en débarrasser. Retirer les portes. Laisser les
étagères en place de manière à ce que les enfants ne
puissent pas grimper facilement à l’intérieur.
Agrafer le ticket de caisse au guide. Il devra être présenté pour
tout service après-vente sous garantie.
