English
1
SAFETY PRECAUTIONS
Read all of the instructions before using this appliance. When using this
appliance, always exercise basic safety precautions, including the following:
1) Use this appliance only for its intended purpose as described in this use and care
guide.
2) This refrigerator must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in the
installation section.
3) Never unplug your refrigerator by pulling on the power cord. Always grasp the
plug firmly and pull straight out from the outlet.
4) Repair or replace immediately, all electric service cords that have become frayed
or otherwise damaged. Do not use a cord that shows cracks or abrasion damage
along its length, the plug or the connector end.
5) Unplug your refrigerator before cleaning or before making any repairs. Note: If
for any reason this product requires service, we strongly
recommend that a certified technician performs the service.
6) Do not use any electrical device or any sharp instrument in defrosting your
refrigerator.
7) If your old refrigerator is not being used, we recommend that you remove the
doors. This will reduce the possibility of danger to children.
8) After your refrigerator is in operation, do not touch the cold surfaces in the
freezer compartment, particularly when hands are damp or wet. Skin may
adhere to these extremely cold surfaces.
9) Do not refreeze foods, which have been thawed completely. The United States
Department of Agriculture in Home and Garden Bulletin No. 69 reads: "…You
may safely refreeze frozen foods that have thawed if they still contain ice crystals
or if they are still cold-below 40˚F".
"…Thawed ground meats, poultry, or fish that have any off-odor or
off-color should not be refrozen and should not be eaten. Thawed ice cream
should be discarded. If the odor or color of any food is poor or
questionable, discard it. The food may be dangerous to eat."
"…Even partial thawing and re-freezing reduce the eating quality of foods,
particularly fruits, vegetables, and prepared foods. The eating
quality of red meats is affected less than that of many other foods. Use refrozen
foods as soon as possible, to save as much of its eating quality as you can."
1
English

English
2
Thank you for using our Haier product.
This easy-to-use manual will guide you
in getting the best use of your
refrigerator.
Remember to record the model and
serial number. They are on a label in the
refrigerator.
Model number
Serial number
Date of purchase
Staple your receipt to your manual.
You will need it to obtain warranty service.
10) This refrigerator should not be recessed or built-in an enclosed cabinet. It is
designed for freestanding installation only.
11) Do not operate your refrigerator in the presence of explosive fumes.
SAVE THESE INSTRUCTIONS
for Future Use
DANGER
Risk of child entrapment. Before you throw away your old
refrigerator or freezer, take off the doors. Leave the shelves
in place so that children may not easily climb inside.
English
2

English
3
Table Of Contents
PAGE
Safety Precautions 1
Parts And Features 4
Installing Your Refrigerator 5-7
Unpacking Your Refrigerator 5
Proper Air Circulation 5
Electrical Requirements 5
Use of Extension Cords 5
Install Limitations 5
Door Alignment 6
Door Reversal 6
Refrigerator Features And Use 7-8
Adjusting Temperature Control 7
Interior Shelves 8
Dispense-A-Can™ 8
Defrosting Your Refrigerator 8
Food Storage Information 9
Fresh Food 9
Normal Operating Sounds You May Hear 9
Proper Refrigerator Care and Cleaning 10
Troubleshooting 11
Warranty Information 12
3
English

English
4

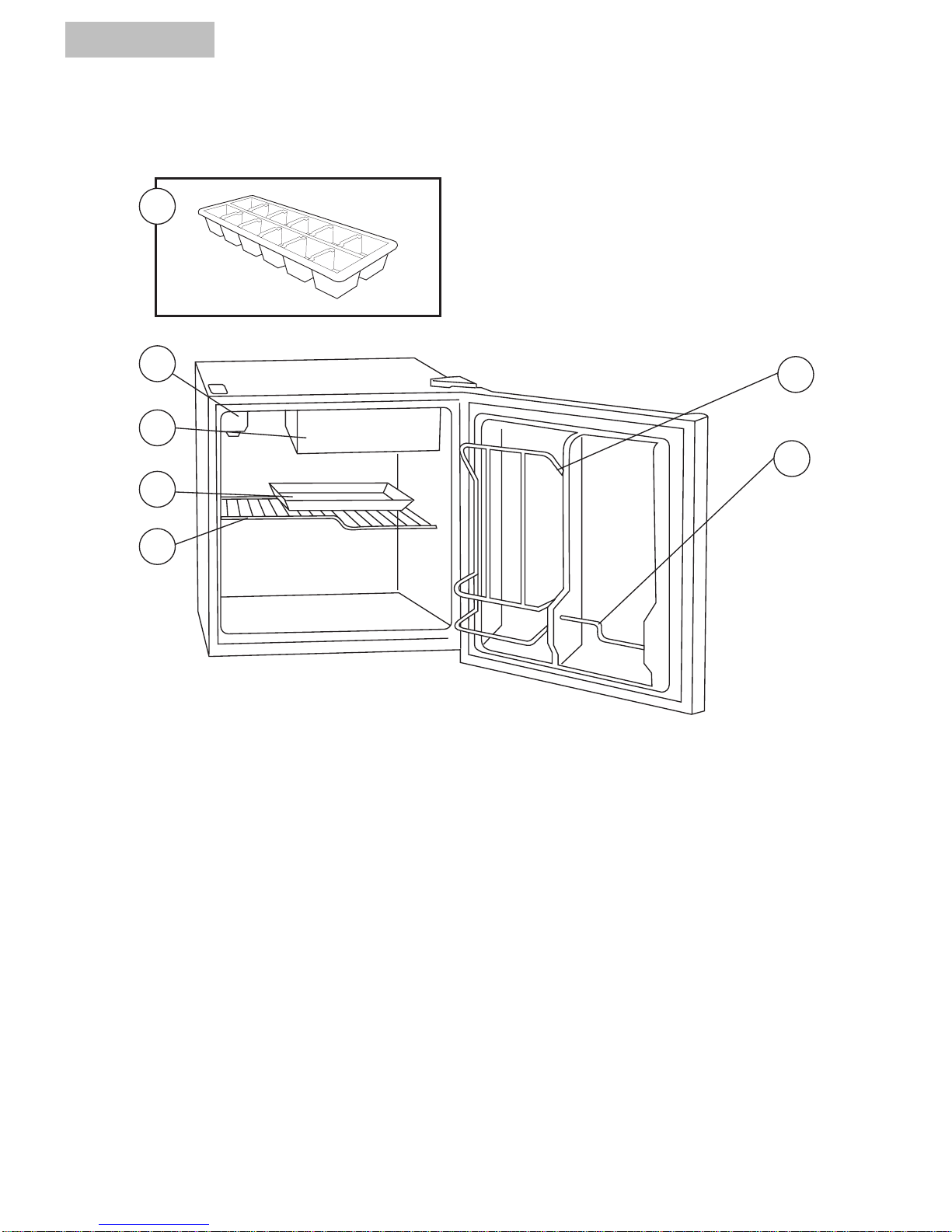

1. Ice Cube Tray
2. Adjustable Temperature Control
3. Freezer Compartment
4. Drip Tray
5. Full Width Reversible
Refrigerator Shelf
6. Dispense-A-Can™
7. Fixed Half-Width Door Shelf
Parts and Features
1
2
3
4
5
6
7
4
English

English
5
Installing Your Refrigerator
Unpacking Your Refrigerator
1. Remove all packaging material. This includes the foam base and all
adhesive tape holding the refrigerator accessories inside and
outside.
2. Inspect and remove any remains of packing, tape or printed
materials before powering on the refrigerator.
Proper Air Circulation
• To assure your refrigerator works at the maximum efficiency it was
designed for, you should install it in a location where there is proper air
circulation, plumbing and electrical connections.
• The following are recommended clearances around the refrigerator:
Sides……………3/4" (19mm)
Top....................1" (25mm)
Back..................1" (25mm)
Electrical Requirement
• Make sure there is a suitable power outlet (115 volts, 15 amps outlet) with
proper grounding to power the refrigerator.
• Avoid the use of three plug adapters or cutting off the third grounding in
order to accommodate a two plug outlet. This is a dangerous practice
since it provides no effective grounding for the refrigerator and may result
in shock hazard.
Use of Extension Cords
• Avoid the use of an extension cord because of potential safety hazards
under certain conditions. If it is necessary to use an extension cord, use
only a 3-wire extension cord that has a 3-blade grounding plug and a 3-
slot outlet that will accept the plug. The marked rating of the extension
cord must be equal to or greater than the electrical rating of the appliance.
Install Limitations
• Do not install your refrigerator in any location not properly insulated or
heated e.g. garage etc. Your refrigerator was not designed to operate in
temperature settings below 55˚ Fahrenheit.
• Select a suitable location for the refrigerator on a hard even surface away
from direct sunlight or heat source e.g. radiators, baseboard heaters,
cooking appliances etc. Any floor unevenness should be corrected with the
leveling legs located at the bottom.
5
English

English
Door Alignment
1. Remove the top hinge cover using a flat head screw driver. Gently lift from
the rear of the hinge and slide forward.
2. Loosen the top hinge screws using a phillips head screwdriver.
3. Adjust the door or put a spacer in between and then tighten the screws.
4. Replace the top hinge cover by sliding the hinge cover from front and press
gently on the rear of the hinge cover to lock.
Reversing the Door Swing

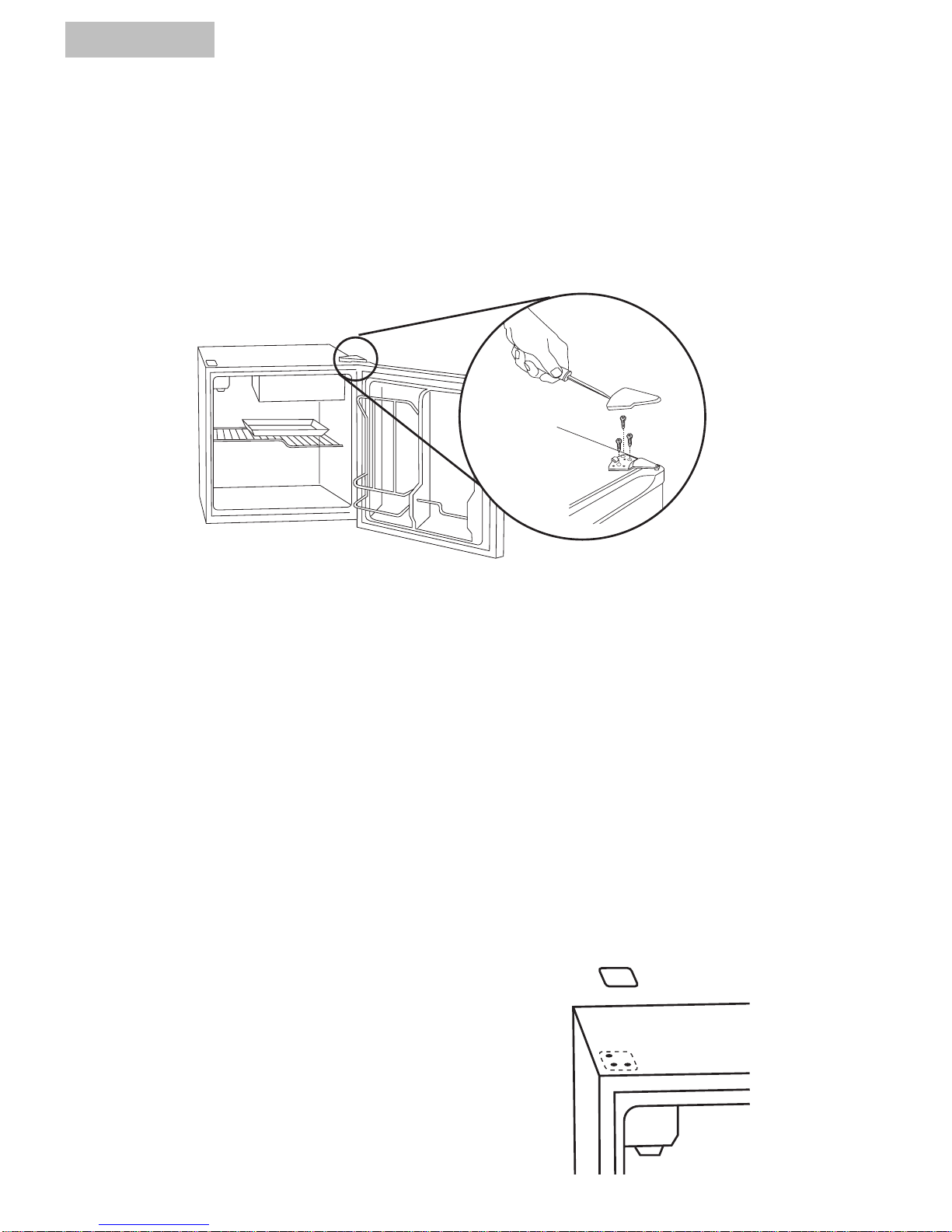

1. Remove the top hinge cover using a flat head screw driver. Gently lift from
the rear of the hinge and slide forward. (see fig.1)
2. Using a Phillips Head Screwdriver, loosen and remove the screws holding
the top hinge in place. (see fig. 1)
3. Remove the top hinge and carefully lift off the door.
4. Remove the screw hole plug from the opposite side and insert the plug in the
screw hole openings of the just removed screws. (see fig. 2)
5. Loosen the screws holding the lower hinge bracket and remove the
hinge.(see fig. 3)
6. Remove the screws from the bottom of the front-left corner plate.
7. Align the holes in the lower hinge bracket to the corresponding holes in the
opposite side of the cabinet bottom. Insert
and tighten the screws. (see fig. 3)
8. Align the bottom hole on the left side of
the door with the pin of the lower hinge
and slide into place.
9. Align the pin of the top hinge with top
hole on the left side of the door and push
into place. Replace the screws in the
upper hinge bracket but do not tighten all
the way. (see fig. 2)
6
fig.1
fig.2
6
English

English
7
10. Make sure the door closes easily but forms a tight seal. Adjust the door as
needed. Once you are satisfied with the door alignment, completely tighten
the upper door hinge screws.
11. Replace the top hinge cover by sliding the hinge cover from front and press
gently on the rear of the hinge cover to lock.
12. If the door does not close properly, refer to the section titled “Door
Alignment”.
Refrigerator Features and Uses
General Features
Adjustable Temperature Control
Your refrigerator will automatically maintain the temperature level you select. The
temperature control dial has 7 settings plus off. 1 is the warmest. 7 is the coldest.
Turning the dial to “0” stops cooling in the refrigeration section. At first, set the dial
to 4 and allow 24 hours to pass before adjusting the temperature to your needs.
Note:
If the refrigerator has been placed in a horizontal or tilted position for any
period of time wait 24 hours before plugging the unit in.

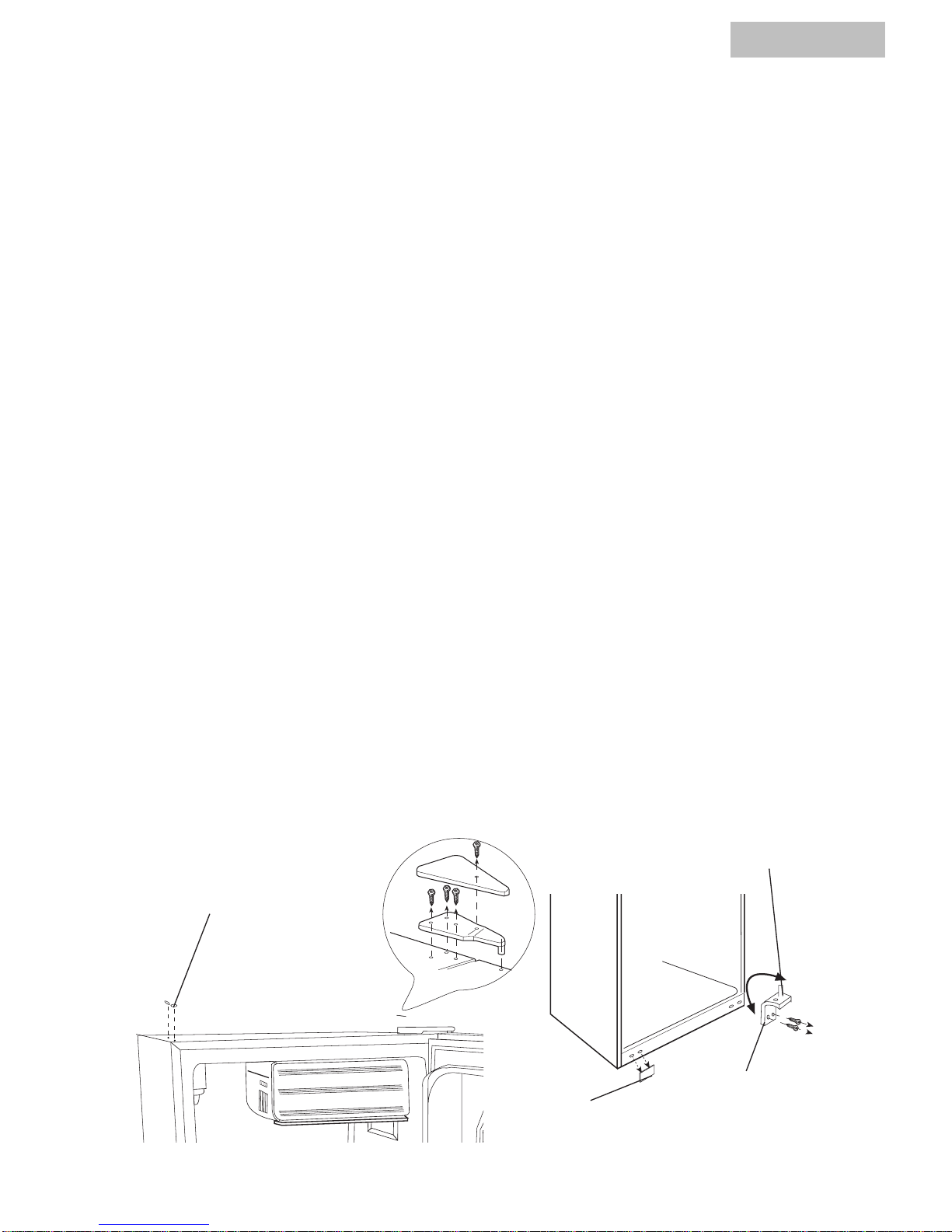

fig. 3
lower hinge bracket
screw holes
7
English

English
8
Interior Shelves

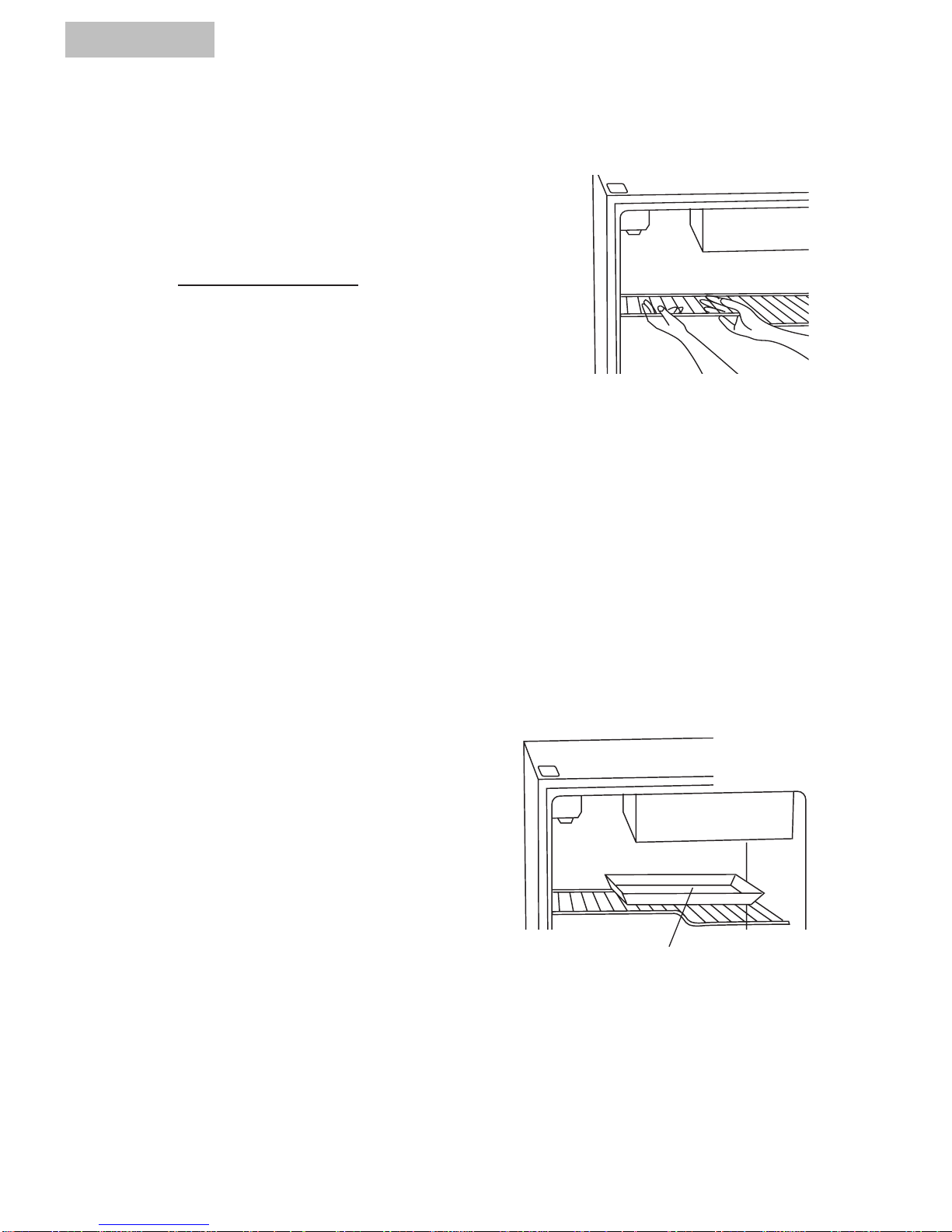

To remove or replace a full-width slide-out shelf: (see fig. # 4)
1. Gently tilt the shelf up and slide
forward until the shelf has been completely
removed.
2. To replace the shelf, gently slide the shelf back.
Reversing Interior Shelf:
1. When storing a 2-Liter bottle in the door, the
shelf should be installed with the indent side
facing out and on the left
2. When not storing a 2-liter bottle in the door, the
shelf should be installed with the indent side facing in on the right side.
Dispense-A-Can™
The refrigerator has a convenient "Dispense-A-CanTM" storage
compartment. Simply stack cans vertically, loading from the top and drawing
them from the bottom.
Defrosting Your Refrigerator
• For maximum energy efficiency, defrost freezer section whenever frost
accumulates to a thickness of 1/4" or more on freezer walls. Note that frost
tends to accumulate more during the summer months.
• To defrost, remove the food and ice cube tray from the freezer section. Make
sure the drip tray is under the freezer
section and turn off the thermostat.
Defrosting may take a few hours.
• While defrosting, water will accumulate
in the drip tray. The drip tray may also
need to be emptied during the defrost
process. Do not leave unattended. (see
Fig. 5)
• After defrosting, empty and wipe down
the drip tray, as well as the interior of
the refrigerator.
fig. 5
drip tray
fig. 4
8
English

English
9
Food Storage Information
Fresh Food
• When storing fresh food, which is not prepackaged, be sure to wrap or store
food in airtight and moisture proof material unless otherwise noted. This will
ensure proper shelf life and prevent the transfer of odors and tastes.
• Wipe containers before storing to avoid needless spills.
• Eggs should be stored in an upright position in their original carton to
maximize shelf life.
• Fruit should be washed and dried then stored in sealed plastic bags before
storing in the refrigerator.
• Vegetables with skins should be stored in plastic bags or containers.
• Leafy vegetables should be washed and drained and then stored in plastic
bags or containers.
• Hot food should be allowed to cool before storing in the refrigeration. This
will prevent unnecessary energy use.
• Fresh seafood should be used the same day as purchased.
• When storing meats in the fresh food section, keep in the original
packaging or rewrap as necessary. Follow the suggestions below for safe
storage:
• Chicken 1-2 Days
• Ground Beef 1-2 Days
• Cold Cuts 3-5 Days
• Steaks/Roasts 3-5 Days
• Smoked/Cured Meats 7-10 Days
• All others 1-2 Days
Normal Operating Sounds You May Hear
• Boiling water, gurgling sounds or slight vibrations that are the result of the
refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off.
9
English

English
10
Proper Refrigerator Care
and Cleaning
Warning: To avoid electric shock always unplug your refrigerator before
cleaning. Ignoring this warning may result in death or injury.
Caution: Before using cleaning products, always read and follow
manufacturer’s instructions and warnings to avoid personal injury
or product damage.
General: • Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed
with warm water. Use sponge or soft cloth, dampened with the
cleaning solution, to wipe down your refrigerator.
• Rinse with clean warm water and dry with a soft cloth.
• Do not use harsh chemicals, abrasives, ammonia, chlorine bleach,
concentrated detergents, solvents or metal scouring pads. Some of these
chemicals may dissolve, damage and/or discolor your refrigerator.
Door Gaskets:
• Clean door gaskets every three months according to general instructions.
Gaskets must be kept clean and pliable to assure a proper seal.
• Petroleum jelly applied lightly on the hinge side of gaskets will keep
the gasket pliable and assure a good seal.
Power Interruptions
• Occasionally there may be power interruptions due to thunderstorms or other
causes. Remove the power cord from AC outlet when a power outage occurs.
When power has been restored, replug power cord to AC outlet. If outage is
for a prolonged period, inspect and discard spoiled food in the refrigerator.
Clean inside the refrigerator before reusing.
Vacation and Moving Care
• For long vacations or absences, empty food from refrigerator, move the
temperature DIAL to the OFF position and clean the refrigerator and door
gaskets according to “General cleaning” section. Prop doors open, so air
may circulate inside. When moving, always move the refrigerator vertically.
Do not move with the unit lying down. Possible damage to the sealed system
could occur.
10
English

English
11
Trouble Shooting
Refrigerator Does Not Operate
• Check if thermostat control is not in the “OFF” position.
• Check if refrigerator is plugged in.
• Check if there is power at the AC outlet, by checking the circuit breaker.
Food temperature appears too warm
• Frequent door openings.
• Allow time for recently added warm food to reach fresh food or
freezer temperature.
• Check gaskets for proper seal.
• Adjust temperature control to colder setting.
Food temperature is too cold
• If temperature control setting is too cold, adjust to a warmer setting
and allow several hours for temperature to adjust.
Refrigerator runs too frequently
• This may be normal to maintain constant temperature during high
temperature and humid days.
• Doors may have been opened frequently or for an extended period of time.
• Check gasket for proper seal.
• Check to see if doors are completely closed.
Moisture build up on interior or exterior of the refrigerator:
• This is normal during high humidity periods.
• Prolonged or frequent door openings.
• Check door gaskets for proper seal.
Refrigerator has an odor:
• Interior needs cleaning.
• Foods improperly wrapped or sealed are giving off odors.
Refrigerator door does not shut properly:
• Level the refrigerator.
• Re-align refrigerator door.
• Check for blockages e.g. food containers, crisper cover,
shelves, bins etc.
11
English

English
12
What is covered and for how long?
This warranty covers all defects in
workmanship or materials for a period of:
12 months labor
12 months parts
5 years sealed system
The warranty commences on the date the
item was purchased and the original
purchase receipt must be presented to the
authorized service center before warranty
repairs are rendered.
EXCEPTIONS: Commercial or Rental
Use warranty
90 days labor (carry-in only)
90 days parts
No other warranty applies
What is covered.
1. The mechanical and electrical parts, which
serve as a functional, purpose of this
appliance for a period of 12 months. This
includes all parts except finish, and trim.
2. The components of the sealed system e.g.
hermetic compressor, condenser and
evaporator from manufacturing defects for a
period of 5 years from the date of purchase.
Any damages to such components caused by
mechanical abuse or improper handling or
shipping will not be covered.
What will be done?
1. We will repair or replace, at our discretion
any mechanical or electrical part which
proves to be defective in normal usage
during the warranty period so specified.
2. There will be no charge to the purchaser
for parts and labor on any covered items
during the initial 12 month period. Beyond
this period only parts are covered in the
remaining warranty. Labor is not provided
and must be paid by the customer.
3. Contact your nearest authorized service
center. For the name of the nearest service
center please call 1-877-337-3639
THIS WARRANTY COVERS APPLIANCES
WITHIN THE CONTINENTAL UNITED
STATES, PUERTO RICO AND CANADA.IT
DOES NOT COVER THE FOLLOWING:
Damages from improper installation.
Damages in shipping.
Defects other than manufacturing.
Damage from misuse, abuse, accident,
alteration, lack of proper care and
maintenance or incorrect current or voltage.
Damage from other than household use.
Damage from service by other than an
authorized dealer or service center.
Decorative trims or replaceable light bulbs.
Transportation and shipping.
Labor (after the initial 12 months).
THIS LIMITED WARRANTY IS GIVEN IN LIEU
OF ALL OTHER WARRANTIES, EXPRESSED
OR, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE
The remedy provided in this warranty is
exclusive and is granted in lieu of all other
remedies.
This warranty does not cover incidental or
consequential damages, so the above
limitations may not apply to you. Some States
do not allow limitations on how long an
implied warranty lasts, so the above
limitations may not apply to you.
This warranty gives you specific legal rights,
and you may have other rights, which vary,
from state to state.
Haier America
New York, NY 10018
Printed in China
Feb 2004
Limited Warranty
12
English

Español
1
INSTRUCCIONES PRECAUTORIAS
Lea todas las instrucciones antes de utilizar este aparato.
Cuando utilice este aparato, siempre ejerza las precauciones
de seguridad básicas, incluyendo las siguientes:
1) Utilice este aparato exclusivamente para su uso especificado, según se
describe en esta guía de uso y cuidados.
2) Este refrigerador debe ser instalado adecuadamente siguiendo las
instrucciones de instalación antes de utilizarse. Observe las instrucciones
para conectarlo a tierra en la sección de instalación.
3) Nunca desconecte su refrigerador tirando del cordón eléctrico. Sujete
siempre la clavija firmemente y retírela del contacto evitando torcerla.
4) Repare o reemplace inmediatamente cualquier cordón eléctrico que
muestre raspaduras o daños. No utilice ningún cordón que muestre
señales de abrasión o grietas en su extensión, clavija o terminal
de conexión.
5) Desconecte su congelador antes de limpiarlo o antes de hacer cualquier
reparación. Nota:
Si por alguna razón este producto necesita ser
reparado, recomendamos fuertemente que la reparación se lleve a
cabo por un técnico calificado.
6) No emplee ningún aparato eléctrico o instrumento punzocortante para
descongelar su refrigerador.
7) Si su antiguo refrigerador no está siendo utilizado, recomendamos
quitarle las puertas. Esto reducirá los riesgos de accidentes infantiles.
8) Una vez que su refrigerador se encuentre operando, no toque las
superficies frías en el compartimento del congelador, especialmente
si sus manos se encuentran húmedas o mojadas. Su piel puede
adherirse a estas superficies extremadamente frías.
9) No congele alimentos que hayan sido previamente descongelados en su
totalidad. El Departamento de Agricultura de los Estados Unidos, en su
Boletín de Casa y Jardín No. 69 indica que: "…Usted puede volver a
congelar, sin correr ningún riesgo, aquellos alimentos congelados que
hayan sido descongelados y que aún contengan cristales de
hielo o que aún se encuentren fríos con una temperatura por
debajo de los 4,5°C (40°F)".
1
Español

Español
2
"…Carnes molidas, aves, o pescados descongelados que despidan olor
extraño o muestren decoloración no deben volver a congelarse y no deben
consumirse. El helado descongelado debe desecharse. Si el olor o color de
cierto alimento es deficiente o cuestionable, deséchelo. Tal alimento podría
resultar peligroso si lo ingiriese."
"…Incluso el descongelar parcialmente y volver a congelar los alimentos
disminuye su calidad de consumo, especialmente si se trata de frutas,
verduras y alimentos preparados. La calidad de consumo de las carnes
rojas es menormente afectada en comparación a la de muchos otros
alimentos. Utilice los alimentos que hayan vuelto a congelarse lo más
pronto posible para evitar que sufran mayor deterioro en su
calidad de consumo."
10) Este refrigerador no debe de ser empotrado o colocado dentro
de un gabinete de cocina. Ha sido diseñado exclusivamente
para ser instalado por separado.
11) No opere su congelador en la presencia de gases explosivos.
2
Español

GUARDE ESTAS INSTRUCCIONES
PELIGRO
Existe el riesgo de que los niños puedan quedar atrapados
dentro. Antes de tirar su refrigerador o congelador, quite las
puertas. Deje los anaqueles en su lugar para que los niños no
puedan entrar fácilmente en el interior."
De acuerdo a UL 250 Estandardes
Agrafer le ticket de caisse au guide. Il devra être présenté pour tout
service après-vente sous garantie.
Gracias por utilizar nuestro
producto Haier. Este sencillo
manual le orientará con respecto al
mejor uso que puede darle a
su refrigerador.
Recuerde tomar nota del modelo y
número de serie. Ambos se
encuentran impresos en una
etiqueta en la parte posterior del
refrigerador.
Número de Modelo
Número de Serie
Fecha de Compra
Español
3
3
Español

Indice
PAGINA
Instrucciones Precautorias..............................................................1
Piezas y Características...................................................................5
Instalación de sur Refrigerador.....................................................5
Desempaque del Refrigerador..................................................................5
Nivelación del Refrigerador.....................................................................5
Circulación Apropiada del Aire...............................................................5
Requisitos Eléctricos................................................................................6
Alineación de la Puerta...........................................................................6
Colocación de la Puerta en el Lado Opuesto........................................... 7
Uso y Funciónes...............................................................................8
Funciónes Generales..............................................................................8
Entrepaños Interiores del Refrigerador.....................................................8
Remoción de la Escarcha.......................................................................9
Información sobre el Almacenamiento de Alimentos.................................10
Ruido Normal de Operación..................................................................10
Limpieza y Cuidado Apropiados del Congelador.....................11
Limpieza y Mantenimiento......................................................................11
Interrupciones de la Corriente Eléctrica....................................................11
Vacaciones y Mudanza..........................................................................11
Verificación de Problemas.............................................................12
Información de Garantía................................................................13
Español
4
4
Español

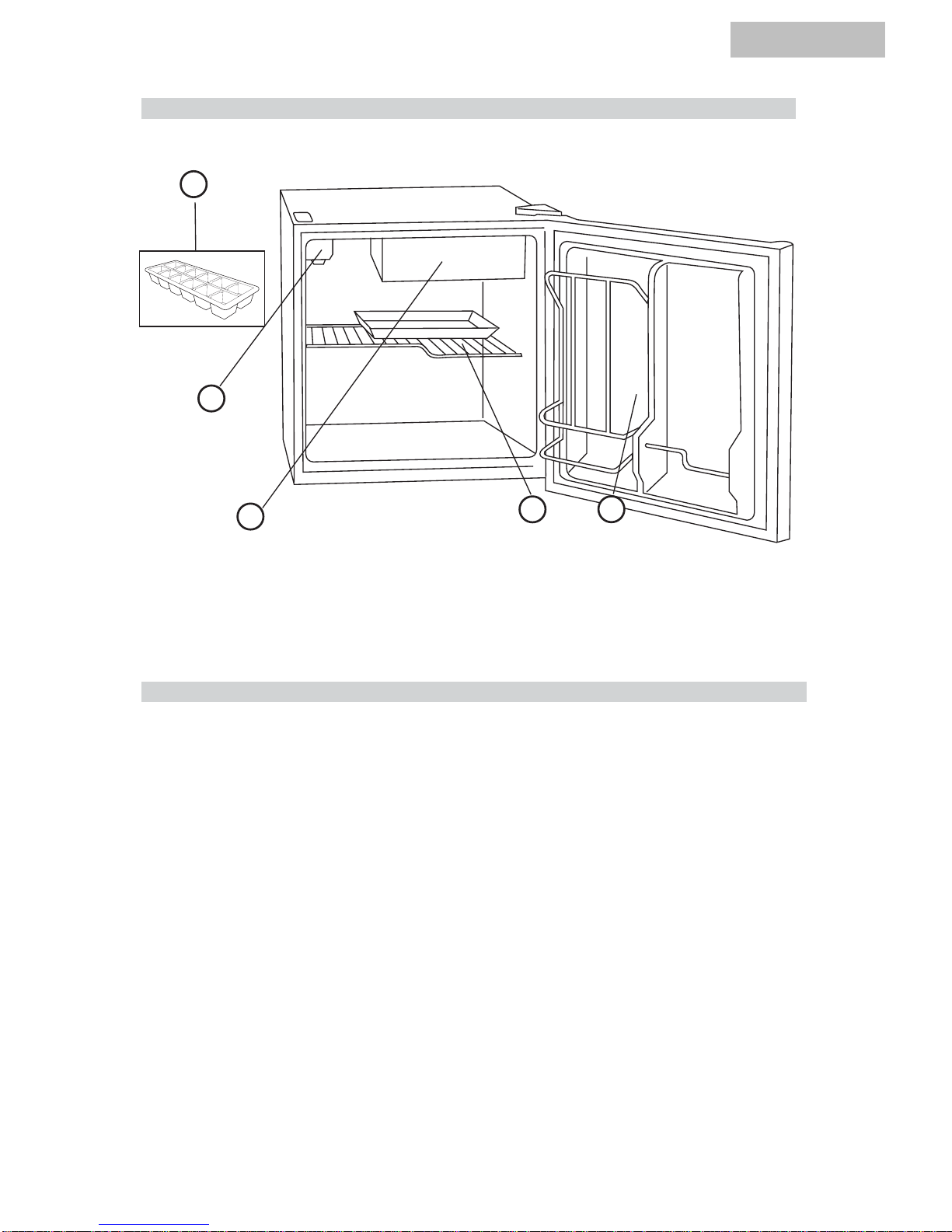

Piezas y Características
Español
5
1. Bandeja de Cubos de Hielo
2. Control de Temperatura Ajustable
3. Compartimiento del Congelador
4. Anaquele De Ancho Completo
5. Repisas Fijas en la Puerta
1. Retire todo el material de embalaje. Esto incluye la base de espuma y toda la
cinta adhesiva que sostiene los accesorios del refrigerador en el interior y exteri-
or. Deslice y saque la protección de plástico o espuma usada para proteger al
compresor de daños durante el envío debido a la vibración y los golpes.
2. Inspeccione y retire cualesquier restos del embalaje, la cinta
adhesiva o los materiales impresos antes de encender el refrigerador.
• Para asegurar que su refrigerador funcione con la eficiencia máxima para
la que fue diseñado, éste debe ser instalado en un lugar donde haya una
circulación de aire adecuada, conexiones eléctricas y de tubería.
•
Estas son las distancias recomendadas que deben dejarse alrededor del refrigerador:
Lados..........................19 mm
Parte Superior..............50 mm
Parte Posterior..............50 mm
Instalación de Su Refrigerador
Desempaque del Refrigerador
Circulación Apropiadado del Aire
1
2
345
5
Español

• Asegúrese de que haya un tomacorriente apropiado (115 V, 15 Amp.) con
una conexión a tierra apropiada para hacer funcionar el refrigerador.
• Evite el uso de adaptadores de tres patas o el cortar la tercer pata de conex-
ión a tierra para poder conectar en un tomacorriente bifásico. Esto sería una
práctica muy peligrosa ya que no proveería al refrigerador con una conex-
ión a tierra adecuada y podría resultar un riesgo de descarga eléctrica.
• No instale su refrigerador en ningún lugar que no tenga el aislamiento o la
calefacción apropiada, por ejemplo una cochera, etc. Su refrigerador no fue
diseñado para funcionar en temperaturas abajo de los 12° Centígrados (55°F).
• Seleccione un lugar adecuado para el refrigerador sobre una superficie sóli-
da y nivelada alejado de los rayos directos del sol o de una fuente de calor
como la de los radiadores, rejillas de calefacción, estufas, etc. Cualquier
desnivelación del piso debe ser corregido con las patas niveladoras ubi-
cadas en las esquinas inferiores frontales del refrigerador.
Requisitos Eléctricos
Limitaciones de Instalación
Español
6
1. Quite el tornillo de la cubierta de la bisagra.
2. Quite la cubierta de la bisagra superior.
3. Afloje los tornillos de la bisagra superior usando
un destornillador de punta de cruz.
4. Ajuste la puerta o coloque un espaciador
entremedio y luego vuelva a apretar los tornillos.
5. Vuelva a colocar la cubierta de la bisagra superior.

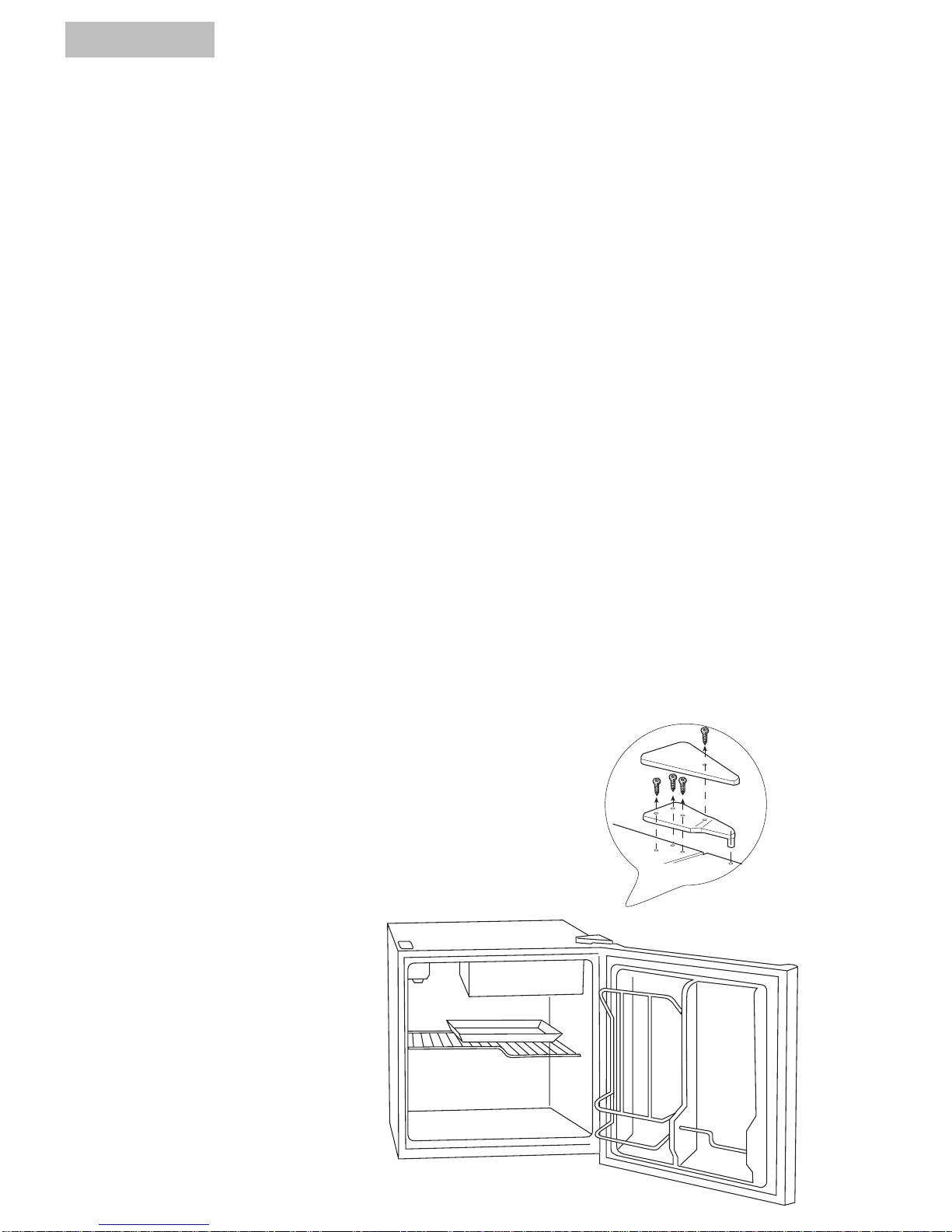

Alineación de la Puerta (Vea Fig. # 1)
fig. # 1
• Evite el uso de una cuerda de la extensión a causa de peligros potenciales de
seguridad bajo ciertas condiciones. Si es necesario usar una cuerda de la
extensión, use sólo una cuerda de 3 alambres de extensión que tiene un de 3
hojas molió tapón y una salida de 3-slot que aceptarán el tapón.
•La calificación marcada de la cuerda de la extensión debe ser igual a o más
que la calificación eléctrica del aparato.
El uso de Cuerdas de extensión
6
Español

Colocación del Gozne de
la Puerta en el Lado Opuesto
1. Remueva el tornillo de la cubierta del gozne superior y luego remueva la
cubierta del gozne superior. (Vea fig. # 1)
2. Con un destornillador de cabeza Phillips, afloje y remueva los tornillos que
sujetan en su lugar el gozne superior. (Vea fig. # 1)
3. Remueva ahora el gozne superior y cuidadosamente levante y saque la puerta.
4. Remueva el tapón de agujero de tornillo del lado opuesto e inserte el tapón
en los agujeros de los tornillos que acaba de sacar. (Vea fig. # 2)
5. Remueva el perno de la puerta del soporte del gozne inferior, girándolo en
la dirección opuesta a las manecillas del reloj. Coloque luego el perno en el
agujero opuesto y apriételo. (Vea fig. # 3)
6. Remueva los tornillos que sostienen el soporte del gozne inferior y quite el
soporte. (Vea fig. # 3)
7. Alinee los agujeros del soporte del gozne inferior con los agujeros corre-
spondientes en el costado opuesto del gabinete, para luego insertar y apre-
tar sus tornillos. (Vea fig. # 3)
8. Alinee el agujero inferior del lado izquierdo de la puerta con el perno del
gozne inferior y colóquelo en su lugar.
9. Alinee el perno del gozne superior con el agujero de arriba en el lado
izquierdo de la puerta y presiónelo hasta que quede en su lugar. Vuelva a
colocar los tornillos del soporte del gozne superior pero no los apriete com-
pletamente, todavía. (Vea fig. # 2)
10. Verifique que la puerta cierra fácilmente y que sella herméticamente el
refrigerador. Ajuste la puerta según sea necesario. Una vez que la puerta
quede alineada a su satisfacción, apriete en forma definitiva los tornillos
del gozne superior de la puerta.
11. Vuelva a colocar la cubierta del gozne, inserte su tornillo correspondiente
y apriételo completamente. (Vea Fig. # 2)
12. Si la puerta no cierra apropiadamente, consulte la sección titulada "Alin-
eamiento de la Puerta".
tapones para los agujeros
de los tornillos
Español
7
perno de la puerta
soporte del
gozne inferior
tapones para
los agujeros de
los tornillos
fig. # 2 fig. # 3
7
Español
