Haier Hrf-661ff/ass User manual

CAUTION

READ THIS MANUAL CAREFULLY TO

DIAGNOSE TROUBLE CORRECTLY

BEFORE OFFERING SERVICE .

Refrigerator

SERVICE MANUAL

Features:

1. Spacercraft insulation technology saving

2. Digital temperature with VFD disply

3. full-out fridge tray

4. Ice and water dispenser

5. Super freezing

6. Direct current vairable-frequency

7. Direct current vairable-frequency blower fan

8.Deluxe bar ,ice machine

9. Cold drink outside access design

10. Deluxe deep bottle holderr

11.Detachable door seal

MODEL: HRF-661FF/ASS

Haier Group

Part1.Specifications

Model HRF-661FF/ASS HRF-661FF/A

Cavity Supply(V/Hz) 220~240/50 220~240/50

Power

Consumption(Kw.h/year) 537 537

Unit Dimensions (WDH

WDH/mmXmmXmm) 770*890*1768 770*890*1768

Unit Weight(Kg) 138 132

Box

Dimensions(WDH/mmXmmX

mm)

960*770*1894 960*770*1894

Box Weight(Kg) 156 156

Container Quantity(40’Hc) 36 36

Specifications are subject to change without prior notice.

Model HRF-661FF/ASS，HRF-661FF/A

Part3. Principle of Electric Control

Schematic Circuit Diagram

Brief Description of Control Principle

HRF-661FF/ASS ，HRF-661FF/A ，is the forced air cooling

refrigerator with two doors(side by side). A mechanical type of all the

control is generally adopted. The thermostat directly controls the

start and stop of compressor, and hence the refrigerator

temperature.

Low Temperature Compensation in the above schematic

diagram, when the ambient is below the set temperature, the switch will

be closed and the heating will work, thus ensuring the normal start,

and operation of refrigerator at lower ambient temperature, in such case,

the freezer compartment temperature can reach a good point.

Part4. Assembly figure

Model:

No. In the

exploded

view

Spare parts

number Spare parts description in English Model Qty Failure rate The proportion

of the spare

part stock Remark

technical

bulletin ID

number

1 0060821750 fridge foamed door assembly HRF-661FF/ASS 1 0.05% 0.05% *

2 0060822301 freezer foaming door assembly HRF-661FF/ASS 1 0.00% 0.00%

3 0060821346 lower vegetable box assembly HRF-661FF/ASS 1 0.00% 0.00%

4 0060219817 right slide way of lower vegetable box HRF-661FF/ASS 1 0.00% 0.00%

5 0060600097 screw HRF-661FF/ASS 4 0.00% 0.00% *

6 0060219580 left slide way of lower vegetable box HRF-661FF/ASS 1 0.01% 0.01% *

7 0060818005 freezer drawer cover board HRF-661FF/ASS 1 0.00% 0.00%

8 0060818006 freezer shelf HRF-661FF/ASS 2 0.00% 0.00% *

9 0060818598 ice-crushed box assembly HRF-661FF/ASS 1 0.01% 0.01% *

10 0060214369 freezer lampshade cover HRF-661FF/ASS 1 0.00% 0.00%

11 0060214368 freezer lampshade HRF-661FF/ASS 1 0.00% 0.00% *

12 0060212618 ice-crushed box slide way HRF-661FF/ASS 2 0.00% 0.00%

13 0060600097 screw HRF-661FF/ASS 4 0.00% 0.00%

14 0060204650 ice box HRF-661FF/ASS 1 0.00% 0.00% *

15 0064000955 ice box motor HRF-661FF/ASS 1 0.00% 0.00%

16 0060600097 screw HRF-661FF/ASS 4 0.00% 0.00%

17 0060205021 fixing nut HRF-661FF/ASS 4 0.00% 0.00% *

18 0060214376 ice-maker supporter HRF-661FF/ASS 1 0.00% 0.00%

19 0060214386 ice-crushed motor box HRF-661FF/ASS 1 0.00% 0.00%

20 0060205614 ice-crushed motor box right slide way HRF-661FF/ASS 4 0.00% 0.00% *

21 0060600097 screw HRF-661FF/ASS 4 0.00% 0.00% *

22 00608010087 screw HRF-661FF/ASS 2 0.00% 0.00%

23 00604050121 anti-heat and glisten patch gasket HRF-661FF/ASS 4 0.00% 0.00%

24 0060161498 anti-heat and glisten patch HRF-661FF/ASS 1 0.21% 0.21%

25 00606040080 lamp HRF-661FF/ASS 1 0.00% 0.00%

26 0060818587 bottom freezer air tower assembly HRF-661FF/ASS 1 0.00% 0.00%

27 0060600097 screw HRF-661FF/ASS 4 0.00% 0.00% *

28 00602160304 screw cover HRF-661FF/ASS 2 0.00% 0.00%

29 0064098047 screw HRF-661FF/ASS 2 0.00% 0.00% *

30 0060401479 ice-crushed motor box cable HRF-661FF/ASS 1 0.00% 0.00%

31 0060818586 top freezer air tower assembly HRF-661FF/ASS 1 0.00% 0.00%

32 0060818729 defrost waterspout assembly HRF-661FF/ASS 1 0.00% 0.00%

33 0060818585 freezer air shutter assembly HRF-661FF/ASS 1 0.00% 0.00%

34 0064082811 screw HRF-661FF/ASS 5 0.00% 0.00% *

35 0060207845 fan motor cover HRF-661FF/ASS 1 0.00% 0.00%

36 0060301218 damping rubber I HRF-661FF/ASS 1 0.00% 0.00%

37 0060207848 fan vane HRF-661FF/ASS 1 0.00% 0.00%

38 0064000459 DC fan motor HRF-661FF/ASS 1 0.00% 0.00% *

39 0060215338 damping rubber II HRF-661FF/ASS 1 0.00% 0.00%

40 0060818584 freezer motor assembly HRF-661FF/ASS 1 0.00% 0.00%

41 0060818624 evaporator assembly HRF-661FF/ASS 1 0.00% 0.00%

42 0060214973 motor cable cover HRF-661FF/ASS 1 0.00% 0.00%

43 0060801032 screw HRF-661FF/ASS 1 0.00% 0.00%

44 0060215938 down decorating strip assembly HRF-661FF/ASS 1 0.00% 0.00%

45 0060818824A left below hinge assembly HRF-661FF/ASS 1 0.00% 0.00%

HRF-661FF/ASS

general assembly

REFRIGERATOR

Product code:BC0JX0E0500

No. In the

exploded

view

Spare parts

number Spare parts description in English Model Qty Failure rate The proportion

of the spare

part stock Remark

technical

bulletin ID

number

46 00609380509 adjustable foot assembly HRF-661FF/ASS 2 0.00% 0.00%

47 0060801032 screw HRF-661FF/ASS 7 0.00% 0.00% *

48 0060215014 seal strip I HRF-661FF/ASS 1 0.00% 0.00%

49 0060215015 seal strip II HRF-661FF/ASS 1 0.00% 0.00%

50 0060801032 screw HRF-661FF/ASS 4 0.00% 0.00% *

51 0060818345 compressor bracket assembly HRF-661FF/ASS 1 0.00% 0.00%

52 0060703449 connection tube for exhaust HRF-661FF/ASS 1 0.00% 0.00% *

53 0060806084 valve HRF-661FF/ASS 1 0.00% 0.00%

54 0060400035 cable of valve HRF-661FF/ASS 1 0.00% 0.00%

55 0060210199 rubber grommet HRF-661FF/ASS 4 0.00% 0.00%

56 0060803303 compressor bolt HRF-661FF/ASS 4 0.00% 0.00% *

57 0060732586 compressor HRF-661FF/ASS 1 0.00% 0.00%

58 0060700768 injection tube HRF-661FF/ASS 1 0.00% 0.00% *

59 0060703455 condenser assembly HRF-661FF/ASS 1 1.79% 1.79%

60 0060801032 screw HRF-661FF/ASS 4 0.00% 0.00%

61 0060214381 water tray HRF-661FF/ASS 1 0.00% 0.00%

62 0060818623 cooling fan assembly HRF-661FF/ASS 1 0.00% 0.00%

63 0060801032 screw HRF-661FF/ASS 1 0.00% 0.00%

64 0060215338 damping rubber II HRF-661FF/ASS 1 0.00% 0.00%

65 0064000460 DC fan motor HRF-661FF/ASS 1 0.00% 0.00%

66 0060301218 damping rubber I HRF-661FF/ASS 1 0.00% 0.00%

67 0060214385 fan motor cover HRF-661FF/ASS 1 0.00% 0.00%

68 0064082808 screw HRF-661FF/ASS 2 0.00% 0.00%

69 0060208240 fan vane HRF-661FF/ASS 1 0.00% 0.00%

70 0060109707 compressor cover HRF-661FF/ASS 1 0.00% 0.00% *

71 0060801032 screw HRF-661FF/ASS 6 0.00% 0.00% *

72 0060214899 tanker water inlet protect pipe HRF-661FF/ASS 1 0.00% 0.00%

73 0060205753 water pipe fixup nip HRF-661FF/ASS 1 0.00% 0.00% *

74 0060801032 screw HRF-661FF/ASS 1 0.00% 0.00%

75 0060205757 water leader HRF-661FF/ASS 1 0.00% 0.00%

76 0064000967 enter water pipe of ice maker assembly HRF-661FF/ASS 1 0.00% 0.00% *

77 0060214635 elbow of enter water pipe HRF-661FF/ASS 1 0.00% 0.00%

78 0060161557 ice maker pipe fixup board HRF-661FF/ASS 1 0.00% 0.00%

79 0060161089 freezer top hinge HRF-661FF/ASS 1 0.00% 0.00%

80 0060600251 screw HRF-661FF/ASS 4 0.00% 0.00%

81 0060214961 freezer top hinge box HRF-661FF/ASS 1 0.00% 0.00%

82 0060818535 main control box supporter HRF-661FF/ASS 1 0.00% 0.00% *

83 0060600097 screw HRF-661FF/ASS 3 0.00% 0.00% *

84 0064001169 control panel HRF-661FF/ASS 1 0.00% 0.00% *

85 00606020090 filter HRF-661FF/ASS 1 0.00% 0.00% *

86 00606110135 power cable HRF-661FF/ASS 1 0.00% 0.00%

87 0060210244 control panel box cover HRF-661FF/ASS 1 0.03% 0.03%

88 0060600097 screw HRF-661FF/ASS 4 0.00% 0.00%

89 0060600097 screw HRF-661FF/ASS 2 0.00% 0.00%

90 0060214959 fridge top hinge box HRF-661FF/ASS 1 0.00% 0.00% *

91 0060600251 screw HRF-661FF/ASS 4 0.00% 0.00%

92 0060161090 fridge top hinge HRF-661FF/ASS 1 0.00% 0.00%

93 0060818126 refrigerator wind passage assembly HRF-661FF/ASS 1 0.00% 0.00%

94 00609340017 electric wind door HRF-661FF/ASS 1 0.00% 0.00%

95 0060214734 front foamed of refrigerator wind passage HRF-661FF/ASS 1 0.00% 0.00%

No. In the

exploded

view

Spare parts

number Spare parts description in English Model Qty Failure rate The proportion

of the spare

part stock Remark

technical

bulletin ID

number

96 0060818127 refrigerator wind passage cover assembly HRF-661FF/ASS 1 0.00% 0.00%

97 00606040084 lamp HRF-661FF/ASS 1 0.00% 0.00%

98 0060600097 screw HRF-661FF/ASS 2 0.00% 0.00%

99 0060214630 refrigerator top lampshade HRF-661FF/ASS 1 0.00% 0.00% *

100 0060215432 dryer fix slip HRF-661FF/ASS 1 0.01% 0.01%

101 0060207543 egg rack HRF-661FF/ASS 1 0.00% 0.00%

102 00606050061 lamp switch HRF-661FF/ASS 1 0.00% 0.00% *

103 0060214565 fridge shelf HRF-661FF/ASS 2 0.00% 0.00%

104 0060821776 foamed cabinet assembly HRF-661FF/ASS 1 0.12% 0.12% *

105 0060214565 fridge shelf HRF-661FF/ASS 1 0.00% 0.00%

106 0060818319 vegetable container cover HRF-661FF/ASS 1 0.00% 0.00% *

107 0060214963 sensor cover assembly HRF-661FF/ASS 1 0.00% 0.00%

108 0060214384 deodorization box HRF-661FF/ASS 1 0.00% 0.00%

109 0060819042 cold water jug assembly HRF-661FF/ASS 1 0.00% 0.00%

110 0060214735 foam block HRF-661FF/ASS 1 0.00% 0.00% *

111 0060818825A fridge bottom hinge assembly HRF-661FF/ASS 1 0.00% 0.00% *

112 0060600097 screw HRF-661FF/ASS 1 0.02% 0.02%

113 0060818589 top drawer assembly HRF-661FF/ASS 1 0.00% 0.00%

114 0060818315 right slide way of top drawer HRF-661FF/ASS 1 0.00% 0.00% *

115 0060818314 left slide way of top drawer HRF-661FF/ASS 1 0.00% 0.00%

116 00609380554 right slide way of lower drawer HRF-661FF/ASS 1 0.00% 0.00%

117 00609380553 left slide way of lower drawer HRF-661FF/ASS 1 0.00% 0.00%

118 0060818590 lower drawer assembly HRF-661FF/ASS 1 0.06% 0.06%

119 0060818314 left slide way of top vegetable box HRF-661FF/ASS 1 0.00% 0.00%

120 0060600097 screw HRF-661FF/ASS 1 0.00% 0.00% *

121 0060818315 right slide way of top vegetable box HRF-661FF/ASS 1 0.00% 0.00%

122 0060818292 top vegetable box assembly HRF-661FF/ASS 1 0.00% 0.00%

123 0060512560 manual instruction HRF-661FF/ASS 1 0.00% 0.00%

124 0060512939 packing HRF-661FF/ASS 1 0.00% 0.00%

No. In the

exploded

view

Spare parts

number Spare parts description in English Model Qty Failure rate The proportion

of the spare

part stock Remark

technical

bulletin ID

number

1 0060818999 fridge top bottle seat assembly HRF-661FF/ASS 1 0.02% 0.02% *

2 0060818348 fridge center bottle seat assembly HRF-661FF/ASS 3 0.01% 0.01%

3 0060818349 fridge bottom bottle seat assembly HRF-661FF/ASS 1 0.00% 0.00%

4 0060821749 fridge foam door HRF-661FF/ASS 1 0.00% 0.00%

5 0064098047 screw HRF-661FF/ASS 4 0.00% 0.00% *

6 0064082803 screw HRF-661FF/ASS 4 0.00% 0.00%

7 0060219681 handle seat HRF-661FF/ASS 2 0.06% 0.06% *

8 0060163046 handle HRF-661FF/ASS 1 0.00% 0.00%

90060821749S fridge door seal assembly HRF-661FF/ASS 1 0.00% 0.00%

No. In the

exploded

view

Spare parts

number Spare parts description in English Model Qty Failure rate The proportion

of the spare

part stock Remark

technical

bulletin ID

number

1 0060818280 freezer top bottle seat assembly HRF-661FF/ASS 4 0.00% 0.00%

2 0060214607 cover of filler HRF-661FF/ASS 1 0.00% 0.00%

3 0064000156 lamp HRF-661FF/ASS 1 0.00% 0.00%

4 0060103988 press patch of filler bracket HRF-661FF/ASS 1 0.00% 0.00%

5 0064082811 cross groove self attach screw HRF-661FF/ASS 1 0.00% 0.00%

6 0064000270 lamp switch HRF-661FF/ASS 1 0.00% 0.00%

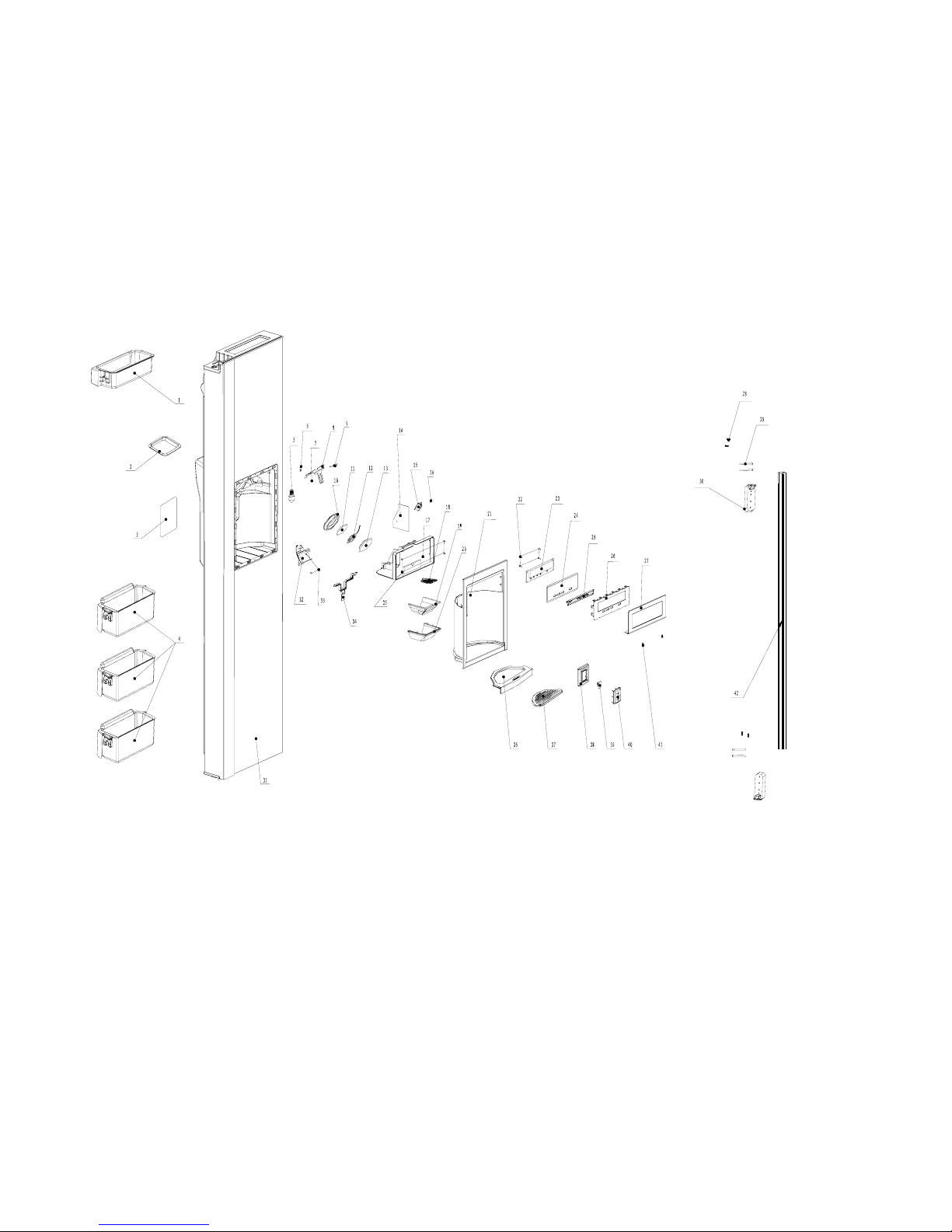

freezer foaming door assembly

fridge foamed door assembly

No. In the

exploded

view

Spare parts

number Spare parts description in English Model Qty Failure rate The proportion

of the spare

part stock Remark

technical

bulletin ID

number

7 0060600070 spring of filler bracket HRF-661FF/ASS 1 0.00% 0.00% *

8 0060300256 seal ring of leaking mouth HRF-661FF/ASS 1 0.12% 0.12%

9 0060300254 sponge tray of filler HRF-661FF/ASS 1 0.00% 0.00%

10 00606040068 cover heater of filler mouth HRF-661FF/ASS 1 0.00% 0.00% *

11 0060205622 filler cover HRF-661FF/ASS 1 0.00% 0.00%

12 0060214992 switch plywood HRF-661FF/ASS 1 0.00% 0.00%

13 0060600096 jiggling switch HRF-661FF/ASS 1 0.00% 0.00%

14 0064082811 cross groove self attach screw HRF-661FF/ASS 1 0.00% 0.00% *

15 0060214609 bracket of control board HRF-661FF/ASS 1 0.00% 0.00%

16 0060301125 protection cover tray of filler HRF-661FF/ASS 1 0.00% 0.00% *

17 0060818937 dispenser outsider bucket HRF-661FF/ASS 1 0.00% 0.00% *

18 0060819075F display panel I HRF-661FF/ASS 1 0.00% 0.00%

19 0064001168A display panel II HRF-661FF/ASS 1 0.00% 0.00%

20 0064098047 screw HRF-661FF/ASS 4 0.00% 0.00%

21 0064082803 screw HRF-661FF/ASS 4 0.06% 0.06% *

22 0060219681 handle seat HRF-661FF/ASS 2 0.06% 0.06% *

23 0060821528 freezer foamed door HRF-661FF/ASS 1 0.00% 0.00%

24 0060806082 electromagnetism valve HRF-661FF/ASS 1 0.00% 0.00% *

25 0060600097 cross groove self attach screw HRF-661FF/ASS 3 0.00% 0.00%

26 0060214613 bracket of touch switch HRF-661FF/ASS 1 0.00% 0.00%

27 0060600097 cross groove self attach screw HRF-661FF/ASS 4 0.00% 0.00%

28 0060214599 big water tray HRF-661FF/ASS 1 0.00% 0.00%

29 0060214600 small water tray HRF-661FF/ASS 1 0.00% 0.00% *

30 0064082855 cross groove self attach screw HRF-661FF/ASS 1 0.00% 0.00%

31 0060163046 handle HRF-661FF/ASS 1 0.00% 0.00%

32 0060821528S freezer foamed door seal HRF-661FF/ASS 1 0.02% 0.02%

No. In the

exploded

view

Spare parts

number Spare parts description in English Model Qty Failure rate The proportion

of the spare

part stock Remark

technical

bulletin ID

number

10060205637 slide seat HRF-661FF/ASS 1 0.00% 0.00%

20060600075 spring column pin HRF-661FF/ASS 1 0.00% 0.00% *

30060205638 slide block HRF-661FF/ASS 1 0.06% 0.06%

40060205640 connecting guide HRF-661FF/ASS 1 0.00% 0.00%

50060205639 connecting cover HRF-661FF/ASS 1 0.00% 0.00% *

60060600074 compressed spring HRF-661FF/ASS 1 0.00% 0.00%

70060600076 spring column pin HRF-661FF/ASS 1 0.00% 0.00%

80060806081 electromagnetism valve HRF-661FF/ASS 1 0.01% 0.01% *

90064000955 ice-crushed motor HRF-661FF/ASS 1 0.00% 0.00%

10 0067270041 double tape HRF-661FF/ASS 1 0.00% 0.00%

11 0060300257 eliminating noise foam block HRF-661FF/ASS 1 0.00% 0.00%

12 0060214386 ice-crushed box HRF-661FF/ASS 1 0.00% 0.00% *

13 0060600091 stainless cross tray bolt HRF-661FF/ASS 2 0.00% 0.00%

14 0060600077 dial fork HRF-661FF/ASS 1 0.00% 0.00%

15 0060600078 fitting screw HRF-661FF/ASS 1 0.00% 0.00%

No. In the

exploded

view

Spare parts

number Spare parts description in English Model Qty Failure rate The proportion

of the spare

part stock Remark

technical

bulletin ID

number

10060214377 ice store box HRF-661FF/ASS 1 0.00% 0.00%

20060300270 ice box seal ring HRF-661FF/ASS 1 0.00% 0.00%

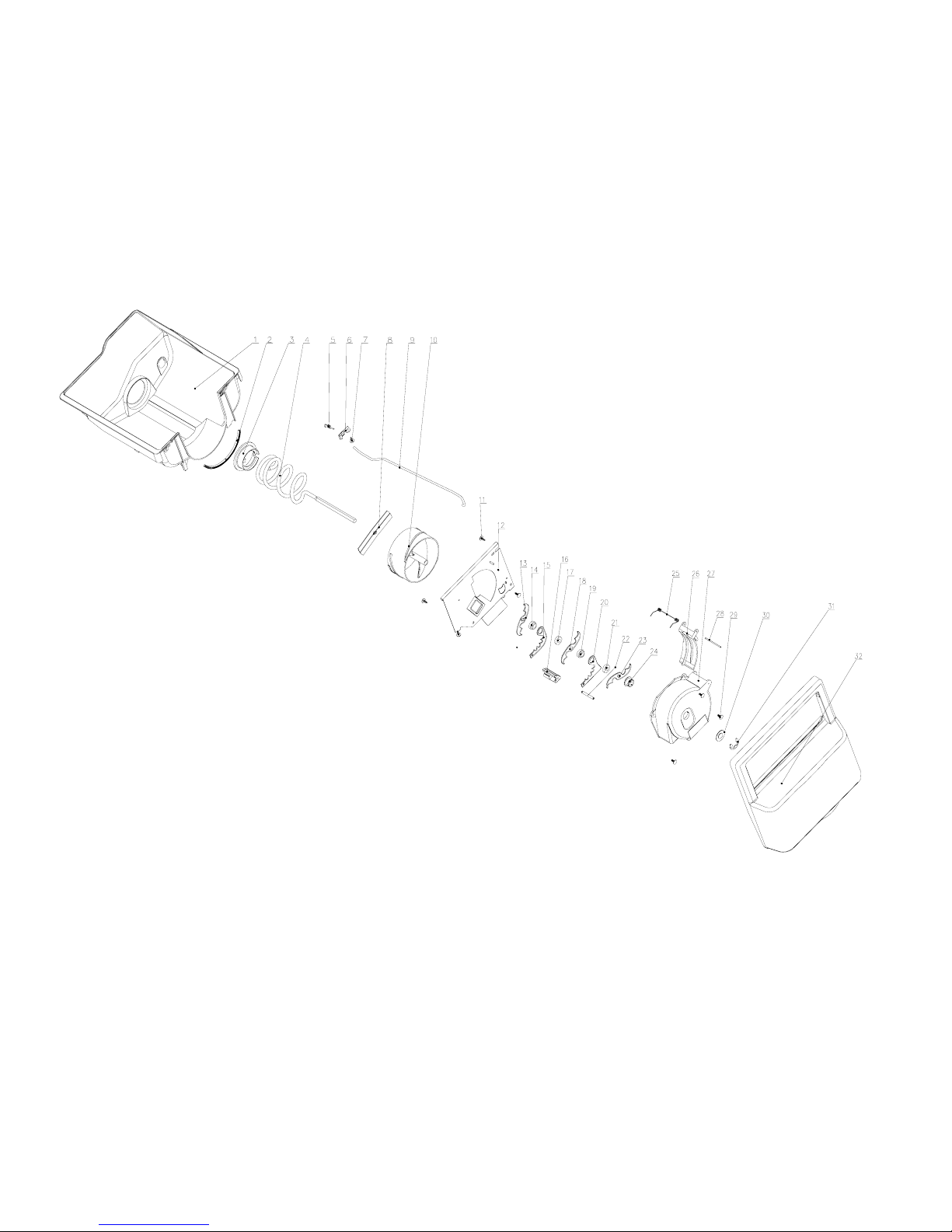

ice-crushed motor box assembly

ice-crushed box assembly

No. In the

exploded

view

Spare parts

number Spare parts description in English Model Qty Failure rate The proportion

of the spare

part stock Remark

technical

bulletin ID

number

30060205623 shaft cover of push shaft HRF-661FF/ASS 1 0.06% 0.06%

40060161361 ice push screw HRF-661FF/ASS 1 0.00% 0.00% *

50060600067 wrest spring of dial pole HRF-661FF/ASS 1 0.00% 0.00%

60060103727 bracket of dial pole HRF-661FF/ASS 1 0.00% 0.00%

700608010087 screw HRF-661FF/ASS 1 0.00% 0.00%

80060103725 block patch of push ware HRF-661FF/ASS 1 0.01% 0.01%

90060161948 dial pole of push tongue HRF-661FF/ASS 1 0.00% 0.00%

10 0060205605 roller of push HRF-661FF/ASS 1 0.00% 0.00%

11 00608010087 screw HRF-661FF/ASS 1 0.00% 0.00% *

12 0060161303 ice-crushed clapboard HRF-661FF/ASS 1 0.00% 0.00%

13 0060103724 No.3 circumrotate skates HRF-661FF/ASS 1 0.06% 0.06% *

14 0060205607 No.1 skates tray HRF-661FF/ASS 4 0.00% 0.00%

15 0060103721 No.2 fixup skates HRF-661FF/ASS 1 0.00% 0.00%

16 0060205609 fitting block of skates HRF-661FF/ASS 1 0.00% 0.00%

17 0060205608 No.2 states tray HRF-661FF/ASS 1 0.00% 0.00% *

18 0060103723 No.2 circumrotate skates HRF-661FF/ASS 1 0.00% 0.00%

19 0060205607 No.1 skates tray HRF-661FF/ASS 1 0.00% 0.00%

20 0060103720 No.1 fixup skates HRF-661FF/ASS 1 0.00% 0.00%

21 0060205608 No.2 states tray HRF-661FF/ASS 1 0.06% 0.06%

22 0060600082 spring column pin HRF-661FF/ASS 1 0.00% 0.00% *

23 0060103722 No.1 circumrotate skates HRF-661FF/ASS 1 0.00% 0.00%

24 0060205604 fitting screw HRF-661FF/ASS 1 0.00% 0.00% *

25 0060600072 living tongue wrest spring HRF-661FF/ASS 1 0.00% 0.00%

26 0060205606 wrest spring of ice box HRF-661FF/ASS 1 0.01% 0.01%

27 0060205616 skate seal HRF-661FF/ASS 1 0.00% 0.00%

28 0060600083 pin of living tongue HRF-661FF/ASS 1 0.00% 0.00%

29 0060600091 screw HRF-661FF/ASS 3 0.00% 0.00%

30 0060600069 round tray HRF-661FF/ASS 1 0.00% 0.00% *

31 0060600071 spring tray HRF-661FF/ASS 1 0.06% 0.06%

32 0060214378 front lid of ice box HRF-661FF/ASS 1 0.00% 0.00% *

6,Above should be improved accord with the reply of the market half a year per time.

1.If the color of the Spare parts number is red,it means that the number has been changed,it should be paid more attention when you place the Spare Parts

order to us.

2,The failer rate and the proportion of the spare-part stock are regarded as the reference of the stock for spare-parts;The first time should be stocked
