Haier HRF15N3AGS User manual

French-Door Bottom Mount Refrigerator
Réfrigérateur à double porte à congélateur inférieur
Refrigerador de dos puertas de montaje inferior
Installation and User Manual
Instructions d’installation et
guide de l’utilisateur
Instrucciones de instalación y
Manual del usuario
HRF15N3AGS
Part # XXXXXXXXXX

1
TABLE OF CONTENTS
REFRIGERATOR SAFETY ........................................................................................................................................................................ 2
PART AND FEATURES ............................................................................................................................................................................ 3
INSTALLATION INSTRUCTIONS............................................................................................................................................................. 4
Unpack the Refrigerator.............................................................................................................................................................................................4
Location Requirements..............................................................................................................................................................................................4
Electrical Requirements .............................................................................................................................................................................................5
Complete the Installation...........................................................................................................................................................................................5
Leveling and Door Adjustment (if needed) ...............................................................................................................................................................5
REFRIGERATOR USE............................................................................................................................................................................... 6
Opening and Closing Doors .......................................................................................................................................................................................6
Using the Controls......................................................................................................................................................................................................6
Features ......................................................................................................................................................................................................................8
REFRIGERATOR CARE ............................................................................................................................................................................ 9
Cleaning ......................................................................................................................................................................................................................9
Lights...........................................................................................................................................................................................................................9
Vacation and Moving Care .........................................................................................................................................................................................9
TROUBLESHOOTING........................................................................................................................................................................... 10
LIMITED WARRANTY ........................................................................................................................................................................... 12
RECORD KEEPING
Thank you for purchasing this Haier product. This user manual will
help you get the best performance from your new refrigerator.
For future reference, record the model and serial number located on
the inside wall of the refrigerator, and the date of purchase.
Staple your proof of purchase to this manual to aid in obtaining
warranty service if needed.
___________________________________________________________
Model number
___________________________________________________________
Serial number
___________________________________________________________
Date of purchase

2
REFRIGERATOR SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
DANGER
WARNING
CAUTION
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will
follow the safety alert symbol and either the word “DANGER,” “WARNING” or “CAUTION.”
These words mean:
An imminently hazardous situation. You could be killed or seriously injured if you don’t
immediately follow instructions.
A potentially hazardous situation which, if not avoided, could result in death or serious
bodily injury.
A potentially hazardous situation which, if not avoided, may result in moderate or minor
injury.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what
can happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of re, electrical shock, injury to persons, or damage when using the refrigerator, follow
basic precautions, including the following:
• Plug into a grounded 3 prong outlet.
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Disconnect power before servicing.
• Replace all parts and panels before operating.
• Remove doors from your old refrigerator.
• Use nonammable cleaner.
• Keep ammable materials and vapors, such as gasoline,
away from refrigerator.
• Use two or more people to move and install
refrigerator.
• This refrigerator should not be recessed or built-in
an enclosed cabinet. It is designed for freestanding
installation only.
• Disconnect power before installing ice maker (on ice
maker kit ready models only).
• Use a sturdy glass when dispensing ice (on some
models).
• Turn o the water supply to the refrigerator before
removing or replacing the water lter or locking cap (on
some models).
• If your refrigerator is not being used, remove the doors.
This will reduce the possibility of danger to children.
READ AND SAVE THESE INSTRUCTIONS
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other
reproductive harm.

3
PROPER DISPOSAL OF YOUR OLD
REFRIGERATOR
WARNING
Suffocation Hazard
Remove doors from your old refrigerator.
Failure to do so can result in death or brain damage.
IMPORTANT: Child entrapment and suocation are not problems
of the past. Junked or abandoned refrigerators are still dangerous -
even if they will sit for “just a few days.” If you are getting rid of your
old refrigerator, please follow these instructions to help prevent
accidents.
Before You Throw Away Your Old Refrigerator or Freezer:
• Take o the doors.
• Leave the shelves in place so that children may not easily climb
inside.
PART AND FEATURES
a
bb
bb
bb
d
l
e
g
h
i
j
cf
f
kk
a LED Lights
b Door Bin
c Model and Serial # Plate
d Vertically-Hinged Bar
e Cool Zone Glass Cover
f Glass Shelf
g Cool Zone Control
h Cool Zone Drawer
i Upper Freezer Storage Drawer
j Lower Freezer Storage Drawer
k Adjustable Foot
l Control Panel

4
INSTALLATION INSTRUCTIONS
UNPACK THE REFRIGERATOR
WARNING
Excessive Weight Hazard
Use two or more people to move and install refrigerator.
Failure to do so can result in back or other injury.
REMOVE THE PACKAGING
• Remove tape and glue residue from surfaces before turning on
the refrigerator. Rub a small amount of liquid dish soap over the
adhesive with your ngers. Wipe with warm water and dry.
• Do not use sharp instruments, rubbing alcohol, ammable
uids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see “Refrigerator Safety.”
• Dispose of/recycle all packaging materials.
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the refrigerator
for cleaning or service, be sure to cover the oor with
cardboard or hardboard to avoid oor damage. Always pull
the refrigerator straight out when moving it. Do not wiggle or
“walk” the refrigerator when trying to move it, as oor damage
could occur.
CLEAN BEFORE USING
After you remove all of the packaging materials, clean the inside
of the refrigerator before using it. See the cleaning instructions in
“Refrigerator Care.”
Important information to know about glass shelves and
covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
Tempered glass is designed to shatter into many small, pebble-
size pieces. This is normal. Glass shelves and covers are heavy.
Use both hands when removing them to avoid dropping.
LOCATION REQUIREMENTS
WARNING
Explosion Hazard
Keep flammable materials and vapors, such as gasoline,
away from appliance.
Failure to do so can result in death, explosion or fire.
IMPORTANT: This refrigerator is designed for indoor, household
use only. This refrigerator should not be recessed or built-in an
enclosed cabinet. It is designed for freestanding installation only.
To ensure proper ventilation for your refrigerator, allow for 2”
(5.08cm) of space on each side and at the top. Allow for 2” (5.08 cm)
of space behind the refrigerator. When installing your refrigerator
next to a xed wall, leave 4” (10 cm) minimum to allow for the door
to swing open.
4" (10.2 cm)
2" (5.08 cm)
2" (5.08 cm)
NOTE: This refrigerator is intended for use in a location where
the temperature ranges from a minimum of 55°F (13°C) to a
maximum of 110°F (43°C). The preferred room temperature range
for optimum performance, which reduces electricity usage and
provides superior cooling, is between 60°F (15°C) and 90°F (32°C). It
is recommended that you do not install the refrigerator near a heat
source, such as an oven or radiator.

5
ELECTRICAL REQUIREMENTS
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove the ground prong from the power
cord plug.
Do not use an adapter.
Do not use an extension cord.
Failure to do so can result in death, fire or
electrical shock.
Before you move your refrigerator into its nal location, it is
important to make sure you have the proper electrical connection.
Recommended Grounding Method
A 115 volt, 60 Hz, AC only 15- or 20-amp fused, grounded electrical
supply is required. It is recommended that a separate circuit serving
only your refrigerator be provided. Use an outlet that cannot be
turned o by a switch. Do not use an extension cord.
NOTE: Before performing any type of installation or cleaning,
disconnect the refrigerator from the electrical source. When you
are nished, reconnect the refrigerator to the electrical source and
reset the temperature controls to the desired setting.
COMPLETE THE INSTALLATION
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove the ground prong from the power
cord plug.
Do not use an adapter.
Do not use an extension cord.
Failure to do so can result in death, fire or
electrical shock.
1. Plug into a grounded 3 prong outlet.
2. Return all removable door parts to door and food to refrigerator.
NOTE: This refrigerator begins operating as soon as it is connected
to the power supply.
LEVELING AND DOOR
ADJUSTMENT (IF NEEDED)
The refrigerator must be level to maintain optimal performance and
appearance.
LEVELING
1. Move the refrigerator to its nal location.
2. Turn the feet on the bottom, front of the cabinet to raise or
lower that side of the refrigerator until the refrigerator is level
side-to-side.
3. Turn both front legs, by the same amount, to slightly raise the
front of the refrigerator. This will make it easier for the doors to
close.
NOTE: Having someone push against the top of the refrigerator
takes some weight o the leveling screws. This makes it easier
to turn the screws.

6
REFRIGERATOR USE

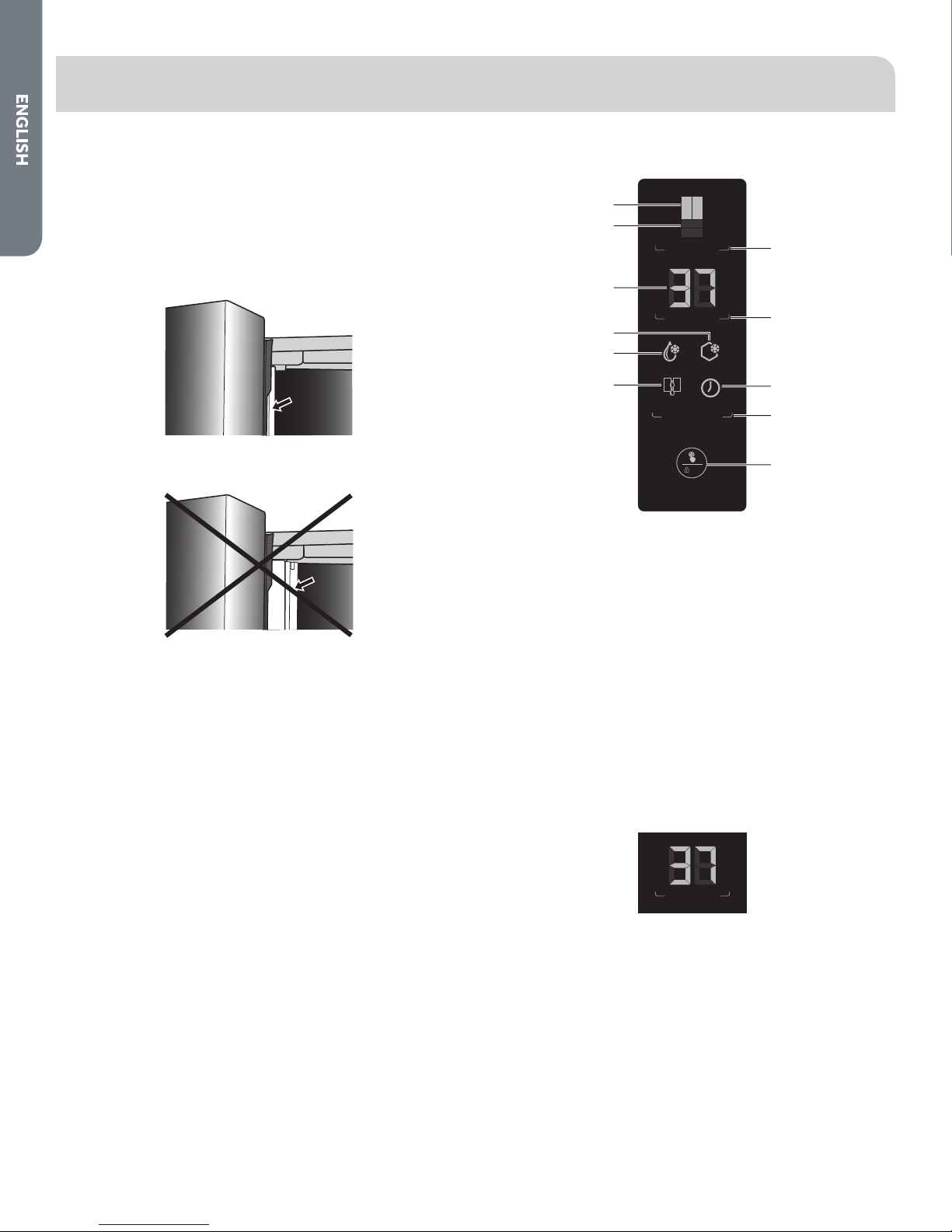

OPENING AND CLOSING DOORS
There are two refrigerator compartment doors. The doors can be
opened and closed either separately or together.
• There is a vertically-hinged bar on the left-hand refrigerator
door.
• When closing the left-hand refrigerator door, the hinged bar
folds behind the right-hand door, joining the two refrigerator
doors.
NOTE: Before closing the left-hand door, make sure the
vertically-hinged bar is folded inward. If the bar is pulled outward
it may become damaged when you try to close the door.
USING THE CONTROLS
Temp Zone
Temp Set
Function Set
°F
3S
Sabbath
Quick Frz
Quick Cool
Dehumidify
g
h
j
i
k
a
b
c
e
f
d
a Refrigerator Compartment Indicator
b Freezer Compartment Indicator
c Temperature Indicator
d Quick Freeze Indicator
e Quick Cool Indicator
f Dehumidify Indicator
g Temp Zone Button
h Temp Set Button
i Sabbath Indicator
j Function Set Button
k Conrm Selection
Button
• When the refrigerator is powered on for the rst time, the
indicator for the refrigerator compartment lights up and the
temperature is displayed. The control lock is active. See Control
Panel Lock later in this section to unlock the controls.
SENSOR KEYS
The buttons on the control panel are sensor keys, which respond
when lightly touched.
CONTROL PANEL DISPLAY
Temp Set
°F
When no buttons or doors are operated for 30 seconds, all the LEDs
on display panel turn o.
When a button is pressed or a door opened, the LEDs on display
panel illuminate.

7
CONTROL PANEL LOCK
The control panel is automatically locked after 30 seconds. To
change any settings the control panel must be unlocked.
To lock the control panel:
1. Press and Hold the Conrm Selection button for 3 seconds.
3S
To unlock the control panel:
1. Press and Hold the Conrm Selection button for 3 seconds.
3S
DOOR ALARM
When the refrigerator door is open for more than 2 minutes, the
Door Open alarm will sound. The alarm can be silenced by closing
the door. If the door is left open for longer than 7 minutes, the light
inside the refrigerator will automatically switch o.
TEMPERATURE CONTROLS
The temperature range for the refrigerator compartment is
34°F to 42°F (1°C to 6°C). The temperature range for the freezer
compartment is -6°F to 4°F (-21°C to -16°C).
The refrigerator compartment is preset to the recommended
temperature of 37°F (5°C) and the freezer compartment is
preset to the recommended temperature of 0°F (-18°C). When
the refrigerator is rst plugged in, the display will show the
recommended temperature settings.
IMPORTANT:
• The recommended setting should be correct for normal
household refrigerator use.
• When the refrigerator is rst turned on, it may take up to 12
hours to cool to the preset temperatures. Wait 24 hours for your
refrigerator to cool completely before adding food. If you add
food before the refrigerator has cooled completely, your food
may spoil.
• If the temperature is too warm or too cold in the refrigerator or
freezer, rst check the air vents to be sure they are not blocked
before adjusting the controls.
Adjusting Controls
Except when starting the refrigerator, do not adjust either
control more than one setting at a time. Wait 24 hours between
adjustments for the temperature to stabilize.
To adjust the refrigerator temperature:
1. If locked, unlock the control panel by pressing and holding the
Conrm Selection button for 3 seconds.
2. Press TEMP ZONE until the Refrigerator Compartment Indicator
lights up.
Temp Zone
The current temperature setting is displayed.
3. Press TEMP SET to adjust the temperature.
Temp Set
°F
The temperature increases by one degree with each press of
Temp Set.
4. Press Conrm Selection button.
If you do not press the Conrm Selection button after 5 seconds
the control will return to the previous set temperature.
To adjust the freezer temperature:
1. If locked, unlock the control panel by pressing and holding the
Conrm Selection button for 3 seconds.
2. Press Temp Zone until the Freezer Compartment Indicator
lights up.
Temp Zone
The current temperature setting is displayed.
3. Press TEMP SET to adjust the temperature.
Temp Set
°F
The temperature increases by one degree with each press of
Temp Set.
4. Press Conrm Selection button.
If you do not press the Conrm Selection button after 5 seconds
the control will return to the previous set temperature.
QUICK COOL
The Quick Cool function accelerates the cooling of fresh food and
protects the foods already stored from undesirable warming.
1. If locked, unlock the control panel by pressing and holding the
Conrm Selection button for 3 seconds.
2. Press FUNCTION SET until the Quick Cool Indicator starts to
blink.
Function Set
Sabbath
Quick Frz
Quick Cool
Dehumidify
Temp Set
°F
3. Press Conrm Selection button.
4. The temperature display will read qC to indicate Quick Cool is
activated.
5. Repeat steps 1-3 to deselect Quick Cool.
NOTE: Quick Cool will automatically turn o after 3 hours.
QUICK FREEZE
The Quick Freeze function accelerates the freezing of fresh food
and protects the foods already stored from undesirable warming. If
you need to freeze a large amount of food, it is recommended you
set the Quick Freeze function a few hours in advance.
1. If locked, unlock the control panel by pressing and holding the
Conrm Selection button for 3 seconds.
2. Press FUNCTION SET until the Quick Freeze Indicator starts to
blink.
Function Set
Sabbath
Quick Frz
Quick Cool
Dehumidify
Temp Set
°F
3. Press Conrm Selection button.

8
4. The temperature display will read qF to indicate Quick Freeze is
activated.
5. Repeat steps 1-3 to deselect Quick Freeze.
NOTE: Quick Freeze will automatically turn o after 24 hours.
DEHUMIDIFY
If moisture appears on the vertically-hinged bar on the left-hand
refrigerator door, select the Dehumidify function.
1. If locked, unlock the control panel by pressing and holding the
Conrm Selection button for 3 seconds.
2. Press FUNCTION SET until the Dehumidify Indicator starts to
blink.
Function Set
Sabbath
Quick Frz
Quick Cool
Dehumidify
3. Press Conrm Selection button.
4. Repeat steps 1-3 to deselect Dehumidify.
SABBATH
The Sabbath function is designed for those whose religious
observances require turning o the lights. All interior lights and
alarms will be disabled.
1. If locked, unlock the control panel by pressing and holding the
Conrm Selection button for 3 seconds.
2. Press FUNCTION SET until the Sabbath Indicator starts to blink.
Function Set
Sabbath
Quick Frz
Quick Cool
Dehumidify
3. Press Conrm Selection button.
4. To deselect the Sabbath function, press and hold the Conrm
Selection button for 5 seconds.
COOL ZONE DRAWER
The refrigerator compartment is equipped with a Cool Zone drawer
which allows you to store food at the proper temperature, to ensure
its optimal nutritional value.
1. Slide the control to the desired setting.
Setting Description
Fruits and Vegetables
Suitable to store fruits and vegetables
Soft Drinks
Rapid cooling and storage of beverages
Meats
Suitable to store meat.
FEATURES
ADJUSTABLE SHELVES
The height of the shelves can be adjusted to t your storage needs.
1. To remove a shelf, lift up on both the front and back edge to
disengage the shelf hooks from the shelf supports along the
refrigerator wall and pull it out.
2. To reinstall a shelf, rest the shelf on both the front and rear
supports. Push the shelf toward the rear of the refrigerator until
the back of the shelf hooks around the rear shelf supports.
REMOVABLE DOOR BINS
The door bins can be removed for cleaning:
1. Place hands on both sides of the bin and lift upward.
2. Pull the door bin out.
REMOVABLE FREEZER STORAGE DRAWER
IMPORTANT: Do not overload the drawers. Max. load of each
drawer is 77 lbs (35 kg).
1. Remove the freezer draw by extending the drawer fully, and then
lift up on the drawer and pull out to remove.

9
REFRIGERATOR CARE
CLEANING
Both the refrigerator and freezer sections defrost automatically.
However, clean both sections about once a month to avoid buildup
of odors. Wipe up spills immediately.
Because air circulates between both sections, any odors formed in
one section will transfer to the other. You must thoroughly clean
both sections to eliminate odors. To avoid odor transfer and drying
out of food, wrap or cover foods tightly.
WARNING
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion or fire.
IMPORTANT:
• Do not use harsh chemicals, ammonia, chlorine bleach,
concentrated detergent, solvents, abrasives or metal scouring
pads to clean your refrigerator inside or out. They can damage
and/or discolor the refrigerator nish.
• Do not use warm water to clean glass shelves while they are still
cold. Glass may break when exposed to sudden temperature
changes or impact.
1. Unplug refrigerator or disconnect power.
2. Clean the interior. Hand wash, rinse, and dry removable parts
and interior surfaces thoroughly. Use a clean sponge or soft
cloth and a mild detergent in warm water.
3. Clean the exterior surfaces.
Painted metal: Wash painted metal exteriors with a clean, soft
cloth or sponge and a mild detergent in warm water. Rinse
surfaces with clean, warm water and dry immediately to avoid
water spots.
Stainless steel: Stainless steel is corrosion resistant and not
corrosion-proof. To help avoid corrosion of your stainless steel,
wash stainless steel surfaces with a clean, soft cloth or sponge
and a mild detergent in warm water. Rinse surfaces with clean,
warm water and dry immediately to avoid water spots.
NOTE: When cleaning stainless steel, always wipe in the
direction of the grain to avoid cross-grain scratching.
4. Plug in refrigerator or reconnect power.
LIGHTS
The interior lights of the refrigerator turn o when the doors are
open for more than 7 minutes.
IMPORTANT: Your refrigerator is equipped with LED lighting. These
lights are designed to last for the life of your refrigerator. However,
if the lights stop operating, please contact a qualied technician for
replacement.
VACATION AND MOVING CARE
VACATION
If You Choose to Leave the Refrigerator On While You’re Away:
1. Use up any perishables and freeze other items.
If You Choose to Turn O the Refrigerator Before You Leave:
1. Remove all food from the refrigerator and freezer.
2. Unplug refrigerator or disconnect power.
3. Clean refrigerator, wipe it, and dry well.
4. Tape rubber or wood blocks to the tops of both doors to prop
them open far enough for air to get in. This stops odor and mold
from building up.
MOVING
WARNING
Excessive Weight Hazard
Use two or more people to move and install refrigerator.
Failure to do so can result in back or other injury.
When you are moving your refrigerator to a new home, follow these
steps to prepare it for the move.
1. Remove all food from the refrigerator and pack all frozen food in
dry ice.
2. Unplug refrigerator.
3. Clean, wipe, and dry thoroughly.
4. Take out all removable parts, wrap them well, and tape them
together so they don’t shift and rattle during the move.
5. Raise the leveling legs so they don’t scrape the oor. See
“Leveling.”
6. Tape the doors closed and tape the power cord to the back
of the refrigerator. When you get to your new home, put
everything back and refer to the “Installation Instructions”
section for preparation instructions.

10
TROUBLESHOOTING
Try the solutions suggested here rst in order to avoid the cost of an unnecessary service call.
REFRIGERATOR IS NOT OPERATING
PROBLEM POSSIBLE CAUSE(S) SOLUTION
Refrigerator does not run Refrigerator is unplugged. Plug power cord into power source.
Breaker is tripped or turned o / Fuse is
blown. Reset / Turn on breaker or replace fuse.
Refrigerator is in defrost mode. Wait about 40 minutes for defrost cycle to end and cooling
system to restart.
Refrigerator compressor
runs frequently or for long
periods of time
NOTE: This refrigerator is
designed to run for longer
periods of time at a lower
energy usage.
Refrigerator is rst plugged in. This is normal. Allow 24 hours for the refrigerator to cool down.
Warm or large amounts of food added. This is normal.
Door is left open. Ensure that door is not being held open by an item.
Hot weather or frequent openings This is normal.
Temperature control set to coldest
setting. Adjust temperature to a warmer setting.
Refrigerator has an odor Food is not sealed or packaged properly. Reseal packaging. Place an opened box of baking soda in the
refrigerator, replace every 3 months.
Interior needs to be cleaned. Clean the interior. See “Cleaning.”
Food stored too long. Dispose of spoiled food.
Light does not come on Refrigerator is unplugged. Plug refrigerator in to power source.
LED light is burned out. Contact a qualied technician to replace the burned out LED.
Doors do not close properly Refrigerator is not level. See “Leveling.”
Something is obstructing door closure. Check for and remove obstructions.
Vibration or rattling Refrigerator is not resting rmly on oor. See “Leveling.”
Normal Sounds It sounds like water is owing from the
refrigerator. Refrigerant owing in the lines will make this sound when the compressor starts and stops.
The refrigerator has an automatic defrosting system. The
defrosted water will make this sound.
Humming or buzzing sounds The compressor and fans for cold air circulation can make this
sound. If the refrigerator is not level, the sound will be louder.
Cracking or clicking sounds The interior parts will make this sound as they contract and
expand in response to temperature changes.

11
TEMPERATURE AND MOISTURE
PROBLEM POSSIBLE CAUSE(S) SOLUTION
Refrigerator or
freezer is too warm Temperature control is not set low enough. Adjust the compartment to a colder setting; allow 24 hours for the temperature to adjust.
Doors opened frequently or left open. Keep door closed / Check that a package is not preventing door from
closing.
Warm food added recently. Allow time for food and refrigerator to cool.
The space between the back of the
refrigerator and the wall is too close. Allow 2” (5 cm) space between the back of the refrigerator and the wall.
Items against back of compartments are
blocking proper airow. Store items only inside the trim of the glass shelves; don’t place items against sides of the compartments or directly in front of any
vents.
Refrigerator or
freezer is too cold Temperature control is set too low. Adjust temperature in the compartment to the next warmer setting; allow 24 hours to adjust.
Moisture on
exterior/interior of
refrigerator
High humidity This is normal. Dry surface and adjust temperature to slightly colder
setting. Turn on the “Dehumidify” function if moisture appears on
the hinged bar on the left-hand refrigerator door.
Doors opened frequently or left open. Keep door closed. Check that a package is not preventing door from
closing.
Open container of water in refrigerator Cover or seal container
Frost or ice crystals
on frozen food Freezer door left open or opened frequently. Adjust the temperature to a warmer setting; allow 24 hours to adjust.
Items blocking freezer air vents and
preventing proper air ow. Move items away from rear wall.
Food freezing in
refrigerator Food placed too close to the air vent. Move items away from back and top of the refrigerator.
Temperature control set too cold. Adjust the temperature to a less cold setting.
FOR MORE HELP, VISIT HAIER.COM OR CALL THE CONSUMER HELP LINE AT
1-877-377-3639.

12
LIMITED WARRANTY
IN-HOME SERVICE
FULL ONE YEAR WARRANTY
For 12 months from the date of original retail purchase, Haier will
repair or replace any part free of charge including labor that fails due
to a defect in materials or workmanship.
Haier may replace or repair at their sole discretion any part, sub
system including the entire product.
Product must be accessible, without encumbrance and installed
properly to receive for warranty repair service.
LIMITED WARRANTY
After one year from the original retail purchase date, Haier will
provide a part at no cost, as indicated below, to replace said part
as a result of a defect in materials or workmanship. Haier is solely
responsible for the cost of the part. All other costs, such as labor,
trip charge, etc., are the responsibility of the owner.
Second through Fifth Year
For 60 months from the date of original retail purchase. The
components of the sealed system (e.g. hermetic compressor,
condenser and evaporator) from manufacturing defects. Any
damage to such components caused by mechanical abuse or
improper shipping and handling will not be covered.
NOTE: This warranty commences on the date the item was
purchased, and the original purchase receipt must be presented to
the authorized service representative before warranty repairs are
rendered.
Exceptions: Commercial Use Warranty
90 days labor from date of original purchase
90 days parts from date of original purchase
No other warranty applies.
FOR WARRANTY SERVICE
All service must be performed by a Haier authorized service center.
For the name and telephone number of the nearest authorized
service center, please call 1-877-337-3639.
Before calling please have available the following information:
Model number and serial number of your appliance. The name and
address of the dealer you purchased the unit from and the date of
purchase.
A clear description of the problem.
A proof of purchase (sales receipt).
This warranty covers home appliance services within the
contiguous United States and Canada and where available in
Alaska, Hawaii and Puerto Rico.
What is not covered by this warranty:
Replacement or repair of household fuses, circuit breakers, wiring
or plumbing.
A product whose original serial number has been removed or
altered.
Any service charges not specically identied as normal such as
normal service area or hours.
Replacement of light bulbs.
Damage incurred in shipping.
Damage caused by improper installation or maintenance.
Damage from misuse, abuse accident, re, ood, or acts of nature.
Damage from service other than an authorized Haier dealer or
service center.
Damage from incorrect electrical current, voltage or supply.
Damage resulting from any product modication, alteration or
adjustment not authorized by Haier.
Adjustment of consumer operated controls as identied in the
owner’s manual.
Hoses, knobs, lint trays and all attachments, accessories and
disposable parts.
Labor, service transportation, and shipping charges for the removal
and replacement of defective parts beyond the initial 12-month
period.
Damage from other than normal household use.
Any transportation and shipping charges.
THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS ED OR IMPLIED, INCLUDING BUT NOT
LIMITED TO, THE WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE
The remedy provided in this warranty is exclusive and is granted in
lieu of all other remedies.
This warranty does not cover incidental or consequential damages,
so the above limitations may not apply to you. Some states do
not allow limitations on how long an implied warranty lasts, so the
above limitations may not apply to you.
This warranty gives you specic legal rights, and you may have
other rights, which vary from state to state.
Haier America
Wayne, NJ 07470

13
TABLE DES MATIÈRES
SÉCURITÉ DU RÉFRIGÉRATEUR............................................................................................................................................................ 14
PIÈCES ET CARACTÉRISTIQUES .......................................................................................................................................................... 15
INSTRUCTIONS D’INSTALLATION ....................................................................................................................................................... 16
Déballage du réfrigérateur .......................................................................................................................................................................................16
Exigences d’emplacement.......................................................................................................................................................................................16
Spécications électriques........................................................................................................................................................................................17
Achever l’installation................................................................................................................................................................................................17
Nivellement et ajustement des portes....................................................................................................................................................................17
UTILISATION DU RÉFRIGÉRATEUR....................................................................................................................................................... 18
Ouverture et fermeture des portes.........................................................................................................................................................................18
Utilisation des commandes......................................................................................................................................................................................18
Caractéristiques .......................................................................................................................................................................................................21
ENTRETIEN DU RÉFRIGÉRATEUR ......................................................................................................................................................... 22
Nettoyage .................................................................................................................................................................................................................22
Éclairage....................................................................................................................................................................................................................22
Précautions à prendre pour les vacances ou le déménagement ...........................................................................................................................22
DÉPANNAGE........................................................................................................................................................................................ 23
GARANTIE LIMITÉE.............................................................................................................................................................................. 25
DOCUMENTS À CONSERVER
Merci d’avoir acheté ce produit Haier. Ce manuel vous aidera
à obtenir les meilleures performances de votre nouveau
réfrigérateur.
Pour référence ultérieure , notez le modèle et le numéro de série
situés sur la paroi interne du compartiment de réfrigération, et la
date d’achat.
Pour faciliter l’obtention d’un service sous garantie, agrafer la
preuve de la date d’achat à ce manuel.
___________________________________________________________
Numéro de modèle
___________________________________________________________
Numéro de série
___________________________________________________________
Date d’achat

14
SÉCURITÉ DU RÉFRIGÉRATEUR
Votre sécurité et celle des autres est très importante.
DANGER
AVERTISSEMENT
ATTENTION
Voici le symbole d’alerte de sécurité.
Ce symbole d’alerte de sécurité vous signale les dangers potentiels de décès et de blessures graves à
vous et à d’autres. Tous les messages de sécurité suivront le symbole d’alerte de sécurité et le mot
“DANGER,” “AVERTISSEMENT” ou “ATTENTION.”
Ces mots signifient :
Une situation de danger imminent. Vous courez le risque d’un décès ou de
blessures graves si vous ne suivez pas immédiatement les instructions.
Une situation potentiellement dangereuse qui, si vous ne l’évitez pas, peut
provoquer la mort ou des blessures graves.
Une situation potentiellement dangereuse qui, si vous ne l’évitez pas, peut
entraîner des blessures légères à modérées.
Tous les messages de sécurité vous diront quel est le danger potentiel et vous disent comment réduire le risque de
blessure et ce qui peut se produire en cas de non-respect des instructions.
Nous donnons de nombreux messages de sécurité importants dans ce manuel et sur votre appareil ménager.
Assurez-vous de toujours lire tous les messages de sécurité et de vous y conformer.
IMPORTANTES INSTRUCTIONS DE SÉCURITÉ
AVERTISSEMENT : An de réduire le risque d’incendie, de choc électrique, de blessures corporelles ou de dommage lors
de l’utilisation du réfrigérateur, il convient d’observer certaines précautions fondamentales, notamment :
• Brancher sur une prise de courant à 3 alvéoles, reliée à
la terre.
• Ne pas enlever la prise de liaison à la terre.
• Ne pas utiliser d’adaptateur.
• Ne pas utiliser de rallonge.
• Déconnecter la source de courant électrique avant
l’entretien.
• Replacer pièces et panneaux avant de faire la mise en
marche.
• Enlever les portes de votre ancien réfrigérateur.
• Utiliser un produit de nettoyage ininammable.
• Garder les matières et les vapeurs inammables, telles
que l’essence, loin du réfrigérateur.
• Utiliser au moins deux personnes pour déplacer et
installer le réfrigérateur.
• Le réfrigérateur ne doit pas être encastré ou installé
dans un placard fermé. Il est conçu uniquement pour
être utilisé d’une manière autoportante.
• Déconnecter la source de courant électrique avant
d’installer la machine à glaçons (sur les modèles
prêts pour l’installation d’une machine à glaçons
uniquement.)
• Utiliser un verre robuste pour prendre des glaçons (sur
certains modèles).
• Couper l’arrivée d’eau du réfrigérateur avant de retirer
ou de remplacer le ltre à eau ou le couvercle de
verrouillage (sur certains modèles).
• Si le réfrigérateur n’est pas utilisé, ôter les portes. Cela
réduira le risque de danger pour les enfants.
LIRE ET CONSERVER CES INSTRUCTIONS

15
MISE AU REBUT DE VOTRE ANCIEN
RÉFRIGÉRATEUR
Risque de suffoquer
Ôter les portes de votre ancien réfrigérateur.
Le non-respect de cette instruction peut causer un
décès ou des lésions cérébrales.
AVERTISSEMENT
IMPORTANT : Le problème des enfants pouvant se retrouver coincés
et suoquer n’est pas un problème du passé. Un réfrigérateur jeté
ou abandonné est encore dangereux, même s’il est laissé abandonné
pendant “quelques jours seulement”. Si vous vous débarrassez de
votre ancien réfrigérateur, veuillez suivre les instructions suivantes
pour aider à éviter les accidents.
Avant de jeter votre ancien réfrigérateur ou congélateur :
• Ôter les portes.
• Laisser les tablettes en place de sorte que les enfants ne puissent
pas y pénétrer facilement.
PIÈCES ET CARACTÉRISTIQUES
a
bb
bb
bb
d
l
e
g
h
i
j
cf
f
kk
a Lampes DEL
b Balconnet
c Plaque signalétique des numéros de
modèle et de série
d Joint à charnière verticale
e Couvercle en verre de la zone de
refroidissement
f Tablette en verre
g Commande de la zone de refroidissement
h Tiroir de la zone de refroidissement
i Tiroir de rangement supérieur du
congélateur
j Tiroir de rangement inférieur du
congélateur
k Pied réglable
l Tableau de commande

16
INSTRUCTIONS D’INSTALLATION
DÉBALLAGE DU RÉFRIGÉRATEUR
Risque du poids excessif
Utiliser deux ou plus de personnes pour déplacer et
installer le réfrigérateur.
Le non-respect de cette instruction peut causer une
blessure au dos ou d'autres blessures.
AVERTISSEMENT
RETRAIT DES MATÉRIAUX D’EMBALLAGE
• Enlever tout résidu de ruban adhésif et de colle des surfaces du
réfrigérateur avant de le mettre en marche. Frotter une petite
quantité de savon liquide à vaisselle sur l’adhésif avec les doigts.
Rincer à l’eau tiède et sécher.
• Ne pas utiliser d’instruments coupants, d’alcool à friction, de
liquides inammables ou de nettoyants abrasifs pour enlever le
ruban adhésif ou la colle. Ces produits peuvent endommager
la surface du réfrigérateur. Pour plus de renseignements, voir
“Sécurité du réfrigérateur”.
• Jeter/recycler tous les matériaux d’emballage.
Lors du déplacement de votre réfrigérateur :
Votre réfrigérateur est lourd. Lors du déplacement de votre
réfrigérateur pour le nettoyage ou un entretien ou réparation,
veiller à recouvrir le plancher avec du carton ou un panneau de
bre dur pour éviter qu’il ne subisse tout dommage. Toujours
tirer le réfrigérateur tout droit lors du déplacement. Ne pas
incliner le réfrigérateur d’un côté ou de l’autre ni le « faire
marcher » en essayant de le déplacer car le sol pourrait être
endommagé.
NETTOYAGE AVANT UTILISATION
Après avoir enlevé tous les matériaux d’emballage, nettoyer
l’intérieur du réfrigérateur avant de l’utiliser. Voir les instructions de
nettoyage dans “Entretien du réfrigérateur”.
Informations importantes à propos des tablettes et des
couvercles en verre :
Ne pas nettoyer les tablettes ou les couvercles de verre avec
de l’eau tiède lorsqu’ils sont froids. Les tablettes et couvercles
peuvent se briser s’ils sont exposés à des changements de
températures ou impacts soudains, tels qu’une chute. Le
verre trempé est conçu pour se briser en de multiples petits
morceaux de la taille de gravillons. Ceci est normal. Les
tablettes en verre et les couvercles sont lourds. Les retirer à
deux mains pour éviter de les faire tomber.
EXIGENCES D’EMPLACEMENT
Risque d'explosion
Garder les matériaux et les vapeurs inflammables, telles
que l'essence, loin de l’appareil.
Le non-respect de cette instruction peut causer un
décès, une explosion ou un incendie.
AVERTISSEMENT
IMPORTANT : Ce réfrigérateur est conçu pour un usage
domestique, à l’intérieur uniquement. Le réfrigérateur ne doit
pas être encastré ou installé dans un placard fermé. Il est conçu
uniquement pour être utilisé d’une manière autoportante.
Pour obtenir une aération appropriée pour votre réfrigérateur,
laisser un espace de 2” (5,08 cm) de chaque côté et au sommet.
Laisser un espace de 2” (5,08 cm) derrière le réfrigérateur. En cas
d’installation du réfrigérateur près d’une cloison xe, laisser un
minimum de 4” (10 cm) pour permettre à la porte de s’ouvrir sans
obstruction.
4" (10,2 cm)
2" (5,08 cm)
2" (5,08 cm)
REMARQUE : Ce réfrigérateur est conçu pour être utilisé dans un
endroit où la température est comprise entre un minimum de 55°F
(13°C) et un maximum de 110°F (43°C). La plage de température
ambiante idéale pour une performance optimale est comprise
entre 60°F (15°C) et 90°F (32°C). Respecter cette plage de
température permet aussi de réduire la consommation d’électricité
et d’optimiser l’ecacité du refroidissement. Il est recommandé
de ne pas installer le réfrigérateur près d’une quelconque source de
chaleur, telle qu’un four ou un radiateur.

17
SPÉCIFICATIONS ÉLECTRIQUES
Risque de choc électrique
Brancher sur une prise à 3 alvéoles reliée à la terre.
Ne pas enlever la broche de liaison à la terre du cordon
d'alimentation.
Ne pas utiliser un adaptateur.
Ne pas utiliser un câble de rallonge.
Le non-respect de cette instruction pourrait causer un
décès, un incendie ou un choc électrique.
AVERTISSEMENT
Avant de déplacer le réfrigérateur à son emplacement nal, il est
important de vous assurer d’avoir le raccordement électrique
approprié.
Méthode recommandée de liaison à la terre
Chaque appareil doit être alimenté par un circuit 115 volts (CA
seulement, 60 Hz) relié à la terre et protégé par un fusible de
capacité 15 A ou 20 A. Il est recommandé d’utiliser un circuit
distinct pour alimenter le réfrigérateur uniquement. Utiliser une
prise de courant dont l’alimentation ne peut pas être interrompue
par un interrupteur. Ne pas utiliser de rallonge.
REMARQUE : Avant d’exécuter tout type d’installation, nettoyage
ou remplacement d’une ampoule d’éclairage, déconnecter le
réfrigérateur de la source de courant électrique. Une fois l’opération
terminée, reconnecter le réfrigérateur à la source de courant
électrique et remettre les commandes de température au réglage
désiré.
ACHEVER L’INSTALLATION
Risque de choc électrique
Brancher sur une prise à 3 alvéoles reliée à la terre.
Ne pas enlever la broche de liaison à la terre du cordon
d'alimentation.
Ne pas utiliser un adaptateur.
Ne pas utiliser un câble de rallonge.
Le non-respect de cette instruction pourrait causer un
décès, un incendie ou un choc électrique.
AVERTISSEMENT
1. Brancher sur une prise de courant à 3 alvéoles, reliée à la terre.
2. Réinstaller l’ensemble des pièces de porte amovibles sur la
porte et remettre les aliments dans le réfrigérateur.
REMARQUE: Ce réfrigérateur se met en marche dès qu’il est
branché à la source d’alimentation.
NIVELLEMENT ET AJUSTEMENT
DES PORTES (SI NÉCESSAIRE)
Le réfrigérateur doit être d’aplomb pour une performance et un
aspect optimaux.
NIVELLEMENT
1. Déplacer le réfrigérateur jusqu’à son emplacement dénitif.
2. Tourner les pieds situés en bas et à l’avant de la caisse pour
élever ou abaisser le réfrigérateur, jusqu’à ce que le réfrigérateur
soit d’aplomb dans le sens transversal.
3. Tourner les deux pieds avant d’une manière identique pour
élever légèrement l’avant du réfrigérateur. Cela permettra de
fermer plus facilement les portes.
REMARQUE : Le fait d’exercer une pression contre le dessus
du réfrigérateur permet d’alléger le poids appliqué aux vis de
nivellement. Ceci facilite le réglage des vis.

18
UTILISATION DU RÉFRIGÉRATEUR
OUVERTURE ET FERMETURE DES
PORTES
Il y a deux portes pour le compartiment de réfrigération. Les portes
peuvent être ouvertes et fermées séparément ou ensemble.
• Il y a sur la porte de gauche du réfrigérateur un joint à charnière
verticale.
• Lorsque l’on ferme la porte de gauche du réfrigérateur, le joint à
charnière se replie derrière la porte de droite, joignant les deux
portes du réfrigérateur.
REMARQUE : Avant de fermer la porte de gauche, s’assurer que
le joint à charnière verticale est replié vers l’intérieur. Si le joint
est déployé vers l’extérieur, il peut être endommagé lorsque l’on
essaie de fermer la porte.
UTILISATION DES COMMANDES
Temp Zone
Temp Set
Function Set
°F
3S
Sabbath
Quick Frz
Quick Cool
Dehumidify
g
h
j
i
k
a
b
c
e
f
d
a Témoin du compartiment
de réfrigération
b Témoin du compartiment
de congélation
c Témoin de la température
d Témoin Quick Freeze
(congélation rapide)
e Témoin Quick Cool
(refroidissement rapide)
f Témoin Dehumidify
(déshumidication)
g Bouton Temp Zone (zone
de température)
h Bouton Temp Set (réglage
de température)
i Témoin du mode Sabbath
(Sabbat)
j Bouton Function Set
(réglage de la fonction)
k Bouton de validation de la
sélection
• Lorsque le réfrigérateur est mis en marche pour la première
fois, le témoin du compartiment de réfrigération s’allume et
la température s’ache. Le verrouillage des commandes est
activé. Voir Verrouillage du tableau de commande plus loin dans
cette section pour déverrouiller les commandes.
TOUCHES SENSITIVES
Les boutons du tableau de commande sont des touches sensitives,
réagissant lorsqu’elles sont eeurées.
