SAFETY PRECAUTIONS
Read all of the instructions before using this appliance.
When using this appliance, always exercise basic safety
precautions, including the following:
1) Use this appliance only for its intended purpose as described in this use
and care guide.
2) This refrigerator must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in the
installation section.
3) Never unplug your refrigerator by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
4) Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length, the plug or the connector end.
5) Unplug your refrigerator before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly
recommend that a certified technician performs the service.
6) Do not use any electrical device or any sharp instrument in defrosting your
refrigerator.
7) If your old refrigerator is not being used, we recommend that you remove
the doors and leave the shelves in place. This will reduce the possibility of
danger to children.
8) After your refrigerator is in operation, do not touch the cold surfaces in
the freezer compartment, particularly when hands are damp or wet. Skin
may adhere to these extremely cold surfaces.
9) Do not refreeze foods, which have been thawed completely. The United
States Department of Agriculture in Home and Garden Bulletin No. 69
reads: "…You may safely refreeze frozen foods that have thawed if they
still contain ice crystals or if they are still cold-below 40˚F".
"…Thawed ground meats, poultry, or fish that have any off-odor or
off-color should not be refrozen and should not be eaten. Thawed ice
cream should be discarded. If the odor or color of any food is poor or
questionable, discard it. The food may be dangerous to eat."
"…Even partial thawing and re-freezing reduce the eating quality of
foods, particularly fruits, vegetables, and prepared foods. The eating
quality of red meats is affected less than that of many other foods. Use
refrozen foods as soon as possible, to save as much of its eating quality
as you can."
1
English
hte10wna/hte08wna manual 10/22/01 11:49 AM Page 2

2
Thank you for using our Haier
product. This easy-to-use manual will
guide you in getting the best use of
your refrigerator.
Remember to record the model and
serial number. They are on a label in
back of the refrigerator.
Model number
Serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain
warranty service.
10) This refrigerator should not be recessed or built-in an enclosed cabinet. It
is designed for freestanding installation only.
11) Do not operate your refrigerator in the presence of explosive fumes.
SAVE THESE INSTRUCTIONS
for future use
DANGER
Risk of child entrapment. Before you throw away your old
refrigerator or freezer, take off the doors. Leave the shelves
in place so that children may not easily climb inside.
As per UL 250 Standards
English
hte10wna/hte08wna manual 10/22/01 11:49 AM Page 3

3
Table Of Contents
PAGE
Safety Precautions ...........................................................................1
Parts And Features ..........................................................................4
Installing Your Refrigerator............................................................5
Unpacking Your Refrigerator ..................................................................5
Adjusting Your Refrigerator......................................................................5
Proper Air Circulation ............................................................................5
Electrical Requirements............................................................................6
Door Alignment......................................................................................7
Reversing the Door Swing ......................................................................8
Refrigerator Features And Use....................................................10
General Features..................................................................................10
Refrigerator Interior Shelves..................................................................10
Crisper and Crisper Cover....................................................................11
Door Shelf Bottle Huggers.....................................................................11
Food Storage Information......................................................................12
Normal Operating Sounds....................................................................13
Proper Refrigerator Care and Cleaning ....................................14
Cleaning and Maintenance ..................................................................14
Light Bulb Replacement ........................................................................15
Power Interruptions ..............................................................................15
Vacation and Moving Care ..................................................................15
Troubleshooting..............................................................................16
Warranty Information ..................................................................18
English
hte10wna/hte08wna manual 10/22/01 11:49 AM Page 4

Parts And Features
4

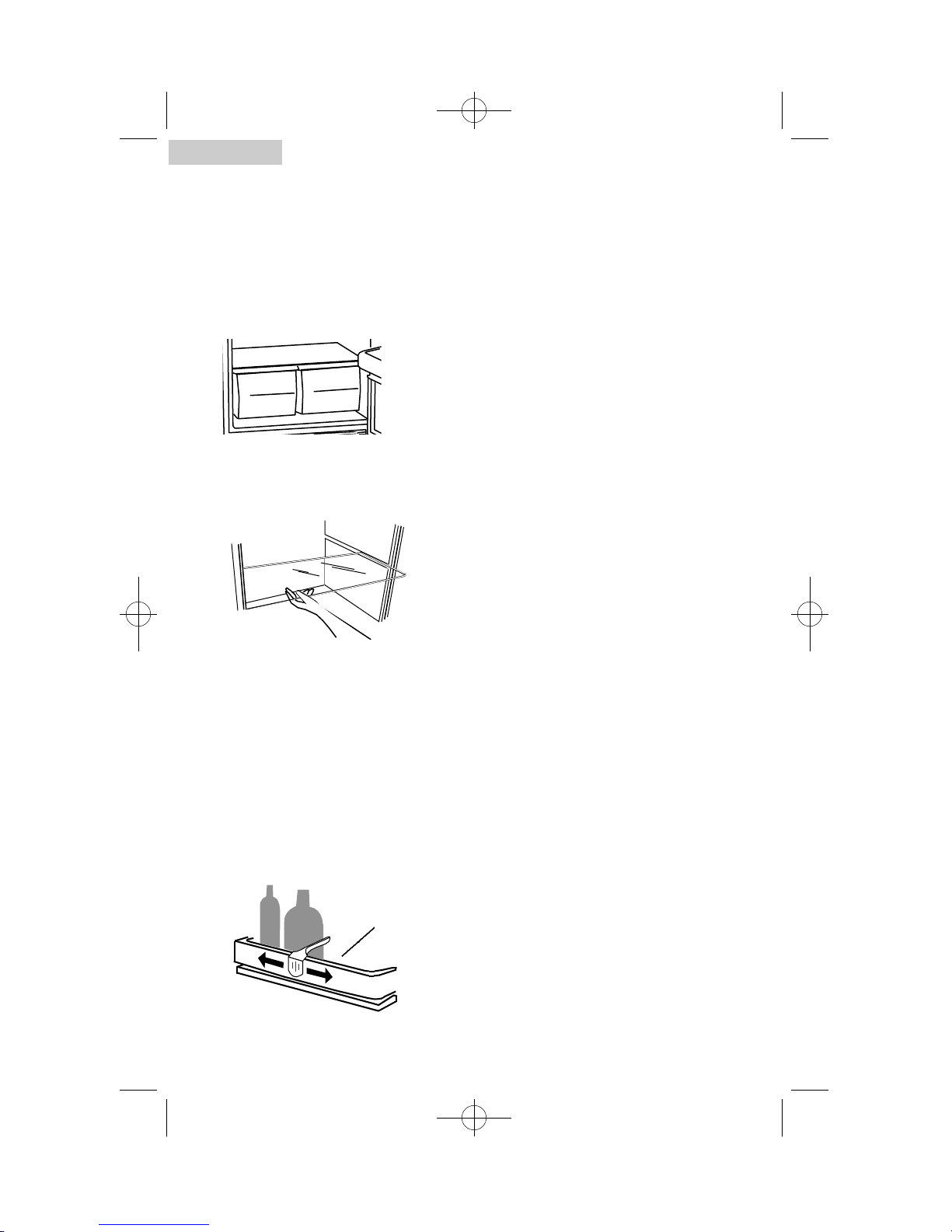

1
1. 2 Ice Cube Trays
2. 2 Full-Width Freezer Door Shelves
3. Clear Covered Dairy Compartment
4. 2 Full-Width Door Shelves
(Shelves May Vary per Model)
5. Shelf Huggers
6. Adjustable Front Leveling Legs
(not shown)
7. 2 Clear Crispers
8. Clear Glass Crisper Cover
9. 2 Adjustable Full-Width Wire Shelves
(Shelves May Vary per Model
Purchased)
10. Adjustable Temperature Control
11.Automatic Interior Light
12.Freezer Shelf
2
3
4
5
6
7
8
9
10
11
English
12
hte10wna/hte08wna manual 10/22/01 11:49 AM Page 5

1. Remove all packaging material. This includes the foam base and all
adhesive tape holding the refrigerator accessories inside and
outside. Slide out and remove plastic or foam guard used to
secure the compressor from shipping damage due to vibration
and shock.
2. Inspect and remove any remains of packing, tape or printed
materials before powering on the refrigerator.
Leveling Your Refrigerator:
• Your refrigerator has two leveling legs which are located in the
front corners of your refrigerator. After properly placing your
refrigerator in its final position, you can level your refrigerator.
•Leveling legs can be adjusted by turning them clockwise to raise your
refrigerator or by turning them counterclockwise to lower
your refrigerator. The refrigerator door will close easier when the
leveling legs are raised.
• To assure your refrigerator works at the maximum efficiency it
was designed for, you should install it in a location where there
is proper air circulation, plumbing and electrical connections.
•The following are recommended clearances around the refrigerator:
Sides……………3/4 "(19mm)
Top....................1" (25mm)
Back..................1" (25mm)
Installing Your Refrigerator
Unpacking Your Refrigerator
Adjusting Your Refrigerator
Proper Air Circulation
5
English
hte10wna/hte08wna manual 10/22/01 11:49 AM Page 6

Electrical Requirement
•Make sure there is a suitable power Outlet (115 volts, 15 amps outlet)
with proper grounding to power the refrigerator.
• Avoid the use of three plug adapters or cutting off the third grounding in
order to accommodate a two plug outlet. This is a dangerous practice
since it provides no effective grounding for the refrigerator and may
result in shock hazard.
•Do not install your refrigerator in any location not properly insulated or
heated e.g. garage etc. Your refrigerator was not designed to operate in
temperature settings below 55˚ Fahrenheit.
•Select a suitable location for the refrigerator on a hard even
surface away from direct sunlight or heat source e.g. radiators,
baseboard heaters, cooking appliances etc. Any floor unevenness
should be corrected with the leveling legs located on the front bottom
corners of the refrigerator.
Install Limitations
6
English
hte10wna/hte08wna manual 10/22/01 11:49 AM Page 7

Freezer Door: (see fig. # 1)
1. Remove hinge cover screw.
2. Remove the top hinge cover.
3. Loosen the top hinge screws using a phillips head screwdriver.
4. Adjust the door or put a spacer in between and then tighten the screws.
5. Replace the top hinge cover.
Refrigerator Door: (see fig. # 2)
1. Loosen and remove the bottom hinge using a
phillips head screwdriver.
2. Adjust the door, or put a spacer in between and
then tighten the screws.
Door Alignment
7
fig. # 1
Hinge box
cover
Top hinge
fig. # 2
lower bracket
lower pivot pin
lower pivot pin hole
bottom hinge pad
English
hte10wna/hte08wna manual 10/22/01 11:49 AM Page 8

8
Left/right door opening method:
This product provides the reversing of the left/right door opening. You
can select your preference of door opening by following the procedure to
make the change.
Dismantling: (see fig. # 1 and fig. # 3)
1. Fix refrigerator and freezer door by sticking adhesive tape on both
sides to hold doors in place.
2. As shown in fig. 1, dismantle the hinge box cover on the upper part of
freezer door with a phillips head screwdriver. Then remove the three
screws from the hinge. Take out the hinge by pulling it vertically, and
keep it in a safe place.
3. Remove the adhesive tape on freezer door, lift and take the door down,
and carefully put it aside.
4. Dismantle two screws of the central hinge, lift and take down the central
hinge, and keep them in a safe place. (see fig # 3)
5. Remove the adhesive tape on refrigerator door, lift and take down
refrigerator door, and carefully put it aside.
6. Remove the door stoppers from the freezer and refrigerator doors and
install them on the opposite side of the door. (Not on all Models)
Reversing the Door Swing

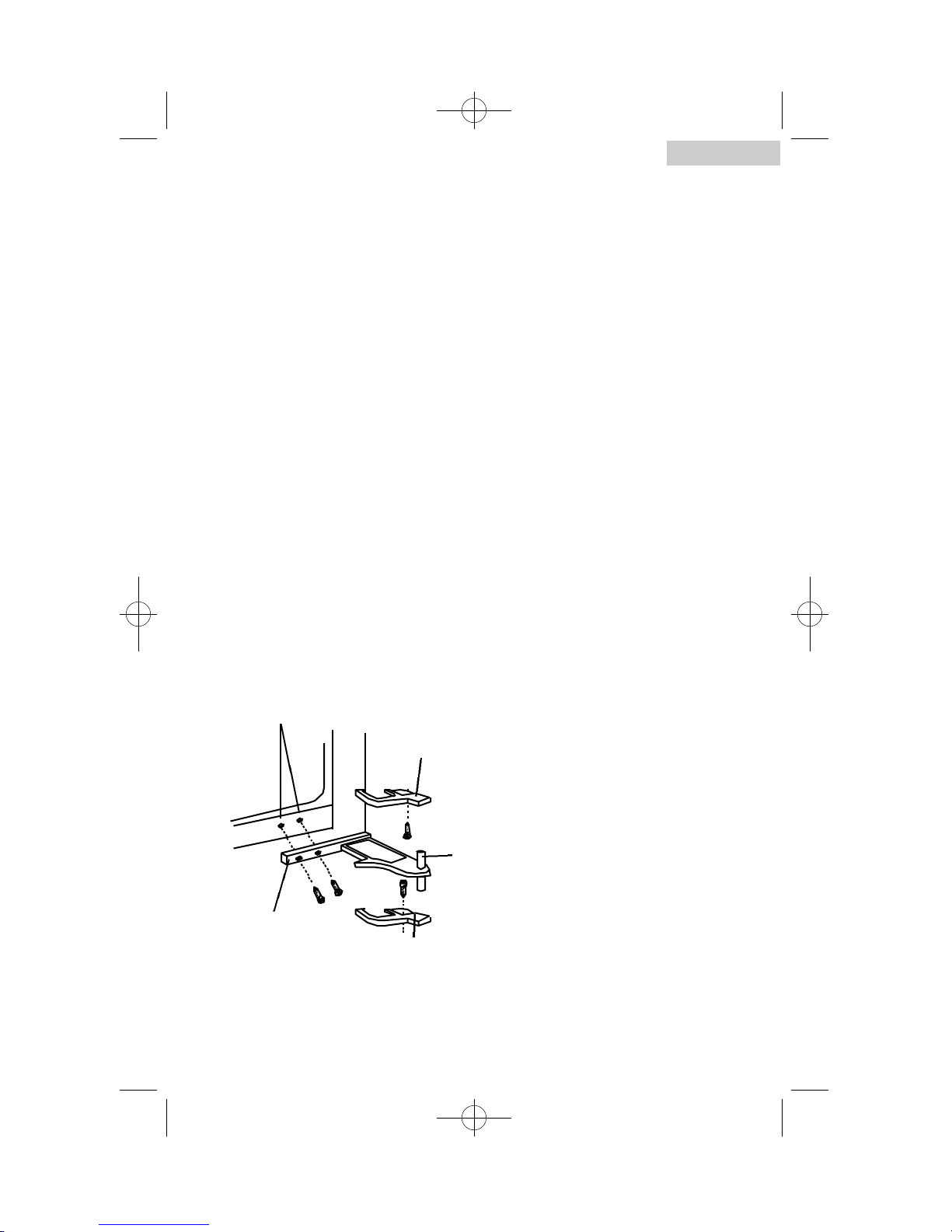

fig. # 3
screw holes
stop of freezer door (Not on all Models)
middle pivot pin
stop of refrigerator door (Not on all Models)
middle bracket
(central hinge bracket)
English
hte10wna/hte08wna manual 10/22/01 11:49 AM Page 9

9

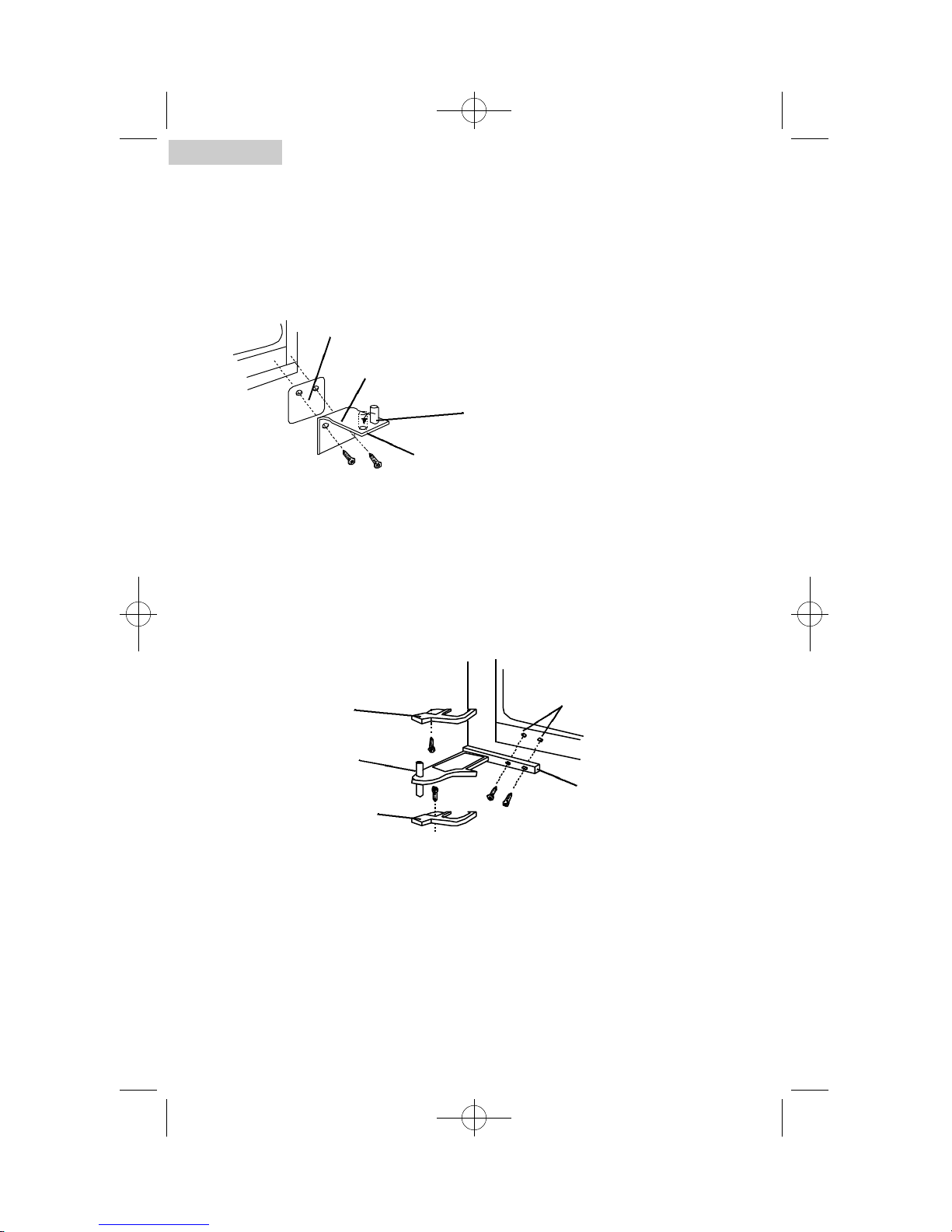

Reinstallation: (see fig. # 4 and fig. # 5)
1. Remove the lower pivot pin from the bracket of the lower
hinge by turning counter clockwise. Move the pin to the
opposite hole and tighten.
2. Loosen the screws holding the lower hinge bracket
and remove the hinge.
3. Align the holes in the lower hinge bracket to the
corresponding holes in the opposite side of the cabinet.
Insert and tighten the screws.
4. To install refrigerator door: make the left bottom hole of the
refrigerator compartment door fall over the lower hinge axle, move
door forward to make it straight and in alignment with central hinge.
Install the central hinge again, turn the hinge axle until it
completely enters the door body, then fix it with screws.
5. To install freezer door: make the left bottom hole of freezer door fall
over the central hinge axle; raise upper hinge, so that hinge axle can
be installed in the upper hole of the upper part of the freezer door;
adjust door to make it straight and level.
6. As shown in Fig. 1, install the upper freezer hinge to the left
corresponding position. (tighten the screws of upper hinge)
7. Replace the hinge cover as shown in Fig. 1.
stop of freezer door
(Not on all Models)
middle pivot pin
middle bracket
(central hinge bracket)
screw holes
stop of refrigerator door
(Not on all Models)
lower bracket
lower pivot pin
bottom hinge pad
fig. # 4
English
lower pivot pin hole
fig. # 5
hte10wna/hte08wna manual 10/22/01 11:49 AM Page 10

10
Refrigerator Features And Use
The refrigerator shelves of your refrigerator were designed with you in
mind. Their varied adjustability allows you to satisfy your personal
storage needs.
To remove or adjust a full-width
slide-out shelf: (see fig. # 6)
1. Gently tilt the shelf up and slide forward until the shelf has been
completely removed.
2. To replace the shelf, select the desired setting and gently slide the
shelf back until it rests in the locking position.
General Features
Adjustable temperature dial:
Your refrigerator will automatically
maintain the temperature level you
select. The temperature control dial has
7 settings plus off. 1 is the warmest. 7
is the coldest. Turning the dial to OFF
stops cooling in both the refrigeration
and freezer sections. At first, set the
dial to 4 and allow 24 hours to pass
before adjusting the temperature to your
needs.
(Note: If the refrigerator has
been placed in a horizontal or
tilted position for any period
of time wait 24 hours before
plugging the unit in.)
Refrigerator Section
Interior Light:
Your refrigerator is equipped with an
automatic interior light in the fresh
food section for you to easily locate
your food.
Refrigerator Interior Shelves
(Shelves May vary per Model Purchased)
fig. # 6
English
hte10wna/hte08wna manual 10/22/01 11:49 AM Page 11

11
To remove and install the crisper: (see fig. # 7)
1. Grip the crisper firmly and slide out completely.
2. Replace the crisper by placing the crisper properly in position and
gently sliding it back into place.
Removing or replacing the crisper cover: (see fig. # 8)
1. Carefully grasp the crisper cover and slide out to remove.
2. To replace, slide the rear of the crisper cover into the right and left slots
above the crisper area and gently slide back into place.
To adjust the door shelf bottle huggers: (see fig #9)
1. Grasp the hugger firmly and slide right or left until it is snug against the
items stored on the shelf.
Crisper and Crisper Cover
fig. # 7
fig. # 8
fig. # 9
shelf bottle hugger
English
Door Shelf Bottle Huggers
hte10wna/hte08wna manual 10/22/01 11:49 AM Page 12

12
English
Fresh Food
•When storing fresh food, which is not prepackaged, be sure to wrap or
store food in airtight and moisture proof material unless otherwise
noted. This will ensure proper shelf life and prevent the transfer of
odors and tastes.
• Wipe containers before storing to avoid needless spills.
•Eggs should be stored in an upright position in their original carton to
maximize shelf life.
•Fruit should be washed and dried then stored in sealed plastic bags
before storing in the refrigerator.
• Vegetables with skins should be stored in plastic bags or containers.
•Leafy vegetables should be washed and drained and then stored in
plastic bags or containers.
•Hot food should be allowed to cool before storing in the refrigeration.
This will prevent unnecessary energy use.
• Fresh seafood should be used the same day as purchased.
•When storing meats in the fresh food section, keep in the original
packaging or rewrap as necessary. Follow the suggestions below for
safe storage:
• Chicken 1-2 Days
• Ground Beef 1-2 Days
• Cold Cuts 3-5 Days
• Steaks/Roasts 3-5 Days
• Smoked/Cured Meats 7-10 Days
• All others 1-2 Days
If longer periods of storage are required, store immediately in the freezer
section.
Food Storage Information
hte10wna/hte08wna manual 10/22/01 11:49 AM Page 13

13
Frozen Food
•Proper freezer storage requires correct packaging. All foods must be in
packages, which do not allow the flow of air or moisture in, or out.
Improper storage will result in odor and taste transfer and will result in
the drying out of the improperly packaged food.
• Follow package or container instructions for proper storage.
•Packaging Recommendations:
Plastic containers with air tight lids
Heavy duty aluminum foil
Plastic wrap made from saran film
Self-sealing plastic bags
• Do not refreeze defrosted/thawed foods.
• It is recommended that the freezing date be marked on the packaging.
•The fan circulating air inside the interior of your unit to maintain the
temperature you have selected.
•Boiling water, gurgling sounds or slight vibrations that are the result of
the refrigerant circulating through the cooling coils.
•The thermostat control will click when it cycles on and off.
Normal Operating Sounds You May Hear
English
hte10wna/hte08wna manual 10/22/01 11:49 AM Page 14

14
English
Warning: To avoid electric shock always unplug your
refrigerator before cleaning. Ignoring this warning
may result in death or injury.
Caution: Before using cleaning products, always read and
follow manufacturer’s instructions and warnings to
avoid personal injury or product damage.
General:
•Prepare a cleaning solution of 3-4 tablespoons of
baking soda mixed with warm water. Use sponge or
soft cloth, dampened with the cleaning solution, to
wipe down your refrigerator.
• Rinse with clean warm water and dry with a soft cloth.
•Do not use harsh chemicals, abrasives, ammonia,
chlorine bleach,concentrated detergents, solvents or
metal scouring pads. SOME of these chemicals may
dissolve, damage and/or discolor your refrigerator.
•Clean door gaskets every three months according to
general instructions. Gaskets must be kept clean and
pliable to assure a proper seal.
•Petroleum jelly applied lightly on the hinge side of gas-
kets will keep the gasket pliable and assure a good
seal.
Proper Refrigerator Care and Cleaning
Cleaning and Maintenance
Door Gaskets:
hte10wna/hte08wna manual 10/22/01 11:49 AM Page 15

15
English
1. Switch off power to refrigerator.
2. Remove the highest shelf.
3. Allow light bulb to cool before removing.
4. Pinch the plastic cover between fingers and
thumb and gently pull to the left.
5. Remove the bulb by screwing it counter-clockwise.
6. Always replace with appliance type light bulb rated at 15 watts
or lesser wattage.
7. Do not exceed the 15 watts rating at any time.
8. To replace cover, insert rear clips in first and gently push front
clip in until the cover snaps into place.
•Occasionally there may be power interruptions due to thunderstorms or
other causes. Remove the power cord from AC outlet when a power
outage occurs. When power has been restored, replug power cord to
AC outlet. If outage is for a prolonged period, inspect and discard
spoiled or thawed food in freezer and refrigerator. Clean
refrigerator before reusing.
•For long vacations or absences, empty food from refrigerator and
freezer, move the temperature DIAL to the OFF position and clean the
refrigerator and door gaskets according to "General cleaning" section.
Prop doors open, so air can circulate inside.When moving always move
the refrigerator vertically. Do not move with the unit lying down. Possible
damage to the sealed system could occur.
Light Bulb Replacement
Power Interruptions
Vacation and Moving Care
hte10wna/hte08wna manual 10/22/01 11:49 AM Page 16

16
English
Refrigerator Does Not Operate
• Check if thermostat control is not in the “OFF” position.
• Check if refrigerator is plugged in.
•Check if there is power at the ac outlet, by checking the circuit breaker.
Food temperature appears too warm
• Frequent door openings.
•Allow time for recently added warm food to reach fresh food or
freezer temperature.
• Check gaskets for proper seal.
• Adjust temperature control to colder setting.
Food temperature is too cold
•If temperature control setting is too cold, adjust to a warmer setting
and allow several hours for temperature to adjust.
Refrigerator runs too frequently
•This may be normal to maintain constant temperature during
high temperature and humid days.
•Doors may have been opened frequently or for an extended
period of time.
• Check gasket for proper seal.
• Check to see if doors are completely closed.
TroubleShooting
hte10wna/hte08wna manual 10/22/01 11:49 AM Page 17

English
17
Moisture build up on interior or exterior
of the refrigerator:
• This is normal during high humidity periods.
• Prolonged or frequent door openings.
• Check door gaskets for proper seal.
Refrigerator has an odor:
• Interior needs cleaning.
• Foods improperly wrapped or sealed are giving off odors.
Refrigerator light does not work:
• Check power supply.
• Tighten bulb in socket.
• Replace burned out bulb.
Refrigerator/Freezer door does not shut properly:
• Level the refrigerator.
• Re align refrigerator/freezer door.
•Check for blockages e.g. food containers, crisper cover,
shelves, bins etc.
hte10wna/hte08wna manual 10/22/01 11:49 AM Page 18

IMPORTANT
Do Not Return This Product To The Store
If you have a problem with this product, please contact the "Haier Customer
Satisfaction Center" at 1-877-337-3639.
DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE
IMPORTANT
Ne pas Réexpédier ce Produit au Magasin
Pour tout problème concernant ce produit, veuillez contacter le service des
consommateurs ‘Haier Customer Satisfaction Center’ au 1-877-337-3639.
UNE PREUVE D’ACHAT DATEE EST REQUISE POUR BENEFICIER DE LA GARANTIE.
IMPORTANTE
No regrese este producto a la tienda
Si tiene algún problema con este producto, por favor contacte el "Centro de Servicio al
Consumidor de Haier" al 1-877-337-3639 (Válido solo en E.U.A).
NECESITA UNA PRUEBA DE COMPRA FECHADA PARA EL SERVICIO DE LA GARANTIA
115V, 60 Hz
Made in China
Fabriqué en Chine
Hecho en China
Haier America Trading, L.L.C.
New York, NY 10018
Printed in China
hte10-2
Issued: July-01 Part# RF9999-99
hte10wna/hte08wna manual 10/22/01 11:49 AM Page 57
