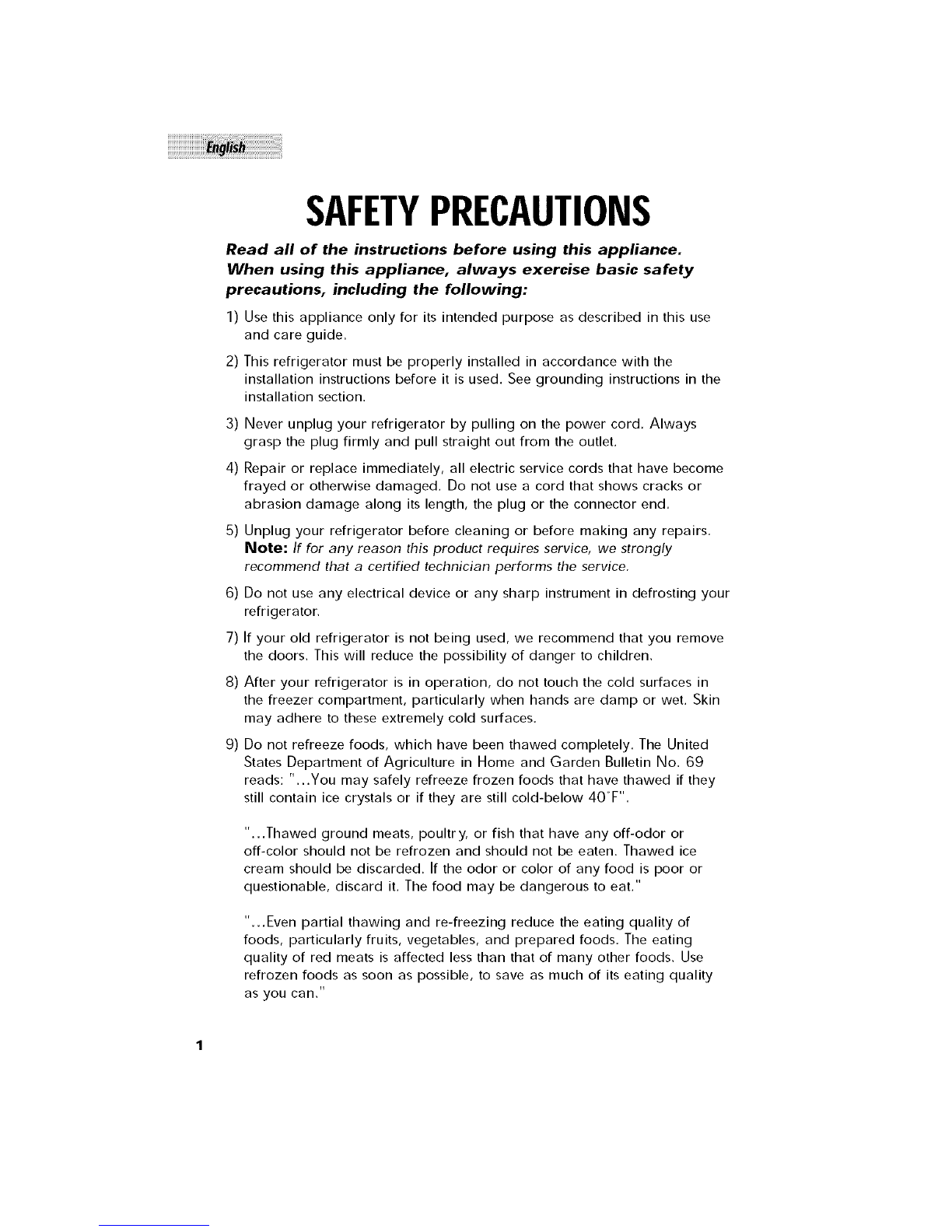

SAFETYPRECAUTIONS
Read all of the instructions before using this appliance.
When using this appliance, always exercise basic safety
precautions, including the following:
1) Use this appliance only for its intended purpose as described in this use
and care guide.
2) This refrigerator must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in the
installation section.
3) Never unplug your refrigerator by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
4) Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length, the plug or the connector end.
5) Unplug your refrigerator before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly
recommend that a certified technician performs the service.
6) Do not use any electrical device or any sharp instrument in defrosting your
refrigerator.
7) If your old refrigerator is not being used, we recommend that you remove
the doors. This will reduce the possibility of danger to children.
8) After your refrigerator is in operation, do not touch the cold surfaces in
the freezer compartment, particularly when hands are damp or wet. Skin
may adhere to these extremely cold surfaces.
9) Do not refreeze foods, which have been thawed completely. The United
States Department of Agriculture in Home and Garden Bulletin No. 69
reads: "...You may safely refreeze frozen foods that have thawed if they
still contain ice crystals or if they are still cold-below 40°F'',
"...Thawed ground meats, poultry, or fish that have any off-odor or
off-color should not be refrozen and should not be eaten. Thawed ice
cream should be discarded. If the odor or color of any food is poor or
questionable, discard it. The food may be dangerous to eat."
"...Even partial thawing and re-freezing reduce the eating quality of
foods, particularly fruits, vegetables, and prepared foods. The eating
quality of red meats is affected less than that of many other foods. Use
refrozen foods as soon as possible, to save as much of its eating quality
as you can."

10)Thisrefrigeratorshouldnotberecessedorbuilt-inanenclosedcabinet.It
isdesignedforfreestandinginstallationonly.
11)Donotoperateyourrefrigeratorinthepresenceofexplosivefumes,
ForFutureReferencePlease
SAVETHESEINSTRUCTIONS
DANGER
Risk of child entrapment. Before you throw away your old
refrigerator or freezer, take off the doors. Leave the shelves
in place so that children may not easily climb inside.
As per UL 250 11.2.6
Thank you for using our Haler
product. This easy-to-use manual will
guide you in getting the best use of
your refrigerator.
Remember to record the model and
serial number. They are on a label in
back of the refrigerator,
Model number
Serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain
warranty service. 2

PAGE

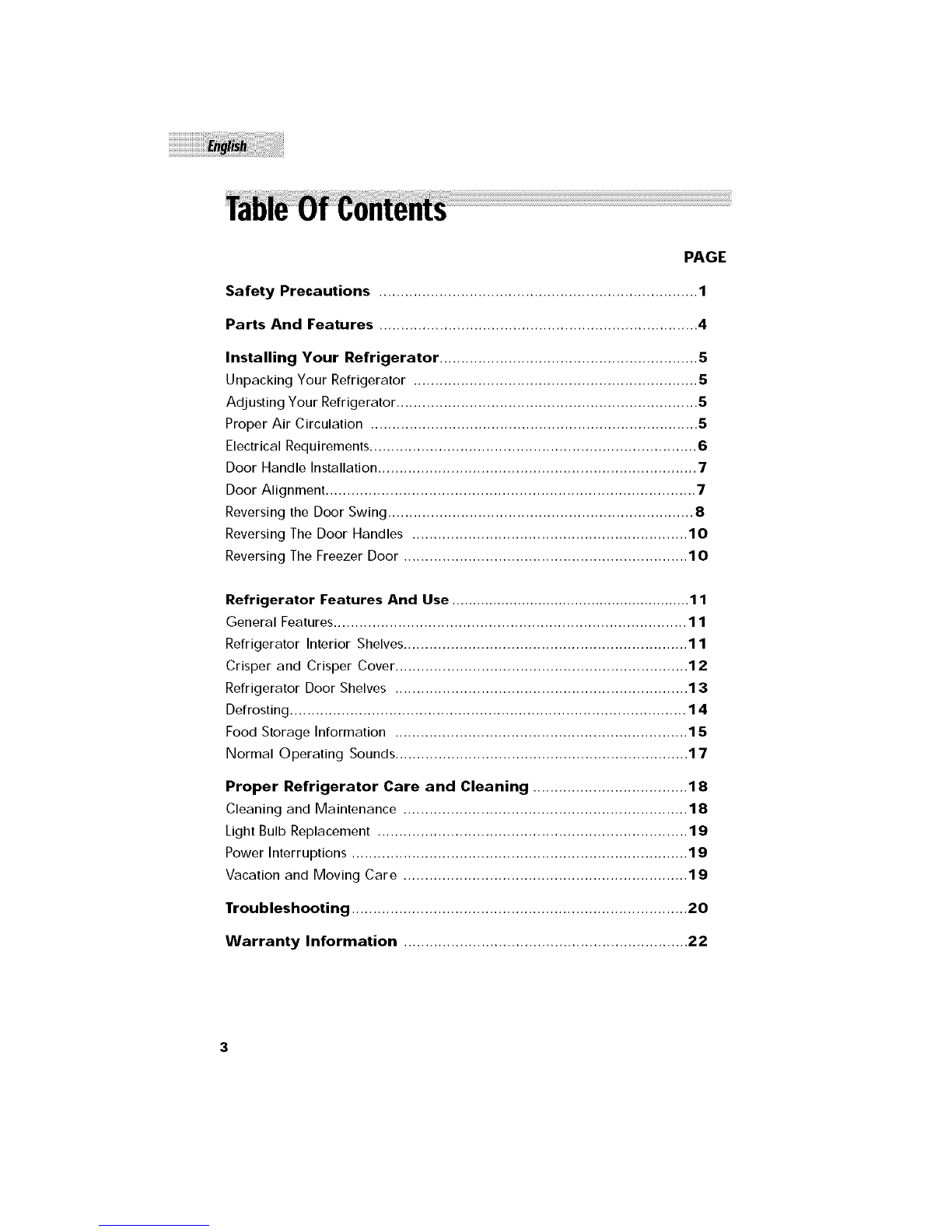

Safety Precautions .......................................................................... 1
Parts And Features .......................................................................... 4
Installing Your Refrigerator ............................................................ 5
Unpacking Your Refrigerator .................................................................. 5
Adjusting Your Refrigerator ...................................................................... 5
Proper Air Circulation ............................................................................ 5
Electrical Requirements ............................................................................ 6
Door Handle Installation .......................................................................... 7
Door Alignment ...................................................................................... 7
Reversing the Door Swing ....................................................................... 8
Reversing The Door Handles ................................................................ 10
Reversing The Freezer Door .................................................................. 10
Refrigerator Features And Use .......................................................... 1 1
General Features.................................................................................. 11
Refrigerator Interior Shelves.................................................................. 11
Crisper and Crisper Cover .................................................................... 12
Refrigerator Door Shelves .................................................................... 13
Defrosting ............................................................................................ 14
Food Storage Information .................................................................... 15
Normal Operating Sounds .................................................................... 17
Proper Refrigerator Care and Cleaning .................................... 18
Cleaning and Maintenance .................................................................. 18
Light Bulb Replacement ........................................................................ 19
Power Interruptions .............................................................................. 19
Vacation and Moving Care .................................................................. 19
Troubleshooting .............................................................................. 20
Warranty Information .................................................................. 22

@

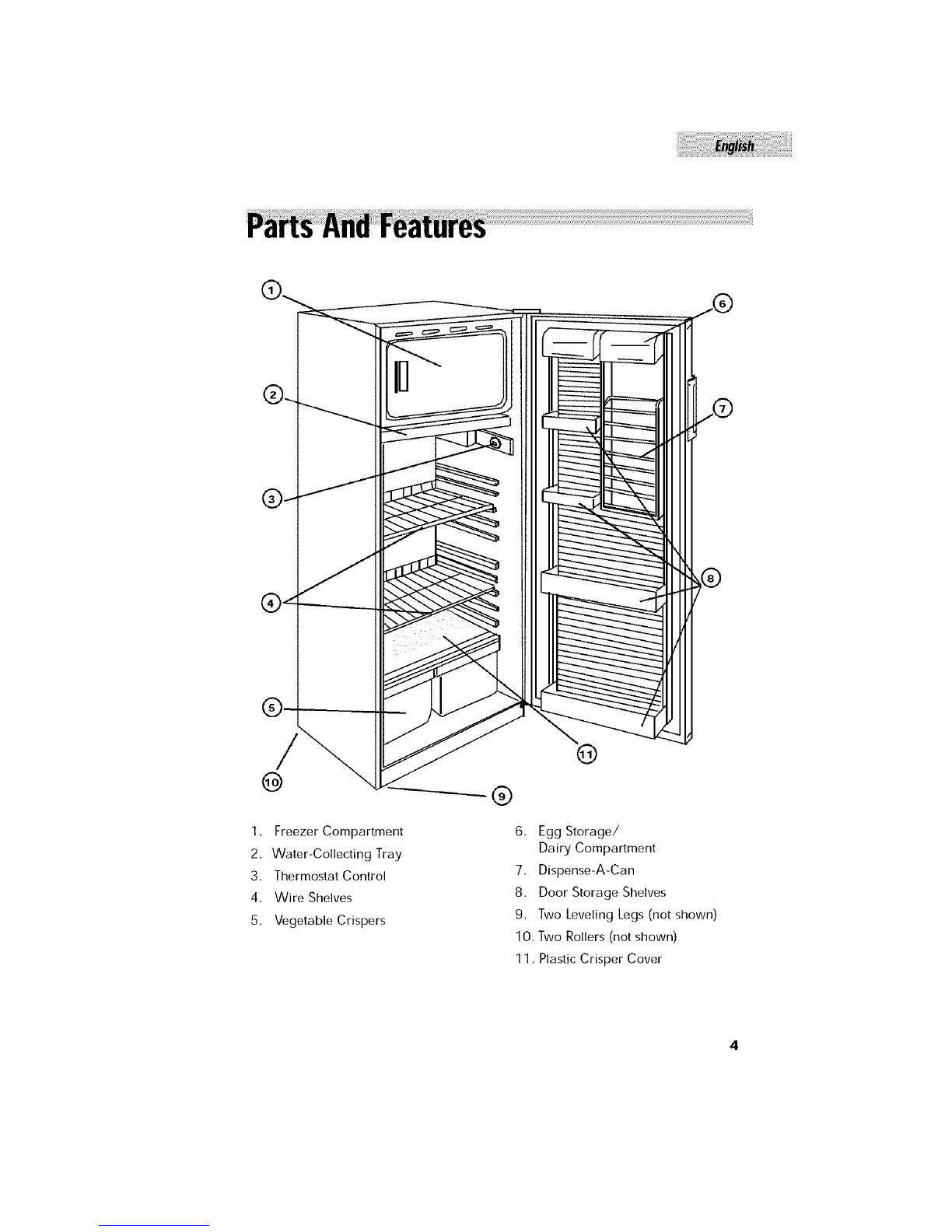

1, Freezer Compartment
2. Water-Collecting Tray
3. Thermostat Control
4. Wire Shelves
5. Vegetable Crispers
@
Egg Storage/
Dairy Compartment
7. Dispense-A-Can
8. Door Storage Shelves
9. Two Leveling Legs (not shown)
10. Two Rollers (not shown)
11, Plastic Crisper Cover

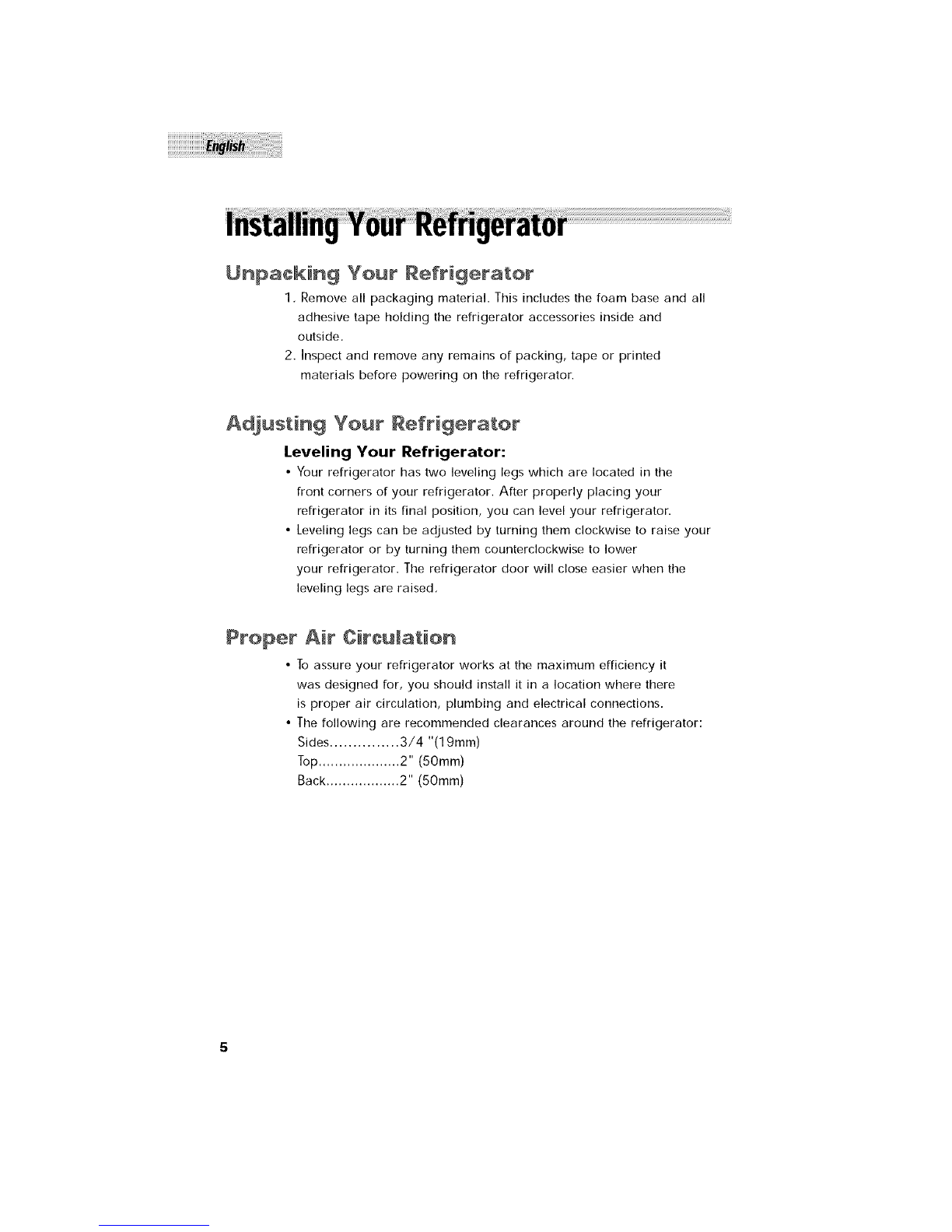

Unpacking Your Refrigerator
I, Remove allpackaging material.Thisincludesthe foam base and all
adhesive tape holding the refrigeratoraccessoriesinsideand
outside.
2. Inspectand remove any remains of packing, tape or printed
materialsbefore powering on the refrigeratoF.
Adjusting Your Refrigerator
Leveling Your Refrigerator:
• Your refrigerator has two leveling legs which are located in the
front corners of your refrigerator. After properly placing your
refrigerator in its final position, you can level your refrigerator.
• Leveling legs can be adjusted by turning them clockwise to raise your
refrigerator or by turning them counterclockwise to lower
your refrigerator. The refrigerator door will close easier when the
leveling legs are raised,
Proper Air Circulation
• To assure your refrigerator works at the maximum efficiency it
was designed for, you should install it in a location where there
is proper air circulation, plumbing and electrical connections.
• The following are recommended clearances around the refrigerator:
Sides ............... 3/4 "(19mm)
Top .................... 2" (50mm)
Back .................. 2" (50mm)

EMec_ricam Requirement
• Make sure there is a suitable power Outlet (115 volts, 15 amps outlet)
with proper grounding to power the refrigerator.
• Avoid the use of three plug adapters or cutting off the third grounding in
order to accommodate a two plug outlet. This is a dangerous practice
since it provides no effective grounding for the refrigerator and may
result in shock hazard.
Use of Extension Cords
Avoid the use of an extension cord because of potential safety hazards
under certain conditions. Jf it is necessary to use an extension cord, use
only a 3-wire extension cord that has a 3-blade grounding plug and a
3-slot outlet that will accept the plug. The marked rating of the extension
cord must be equal to or greater than the electrical rating of the
appliance.
Limitations
Do not install your refrigerator in any location not properly insulated or
heated e.g. garage etc. Your refrigerator was not designed to operate in
temperature settings below 55 ° Fahrenheit.
Select a suitable location for the refrigerator on a hard even
surface away from direct sunlight or heat source e.g. radiators,
baseboard heaters, cooking appliances etc. Any floor unevenness
should be corrected with the leveling legs located on the front bottom
corners of the refrigerator.

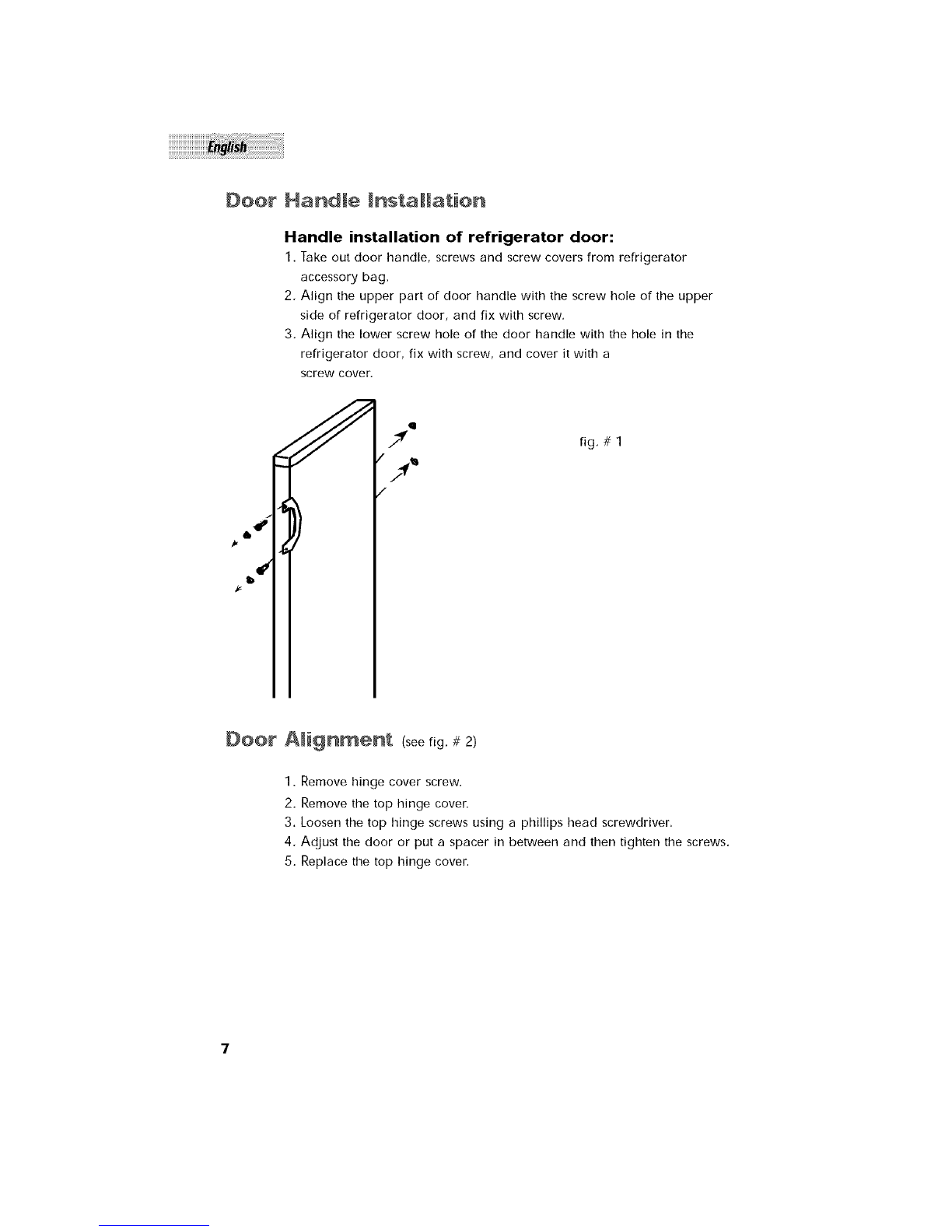

Door Handle installation
Handle installation of refrigerator door:
1. Take out door handle, screws and screw covers from refrigerator
accessory bag.
2. Align the upper part of door handle with the screw hole of the upper
side of refrigerator door, and fix with screw,
3, Align the lower screw hole of the door handle with the hole in the
refrigerator door, fix with screw, and cover it with a
screw cover
/y',
/
fig. # 1
DOOr A_i_n_ent (see fig, # 2)
1. Remove hinge cover screw.
2. Remove the top hinge cover.
3. Loosen the top hinge screws using a phillips head screwdriver.
4. Adjust the door or put a spacer in between and then tighten the screws,
5. Replace the top hinge cover.

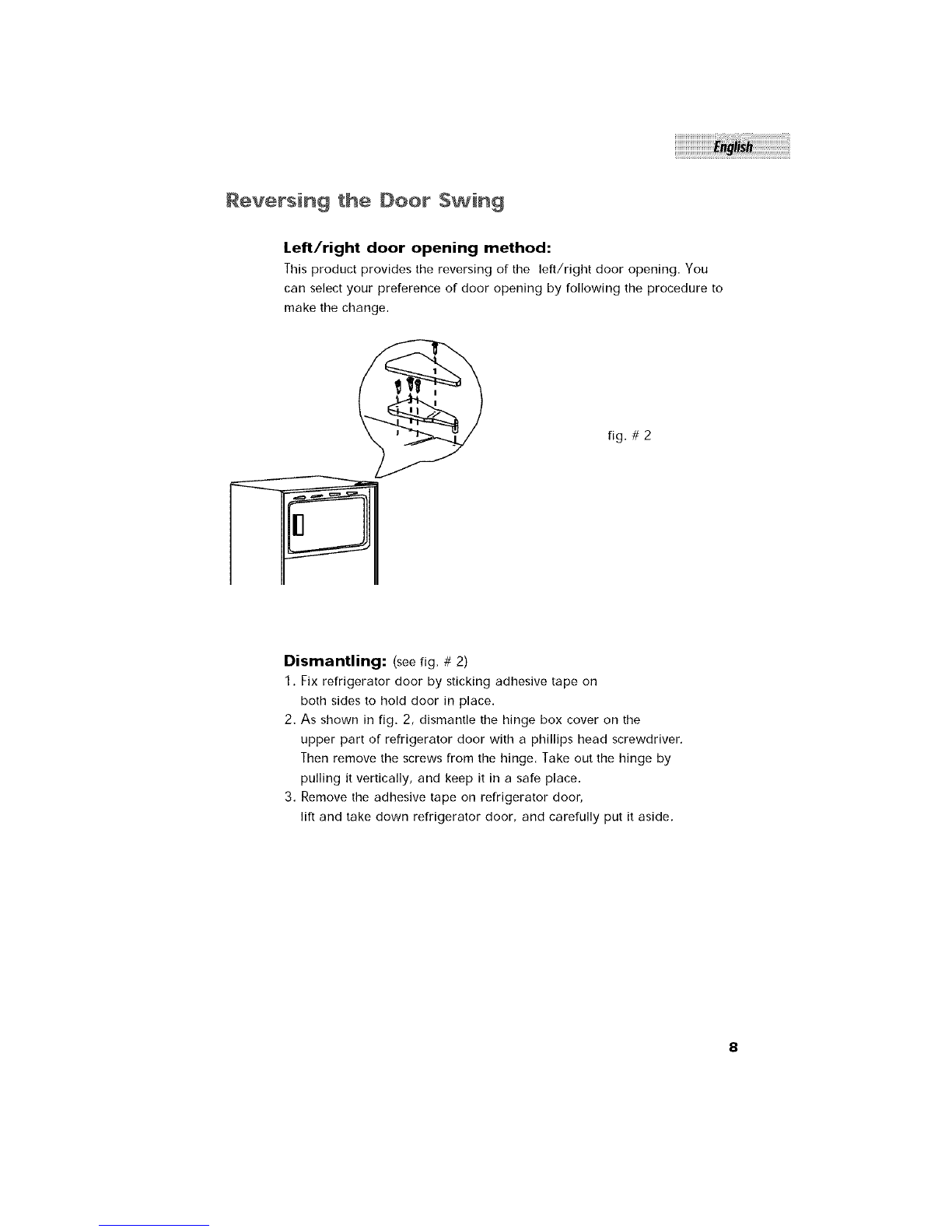

Reversing the Door $ ing
Left/right door opening method:
This product provides the reversing of the left/right door opening. You
can select your preference of door opening by following the procedure to
make the change.
fig. # 2
Dismantling: (see fig. # 2)
I, Fix refrigerator door by sticking adhesive tape on
both sides to hold door in place.
2. As shown in fig. 2, dismantle the hinge box cover on the
upper part of refrigerator door with a phillips head screwdriver,
Then remove the screws from the hinge. Take out the hinge by
pulling it vertically, and keep it in a safe place.
3. Remove the adhesive tape on refrigerator door,
lift and take down refrigerator door, and carefully put it aside,
8

Reinstallation: (see fig, #3 and #4)
1, As shown in fig. 3, dismantle the lower hinge and plastic pad from
right side and then install them on the left side,
fig, # 3
2. As shown in fig. 4, install the top hinge and pad to the left side.
fig, # 4
3. Install refrigerator door: make the left bottom hole of the refrigerator
compartment door fall over the lower hinge axle, move back and
forward the door to make it straight and in alignment with top hinge.
install the top hinge again, turn the hinge axle until it
completely enters the door body, then fix it with screws.
4. Replace the hinge cover as shown in Fig. 4.

Reversing the Door Handles
Refrigerator: (see fig, # 5)
1. Remove screw cover from the handle.
2. Using a phillips head screwdriver, remove both screws
from the side of the refrigerator door that holds the handle,
3. install the handle on the opposite side,
4, Remove screw plugs.
5, Install the screws and screw covers to their corresponding position.
fig, # 5 fig. # 5a
Reversing Freezer Door: (see fig, # 6)
1. Remove the water-collecting tray.
2, Using a narrow blunt object (e.g. Phillips head screwdriver) press the
hinge axle on the bottom of the hinged side of the freezer door,
3, This will remove the freezer door off its hinges
4. Turn the door around and install hinge on the opposite side.
5. Once the freezer door is installed insert the water-collecting tray,
hinge
axle
water collection
tray
fig, # 6 fig. # 6a
lO

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i! i ! ii i ii!ii i i! ! i ! ! ii !i!iii!i ! i i! i!!

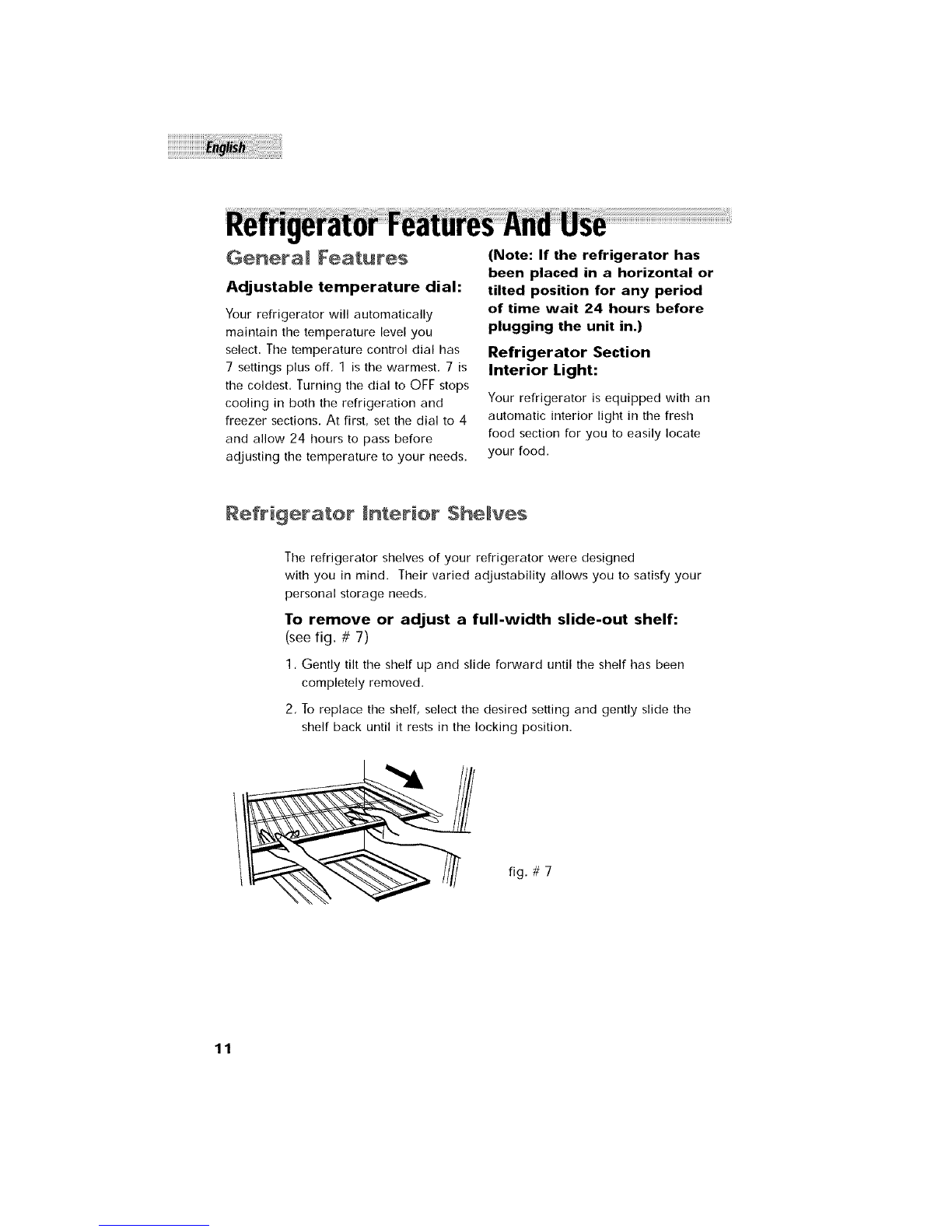

General Seatures
Adjustable temperature dial:
Your refrigerator will automatically
maintain the temperature level you
select. The temperature control dial has
7 settings plus off, 1 is the warmest, 7 is
the coldest, Turning the dial to OFF stops
cooling in both the refrigeration and
freezer sections, At first, set the dial to 4
and allow 24 hours to pass before
adjusting the temperature to your needs.
(Note: If the refrigerator has
been placed in a horizontal or
tilted position for an]/ period
of time wait 24 hours before
plugging the unit in.)
Refrigerator Section
Interior Light:
Your refrigerator is equipped with an
automatic interior light in the fresh
food section for you to easily locate
your food,
Refrigerator Interior She_ves
The refrigerator shelves of your refrigerator were designed
with you in mind, Their varied adjustability allows you to satisfy your
personal storage needs,
To remove or adjust a full-width slide-out shelf:
(see fig. # 7)
1, Gently tilt the shelf up and slide forward until the shelf has been
completely removed,
2, To replace the shelf, select the desired setting and gently slide the
shelf back until it rests in the locking position.
fig, #7
11

Crisper and Crisper Cover
To remove and install the crisper: (see fig, #8)
1. Grip the crisper firmly and slide out completely.
2, Replace the crisper by placing the crisper properly
and gently sliding it back into place.
fig, # 8
To remove the crisper cover: (see fig. #9)
1. First remove both crispers
2, Carefully grasp the crisper cover and slide out to remove,
fig. #9
To replace the crisper cover:
1, insert the rear of the crisper cover into the support bracket on the side
walls of the refrigerator,
2, Slide the crisper cover into place.
3. Replace the crispers as previously instructed.
12

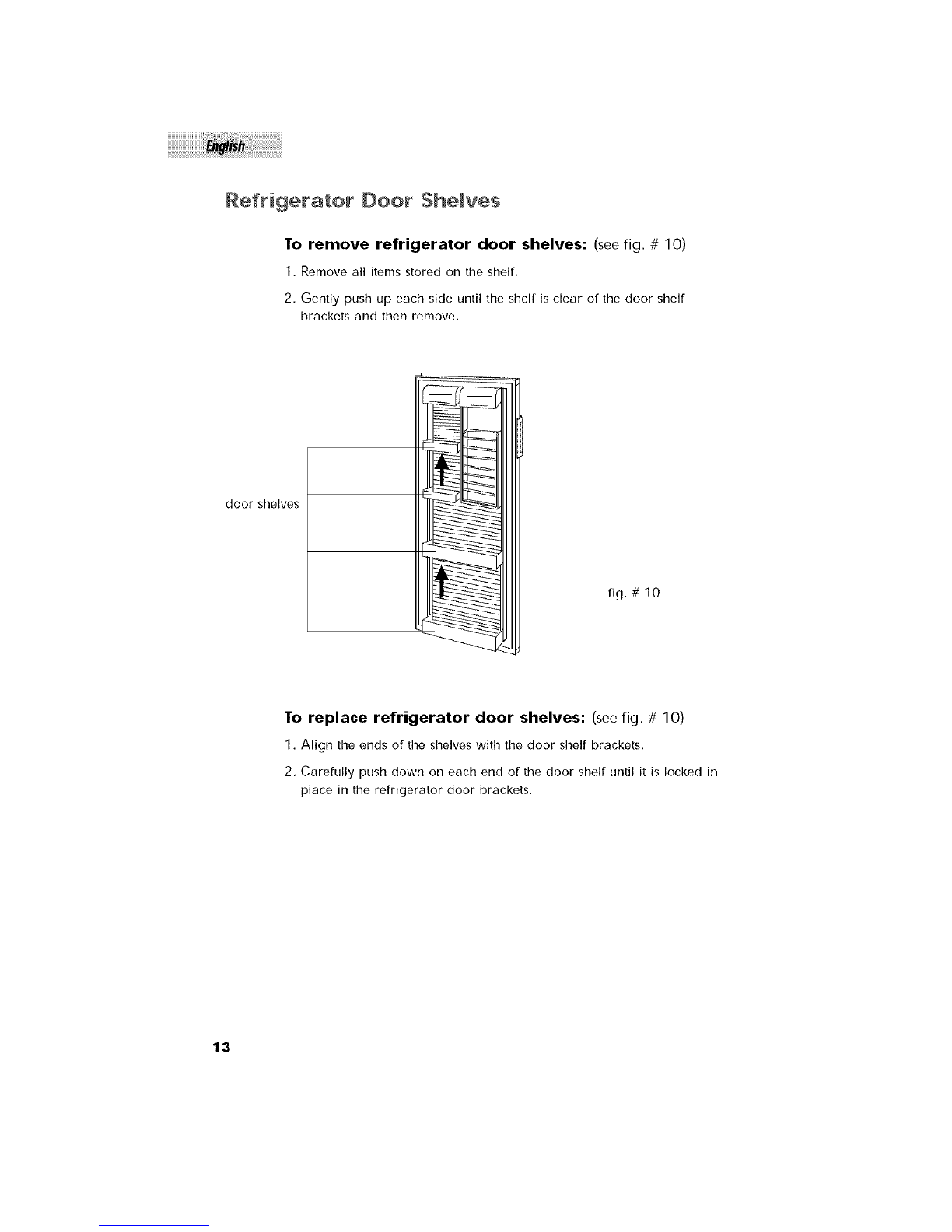

Refrigerator Door $heMves
To remove refrigerator door shelves: (see fig. #10)
1. Remove all items stored on the shelf,
2, Gently push up each side until the shelf is clear of the door shelf
brackets and then remove,
door shelves
fig. # lO
To replace refrigerator door shelves: (see fig. # 10)
1. Align the ends of the shelves with the door shelf brackets,
2, Carefully push down on each end of the door shelf until it is locked in
place in the refrigerator door brackets.
13

Defrosting Your Refrigerator
•For maximum energy efficiency, defrost freezer section
whenever frost accumulates to a thickness of 1/4" or more
on freezer walls. Note that frost tends to accumulate
more during the summer months,
• To defrost freezer, remove food from the freezer section
and push the defrost button which is located in the
center of the temperature knob. This button deactivates the
compressor and allows the ice to melt. Compressor will automatically
turn back on after defrost cycle is complete.
• During the defrost cycle, water will accumulate in the water collecting
tray. Drain the water into a bowl by removing the drain plug that is
located on the bottom of the water-collecting tray. (see Fig. 12)
You may find it easier to pull out the water-collecting tray from the
refrigerator and remove the plug before you start the
defrosting process. (see Fig. 13)
fig. #12 fig, # 13
14

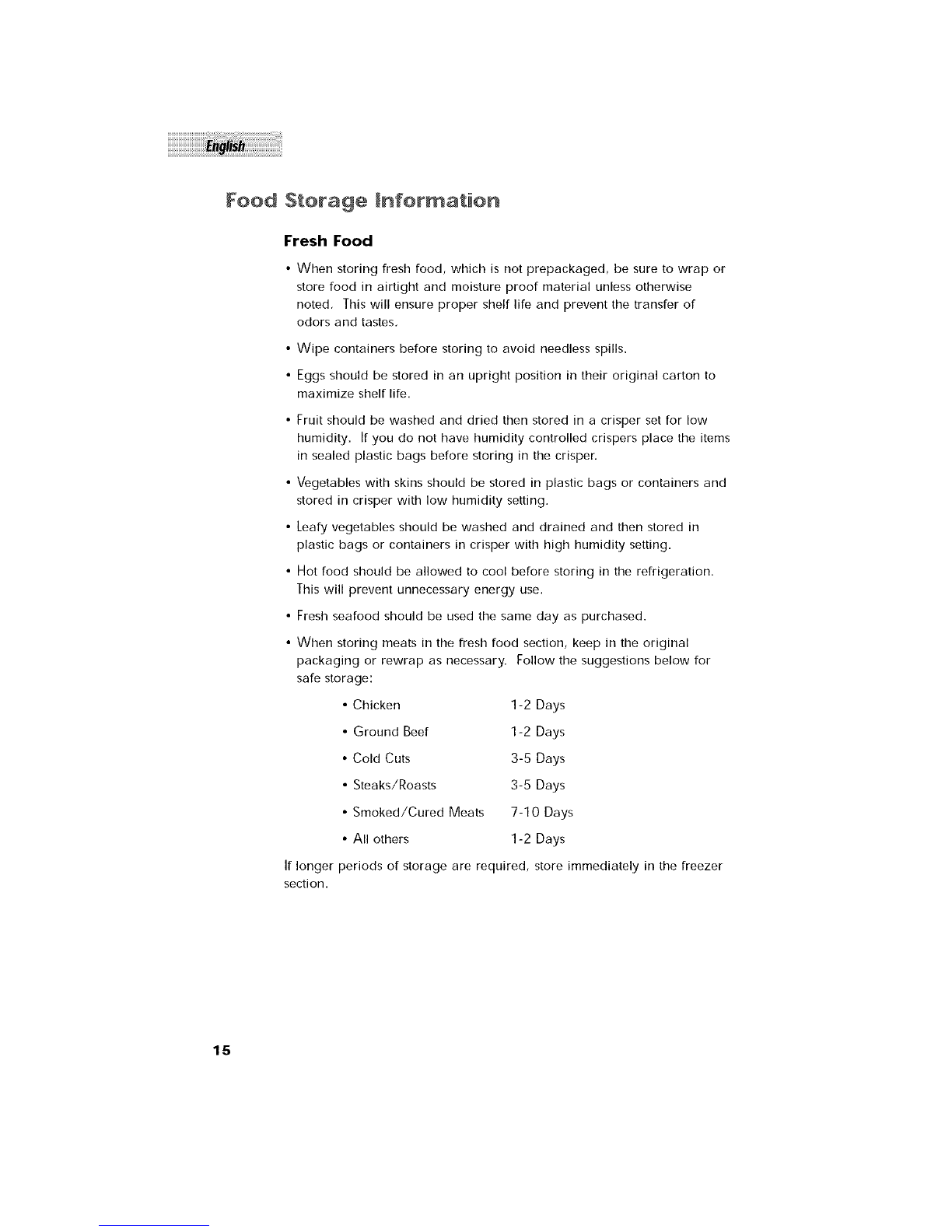

Food Storage Information
Fresh Food
• When storing fresh food, which is not prepackaged, be sure to wrap or
store food in airtight and moisture proof material unless otherwise
noted. This will ensure proper shelf life and prevent the transfer of
odors and tastes.
• Wipe containers before storing to avoid needless spills.
• Eggs should be stored in an upright position in their original carton to
maximize shelf life.
• Fruit should be washed and dried then stored in a crisper set for low
humidity. If you do not have humidity controlled crispers place the items
in sealed plastic bags before storing in the crisper.
• Vegetables with skins should be stored in plastic bags or containers and
stored in crisper with low humidity setting.
• Leafy vegetables should be washed and drained and then stored in
plastic bags or containers in crisper with high humidity setting.
• Hot food should be allowed to cool before storing in the refrigeration.
This will prevent unnecessary energy use.
• Fresh seafood should be used the same day as purchased.
• When storing meats in the fresh food section, keep in the original
packaging or rewrap as necessary. Follow the suggestions below for
safe storage:
Chicken
Ground Beef
Cold Cuts
Steaks/Roasts
Smoked/Cured Meats
All others
1-2 Days
1-2 Days
3-5 Days
3-5 Days
7-10 Days
1-2 Days
If longer periods of storage are required, store immediately in the freezer
section.
15

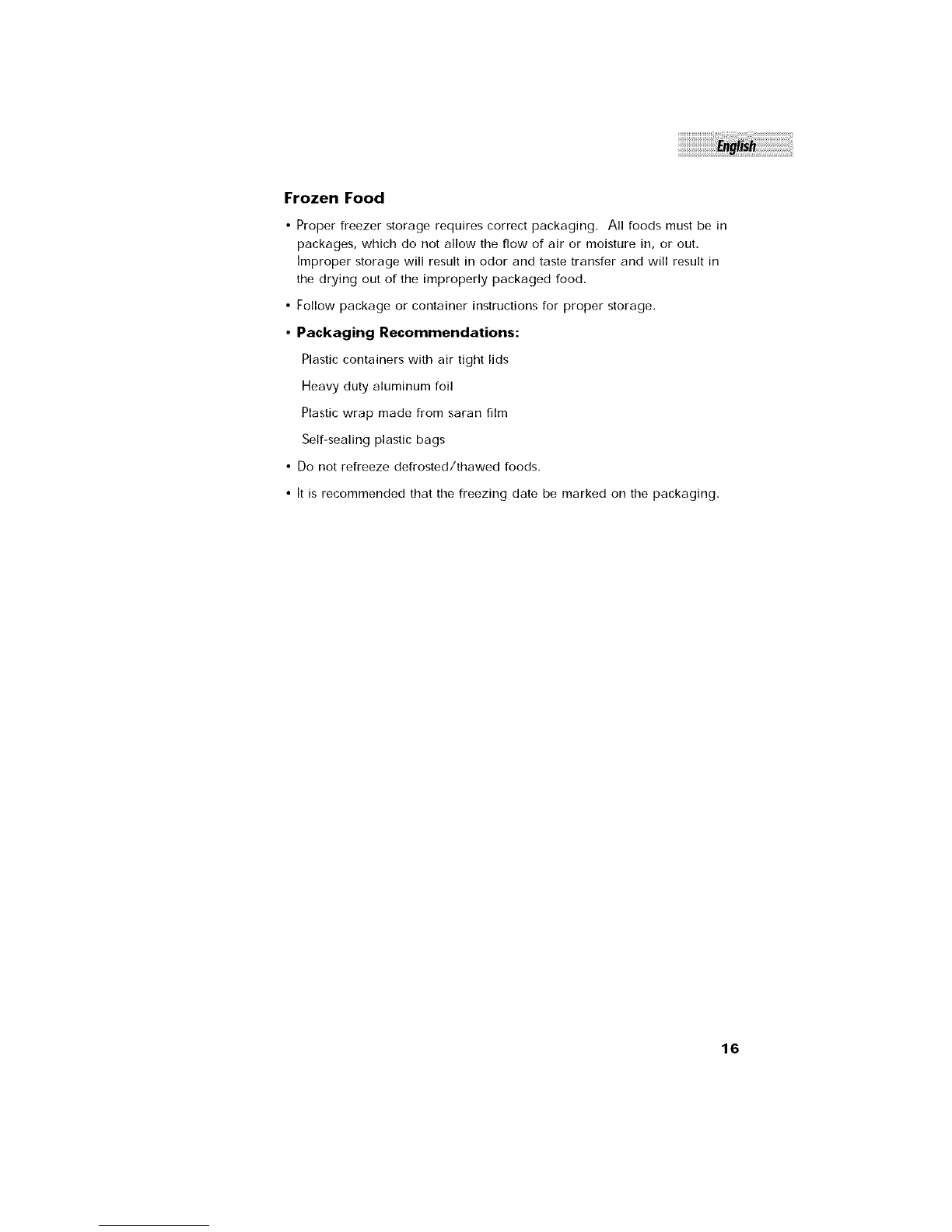

Frozen Food
• Proper freezer storage requires correct packaging. All foods must be in
packages, which do not allow the flow of air or moisture in, or out.
Improper storage will result in odor and taste transfer and will result in
the drying out of the improperly packaged food,
• Follow package or container instructions for proper storage,
•Packaging Recommendations:
Plastic containers with air tight lids
Heavy duty aluminum foil
Plastic wrap made from saran film
Self-sealing plastic bags
• Do not refreeze defrosted/thawed foods,
• It is recommended that the freezing date be marked on the packaging,
16

Nor a Operating Sounds You May Hear
The fan circulating air inside the interior of your unit to maintain the
temperature you have selected.
Boiling water, gurgling sounds or slight vibrations that are the result of
the refrigerant circulating through the cooling coils,
Sizzling or popping sounds resulting from frost melting during the
defrost cycle and dripping on the defrost heater.
The sound of dripping water as ice melts from the evaporator and flows
into the drip pan during the defrost cycle.
Cracking or popping sound caused by the expansion and/or
contraction of the cooling coils during the defrost cycle,
The thermostat control will click when it cycles on and off,
17

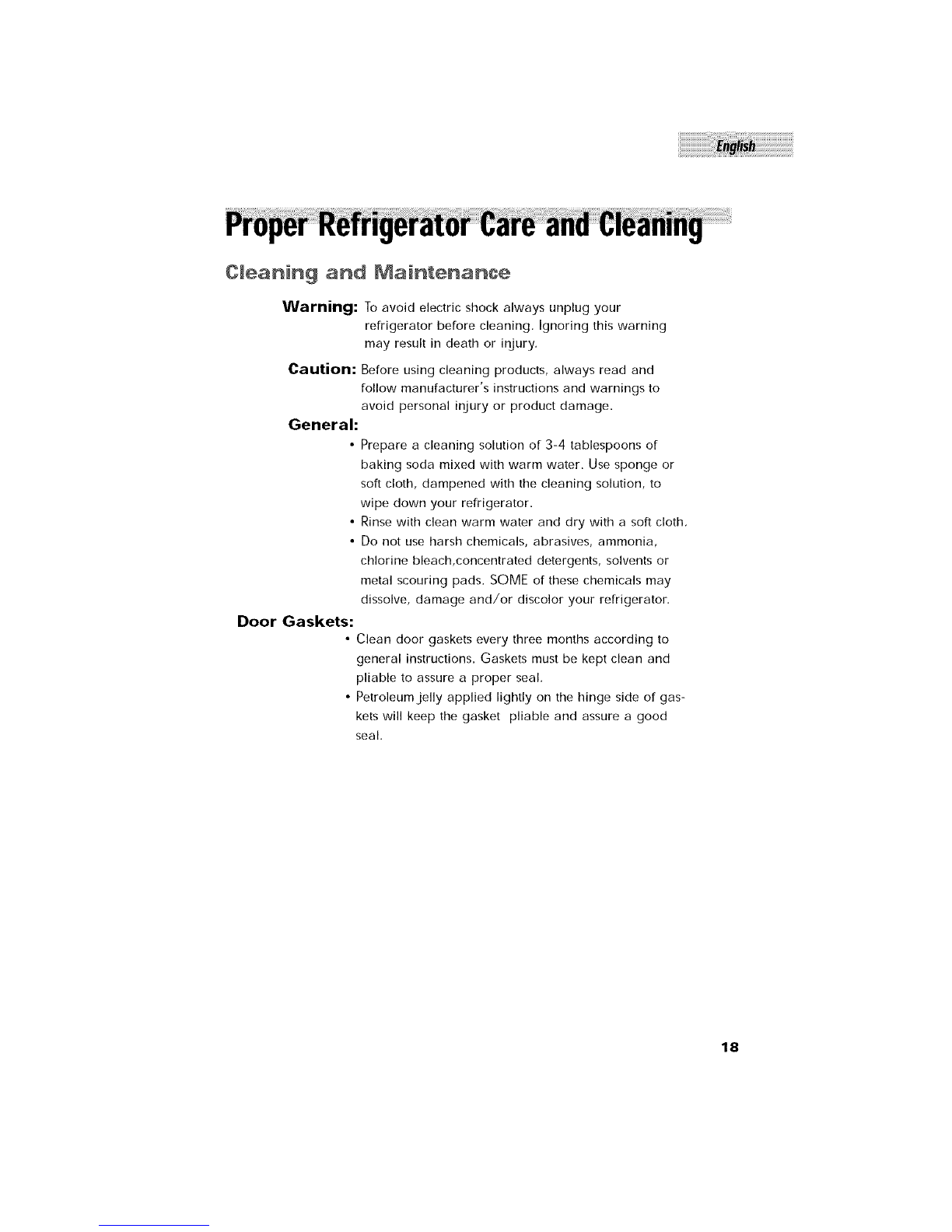

CMeaning and Maintenance
Warning: To avoid electric shock always unplug your
refrigerator before cleaning, Ignoring this warning
may result in death or injury.
Caution: Before using cleaning products, always read and
follow manufacturer's instructions and warnings to
avoid personal injury or product damage.
General:
• Prepare a cleaning solution of 3-4 tablespoons of
baking soda mixed with warm water. Use sponge or
soft cloth, dampened with the cleaning solution, to
wipe down your refrigerator.
• Rinse with clean warm water and dry with a soft cloth,
• Do not use harsh chemicals, abrasives, ammonia,
chlorine bleach,concentrated detergents, solvents or
metal scouring pads. SOME of these chemicals may
dissolve, damage and/or discolor your refrigerator,
Door Gaskets: Clean door gaskets every three months according to
general instructions. Gaskets must be kept clean and
pliable to assure a proper seal,
Petroleum jelly applied lightly on the hinge side of gas-
kets will keep the gasket pliable and assure a good
seal,
18

Ligh_ BuMb RepMacement
1. Switch off power to refrigerator.
2. Allow light bulb to cool before removing.
3, Remove bulb by screwing it out counter-clockwise.
4 Always replace with appliance type light bulb rated at 40 watts
or lesser wattage,
5. Do not exceed the 40 watts rating at any time.
Power Interruptions
•Occasionally there may be power interruptions due to thunderstorms or
other causes. Remove the power cord from AC outlet when a power
outage occurs, When power has been restored, replug power cord to
AC outlet. If outage is for a prolonged period, inspect and discard
spoiled or thawed food in freezer and refrigerator, Clean
refrigerator before reusing.
Vacation and Moving Care
• For long vacations or absences, empty food from refrigerator and
freezer, move the temperature DIAL to the OFF position and clean the
refrigerator and door gaskets according to "General cleaning" section.
Prop doors open, so air can circulate inside,When moving always move
the refrigerator vertically. Do not move with the unit lying down, Possible
damage to the sealed system could occur.
19
