Haier HTW7720ENPT User manual

HTW7720ENPT
HTW7720DNMP
HFW7720ENMB
HTW7720ENMB
HTW7720ENMP
HFW7720EWMP

GB
Safety information
2
GB WARNING:Risk of fire/flammable mate-
rial. The symbol indicates there is a risk of  re
since  ammable materials are used. Take care
to avoid causing a  re by ingiting  ammable
material.
DE WARNUNG:Brandgefahr/ brennbares
Material. Das Symbol weist auf Brandge-
fahr hin, da brennbare Materialien verwen-
det werden. Verhindern Sie die Entstehung von Bränden, die durch
ent ammbare Materialien verursacht werden.
FR ATTENTION: Risque d’incendie ou de mati ères infl ammables.
Le symbole montre qu’il y’a le risque de maté riaux in ammables sont
utilisés. Prendre soin d’éviter de provoquer un incendie en ingérant
des matières in ammables.
IT ATTENZIONE: Rischio di incendio/materiale infi ammabile. Il
simbolo indica il rischio di incendio nel caso di utilizzo di materiali in-
 ammabili. Fare attenzione ed evitare l‘insorgere di incendi a causa
della caombustione di materiali in ammabili.
ES ADVERTENCIA: Riesgo de incendio o mate rial infl amable. El
símbolo indica que existe riesgo de incen dio, dado que se utilizan
materiales in amables. Se debe procurar evitar incendios medi ante
la combustión de materiales in amables.
PT ADVERTÊNCIA:Risco de incêndio/material inflamável. O sím-
bolo indica que existe um risco de incêndio uma vez que são usados
materiais in amáveis. Ter cuidado para evitar provocar um incêndio
por acender material in amável.
NL WAARSCHUWING: Brandrisico / brandbaar materiaal. Het sys-
teem geeft aan dat er een brandrisico bestaat aangezien brandbaar
materiaal wordt gebruikt. Zorg ervoor dat er geen brand wordt ver-
oozaakt door brandbaat materiaal te ont steken.
PL OSTRZEŻENIE:Ryzyko pożaru/materiał łatwopalny. Symbol
wskazuje, że istnieje ryzyko pożaru, ponieważ używane są materiały
łatwopalne. Dbaj o to, aby uniknąć pożaru poprzez zapale nie
łatwopalnego materiału.
CZ VAROVÁNÍ: Nebezpečí Požáru/ Hořlavého Materiálu. Symbol
označuje riziko požáru, protože byly použity hořlavé materiály. Dbejte
na to, aby nedošlo ke vzniku požáru zapálením hořlavého materiálu.

GB Safety information
3
HU FIGYELEM: Tűz / gyúlékony anyag veszélye. A szimbólum azt
jelzi, hogy tűzveszély áll fenn, mivel gyúlékony anyagokat használnak.
Ügyel jen arra, hogy ne tegyen rá tűzveszélyes gyú lékony anyagot.
EL ΠΡΟΣΟΧΗ: Κίνδυνος φωτιάς/εύφλεκτο υλικό. Το σύμβολο υποδεικνύει
ότι υπάρχει κίνδυνος φωτιάς επειδή χρησιμοποιούνται εύφλεκτα υλικά.
Προσέχετε να αποφεύγετε την πρόκληση φωτιάς από ανάφλεξη εύφλεκτου
υλικού.

4

User Manual
R
efrigerator- Freezer
GB
HHTW7720ENMP
HFW7720EWMPHTW7720ENMB HFW7720ENMBHTW7720ENPTHTW7720DNMP

Thank You
2
GB
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions
contain important information which will help you get the best out of the appliance and
ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and
proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
Legend
Warning - Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of
electrical and electronic
appliances. Do not dispose appliances marked with
this symbol with the household waste. Return the
product to your local recycling facility or contact your
municipal office.
WARNING!
Risk of injury or suffocation!
Refrigerants and gases must be disposed of professionally. Ensure that the tubing of
the refrigerant circuit is not damaged before being properly disposed of. Disconnect
the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove
the trays and drawers as well as the door catch and seals, to prevent children and pets
to get closed in the appliance.

Thank You
2
GB
Please read these instructions carefully before using this appliance. The instructions
contain important information which will help you get the best out of the appliance and
ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and
proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
General information and tips
Environmental information
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic
appliances. Do not dispose appliances marked with
this symbol with the household waste. Return the
product to your local recycling facility or contact your
municipal office.
Risk of injury or suffocation!
Refrigerants and gases must be disposed of professionally. Ensure that the tubing of
the refrigerant circuit is not damaged before being properly disposed of. Disconnect
the appliance from themains supply. Cut off themains cable and dispose of it.Remove
the trays and drawers as well as the door catch and seals, to prevent children and pets
to get closed in the appliance.
Content
3
GB
1- Safety information .....................................................................................................................4
2- Intended use ................................................................................................................................ 8
3- Product description ................................................................................................................... 9
4-
Control panel ............................................................................................................................ 11
5-
Use ............................................................................................................................................... 12
6- Energy saving tips ................................................................................................................... 22
7-
Equipment ................................................................................................................................. 23
8- Care and Cleaning ................................................................................................................... 26
9- Troubleshooting ...................................................................................................................... 29
10-
Installation ............................................................................................................................... 32
11- Technical data ....................................................................................................................... 37
12-
Customer Service ................................................................................................................ 38

1- Safety information
4
GB
1- Safetyinformatio n
Before switching on the appliance for the first time read the following
safety hints!:
WARNING!
Before first use
Make sure there is no transport damage.
Remove all packaging and keep out of children's reach.

Wait at least two hours before installing the appliance in order to
ensure the refrigerant circuit is fully efficient.
Handle the appliance always with at least two persons because it
is
heavy.
Installation
The appliance should be placed in a well-
ventilated place. Ensure a
space of at least 10 cm above and 10 cm around the appliance.

Never place the appliance in a damp area or location where it might
be splashed with water. Clean and
dry water splashes and stains with
a soft clean cloth.

Do not install the appliance in direct sunlight or in the near of heat
sources(e.g. stoves, heaters).
Install and level the appliance in an area suitable for its size and use.
Keep ventilation openings in the appliance or in the in-
built structure
clear of obstruction.

Make sure that the electrical information on the rating plate agrees
with the power supply. If it does not, contact an electrician,
The appliance is operated by a 220-240 VAC/50 Hz power
supply.
Abnormal voltage fluctuation may cause the appliance to fail to start,
or damage to the temperature control or compressor, or there may
be an abnormal noise when operating. In such case, an automatic
regulator shall be mounted.
Use a separate earth
ed socket for the power supply which is easy
accessible. The appliance must be earthed.
Only for UK: The appliance's power cable is fitted with 3-
cord
(grounding) plug that fits a standard 3-
cord (grounded) socket.
Never cut off or dismount the third pin (
grounding). After the
appliance is installed, the plug should be accessible.
Do not use multi-plug adapters and extension cables.
Ensure that the power cable is not trapped by the refrigerator. Do not
step on the power cable.
Do not damage the refrigerant circuit.

1- Safety information
4
GB
Before first use
Make sure there is no transport damage.
Remove all packaging and keep out of children's reach.
Wait at least two hours before installing the appliance in order to
ensure the refrigerant circuit is fully efficient.
Handle the appliance always with at least two persons because it is
heavy.
Installation
The appliance should be placed in a well-ventilated place. Ensure a
space of at least 10 cm above and 10 cm around the appliance.
Never place the appliance in a damp area or location where it might
be splashed with water. Clean and dry water splashes and stains with
a soft clean cloth.
Do not install the appliance in direct sunlight or in the near of heat
sources(e.g. stoves, heaters).
Install and level the appliance in an area suitable for its size and use.
Keep ventilation openings in the appliance or in the in-built structure
clear of obstruction.
Make sure that the electrical information on the rating plate agrees
with the power supply. If it does not, contact an electrician,
The appliance is operated by a 220-240 VAC/50 Hz power supply.
Abnormal voltage fluctuation may cause the appliance to fail tostart,
or damage to the temperature control or compressor, or there may
be an abnormal noise when operating. In such case, an automatic
regulator shall be mounted.
Use a separate earthed socket for the power supply which is easy
accessible. The appliance must be earthed.
Only for UK: The appliance's power cable is fitted with 3-cord
(grounding) plug that fits a standard 3-cord (grounded) socket.
Never cut off or dismount the third pin (grounding). After the
appliance is installed, the plug should be accessible.
Do not use multi-plug adapters and extension cables.
Ensure thatthe power cable is not trapped by the refrigerator. Do not
step on the power cable.
Do not damage the refrigerant circuit.
1- Safety information
5
GB
WARNING!
Daily use

This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or
instruction concerning use of the appliance in a safe way and
understand the hazards involved,

Keep away children under 3 years of age from the appliance unless
they are constantly supervised.
Children shall not play with the appliance.
If cool gas or othe
r inflammable gas is leaking in the vicinity of the
appliance, turn off the valve of the leaking gas, open the doors and
windows and do not unplug a plug in the power cable of the
refrigerator or any other appliance.
Notice that the appliance is set for op
eration at a specific ambient
range between 10 and 43°C. The appliance may not work properly if
it is left for a long period at a temperature above or below the
indicated range.

Do not place unstable articles (heavy objects, containers filled with
water) o
n top of the refrigerator, to ovoid personal injury caused by
falling or electric shock caused by contact with water.

Do not pull on the door shelves. The door may be pulled slant, the
bottle rack, may be pulled away, or the appliance may topple.
Open and
close the doors only with the handles. The gap between
the doors and between the doors and the cabinet is very narrow. Do
not extend your hands in these areas to avoid pinching your fingers.
Open or close the refrigerator doors only when there are no child
ren
standing within the range of door movement.

Do not store or use inflammable, explosive or corrosive materials in
the appliance or in the vicinity.

Do not store medicines, bacteria or chemical agents in the appliance.
This appliance is a household appli
ance. It is not recommended to
store materials that require strict temperatures.

Never store liquids in bottles or cans (besides high percentage
spirits) especially carbonated beverages in the freezer, as these will
burst during freezing.
Check the conditi
on of food if a warming in the freezer has taken
place.

1- Safety information
6
GB
WARNING!
Daily use

Do not set unnecessarily low temperature in the refrigerator
compartment. Minus temperatures may occur at high settings.
Attention: Bottles can burst.

Do not touch frozen goods with wet hands (wear gloves). Especially
do not eat ice lollies immediately after removal from the freezer
compartment. There is the risk to freeze or the formation of frost
blisters. FIRST aid: keep immediately under running cold
water. Do
not pull away!

Do not touch the inside surface of the freezer storage compartment
when in operation, especially with wet hands, as your hands may
freeze onto the surface.

Unplug the appliance in the event of a power interruption or before
cleani
ng. Allow at least 5 minutes before restarting the appliance, as
frequent starting may damage the compressor.

Do not use electrical devices inside the food storage compartments
of the appliance, unless they are of the type recommended by the
manufacturer.
Maintenance / cleaning

Make sure children are supervised if they carry out cleaning and
maintenance.
Disconnect the appliance from the electrical supply before under-
taking any routine maintenance. Allow at least 5 minutes before
restarting the appliance,
as frequent starting may damage the
compressor.
Hold the plug, not the cable, when unplugging the appliance.

Do not scrape off frost and ice with sharp objects. Do not use sprays,
electric heaters like heater, hair dryer, steam cleaners or other
sources of heat in order to avoid damage to the plastic parts.

Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the
manufacturer.

If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.

Do not try to repair, disassemble or modify the appliance by yourself.
In case of repair please contact our customer service.

1- Safety information
7
GB
WARNING!
Maintenance / cleaning

Eliminate the dust on the back of the unit at least once in the year to
avoid hazard by fire, as well as increased energy consumption.
Do not spray or flush the appliance during cleaning.
Do not use water spray or steam to clean the appliance.
Do
not clean the cold glass shelves with hot water. Sudden
temperature change may cause the glass to break.
Refrigerant gas information
WARNING!
The appliance contains the flammable refrigerant ISOBUTANE (R600a).
Make sure the refrigerant circuit is not damaged during transportation
or installation. Leaking refrigerant may cause eye injuries or ignite. If a
damage has occurred, keep away open fire sources, thoroughly
ventilate the room, do not plug or unplug the p
ower cords of the
appliance or any other appliance. Inform the customer service.
In case of eyes get into contact with the refrigerant, rinse immediately
it under running water and call immediately the eye specialist.
CAUTION!
When you close the door, the vertical door beam on
the left door should be bent inside (1).
If you try to close the left door and the vertical door
beam is unbent (2), you should bend it firstly,
otherwise the door beam will hit the fixing shaft or
right door. Thus a damage to the door beam or a leak
will occur.
There is a heating thread inside the vertical door
beam. The temperature of the surface will rise a little,
which is normal and won't affect the function of
refrigerator

2-Inten ded u se
8
GB
2- Inte nded use2.1 Intended use This appliance is intend ed for cooling and freezin g food. It has been designed exclusively
for use in dry-int erior house-holds. It is not intend ed for commercial or ind ustrial use.
Changes or modifications to the device are not allowed . Unint end ed use may cause
hazard s and loss of warr ant y claims.
2.2 Accessories Check the accessories and literature in accordance wit h this list (Fig .:2.2):
2.2
Ice cube tray
Egg trays
Door
hinges
Spacers
Hinge
cover
Energy-
lable
Warranty
card
User
manual
*HTW7720ENMP /HTW7720ENMB/HTW7720ENPT

2- Intended use
8
GB
2.1 Intended use
This appliance is intended for cooling and freezing food. It has been designed exclusively
for use in dry-interior house-holds. It is not intended for commercial or industrial use.
Changes or modifications to the device are not allowed. Unintended use may cause
hazards and loss of warranty claims.

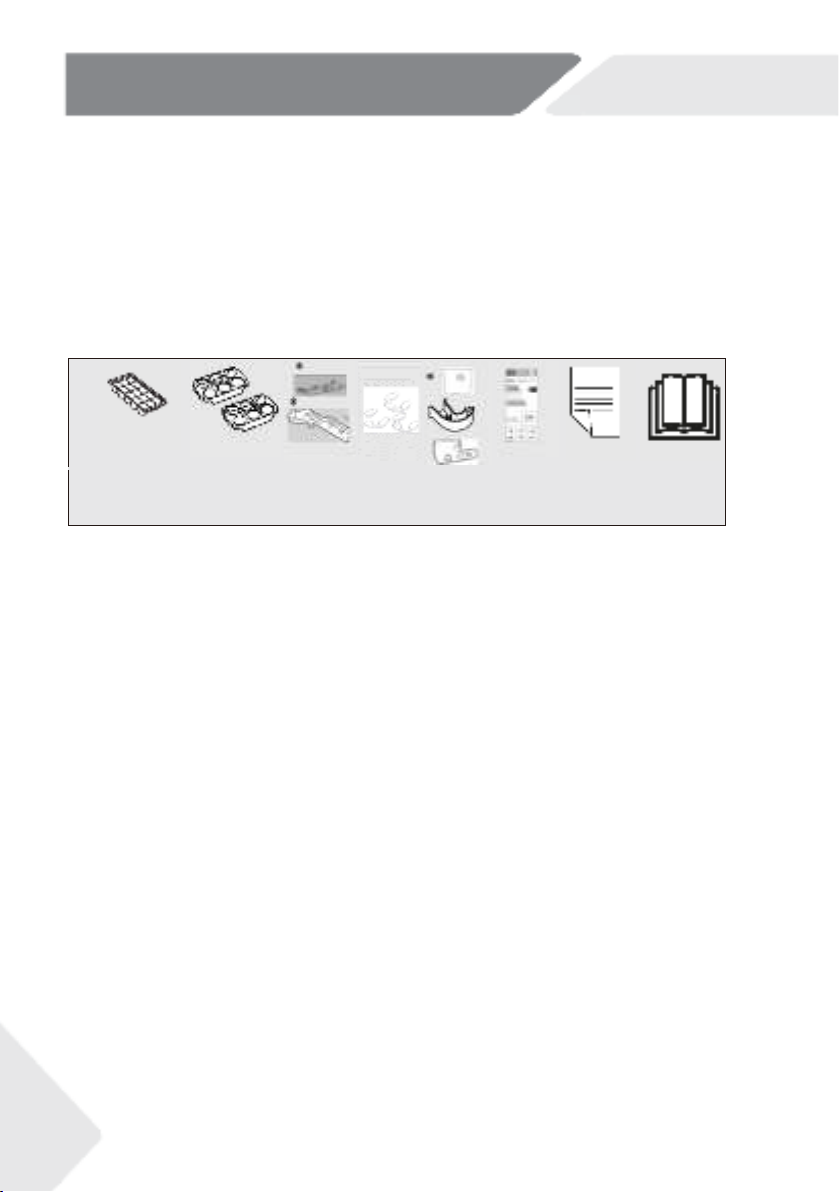

2.2 Accessories
Check the accessories and literature in accordance with this list (Fig.:2.2):
2.2
Ice cube tray
with cover Egg trays Door hinges Spacers Hinge cover Energy- lable Warranty card User manual
*HTW7720ENMP/A3FE744CGBJ
3- Product description
9
GB
3- Produc t description
Notice: Differences
Due to technical changes and different models, some of the illustrations in this manual
may differ from your model.

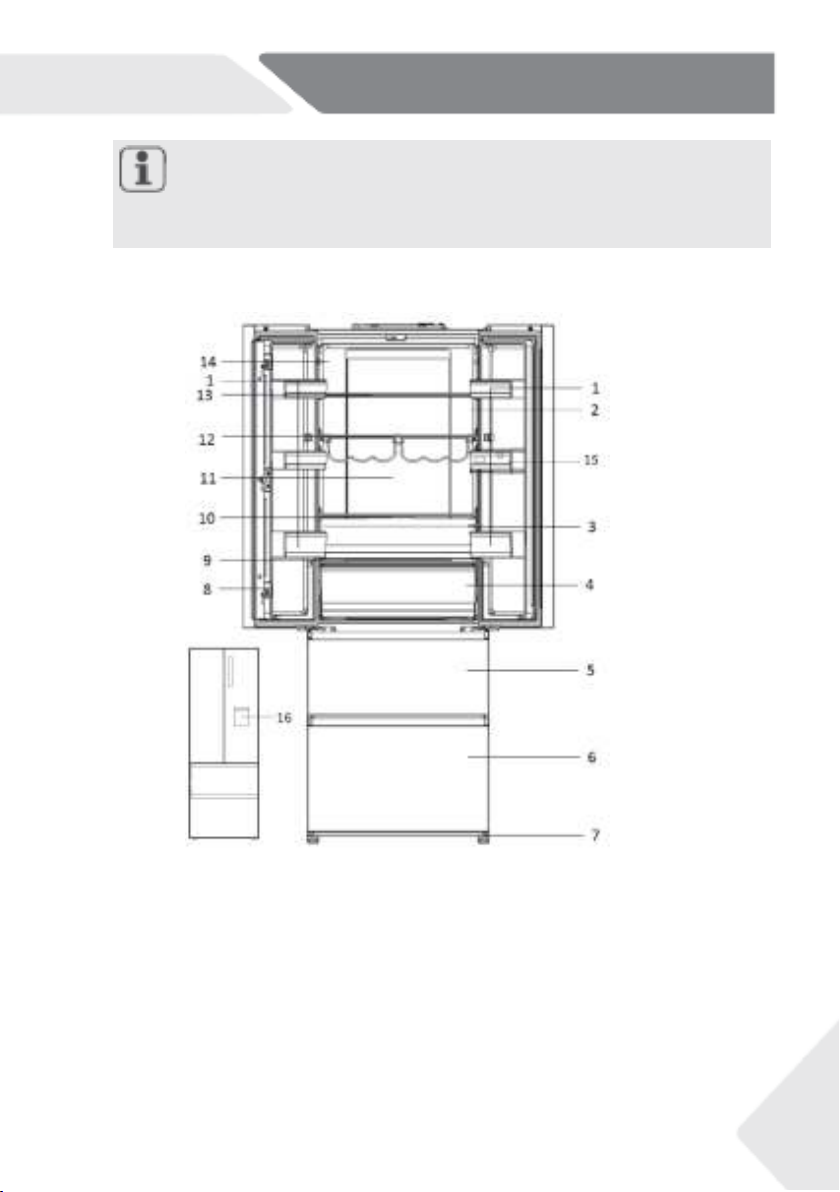

Picture of appliance (Fig. 3)
model: HFW7720EWMP
1 Door rack
2 O.K.-temperature indicator (optional)
3 Humidity Zone drawer
4 My Zone drawer
5 Upper freezer storage drawer
6 Lower freezer storage drawer
7 Adjustable feet
8 Door beam
9 My Zone drawer glass cover
10 Humidity drawer glass cover
11 Back lamp
12 Bottle rack
13 Glass shelf
14 Rating plate
15 Water tank (HFW7720EWMP)
16 Water dispenser (HFW7720EWMP)
/HFW7720ENMB

3-Product d escrip tion
10
GB
model: HTW7720ENMP /HTW7720ENMB/ HTW7720ENPT
1 Door rack
2 OK-temperature ind icator (optional )
3 Upp er freezer storage drawer
4 Lower freezer storage drawer
5 Adju stable feet
6 My Zone drawer
7 My Zone drawer gl ass cover
8 Humid ity Zone drawer
9 Humid ity drawer gl ass cover
10 Bottle rack
11 Glass shelf
12 Rating plate
13 Back l amp
/HTW7720DNMP

4- Control panel
GB
4- Control pa nel

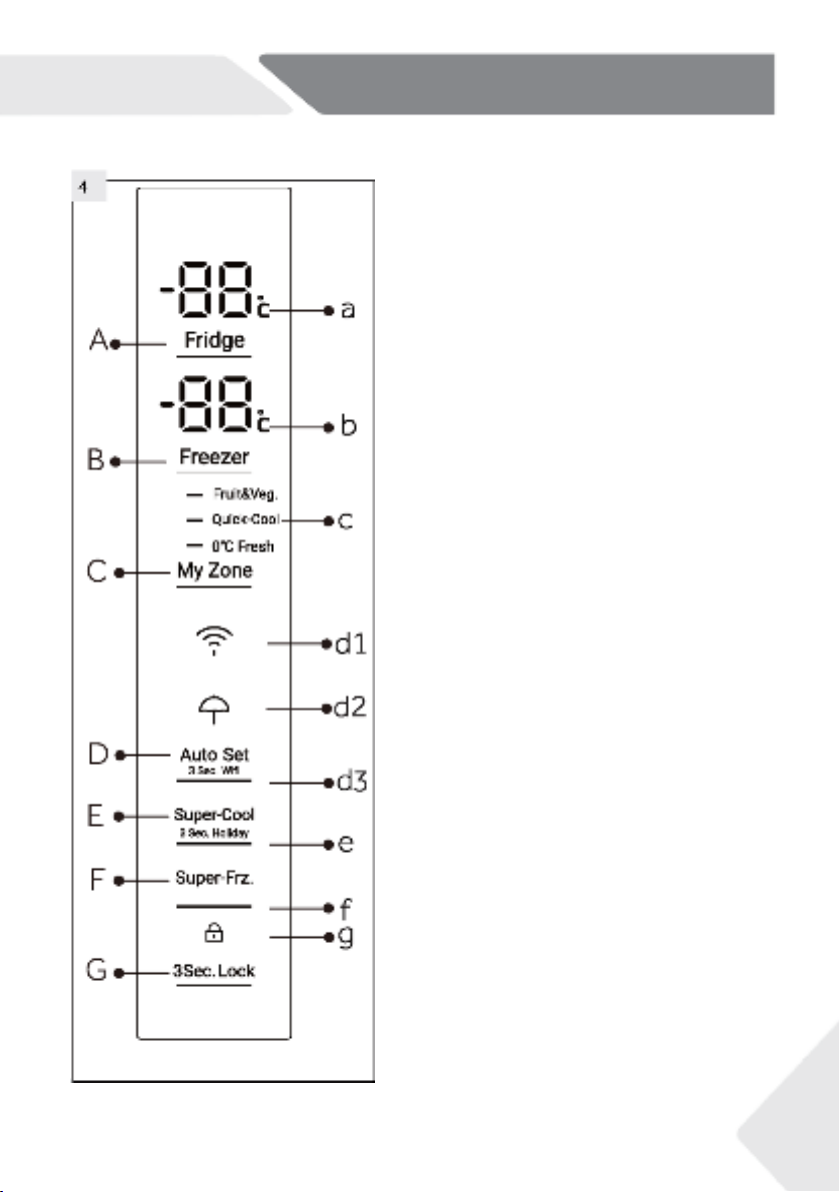

Control panel (Fig. 4)
Keys:
A Fridge temperature setting
B Freezer temperature setting
C My Zone setting
D Auto Set mode and Wifi function on/off
E Super Cool function and Holiday function on/off
F Super Freeze function on/off
G Panel lock/unlock
Indicators:
a Temperature fridge compartment
b Temperature freezer compartment
c My Zone function
d1 Wifi function
d2 Holiday function
d3 Auto Set mode
e Super-Cool function
f Super-Freeze function
g Panel lock
11

12
5- Use
13
GB
5.1 Before first use
Remove all packaging materials, keep them out of children's reach and dispose them
in an environmentally friendly manner.
Clean the inside and outside of the appliance with water and a mild detergent before
putting any food in it.
After the appliance has been levelled and cleaned, wait for at least 2 hours before
connecting it to the power supply. See Section INSTALLATION.
Precool the compartments at high settings before loading with food. The function
Super-Freeze helps to cool down the freezer com partment quickly.
The refrigerator temperature and freezer temperature are automatically set to 5° C
and -18° C respectively. These are the recommended settings. If desired, you can
change these temperatures manually. Please see MANUAL ADJUSTING MODE.
5.2 Sensor keys
The buttons on the control panel are sensor keys, which already respond when lightly
touched with the finger.
5.3 Switch on /off the appliance
The appliance is in operation as soon as it is connected to the power supply.
When the appliance is powered on for the first time, the actual refrigerator and freezer
temperatures ("a" and "b") are displayed. The display will flash. If the doors are closed it
will switch off after 30 seconds. Maybe the panel lock is active.
The appliance is preset to the recommended temperature of 5°C (refrigerator) and
-18°C (freezer). Undernormal ambient condition you need not to set a temperature.
The presetting function for the My Zone drawer is Fruit&Veg.
When the appliance is switchedon after disconnection from the main power supply,
It may take up to 12 hours for the correct temperatures to be reached.
Empty the appliance before switching off. Toswitch off the appliance, pull the power cord
out off the power socket.
5.4 Standby-mode
The display screen turns off automatically 30 seconds after pressing a key. The display
will be automatically locked. It lights up automatically by touching any key or opening the
door/drawer.
5- Use GB
5- Use
5.1 Before first use
Remove all packaging materials, keep them out of children's reach and dispose them
in an environmentally friendly manner.
Clean the inside and outside of the appliance with water and a mild detergent before
putting any food in it.
After the appliance has been levelled and cleaned, wait for at least 2 hours before
connecting it to the power supply. See Section INSTALLATION.
Precool the compartments at high settings before loading with food. The function
Super-Freeze helps to cool down the freezer com partment quickly.
The refrigerator temperature and freezer temperature are automatically set to 5° C
and -18° C respectively. These are the recommended settings. If desired, you can
change these temperatures manually. Please see MANUAL ADJUSTING MODE.
5.2 Sensor keys
The buttons on the control panel are sensor keys, which already respond when lightly
touched with the finger.
5.3 Switch on /off the appliance
The appliance is in operation as soon as it is connected to the power supply.
When the appliance is powered on for the first time, the actual refrigerator and freezer
temperatures ("a" and "b") are displayed. The display will flash. If the doors are closed it
will switch off after 30 seconds. Maybe the panel lock is active.
Notice: Presettings
Empty the appliance before switching off. To switch off the appliance, pull the power cord
out off the power socket.
5.4 Standby-mode
The display screen turns off automatically 30 seconds after pressing a key. The display
will be automatically locked. It lights up automatically by touching any key or opening the
door/drawer.

-


The appliance is preset to the recommended temperature of 5°C (refrigerator) and
18°C (freezer). Under normal ambient condition you need not to set a temperature.
The presetting function for the My Zone drawer is Fruit&Veg.
When the appliance is switched on after disconnection from the main power supply,
It may take up to 12 hours for the correct temperatures to be reached.

5- Use
13
GB
5.5 Lock/unlock panel
Notice: Panel lock
The control panel is automatically blocked against
activation if 30 seconds no key is touched. For any
settings the control panel must be unlocked
Touch key "G" for 3 seconds to block all panel
elements against activation (Fig. 5.5). The related
indicator "d" is now displayed.
For unlocking touch again the key.
5.6 Door opening alarm
When one of the refrigerator doors is opened for more than 1 minute, the door opening
alarm will sound. The alarm can be silenced by closing the door. If the door is left open for
more than 7 minutes, the light inside the refrigerator and control panel illumination will
automatically switch off.
5.7 Select the working mode
You may need to select one of the following two ways to set the appliance:
5.7.1 Auto Set mode
If you do not have any special requirements, we
recommend that you use Auto Set mode In the mode,
the appliance can automatically adjust the temperature
setting according to the ambient temperature and
temperature change in the appliance. This function is
totally hand free.
1. Unlock the panel by touching key "G" if it is locked
(Fig. 5.5)
2. Touch key “D" (Fig 5.7.1.1)
3. Indicator ''d3" illuminates and the function is
activated (Fig. 5.7.1-2)
By repeating the above steps or selecting an other
function this function can be switched off again.
5.7.2 Manual adjusting mode
If you want to manually adjust the temperature of the appliance in order to store a
particular food, you can set the temperature via a temperature adjusting key:
Notice: Conflict with other functions
The temperature cannot be adjusted, if any other function (Super- Cool, Super-
Freeze, Holiday or Auto Set) is activated or the display is locked. The corresponding
indicator will flash accompanying with a buzzer
g
3

Use
anel ching if it is
id
ent er in
id ent is is ed
eq entia id il esired
em er is ng
ignal wil each ch.
em er ecreases in eq ence
inim axim
im em er in id is er
em er es ean nneces ary ener
et ing ir ica er
is ed em er hing.
anel ching if it is
ent er in
ent is is
eq ential (Freeze il
es em er is ing
igna wil each es
em er increases in eq nce
im er in
eeze is er em er es ea
nneces ary ener
et ing ir er on
is ed em er hing.
Notice: Influences on temperatures
ind em er es are inf ence by wing
ent em er
Freq ency enin of or ood n iance

5- Use
15
GB
5.8 Super-Cool function
Switch on the Super-
Cool function if larger quantity of
food should be stored (for example after the
purchase). The Super-
Cool function accelerates the
cooling of fresh food and protects the goods already
stored from unde
sirable warming. When the function
starts, the temperature is nearly +1°C.
1.
Unlock the panel by touching key “G" if it is locked
(Fig 5.5).
2. Touch key "E"(Super-Cool) (Fig.5.8.-1).
3.
Indicator "e" illuminates and the function is
activated (Fig 5.8.-2).
By repeating the above steps or selecting an other
function this function can be switched off again.
Notice: Automatically switch off
This function will be automatically disabled when the function has lasted for more
than 4 hours..
5.9 Super-Freeze function
Fresh food should be frozen as quickly as possible to
the core. This preserves the best nutritional value,
appearance and taste. The Super-
Freeze function
accelerates the freezing of fresh food and protects
the goods already stored from undesirable warming. If
you need to freeze a large amount of food at once, it is
recommended to set the Super-Freeze function on
ahead for 24h before the usage of frozen room. When
the function starts, the temperature is lower than -24 °C.
1.
Unlock the panel by touching key "G" if it is locked
(Fig.5.5).
2. Touch key "F" (Super-Freeze) (Fig.5.9.-1).
3. Indicator "f illuminates and the func
tion is
activated (Fig.5.9.-2).
By repeating the above steps or selecting an other
function this function can be switched off again.
Notice: Automatically switch off
The Super-Freeze function will automatically switch off after 50 hours. The appliance is
then operated at the previously set temperature

5-
16
GB
5.8 Super-Cool function
S ch on the Super-Cool function if larger ntity of
food should stored (for example after the
purchas The Super-Cool function accelerates the
cooling of fresh food and protects the goods already
stored from undesir in When the function
starts, the temperature is nearly +1°C.
1. Unlock the panel by touching key “G" if it is locked
(Fig 5.5).
2. Touch key "E" uper-Cool) (Fig.5.8.-1).
3. Indicator "e" illuminates and the function is
act ated (Fig 5.8.-2).
By repeating the ve steps or selecting an other
function this function can s tched off
This function l automatically dis the function has lasted for more
than 4 hours..
5.9 Super-Freeze function
Fresh food should frozen as y as poss le to
the cor This preserved the best nutritional value,
appearance and tast The Super-Freeze function
accelerates the freezing of fresh food and protects
the goods already stored from undesir If
you need to freeze a large amount of food once, it is
recommended to set the Super-Freeze function on
ahead for 24h fore the usage of frozen room. When
the function starts, the temperature is lower than -24 °C.
1. Unlock the panel touching key "G" if it is locked
(Fig.5.5).
2. Touch key "F" uper-Freeze) (Fig.5.9.-1).
3. Indicator "f illuminates and the function is
act ated (Fig.5.9.-2).
By repeating the ve steps or selecting an other
function this function can s tched off
The Super-Freeze function ll automatically s tch off after 50 hours. The appliance is
then operated at the pr iously set temperature
5- Use
16
GB
5.10 Holiday function
This function sets the fridge temperature perma-
nently to 17°C.
This allows to keep the door of the empty fridge closed
without causing an odour or mold -
during a long
absence (e.g. during holiday). The freezer com-
partment is free for your setting
1.
Unlock the panel by touching key "G" if it is locked
(Fig. 5.5).
2. Touch key "E"(Super-Cool
) for 3 seconds (Fig.
5.10). Indicator "d2" illuminates
and the function is
activated.
By repeating the above steps or selecting an other
function this function can be switched off again.
WARNING!
In Holiday function. The setting of "Fruit&Veg, Quick cool, 0°C fresh" icons in
Myzone will be switched off and the temperature of Myzone cannot be adjusted.
The fridge compartment and Myzone will display in the previous setting once
exiting the holiday function.
5.11 My Zone drawer
The fridge compartment is equipped with a My Zone
drawer (Fig. 5.11). Following functions are available:
5.11.1 Function Fruit & Veg.
This function is suitable to store fresh fruits and vegetables.
Notice: Fruit & Veg. function
Cold-sensitive fruits like pineapple, avocado, bananas, grapefruits and vegetables such
as potatoes, aubergines, beans, cucumbers,
zucchini and tomatoes and cheese should
not be stored in the My Zone drawer.
5.11.2 Function 0°C Fresh
This function sets the temperature in the MyZone drawer to 0 °C. Suitable to store
fresh food such as meat or fish. Most foods stay fresh at 0°C, but not frozen.
Notice: 0°C Fresh function
Due to different water contents of meat, some meat with more moisture will be
frozen at temperatures lower than 0 °C. So "immediately cut" meat should be stored
in My-Zone box, with temperatures min. 0°C.
