Haier RFF5050 User manual

22
Please determine the cause of the problem before making
any repairs.
Questions and AnswersQuestions and Answers
Questions and AnswersQuestions and Answers
Questions and Answers
Operation failure of the
refrigerator
Failure of lamp
Excessive noise.
Failure of set
temperature
Strange odor
Long operation period
of the compressor
Thick frost formation on
back wall in refrigerator
compartment
Water drops form on
middle front and door
decal
Accumulated of spilt
water in the refri-
gerator compartment
*Disconnection of power supply (plug, socket and fuse);
*Voltage is low.
*The bulb is bad;
*Power supply is connected.
*Contact between the refrigerator and a wall or other article;
*Uneven placement.
*The thermostat is not properly set.
*The door is not properly closed; or the door is opened for long
period.
*The refrigerator is in direct sunlight, or close to a heat source;
*The area is poorly ventilated, or the two sides of the refrigerator
are blocked or badly contaminated.
*Failure to seal food properly;
*Rotting food inside refrigerator;
*Failure of regular cleaning of the refrigerator.
*Initial operation
*Large quantity of food loaded
*Hot weather
*Frequent opening of the refrigerator door
*Not properly closed door
*Improper setting of the thermostat (see the section of
"Operation")
*Thermostat not properly set (see section "Operation")
*Door is not closed.
*Frequent opening of the refrigerator door
*Hot weather
*Excessive moisture
*High ambient temperature or heavy moisture. Wipe clean with
a soft cloth.
*Thermostat is set too high.
*Water outlet is blocked. Clean the outlet with the cleaning rod.

21
Following circumstances are not problems:
*A slight continuous sound will be heard when the liquid refrigerant circulates.
*Excessive vibration will be resulted in the following circumstances:
a) The refrigerator is not well positioned and adjusted.
b) The refrigerator is placed on a wood floor or near to wooden furniture.
*Electricity consumption specified in the technical parameters is the standard issued by
state authorities. This is determined under the following operating conditions for the
refrigerator: ambient temperature: 25 degrees Centigrade; temperature in the cold storage
compartment: 5 degrees Centigrade; Door: closed; continuous operation: 24 hours.
*When the ambient temperature and humidity are high (exceeding 32 degrees Centigrade
and 75%, respectively), a thick layer of ice will form on the back wall of the cold storage
compartment. In such circumstances, it is recommended that automatic mode is selected,
food with a high moisture content is sealed before storage, any food in the compartment
is loosely packed and the door is not opened unnecessarily.
*Liquid refrigerant in the refrigerator will make a sound similar to that of flowing water.
*In winters, it is necessary to keep the refrigeration temperature to 0not above 0and
below 10.
Questions and AnswersQuestions and Answers
Questions and AnswersQuestions and Answers
Questions and Answers

20
Following circumstances are not problems:
*A slight sound might be produced by the evaporator and the pipes due to temperature
changes.
*The compressor will operate for comparatively longer periods if excessive quantity of
food is stored or the ambient temperature is high.
*A slight sound might be produced by the thermostat, start capacitor or heat protector
when the appliance is first started.
*Wipe with soft cloth the water drops, which might appear on the external surface and the
middle connection of the appliance.
*The two sides of the external surface and the middle connection of the appliance will be
warm due to heat radiation of the appliance.
*A slight sound may be heard when the appliance is first started due to the operation of the
compressor and motor. The sound will be lower and lower gradually a short period later.
*The temperature of the refrigerator and the compressor will rise and the compressor will
run for comparatively longer periods when the refrigerator is first started.
Questions and AnswersQuestions and Answers
Questions and AnswersQuestions and Answers
Questions and Answers

19
Caution:never place the refrigerator horizontally.

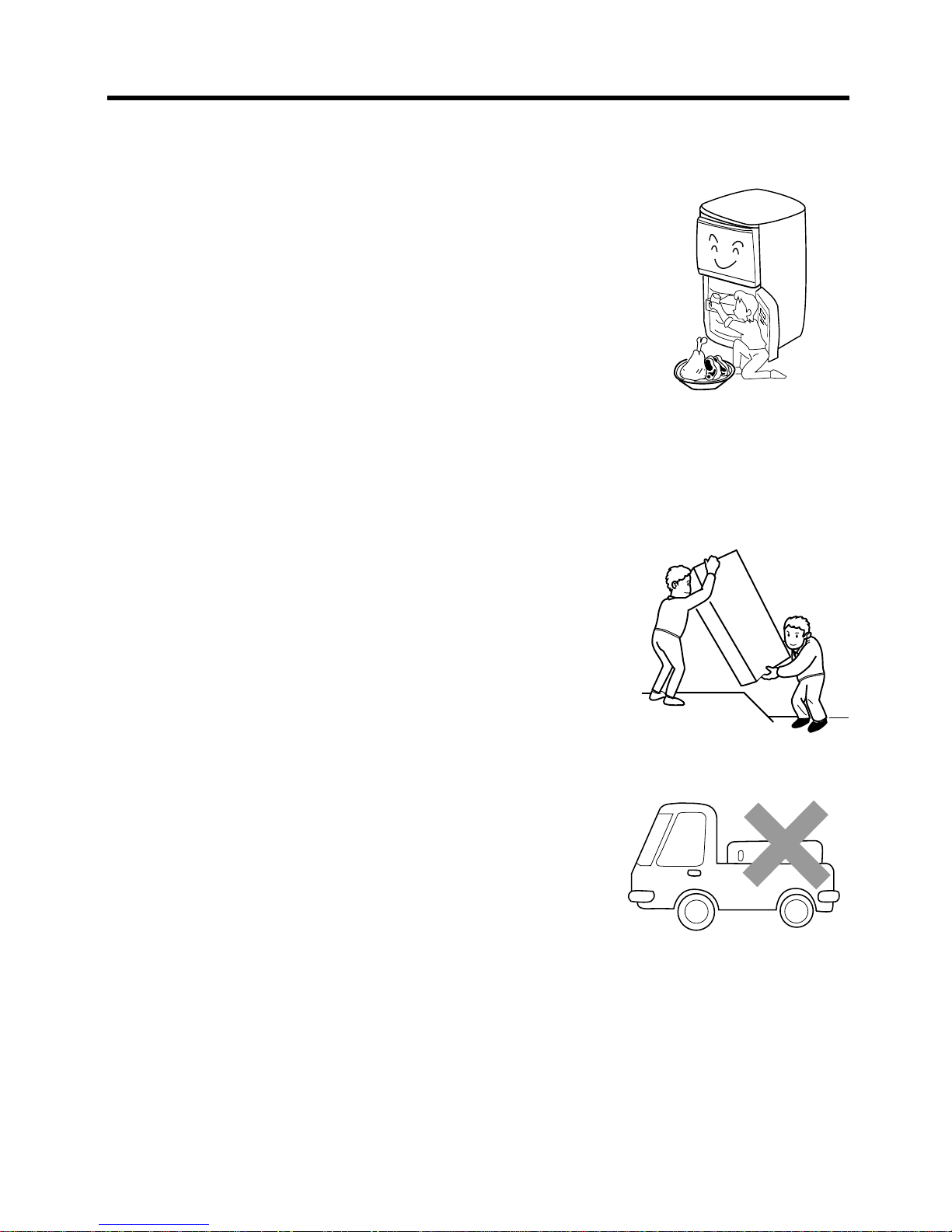

Moving the refrigerator
*Unplug the refrigerator.
*Remove all the food.
*Secure the shelves and the fresh food container with
the tape.
*Tightly close and tape the door of the refrigerator.
*Do not tilt the refrigerator more than 45 degrees, thus
problems may be resulted to the cooling system.
During Vacations
*Remove the food from refrigerator if the vacation is short.
Turn the temperature selection knob to the proper position,
and make sure that the door of the refrigerator is properly
closed.
*If the vacation is long, take out the food from the refrigerator
and disconnect the power. Wait until the frost inside melts,
clean and dry the compartment. Leave the door open to
prevent formation of bad odor.
CessationCessation
CessationCessation
Cessation

Power failure
Even in summer, food can be stored in the refrig-
erator for a few hours after a power failure.
*Don't put additional food into the refrigerator during a
power failure.
*If prior notice of a power failure is given, make some
ice and put it in a container in the top of the cold storage
compartment.
Caution:Temperature in the refrigerator will rise during a power failure or in the
event of technical problems, and the storage period will be reduced.
Operation cessation
*If the power failure lasts for an extended period, unplug
the refrigerator and clean the refrigerator as previously
described.
*Keep the door of refrigerator open when the power is
turned off to prevent any food remaining in the
compartment from producing bad odors.
Caution: It is recommended that the refrigerator is not turned off.
Caution:The refrigerator should never be restarted until a period of at least five
minutes has elapsed.
CessationCessation
CessationCessation
Cessation
18

Cleaning
The refrigerator should be cleaned regularly to prevent
the formation of bad odors.
*Disconnect the power before cleaning the refrigerator.
*Clean the refrigerator with soft towel or sponge wet with warm
water. (mild detergent)
Caution: Do not use a hard brush, steel brush, detergent, gasoline or other
solvents, hot water, acid or alkali for cleaning.
Caution:Do not use excessive amounts of water for cleaning the refrigerator. Use
a dry cloth to clean the switch and the lamp.
*Clean the back and sides of the refrigerator regularly.
*Always keep the door gasket clean.
CleaningCleaning
CleaningCleaning
Cleaning
* Dry water drop on the surface of the refrigerator with a soft
cloth.
17

Defrosting the refrigerator
The refrigerator is designed for automatic defrost-
ing. Frost formed on the back wall will melt and
flow via the drainpipe to the evaporating container
over the compressor on the back of the refrigera-
tor, where the heat generated by the compressor
will evaporate the water. It is normal for frost and
water droplets to form on the back wall of the
freezer.
Caution: Always keep the drain over the vegetable and fruit tray clear to ensure
the normal flow of defrosted water. Use the pin provided to clear any blockages.
DefrostingDefrosting
DefrostingDefrosting
Defrosting
Water Outlet
Cleaning Rod
16
Defrosting the freezer
* * Manual defrosting is required for the freezer. After
a period of operation, a layer of frost will form on the
evaporator in the freezer compartment. Additional
electricity will be consumed if this layer becomes too
thick.
* The defrosting process must be carried out when a
thick layer of frost has been formed on the evapora-
tor.
* Disconnect the power. Remove all the food and then
the drawers from the refrigerator before defrosting. A
bowl of hot water can be placed on the evaporator to
accelerate the defrosting process.
Caution: Never use a metal tool or electrical heater for defrosting.

CautionsCautions
CautionsCautions
Cautions
*Hot food should not be stored in the refrigerator until it
has cooled down to room temperature.
*Food cut into small portions will freeze faster and be
easier to defrost and cook. The recommended weight
for each portion is less than 2.5kg.
*The outside of any food packing should dried before
storage in the freezer, and any packing materials should
be odor-free, airtight, non-poisonous and nontoxic.
*Food should be stored in accordance with any
information printed on the packing.
*Only remove the required amount of food from the
refrigerator. Defrosted food cannot be re-stored in the
freezer unless it is first cooked.
15

Long-term storage of food
As the freezer storage temperature is very low, fresh food
can be stored in the freezer compartment for a long time.
Food requiring long-term storage can be stored in the
frozen food compartment. Attention should be paid to the
storage information printed on the food packing.
Freezer storageFreezer storage
Freezer storageFreezer storage
Freezer storage
14
Making water-Ice
*Pour water into the water ice mould up to three-quarters
of the mould volume, and then place the mould in the
freezing compartment.
*Do not a use knife or other metal tools to take the ice out
of the mould.
*The ice can be easily removed by hand after the mould
has been placed in warm water for a short time.
Do not load excessive food
Quantity of fresh food to be loaded is subjected to the
capacity of the refrigerator. (refer to the requirements
on the nameplate)

*Storage period will be extended if vegetables are
placed with their roots towards the cold source.
*Leaves of carrots or turnips should be removed before
storage.
*Eggs should be stored vertically in the egg holder.
*Frozen food can be placed in the cold compartment
before serving, as this will conserve energy.
*Onions, garlic, ginger, water chestnuts and other root
vegetables should not be stored in the refrigerator,
as these foods are suitable for long-term storage at
normal temperatures.
*Ripe squash, melon, pawpaw, bananas and
pineapples should not be stored in the refrigerator.
Freezing will accelerate the ripening process.
SuggestionsSuggestions
SuggestionsSuggestions
Suggestions
13
Caution: If the ambient temperature in winter is between 0=and -10=, and the refrig-
erator temperature is low and the temperature in lower section of the refrigerator is
around 0(, place the fresh food on the top area of the refrigerator.

*Hot food must be cooled to room temperature before
storing in the refrigerator.
*Dry any water droplets on the food before placing it in
the refrigerator.
*It is recommended that food be sealed in suitable
storage bags before placing it in the refrigerator.
This will prevent moisture in the food from evaporating
and prevent vegetables and fruit from withering or
altering in flavor.
*Storage of Sorted Food
Food to be stored should be sorted according to
consumer requirements. Food consumed daily should
be placed in the most convenient area, this will minimize
opening periods for the door.
*Do not store excess quantities or weights of food
Food should be stored with spaces in between for better
storage results. Never overload shelves, as they may
collapse under excessive loads.
*Do not place food too close to the internal walls. The
stored food placed close to internal walls is easily frozen
onto the walls.
CautionsCautions
CautionsCautions
Cautions
12




Refrigerator storageRefrigerator storage
Refrigerator storageRefrigerator storage
Refrigerator storage
The refrigerator is for short-term food storage or for daily con-
sumption.
Although the temperature in most areas in the refrigeration compartment can be regu-
lated between 0and 10, extended periods of food storage is not recommended.
Refrigerator should only be used for short-term storage.
Refrigeration compartment
As cold air circulates inside the refrigerator, tem-
perature differences exist inside the storage
compartments. Area is the coldest. Different
foods should be placed in different areas according
to their properties.
1. Eggs and butter
2. Canned food and seasonings
3. Beverages and bottled food
4. Pickled food or canned pickled food
5. Wheaten food, canned food, milk and beancurd
6. Cooked food and sausages
7. Fruit, vegetables and salad
Lamp and its replacement
Lamp: 220-240V, 10W
Lamp holder: E14 (lamps exceeding 10W must not
be used)
When replacing the lamp,
* Unplug to disconnect the power
* Remove the thermostat knob and the lamp cover
(1) as shown in the figure.
* Turn the lamp anti-clockwise to remove and then
clockwise for installation of a new lamp.
11
Relocation of the food shelves
Carefully remove and replace the food shelves for
desired height and space.





1 Connect the refrigerator to the power supply.
2 Temperature setting
Temperatures in the refrigerator and the freezer are controlled by the thermostats.
With the value increasing, the temperature goes down and vice versa.
OperationOperation
OperationOperation
Operation
Caution: Some time will be required for the refrigerator to reach the set level when
temperature adjustments are made. The length of this period is determined by difference
in the existing and set temperatures, the ambient temperature, the frequency with which
the door is opened and closed and the amount of food in storage.
3 Loading the food
Load the refrigerator with food a few hours after the
refrigerator is turned on.
After connection of the power supply, the green indicator illuminates and the refrig-
erator operates. The red warning indicator might illuminates once in a while and
automatically extinguishes when the set temperature in the refrigerator is reached.
10

5 Freezer temperature display
Temperature of the freezer can be displayed.
The indicator F illuminates at different scales
for temperature ranges as shown in the table.
FunctionsFunctions
FunctionsFunctions
Functions
Indicator
-15
-18
-21
-25
-32
Temperature Range
-13~-16
-16~-19
-19~-23
-23~-25
Quick freezing mode
6 Over temperature warning and buzzer release
When the actual temperature as sensed is above set point, the over temperature
warning indicator G will blink accompanied by a buzzing. Check to see if the refrigerator
door is properly closed or if the refrigerator is first operated. When the temperature in
the freezer compartment falls to the desired value, the red over temperature-warning
indicator will automatically extinguish. When the refrigerator is first used, the indicator G
illuminates.
Pressing the button C will cease the activated over-temp buzzer. When the temperature
in the freezer falls down below -5, the over-temp warning indicator will extinguish
7 Error indication
Temperature sensors are installed in the refrigerator and the freezer.
The red warning lamp will blink if problems occur with the refrigerator temperature
sensor, then the refrigerator enters the standby mode monitored by the freezer sensor.
The red warning lamp will blink if the problem occurs with the freezer sensor, then the
refrigerator enters the standby mode monitored by the refrigerator sensor, and quick
freezing mode functions and the five indicators extinguish. If problems occur with all the
sensors, the compressor operates and then ceases with an interval of 20 minutes.
Quick freezing mode does not function and the five indicators extinguish.
Contact authorized after-sales service if the sensors have problems while the cooling
system of the refrigerator functions.
9

8
2 Power indicator
The power indicator will illuminate after the appliance is connected to the power
resource.
FunctionsFunctions
FunctionsFunctions
Functions
^_
b
`a
cde
1 Control panel
When refrigerator is connected a power source, the green lamp (E) and the red over-
temp warning lamp (G) illuminate.
A. Refrigerator temperature setting
B. Freezer temperature setting
C. Buzzer release
D. Quick freezing
E. Power indicator (green)
F. Temperature indicator (orange)
G. Over temperature indicator (red)
H. Quick freezing indicator (yellow)
3 Temperature settings
Turn the temperature knob "A" or knob "B" to set temperatures of the refrigerator and
freezer. With the value increasing, the temperature goes down and vice versa.
4 Quick freezing
The quick freezing function is designed to preserve the nutritional value of food, as the
food will freeze completely in the shortest period possible. On pressing the quick
freezing button D, the yellow lamp will illuminate, indicating that the quick freezing
mode has been set. After the compressor operates for a certain period, the quick
freezing mode will cease automatically and the yellow lamp H will extinguish. The quick
freezing mode can be stopped manually by pressing the quick freezing button D, at this
time the yellow indicator H extinguishes.

PreparationPreparation
PreparationPreparation
Preparation
_ìáäíJáå=áåëí~ää~íáçå_ìáäíJáå=áåëí~ää~íáçå
_ìáäíJáå=áåëí~ää~íáçå_ìáäíJáå=áåëí~ää~íáçå
_ìáäíJáå=áåëí~ää~íáçå

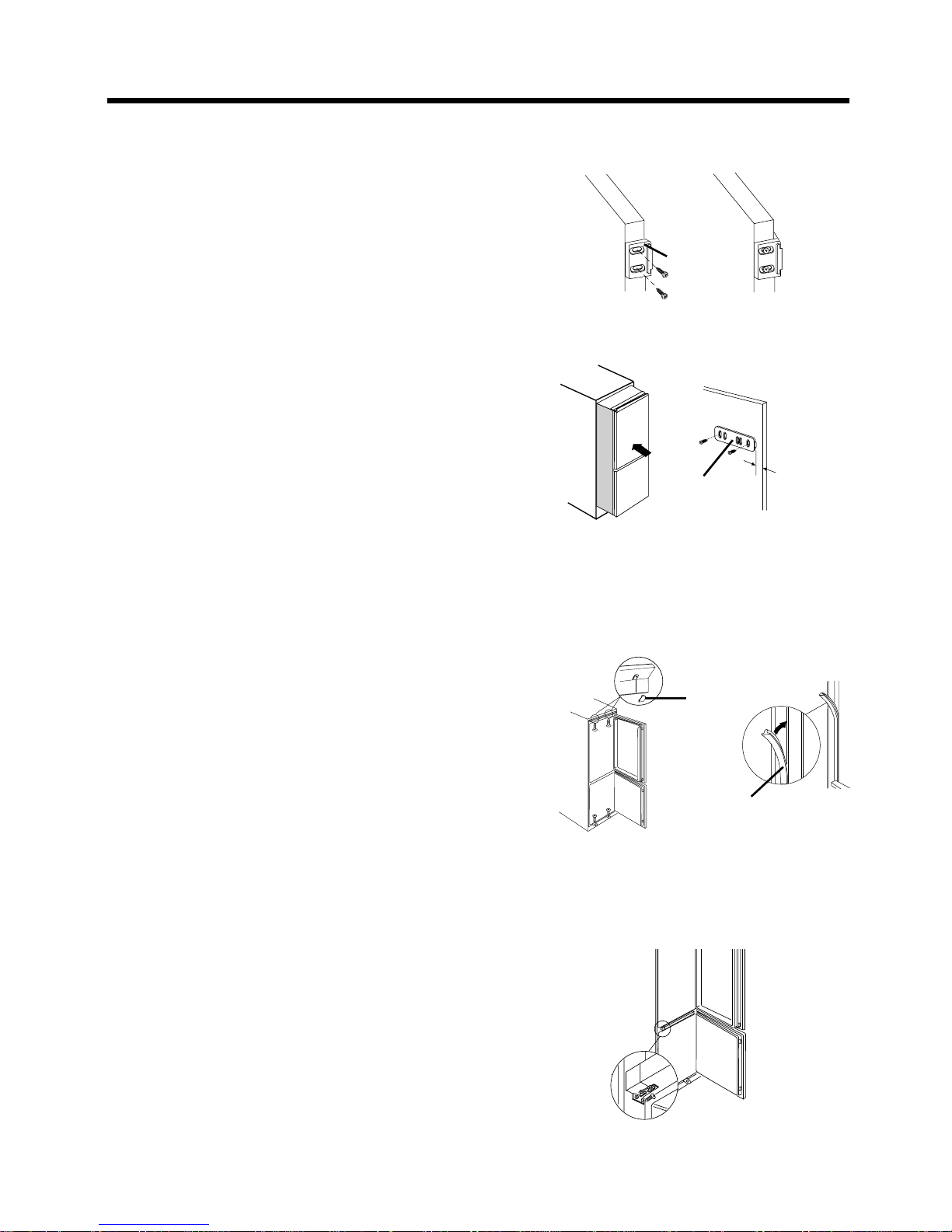

1. Ensure that the doors of the kitchen unit and the
refrigerator are of the same opening direction. (Take
the right-opening door as an example)
2. Fix the joint sockets to the freezer and refrigerator
doors with the provided screws (Figure 1).
3. Move the refrigerator into the kitchen unit,
ensuring the left side panel of the refrigerator as
close as possible to the wall. (Figure 2)
4. Insert the connecting pad into the joint socket
and then fix the connecting pad on the door of the
kitchen unit with a margin of 20-22mm. (Figure 3)
5. Properly place the refrigerator with a 3-4mm
space between the left side to the wall, ensuring
that the doors of the refrigerator and the kitchen
unit can be easily opened and closed, and the
connecting pad is correctly settled in the joint
socket.
6. Fix the upper and lower stiffeners to the upper
connection and base panel. The screw holes shall
be plugged with the plastic stoppers. (Figure 4)
7. Fill the left gap of the kitchen unit with the gasket.
(Figure 5)
8. Remove the screws and the hole stoppers on the
left of the middle connection, and fix the connecting
pivot to the refrigerator with one end in the hole
which was plugged by the stopper and the other
end to the inside wall of the kitchen unit. (Figure 6)
gçáåí=ëçÅâÉí
cáÖìêÉ=N
OMúOOãã
C
`çååÉÅíáåÖ=é~Ç
cáÖìêÉ=P
cáÖìêÉ=O
mä~ëíáÅ=ëíçééÉê
Çççê=Ö~ëâÉí
cáÖìêÉ=QcáÖìêÉ=R
cáÖìêÉ=S
7

6
PreparationPreparation
PreparationPreparation
Preparation
iÉÑíLoáÖÜí=aççê=léÉåáåÖiÉÑíLoáÖÜí=aççê=léÉåáåÖ
iÉÑíLoáÖÜí=aççê=léÉåáåÖiÉÑíLoáÖÜí=aççê=léÉåáåÖ
iÉÑíLoáÖÜí=aççê=léÉåáåÖ
The door of the refrigerator can be opened both from the left or
right as required. The following are the steps required to
position the door to open to the right.
1. Firmly hold the refrigerator door and remove the
screws from the right lower hinge. Remove the door
and place aside. Remove the lower pivot pin and
install it in the left lower hinge hole.
2. Remove the middle hinge and the washer on the
middle connection and then the freezer door. Put the
door aside.
3. Remove the upper right hinge cover and the hinge
screws. Install the right upper hinge cover.
4. Fix the left upper hinge to the left side and then the
left upper hinge cover.
5. Mount the refrigerator door to the left of the housing
with the middle hinge connected.
6. Mount the refrigerator door with the top left hole on
the down pivot pin of the middle hinge.
7. After installation, open and close the door several
times and fix tighten the hinge screws when the door
operates normally.
Lower hinge
Lower pivot pin
Lower pivot pin hole
Pivot pin hole
Middle pivot pin
Washer
Middle hinge
Hole stoppers
Middle pivot pin
Washer
Middle hinge
Lower hinge
Lower pivot pin
Upper hinge
Hinge cover

PreparationPreparation
PreparationPreparation
Preparation
NKNK
NKNK

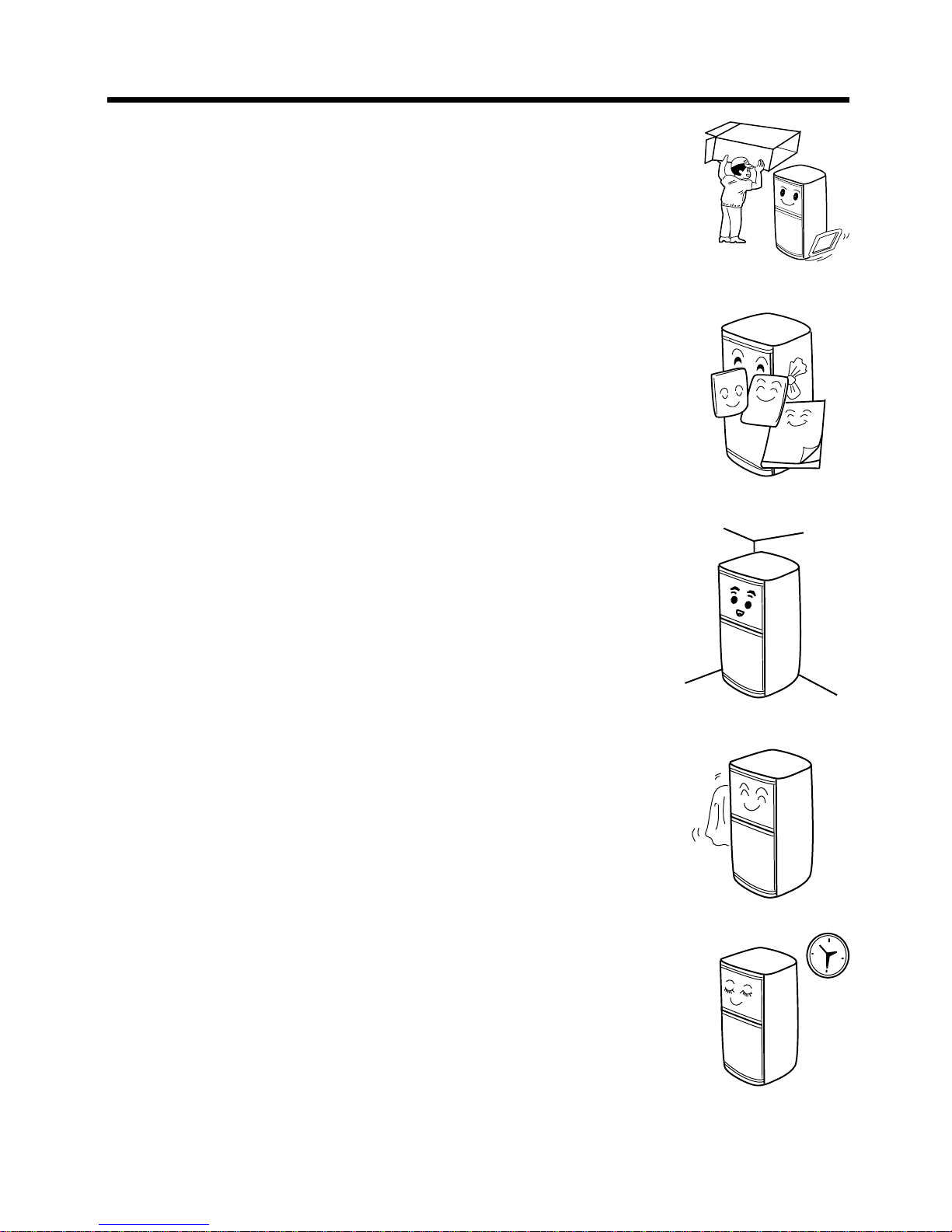

NKUnpacking
Remove all packing materials.
OKOK
OKOK
OKCheck attached accessories and materials.
Checking should be conducted with reference to the Packing
List. Contact the local distributor if shortage is found.
PKPK
PKPK
PKEnsure that the refrigerator is properly lo-
cated.
(Refer to the section of "Location")
QKQK
QKQK
QKClean the refrigerator before using.
(Refer to the section of "Cleaning")
RKRK
RKRK
RKStandby status
Connect the power source a minimum of 30 minutes after the
refrigerator has been sited and cleaned.
5
Caution:
After unpacking, write down the model and delivery number of the refrigerator on
the Warranty for future inquiries.

4
LocationLocation
LocationLocation
Location
*The refrigerator should be placed on a flat and solid
surface. If the refrigerator is placed on a plinth, flat,
strong and fire-resistant materials must be used.
The front black foot of the refrigerator can be
adjusted clockwise or anti-clockwise to lift or lower
the refrigerator if it is placed on an uneven surface.
*Prevent the refrigerator from heat sources or direct
sunlight.
*The area for built-in refrigerator should be well
ventilated with a space over 6cm around the
refrigerator.
*Never place the refrigerator near to a water source.
Clean and dry any water splashes and stains with
soft cloth.
*Never place the refrigerator in an area with an
ambient temperature below zero. Never operate
the refrigerator in an open area.
clockwise
Adjustable Foot
anti-clockwise
Spanner
>6cm
>6cm
>6cm
