Haier IT9001 User manual

IT9002
IT9001
Cooker Hood
INSTALLATION AND USER’S MANUAL
Cod:0103090161-00.02

SAFETY PRECAUTION
2
• Important! Always switch off the electricity supply at the mains during installation and
maintenance such as light bulb replacement.
• The cooker hood must be installed in accordance with the installation instructions and all
measurements followed.
• All installation work must be carried out by a competent person or qualified electrician.
• Please dispose of the packing material carefully. Children are vulnerable to it.
• Pay attention to the sharp edges inside the cooker hood especially during installation and
cleaning.
• When installing the cooker hood, make sure that the following recommended distances
between the top of cooker and the lowest part of the cooker hood are observed:
Gas cookers: 70 cm
Electric cookers: 70 cm
Coal or oil cookers: 80 cm
• Make sure the ducting has no bends sharper than 90 degrees as this will reduce the
efficiency of the cooker hood.
• Cooker hood is for domestic use only.
• Always put lids on pots and pans when cooking on a gas cooker.
• Do not try to use the cooker hood without the grease filters or if the filters are excessively
greasy!
• When in extraction mode, air in the room is being removed by the cooker hood. Please
make sure that proper ventilation measures are being observed. The cooker hood removes
odours from room but not steam.
• There shall be adequate ventilation of the room when the range hood is used at the same
time as appliances burning gas or other fuels.
• Do not install above a cooker with a high level grill.
• Do not leave frying pans unattended during use because overheated fats or oils might
catch fire.
• Never leave naked flames under the cooker hood.
• If the cooker hood is damaged, do not attempt to use.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.

SAFETY PRECAUTION
Important
We can not be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that
This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance
of the appliance. In order to operate the unit correctly and safety, please read this instruction manual carefully before installation
and usage.
we
reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance or
use in a commercial environment.
Under no circumstances should any external covers be removed for servicing or maintenance except by suitably qualified personnel
Appliance information:
Please enter the details on the appliance rating plate below for reference, to assist we Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
3
• Caution: The appliance and its accessible parts can become hot during operation. Be careful
to avoid touching the heating elements. Children younger than 8 years old should stay away
unless they are under permanent supervision.
– There shall be adequate ventilation of the room when the range hood is used at the same
time as appliances burning gas or other fuels.
– There is a fire risk if cleaning is not carried out in accordance with the instructions.
– Do not flambé under the cooker hood.
– CAUTION: Accessible parts may become hot when used with cooking appliances.
– The air must not be discharged into a flue that is used for exhausting fumes from appliances
burning gas or other fuels.
– The minimum distance between the supporting surface for the cooking vessels on the hob
and the lowest part of the range hood.
(When the range hood is located above a gas appliance, this distance shall be at least 70cm.)
– Regulations concerning the discharge of air have to be fulfilled.
• Clean your appliance periodically by following the method given in the chapter
MAINTENANCE.
• Warning: Failure to install the screws or fixing device in accordance with these instructions
may result in electrical hazards
Regarding the instructions method of fixing for the fixed appliance and how the
appliance is to be fixed to its support, thanks to refer to the section
“INSTALLATION”.
The bulbs are not replaceable.
The plug must be remained easily accessible after installation of the appliance.

Parts identification (IT9001)
Technical specifications
4
Parts Name
900x 485 x 550mm
202W
200W
58dB(
1250m³/h
300Pa
A)
2 Speed control
Push button control
16.5kg/24.8kg
220-240V~50Hz
IT9001
1x2W LED light
1xGrease Filter
Model
Voltage
Product dimension
WxDxH(in mm)
Wattage(Total)
Motor
Filter
Light
Noise Level
Airflow
Maximum Static Pressure
Type of switch
Net weight/Gross weight
Speed control
16 17 18 19 20 21 22
1 2 3 4 9 12 1410 116 7 85
(1) Ducting hose
(2) Hanging bracket
(3) Blower
(4) Motor housing
(5) Motor
(6) Fan
(7) Air collector
(8) Nut
(9) Maintenance cover
(10) Wire protection box
(11) Capacitor
(12) Outer Chimney
(13) Inner Chimney Bracket
(14) Inner Chimney
(15) Damper
(16) Main body
(17) Baffle filter
(18) Main body cover
(19) Oil collector
(20) LED lamp
(21) Push button
(22) Control panel
15
13

Parts identification (IT9002)
Technical specifications
5
Parts Name
900x 485 x 550mm
202W
200W
58dB(A)
3 Speed control
Soft-touch Control
220-240V~50Hz
IT9002
1x2W LED light
1xGrease Filter
Model
Voltage
Product dimension
WxDxH(in mm)
Wattage(Total)
Motor
Filter
Light
Noise Level
1250m³/h
Airflow
300Pa
Maximum Static Pressure
16.5kg/24.8kg
Net weight/Gross weight
Type of switch
Speed control
18 19 20 21 22 23 24
1 2 3 4 9 14 15 1610 11 12 136 7 85
(1)Ducting hose
(2) Hanging bracket
(3) Blower
(4) Motor housing
(5) Motor
(6) Fan
(7) Air collector
(8) Nut
(9) Maintenance cover
(10) Wire protection box
(11) Capacitor
(12) PCB
(13) Touch control box
(14) Outer Chimney
(15) Inner Chimney Bracket
(16) Inner Chimney
(17) Damper
(18) Main body
(19) Baffle filter
(20) Main body cover
(21) Oil collector
(22) LED lamp
(23) Touch control switch
(24) Control panel
17

For best performance, you should switch on the range hood few minutes before starting to cook and leave it to run for
approximately 15 minutes after the end of cooking.

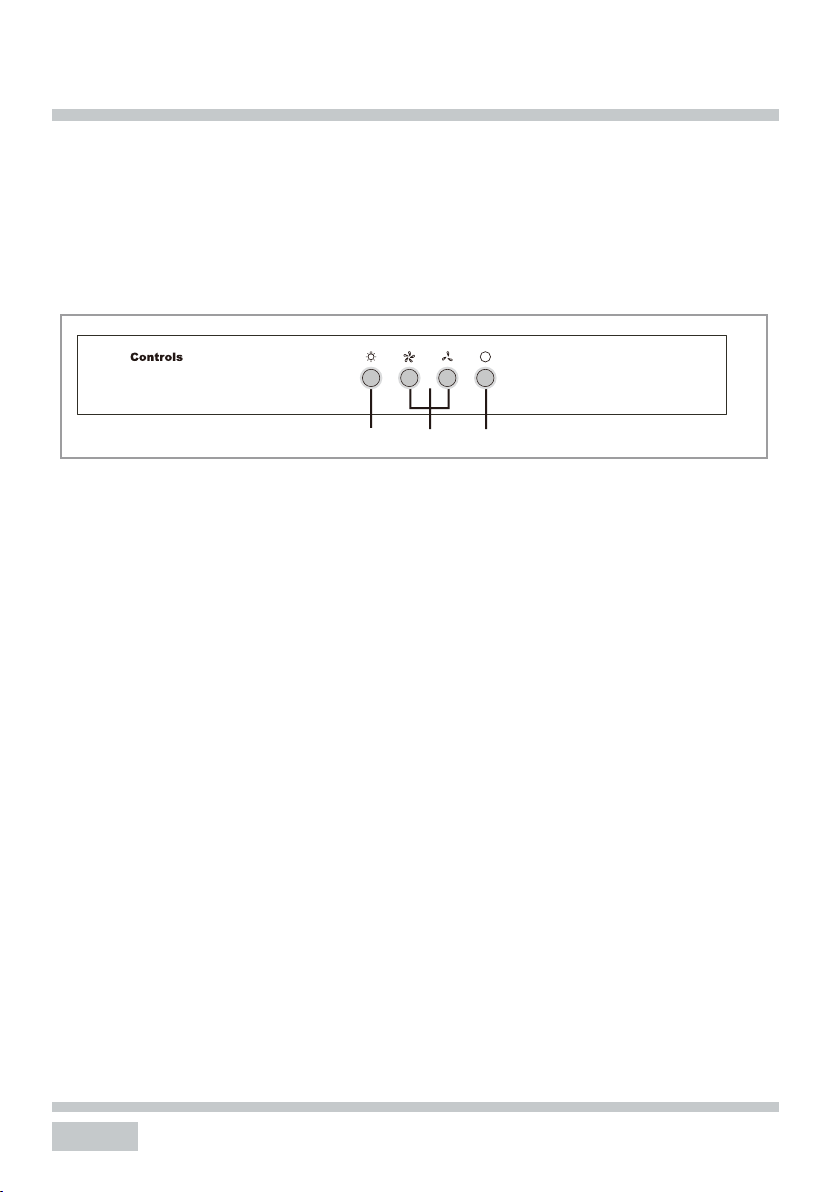

Control Panel
A – Power off button
B – Speed level buttons
C – Light button
Using your Range hood (IT9001)
6
To switch the extractor light on or off:
To switch the extractor off:
•Press button C.
To switch on the extractor or change the motor speed at any time when the extractor
is running
•Press the relevant speed button (B) for the first, second speed as required.
•Press button A.
Fig. 1 ABC

For best performance, you should switch on the range hood few minutes before starting to cook and leave it to run for
approximately 15 minutes after the end of cooking.
Control Panel
A - Light key
B - Speed level keys
C - Off key
Fig. 1
Using your Range hood (IT9002)
7
To switch on the extractor or to change the speed at any time when the extractor is
running:
To switch the extractor light on or off:
Touch the relevant key “B” for the first, second or third speed level as required.•
•
•
Touch key “A”.
To switch the extractor off:
Touch key “C” twice.
To activate the “Timer” mode:
Touch key “C” once when the extractor is already running. This will set the extractor to run for a further 3 minutes before
automatically stopping..
C
B
A

IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING OF THE RANGE HOOD
WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY.
When the oil reaches maximum marked position on oil collector, clear the oil
in time in case of overflow. As Fig. 2-1, pull out the oil collector horizontally
to remove it.
• Remove the screws to remove the filter. (Fig 2-2)
• Use warm water with detergent to steep the filter for some time later,
use rag to scrub the filter. Then rinse it again by clean water.
• Clean filter surface after every use. Clean filter internal every week.
• Remove oil collector. Remove screws. Then remove main body from the
hanging bracket.
• Remove screws from the body back to remove the chimney. (Fig. 2-3)
• Remove the main body cover. Remove the air collector. Clockwisely rotate
tighten nut, remove the fan. (Fig. 2-5)
• During fan cleaning, do not impact or throw away balance weight clamps
in case of reflect the fan dynamic balance to cause unit vibration and higher
noise level.
• Clean the fan every three month.
Filter Cleaning
Filter Cleaning
Fan Cleaning
Oil Collector
8
Fig. 2-I
Fig. 2-2
Fig. 2-3
Fig. 2-4
Fig. 2-5

IMPORTANT: DO NOT PERFORM MAINTENANCE
OR CLEANING OF THE EXTRACTOR WITHOUT FIRST
SWITCHING OFF THE ELECTRICITY SUPPLY.
NOTE: LED lights replacement must be done by a
qualified electrician.
IT9001:220V 1X2W LED MAX

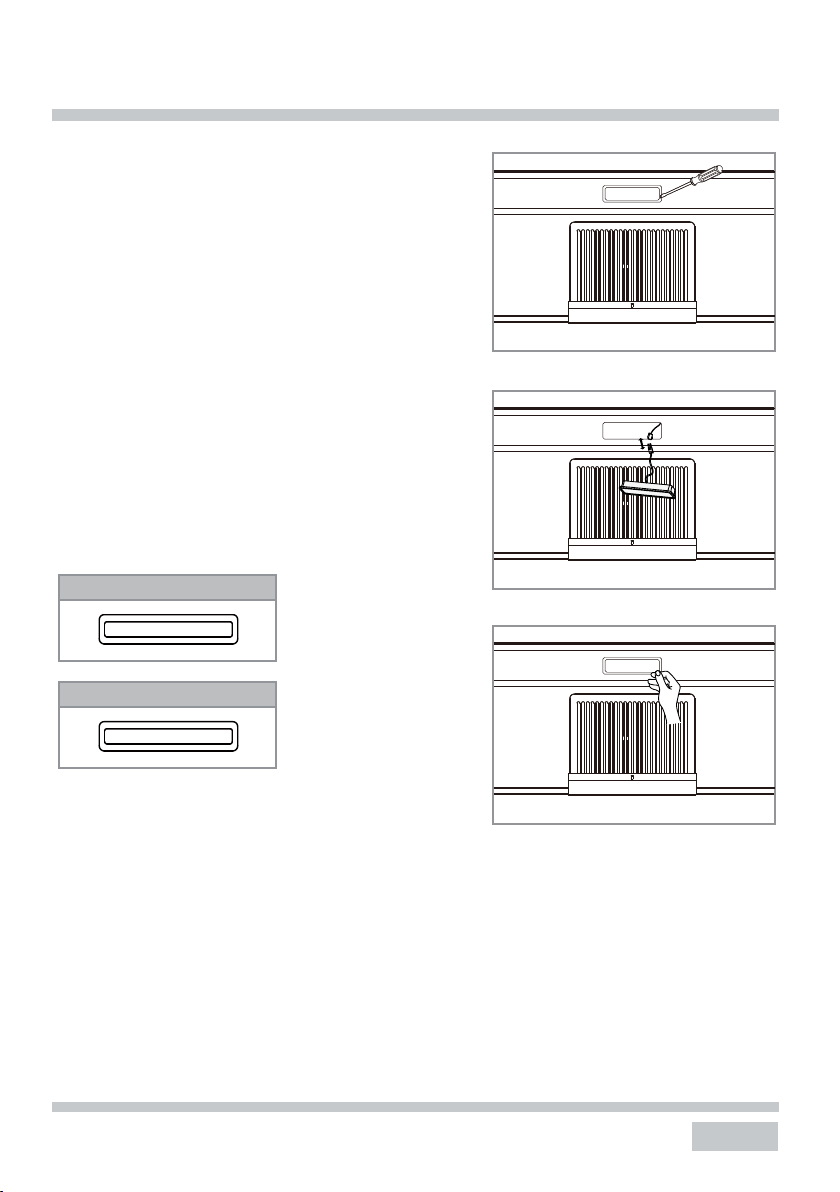

Changing the Light
9
Fig. 3-I
Fig. 3-II
Fig. 3-III
IT9002:12V 1X2W LED MAX
Check with your local retailer or dealer to buy new same LED lights for
replacement.
Remove the lamp buy flat-head screwdriver. Pull out the lamp. Unplug the
lamp wire connector (Fig. 3).
Plug wire connector with new lamp. Put the new lamp into lamp holder.
Push the LED lamp into the hole with sound of snap.
The light is designed for use during cooking and not for general room
illumination. Extended use of the light can reduce the life span of the lights.
Lights replacement is not covered by the guarantee.
Replace LED light

Mains electrical voltage: 220Vac
Total rated power consumption:
202W
Troubleshooting
Please note:
Your Range hood is equipped with a motor protection device that will switch off the motor to prevent damage from overheating.
This may happen during cooking when most or all of the zones/burners are being used simultaneously, or if your Range hood is
installed incorrectly, lower than the recommended height.
GUARANTEE
Your new product is guaranteed against defects in materials and/or workmanship. Any parts found to be defective will be
repaired or replaced at our discretion. All repairs must be carried out by an authorised Repair Agent. Your Range hood comes with a
1 year parts and labour guarantee.
This guarantee does not in any way affect your statutory legal rights
THIS GUARANTEE IS VALID
PROVIDING THAT :
THIS GUARANTEE
DOES NOT COVER :
This is normal, and the extractor will work again once the motor has cooled sufficiently.
Electrical Information
10
•The appliance has been installed by a
suitably qualified person
•
Installation has been carried out in
accordance with instructions and current
legislation
•
Proof of purchase can be produced
•The appliance has been used for
domestic purposes only
•
The appliance has not been tampered
with or repair attempted or modified by
any unauthorised person
•
Damage by misuse, neglect or transit
•Use of parts that have not been
recommended
•
Routine maintenance, general wear &
tear and installation faults
•
Rubber seals, removable glass and/or
plastic parts, fuses or light bulbs which all
need replacing periodically
•
Second-hand or reconditioned
appliances
•
Appliances used for commercial or
professional purposes

When the Range hood is to be installed above an electric hob, the
minimum distance between the hob and Range hood must exceed
650mm.
When the Range hood is to be installed above a gas hob, the
minimum distance between the hob and Range hood must exceed
700mm.
The height should be measured from the top of the burners
If the instructions for installation for the gas hob specify a greater
distance, this has to be taken into account.
Ducting and Ventilation
For best performance and lowest noise output, we recommend the
use of 160mm ducting.

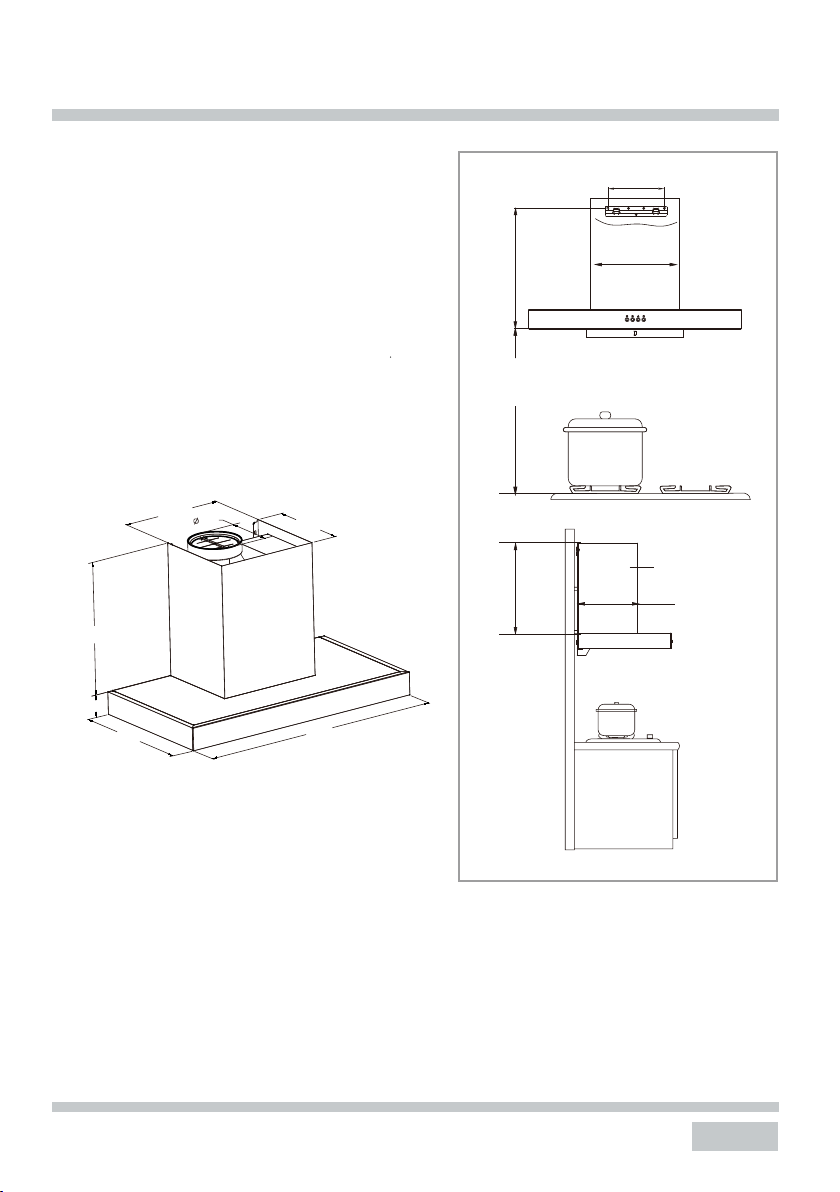

Mounting your Range hood
11
Fig. 4
Gas hob:700mm recommended
Electric hob:650mm recommended
374
374
895
310
470
485
80
160
220
550
470
307
Chimney

mm01
Fig. 5 Fig. 6
Fig. 7
Fig. 9 Fig. 10
T
Drill holes for mounting the body.
Secure hood (tighten all screws). Fit ducting adaptor.
ools requi Mark wall as required (see Fig. 6)
Fix support plate on the wall by screws with expanding
plugs.
red
IMPORTANT SAFETY WARNING: ONLY USE THE SCREWS PROVIDED WITH THE RANGE HOOD TO MOUNT THE
DUCTING ADAPTOR. THE USE OF LONGER SCREWS MAY CAUSE DAMAGE TO THE INTERNAL WIRING WHICH WILL
NOT BE COVERED BY THE WARRANTY.
8
INSTALLATION
12
Fig. 8

Fig. 11
Fig. 12
Fix ducting (seal joint by 3 pieces ST3X8).
Install end cap.
INSTALLATION
13
550mm
175mm
180mm
650mm~700mm

ENVIRONMENTAL PROTECTION:
This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this
product must not be disposed of with household waste but must be supported by a system of selective collection in
accordance with Directive 2002/96/EC. It will then be recycled or dismantled to minimize impacts on the
environment, electrical and electronic products are potentially dangerous for the environment and human health
due to the presence of hazardous substances.
For more information, please contact your local or regional authorities.
Note:
The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).
(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.
Information for dismantling
Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user.
At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for
recycling advice.
Information for cooker hood
14
