Haier BYWR1206 User manual

USER MANUAL FOR YOUR
BYWR1206
Fully integrated
was ing mac ine
NOTE : This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance Please keep it
in a safe place so that it is easily available for future reference
GS 12/06/12

2
Contents
Environmental note 3
Important safety information 4 - 5
Specifications 6 – 10
Product and aperture dimensions 6
Product specifications 6 – 7
Electrical details 7
escription of the appliance 7
Control panel 8 - 9
etergent drawer 10
Preparing t e was cycle 11 - 15
Preparing your garments for washing 11
A selection of wash care symbols 12
etergents and conditioners 13

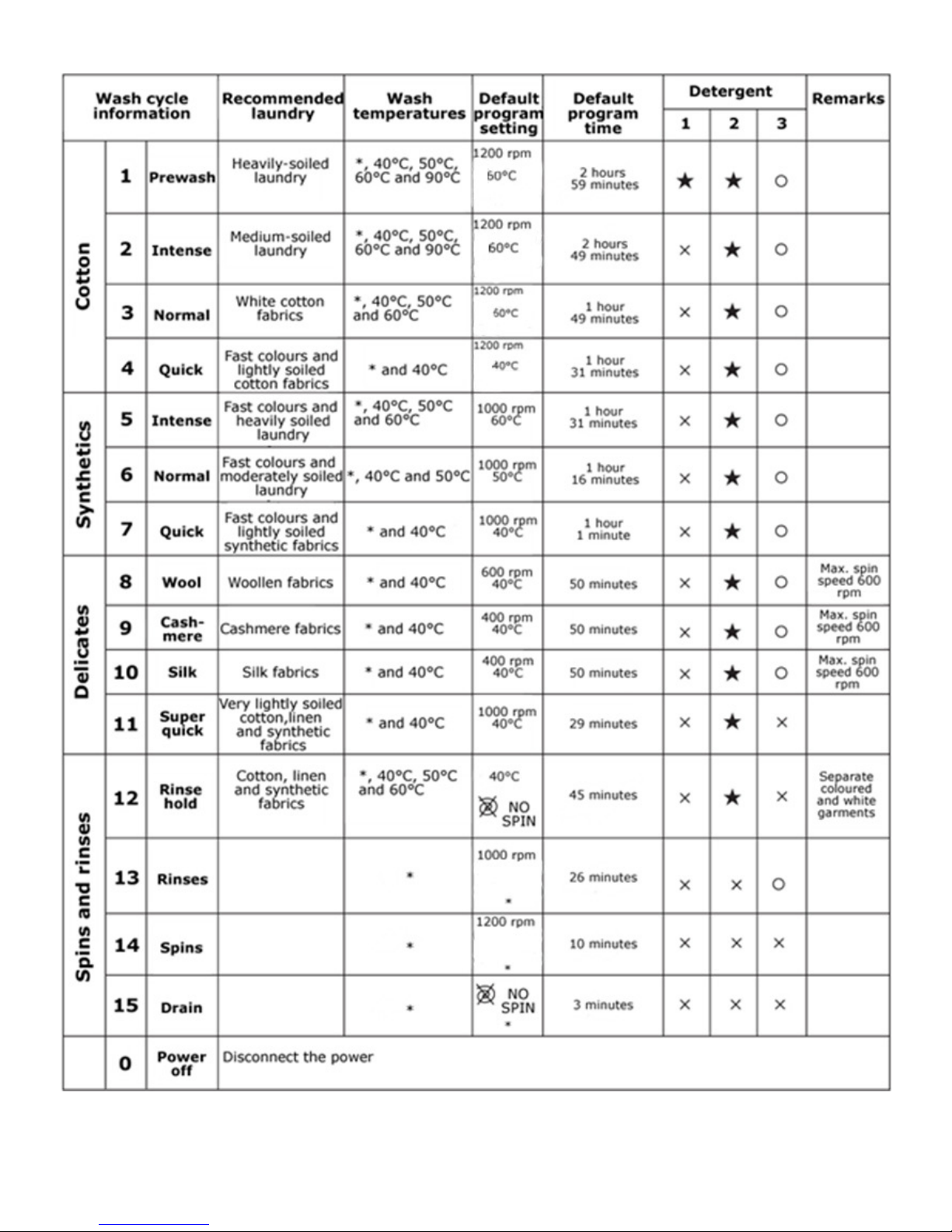

Program table 14 - 15
Wash program guidance 15
Selecting a was program 15 – 16
At the end of a wash cycle 16
Pausing a wash program 17
Cancelling a wash program 17
Spin selection button 18
Temperature selection button 18
Soak option button 18
Extra rinse option button 19
elay start button 19
Child lock 20
Maintenance and cleaning 21 - 22
In daily use 21
Control panel and washing machine cabinet 21
etergent drawer 21- 22
The washing machine drum 22
oor 22
Error code failure system 23 - 24
General troubleshooting 25
Poor wash results 26
Removing stains 27
Stain removal rules 27
Stain removal guide 27 - 28
Cleaning the drain pump filter 29 - 30
Installation 30 - 38
Unpacking and removing the transit bolts 30 - 31
Positioning and levelling the appliance 32 - 33
Fitting the décor strip 33
Connecting to the mains water supply 33 - 35
Water outlet 35
Fitting the furniture door 36
Power supply 37
Before first use maintenance wash 38
Tec nical data 39
Contact details 40

3

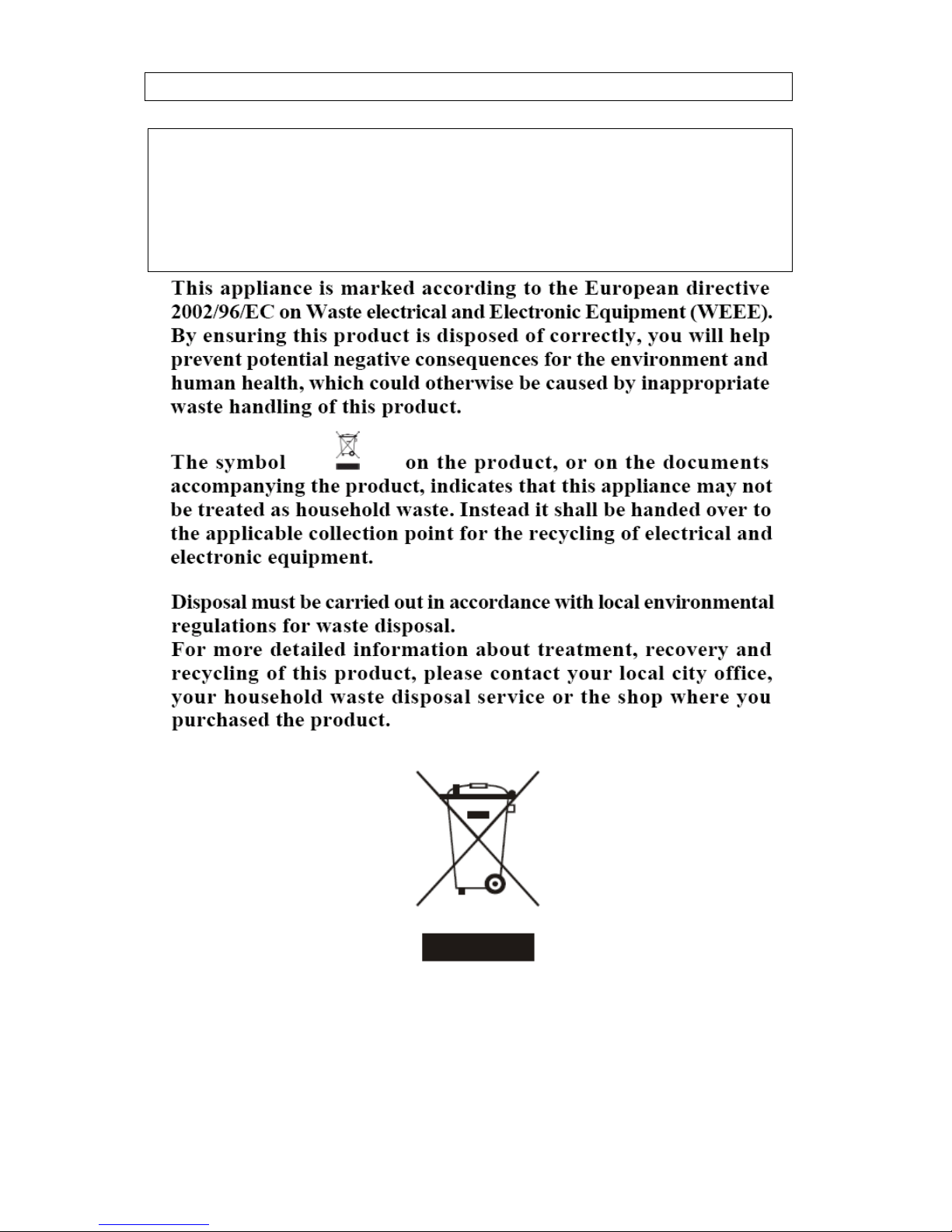

Environmental note
Note : Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside
the appliance.
oThe packaging materials that we use are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.

4
Important safety information
Your safety is of the utmost importance to us. Please
make sure that you read this instruction booklet before
attempting to install or use the appliance. If you are
unsure of any of the information contained in this
booklet, please contact the Advice Line.
General Safety
oRepairs to your appliance must only be carried out by a
registered engineer or one of its authorised service agents. Any
attempt by an inexperienced person to repair the appliance,
could result in injury or damage to your washing machine.
oIf you notice that the mains cable is damaged. The appliance
must not be used The same applies if you notice that the
worktop, control panel or base area is damaged. As this could
allow access to the internal components of the machine.
oThe appliance should be turned off and isolated from the mains
supply, before either cleaning or maintenance work is attempted.
oThe mains cable must not be used to pull the plug out of the
electrical socket.
oThe machine should not be sprayed with water.
oThe glass of the porthole door may become hot during the higher
temperature wash programs.
oThe machine should be allowed to cool before carrying out an
emergency drain or cleaning the drain filter.
oIt is possible for small animals to chew either mains cables or
water hoses, which could cause an electric shock hazard.
Installation
oThe installation instructions contained within this user manual
should be followed.
oIt is obligatory for the completed installation to comply with all
relevant building regulations and local water authority
requirements.

5
oBefore the first use of the appliance, we advise that the
intense 90°C wash program is completed No garments
should be placed inside the machine; however a small
amount of detergent must be used
During Use
oIt is recommended that the appliance is unplugged and the
water supply is turned off after the machine is used.
oThis appliance is only designed to wash normal domestic
washloads. If you use your washing machine in any other way or
it is incorrectly used, then the manufacturer accepts no liability
for any damage that might be caused and any guarantee will be
void.
oNo attempt should be made to alter or modify the specifications
of this appliance.
oThe detergents that you place in this appliance should be
suitable for automatic washing machines. With regards to dosage
levels, the detergent manufacturer’s recommendations should be
followed.
oYou should not wash garments that have been in contact with
flammable materials.
oYour washing machine should not be used for dry cleaning.
oIf you use either dyes or bleaching agents inside this machine,
then you should consult with the manufacturer of these products
to make sure they are suitable for use in your washing machine.
We cannot be held responsible for any damage that may result.
C ild Safety
oYour washing machine should only be used by adults. You should
not allow children in the area of the machine unsupervised. You
should not let them touch the controls or play with the appliance.
oIt could be possible for a child or pet to gain access to the
washing machine through the porthole door. Therefore please
check the drum before using the appliance.
oAny packaging that is removed from the machine should be kept
away from children.
oAll detergents should be kept out of children’s reach in a safe
place.

6
Specifications
Product and aperture dimensions
Appliance dimensions Aperture dimensions
Height: 825 mm 830-860 mm
(excluding décor strip)
Width : 595 mm 600 mm
epth: 565 mm 580 mm
Product specifications
o15 wash programs
o6 kg wash load
o1200 rpm maximum spin speed
oLC display
oelay start timer with remain time indicator
o2 Option buttons: Extra rinse
Soak
oSpin and temperature selection buttons
ooor safety lock
oChild lock
oStainless steel drum
oAdjustable feet
oError code failure system
oOverflow protection
oImbalance control system

7
oTilted drum
Energy efficiency
Energy rating A
Wash performance A
Water extraction performance B
Electrical details
Rated voltage: 220-240 Vac 50 Hz
Supply connection: 13 A (double pole switched fused outlet with
3 mm contact gap)
Description of t e appliance

8

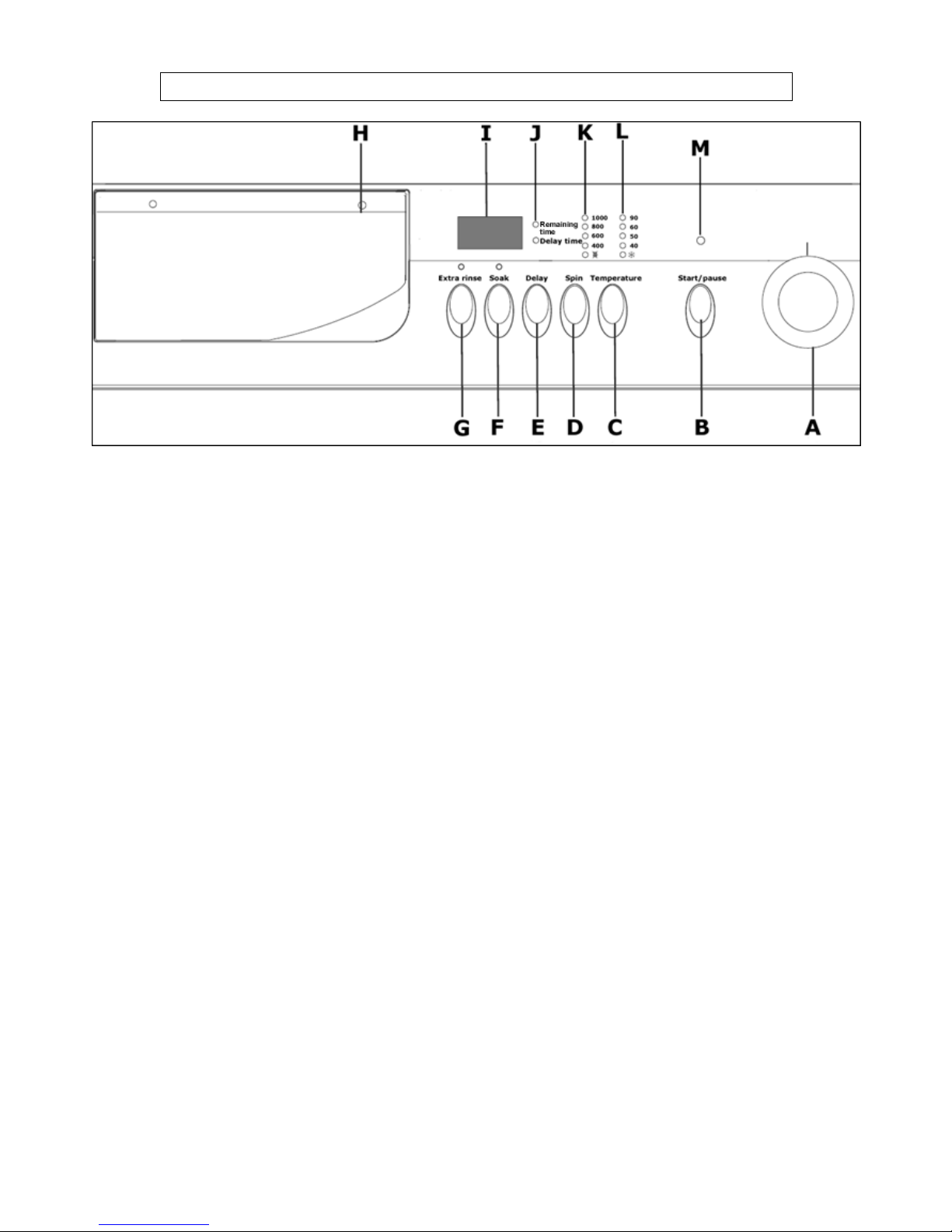

Control panel
A Wash program selection knob
B Start/pause button
C Temperature selection button
Spin selection button
E elay start button
F Soak option button
G Extra rinse option button
H etergent drawer
I LC display
J Timer indicator neons
K Spin speed indicator neons
L Wash temperature indicator neons
M Start/pause indicator neon
Was program selection knob
oTurning the control knob anti-clockwise or clockwise allows you
to select the wash program of your choice.
Start/pause button
oOnce a wash program has been selected, this button should be
pressed to start the wash cycle. Or to pause a wash cycle that is
in progress.
Temperature selection button
oPress this button to select the temperature that you require for a
particular wash program.

9
Spin selection button
oPress this button to select the spin speed that you require for a
particular wash program.
Delay start button
oPress this button to delay the start of the wash program for a
maximum of 24 hours.
Soak option button
oPress this button to select the “soak” wash program option.
oWhen the wash cycle reaches the final rinse, instead of draining
the water, it will suspend the clothing in water. This option
allows you to spin the wash load at a later time.
Extra rinse option button
oPress this button to select the “extra rinse” wash program
option.
oThe appliance will then perform an additional rinse.
LCD display
oThe LC display will show how much time a wash cycle has until
it completes.
oIf the delay start button has been pressed, then the LC display
will show the remaining time until the wash cycle will commence.

10
Detergent drawer
1) Pre was section
This compartment should have detergent placed in, if you are going to
select a wash program that has a pre wash as part of it.
2) Main was section
This compartment should have detergent placed in it (you should also
put a water softening agent in this section, if you use one). The
detergent will be added to the drum at the start of the main wash
program.
3) Conditioner section
This compartment should be used for liquid conditioners (fabric
softener, starch). They will be added to the wash load during the final
rinse.
IMPORTANT: Liquid detergent should not be placed in sections
1 or 2 of the detergent drawer

11
Preparing t e was cycle
Preparing your garments for was ing
oYour washing should be sorted out, according to
the fabric type and the wash care symbol that is
printed on the garment’s wash care label. (see
separate section on wash care symbols).
oYour washing should also be sorted out
according to the degree of soiling.
oCheck all pockets on a garment to make sure
that they are empty.
oRemove any detachable metal items (badges,
paperclips, safety pins etc).
oZips should be closed, duvet covers and pillow cases should be
buttoned up and any loose straps should be tied up. This will
help to prevent other garments from getting damaged during the
wash.
oWoollens and knitted coloured fabrics should be turned inside out
before being washed in the appliance.
oSmall delicate items (tights, baby socks) should be placed in
either a washing net or a zipped pillow case.
oCurtains should be handled with particular care. All plastic hooks
or metal strips must be removed before being washed in the
appliance.
oColoured items and whites should be washed
in separate wash cycles.
oNew garments often contain an excess of
dye, therefore it is advisable to wash them separately for their
first wash.
oGarments should be unfolded and shook out before being placed
inside the machine.

12
A selection of was care symbols
Washing
Boiling
temp
95°C
Normal
temp
60°C
Normal
temp
40°C
o not
wash!
Bleachable
in cold
water
o not
bleach!
Wool
seal
Dry
cleaning
elicate
temp
30°C
elicate
temp
40°C
Hand
wash
only
All
solvents
All but TRI
Benzine
only
o not
clean!
Spin
dryer
Normal Low
High
o not
dry!
Hang to
dry
rip dry
ry
flat
Ironing
110°C
150°C
200°C
o not
iron!
oThe wash care symbols should be used to help you to select the
most suitable wash program. They will also help you to sort your
laundry into different loads, depending on the fabric type and the
highest temperature which the garment can be washed at.
oIf the wash care label does not appear in the above table, then
please refer to the washing machine program chart. This gives
more detailed descriptions of the types of fabric that are suitable
to be washed using a particular wash program.
Detergents and conditioners
oOnly detergents suitable for use in washing machines
should be used
The amount of detergent that you need to use in your appliance, will
depend on
oThe degree of soiling Lightly soiled garments in general
require less detergent.
oThe size of the wash load A smaller wash load will require a
reduction in the amount of detergent.
oThe hardness of your tap water The harder your water is,
then the more detergent you will need to use. The detergent
manufacturers normally give guidance as to how much extra

13
detergent should be used, depending on the hardness of the
water.
Liquid detergent
oIf you are using liquid detergent, then it should be placed inside
the dosing device supplied by the detergent manufacturer.
oIMPORTANT: Liquid detergent should not be placed in
sections 1 or 2 of the detergent drawer
oAll instructions on the detergent packaging should be followed.
Low temperatures
oThe enzymes in biological washing detergents work best at low
temperatures to provide excellent cleaning and stain removal
results but not as low as 20°C.
oLiquid or gel detergents are particularly suitable for low
temperature washing as they dissolve easier and quicker than
powders or tablets.
Water softening agents
If your tap water is hard, then it may be prudent to utilise a water
softening agent. This will help to ensure that the appliance does not
become clogged with hard water deposits. You may also find that it will
allow you to lessen the amount of detergent that you are using.
When using any detergent or water softening
agent, the recommendations of the
manufacturer should be followed

14

15
* The actual water temperature may differ from the declared cycle
temperature.
- Indicates that softener can be added if required.
- Indicates that detergent MUST be added.
- Indicates that detergent MUST not be added.
Was program guidance
oThe default setting column shows the wash temperature and spin
speed that the appliance will automatically select for a particular
wash program. It is possible to override these settings, using the
spin selection button and temperature selection button.
oIMPORTANT: You should make sure that the spin speed and
temperature that you select are appropriate for the garments
that you are washing.
oThe wash cycle times that are quoted and shown by the LC
display, are intended as a guide only. Please note that factors
external to the machine, e.g. the temperature of your water
supply, your water pressure etc. can affect the time it takes for
the wash cycle to complete.
oIf you select the soak option, the machine will not spin the
clothing at the end of a wash cycle. If you pick this option, then
the machine will stop with water inside of the drum.
oImportant: Before opening the door of the appliance, you MUST
select the drain program to clear this water.
Selecting a was program
Load your laundry and put detergent in the relevant
compartment(s) of the soap drawer.
Close the porthole door firmly.
Select the most appropriate wash program for the garments that
you are washing, by turning the program selector knob.
oThe washing machine will automatically select a spin speed and
wash temperature for the wash program that you have chosen.

16
oThe spin speed indicator neon will light to confirm the spin speed
that has been chosen. The wash temperature indicator neon will
light to confirm the wash temperature that has been chosen.
If you press the spin selection button, then you can adjust the
spin speed. The spin speed indicator neon will light next to the
spin speed that you have chosen.
If you press the temperature selection button, then you can
adjust the wash temperature. The wash temperature indicator
neon will light next to the wash temperature that you have
chosen.
Select any program options that you require (soak, extra rinse,
delay start) by using the relevant buttons. For more information,
please refer to pages 18 - 19.
oAny program option that you select, will affect the length of time
that the wash cycle will take to complete.
Press the Start/pause button.
oAfter approximately 5 seconds, you will hear your washing
machine start the wash cycle.
oThroughout the wash cycle, the LC display will countdown the
remaining time of the wash cycle that is in progress.
If there is a power failure or the plug is pulled out of the socket
when a wash cycle is in progress Once power has been
restored, the wash program will continue
At t e end of a was cycle
oThe washing machine will stop automatically when it has
completed a wash cycle.
oThe LC display will show the word “End”.
oAt the end of the drain program, the door will remain locked for
2 – 3 minutes before it is possible to open the door and take out
the garments.
oIf the spin speed indicator neon next to the symbol is lit, then
at the end of the wash program, the washing machine will not
have spun the wash load.

17
Pausing a was program
Press the Start/pause button whilst a wash cycle is in progress
and the appliance will go into pause status.
oIn pause status, the Start/pause indicator neon will flash.
Press the Start/pause button again and the wash cycle will
continue.
Cancelling a was program
Press the Start/pause button whilst a wash program is in
progress and the appliance will go into pause status.
oTurn the wash program selection knob until it is at the off
position (zero).
Before opening the porthole door, you MUST drain the
appliance; otherwise there may still be water in the
drum when you open the door
Turn the wash program selection knob to the drain program
(number 15) then press the Start/pause button.
oThe appliance will then drain the water that is left in the drum.
oThe washing machine will stop automatically when it has
completed a wash cycle.
oThe LC display will show the word “End”.
oAt the end of the drain program, the door will remain locked for
2 – 3 minutes before it is possible to open the door and take out
the garments.

18
Spin selection button
oIf you press the spin selection button, then the spin speed will
reduce downwards from the one selected automatically for a
particular wash program.
oThe spin speed indicator neon will light next to the spin speed
that has been selected.
oIf the spin speed indicator neon next to the symbol is lit, then
at the end of the wash program, the washing machine will not
spin the wash load.
Temperature selection button
oIf you press the temperature selection button, then the wash
temperature will reduce downwards from the one selected
automatically for a particular wash program.
oThe wash temperature indicator neon will light next to the wash
temperature that has been selected.
oIf the wash temperature indicator neon next to the symbol is
lit, then the wash cycle will be performed in cold water and not
heated.
Soak option button
oIf you press the soak option button, the indicator neon above it
will light.
oWhen the wash cycle reaches the final rinse, instead of draining
the water away, it will suspend the wash load in water.
oWhen you want to spin the wash load, press the soak option
button again. The indicator neon will go out and the spin stage of
the wash cycle will take place.
oIMPORTANT: This option can be utilised on synthetic and
delicate wash programs (programs – 11).

19
Extra rinse option button
oIf you press the extra rinse option button, the indicator neon
above it will light.
oIf you select this option, an additional rinse will be performed for
the selected wash program.
oIMPORTANT: This option can be utilised on cotton, synthetic,
wool, cashmere and silk wash programs (programs 1 – 10).
Delay start button
oIf you press the delay start button, then you can program the
wash cycle to commence at a period of time in the future.
oYou should select your wash program as normal, but instead of
pressing the Start/pause button to get the wash cycle to
commence. You should press the delay start button.
oEach time the delay start button is pressed, the length of time
until the wash cycle commences will increase by 30 minutes. The
minimum delay start is 2 hours 30 minutes.
oIt is possible to delay the start of the wash cycle by a maximum
of 24 hours.
oPress the Start/pause button and the countdown time will
commence. The delay time indicator neon will light and the LC
display will countdown the remaining time until the wash cycle
commences.
oOnce the delay start time has been reached, the wash program
that you have previously selected will start. The remaining time
indicator neon will light and the LC display will countdown the
remaining time of the wash cycle that is in progress.

20
C ild lock
oYour appliance has a child lock option, if this is set, it will mean
that nobody can affect the operation of the wash program once it
has started.
oThe child lock should be activated, once a wash program and any
program options that you wish to use have been selected.
oPress the Start/pause button to commence the wash cycle. Then
press the soak option button and the delay start button
simultaneously.
oThe word “LOCt” will appear on the LC display, alternating with
the remaining program time.
oWhen the child lock is engaged, all other buttons on the control
panel are disabled.
oTo switch the child lock off, you should again press the soak
option button and the delay start button simultaneously.
