Twin-tub Washing Machine User's manual
This manual is for
Please read this manual
carefully before using.
Retain it for future reference.

1
2
4
6
7
7
8
12
14
16
Contents
Safety precautions
Installation and adjustment
Preparation before washing
The musts in washing
Usage of the detergent
Washing sequence
Disposal after washing

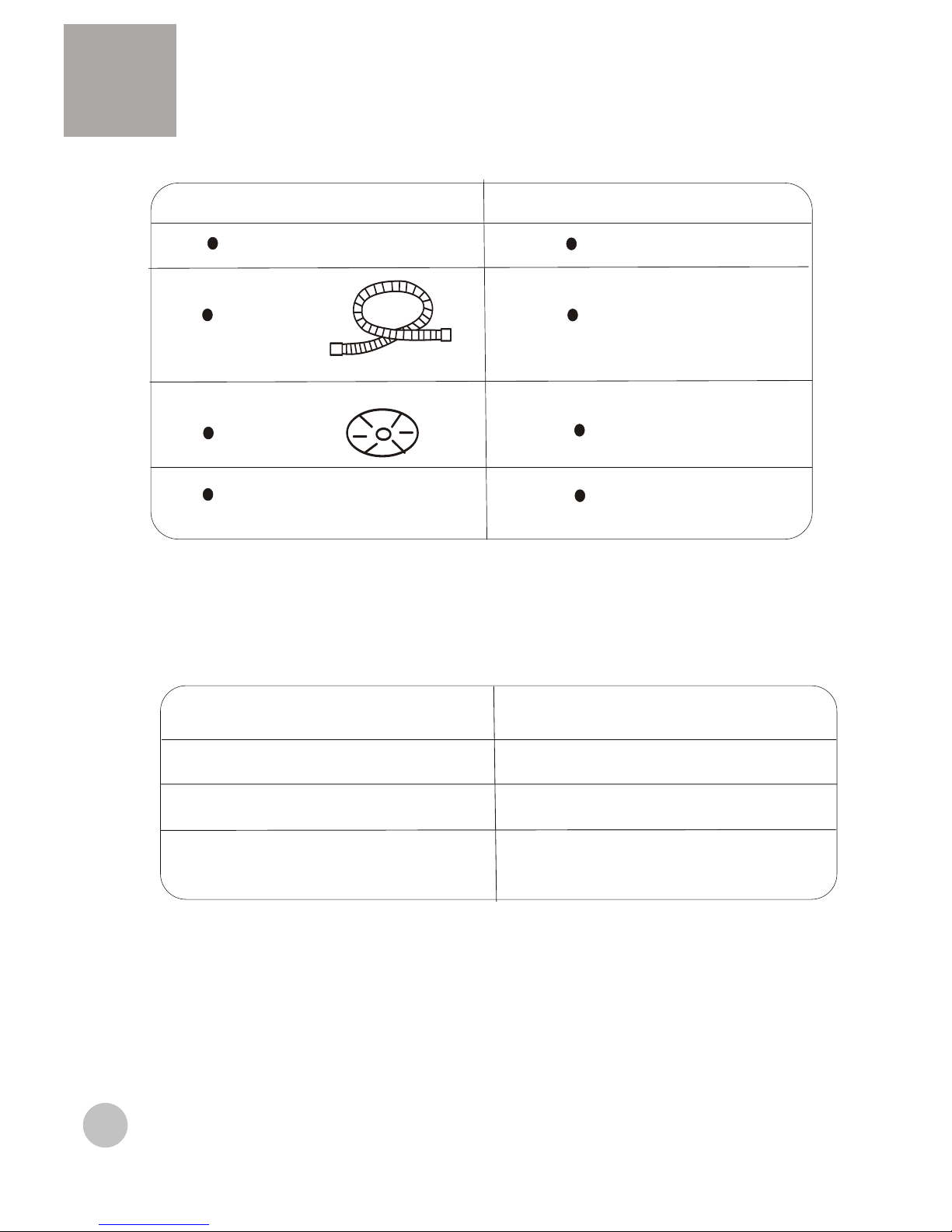

Packing list *Specification
Names of the parts
Trouble-Shooting *Answers to question

11
Water-filling entrance
Wash timer
Wash selector
Drain selector
Control panel
Bypass channel
Overflow filter
Water level adjusting lever
water-filling translation
Drain hose
Pulsator
Cabinet handle
Wash tub
Base frame
Lint filter
Outer cover of the spin tub
Inner cover of the spin tub
Spin timer
Spin tub frame
Spin tub
Cabinet
Meaning and description of the symbols
Warning sign
Forbidding sign
Contents marked with that symbol are related
to the safety of the product and the personal
safety of the users. Please operate in strict
conformity to the contents, otherwise it may
cause damage of the machine or injure the
personal safety of the user.
Contents marked with that symbol are actions
forbidden to perform. Performing of those
actions may result in damage of the machine
or injure the personal safety of the user.
Please check if the power receptacle has good earthing
condition before using to guarantee your safety.

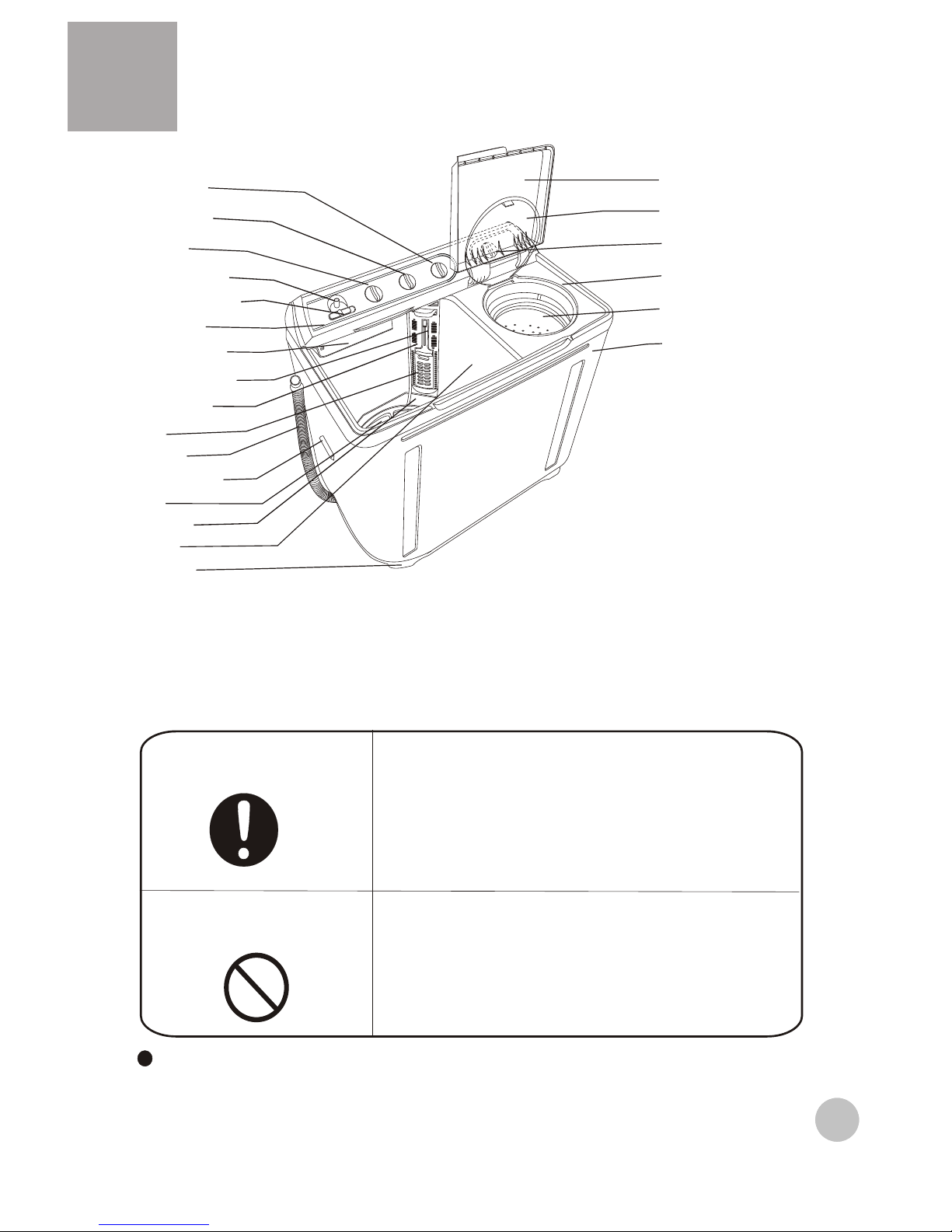

Names of the parts
Notes: All illustrations in this Manual are given for reference only. Your products and
accessories may show differences from these illustrations due to our
continuous improvement.
Valve cover

2
50 C

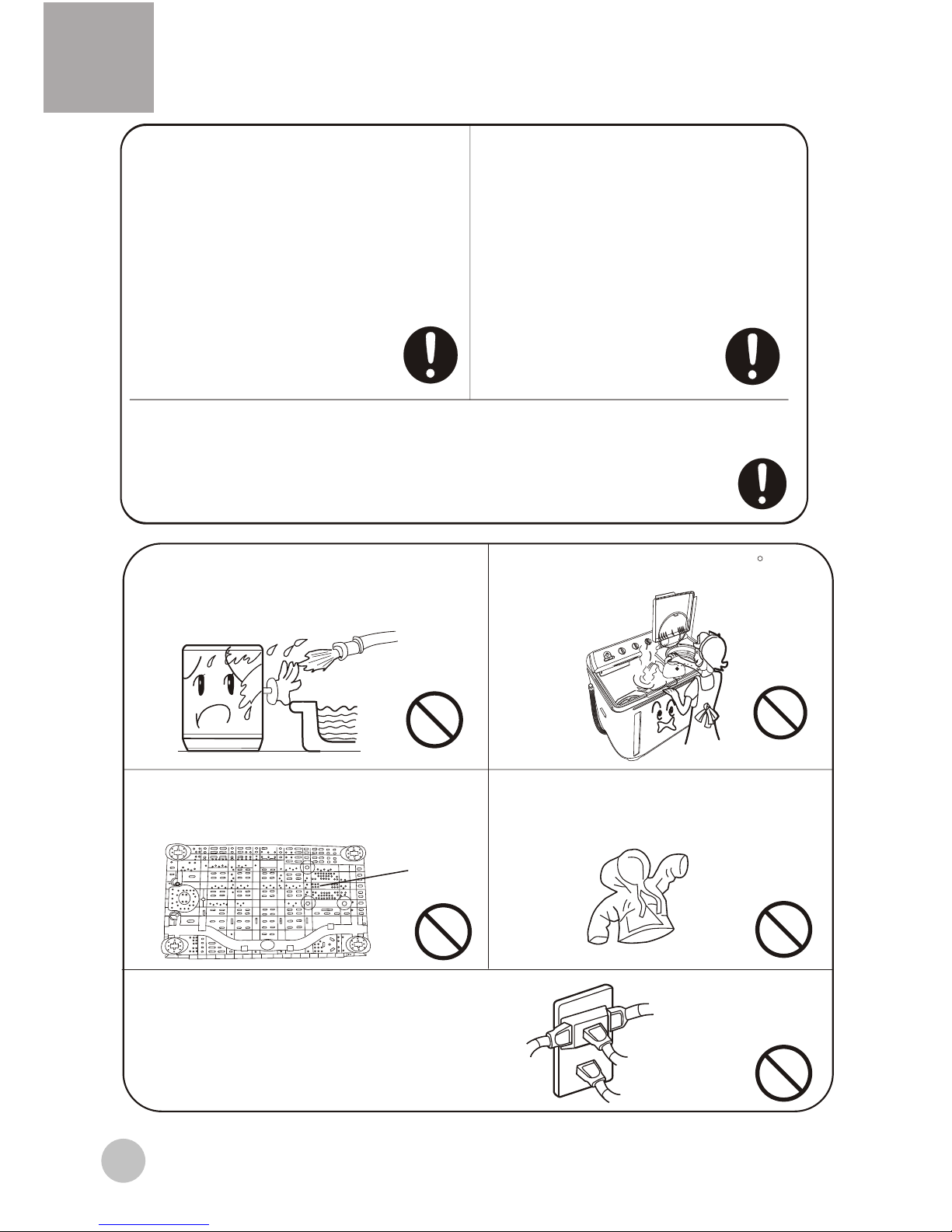

Safety precautions
Please insert the power cord into
special receptacle with rated vol-
tage. Be sure to use single-phase
three pins receptacle. The earthing
terminal of the receptacle must be
earthed reliably. If possible, please
adopt electric leakage protector.
When the machine is normally
using, please put the power plug
at the location easily to be insert-
ed and extracted by hand. Be sure
to pull the plug off when there's
power failure, or the machine is
being moved, cleaned or when it
is idle.
If the power cord is bad, to avoid risk it is required to replace it by the
technicians of our special shop or the after-sale service department.
Keep the pin of the power plug clean.
Do not put the machine at damp
place like the bathroom . Never
wash it with water. Do not place
wet laundries on the control panel.
Do not use water hotter than 50 C .
In case the washing machine is installed
on ground with carpet , do not block the
ventilation hole with carpet.
Ventilation hole at
the bottom of the
washing machine
Do not wash water-proof laundries like
the raincoat, bike covers etc. to avoid
abnormal vibrations in spinning.
Do not let the machine share one receptacle
with other electric appliances. If the power
plug is damaged, or the plugging into the
receptacle is loose, do not use the plug any
more.

3

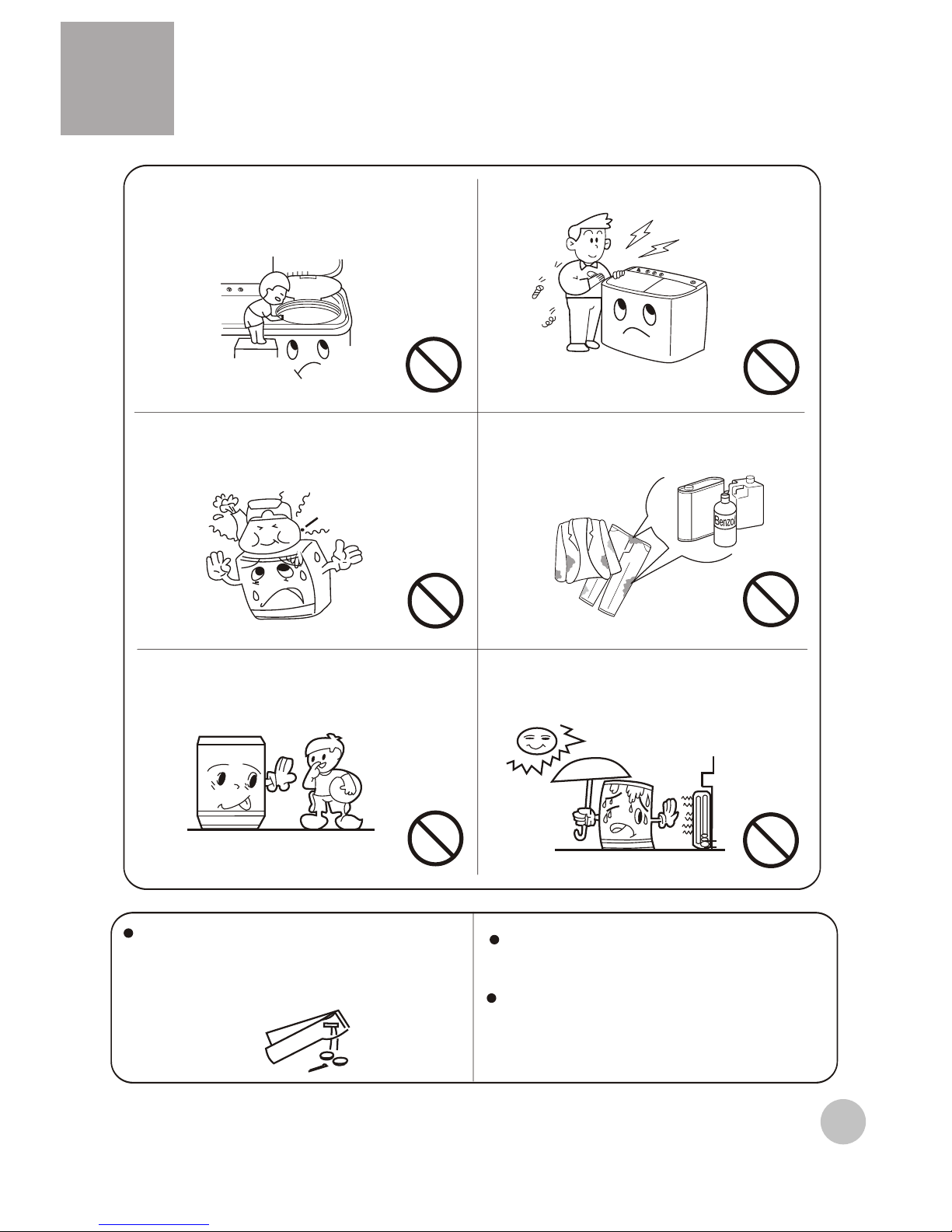

Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.
Safety precautions
Do not put any hot or heavy items
( such as the kettle with hot water )
on the washing machine.
Do not decompose, repair or alter the
machine by yourself.
Handicapped or children without care
shall not use the machine.
Keep the machine away from direct
sunlight and heat source like the
heater.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.).
Petrol
h nn
T i er
To protect your laundries and wash-
ing machine, please take out all of the
coins, buttons, sand, hairpin and
other foreign ma terials before washing.
Please che ck if the wat er faucet is op en ,
and if the connection of the wat er inlet
pipe is proper.
It is sugge sted to us e foa mless was hing
po wde r.

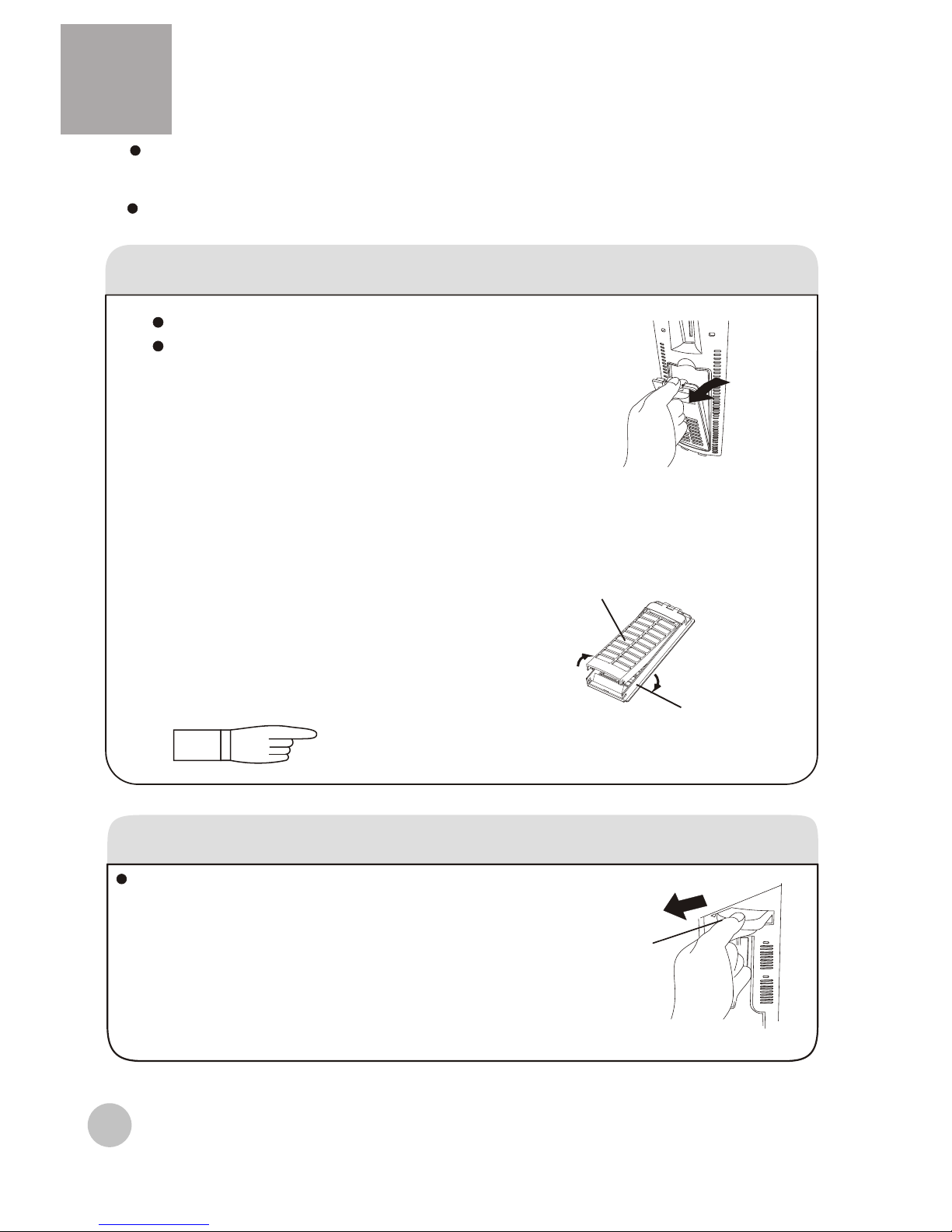

Put the undersi de of the lint filter into overflow filter
then push the upside into overflow filter
，
4
After installation, please refer that the lint filter
installed to the right station, otherwise the lint
filter may be fallen off when washing, influencing
your use.
overflow filter
lint filter
Installation and adjustment
Please install and adjust the machine according to the requirement of
the manual. It is very important to your security and correct operating
the machine.
Install the lint filter
If the extra hose is too long, cut it either
at point A or B.
<10cm
BA
> 40mm
<1.5m
Usage of the drain hose
The drainage shall be smooth with the drain hose.
1.The height of the drain hose shall be
less than 10 cm , or the drainage will
not be smooth enough and cause
incomplete drainage.
2.Do not tramp or press the drain hose.
3.If the drain hose is too long, cut it at mid point.
To make smooth drainage, cut the front end of
the hose slantingly.
4.If extra drain hose is needed , please make
separate purchase. The inner diameter of the
extra hose shall not less than 40mm, and the
length shall not exceed 1.5m.

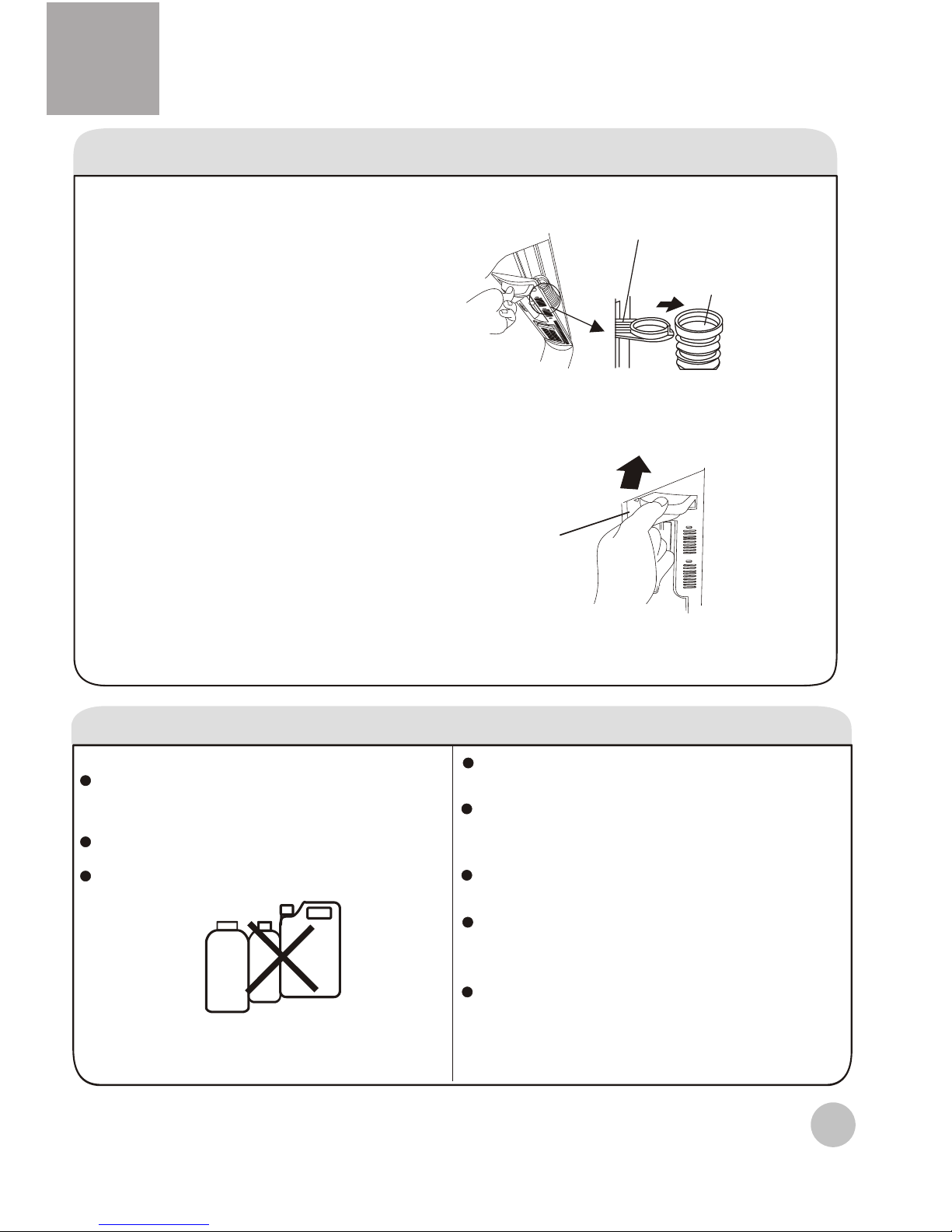

Insert the water inlet hose into the water-filling
entrance on the control panel
To dismantle the water inlet pipe,
just push the control handle as indicated in the
figure and pull it out
（
）
5
1
2
3
How to change the direction of the drain hoses
Figure 1 indicates the ex factory installation
position of the drain hose.
Put soft items on the ground. Lean the machine
down gently with the front surface facing the
ground. Take off the drain hose from the cabinet.
Take the hose out of the fixing groove.
(See to Figure 2).
Embed the drain hose into the groove
along the side of the spin tub in the order
of (1)~(3), heading for the side of the
spin tub. (See to Figure 3).
Embed the drain hose into the
groove with hands. Take care not
to damage the drain hose in
fastening the fixing clamp.
Figure 1
Figure 2
Figure 3
Embed into the
groove in turn
Extend the drain hose from the side of spin tub
Soft item
Extend to the
spin tub side
Back
Front
Install the water inlet hose; Select the water level
Select water level according to the
quantity of the laundries.
Set the water level adjusting lever
to needed line.
Water inlet hose
Water inlet
Maximum Max
Minimum Min
Medium Med
Water level
indicator

6

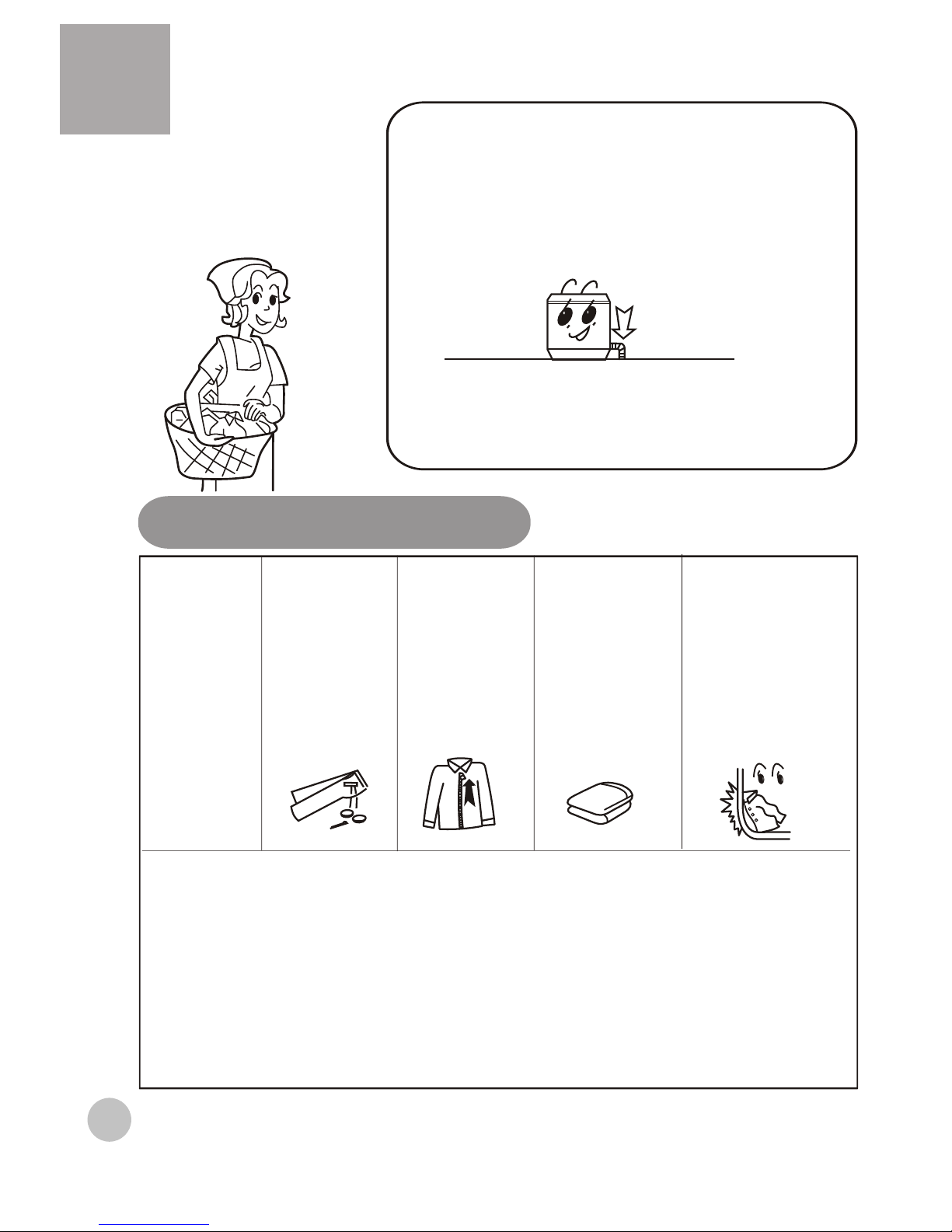

Preparation before washing
1.Connect the water inlet hose.
2.Confirm that the washing machine is earthed
reliably . Then insert the power plug into the
receptacle. Do not connect the earth terminal
to the gas pipe and tap water pipe.
3.Put down the drain hose .
4.Slanting or uneven ground may result in
unstable working or abnormal noise. Please
make the machine stand horizontally.
Preparation before washing
Pay attention to followings before washing the laundries
Check if
the laundries
has special
requirement
on washing
Clear the
pocket. Take
out the coins,
sand, hairpins
etc.
Tie the long
strips; fasten
the buttons;
close zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.
The quantity of
the laundries
shall not be too
large. Stretch
and loosen the
laundries before
putting them in
the tub.
a. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like
mud or dust. For the parts with heavy soil, please apply detergent on
them in advance, which can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn
it over before putting in.
f. Do not put those laundries polluted by chemicals into the washing
machine directly.

洗涤物的参考重量
7
洗涤物的参考重量
The capacity of washing and spinning of the
machine refer to the largest weight of the
standard laundries under dry condition that can
be washed or spinned in one time. Laundries
quantity in one washing cycle shall be lower
than the rated capacity.
The thickness ,size , type of the cloth will influ-
ence the actual washing capacity. It is suit-
able to put in reasonable amount of laundries
and the laundries can be turned round in wash-
ing for one time washing.
Do not select " Maximum " water level for
few laundries , so as to avoid splashing of water.

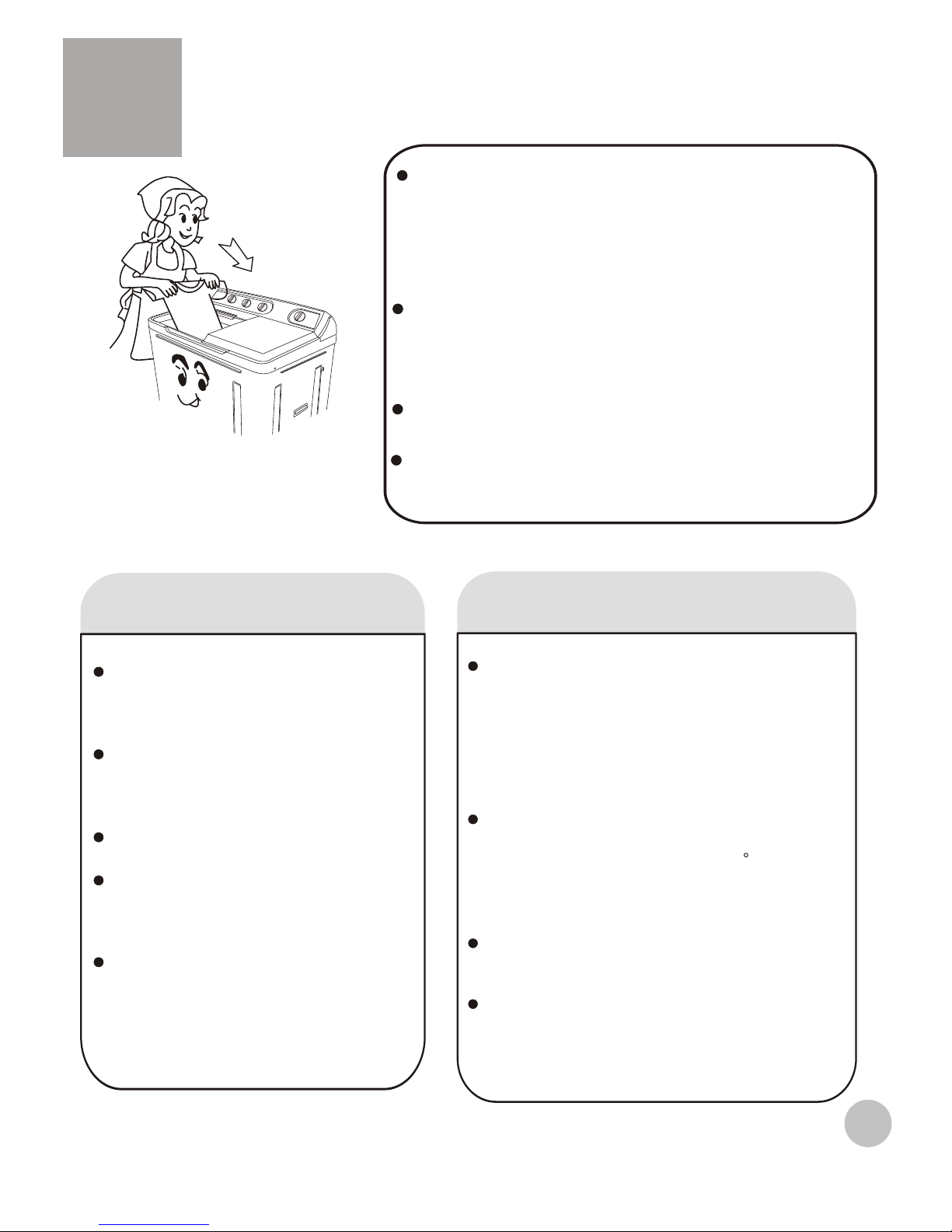

The musts in washing
How to use the whitener
Fill water to decided level. Dilute
the whitener with container.
Pour it slowly into thewashing tub.
Avoid using whitener on laun-
dries with color or pattern as they
are prone to lose color.
The whitener shall not touch
the laundries directly.
Direct dissolved in the machine:
1.Fill small quantity of water.
2.Add the powder . Run for 30
seconds to dissolve it completely.
3.Put it in the laundries. Select suitable
water level.
The instant dissolving of the washing
powder:
1.Prepare warm water of 30 C and a
container.
2.Add the powder while stirring to fully
dissolve it.
The powder is more prone to pollute the
laundries than the detergent. Therefore
please use it with proper quantity.
Dosage of different washing powder is
different. Please refer to the instruction
of the washing powder for the detail
dosage.
Refer to the user's manual for
the usage and quantity of the
whitener.
For powder whitener, please
dissolve it before using.
It is suggested not to use high sudsingdetergent.
How to use the washing powder
Usage of the detergent

8
1、Fill selection
(1) Set fill selection to “Wash side”.（Figure 1）
(2 )Adjust water level rod to a position as needed.
2、Fill water and add solved powder detergent until
water reaches a suitable level.
It begin to wash to dispense detergent uniformly.
3、Put in the wash load, and supplement water
as necessary.
4、Select intensity
Select Normal, intense or Jeans water flow
intensity according to wash load.
5、Select wash time
Select wash time according to wash load.
6、After completion of wash, please set drain
switch at Drain position.
INLET SELECTOR
WASH SPI N
（Intensity can be standard,
or soft)
Spin timer
Wash timer
Wash selector
(If to set less than 2 min,
you should first surpass 6 min
and then turn back.)
（If to set less than 1 min, in
order to ensure long service life,
please first surpass 2 min and
then turn back）
Drain selecor
（Do not set drain switch
on Drain position during
washing)
Washing sequence
止水
强
WASH TIMER WASH SELECTOR SPIN TIMER DRAIN SELECTOR
STANDAR D
SO FT
OF F
DRA IN
3
4
1
2
OF F
5
3
6
9
12
15
OF F
Wash
Page 7
（Figure 3）
Figure 1
Figure 5
Figure 3
Figure 4
Figure 2
（Figure 4）
(Figure 5)
WASH TIMER
3
6
9
12
15
OFF
强
WASH SELECTOR
STANDARD
SOFT
止水
DRAIN SELECTOR
OFF
DRAIN

9
（1）
（2）
Set the fill selector handle on spin side and
fill water for about 1 min.
Close the spin tub outer cover and spin
for about 1 - 2 min.
In case water flows out from wash tub side
due to too much inflow, please turn down
the water tap a bit.
INLET SELECTOR
Midway spinning
Push
Push
Proper Proper
Outer cover of
The spin tub
Inner cover of
The spin tub
The laundries
are slanting
Gland
No gland
1.Put the laundries into the spin tub evenly and smoothly.
2.Spin：
(2) Close the inner and outer cover of the spin tub.
(3) Spin for 1-2 minutes.
3.Run the foam-removing spinning.
(1) Put the gland in properly.
Please put in the gland properly even if the
laundries quantity is small.
WASH
SPIN
Water inlet
Fill selector handle

10
Rinse with stored water
Rinse with water-filing
1. Put the laundries into the wash tub. Select suitable current according to
the laundries.
2. Fill water to preset water level.
3. Rinse
Adjust the wash timer to 2-3 minutes to do rinsing.
When the laundries quantity is few, please use "Soft" current.
If you use "Standard" current, it may splash.
Rinsing
(Repeat the midway spinning and
rinsing with stored water for 2-3 times)
1.Put the laundries into the wash tub. Select
suitable current according to the laundries.
2.Adjust the water level
Set the water level with water level adjusting
lever according to the laundries quantity.
Then fill suitable water continuously.
3.Rinse
Adjust the wash timer to 5-7 minutes to do
rinsing.

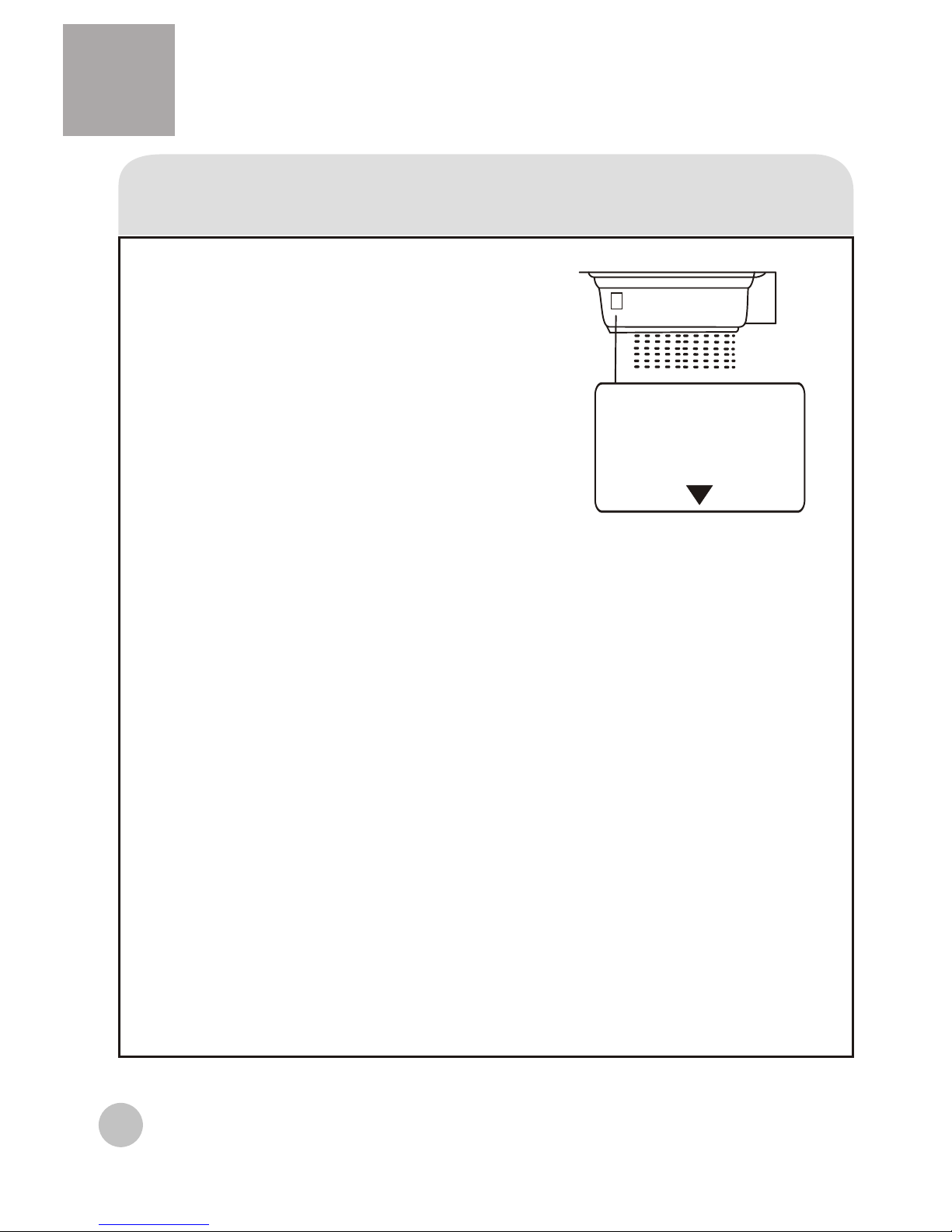

OVERFILL
If you find water flo-
wing out here,please
twist the water tap to
limit the water filling.

11
1. Put the laundries into the spin tub
evenly and smoothly.
2. Press the gland in the tub properly.
Close the inner and outer cover of
the spin tub.
3. Spin
Select suitable spin time according
to the laundries, and do spinning.
During spinning, if there's abnormal
sound, it is generally owing to slanting
placement of the laundries. Please
stop the machine and re-order the
laundries.
In spinning, it will pause the work if you open the outer cover of the spin
tub. Close it to resume the spinning.
Spinning
To do spinning and draining
or rinsing with water-filling
together, please first do
spinning for around 1 minute,
then do draining or rinsing
with water-filling. Otherwise
the spinning will stop owing
to too much water stored in
the spin tub.

12
Page 4
After using, please clean the lint and foreign materials of the lint filter and
overflow filter in time. Otherwise it may influence your using the machine.
Please first pull off the power plug from the receptacle before cleaning.
Cleaning the overflow filter
The lint filter must be used during washing.
It must be cleaned in time after each using.
Cleaning the lint filter
Disposal after washing
1. Press the elastic piece at upper end of lint filter to
release the tab from the filter cover
2. Remove lint
Pull the lower end of lint filter rear cover outward
to disassemble it from the lint filter front cover.
Remove lint completely with clear water. (See
Figure 2).
3. Install lint filter
, and pull the lint
filter outward to remove it. (See Figure 1).
Figure 1
Figure 2
Lint filter rear cover
Lint filter front cover
Assemble
Disassemble
Too much lint on the overflow filter will influence
the normal usage of the machine. Please
clean it every two months.
1、Take off the overflow filter.
As indicated in the figure, nip the elastic fixing
claw and pull it to the direction of the arrow to
take it off.
Elastic fixing
claw

13
Wipe the complete unit with soft
cloth twisted dry.
Wipe with neutral detergent if too dirty
Do not wash it directly by water
Cleaning the overflow filter
2. Take off the corrugation pipe.
Dismantle the upper part of the
corrugation pipe inside the
overflow filter ( as indicated in
Figure 1).
3. Cleaning the overflow filter
Clean the lint around the filter
and flush with tap water.
4. Install the overflow filter.
(1).Install the corrugation pipe.
(2).Insert the mounting plate at
the bottom of the filter into
the valve cover.
(3).Hang up the hook at the left
upper side.
(4).Push the upper part in as
indicated in Figure 2.
Figure 1
Figure 2
After washing, dismount the water inlet
hose.
Do not store water in the tub for long
period. Discharge the water immediately
after each using.
Pull off the power plug and hang up the
power cord.
Hang up the drain hose.
Wipe off the water drops on the surface
and inside the tub with clean soft cloth.
Open the cover of the wash tub and the
inner/outer cover of the spin tub for
some time (about one hour), then close
them.
Disposal of the complete unit
Thinner
Alcohol
Petrol
Hook
Water level
adjusting lever
Corrugation
pipe

14
Trouble-shooting Answers to question
When the remained water is frozen
2~3L
Below 50 ℃
Prevent the freezing (be sure to discharge the water
completely after using)
After complete draining, set the "DRAIN SELECTOR"
at "OFF" . If it is set at "DRAIN", it will be rather
difficult for the frozen water to melt.
When the water is frozen
Pour hot water below 50℃ into the wash tub
to soak it completely. Then turn the pulsator
with hands gently. Please confirm the drainage
can work normally before next using.

15
Trouble-shooting Answer to question
(If there's breakdown, please pull off the power plug before checking) The following
phenomena are not breakdowns sometimes. Please confirm again before sending
it to repair. If there are real breakdowns, please come to the special maintenance
department or after-sale service department of our company. Do not repair it by yourself.
Phenomena The reason
The machine does
not act.
Is there power failure?
Is the power plug loose?
Is the pulsator twisted by foreign materials?
Is the drain hose put down?
Is the drain hose frozen?
Is the drain hose blocked by foreign material?
Are there laundries falling to the outer side of
the spin tub?
Are there hair pin, coins or metal items brought
inside the tub?
Is the machine slanting?
Is the gland pressed evenly?
Are there laundries falling to the outer side of
the spin tub?
Are the laundries in spin tub too much?
It is the water remained in the factory inspection
of performance.
There may be some
waterflowing out of
the drain hose in the
first use of the
machine.
There's abnormal
sound and violent
vibration during
spinning
There's abnormal
sound during washing
The draining does
not work

16
Water inlet hose
Gland
Packing list
Twin-tub washing machine
Name Quantity
User's manual One piece
One piece
One piece
One set
Specification
Rated washing capacity(kg)
Rated spinning capacity(kg)
Water level／Water quantity（about）(L)
Maximum/99 Medium/79 Minimum/59
12.0
7.0
Injection pressure(MPa) 0.02~0.2
