Haier HWM60-728 User manual

User's manual
This manual is for
HWM60-728
Please read this manual
carefully before using.
Retain it for future reference.
Fully automatic washing machine
0030808120

Packing list Specification
Installation and adjustment
Preparation before washing
Put in the laundries
Usage of the detergent
Close the top lid
Disposal after washing
Finish washing
Contents
Names of the parts
Safety precautions
Meaning and description of the symbols

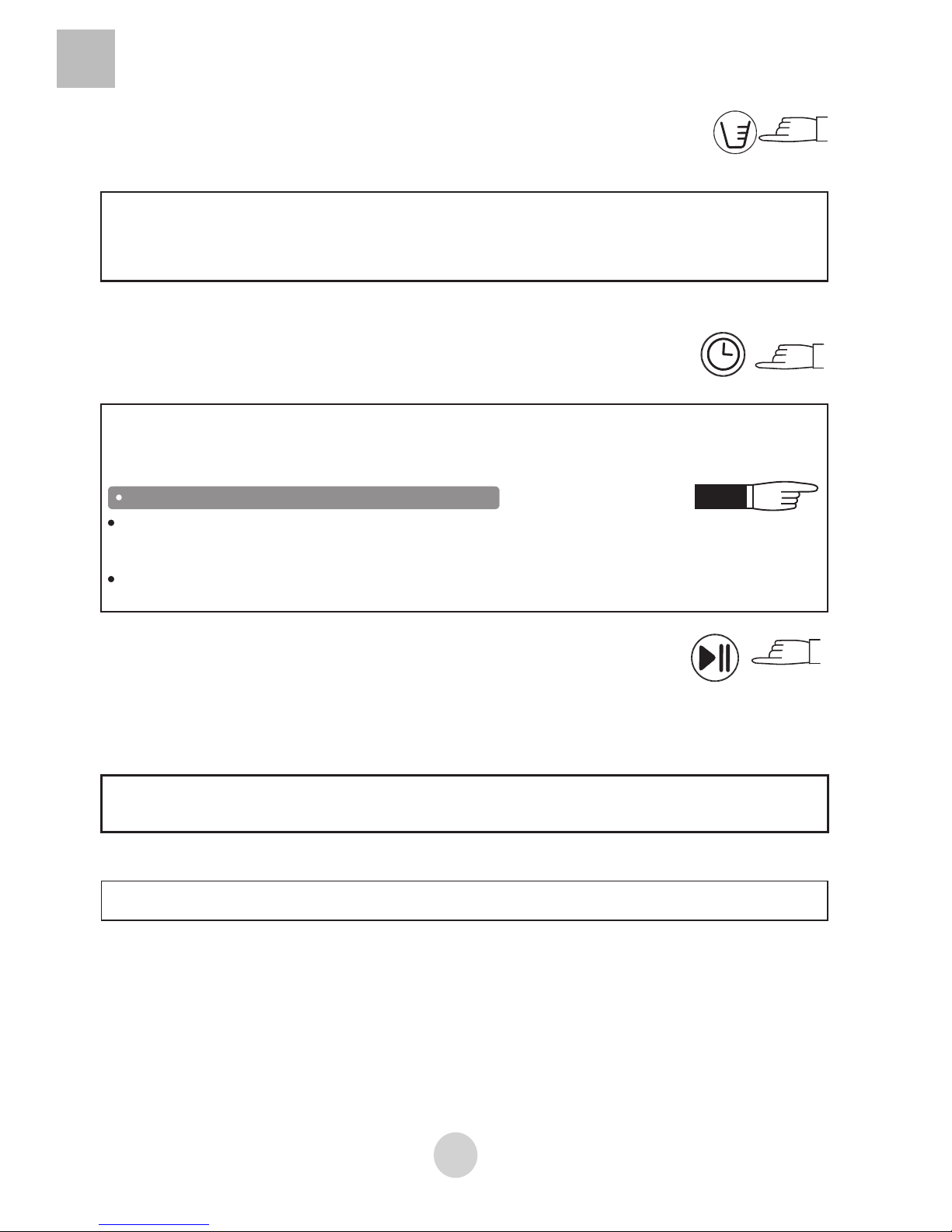

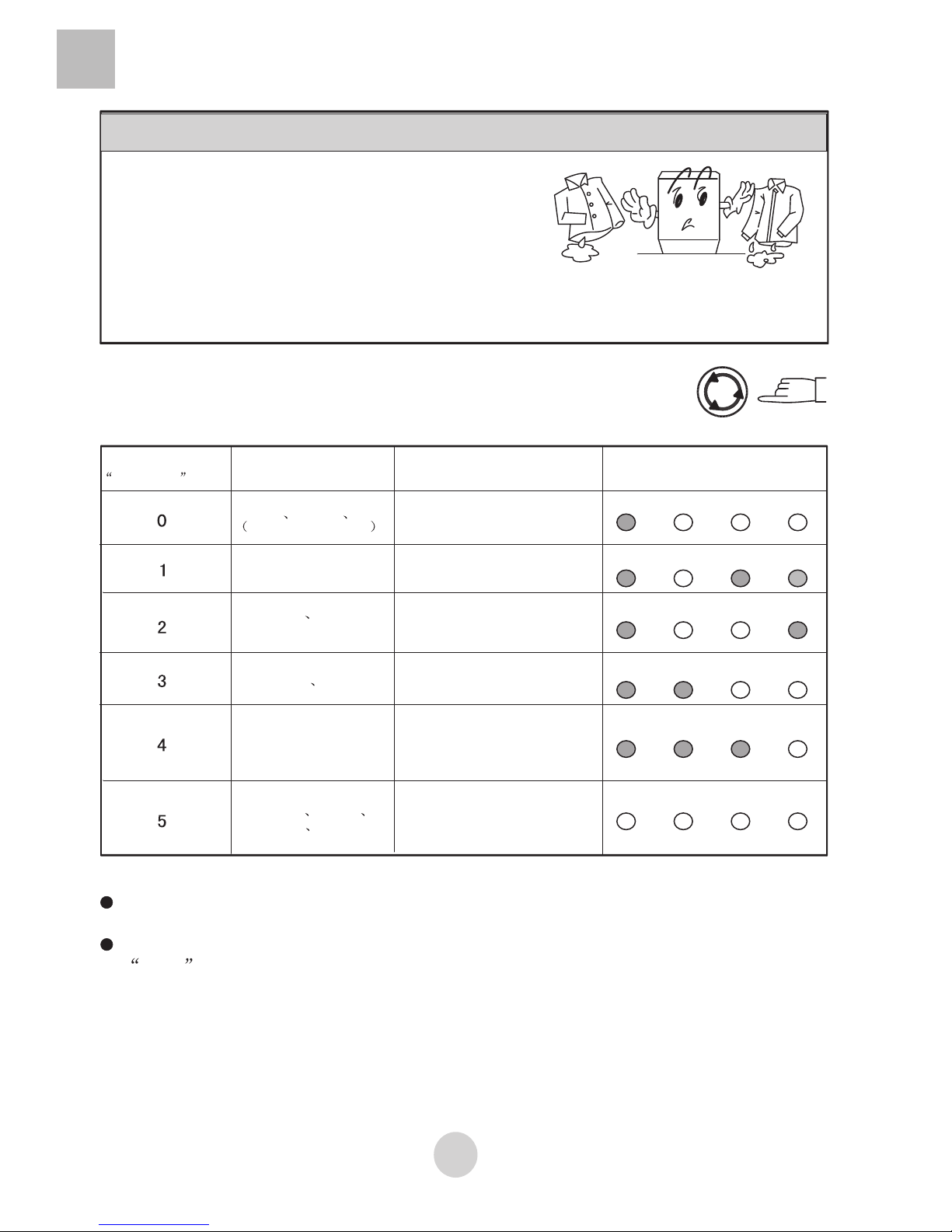

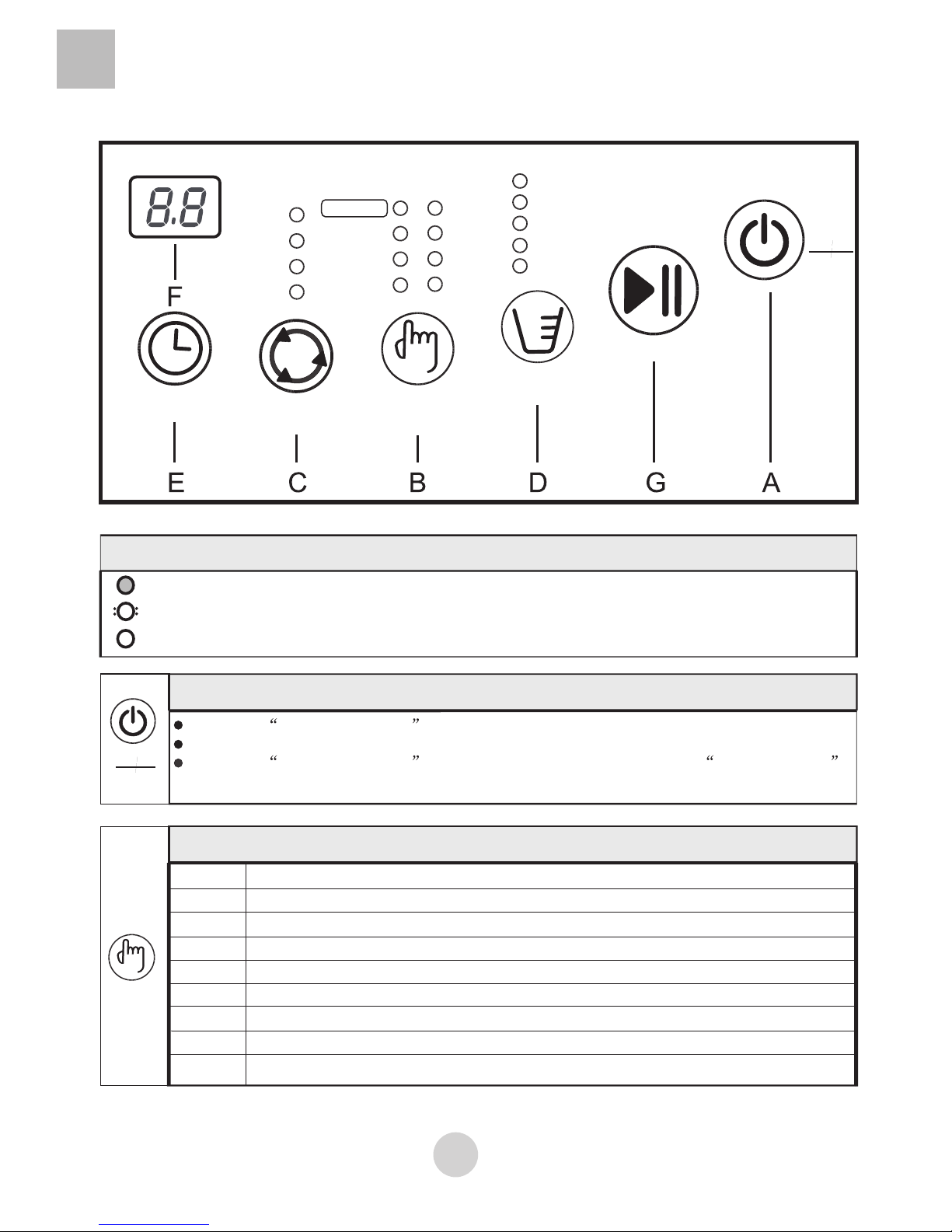

Use the operation buttons
Trouble shooting Answer to question

1
Please check if the power receptacle has good earthing condition before
using to guarantee your safety.
Warning sign
Forbidden sign
Contents marked with that symbol are related
to the safety of the product and the personal
safety of the users. Please operate in strict
conformity to the contents, otherwise it may
cause damage of the machine or injure the
personal safety of the user.
Contents marked with that symbol are actions
forbidden to perform. Performing of those
actions may result in damage of the machine
or injure the personal safety of the user.

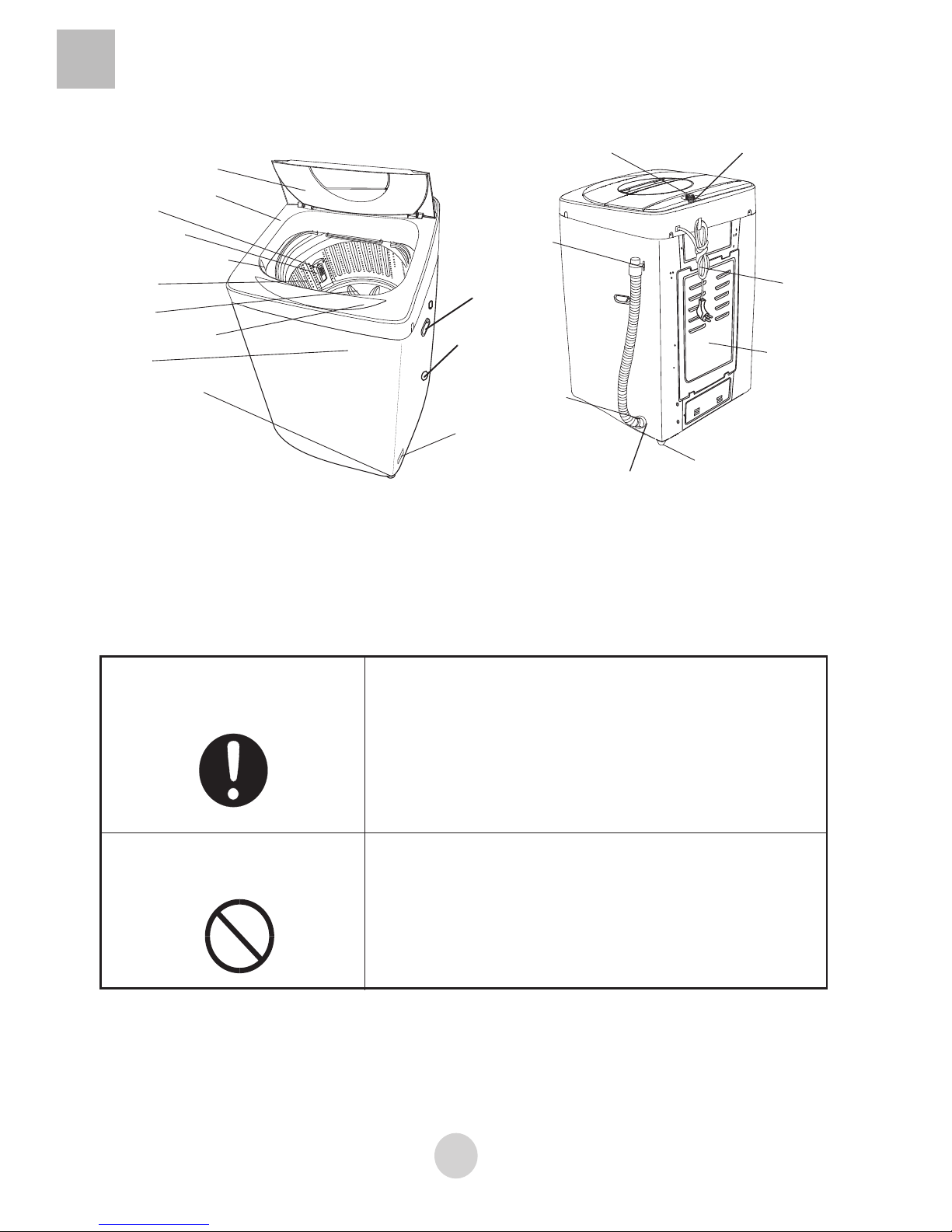

Control panel seat
Lint filter
Inner tub
Cabinet
Fixed foot
(3 pieces)
Adjustable foot
Top lid component
Pulsator
Water inlet valve
Control panel film
Back cover
Power line
Adjustable foot film
Drain hose
Hanging hole
of drain hose
Handle
Liquid whitener inlet
Notes: All illustrations in this Manual are given for reference only. Your products
and accessories may show differences from these illustrations due to our
continuous improvement.
Names of the parts
Meaning and description of the symbols
Filter cover
Drain outlet
protecting cover
Water absorption cushion
Prain hose bushing

2

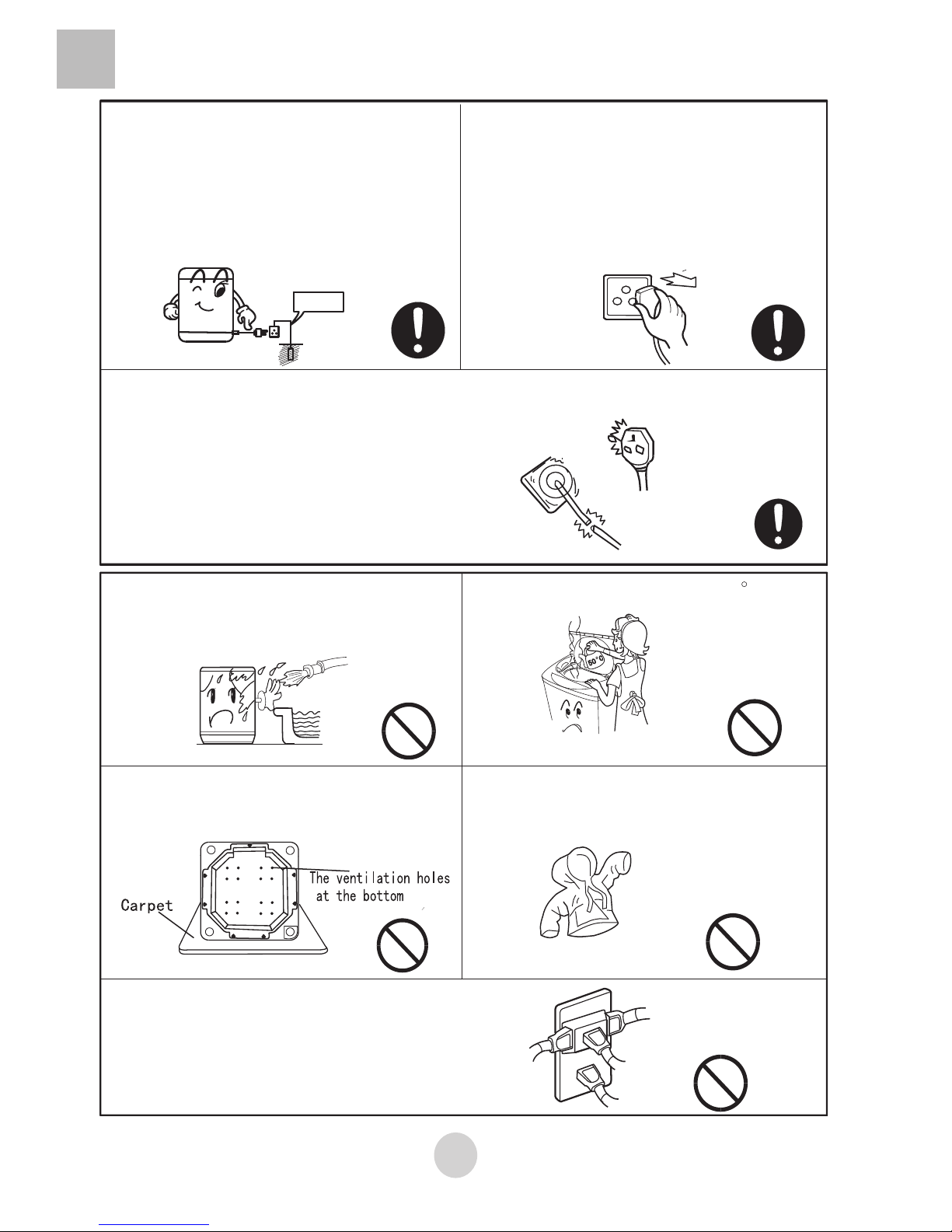

Safety precautions
Please plug the power plug on special
220V/10A receptacle. Be sure to use
single-phase three pins receptacle.
Ensure the earthing prong of the
power receptacle is earthed reliably.
Use leakage protector if possible.
The power cord plug should be conve-
nient to be pluged in or pluged out with
hand while the washing machine runs
normally.Be sure to pull the plug out
and close the water tap when the mac-
hine is idle,when moving the machine,
or when cleaning the machine.Do not
use wet hand to insert or pull out the
power plug.
Do not damage the power cord,bend,extend,twist,bind or alter it by force.Do not press
or nip it with weight.If the power cord or the power plug is bad,or the power plug
becomes flexible,to avoid risk it is required to
have it replaced by the technicians of
our special shop or the after-sale service
department.Keep the pin of the power plug
clean,if the power plug is polluted with dust,
please wipe with dry cloth carefully.
Do not put the machine at damp
place like the bathroom . Never
wash it with water. Do not place
wet laundries on the control panel.
Do not use water hotter than 50 C .
In case the washing machine is in-
stalled on ground with carpet, do not
block the ventilation hole with carpet.
Do not wash water-proof laundries like
the raincoat, bike covers etc. to avoid
abnormal vibrations in spinning.
Do not let the machine share one receptacle
with other electric appliances. If the power
plug is damaged, or the plugging into the
receptacle is loose, do not use the plug any
more.
Earth

3
Do not decompose, repair or alter the
machine by yourself.
Do not put any hot or heavy items (such
as the kettle with hot water ) on the
washing machine.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.)
The handicapped or children without
care shall not use the machine.
Keep the machine away from direct
sunlight and heat source like the heater.
Safety precautions
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.Dot not let the children climb
the washing mechine.
Petrol
Thinner
Please check if the water faucet is open, and if the connection of the water inlet
pipe is proper.
It is suggested to use low-foaming washing powder.
Please don t use the washer in the environment below 0 ; if the washer has
been stored below 0 , please be sure to ensure the washer is placed under the
room temperature for 2 4 hours and then use otherwise the washing effects may
be lowered or the washer may be damaged.
To change the direction of drain pipe, please contact the customer care agent of
our company.

4

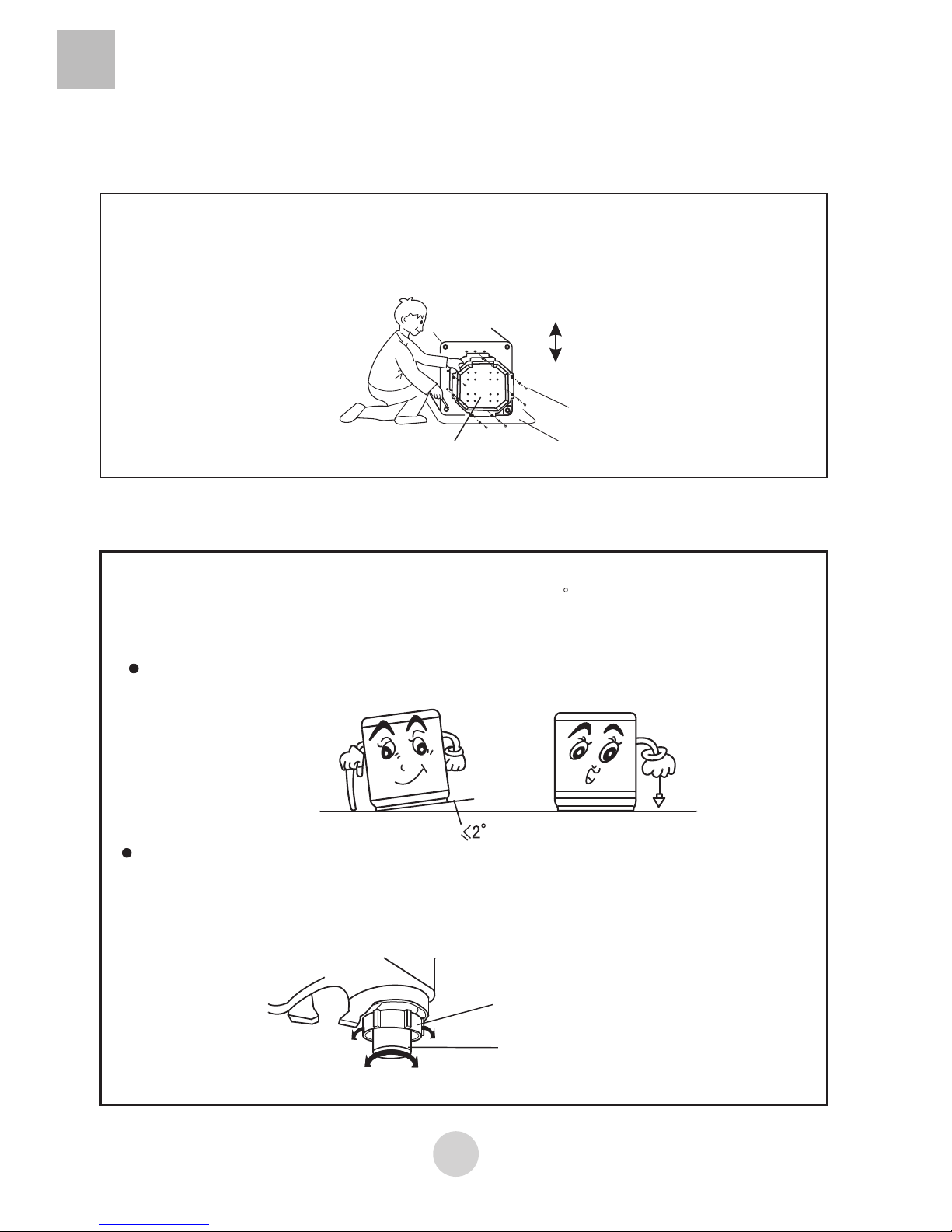

Installation and adjustment
Please install and adjust the machine according to the requirement of the manual.
It is very important to your security and correct operating the machine.
Soft items
Back
Front
Bottom plate
Screw
Install the bottom plate
After opening the package, please lean the washing machine gently down
on soft items (like towel cloth,blanket, etc.). Install the bottom plate to the
bottom of the machine with screws by a cross screwdriver, then lift the
machine up gently. See to the figure:
Adjust the Installation position
The washing machine away from wall should be overrun 20mm. The largest
allowable slope of the shank base of the machine is 2 .The slanting or rough
ground will result in unstable running or stoppage of the machine.
Please adjust it with following methods:
Confirm it's horizontal:
Hang the lead line to check if it is horizontal.
Fasten
Loosen
High Low
the adjustable nut
the adjustable foot
Adjust the adjustable foot:
1 .To twist the adjustable foot, please first lift up the side of the foot slightly, loosen
the adjustable nut, and twist the foot.
2 . After adjustment, fasten the nut.

5
1.The height of the drain hose shall be
less than 10cm, or the drainage will not
be smooth, and cost such long time that
the machine may stop at mid way.
2.Do not trample or press the drain hose.
3.If the drain hose is too long, cut it at mid
point. To make smooth drainage, cut the
front end of the hose slantingly.
4.If extra drain hose is needed,
please make separate purchase.
The inner diameter of the extra
hose shall not less than 30mm, and
the length shall not exceed 1.5m.

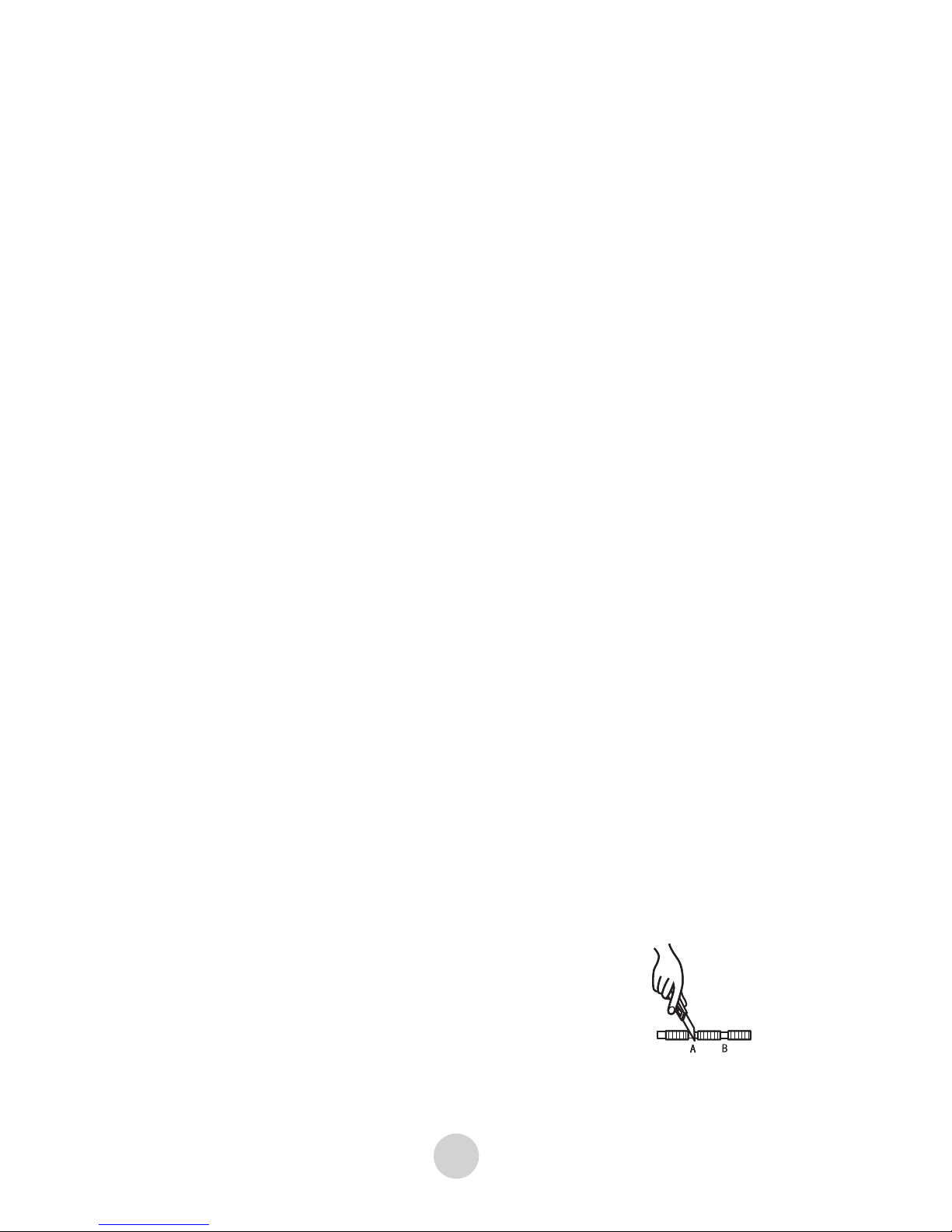

5.If the extra hose istoo long,
cut it eitherat Aor at Bpoint.
Usage of the drain hose
The drain hose shall drain smoothly
Remarks: In order to make sure of the correct of installation, it is suggested to
change the direction of the drain hose with our company serviceman .
3.Dismantle the protecting cover of the
drain outlet at the other side Install the
drain hose bushing
(As Indicated in Figure 2).
Drain outlet
protecting cover
Drain hose
bushing
Figure 1
Figure 3
2.Take off the drain hose frame. Put
down the drain hose , put the drain
hose into the cabinet, take off the
drain hose bushing
(As indicated in Figure 1).
Drain hose
frame Drain hose
bushing
Figure 2
Drain hose
frame
Drain outlet
protecting cover
Drain hose
Figure 4
How to change the direction of the drain hose
5.Install the protecting cover of the drain
outlet at the other side (As indicated in
Figure 4).
4.Extend the drain hose from the other
side. Fix the drain hose with the drain
hose frame(As indicated in Figure 3).

6

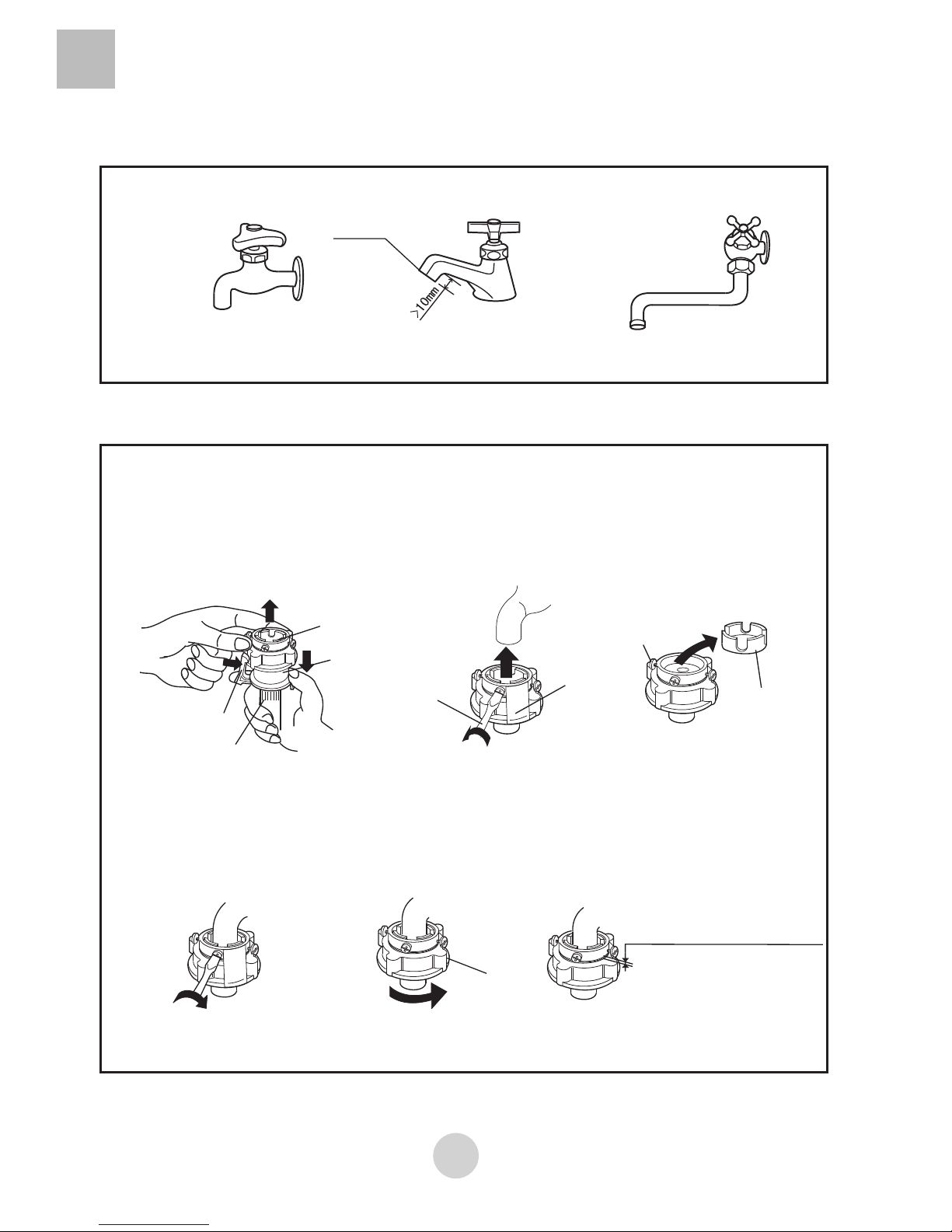

The exit end face of the faucet
Confirm the water faucet
Connection between the water inlet hose jointer and the water faucet
water faucet, suitable water faucet, not suitable
It is required that the front end shall be longer than 10mm.
The exit end face of the faucet shall be flat and smooth. If not please file it to avoid
leakage.
2 Loosen the screw till the water faucet can be accessed. Put the jointer of the water
inlet hose on the faucet. See to Figure 2. (If the faucet is too large and the jointer can
not be set on the water faucet, please loosen the four screws and take out the bushing
in the jointer. The front end of the faucet must be smooth, otherwise it may leak water.
See to Figure 3.)
1.Press the lower end of the lock lever and push down the slider. Take off the water
inlet hose jointer from the water inlet hose component. See to Figure 1.
3.Fasten the four screws evenly. See to Figure 4.
Remark: Before installation, the threading is 4mm above the upper surface of the nut.
After installation, the threading is 2mm above the upper surface of the nut.
See to figure 6.
water inlet hose jointer
Screw knife
water inlet hose Figure 1
Figure 4 Figure 5
Slider
Lock lever
4 Take off the nameplate. Twist the fastening nut as per the indication of the figure
to seal up the exit end face of the faucet. See to Figure 5.
About 4mm before twisting
About less than 2mm after twisting
Screw
Bushing
Sign plate
Screw nut
Figure 2 Figure 3
Figure 6
Install the water inlet hose

7
Connection between the water inlet hose and the washer
Dismantle the water inlet hose
Connection between the jointer of the water inlet hose and the
water inlet hose
Check the connection between the jointer of the water inlet hose
and the water faucet
1.Do not take off the water absorption cushion. Please
check if the cushion is dropped or damaged before
each usage. If it happens please contact our
after-sale department immediately.
1.Swaying the hose gently to confirm if it is fastened
stable.
2.After installation, open the faucet to check if it leaks.
3.Do not bend the hose with overstrain.
1.Push down the slider. Insert the water inlet hose into the jointer.
2 Hang the lock lever to the jointer. Release the slider till a click
sound is heard.
Locking lever
Slider
water absorption
cushion
nut of the water
inlet hose
The jointer of the
water inlet hose
Slider
Locking lever
jointer of the
water inlet valve
1. Close the water faucet.
2. Press the locking lever. Push down the slider. Then pull of
the water inlet hose.
If the machine is used frequently, the jointer of the water inlet
hose can be kept on the faucet to prevent damaging the fixing
screw.
2 Put the nut of the water inlet hose on the valve
jointer.
3 Fasten the nut. Swaying it gently to confirm
if it's suitable.
4.Before each usage please check if the
connection between the jointer of the water inlet
hose and the water faucet, and the installation of
the water inlet hose are firm, so as to prevent
dropping from improper installation position.

8
Preparation before washing
1.Connect the water inlet hose. Open the
water faucet.
2.Confirm that the washing machine is earthed
reliably. Then insert the power plug into the
receptacle. The earth terminal shall not link
to gas pipeline and faucet water pipeline.
3.Put down the drain hose.
Pay attention to followings before washing the laundries
Confirm if
there is spe-
cial require-
ment for the
laundries.
Clear the
pocket. Take
out the coins,
sand, hairpins
etc.
Tie the long
strips; fasten
the buttons;
close zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.
The quantity of
the laundries
shall not be too
large. Stretch
and loosen the
laundries before
putting them in
the tub.
a. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like
mud or dust. For the parts with heavy soil, please apply detergent on
them in advance, which can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn
it over before putting in.
f. Do not put those laundries polluted by chemicals into the washing
machine directly.
4.Slanting or uneven ground may result in
unstable working or abnormal noise. Please
make the machine stand horizontally.
Preparation before washing
