Haier HLP23E - Electronic Touch Pulsator Ing Portable Washing... User manual

Automatic Washing Machine
HLP23E
User's manual
This manual is for
Please read this manual
carefully before using.
Retain it for future reference.

Contents
Names of the parts............................................1
Safety precautions ............................................2
Installation and adjustment ...............................4
Install the water inlet hose.................................6
Preparation before washing .............................7
Put in the laundries ...........................................8
Put in the detergent ..........................................9
Use the operation buttons ..............................10
Close the top lid ..............................................14
Finish washing ................................................15
Disposal after washing ...................................15
Trouble shooting Answer to questions..........16
Packing list .....................................................17
Specifications...................................................18
Warranty...........................................................19

Before Using
Before Using

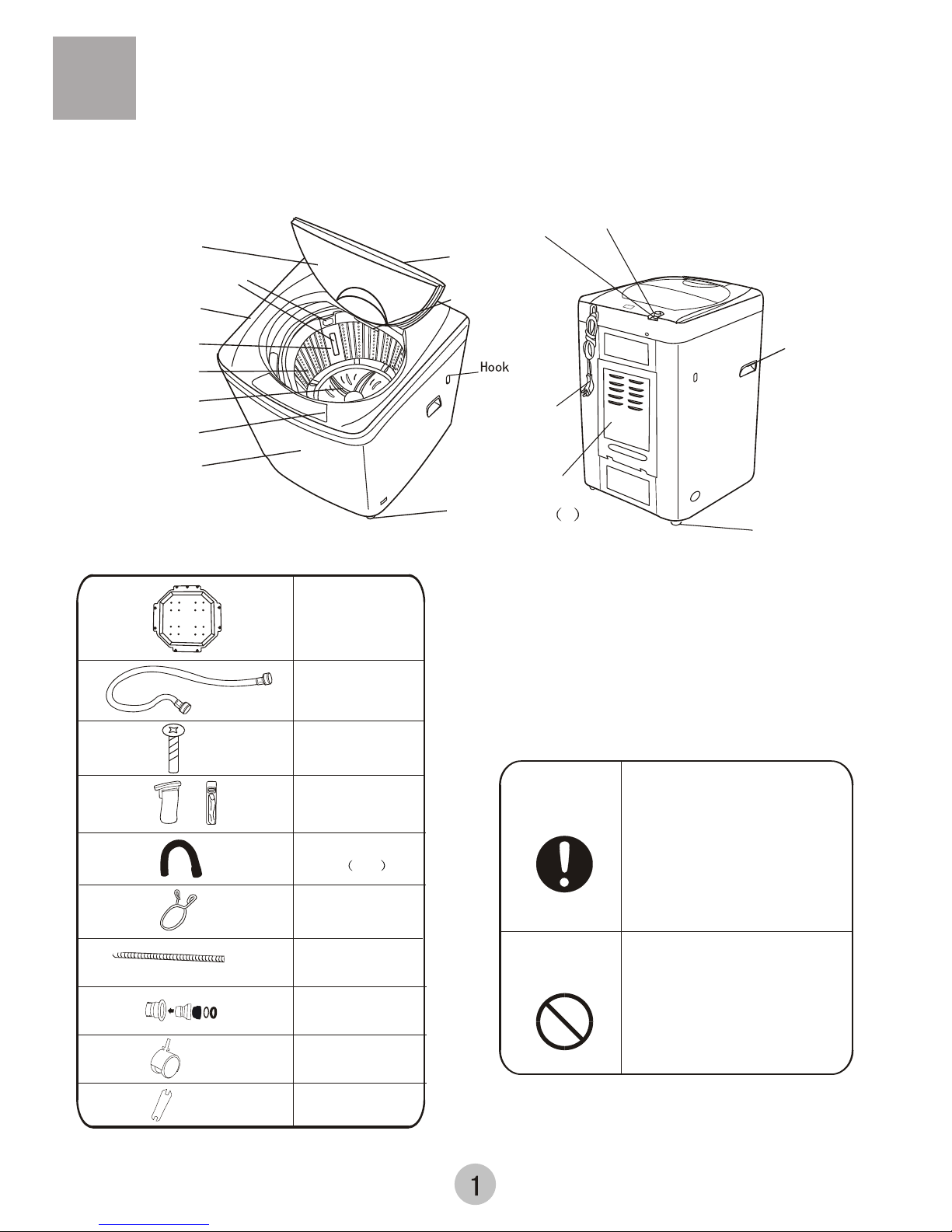

Names of the parts
Drain hose
hook one
Drain hose
(one)
Meaning and description of the symbols
Warning sign
Forbidden sign
Contents marked with that symbol
are related to the safety of the
product and the personal safety
of the users. Please operate in
strict conformity to the contents,
otherwise it may cause damage
of the machine or injure the
personal safety of the user.
Contents marked with that symbol
are actions forbidden to perform.
Performing of those actions may
result in damage of the machine
or injure the personal safety of
the user.
Accessories
bottom plate
(one)
Tapping screws
(eight)
Lint filter
(two)
Water inlet hose
(one)
Water inlet hose
jointer(one)
Caster
Drain hose clamp
(one)
Water valve
Adjustable foot
Back cover
Cabinet
Control panel film
Control panel
Filter cover
Power line
Pulsator
Inner tub
Detergent box
Top lid B Top lid A
Water absorption cushion
Lint filter(Installed by user)
Adjustable foot (4)
Cabinet handle
4
Spanner

Before Using
Before Using
Safety precautions
Please insert the power cord into special rece-
ptacle with rated voltage.The earthing
terminal of the receptacle must be earthed
reliably.If possible,please adopt electric
leakage protector.
Do not damage the power cord,bend,extend,twist,bind or alter it by force.
Keep the pin of the power plug clean,if the
power plug is polluted with dust,
please wipe with dry cloth carefully.
The power cord plug should be convenient
to be pluged in or pluged out with hand
while the washing machine runs normally.
Be sure to pull the plug out and close the
water tap when the machine is idle,when
moving the machine,or when cleaning
the machine.Do not use wet hand to ins-
ert or pull out the power plug.
In case the washing machine is installed on ground with
carpet, do not block the ventilation hole with carpet.
Do not let the machine share one receptacle with other electric appliances. If the power plug is damaged, or the
plugging into the receptacle is loose, do not use the plug any more.
Do not wash water-proof laundries like the raincoat,
bike covers etc. to avoid abnormal vibrations in spinning.
Do not use water hotter than 50 C.
Do not put the machine at damp place like the
bathroom. Never wash it with water.Not put wet
laundries on the control panel.
soft items
The ventilation holes
at the bottom

Do not decompose, repair or alter the
machine by yourself.
Do not put any hot or heavy items (such
as the kettle with hot water ) on the
washing machine.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.)
The handicapped or children without
care shall not use the machine.
Keep the machine away from direct
sunlight and heat source like the heater.
Before Using
Before Using
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.Do not let the children
climb the washing machine.
Petrol
Thinner
.
To prevent your laundries and washing
machine from damage,be sure to take
out all of the foreign materials from your
pocket,such as coins,buttons,sand or
hairpins etc.
Before washing,please check if the water
tap is open ,and if the water inlet pipe is
connected properly.
It is suggested to use low-foaming was-
hing powder
To prevent the lint in the tub from blocking
the cascade outlet and influencing the
cascade effect, please keep the lint filter
in good condition, and install it to proper
position during washing.

The largest allowed slope of the
shank base of the machine is 2 .
The slanting or rough ground will
result in unstable running or
stoppage of the machine. Please
adjust it with following methods:
Adjust the adjustable foot:
Adjust the installation position
Before Using
Before Using

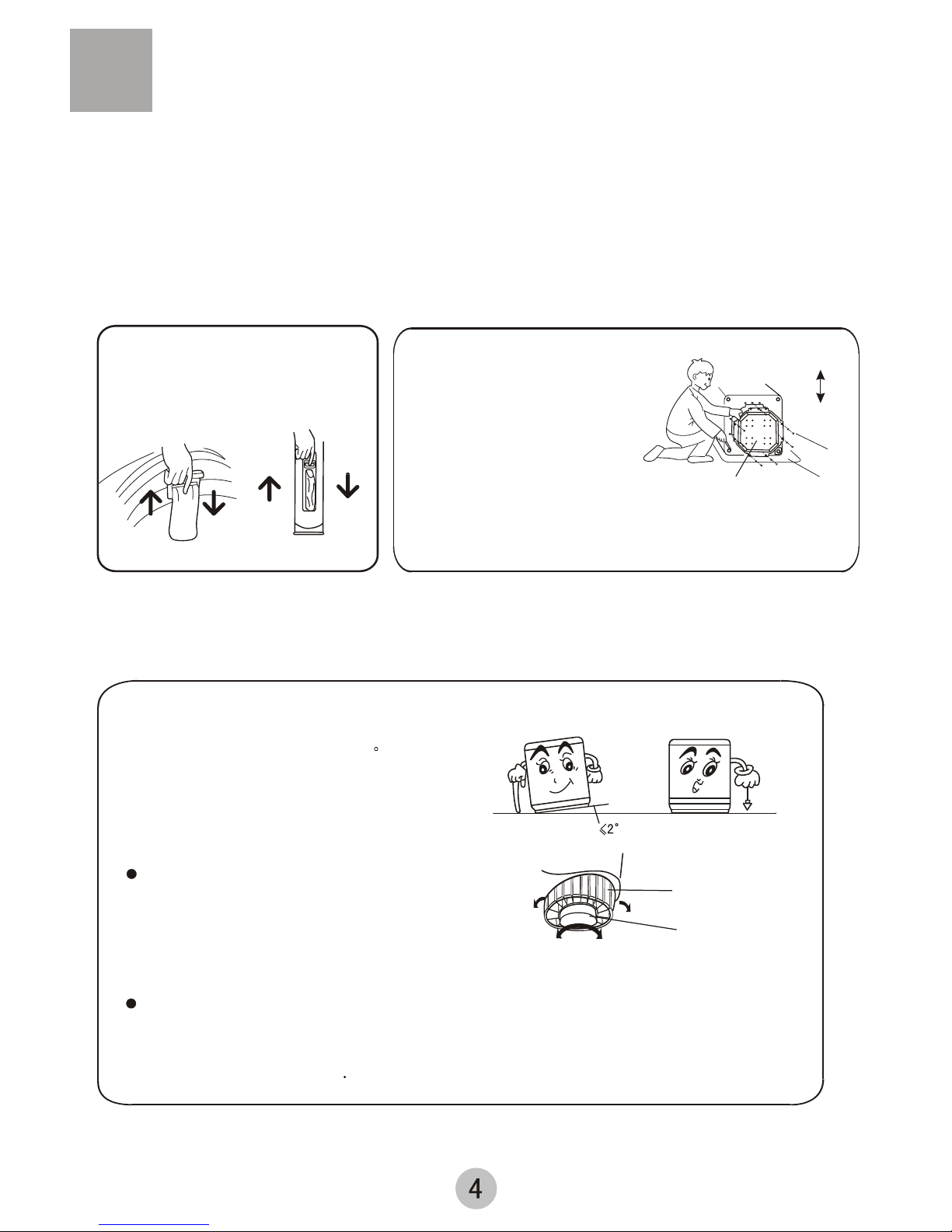

Installation and adjustment
Please install and adjust the machine according to the requirement of the manual. It is
very important to your security and correct operating the machine.
1.Press downward to assmble.
2.Pull upward to detach.
1.To twist the adjustable foot, please
first lift up the side of the foot slightly,
loosen the adjustable nut, and twist the foot.
2.Fasten the nut after adjustment.
Loosen Fasten
High Low
adjustable nut
adjustable foot
Install the bottom plate
After you open the package,
please lean the washing
machine gently down on soft
items ( like the towel cloth,
blanket, etc. ). Install the
bottom plate to the bottom of
the machine with the eight
screws by a cross screwdriver,
then lift the machine up gently.
See to the figure:
Pull down Put up
Pull down Put up
Install the lint filter
Soft items
Back
Front
Bottom plate
Screw
Installation of the caster
You may remove the caster at moving the washing machine, and then
install the caster in the corresponding positions with the spanner in the
bag for the accessories

Before Using
Before Using
Usage of the drain hose
The drainage shall be smooth with the drain hose.
1.put the drain hose up to suitable position. Do not put it
on ground
2.Do not step on or press the drain hose.
Notes: the highest point of drain pipe should be higher than
the water level of washing tub for avoiding to siphon
phenomenon during drain.
The highest point
0.8m<H<1.2m

When installing the quick sink faucet adapter to the faucet follow the steps below
1.First remove the aerator from your faucet nozzle and determine thesize/tipe of the
faucet
2.Once you determine the size/tipe of the faucet Outside Threaded End or inside
Thread End place the proper sized rubber washer into the silver faucet adapter
3.Attach the silver faucet connector to the faucet
4.Attach the faucet connector to the water inlet hose and make sure that the rubber
washer is placed in between
5.Attach the other end of the water inlet hose to the washer water inlet
Check the connection between the water inlet
hose and the water tap
1.Swaying the hose gently to confirm if it is fastened
stable.
2.After installation, open the tap to check if it leaks.
3.Do not bend the hose with overstrain.
4.Before each usage please check if the connection
between the water inlet hose and the water tap,
and the connection between the water inlet hose and
washer are firm, so as to prevent dropping from
improve Installation position.
1.Close the water tap.
2. Pull off the water inlet hose from the water tap
and washer
Take down the water inlet hose
Before using
Before using

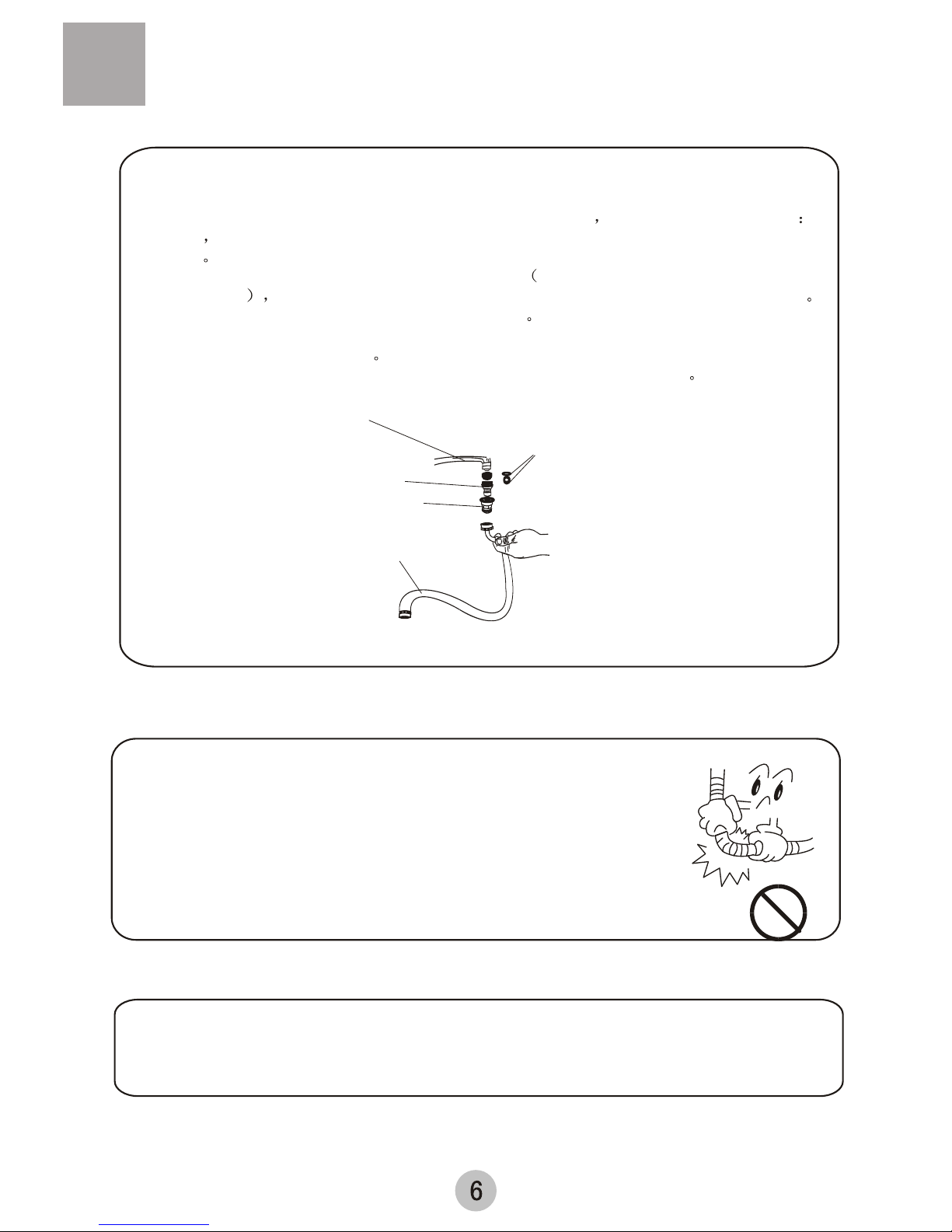

Install the water inlet hose
Washer
Faucet
Faucet Adapter
Quick Connector
Water inlet hose
Installing Quick Sink Adapter

Confirm if
there's special
requirment for
the laundries.
Clear the pocket.
Take out the
coins , sand,
hairpins etc.
Fasten the
buttons and
zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion,please
put the laundries
with buttons into
other laundries.
The quantity of
the laundries
shall not exceed
the rated value.
The big laundries
like the jeans
shall be put in
loosely.
Using process
Using process

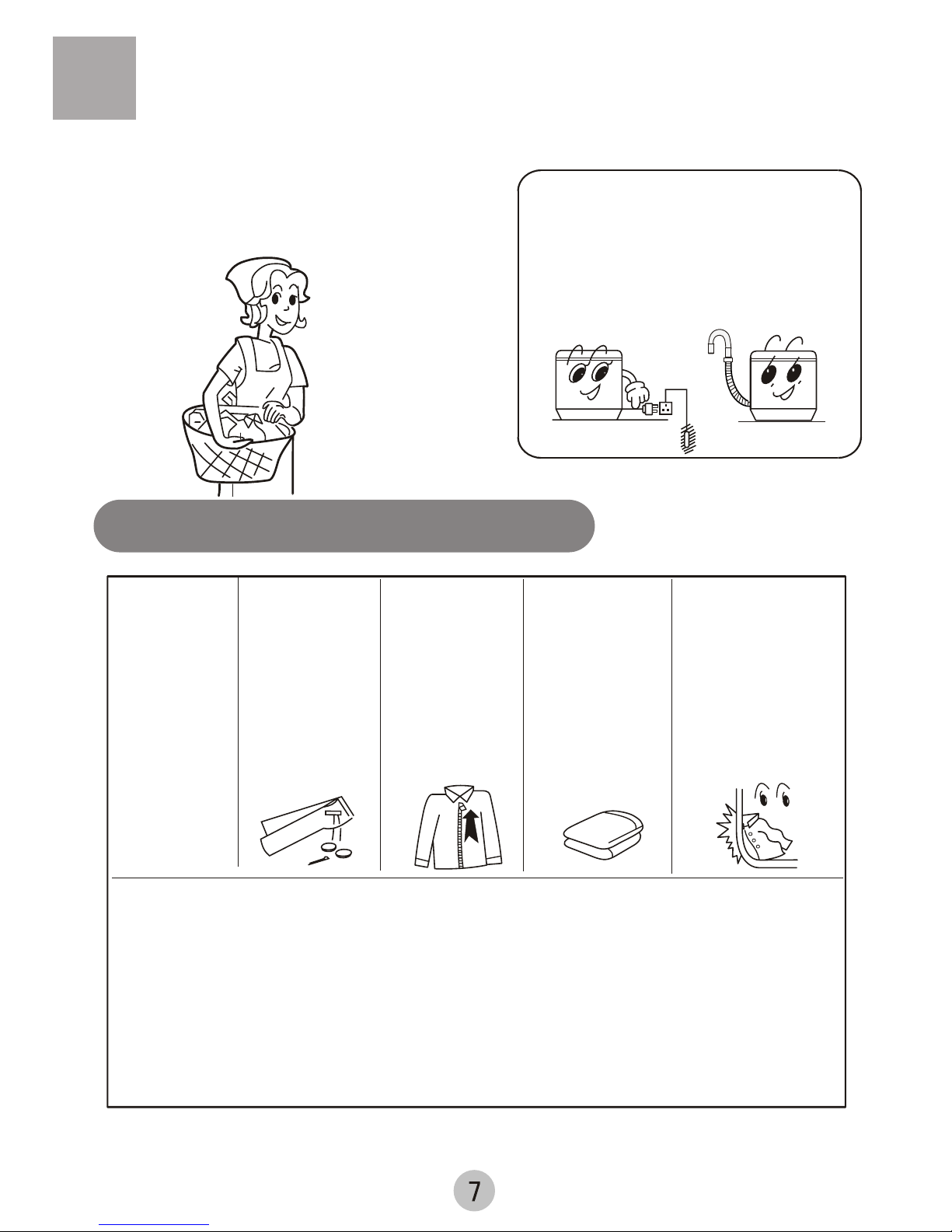

1 Preparation before washing
Pay attention to followings before washing the laundries
a. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like mud or dust.
For the parts with heavy soil, please apply detergent on them in advance, which
can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn it over before
putting in.
f. Do not put those laundries polluted by chemicals into the washing machine directly.
Preparation before washing
1. Connect the water inlet hose.
2. Confirm that the washing machine is earthed
reliably. Then insert the power plug into the
receptacle. Do not connect the earth terminal
to the gas pipe and tap water pipe.
3. Hang up the drain hose.

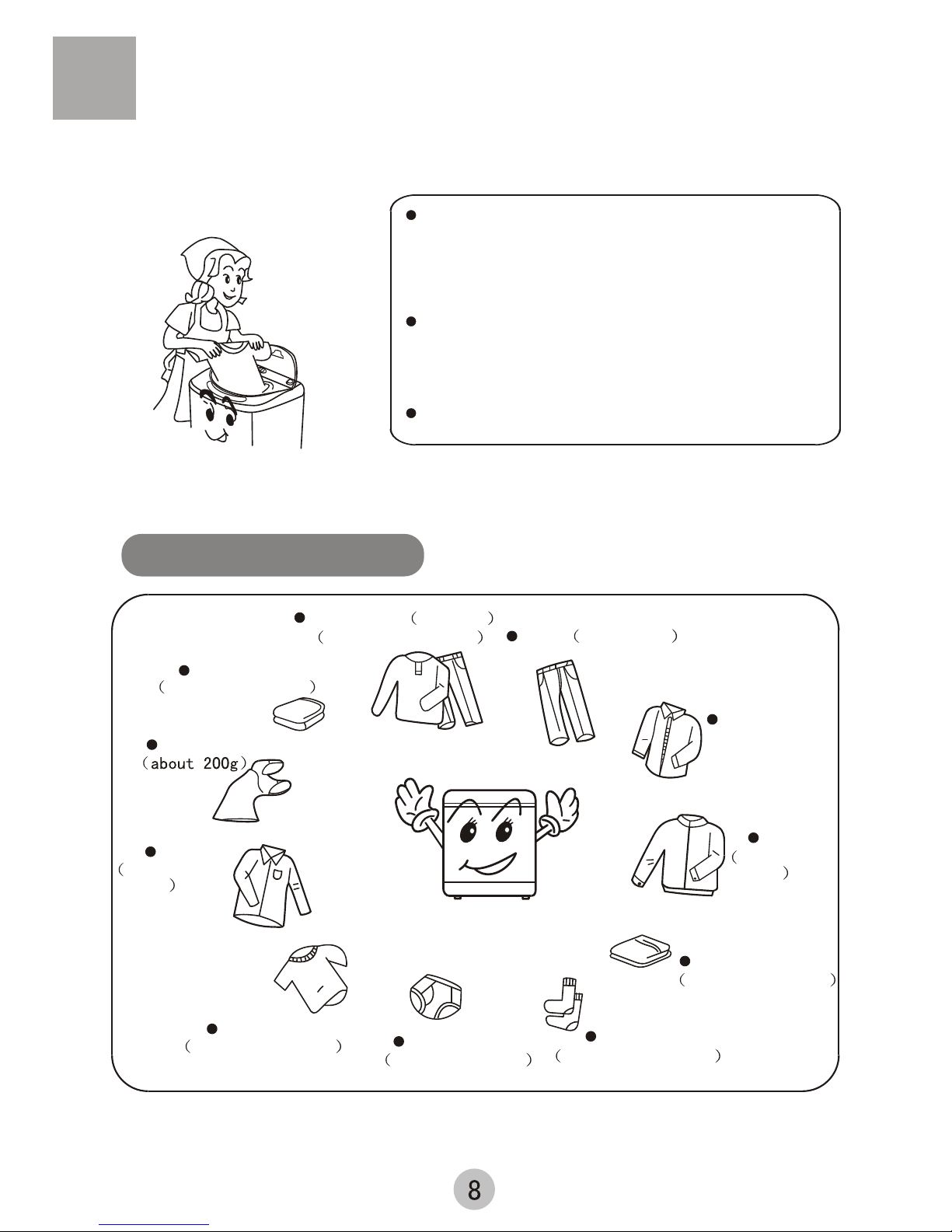

Reference weight of the laundries:
working suit up,down
jeans about 800g
shirt jacket
single bed sheet
Socks
underpants
undershirt
pajamas
blanket
cotton,about 900g
cotton,about
300g
cotton,about
800g
cotton,about 600g
blending,about 50g
cotton,about 70g
cotton,about 180g
The capacity of washing and spinning of the
machine refer to the largest weight of the standard
laundries under dry condition that can be washed
or spinned in one time. One time washing quantity
shall be lower than the rated capacity. The largest
capacity of this machine is 5.0kg.
The thickness, size, type of the cloth will influence
the actual washing capacity. It is suitable for one
time washing to put in reasonable amount of
laundries and the laundries can be turned round in
washing.
Do not select "High" water level for laundries small
than 0.5kg, so as to avoid splashing of water.
Using process
Using process
2 Put in the laundries
cotton,about 1120g
blending coat
(about 800g)

How touse the whitener
Fill water to decided level. Dilute
the whitener with container. Pour
it slowly into the washing tub.
Avoid using whitener on
laundries with color or pattern as
they are prone to lose color.
The whitener shall not touch the
laundries directly.
Refer to the user's manual for
the usage and quantity of the
whitener.
For powder whitener, please
dissolve it before use.
How to use the washing
powder
Direct dissolved in the machine
1.Fill water to "Low" water level.
2.Add the power. Run for 30 seconds
to dissolve it completely.
3.Put in the laundries. Select
suitable water level.
The instant dissolving of the washing
powder:
1.Prepare warm water of 30 and a
container.
2.Add the powder while stirring to
fully dissolve it.
Put in the prorer quantities detergent
according to the water level and the
laundries quantities .
It is suggested not to use high
sudsing detergent.
Washing powder with poor quality or
long time storage maybe caked.
Please pay attention to cleaning the
detergent box in time
Using process
Using process

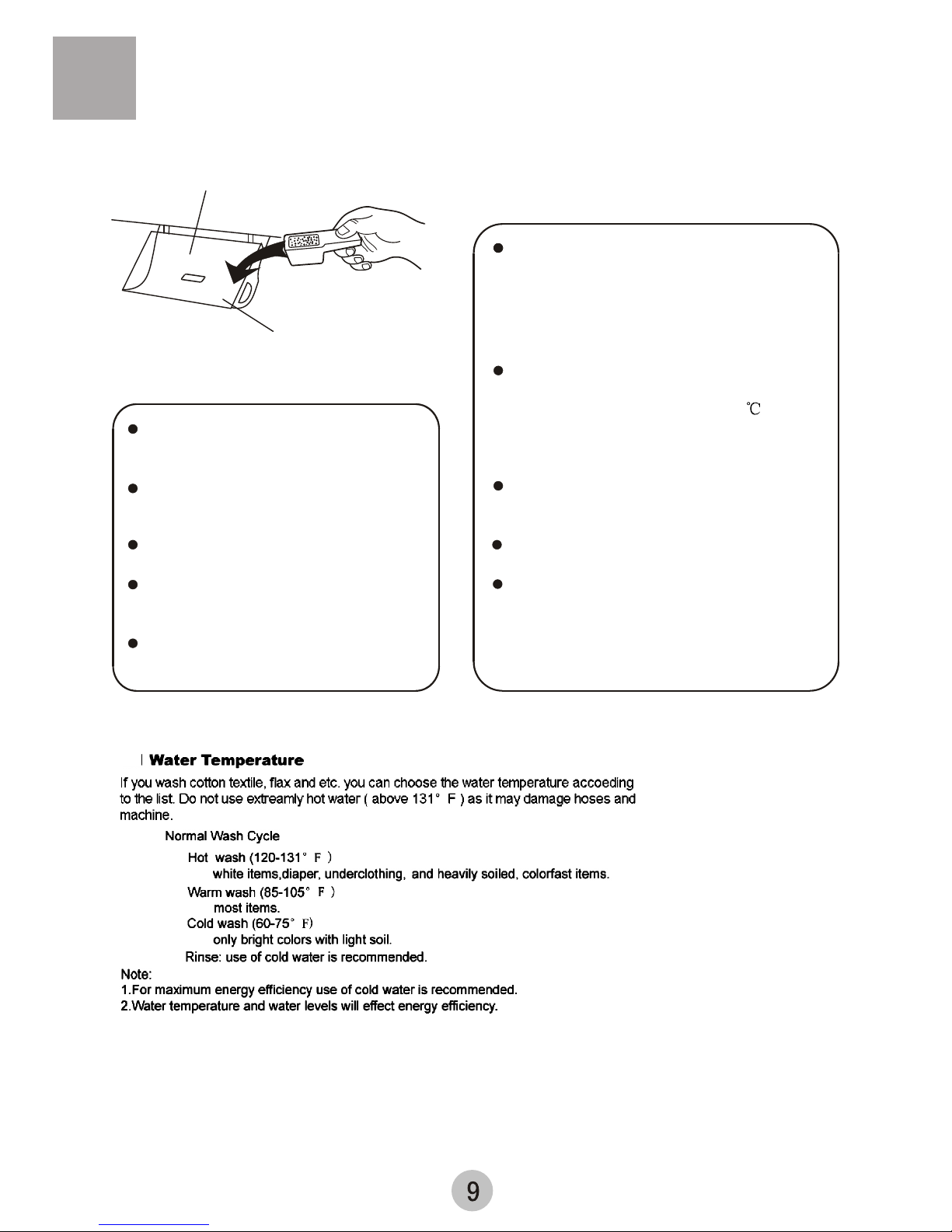

3 Put in the detergent
Inlet for concentratedwashing
powder and detergent
Detergent box

a.
Using process
Using process
4 Use the operation buttons
Description of the function of the buttons
PROGRAM
RESERVATION
WATER LEVEL
SOAK
WASH
RINSE
SPIN
PROCEDURE STATUSPROGRAM STATUS
HEAVY
GENTLE
QUICK WASH
WASH
SPIN
STANDARD
To indicate -- during sensing.
To indicate remaining min. During
program running.
To indicate remaining reserved
time (hrs) during reservation period.
To indicate fault symbols for abnormal
conditions (see page 15)
SURPLUS(MIN)
Page 15
The user selects a suitable water level
depending on the load.
" WATER LEVEL"button
"PROGRAM/ " button
RESERVATION
you can select one or several of
, , inse and Spin
Press
programs
.
"PROGRAM/RESERVATION " button
StandardJ eans Gentle,Quick,R
you can select
of peservtion.
Press
over 2 seconds, the program
the N tube displays the
reserved hrs to the wash cycle end. The
indicator flashes to indicate in-reservation.
"PROGRAM/RESERVATION " button
ixie

Remarks: After pressing "Power On/Off" to connect power supply, if the washing machine
lasts idle more than 10 min, it would automatically shut off the supply.
Using process
Using process
POWER
ON/OFF
START
PAUSE
After the power is switched on, press it to
start the machine
During working, push it to pause working.
During pause, push this button to restart
and continue operation.
"START/PAUSE"button
Press "Power On/Off" button to connect
power supply.
After power is connected, pressing this
button will cut off the supply.
"POWER ON/OFF"button

After switching on, the "Standard" program will be the default. If other full-automatic program is
desired, you can press the button "Program" to get the corresponding indicator on. Refer to the
"Button of 'program'"paragraph on page 9.
Example: Use the "Quick" program for slightly soiled articles.
When "standard" or "Jeans" program is selected, the
washing machine will perform full-automatically
controlled fuzzy program to set water level, water flow and
wash duration according to the cloth nature and weight
Page 9
Using process
Using process
b. Operating procedure and explanations for the
buttons
1 Press the "Power On/Off" button to switch on
the power supply
2 Press the button of "Program/Reservation" to select
a suitable full-automatic program
POWER
ON/OFF
START
PAUSE
PROGRAM
RESERVATION
RINSE
SPIN
WASH POWER
ON/OFF
POWER
ON/OFF
POWER
ON/OFF
START
PAUSE
PROGRAM
RESERVATION
PROGRAM
RESERVATION
PROGRAM
RESERVATION
WATER LEVEL
SURPLUS(MIN)
RESERVE(HOURS LATER)
HIGH
MEDIUM
LOW
VERY LOW
SOAK
WASH
RINSE
SPIN
PROCEDURE STATUSPROGRAM STATUS
HEAVY
GENTLE
QUICK WASH
WASH
SPIN
STANDARD
HLP23E

Even there's no water in the tub, the
spinning will start after a certain period.
Do not use soak process for woolen laundries.
Wash the laundries that are prone to lose
colors separately from other laundries.
The pulsator will not rotate unless the
water is filled to selected water level.
Selection method of the procedure programs
Attention
Using process
Using process
If you push the "Process selector" button for 6 times, it will resume the original
mode, and it will circulate like that.
Times of pushing
the"Program
select"button
0
1
2
3
4
5
Applicable procedure
When the common
laundries need only
washing
When the laundries need
only spinning after
manual washing
(first drain then spin)
If the laundries are very
dirty, or the sleeve and
collar are dirty, first soak
then wash
Standard
Corresponding
program
JEANS
GENTLE
QUICK WASH
WASH
SPIN
Wash(bb) Rinse(cc)
Spin(dd)
Soak(AA) Wash(bb)
Rinse(cc) Spin(dd)
Wash(bb) Rinse(cc)
Spin(dd)
Wash(bb) Rinse(cc)
Spin(dd)
Wash(bb)
Spin(dd)
Total Time
About 39~44
About 64~89
About 34
About 10
About 13~18
About 9
Time list of each program (minute)
When the laundries is
lightly soiled that needs
to be washed quickly.
When the laundries
needs to be washed
carefully such as woolen
textiles or underwear.
When the common
laundries need washing
rinse and spin
Selected procedure
program
Standard
Program
Gentle
Jeans
Quick
Wash
(min)
About 6 About 39~44
About 6
About 64~89
About 34
About 10
About 6
About 6
Rinse
(min)
Spin
(min) Total time(min)
Rinse once, about 2
Rinse twice, about 2
Rinse twice, each abut 3
Rinse twice,each about 3
Soak
(min)
/
About
25~45
/
/
About11~16About11~16
About10~16
About6
About3
Wash
Spin /
/About11~16
/
About 2
/About 13~18
About 9
//
/

Total time: including the normal water inlet time, drain time, excluding the power off time. The
total washing time may be influenced by the water inlet pressure and water level.
Spin time: the time from intermittent running to finishing.
The Jeans program could combine the process of soak during which the washing
machine firstly soak for about 25~45 min after water filling and then begins to wash.
When "Quick wash" program is chosen, the washing machine would automatically set water
level and full processes of wash, rinse and spin.
Using process
Using process
5 Press the "start/pause" button
5 Close the top lid
When the machine working, if the
top cover is opened, the washing
machine will stop running and alarm.
After switching on the power, press the button "Water level"to select a water level according
to the load. Please refer to the paragraphs “Detergent standard dosages and water levels"
and "Button of Water level"on page 9.
Page 9
Page 9
3 Press the "water level" button to select suitable
water level

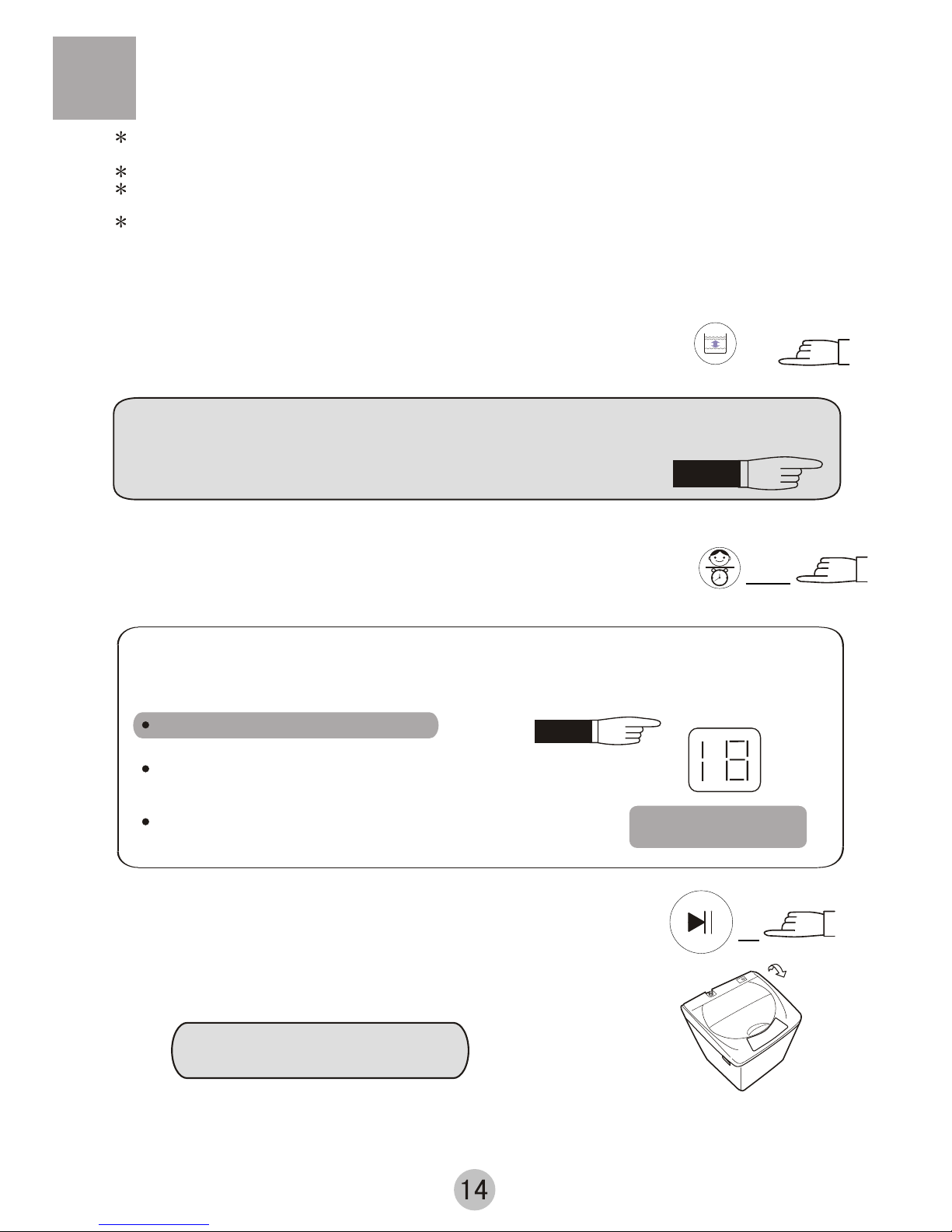

After switching on, the washing machine reserved wash program will be automatically set
inactive. If you desire a wash cycle to end at a reserved time, you can press the "Reservation"
button to set a reserved wash program. Refer to "The button of Reservation"on page 9.
When "Reservation"becomes active, the nixie tube
displays the time to the end of the reserved wash cycle, and
the indicator turns on.
To change the running program or cancel the reservation,
you should cut off the supply and reselect.
the washing will finish
about 18 hours later
Confirm the reserve program
4 Push the "Reservation" button to select
suitable reserve program
WATER LEVEL
PROGRAM
RESERVATION
PROGRAM
RESERVATION
START
PAUSE
START
PAUSE

Using process
Using process
Disposal after washing
When washing, lint filter must be used
After using, please clean it in time.
Lint filter:
1.Pull upward to detach
2.Clean the lint
Put it in water and clean while it is still wet.
(See to Figure 1).
3.Press downward to assemble.
1.After washing, close the water faucet. ( If needed, you can dismantle the water inlet hose).
7
After using, please clean the lint and foreign materials of the lint filter etc. in time. Otherwise it may influence
your using the machine.
Please first pull off the power plug from the receptacle before cleaning.
5.Wipe off the water drops on the surface of the machine and inside the tub. Open the top lid for some time (about 1 hour),
then close the top lid.
4.Hang up the power cord and drain hose.
3.Be sure to pull off the power plug before maintenance.
2.Do not store water in the washing machine for a long period. Drain the water completely after each using.
Clean
Figure 1
Figure 2
Pull down Put up
The filter screen of the water inlet
valve is likely to be blocked by
foreign materials and influence the
water inlet. Please clean it with
brush every two months.
If the cabinet is dirty, wipe it with wet cloth
Do not flush it directly with water.
Wipe it with neutral detergent.
Do not wipe it with thinner, petrol, alcohol
etc.
Thinner
Alcohol
Petrol
After Finishing wash
alarm automatically
The washing machine cuts off the power supply
automatically when wash cycle ends.
6 Finish washing
Pull down Put up

(If there's breakdown, please pull off the power plug before checking) The following
phenomena are not breakdowns sometimes. Please confirm again before sending it to
repair. If there are real breakdowns, please come to the special maintenance department .
Do not repair it by yourself.
Phenomena The reason How to settle
The top lid is not closed
Is the drain hose blockedby
foreign material?
Are the laundriesput slantingly?
Is the machine slanting?
The water tap is not open
The water inlet valve is blocked
The water pressure is too low
and the current is too small
Is there power failure?
Is the power plug loose?
The machine does
not act
Close the top lid
Clean the foreignmaterial.
Open and closethe top lidonce.
Re-order the laundries. Close
the top lid.
Level the machine in right
position. Open and close the
top lid once.
Open the watertap. Push the
"Start/Pause" button.
Clean the waterinlet valve.
Push the "Start/Pause"button.
Wait for the normal water
pressure before use.
Use it when the power is on.
Insert the power plug tightly.
Trouble shooting Answer to question
Does the water level arrive at the
set water level?
Affusion to the set water level.
Is the power plug loose? Insert the power plug tightly.
Is the top lid closed? Close the top lid
Are the laundriesput orderly? Put the laundriesorderly.
Not spin
Not wash
Buzzing upon reservation starts,
Nixie tube indicates "E0"
Safety switch actuates, not
spin, (after self-correction
twice), nixie tube displays
"E3", buzzing
No or slow water filling (not
reaching the level in 15 min),
nixie tube indicates "E4",
buzzing
No or slow drain, nixie tube
indicates "E1" , buzzing.
The top cover leaves open Close the top lid
Running pauses during spin,
nixie tube indicates "E2 "
buzzing
No water filling
Is the power plug loose?
If the water faucet is turned on?
If Power On/Off and
Start/Pause are pressed?
Insert the plug firmly
Turn on the water faucet
Press Power On/Off and
Start/Pause
There's abnormal sound
inside the machine. Is there metal material inside
the washing machine?
Are the laundries slanting in
spinning?
Is the machine slanting?
Level the machine properly.
Fasten the buttons and zipper
Reorder the laundries. Close the
top lid.
The machine does not act.
(the indicators are off.)
Is there power failure?
Is the power plug loose?
Use it when the power is on.
Insert the power plug tightly.

User's manual
Name
Water inlet hose
Water inlet hose jointer
Bottom plate
Tapping screws ST4x16
One
One
One
Four
One
One
One
One
One
Eight
One
Quantity
Automatic washing machine
Between the upper cushion of the washing machine
package and the upper seal of the package carton
Packing list
It is the water remained in the factory inspection of
performance.
Common phenomena
Phenomena Explanation
Balance the laundries to avoid slanting.
The program is setting the drain time. Some time is
needed before it starts spinning.
To prevent splash during water filling.
The spinning is intermittent when it starts.
While water filling in wash and rinse, the
pulsator pauses rotation
There may be some water flowing out of
the drain hose in the first use of the machine.
Push the" / " button to
select "Spin", but it doesn't work.
PROGRAM RESERVATION
Supplementary water filling 48 s after
sensor tests cloth material.
Wash pauses
Lint filter Two
Drain hose
Drain hose hook
Drain hose clamp
CasterCaster
Spanner

Water level/Water quantity (about)
0.03MPa-1.0MPa
Model
HLP23E
Specification
Specification
Lowest/20L Low/30L Mid/37L High/48L
Water inlet pressure
Dimensions mm L 500 W 500 H 882
