Thank you
2

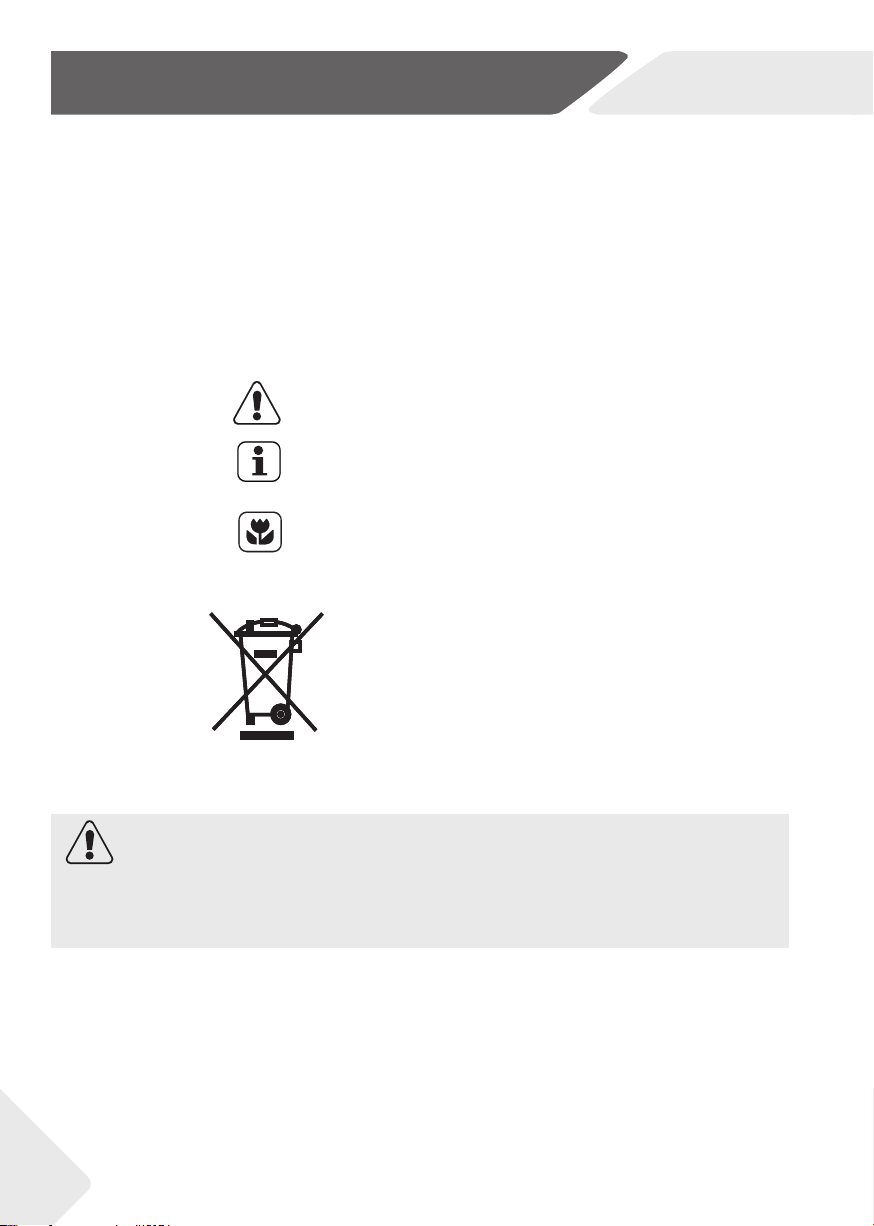

Legend
Warning – Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic ap-
pliances. Do not dispose appliances marked with this
symbol with the household waste. Return the product
to your local recycling facility or contact your municipal
offi ce.
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
WARNING!
Risk of injury or suff ocation!
Disconnect the appliance from the mains supply. Cut off the mains cable and dispose
of it. Remove the door catch to prevent children and pets to get closed in the appliance.

EN Content
3
1-Safety information......................................................................................................................... 4
2-Product description ...................................................................................................................... 7
3-Control panel .................................................................................................................................. 8
4-Programmes.................................................................................................................................12
5-Daily use .........................................................................................................................................15
6-Eco-friendly washing ..................................................................................................................20
7-Care and cleaning ........................................................................................................................21
8-Troubleshooting............................................................................................................................24
9-Installation.......................................................................................................................................27
10-Technical data.............................................................................................................................31

1-Safety information EN
4
Read the following safety instructions before using the appliance
WARNING!
Before fi rst use
▶Make sure there is no transport damage.
▶Make sure all transport bolts are removed.
▶Remove all packaging and keep out of children´s reach.
▶Handle the appliance always with at least two persons because it
is heavy.
Daily use
▶This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
▶Keep away children under 3 years of age from the appliance un-
less they are constantly supervised.
▶Children shall not play with the appliance.
▶Do not let children or pets come close to the appliance when the
door is open.
▶Store washing agents out of reach of children.
▶Pull up zips, fi x loose threads and take care for small items to
prevent laundry from being entangled. If necessary, use an ap-
propriate bag or net.
▶Do not touch or use the appliance when barefoot or with wet or
damp hands or feet.
▶Do not cover or encase the appliance during operation or after-
wards to allow any moisture or dampness to evaporate.
▶Do not place heavy objects or sources of heat or damp on top of
the appliance.
▶Do not use or store flammable detergent or dry cleaning agent
in close vicinity to the appliance.
▶Do not use any flammable sprays in close vicinity to the appli-
ance.
▶Do not wash any garments treated with solvents in the appli-
ance without having dried them previously in the air.

EN 1-Safety information
5
WARNING!
Daily use
▶Do not remove or insert the plug in the presence of flammable gas.
▶Do not hot wash foam rubber or sponge-like materials.
▶Do not wash any laundry which is polluted with fl our.
▶Do not open detergent drawer during any wash cycle.
▶Do not touch the door during the washing process, it gets hot.
▶Do not open the door if the water level is visibly over the port-
hole.
▶Do not force the door to open. The door is fitted with a self-
lock device and will open shortly after the washing procedure is
ended.
▶Switch off the appliance after each wash programme and before
undertaking any routine maintenance and disconnect the appli-
ance from the electrical supply to save electricity and for safety.
▶Hold the plug, not the cable, when unplugging the appliance.
Maintenance / cleaning
▶Make sure children are supervised if they carry out cleaning and
maintenance.
▶Disconnect the appliance from the electrical supply before un-
dertaking any routine maintenance.
▶Keep the lower part of the porthole clean and open door and
detergent drawer if appliance is not in use to prevent odours.
▶Do not use water spray or steam to clean the appliance.
▶Replace a damaged supply cord only by the manufacturer, its
service agent or similarly qualifi ed persons in order to avoid a
hazard.
▶Do not try to repair the appliance by yourself. In case of repair
please contact our customer service.
Installation
▶The appliance should be placed in a well-ventilated place. Ensure
a location which allows opening the door fully.
▶Never install the appliance outdoors in a damp place, or in an
area which may be prone to water leaks such as under or near a
sink unit. In the event of a water leak cut power supply and allow
the machine to dry naturally.

1-Safety information EN
6
Intended use
This appliance is intended for washing machine-washable laundry
only. Anytime follow the instructions given on the label of each gar-
ment label. It is designed exclusively for domestic use inside the
house. It is not intended for commercial or industrial use.
Changes or modifi cations to the device are not allowed. Unintended
use may cause hazards and loss of of all warranty and liability claims.
WARNING!
Installation
▶Install or use the appliance only where the temperature is above
5 °C.
▶Do not place the appliance directly on a carpet, or close to a wall
or furniture.
▶Do not install the appliance in direct sunlight or in the near of
heat sources(e.g. stoves, heaters).
▶Make sure that the electrical information on the rating plate
agrees with the power supply. If it does not, contact an
electrician.
▶Do not use multi-plug adapters and extension cables.
▶Make sure only the delivered electric cable and hose set are
used.
▶Make sure not to damage the electric cable and the plug. If dam-
aged have it replaced by an electrician.
▶Use a separate earthed socket for the power supply which
is easy accessible after installation. The appliance must be
earthed.
▶Make sure the hose joints and connections are fi rm and there is
no leakage.

EN 2-Product description
7
2.1 Picture of appliance
Front side(Fig. 2-1): Rear side (Fig. 2-2):
2.2 Accessories
Check the accessories and literature in accordance with this list (Fig. 2-3):
Inlet hose-
assembly
x1
Blanking
plugs
x6
Drain hose
bracket
x1
Sponge
User manual
Warranty-
card
x1
Note:
Due to technical changes and different models, the illustrations in the following chap-
ters may differ from your model.
2-3
2-1 2-2
2-2
1 2 4
5
6
3
T1
T2
T3
T4
S1 S2
S3
S4
S5
S6
S7
S8
12
4
5
6
7
3
1 Dispenser drawer
2 Worktop
3 Control Panel
4 Programme
selector
5 Washer door
6 Filter/
Service flap
7 Adjustable feet
1 Shipping bolts (T1-T4)
2 Back cover
3 Back cover screws (S1-S8)
4 Water inlet valve
5 Drain hose
6 Power cord
2x
1x
1x
Screws
x4 x1

3-Control panel EN
5

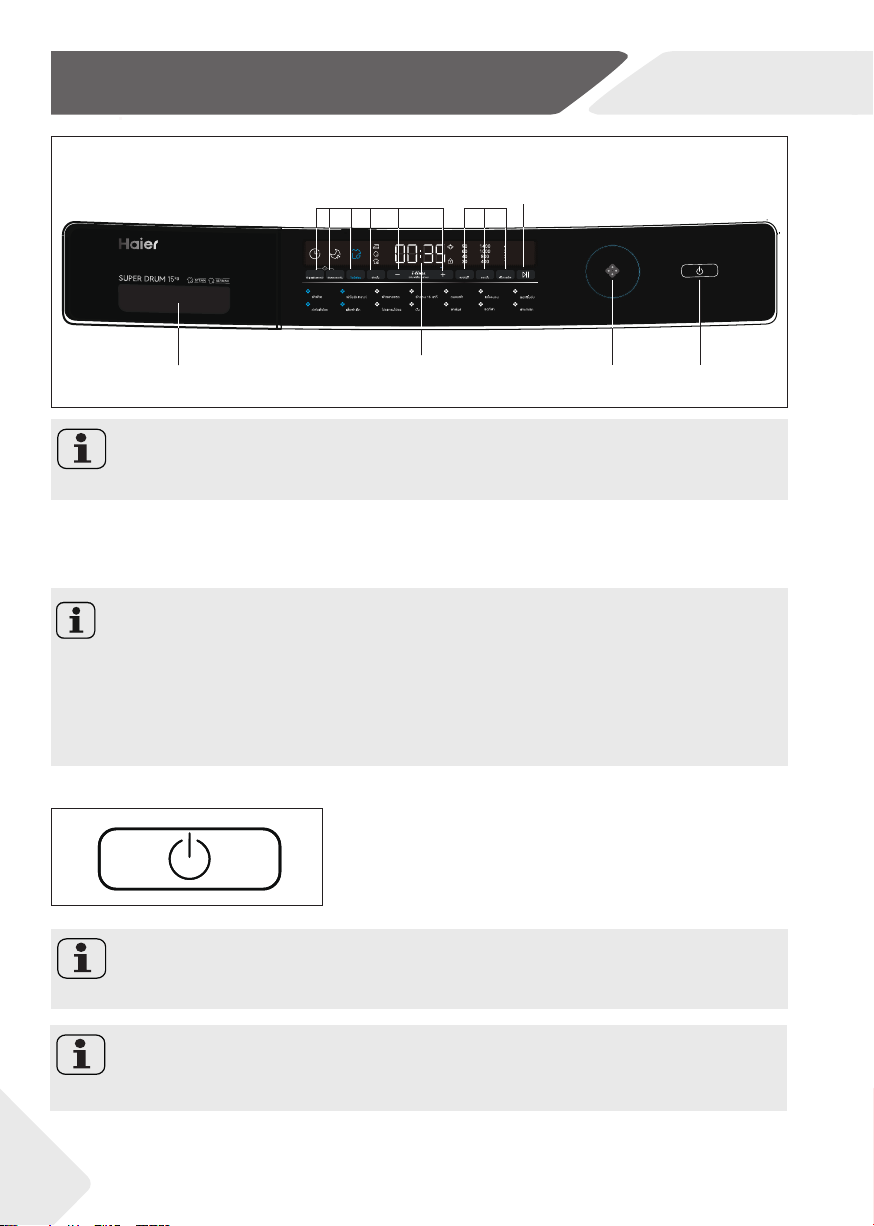

432 1
6 7
8
1 “Power“ button
2 Programme selector
3 Display
4 Dispenser drawer
3.1 “Power“ button
Touch this button(Fig. 3-2) to switch on, the display
lights up.Touch it again for about 3 seconds to switch
off.
5 Function buttons
6 Setting buttons
Note : Acoustic signal
In following cases an acoustic signal sounds:
▶when pressing a button
▶when turning the programme selector
▶at the end of programme
▶in case of failures
The acoustic signal can be deselected if necessary ; see DAILY USE (see P20 6.13).
3-2
3-1
Note: Variety
Apperance and features will vary.
Note: Mode
Display will turn into standby “OFF” mode if standby mode lasts too long.
Note: Power supply
Unplug power cord to disconnect the appliance from power supply.
7 “Start/Pause“
button
Cotton Delicate Bedding
Delay Nightwash
Steam Func tion
Temp.
Extra Rinse
Synthetic Refresh
Baby Care
Mix
Spin
Sports
Drum CleanHygiene Daily Jeans
Quick 15’
Speed

EN 3-Control panel
9
3.2 Programme selector
By turning the knob (Fig. 3-3) one of 14 programmes
can be selected, related LED will light up, its default
settings will be displayed.
3.3 Display
The display (Fig. 3-4) shows following information:
▶Wash time
▶End time delay
▶Error codes and service information
▶Function buttons and “Start/Pause“ button
3-3
3.5 Function buttons
The function buttons (buttons 3.5.1-3.5.5, Fig. 3-6)
enable additional functions to programmes before
starting the programme. The related indicators are
displayed.
By switching offthe appliance or setting a new pro-
gramme, all options are disabled.
If a button has multiple options, the desired option can
be selected by pressing the button in sequence.
To delete the setting or to cancel the setting process,
press the function button until the desired LED lights
or-in case of only one option-the LED switches off

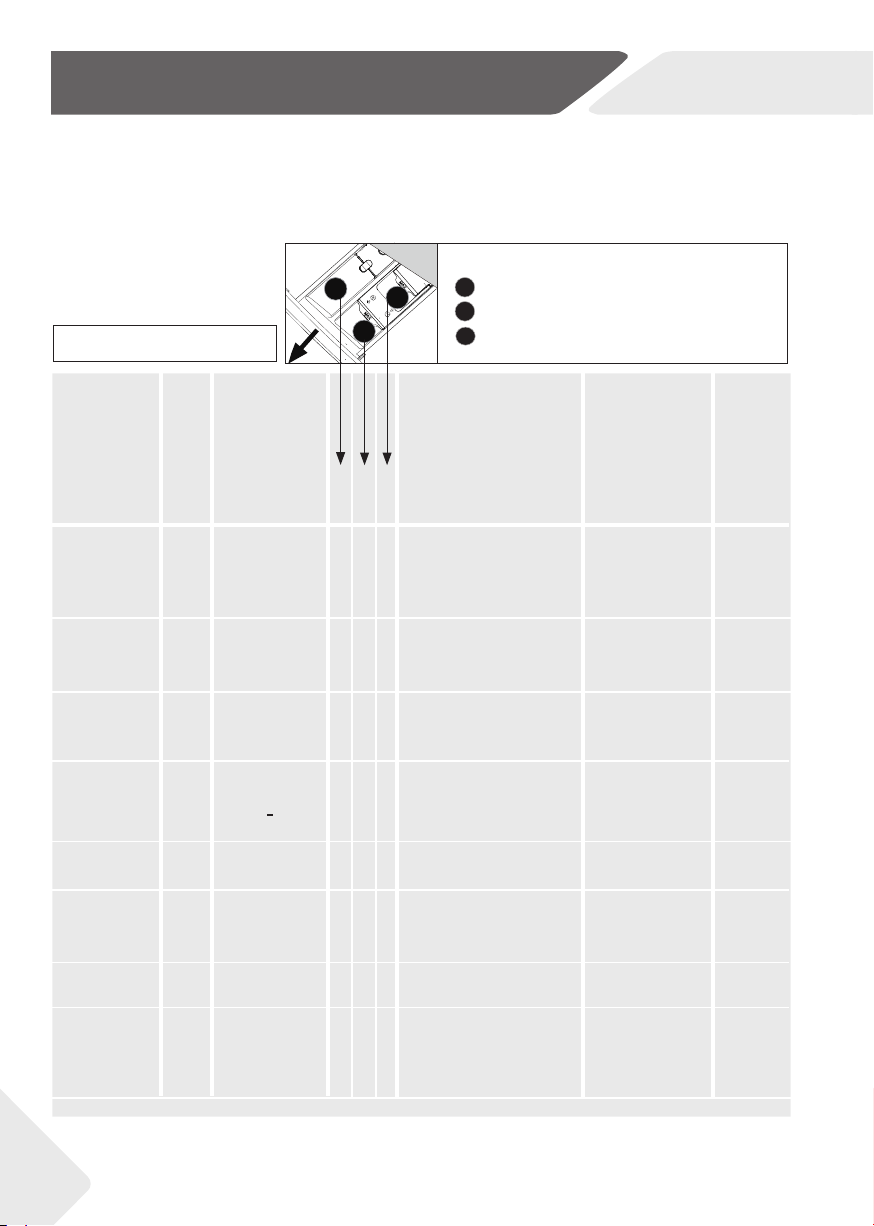

3.4 Detergent drawer
Open dispenser drawer, the following components can
be seen (Fig. 3-5):
1: Compartment for powder or Liquid detergent
2: Detergent flap slector, lift it up for powder detergent,
keep it down for liquid detergent.
3: Compartment for sanitizer.
4: Compartment for softener.
5: Lock tab, press it down to pull out dispenser drawer.
The recommendation on the type of detergents is
suitable for the various washing temperatures, please
refer to the manual of detergent
3-6
3.5.5 3.5.6 3.5.7 3.5.8
3.5.1 3.5.2 3.5.3 3.5.4 5
3-6
3-4
3-5
1
2
5
3
4
3-5
Cotton Delicate BeddingSynthetic
Baby Care
Mix Quick 15’
Spin
Sports
Refresh
Drum CleanHygiene Daily Jeans
Delay Nightwash
Steam
Function
Temp.
Extra Rinse
Speed
Delay Nightwash
Steam
Function
Temp.
Extra Rinse
Speed

3-Control panel EN
10
3-9
3-10

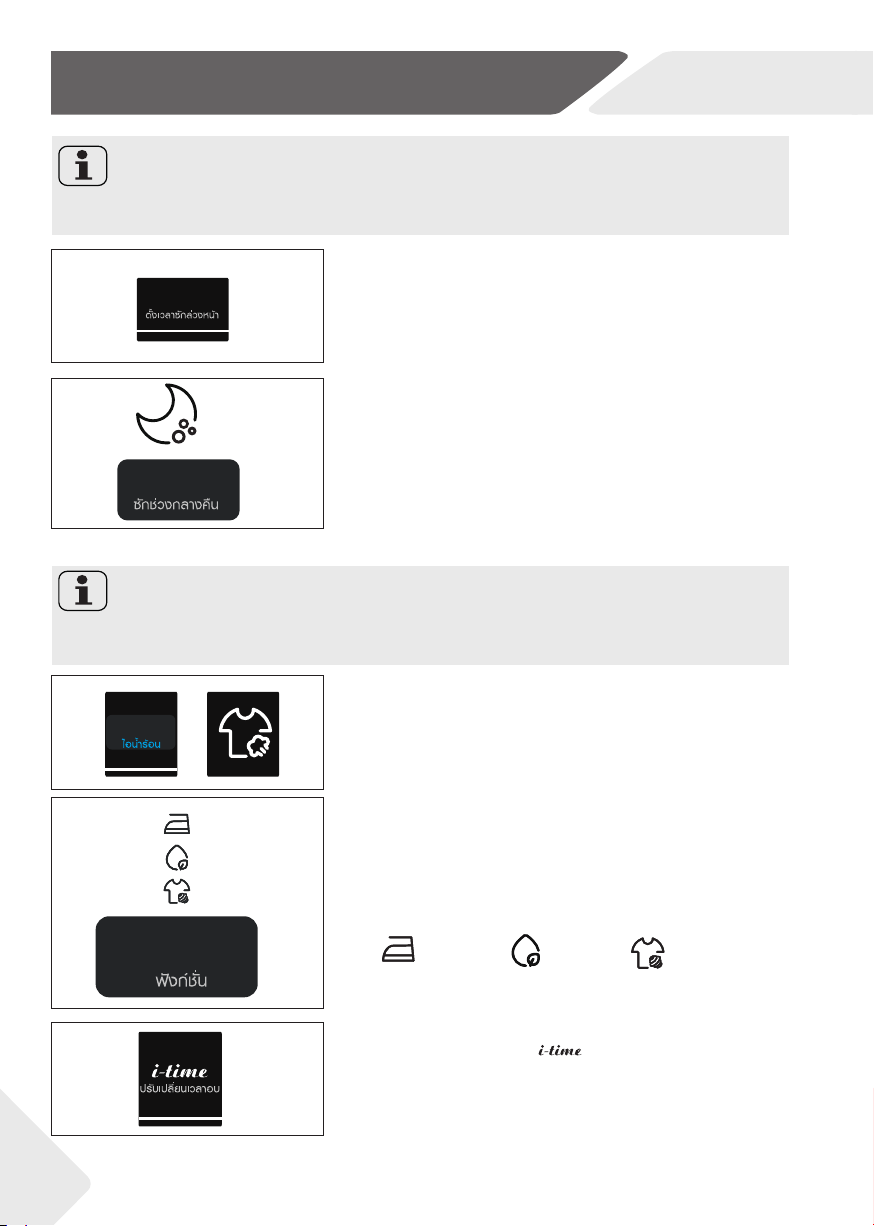

Note: Factory settings
To get best results in each programme Haier has well defined specific default settings.
If there is no special requirement default settings are recommended.
Note: Nightwash
Max. speed can be setted is 800 rpm as you add Nightwash to a programme. Easy Iron
is the default setting of Nightwash. Nightwash will be cancelled if Easy Iron is cancelled.
3.5.5-Function button “ “
This function (Fig. 3-11) intensifies different washing
time.The “i-time” can’t operate in single washing
function, washing spin function and easy self-cleaning.
3.5.3-“Steam“ button
This function (Fig. 3-9) is available on cycles of Cot-
ton, synthetic, Babycare, Mix. When it is selected,
temperature function turns to be unselectable. Icon
will be lighted when above cycles are selected.
3.5.4-“Function“ button
Press this button (Fig.3-10) to choose special features.
The symbols are explained below.
3.5.1-Function button “Delay“
Press this button (Fig. 3-7) to start the programme with a
delay. End time delay could be increased in steps of 30
minutes from 0,5-24h. For example displa y off 6:30 means
end of programme cycle will be in 6 hours and 30 minutes.
Touch “Start/Pause” button to activate the time delay. It is
not applicable to programme “Spin“ and "Refresh".
3.5.2-“Nightwash“ button
Press this button (Fig. 3-8) to select Nightwash function to
achieve better performance at night. All the acoustic signal
will be turned off , except for failure signal. A 12 hour
dispersing of laundry load is added to the programme as 1
minute left.
3-7
3-8
8
3-11
Easy Iron
Allergen
Intense
Delay
Nightwash
Steam
Function

EN 3-Control panel
11
3.6.2-Setting button“Speed“
Touch this button (Fig. 3-13) to change or deselect the
spin of the programme. If no value is illuminated the
laundry will not spun.
3.6.3-Setting button “Extra Rinse“
Touch this button (Fig. 3-14) to rinse the laundry more
intense with fresh water. This is recommended for peo-
ple with sensitive skin. By touching the button several
times one to three extra cycles can be selected. Extra
rinse times will be lighting when it is selected.
3.7 “Start/Pause“ button
Press this button (Fig. 3-15) to start a selected pro-
gramme. Press it again will pause the appliance and
unlock the door when appliance is running. A few sec-
onds may be taken to unlock the door Extra rinse
times will be lighting when it is selected.
3.8 Child lock
Press button “Delay” and “Nightwash” (Fig. 3-16) for
3 seconnds simultaneously to all panel elements
against activation. For unlocking please touch the two
buttons again.The child lock indicator lights up when
the child lock works. This feature is optional when the
machine is running.
3-14
3-18
Note: Settings
Settings are not aviliable on some programmes.
3.6.1-Setting button “Temp.“
Touch this button (Fig. 3-12) to change the washing
temperature of the programme. If no value is illumina-
ted the water will not heated.
3-12
3-13
3-10
3-14
3.6 Setting buttons
Individual settings for water temperature (Temp.), spin speed (Speed) extra rinse times
(Extra Rinse) can be set to programmes. Each setting has several options to be set from
minimum to maximum.
3-15
3-16
Temp.
Speed
Extra Rinse
Delay
Nightwash

4-Programmes EN
12
Max.
load Temperature Spin speed
in rpm
Extra
Rinse
in kg in °C 2)
Programme 1 2 3 Fabrics type
Cotton 15
90
60
-
Cotton
1000
800
400
-
3
2
1
-
Synthetic 7.5
60
-
fSabrics
ynthtic or mixed
1000
800
400
-
Mix 15 40
30
-
Lightly soiled mixed
laundry of cotton
and synthetic
400
-
Quick 15’ 2 40
30
-
Cotton/Synthetic
Delicate 3 30
-
400
-
Bedding 5Cotton
1000
800
400
-
Refresh 1 ////Cotton/Synthetic / /
Hygiene 5Cotton
1000
800
400
-
2
1
-
Otional, /Not available
3
2
1
2
3
Detergent compartment for:
1Liquid or powder Detergent
2Softener or care product
Sanitizer
3
Wash Programmes
The wash programmes are optimized for specific types of laundrys. Select the programme
that most closely matches the items being washed. Settings shown in bold are the sug-
gested settings for the programme
º
º
º
Delicate laundry and Silk
/
/
/
/
/
/
º
º
º
º
º
º
º
º
º
º
º
º
/
60
1000
800
3
2
1
-
3
2
1
-
1400
2
1
-
40
30
40
30
90
1400
1000
800
400
-
2
1
-
3
40
60
30
1
-

EN 4-Programmes
13
Max.
load Temperature Spin speed
in rpm
Extra
Rinse
in kg in °C 2)
Programme 1 2 3 Fabrics type
Baby care 7.5
60
40
30
Cotton/Synthetic
1000
800
400
-
Daily 2 40
30 Cotton Synthetic
1000
800
400
-
Spin 15 /Non-fragile fabrics 1000
800
400
-
Jeans 7.5 40
30
-
Cotton 800
400
-
Sports 15 Sports wear 800
400
-
Drum clean //
Otional, /Not available
3
2
1
2
3
Detergent compartment for:
1Liquid or powder Detergent
2Softener or care product
Sanitizer
3
Note: Index
1. Max. load refers to weight of dry laundry;
2. “-” refers to display light off for corresponding setting. For temperature setting,
it refers to inlet water will not being heated; for speed setting, it refers to no spinning
for selected programme; for extra rinse setting, it refers to no extra rinse.
3. Choose 90°C wash temperature only for special hygienic requirements.
4. Reduce detergent amount because programme dura-tion is short.
5. The recommendation on laundry load of "Refresh" is a single piece for adult
clothing, no more than 5 pieces for baby clothing.
6. The design and specifications are subject to change without notice for quality im-
provement purposes.
º
ºº
90
/
2
1
-
1
-
/ / / /
1400
ºº/
ºº
60
60
-
40
-
30
90
1000
400
1000
2
1
-
3
2
1
-
ºº
/
/
/

4-Programmes EN
14
Programme
Options
Delay Nightwash Steam
Function
i-time
Cotton o o o o o
Synthetic o o o o
Mix o o o o
Quick 15’ o o - o
Delicate o o - o
Bedding o -
Refresh - -
Hygiene o o o
Baby care o o o o o
Daily o o - o o
Spin o -
Jeans o o - o o
Sports o -
Drum clean - - - -
Functions below are available on specific programmes to provide enhanced performance.
“O” indicates that function can be selected to the programme. “-” indicates that function
cannot be selected to the programme.
- - -
o
o
o
o
o
o
o
o
o
o
o
o
o
o
-
-
o
o
o
o
o
-
-
-
-
- -
-
o
- -
o
-- -
oo oo
o oo
-
-
oo

5-Daily use
EN
15
5.3 Preparing laundry
▶Sort out clothes according to fabric (cotton, syn-
thetics, wool or silk etc.) and to how dirty they are
(Fig. 5-3). Pay attention to the care labelling of
wash-ing labels.
▶Separate white clothes from coloured ones.
Wash coloured textiles fi rst by hand to check if
they fade or run.
▶Empty pockets (keys, coins, etc.) and remove
harder decorative objects (e.g. brooches).
▶Garments without hems, delicates and fi nely
wo-ven textile such as fi ne curtains are to be put
into a wash bag to care for this delicate laundry
(hand or dry cleaning would be better).
▶Close zippers, velco fastener and hooks, make
sure the buttons are sewn on tightly.
▶Place sensitive items like laundry without fi rm
hem, delicate underwear and small items such as
socks, belts, bras, etc. in a wash bag.
▶Unfold large pieces of fabric such as bed sheets,
bedspreads etc.
▶Turn jeans and printed, decorated or color-inten-
sive textiles inside out; possibly wash separately.
5.1 Power supply
Connect the washing machine to a power supply
(220V to 240V~/50Hz; Fig. 5-1). Please refer also
to section INSTALLATION.
5.2 Water connection
▶Before connecting check the cleanliness and
clarity of the water inlet.
▶Turn on the tap (Fig.5-2).
Note: Tightness
Before use check for leakage in the joints between the tap and the inlet hose by turning
on the tap.
CAUTION!
Non-textile, as well as small, loose or sharp-edged items may cause malfunctions and
damage of clothes and appliance.
5-1 5-2
5-3

EN
5-Daily use
16
Care chart
Washing
Washable up to 95°C
normal process
Washable up to 60°C
normal process
Washable up to 60°C
mild process
Washable up to 40°C
normal process
Washable up to 40°C
mild process
Washable up to 40°C
very mild process
Washable up to 30°C
normal process
Washable up to 30°C
mild process
Washable up to 30°C
very mild process
Wash by hand
max. 40°C
Do not wash
Bleaching
Any bleaching allowed Only oxygen/
non -chlorine
Do not bleach
Drying
Tumble drying possible
normal temperature
Tumble drying possible
lower temperature
Do not tumble dryr
Line drying Flat drying
Ironing
Iron at a maximum
temperature
up to 200 °C
Iron at a medial tem-
perature
up to 150°C
Iron at a low temper-
ature up to 110 °C;
without steam (steam
ironing may cause irre-
versible damage)
Do not iron
Professional Textile Care
Dry cleaning in tetra-
chloroethene
Dry cleaning in hy-
drocarbons
Do not dry clean
Professional wet clean Do not professional
wet clean
5.4 Loading the appliance
▶Put in the laundry piece by piece.
▶Don‘t overload. Note the differentmaximumloadac cording to programmes! Rule
of thumb for maximum load: Keep six inches between load and drum top.
▶Close the door carefully. Make sure that no pieces of laundry are pinched.

5-Daily use
EN
17
5.5 Selecting detergent
▶Washing efficiency and performance is determined by used detergent quality.
▶Use only machine wash approved detergent.
▶If needed use specific detergents, e.g. synthetic and woolen fabric.
▶Mind always detergent manufacturer recommendations.
▶Do not use dry cleaning agents such as trichloroethylene and similar products.
Choose the best detergent
Programme
Kind of detergent
Universal Colour Delicate Special Softener
Cotton L/P L/P - - o
Synthetic - o
Mix -
Quick 15’ o
Delicate
Bedding
Refresh - - -
Hygience o
Baby care L/P o
Daily - - o
Spin - - -
Jeans
Sports
Drum clean --
L = gel-/liquid detergent P = powder detergent O = optional _= no
If using liquid detergent,it is not recommended to activate thetime delay.
We recomment by using:
▶Laundry powder: 20°C to 90°C* (best use: 40-60°C)
▶Color detergent: 20°C to 60°C (best use: 30-60°C)
▶Wool/delicate detergent: 20°C to 30°C (best use: 20-30°C)
* Choose 90 °C wash temperature only for special hygienic requirements.
* If you choose the water temperature 60°C or above,we would like to advise you to use
less detergent.Please kindly use the special disinfectant, which is suitable for cotton or
synthetic cloth.
* It is better to use less or free suds detergent powder.
-
L
L
-
L/P
L
-
o
-
L/P L/P
- -
- -
- -
-
L
-
--
-
L/P
-
L L
L/P L/P -
-o
o
-
- -
L/P -
L/P o
L/P
L/P L/P
o
L/PL/P
L/P

EN
5-Daily use
18
5.6 Adding detergent
1. Slide out the detergent drawer.
2. Put the required chemicals into corresponding
compartments (Fig. 5-4).
3. Push back the drawer gently.
Note:
▶Remove detergent residues before next wash cycle from the detergent drawer.
▶Do not overuse detergent or softener.
▶Please follow the instruction on the detergent package.
▶Always fill the detergent just before the beginning of the wash cycle.
▶Concentrated liquid detergent should be diluted before adding.
▶The best use of liquid detergent is by using a dosing ball, which is given with the laundry
into the washing machine.
▶Do not use liquid detergent if “end time delay“ is selected.
▶Carefully choose the programme settings according to the care symbols on all laun-
dry labels and according to the programme table.
5.7 Switch on the appliance
Touch the “Power“ button to switch on the appliance
(Fig. 5-5). The LED of the “Start/Pause“ button is
flashing.
5.8 Select a programme
To get the best washing results, select a programme
which fitsthedegreeofsoilingandsortoflaundry
type.
Turn the programme knob (Fig. 5-6) to select the
right programme. Related programme LED lights up
and the default settings are displayed.
5.9 Add individual selections
Select required options and settings (Fig. 5-7); refer
to CONTROL PANEL.
6-4
5-4
5-5
5-6
6-7
5-7
Cotton Delicate BeddingSynthetic
Baby Care
Mix Quick 15’
Spin
Sports
Refresh
Drum CleanHygiene Daily Jeans
Delay
Nightwash
Steam
Function
Temp.
Extra Rinse
Speed

5-Daily use
19
5.13 Activate or deactivate the buzzer
The acoustic signal can be deselected if necessary:
1. Switch on the appliance.
2. Select the Spin programme.
3. Touch the “Extra Rinse“ and “+ ” button at the same time for about 3 seconds.
“bEEP OFF” will be displayed and the buzzer will be deactivated.
For activating the buzzer press these two buttons at the same time again. “ ” will
be displayed.
Note: Door lock
▶For safety reasons the door is locked partially during the washing cycle. It is only pos-
sible to open the door at the end of the programme or after the programme was can-
celled correctly (see description above).
▶In case of high water level, high water temperature and during spinning it is not pos-
sible to open the door; 
 is displayed
Note: Standby mode / energy-saving mode
The switched on appliance will go into standby-mode if it will not be activated within 2
minutes before starting the program or at the end of program. The display switsches
off. This saves energy. To interrupt the standby mode touch “ Start/Pause“ button.
5.10 Start wash programme
Touch “Start/Pause“ button (Fig. 5-8) to start. The
LED of the “Start/Pause“ button stops flashing and
lights up continuously
Appliance operates according to present settings.
Changes are only possible by cancelling the programme.
3-14
5-8
5.12 After washing
5.11 Pause/ cancel wash programme
To pause a running programme pressgently “Start/Pause“. The LED above thebutton
is flashing. Press it again to resume operation.
To cancel a running programme and all its individual settings:
1. Touch “Start/Pause” button to interrupt the running programme.
2. Touch “Power“ button for about 2 seconds to switch the appliance off.
3. Select “Spin” and “no speed", thenrun the programme to drain the water.
4. Restart, select a new programme and start it.
1. At programme cycle end  is displayed.
2. The appliance switches offautomatically.
3. Remove laundry as soon as possible to go easy on it and to prevent more wrinkling.
4. Turn offthe water supply.
5. Unplug the power cord.
6. Open the door to prevent formation of moisture and odours. Let it open whilenot used.
EN

EN
6-Eco-friendly washing
20
Environmentally responsible use
▶To achieve best use of energy, water, detergent and time you should use the recom-
mended maximum load size.
▶Do not overload (hand width clearance above laundry).
▶For slightly soiled laundry select the Quick 15’ programme.
▶Apply exact dosages of each washing agent.
▶Choose the lowest adequate washing temperature - modern detergents are ef-
ficiently cleaning below 60°C.
▶Raise default settings only due to heavy staining.
▶Select max. spinning speed if a domestic dryer is used.
