Warning – Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic
appliances. Do not dispose appliances marked with
this symbol with the household waste. Return the
product to your local recycling facility or contact your
municipal office.
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions
contain important information which will help you get the best out of the appliance and
ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and
proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make
sure you also pass this manual so that the new owner can become familiar with the
appliance and safety warnings.
o
Disconnect the appliance from the main supply. Cut off the main cable and dispose
f it. Remove the door latch to prevent the children and pets to trap inside drum during
Risk of injury or suffocation!
WARNING!
Elements
non operation of machine for long time.

2
1-Safety information................................................................................................ 3
2-Before Use ...... ........................................................................................ 6
3-Functions .......................................................................................................11
4-Programmes.......................................................................................................14
5-Daily use.............................................................................................................15
6-Eco-friendly washing..........................................................................................20
7-Maintenance ..............................................................................................21
8-Troubleshooting..................................................................................................24
9-Technical data....................................................................................................27
10-After-Sale Service .......................................................................................... 28
Index
............
......
........

3
WARNING!
Make sure there is no transit damage.
Make sure all transit bolts are removed.
Remove all packing material and keep out of reach of childrens.
Handle the appliance always with atleast two persons because it is
heavy in weight.
Daily use
Before first use
This appliance can be used by childrens aged from 8 years and above
and persons with reduced physical,sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instructions concerning use of the appliance in a safe way and
understand the hazards involved.
Before switching on the appliance for the first time read the following safety
hints!
Keep away from children under 3 years of age from the appliance unless
they are constantly supervised.
Childrens shall not play with the appliance.
Pull up zips, fix loose threads and take care for small items to prevent
laundry from being entangled. If necessary, use an appropriate bag or
net.
Do not let the children or pets come close to the appliance when the
door of machine is open. Store washing agents away from the childrens.
Do not start or use the appliance when you are barefoot or with wet or
damp hands or feet.
Do not cover or encase the appliance during operation or afterwards to
avoid moisture or dampness to evaporate.
Do not place heavy objects or sources of heat or damp cotton on the top
of the appliance.
Do not use or store flammable detergent or dry cleaning agent near to
the appliance.
Do not use any flammable sprays near to the appliance.
Do not wash any garments treated with solvents in the appliance without
having dried them in the air before wash.
1.Safety Information

WARNING!
Daily use
Do not insert or remove the plug in presence of flammable gas.
Do not wash foam rubber or sponge like materials.
Do not wash any laundry which is polluted with flour.
Do not open detergent drawer during any wash cycle.
Do not press the door during the washing process as it gets hot.
Do not open the door if the water level is visible over the port hole.
Do not force the door to open after the washing process is ended. The
door is fitted with a self-lock device and will open shortly.
Switch off the appliance after wash programme and before doing any
routine maintenance. Disconnect the appliance from the electrical supply
to save electricity and for safety.
Hold the plug when unplugging the appliance from electrical supply.
Maintenance/cleaning
Make sure that children are supervised at the time of cleaning and routine
maintenance.
Disconnect the appliance from the electrical supply before doing any
routine maintenance.
Keep the lower part of the porthole clean. Open the door and the detergent
drawer if appliance not in use to prevent odours.
Do not use water spray or steam to clean the appliance.
Replace a damaged supply cord only by the manufacturer or its service
agent or similarly qualified persons in order to avoid any hazard.
Do not try to repair the appliance by yourself. To repair the appliance,
please contact our customer service.
Installation
The appliance should be placed in a well ventilated place. Please ensure a
location from which door shall be opens fully.
Never install the appliance in a damp place, or in an area where is
possibility of water leaks such as under or near a sink unit. In the event
of a water leak, cut the power supply and dry the machine naturally.
1.Safety Information

5
1.Safety Information
Intended use
This appliance is intended for washing laundry only. Any time follow the
instructions given on the label of each garment. It is not ntended for
commercial or industrial use.
Changes or modifications in the device are not allowed. Unintended use may
cause hazards and loss of all warranty and liability claims.
WARNING!
Installation
Install the appliance only where the temperature is above 5 °C.
Do not place the appliance directly on a carpet, or close to a wall or
furniture.
Do not install the appliance in direct sunlight, or in the near of heat
sources (e.g. stoves, heaters).
Make sure that the electrical information on the nameplate agrees with
the power supply. If not, contact an electrician.
Do not use multi-plug adapters and extension board.
Make sure that only delivered electric cable and hose set shall be used.
Make sure that electrical cable and plug shall not be damaged, if yes,
then it shall be replaced by an electrician.
Use a separate earthed socket for the power supply which is easy
accessible after installation. The appliance must be earthed.
Make sure that the hose joints and connections are firm and there is no
leakage.

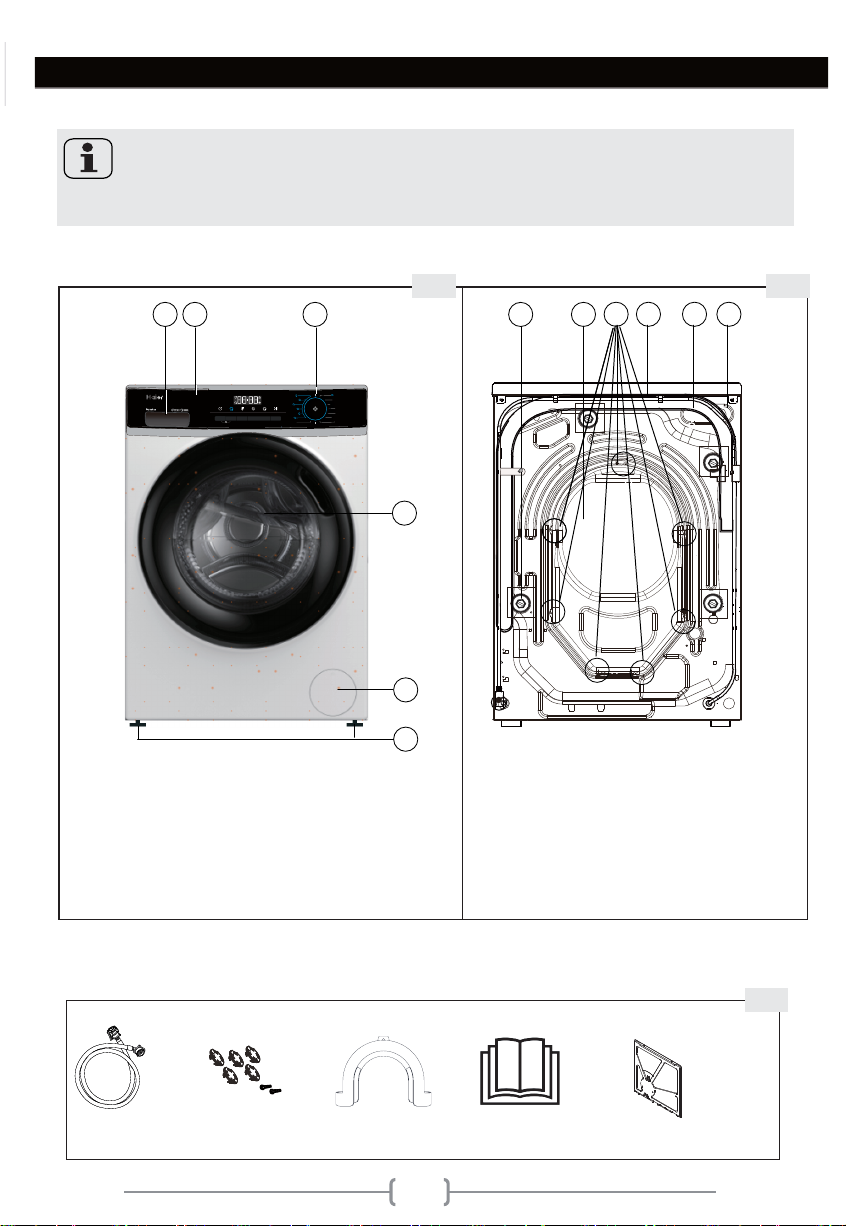

2.1 Picture of appliance
Front side (Fig. 2-1): Rear side (Fig. 2-2):
2.2 Accessories
Check the accessories and literature in accordance with this list (Fig.2-3):
Note :
1 Detergent/Softener drawer
2
Control panel
3
Worktop
4 Door
5 Filter cover
6 Adjustable feet
1 Transit bolts (T1-T4)
2 Backcover
Backcover screws（7 EA）
3
4 Power cord
5 Water inlet valve
6 Drain hose
2-1 2-2
2-3
ript
Inlet hose
assembly
5 Blanking
plugs+2 Screws Drain hose
bracket User manual Bottom plate
Due to technical changes and different models,the illustrations in the following
pictures may differ from your model.
1 32
6
4
5
123 4 5 6
T1
T2
T3
T4
Extra Rins e S t art/ P a us e
Steam Temp. S peed Delay Daily
Spin
OFF
Refresh
Cotton
Synthet ics
Mix
Baby Ca re
Quick 15
’
Sports wear
Jeans
Duvet
Self Clean
Delicate
Allergen
Shirts
2. Before Use
6

7
2.3 Preparation
Take the appliance out from the packaging.
Remove all packing material including polystyrene base, keep them away from
the childrens. When removing th packaging, water drops may be seen on plastic
bag and porthole.This normal phenomenon results from water tests in the factory.
2.5 Dismantle the transit bolts
The transit bolts are designed to clamping the
components inside the appliance during
transportation to prevent inner damage.
1. Remove the transit bolts.
2. Fill the holes with blanking
plugs (Fig.2-5).
Note: Packaging disposal
Keep all the packaging materials away from the childrens and dispose it in an
environmentally friendly manner.
2.4 Installation of bottom cover board
d a bottom
cover (2-4.1). The board is used for reducing the
1.
2.
3.
2-4
1. Lay down the washing machine to it’s back side,
bottom side towards the operator.
2. Insert the Bottom cover into the cabinet, then fixed
with 2 screws to the cabinet front side.
Then set the machine upright again (Fig.2-4).
On the top of the package
Tighten with
two screws
Front
Back
Hole wall(12345)
Remove the four
packing bolts Plug the five hole walls
1
4
5
2
3
Packing bolt (1234)
2-5
2. Before Use
noise.

8
2.7 Aligning the appliance
Adjust all legs (Fig. 2-7) to achieve a complete level
position. This will minimize vibrations and noise
during use. It will also reduce wear and tear. We
recommend to use a spirit level for levelling. Floor should
1. Loose the locknut (1) by using a wrench.
2. Ad
be as stable and flat as possible.
just the leg (2) by turning.
3. Tighten locknut (1) against the housing.
2-7
2.6 Moving the appliance
If the machine is to be moved to distant location, refix the transit bolts before moving the
appliance to prevent damage.
1. Remove the blanking plugs.
2. Remove the back cover.
3. Insert the plastic spacers and the transit bolts.
4. Tighten the bolts with a spanner.
5. Refix the back cover.
Note : Keep the transit bolts in a safe place
Keep the transit bolts in a safe place for later use. Whenever the appliance need to be
moved to distant place, refix the transit bolts.
2. Before Use

9
Following connections are possible:
2.8.1 Drain hose to sink
edge
Protect the U-support sufficiently.
Hang the drain hose with the U-support over the
of a sink with adequate size (Fig. 2-8.1).
2.8.2 Drain hose to waste water connection
The internal diameter of the stand pipe with
vent-hole must be minimum 40 mm.
Put the drain hose for approx. 80 mm in the waste
Attach the U-support and secure it sufficiently
water pipe.
(Fig. 2-8.2).
2-8.2 2-8.1

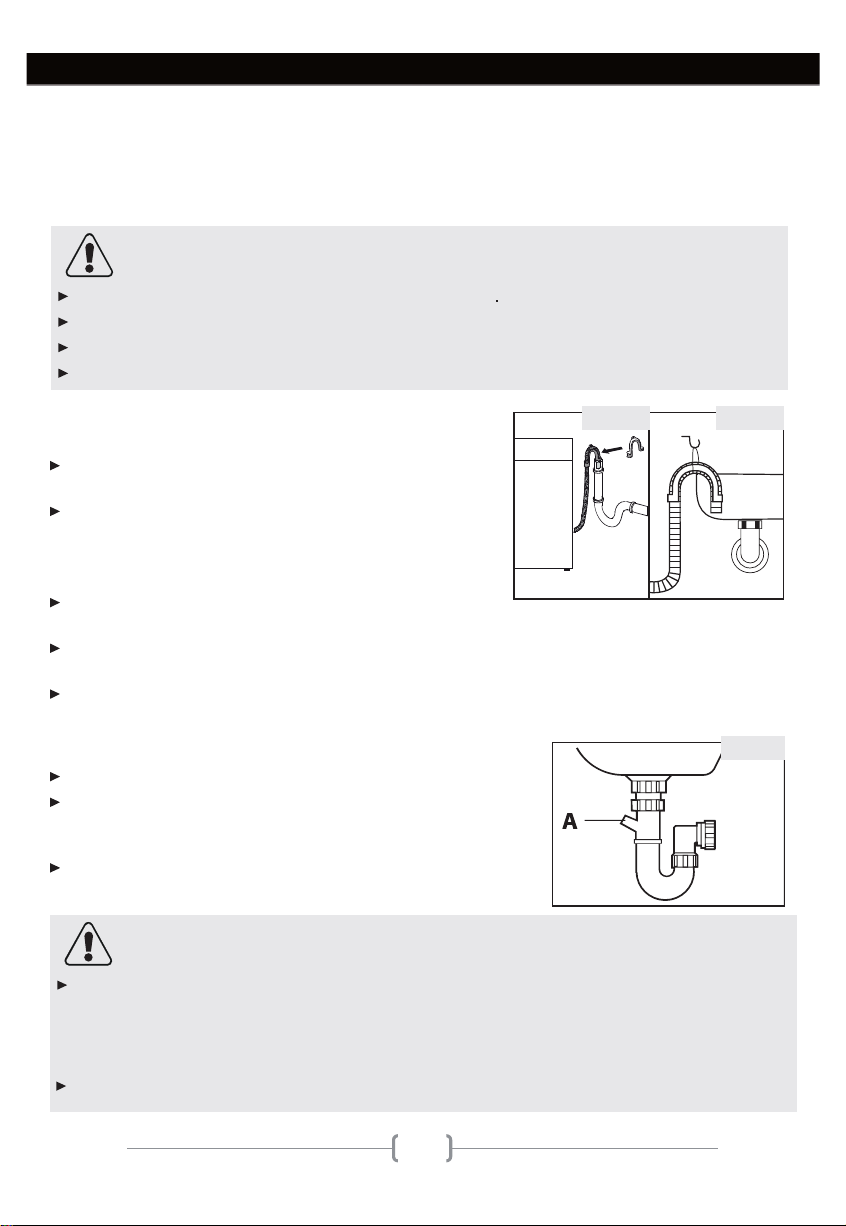

2.8 Drain Water Connection
Fix
100 cm at a point above the appliance bottom line. If possible, keep always drain hose fixed
to the clip at the appliance back.
the water drain hose properly to the piping. The hose has to reach a height between 80 to
WARNING!
O
Never reuse old hose sets.
Use only the supplied hose set for the connection.
nly connect to cold water supply.
Before connection, check whether the water is clean and clear.
CAUTION!
D
The Drain hose should not be submerged in water and should be securely fixed
and leak-free. If the drain hose is placed on the ground or if the pipe is at a height
of less than 80 cm, the washing machine will continuously drain while being filled
(self-siphoning).
rain hose is not to be extended. If necessary contact service agent.
2.8.3 Drain hose to sink connection
The junction must lie above the siphon.
A spigot connection is usually closed by a pad (A).
That must be removed to prevent any disfunction
(Fig. 2-8.3).
Fix the drain hose with a clamp.
2-8.3
2. Before Use

10
2.10 Electrical Connection
Before each connection check if:
power supply, socket and fusing are appropriate to
the nameplate.
the power socket is earthed and no multi-plug or
extension board are used.
the power plug and socket are strictly according.
Put the plug into the socket (Fig. 2-10).
2-10
WARNING!
Ensure always that all connections (power supply, drain and fresh water hose)
Take care these parts are never to be crushed, kinked, or twisted.
If the supply cord is damaged, it must be replaced by the service agent (see
Note: Hygiene
After each installation or long periods of disuse, before first use and for regular
2.9 Fresh Water Connection
2-9.22-9.1
Make sure that the gaskets are inserted.
1. Connect the water inlet hose with the angled end
to the appliance(Fig.2-9.1). Tighten the joint
2. The other end connect to a water tap.
(Fig. 2-9.2).
warranty card) in order to avoid a hazard.
are firm, dry and leak free.
2. Before Use
by hand.
maintenance run the “Self Clean” programme with no load and small amount of
detergent in “detergent drawer” compartment (2) or with special machine cleaner to
remove possibly residues.

11
Note : Acoustic signal
Infollowing cases an acoustic signal sounds:
when pressing a button
at the end of programme
in case of failures
The acoustic signal can be deselected if necessary; see DAILY USE.
Ex tra Rins e Sta rt/ P au se
Steam T emp. S peed Dela y Daily
S pin
OFF
R efre s h
Cotton
S ynthet ics
Mix
Baby C are
Quic k 15
’
S ports wea r
J ea ns
Duvet
Self C lea n
Delic a te
Allergen
Shirts
4 2
3 1
65
1

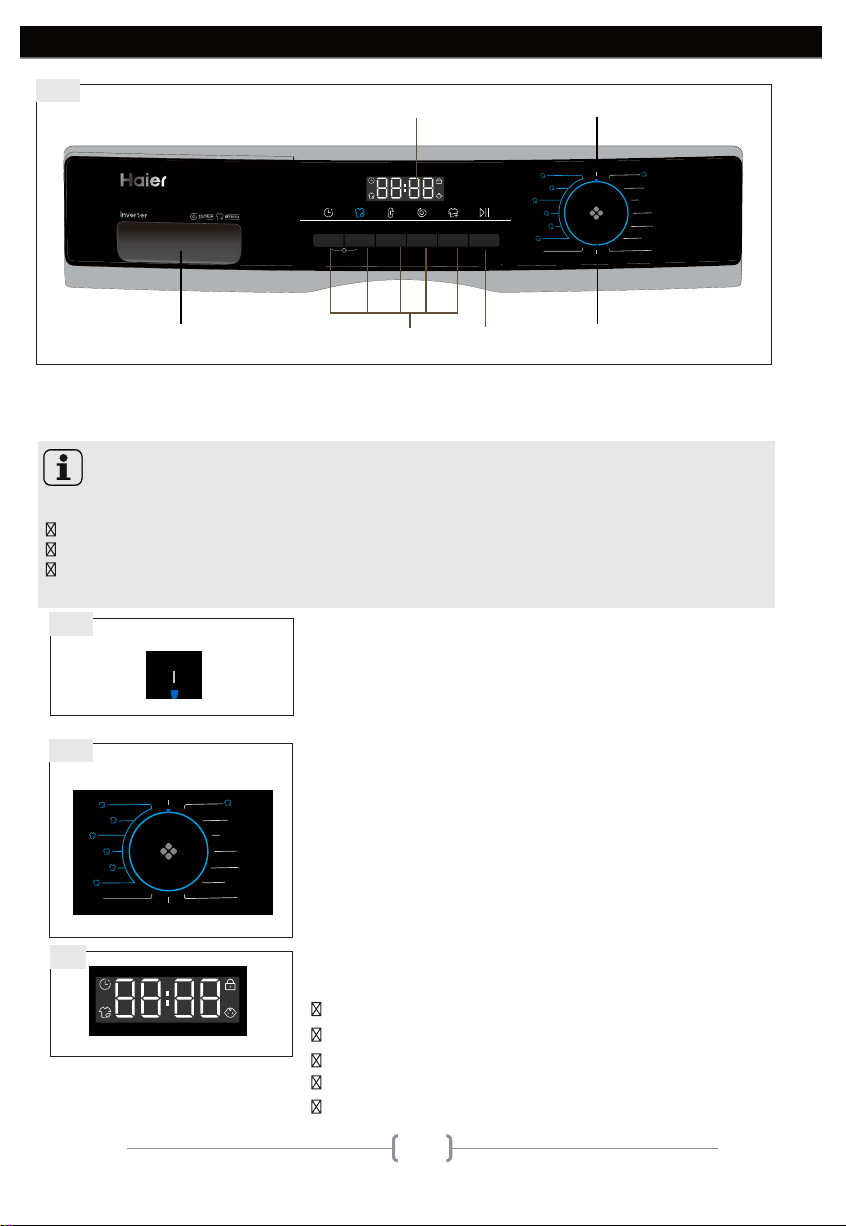

2 Programme selector
3 Display
4 Detergent / Softener drawer
5 Function buttons
6
“Start/Pause” button
OFF
3.2 Programme selector
By turning the knob (Fig. 3-3), one of programme
(except OFF) can be selected out of 15.
3.3 Display
The display (Fig. 3-4) shows following information:
Washing time
End time delay
Steam washing
Door lock
Child lock
3.1 OFF
Turn the knob to any position (except “OFF”) to start
the machine. Turn the knob to the OFF position to
shut down the machine (Fig.3-2).
Daily
S pin
OFF
R efr es h
Cotton
S ynthet ics
Mix
Baby Ca re
Quic k 15
’
S ports we ar
J ea ns
Duvet
Self Clea n
Delicate
Allergen
Shirts
OFF
3-1
3-2
3-3
3-4
3. Functions

12
3.5 Function buttons
The function buttons(Fig. 3-6) enable additional
options in the selected programme before
programme starts. The related indicators are
If a button has multiple options, the desired option
can be selected by touching the button sequentially.
3.5.1-Function button “Delay”
Note: Factory settings
To get best results in each programme Haier has well defined specific default
settings. If there is no special requirement, default settings are recommended.
3.4 Detergent drawer
Two compartments can be seen after opening the
The recommendation on the type of detergents is
suitable for the various washing temperatures,
please refer the manual.
3.5.2-Function button “Temp.”
2. Compartment 2: Softener, Conditioning agent etc.
1. Compartment 1: Power or Liquid detergent for
programme.
Press this button (Fig.3-7) to start the programme with a
delay. End time delay could be increase in steps of 30
minutes from 0.5-24h. When you select the delay, the
total time will default longer than the programme run time.
For example, display off 6:30 means end of programme
cycle will be in 6 hours and 30 minutes. Press “Start/Pause”
button to activate the time delay.
1
2
Press this button (Fig. 3-9) to change the washing
temperature of the programme. If no value is illuminated, the
water will not be heated.
drawer (Fig. 3-5):
Ex tra Rin s e S ta rt/ P aus e
Stea m T em p. S pee d Dela y
Delay
Temp.
3-6
3-5
3-8
3-7
3. Functions
displayed.

13
SteamDelay
3.5.3 Function button “Speed”
Press this button (Fig. 3-9) to change or deselect the
spin of the programme. If no value is illuminated, the
laundry will not spin.
3.6 “Start/Pause” button
3.5.4 “Extra Rinse” button
By touching the button several times, 0 to 2 additional
cycles can be selected. They will appear in the display
with P--0/P--1/P--2.
Note:Liquid detergent
If using liquid detergent, it is not recommended to activate the end time delay.
3.7 Child lock
3.5.5 “Steam” button
The display shows “clol-” (Fig. 3-14) if a button will be
pressed that means the child lock is activated.
Press this button (Fig. 3-10) to rinse the laundry more
intense with fresh water. This is recommended for
people with sensitive skin.
Press this button (Fig 3-11) to select the steam program,
Press this button (Fig. 3-12) gently to start or interrupt
the currently displayed programme.
Press button “Delay” and “Steam” (Fig.3-13) buttons for
3 seconds simultaneously for activating child lock
function. For unlocking please touch again those two
buttons. The child lock indicator lights up when the
child lock works. This feature is optional when the
machine is running.
then the current program temperature value will be
changed to the maximum allowed value. The maximum
temperature value can be viewed on the programme
table in the manual. You can select if you require this
function when programmes “Cotton, Synthetics, Mix,
Baby care, Allergen, Daily” are used. The icon will light
up when using the steam wash function.
S peed
Extra R ins e
Steam
S tart/ P aus e
3-14
3-9
3-10
3-12
3-13
3-11
3. Functions

14
4. Programmes
1) *: Water is not heated up.
2) Only one piece of adult or bulky clothing can be washed, and up to three pieces of children’s clothing.
Choose 90°C wash temperature only for special hygienic requirements.
3)
4)
Max. load Temperature Preset
spin
speed
in rpm
Function
in kg in °C
Preset
Steam Additional Rinse Delay
Programme
Max.
12
Fabric type
Cotton 7/7.5/8
7/8
3.5/4
3.5/4
3.5/4
3.5/4
3.5/4
1/1
2/2
2/2
2/2
2/2
90 30 ººº º º
º º º
º º º
º º º
º º º
Cotton 1000
S
Allergen
ynthetics
60 30 ºº
Synthetic or mixed
fabric 1000
Mix
60
60
30 º º
Lightly soiled mixed-
laundry of cotton and
synthetic 1000
Babycare
90 40
30
ººCotton/ synthetic
Cotton/ synthetic
Cotton/ synthetics
Cotton/ synthetics
1000
60 ºº
ºº
Cotton
1000
1000
/
/
40 ºº800
Refresh /
1/1
20
/
///
40
40
º º
ºº
ºº
º º
1000
Jeans
Daily
30
Machine-washable
fabric made of wool
or with wool content /
/
º
Self Clean
Wool Shirts
Duvet Duvet
Sportswear Sport
/
/
Detergent compartments :
1
2
For Detergent
For Softener or care
product
º
Optional, /No
Delicate
30 30
30
º º Delicate laundry and
silk 600 /
Quick 15 /º
Spin / / 1000 / / /
1000 /
/
/
/ /
/ /
//
//
Non-fragile fabric
º
800 /º
º
º
º º
1
2
ºº
/
HW70-IM12929/S3/S8/S9
HW70-IM12929C/CS3/CS8/CS9
HW75-IM12929/S3/S8/S9
HW75-IM12929C/CS3/CS8/CS9
HW80-IM12929/S3/S8/S9
HW80-IM12929C/CS3/CS8/CS9
60
range
90
Reduce detergent amount because programme duration is short.
Do not use detergent instead of use a special machine cleaner.
/
/
/
///
/
/
//

15
5.3 Preparing laundry
Sort out clothes according to fabric (cotton,
synthetics, wool or etc.) and how dirty they are
(Fig.5-3). Pay attention to the care labelling
of washing labels.
Separate white clothes from coloured ones.
Wash coloured textiles first by hand to check if
they fade then run.
Empty pockets (keys, coins, etc.) and remove
harder decorative objects (e.g. brooches).
a
woolen textile such as fine curtains are to be put into
wash bag to care (hand or dry cleaning
would be better).
Close zippers, fastener and hooks. Make
sure that the buttons are sewen tightly.
Garments without hems, delicates and finely
Place sensitive items like laundry without firm
hems, delicate, underwear, and small items
such as socks, belts etc in a wash bag.
Unfold large pieces of fabric such as bed sheets,
bedspreads etc.
Turn jeans, printed, decorated, color intensive
tiles inside out. (possibly wash seperately)
5-3
5.1 Power supply
Connect the power cord to the power supply
(220V~/50Hz ;Fig.5-1). Please refer also
“BEFORE USE”.
5.2 Water connection
Before connecting the water inlet pipe, check the
cleanliness and clearity of the water inlet.
Turn on the tap (Fig.5-2).
Note: Tightness
Before usecheck for leakagein the joints between the tap and the inlet hoseby turning
on the tap.
CAUTION!
Non-textile, as well as small, loose or sharp-edged items may cause malfunctions and
damage of clothes and appliance.
section
5-1 5-2
5. Daily Use

16
Care chart
Washing
Washable up to 95°C
normal process
Washable up to 60°C
normal process
Washable up to 60°C
mild process
Washable up to 40°C
normal process
Washable up to 40°C
mild process
Washable up to 40°C
very mild process
Washable up to 30°C
normal process
Washable up to 30°C
mild process
Washable up to 30°C
very mild process
Wash by hand
max. 40°C
Do not wash
Bleaching
Any bleaching allowed Only oxygen/
non-chlorine
Do not bleach
Drying
Tumble drying possible
normal temperature
Tumble drying possible
lower temperature
Do not tumble dry
Line drying Flat drying
Ironing
I
ron at a maximum
temperature up to
200°C
I
Don’t overload. Note the different maximum load according to programmes. Rule of
ron at a medium
Iron at a low
Do not iron
Professional Textile Care
Dry cleaning in
tetrachloroethene
Dry cleaning in
hydrocarbons
Do not dry clean
Professional wet clean Do not professional
wet clean
5.4 Loading the appliance
Put the laundry in the drum piece by piece.
thumb for maximum load : Check if you can put a hand upright on top of the load.
Close the door carefully. Make sure that no pieces of laundry are pinched.
5. Daily Use
temperature up to
150°C
temperature up to
110°C without steam
(Steam ironing may
cause irreversibility damage)

17
5.5 Selecting detergent
Use only machine wash approved detergent.
Use detergent manufacturer recommendations.
D
If needed use specific detergents, e.g. synthetic and woolen fabric.
Washing efficiency and performance is determined by used detergent quality.
o not use dry cleaning agents such as trichloroethylene and similar products.
Choose the best detergent
Programme
Kind of detergent
Universal Colour Delicate Special Softener
Cotton - -
- -
Wool
Baby Care - -
- -
Duvet
Self Clean
- -
- -
- -
Synthetics
Delicate
-
- -
- -
o
-
Jeans - -
Mix - -
Quick 15’ -
-
S
Refresh
portswear
Spin
Allergen
Daily
-
/liquid detergent P powder detergent O optional _ no
If using liquid detergent, it is not recommended to activate the time delay.
We recommend to use :
aundry powder: 20°C to 90°C* (best use:40-60°C).
Color detergent: 20°C to 60°C (best use:30-60°C).
Wool/delicate detergent: 20°C to 30°C (best use:20-30°C).
* Choose 90°C wash temperature only for special hygienic requirements.
-
-
-
-
-- -
- -
-
- -
It is better to use less or free suds detergent powder.
5. Daily Use
as per

5.7 Switch on the appliance
(Fig. 5-5).
5-5
5.6 Adding detergent
1. Slide out the detergent drawer.
2. Put the required detergents into the corresponding
compartments (Fig. 5-4).
3. Push back the drawer gently.
Note:
Remove detergent residues before next wash cycle from the detergent drawer.
Do not overuse detergent or softener.
Pl
Always fill the detergent just before the beginning of the wash cycle.
ease follow the instruction on the detergent package.
Concentrated liquid detergent should be diluted before adding into compartment 2.
The best use of liquid detergent is by using a dosing ball.
Do not use liquid detergent, if “end time delay” is selected.
Carefully choose the programme settings according to the care symbols on all
laundry labels and according to the programme table.
5.8 Select a programme
To
which fits the degree of soiling and sort of laundry
get the best washing results, select a programme
type.
Pro
5-6
5.9 Add individual selections
Select required options and settings
(Fig.5-7); refer to
“CONTROL PANEL.”
5-7
Note: Odour removal
amount of detergent in detergent drawer compartment( 2)or special machine cleaner to
remove possibly corruptive residues.
5-4
<
Before first use we recommended to run programme Self Clean with no load and small
OFF
Turn the knob to any position (except OFF) to start the
machine. Turn the knob to the OFF position to shut down
the machine
Daily
S pin
OFF
R efre s h
Cotton
S ynthet ics
Mix
Baby Care
Quic k 15
’
S ports wea r
J ea ns
Duvet
Self C lea n
Delic a te
Alle rgen
Shirts
Turn the programme knob(Fig.5-6) to select the right
programme.
Ex tra R ins e S ta rt/ P aus e
Steam T em p. S peed Dela y
1
3
2
5. Daily Use
