Haier HWM105-M186 User manual

Please read this manual carefully before
operating your washing machine and retain
it for future reference.
TWIN-TUB WASHING MACHINE
OWNER’S MANUAL
MODEL
HWM105-M186
HWM130-M186
HWM150-M186

CONTENTS
Safety precautions
Packing list
Machine components
Installation and adjustment
Pre-wash preparation
Washing sequence
Troubleshooting
Specifications
Disposal after washing
1
3
3
17
5
8
10
13
18

Safety precautions
Meaning and description of the symbols
Warning sign
Forbidden sign
Contents marked with this symbol are related to the safe use of
the product and the personal safety of the user.
Please operate in accordance to the contents of this manual,to
avoid harm to the user or damage to the machine itself.
Contents marked with this symbol indicate operations or actions
that should not be undertaken by the user.
Performing of such actions may result an injury to the user or
damage to machine itself,and void warranty.
Please insert the power cord into a rated
voltage outlet.Be sure to use a single
-phase three pin outlet.Also,the terminal
of the outlet must be grounded.If possible,
please install an electric leakage protector.
If the supply cord is damaged,it must be
replaced by the manufacturer,its service
agent or similarly qualified persons in
order to avoid a hazard.
Use only the supplied hose set for the
connection.
Never reuse old hose sets!
When the machine is in use,place the
power plug in a location where it can be
easily inserted and extracted by hand.Be
sure to remove the plug if power failure
occurs,when moving or cleaning the
machine,or when the machine is idle.
Do not place the machine in a damp place
like the bathroom and never wash it with
water.Do not place wet laundry on the
control panel.
Do not use water warmer than 50
°C.
To avoid abnormal vibrations in spinning,
do not use the machine to wash water
-proof laundries like raincoats,bike covers
etc.
If the washing machine is installed on the
ground near carpet,make sure to keep the
ventilation hole clear of obstruction.
Ventilation hole atthe
bottom of the
washing machine

Do not share the outlet with other electric
appliances.If the power plug is damaged,
or feels loose when
plugged into the
outlet,stop using
the plug immediately.

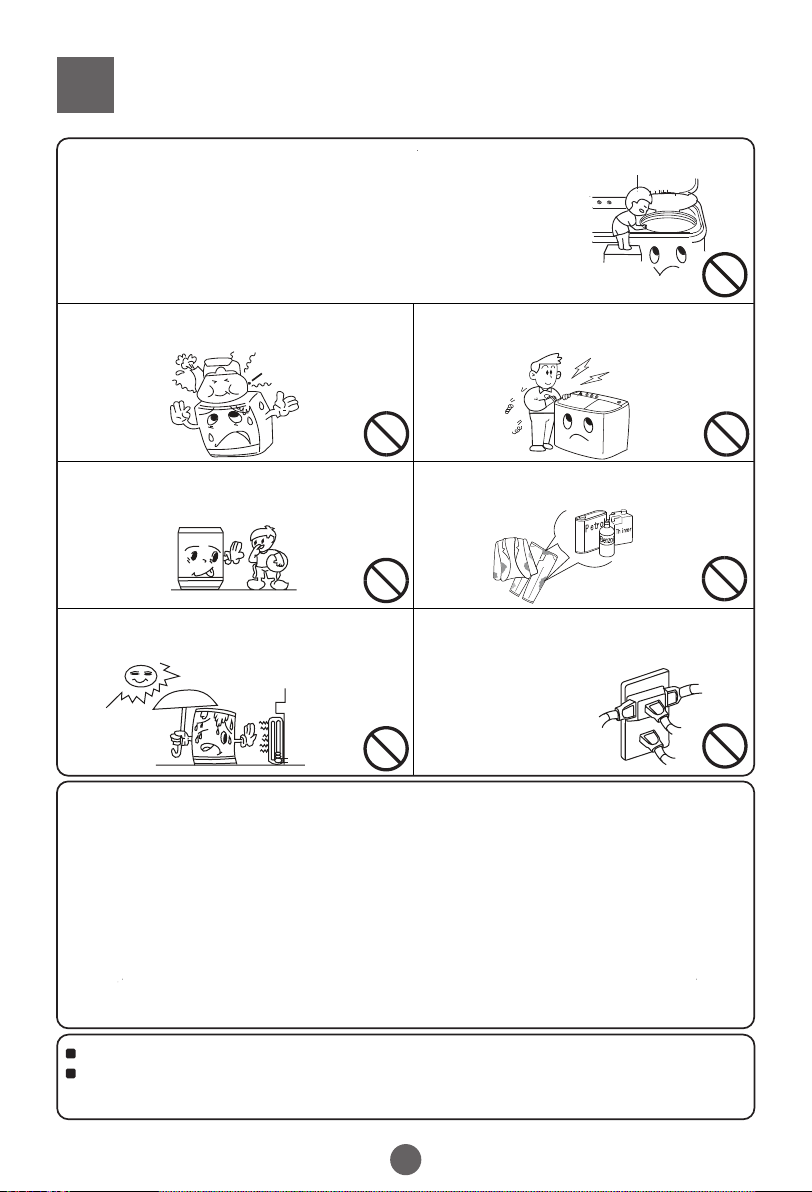

Do not put any high temperature or heavy
objects on the washing machine.
Disabled children or those not under adult
supervision should not operate the
machine.
Keep the machine away from direct sunlight
and heat sources like the radiator.
To guarantee your safety,please ensure the power outlet is grounded before use.
Please check if the water faucet is turned on and make sure you have the proper
water pipe connection.
Do not wash laundry with volatile or
flammable materials (such as thinner,
petrol etc.).
Do not attempt to take apart,repair or
alter the machine by yourself.
Do not stretch hands into the working machine.It is dangerous
even if the rotation is slow. Take special care of the children.
This appliance is not intended for use by persons (including
children) witheduce physical,sensory or mental capabilities of,
lack of experience and knowledge,unless they have been
given supervision or instruction conceming use of the
appliance by a person responsible for their safety.
Safety precautions
2
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities,or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance.
This appliance is intended to be used in household and similar applications such as:
– staff kitchen areas in shops, offices and other working environments;
– farm houses;
– by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– areas for communal use in blocks of flats or in launderettes.

Packing list
Machine components
3
Name Quantity
Twin- tub washing machine
Water intake hose
Owner’s manual
One
One
One
Gland One
One
Draining hose
(on model HWM130-M186,HWM150-M186)
Bottom leg
(on models HWM130-M186,HWM150-M186)
Wash time Spin time Wash selector
If you wish to set it for less
than 2 min,you should first
turn past 6 min and then
turn back.
Intensity can be set to
standard,soft and drain.
If to set less than 1 min,in
order to ensure a long
service life,please first turn
past 2 min and then turn back.
On model HWM105-M186.
Five
0
1
2
3
4
5

Machine components
Important notes:
All illustrations contained in this manual have a reference purpose only.Your washing
machine as well as the accessories may look different from these illustrations.
4
Wash timer Spin timer Wash selector Drain
If you wish to set it
for less than 2 min,
you should first turn
past 6 min and then
turn back.
Intensity can be
set to standard,
soft.
Warning:do not
set the switch on
Drain position
during washing.
If to set less than 1 min,
in order to ensure a
long service life,please
first turn past 2 min and
then turn back.
Drain selector knob
Wash type selector knob
Wash timer
Wash tub cover
Water inlet port
Water inlet switch
Control panel
Main frame
Drain hose
Spin tub exterior cover
Spin tub interior cover
Spin timer knob
Spin tub frame
Spin tub
Wash tub
Overflow filter
Lint filter
Pulsator
Base
On models HWM130-M186,HWM150-M186.
0
1
2
3
4
5

Installation and adjustment
5
For your security and to ensure correct operation of the machine, please install and
adjust the machine according to this manual’s instructions.
Installation of the lint filter
Place the bottom side of the lint filter in to the overflow
filter , then push the top side into the overflow filter.
After installation, please double check to make sure
that the lint filter is installed in the correct location;
otherwise it may fall off during operation.
Drain hose usage
Drain hose drainage should be smooth and unobstructed.
1.The height of the drain hose shall be less than 10cm,
or the drainage will not be smooth enough and cause
incomplete drainage.
2.Do not tramp or press the drain hose.
3.If the drain hose is too long, cut it at mid point.
To make smooth drainage, cut the front end of
the hose slantingly.
4.If extra drain hose is needed, please make
separate purchase. The inner diameter of the
extra hose shall not less than 30mm,and the
length shall not exceed 1.5m.
5.If the extra hose is too long, cut it either at point A or B.
overflow filter
lint filter
overflow filter
lint filter
On model HWM105-M186 On models HWM130-M186,HWM150-M186

Installation and adjustment
Change the direction of the drain hoses
6
Drain valve parts 2.Install the drain hose
1.Remove the cover
The drain hoses in the wash tub when out off factory,brfore use the machine,please
screw the drain hose on the drain valve parts,make sure the drain hose fixing as
necessary.
On models HWM130-M186,HWM150-M186
Figure 1
Figure 2
Figure 3
Figure 4
Figure 1 shows the factory installation position of the
drain hose.
1.Remove the drain hose from the hanging hole on
the cabinet.Pull the drain hose fixing hook outwards
gently to take out the drain hose from the two fixing
hooks.(See Figure 2)
2.Turn 90° the drain hose fixing hookto remove it from
the installation hole.(See Figure 3)
3.Install the two drain hose fixing hooks taken out,into
the installation hole at the other side of the base
frame (to aim at the installation hole accurately you
can lean the washing machine forward slightly).
Then turn 90°.(See Figure 4)
Extend the drain hose from the spin tub side:
drain hose fixing hook
Side Section View
drain hose
fixing hook
drain hose
take off drain hose
slightly
pull out
fixing hook
installation hole
take off the fixing
hook downwards
turn 90° the
fixing hook
insert the fixing hook into
the installation hole upwards
turn 90° the
hook to fix it
On model HWM105-M186

Install the washer legs
1.Carefully tilt the washing machine to the back and install the bottom legs at the
front of the base.Make sure that the legs are installed in place.(Figure 1).
2.Carefully tilt the washing machine to front and install the bottom legs at the back
of the base.Make sure that legs are installed in place.(Figure 2)
Bottom legs Bottom legs
Figure 1 Figure 2
Installation and adjustment
Install the water intake hose
7
Insert the water intake hose into the
water-inlet entrance on the control panel.
Add water as necessary.
Water intake hose
Water inlet
Only on models HWM130-M186,HWM150-M186

Pre-wash Preparation
Basic know-how
8
The maximum capacity during washing and spinning cycles
refers to the max weight of standard dry laundry that can be
washed or spun at one time.The laundry quantity during one
washing cycle should be lower than the rated capacity.
Thickness,size,and the type of cloth will influence actual
washing capacity.It is acceptable to put in a reasonable
amount of laundry as the laundry will be mixed around
during the washing process.
To avoid splashing,do not select the “Maximum”water
level for low loads.
Using high sudsing detergent is not recommended.
Check to see if the items have special
washing requirements.
Pay attention to followings before washing the laundries
Put hard to absorb water items into the
machine by hand.
Empty out pockets.
Take out any coins,sand,
hairpins.
Check to see if the items are appropriate
for use with the washing.
Do not overload the washer.
Stretch and loosen the
laundry before putting it
into the washer.
Tie any long strips;
fasten buttons;and
close any zippers.
For laundry that is susceptible to lint balls
and/or has long fur,turn it inside out
before putting it in the washer.
Do not put laundry polluted by chemicals
into the washing machine directly.
For heavily solied laundry,try to remove
dirt such as mud or dust first and apply
detergent in advance.This will help to
remove the stains more easily.
Divide non-colorfast laundry from other
laundry.
When the pulsator is running,some noise may emit from laundry
that contains buttons.To minimize this noise,surround laundry
with buttons with other laundry.

Pre-wash Preparation
Detergent use
Using bleach detergent:
How to add detergent:
9
Method 1 - directly dissolving in the machine:
1.Add a small quantity of water to the machine.
2.Add the detergent power.Run washing machine for 30 seconds to dissolve powder
completely.
3.Place laundry into the washing machine and select a suitable water level.
Method 2 - instantly dissolving the detergent powder:
1.Prepare warm water at 30°C and a container.
2.Add the detergent powder while stirring until it dissolves fully.
Laundry powder is more prone to damage laundry than liquid detergent.
Please exercise caution and do not exceed the maximum quantity.
Dosages of detergent powder may vary.please follow the instructions on the
detergent.
Add water to suitable levels.Dilute the bleach with a separate container.Pour it slowly
into the washing machine.
Avoid using whitening agents on laundry with colors and/or pattems as they are prone
to lose color.
The whitening agent should not come in direct contact with the laundry.
Refer to the product instructions for information on proper usage and quantity.
Dissolve powder whitening agents before use.

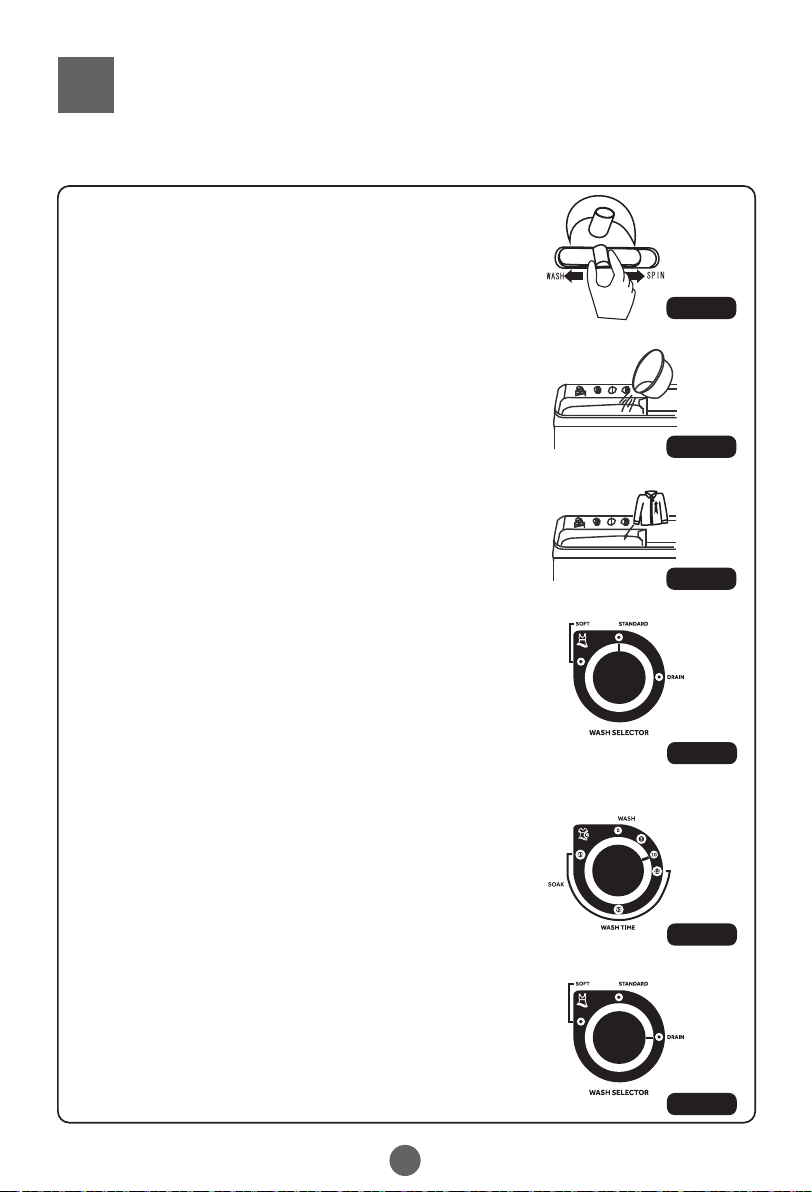

Washing sequence
Washing
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
10
4.Select intensity.
Select “SOFT” or “STANDARD” water flow
intensity according to the wash load.(Figure4)
5.Select wash time.
Select wash time according to the wash load. (Figure5)
The washing instruction with soaking:
a.0-15 minutes is normal washing;
b.15-45 minutes is sport soaking and the pulsator will run 2.5 minutes
each 7.5 minutes interval, until sport soaking is end, finally it is
15 minutes normal washing;
c.When the user select the soaking, firstly make sure the detergent
powder is fully dissolved. Otherwise it may be harmful to clothing.
1.Inlet selector
Set the selector to “WASH”.(Figure1)
2.Add water
Machine begins to dispense detergent uniformly.(Figure2)
3.Put in the wash load. Add more water as
necessary.(Figure3)
6.After the wash is completed, set the switch to the
“DRAIN” position.(Figure6)
TOR

Mid-wash spin cycle
Washing sequence
11
1. Put the laundries into the spin tub evenly and smoothly.
2.Spin:
a.Distribute the laundry into the spin tub smoothly and evenly.
Note: the gland must be inserted properly even if the laundry quantity is small.
b.Close both the inner and outer covers of the spin tub.
c.Spin for 1-2 minutes.
Push Push
Proper Proper
The laundry
is slanted.
Gland
No gland
Outer cover of
the spin tub
Inner cover of
the spin tub
TOR
3.Run the foam-removing spinning.
a.Open the outer cover of the spin tub.
b.Set the water-filling selector control rod at
the "SPIN" side. Fill water for about 1 minute.
If the water quantity filled is too large,the
water may flow out from the wash tub side.
Please twist the water tap to limit the water
filling.
c.Close the outer cover of the spin tub.
Spin for 1-2 minutes.

Washing sequence
The rinse cycle
Spinning
12
Rinse with water-filling
1.Place laundry into the washing machine.
Place laundry into the washing machine. Select the appropriate current according
to the laundries.
2.Add water.
Add the appropriate amount of water.
3.Rinse.
Adjust the wash timer to 5-7 minutes for the rinse cycle.
Rinsing with stored water
(Repeat the mid-wash spin cycle and rinse cycle with stored water 2-3 times)
1.Place laundry into the washing machine. Select the appropriate current
according to the laundries.
2.Fill up water to the preset level.
3.Rinse.
Adjust the wash timer to 2-3 minutes for rinsing.
When the laundry quantity is low, use the “SOFT” current. If you use the
“STANDARD” current, the water may splash.
1.Distribute laundry into the spin tub evenly and smoothly.
2.Insert the gland into the tub properly.
Close the inner and outer covers of the spin tub.
3.Spin.
Select an appropriate spin time according to the condition of the laundry, and start
the spinning cycle.
During the spinning cycle, if any abnormal sound occurs, it is generally due to the
laundry being placed in a slanted fashion.Please stop the machine and re-arrange
the laundry accordingly.
During the spinning cycle, the machine will pause if the outer cover of the spin tub
is opened. Close it to resume the spinning cycle.
To run spinning and draining or rinsing with water-filling
one after the other, first run the spinning cycle for around
1 minute, then draining or rinsing with water-filling.
Otherwise the spinning will stop automatically because
of the excess water in the spin tub.

Disposal after washing
Cleaning the lint filter
After each use, be sure to clean the lint and foreign materials from the lint filter and
the overflow filter in a timely fashion. Removing lint is important for healthy operation
of the machine.
Please remove the plug from the power outlet first before cleaning.
13
The lint filter should always be used during washing and should be cleaned after
each use in a timely fashion.
1.To remove the lint filter, first press the elastic
piece at the upper end of the filter to release
the tab from the filter cover, then pull outward.
2.Pull the lower end of the lint filter rear cover
outward to separate it from the
lint filter front cover. Remove lint completely
by rinsing with clear water.
3.Re-install the lint filter.
lint filter front cover
Dismantle
Install
lint filter rear cover
On Model HWM105-M186

14
The lint filter should always be used during washing and should be cleaned after
each use in a timely fashion.
1.To remove the lint filter, first press the elastic
piece at the upper end of the filter to release
the tab from the filter cover, then pull outward.
2.Pull the lower end of the lint filter rear cover
outward to separate it from the
lint filter front cover. Remove lint completely
by rinsing with clear water.
3.Re-install the lint filter.
Dismantle
Install
lint filter rear cover
Lint filter front cover
Disposal after washing
Cleaning the lint filter
On Models HWM130-M186,HWM150-M186

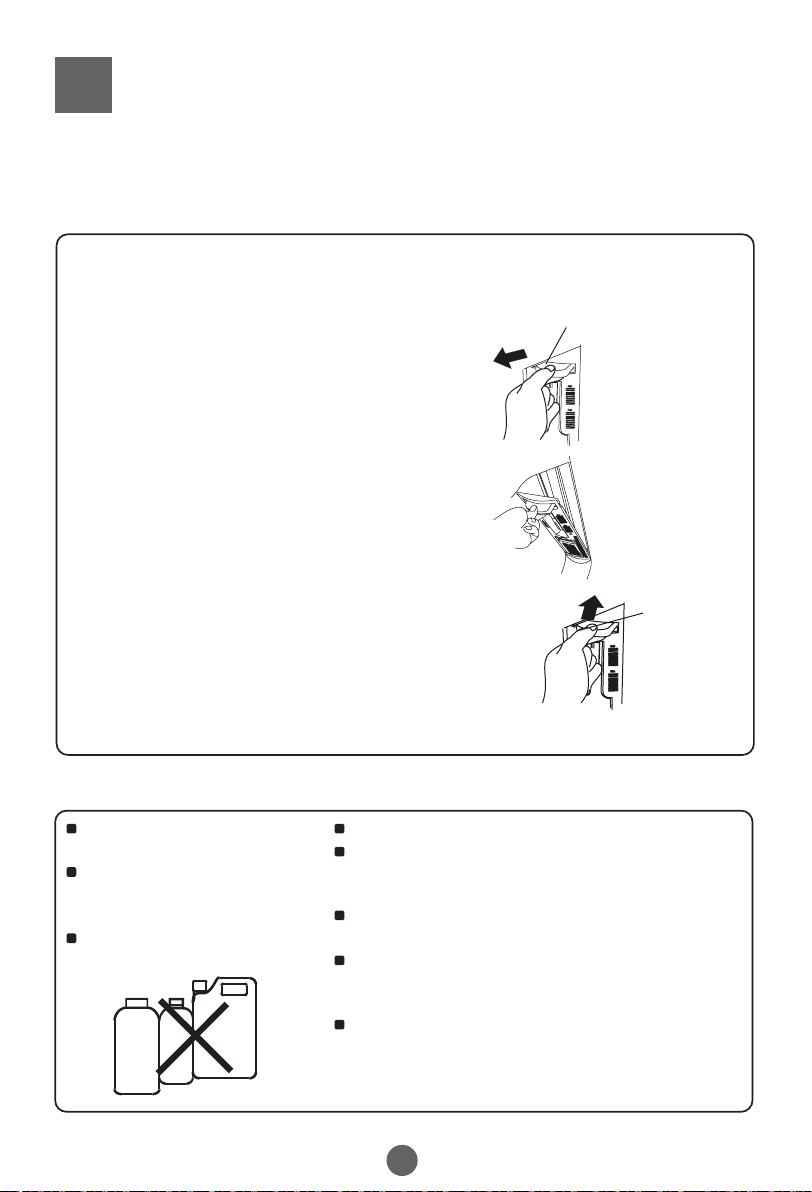

Disposal after washing
Cleaning the overflow filter
Too much lint in the overflow filter will influence normal usage of the machine.
Remember to clean it once every two months.
1.Take off the overflow filter.
Nip the elastic fixing claw and pull in the
direction of the arrow to remove (as
demonstrated in the figure to the right).
2.Clean the overflow filter.
Clean the lint around the filter and flush
with tap water.
Water level
selection lever
Corrugated
hose
3.Re-install the overflow filter.
a.Install the corrugation pipe.
b.Attach the mounting plate at the bottom
of the filter into the valve cover.
c.Hang the hook on the left upper side.
d.Push in the upper part.
Elastic fixing claw
Hook
15
On Model HWM105-M186

Cleaning the unit
16
Wipe the entire unit with a
soft dry cloth.
Use neutral detergent to wipe
if the machine is excessively
dirty.
Do not apply water directly
when cleaning.
After washing, disconnect the water intake hose.
Do not store water in the machine for long
periods of time. Drain the water immediately after
each use.
Pull out the power plug and hang up the power
cord.
Hang up the drain hose. Wipe off water drops on
the surface and inside the machine with a clean
soft cloth.
Open the cover of the wash cycle compartment
and the inner/outer covers of the spin cycle
compartment for a short period (about one hour),
then close them.
Thinner
Alcohol
Petrol
Disposal after washing
Cleaning the overflow filter
On Models HWM130-M186,HWM150-M186
Too much lint in the overflow filter will influence normal usage of the machine.
Remember to clean it once every two months.
1.Take off the overflow filter.
Nip the elastic fixing claw and pull in the
direction of the arrow to remove (as
demonstrated in the figure to the right).
2.Clean the overflow filter.
Clean the lint around the filter and flush
with tap water.
3.Re-install the overflow filter.
a.Install the corrugation pipe.
b.Attach the mounting plate at the bottom
of the filter into the valve cover.
c.Hang the hook on the left upper side.
d.Push in the upper part.
Elastic fixing claw
Hook

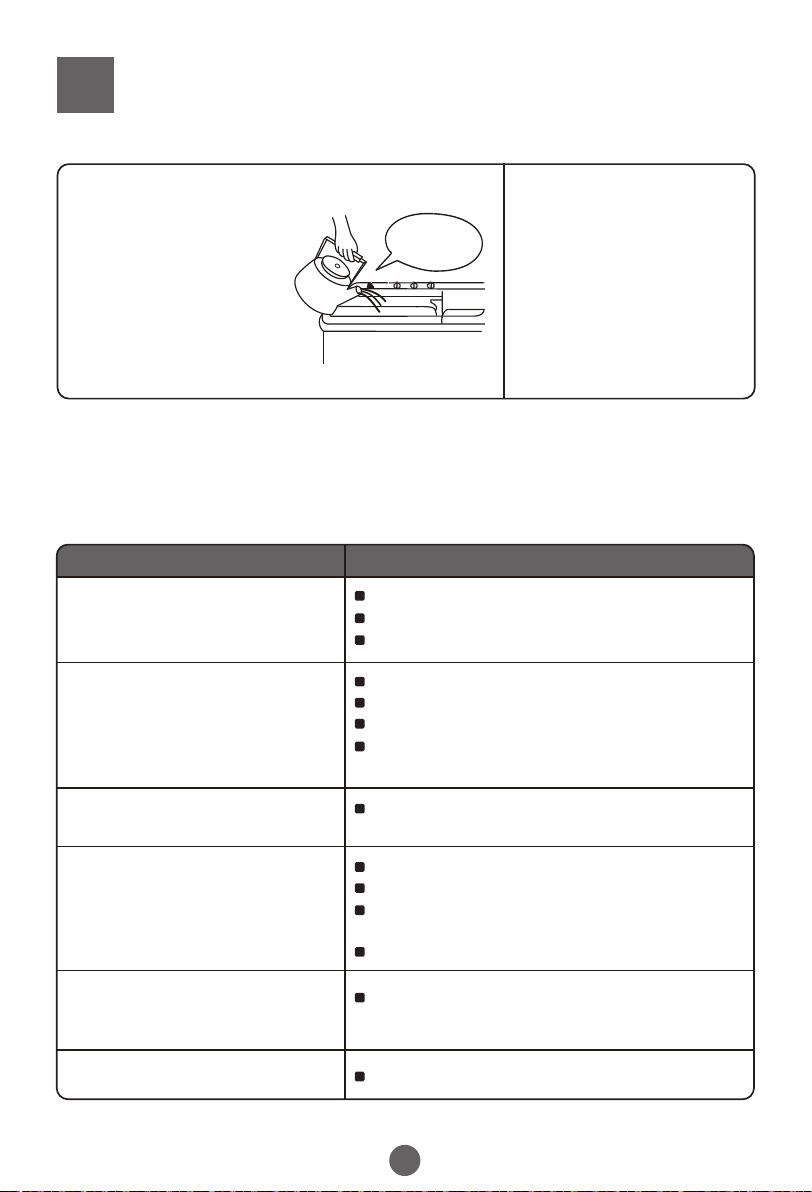

Troubleshooting
When the remaining water is frozen Prevent the freezing
17
Phenomena The reason
Pour hot water below 50°C
into the wash cycle
compartment to soak it
completely, then using
your hands gently turn
the pulsator. Confirm that
the drainage function is
operating normally before
next use.
(be sure to drain the water
completely after each use)
After completely draining, set
the “WASH SELECTOR” to
“STANDARD” or “OFF”. If it is
set to “DRAIN”,it will be
difficult for the frozen water
to melt.
Below 50
°C
2~3L
(If a breakdown occurs, always pull remove the power plug before inspecting the machine.)
The following situations do not always indicate a breakdown. Please double confirm
before sending the machine to be repaired.
If an actual breakdown occurs, visit the special maintenance department or after-sales
service department of our company. Do not attempt to repair the machine by yourself.
The machine does not start.
The draining function does
not work.
Abnormal sound during
washing.
Abnormal sound and violent
vibration during the spin
cycle.
Water flowing out of the drain
hose during the first use of
the machine.
The spin part does not work.
Is there a power failure?
Is the power plug loose?
Is the pulsator twisted by foreign materials?
Is the drain hose put down?
Is the drain hose frozen?
Is the drain hose blocked by foreign material?
Is there laundry adhering to the outer side of
the spin tub?
Are there hair pins, coins or metal items inside
the tub?
Is the machine slanting?
Is the gland pressed evenly?
Is there laundry adhering to the outer side of
the spin cycle compartment?
Is the spin cycle compartment overloaded?
This is the water left over after the factory
performance inspection.
Is the spin tub outer cover open?

Specifications
18
MADE IN CHINA
4(Max)/97L,3/81L,
2/60L,1/39L
4(Max)/102L,3/85L,
2/62L,1/41L
Model
Rated Voltage
Rated Frequency
Washing Capacity
Spinning Capacity
Injection pressure
Water level/Water quantity
(approximately)
HWM150-M186HWM130-M186
50Hz
15kg
10kg
0.02-0.2Mpa
50Hz
13kg
10kg
0.02-0.2Mpa
HWM105-M186
220-240V~ 220-240V~ 220-240V~
50Hz
10.5kg
6kg
0.02-0.2Mpa
MAX/89L,MID/76L
MIN/65L
