Haier HWM40-32W User manual

HWM40-32W
Single-tub Washing Machine
Names of the parts...........the 2nd cover
Safety precautions ...........................1
Installation and adjustment ..................3
Preparation before washing ..............5
Put in the laundries ............................6
Put in the detergent ............................7
Select the wash time ..........................7
Close the top cover .............................8
Finish washing ....................................8
Disposal after washing .........................8
Trouble shooting*Packing list...........9
Specification................the back cover
Contents
Before using
Using process
User's manual
Please read this manual carefully before using.
Retain it for future reference
Please check if the power receptacle has good earthing
condition before using to guarantee your safety.
The manufacturer will not bear the responsibility for
those risks occurred from not obeying this manual.

Contents marked with that symbol are related to the safety of the product
and the personal safety of the users. Please operate in strict conformity to
the contents.
Contents marked with that symbol are actions forbidden to perform.
Performing of those action may result in damage of the machine or
influence the personal safety of the users.
Water inlet jointer
Accessories
Water inlet hose
( one piece )
( one piece )
Base
Cabinet
Drain hose
Back cover
Fixing leg
(four pieces)
Power cord
Handle
Panel support
Pulsator
Lint filter(Installed by user)
Filter cap
Top lid
Before Using
Before Using

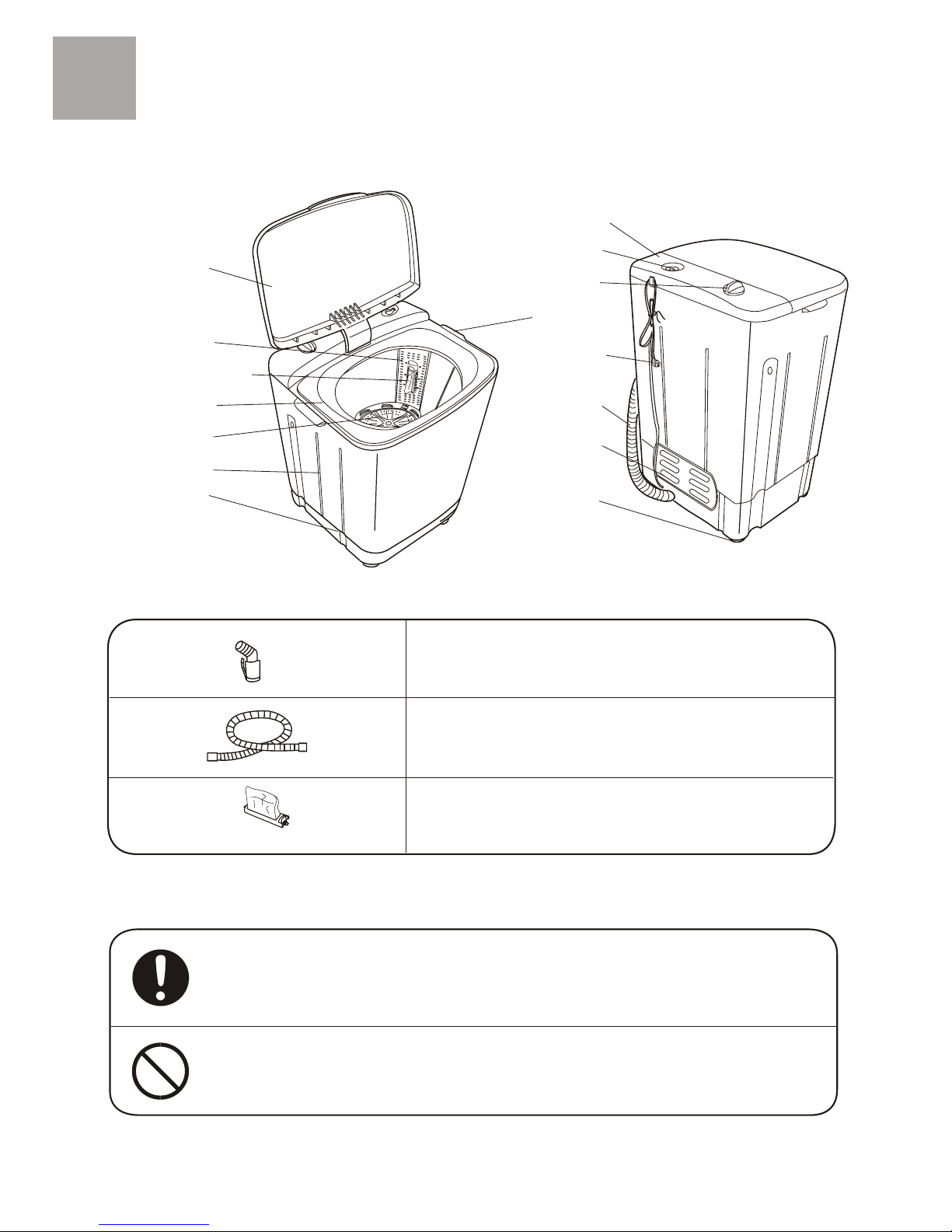

Names of the parts
Control panel
Water inlet
Timer knob
Lint filter
( one piece )
Meaning and description of the symbols

If the power cord is bad, to avoid risk it is required to replace it by the technicians of
our special shop or the after-sale service department. Keep the pin of the power
plug clean.
When the machine is normally using, please
put the power plug at the location easily to
be inserted and extracted by hand. Be sure
to pull the plug off when there'spower failure,
or the machine is being moved, cleaned or
when it is idle.
Before Using
Before Using
Safety precautions
In case the washing machine is installed
on ground with carpet , do not block the
ventilation hole with carpet.
Do not use water hotter than 50 C .
Do not share one receptacle with other
electric appliances. Do not use it in
case that the power plug is damaged
or the inserting into the receptacle is
loose.
Do not wash water-proof laundries such
as the raincoat, bicycle shelter etc. To
avoid abnormal vibration during spinning.
Do not put the machine at damp place
like the bathroom . Never wash it with
water. Do not place wet laundries on the
control panel.
Ventilation hole at
the bottom of the
washing machine
Earth
Please insert the power cord into special
receptacle with rated voltage.Be sure to
use single-phase three pins receptacle.
The earthing terminal of the receptacle
must be earthed reliably.If possible,please
adopt electric leakage protector.

Before Using
Before Using

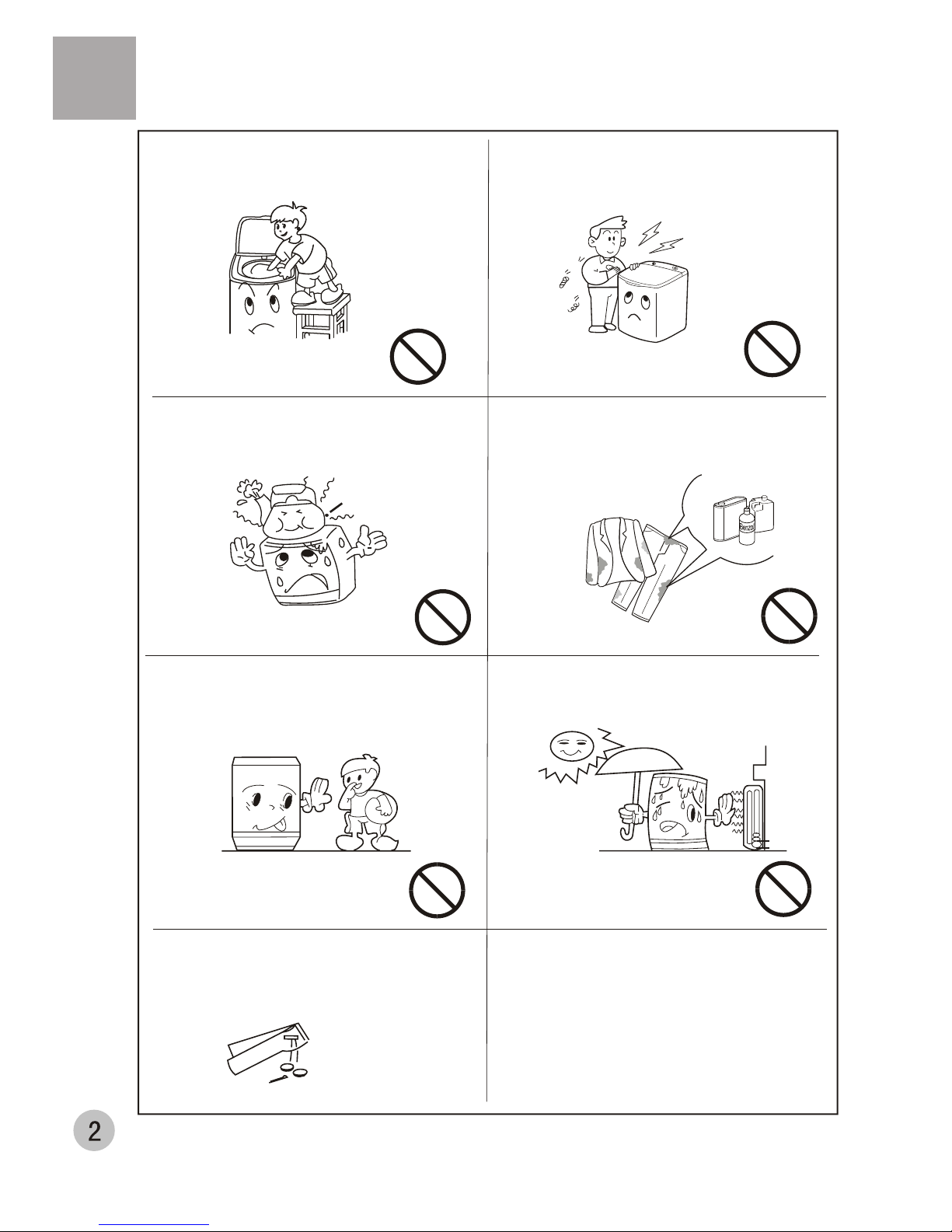

Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.
Handicapped or children without care
shall not use the machine.
Do not put any hot or heavy items
( such as the kettle with hot water )
on the washing machine.
Do not decompose, repair or alter the
machine by yourself.
Keep the machine away from direct
sunlight and heat source like the
heater.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.).
Petrol
Thinner
Safety precautions
Please check if the water faucet is open, and if
the connection of the water inlet pipe is proper.
It is suggested to use foamless washing powder.
Toprotect your laundries and washing
machine, please take out all of the coins,
buttons, sand, hairpin and other foreign
materials before washing.

Please install and adjust the machine according to the requirement of the manual.
It is very important to your security and correct operating the machine.

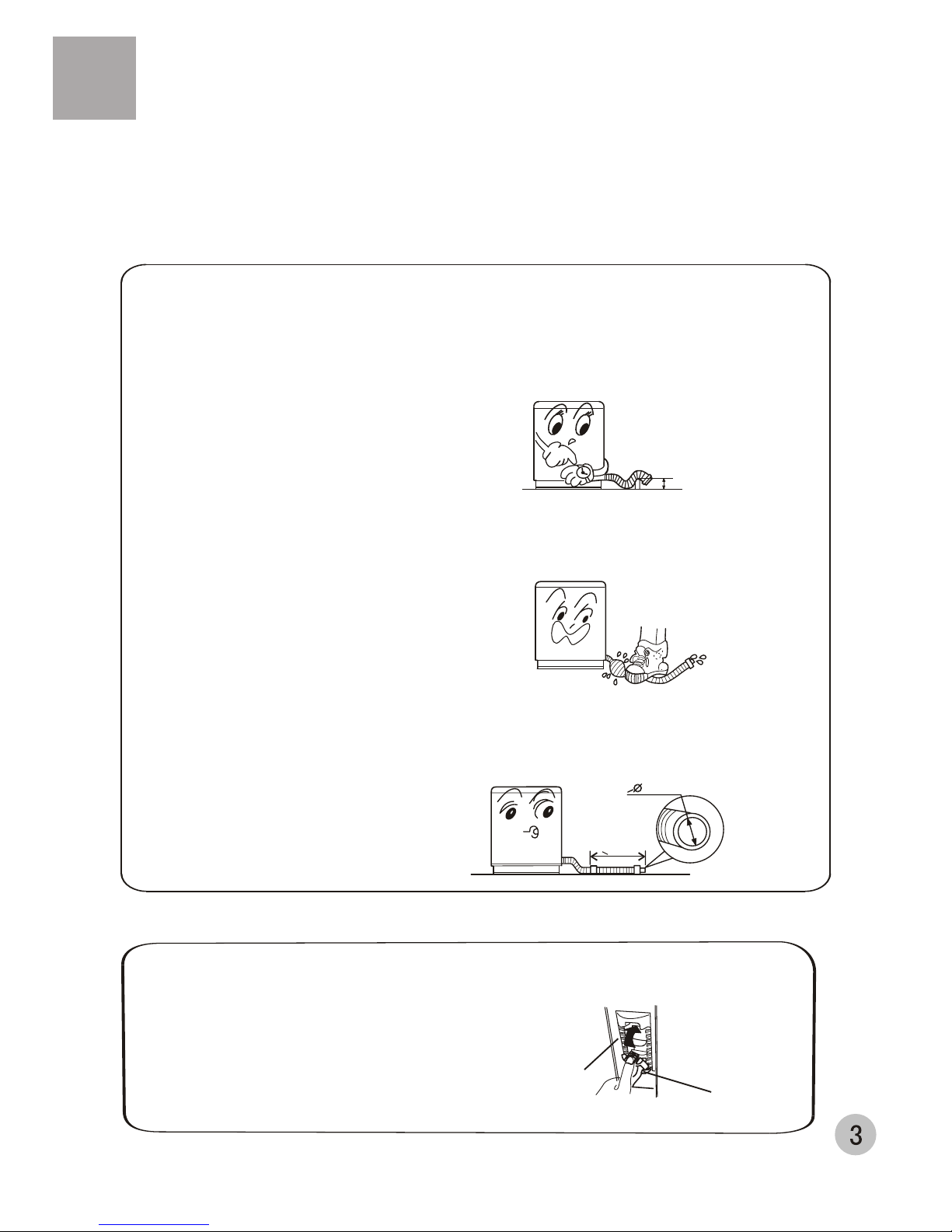

Usage of the drain hose
The drainage shall be smooth with the drain hose.
1.The height of the drain hose shall be
less than 10cm , or the drainage will
not be smooth enough and cause
incomplete drainage.
2.Do not step on or press the drain hose.
3.If extra drain hose is needed , the inner
diameter of the extra hose shall not less
than 30mm, and the length shall not exceed
1.5m.
<10cm
> 30mm
<1.5m
Before Using
Before Using
Installation and adjustment
Lint filter
Filter cap
After opening the package,please take out the lint filter
from the document bag,install it to the filter cap of the
cabinet.See to the figure
Install the lint filter

water inlet hose
water inlet jointer
control handle
push
water inlet entrance
Adjust the installation position
Install the water inlet hose ; Select the water level
The largest permitted slope of the bearing surface of the washing machine is 2.
Slanting or uneven ground will cause unstable operation of the machine. Please
check with following methods:
Hang a becket with weight to confirm if the washing machine is horizontal.
Insert the water inlet jointer into the
water inlet hose ,then push the jointer
into the water inlet on the control panel.
(To dismantle the water inlet hose,you only
need to push the control handle to the
direction indicated in the figure , then pull
the hose out.)
Fill the water to the water level selected
according to the quantity of the laundries.
Attention:
Put in the laundries first before
water inlet.
Do not exceed the " Maximum "
waterlevel ( water level 3 ) ,
otherwise the water may overflow
out of the machine.
Maximum
about 43L
about 36L
about 30L
Minimum
Medium
water level
indicator
Before Using
Before Using

Confirm if
there's special
requirement for
the laundries.
Clear the pocket.
Take out the
coins , sand,
hairpins etc.
Fasten the
buttons and
zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion,please
put the laundries
with buttons into
other laundries.
Preparation before washing
1.Connect the water inlet hose.
2.Confirm that the washing machine is
earthed reliably . Then insert the power
plug into the receptacle. Do not connect
the earth terminal to the gas pipe and
tap water pipe.
3.Hang the drain hose up.
The quantity of
the laundries
shall not exceed
the rated value.
The big laundries
like the jeans
shall be put in
loosely.
Using process
Using process
1 Preparation before washing
Pay attention to followings before washing the laundries
A. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like mud or dust.
For the parts with heavy soil, please apply detergent on them in advance, which
can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn it over before
putting in.
f. Do not put those laundries polluted by chemicals into the washing machine directly.

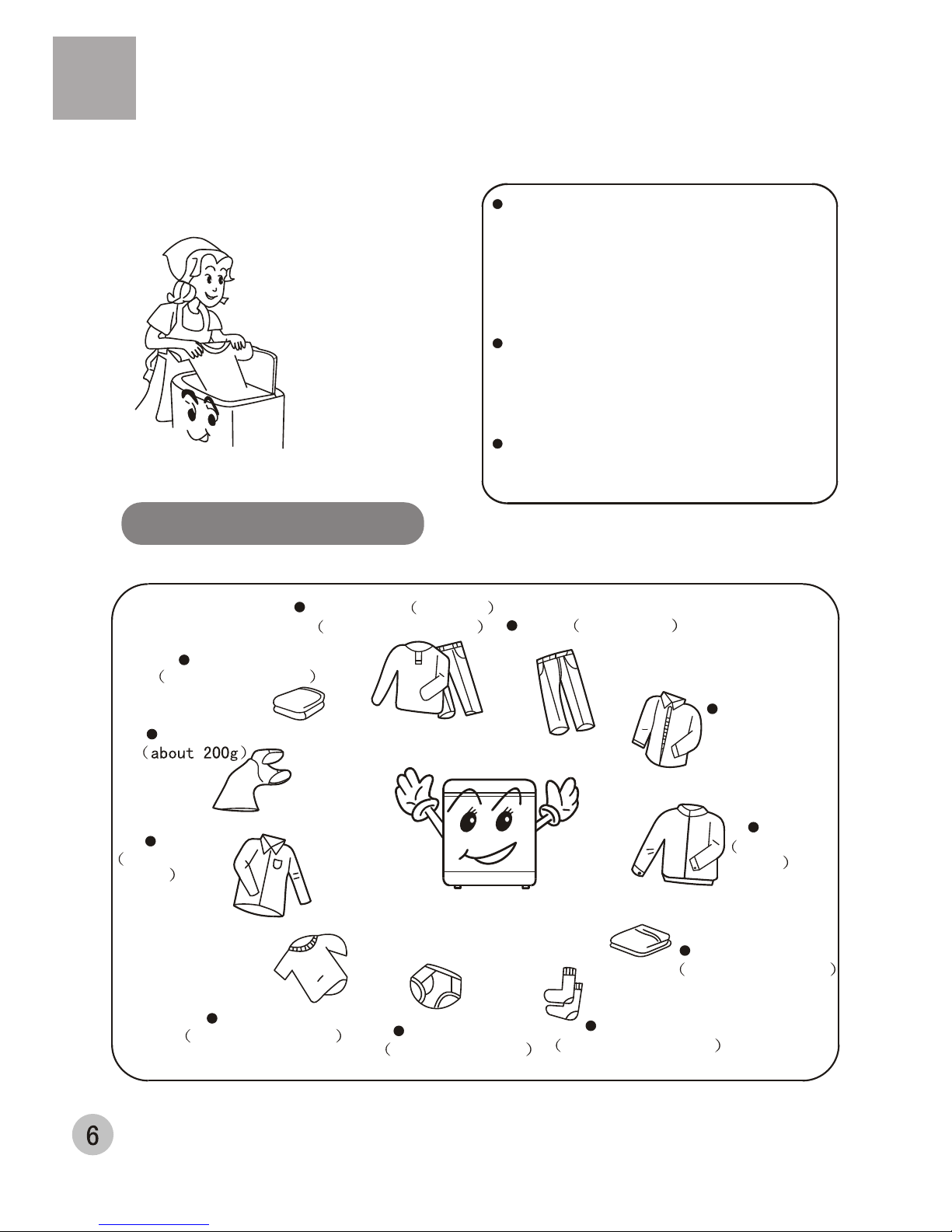

Reference weight of the laundries:
working suit up,down
jeans about 800g
The capacity of washing of the machine
refer to the largest weight of the standard
laundries under dry condition that can be
washed in one time. Laundries quantity
in one washing cycle shall be lower
than the rated capacity. The largest
capacity of this machine is 4.0kg.
The thickness ,size , type of the cloth will
influence the actual washing capacity. It
is suitable to put in reasonable amount of
laundries and the laundries can be turned
round in washing for one time washing.
Do not select " Maximum" water level
for laundries less than 2.0kg, so as to
avoid splashing of water.
blending coat
about 800g
shirt jacket
single bed sheet
socking
underpants
undershirt
pajamas
blanket
cotton,about 900g
cotton,about
300g
cotton,about
800g
cotton,about 600g
blending,about 50g
cotton,about 70g
cotton,about 180g
Using process
Using process
2 Put in the laundries
cotton,about 1120g

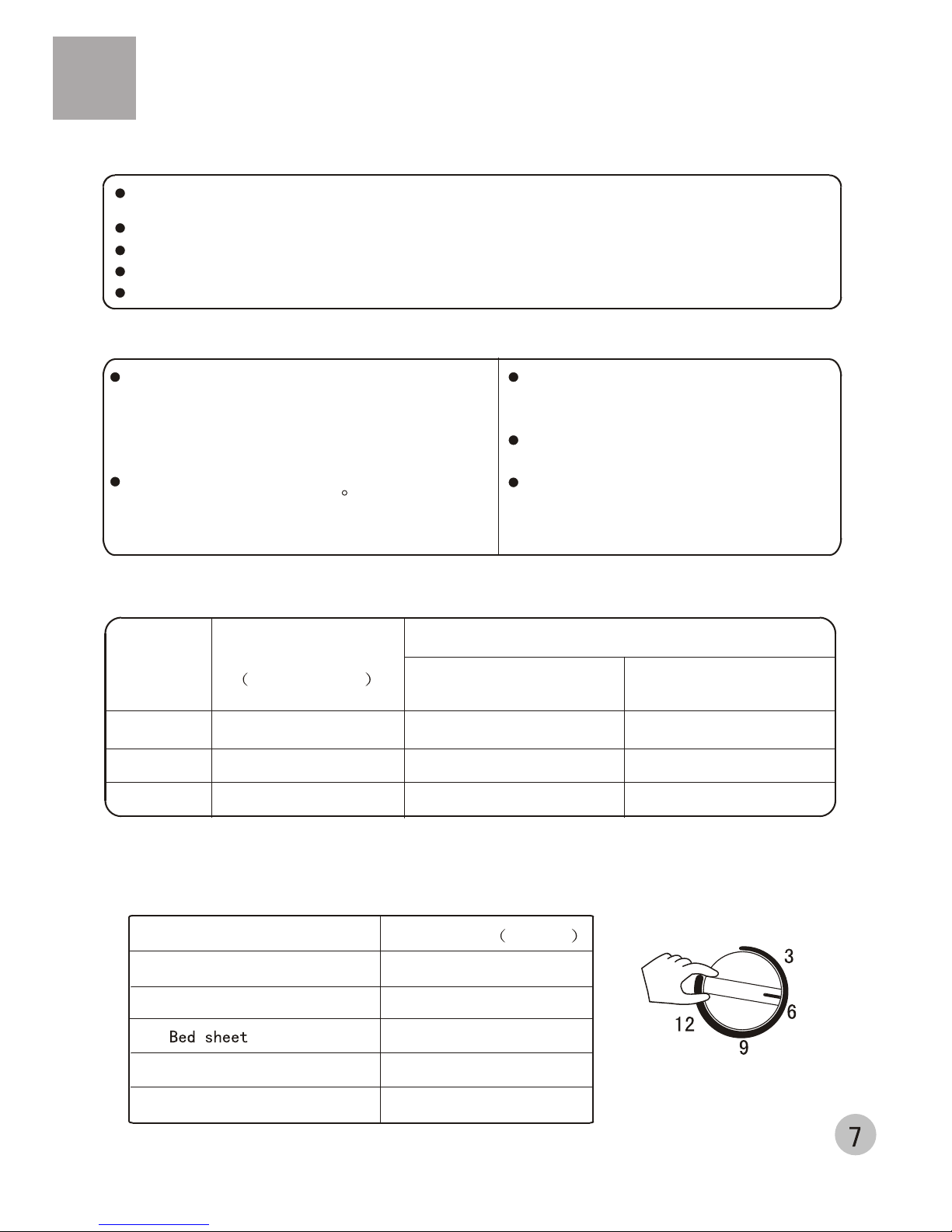

Selection of the quantity of the washing powder
How to use the washing powder
How to use the whitener
Fill water to decided level. Dilute the whitener with container. Pour it slowly into the
washing tub.
Avoid using whitener on laundries with color or pattern as they are prone to lose color.
The whitener shall not touch the laundries directly.
Direct dissolved in the machine:
1.Fill small quantity of water.
2.Add the powder . Run for 30 seconds to
dissolve it completely.
3.Put it in the laundries. Select suitable
water level.
The instant dissolving of the washing powder:
1.Prepare warm water of 30 C and a container.
2.Add the powder while stirring to fully
dissolve it.
The powder is more prone to pollute the
laundries than the detergent. Therefore
please use it with proper quantity.
It is suggested not to use high sudsing
detergent.
Dosage of different washing powder is
different. Please refer to the instruction
of the washing powder for the detail
dosage.
Refer to the user's manual for the usage and quantity of the whitener.
For powder whitener,please dissolve it before using.
Laundries
quantity Water level
Standard dosage
Concentrated washing
powder
Common washing
powder
Water quantity
About About
About About
About About
4.0kg~3.6kg
3.6kg~2.0kg
Below2.0kg
Maximum (about43L)
Minimum (about30L)
Medium (about36L)
36g
30g
25g
43g
36g
30g
Wash timer
OFF
Please select wash time according to the laundries.
Laundries Wash time minutes
Knitwear/chemical fiber
Cotton,blending,linen
Very dirty and thick laundries
Silk(thin laundries) About2 4~
About3~6
About7~13
About8~10
About10~13
3 Put in the detergent
4 select the wash time
Using process
Using process
(To set to below 2 minutes
first set to 5 minutes then
turn it back. It can increase
the service life of the timer)

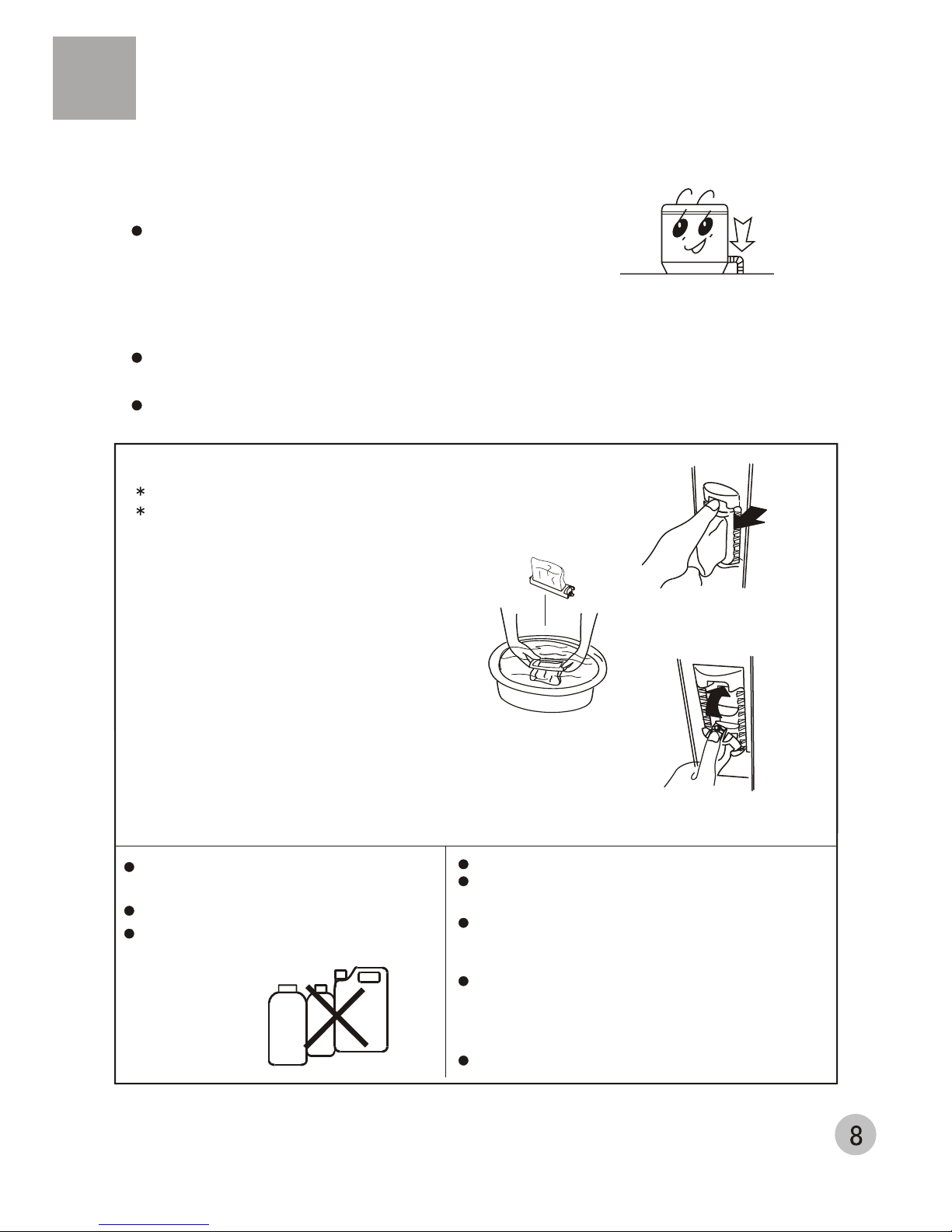

5 Close the top lid
6 Finish washing
7 Disposal after washing
The pulsator stops rotating. Put down the drain hose
to discharge the water.
After using, please clean the lint and foreign materials of the lint filter and lint frame in time.
Otherwise it may influence your using the machine.
Please first pull off the power plug from the receptacle before cleaning.
Figure 2
Figure 3
Figure 1
Thinner
Alcohol
Petrol
1. Take off the lint filter
Put hand at the indicated position.
Push down to take it off. (See to
Figure 1)
2. Clean the lint
Put it in water and clean while it is still
wet.(See to Figure 2)
Attention: be sure not to confuse the direction.
Wipe the complete unit with soft cloth
twisted dry.
Wipe with neutral detergent if too dirty.
After washing, dismount the water inlet hose.
Pull off the power plug and hang up the
power cord.
Do not store water in the tub for long period.
Discharge the water immediately after each
using.
Wipe off the water drops on the surface and
inside the tub with clean soft cloth. Open the
cover of the wash tub for some time (about
one hour), then close it.
Hang up the drain hose.
Do not wash it directly by water.
3. Install the lint filter
After cleaning, insert the bottom of
the lint filter (marked with "down side")
into the filter frame, then push the
upper part of the filter in (marked with
"up side"). (See to Figure 3)
The lint filter must be used during washing.
It must be cleaned in time after each using.
Cleaning the lint filter
Using process
Using process

Trouble-shooting
Packing list
The following phenomena are not breakdowns sometimes. Please confirm again before
sending it to repair.
Phenomena How to check
Is the power plug inserted tightly?
Is there power failure?
Is the machine slanting?
Is there metal item inside the tub?
Is the drain hose put down?
Is the front end of the drain hose blocked?
Is the drain hose frozen?
The washing machine
does not act
The drainage does not work.
There's abnormal sound
inside the machine.
User's manual 1pc
1set
1pc
1pc
Water inlet hose
Water jointerinlet
Washing machine
1pc
Lint filter
Inside the document bag
Inside the accessory bag
Inside the accessory bag
Inside the document bag

Type
Model
Rated voltage F
Water level Water quantity about
Rated washing capacity kg
Rated input power W
Dimensions(mm)
Weight kg
Injection pressure
requency
Single-tub washing machine
HWM40-32W
220V~ 50Hz
1/30L 2/36L 3/43L
4.0
325
L510 W420 H810
14
0.02MPa~0.2MPa
Specification
